Power Fist 8959843 User manual

User Manual
2/6A Fully Automatic Battery
Charger

CAUTION
1. This charger is designed for indoor use only and should never expose this
product to rain or wet conditions.
2. Make sure you are using proper AC line power voltage.
3. Do not attempt to use the charger if it has been dropped or damaged.
4. Never attempt to charge a damaged battery, frozen battery or non-
rechargeable battery.
5. Do not use the charger in a closed area or poorly-ventilated area.
6. The battery charger should be away from any heat source or ignitable air,
which would possibly cause explosion.
7. Don't replace the cord and plug.
8. If battery charger does not work properly, don't repair it on your own,
otherwise it would possibly be damaged and cause people injury.
9. Keep the battery charger away from children and animals.
10. Disconnect the battery charger after turning off.
11. Before charging, check the battery type and max. Charging current is
allowed, or get this information from battery supplier.
12. Use goggle during connect or disconnect battery charger to battery.
13. Do not operate this product in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust, could result in serious injury.
14. Don't insert any metal things into the ventilator of battery charger. To
reduce risk of damaging the Battery, avoid dropping any metal tools onto
the battery.
15. Don't put the battery charger too close to the battery during charging.
16. During charging, the battery must be placed in a well ventilated area
17. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
2/6A Fully Automatic Battery
Charger

18. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
19. It only can be used for lead-acid rechargeable batteries.
WARNING
•Warning against recharging non-rechargeable batteries.
•The battery terminal not connected to the chassis has to be connected first.
The other connection is to be made to the chassis, remote from the battery
and fuel line.
•The battery charger is then to be connected to the supply mains.
•After charging, disconnect the battery charger from the supply mains. Then
remove the chassis connection and then the battery connection.
•Cleaning and user maintenance shall not be made by children without
supervision.

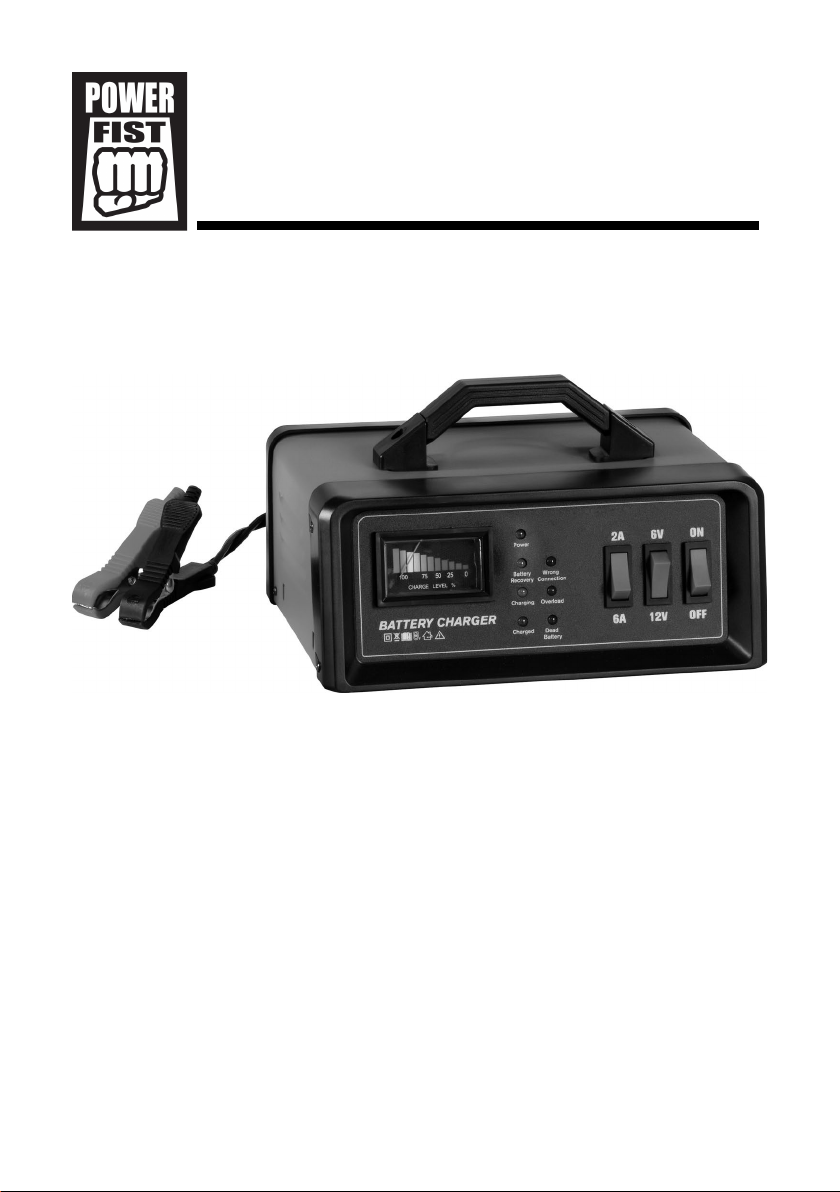

CONTROL BOARD & DISPLAY
1. Charging Current Switch
When charging the battery according to the battery capacity (refer to the battery
charging current can be recommended in the specification), the current
selection switch to select suitable battery charging current, charging current can
not exceed the maximum current of the battery, so as not to damage the
charger or battery.
2. Switch of Voltage Selection
Press switch up for charging 6V battery and press switch down for charging

12V battery. Charge voltage cannot be selected after charging or during
charging.
3. Switch of Power ON/OFF
Press switch up is ON and press switch down is OFF. Before you press the
switch make sure that the battery charging voltage is selected correctly, it is
very important, if you choose wrong, it will damage the battery or charger.
4. LED Display information
1. Power
2. Connect the Household power 120V AC, Turn on the power switch,
Green light.
3. Battery recovery
4. If the battery voltage is too low, Yellow light indicator flash, first to
recovery-charging(Max Amp 1A), it will last for one hour, if the battery
voltage can be recovered to be above 8.5V (12V battery), 4.5V(6V
battery), the charging light will turn on, recovery light will be off,
recovery-charging will turn to normal charging. If it can not be
recovered to normal voltage, dead battery red light will be on, recovery
light will be off.
5. Charging
6. When charging, yellow light will be on.
7. Charged
8. When charged, green light will be on, disconnect the battery
connection, light will be off.
9. Wrong connection
10. When the Red/Black clamp is circuit short or the battery is connected
reversely, or the charger is connected to 12V battery under the
condition of 6V, red light will flash.
11. Overload
12. If the internal temperature is above 80 C, the red light will be on, it can
be charged, if above 100 C, the output will be cut, charging light will be
off, this red light will be on.
13. Dead battery
14. If the battery can not reach the preset voltage above 8.5V(12V battery),
4.5V(6V battery), after 1 hour recovery, the recovery will stop, red light
will be on to judge it as a dead battery.
5. Ammeter display battery status
The ammeter indicates the battery capacity by the percentage of battery

capacity. 2 -6A Charging current be appropriate for 6-100 AH Lead-acid battery.
Warning: When charging, according to the battery voltage, select the charger
charging voltage, so that the charger output voltage to meet the requirements of
the battery requirements, so as not to use the wrong voltage charge battery.
CHARGING PROCESSION
1. Connect the battery charger to the mains power (120V AC):
Connecting 120V AC power supply, the power LED will indicate. If the output is
in a short-circuit situation, the LED will indicate "wrong connection", please
solve the problem.
2. Connecting the battery charger to your Battery
Connect the red clamp from the charger to the positive(+) battery terminal. The
Black clamp from the charger to the negative(-) battery terminal. (The "wrong
connection" LED will indicate if output reverse polarity connection, please re-
connect )
3. Start the charging
Connect AC plug to 120V power correctly, Select charging voltage 6v or 12 v
battery (If you are not sure the battery type please read the battery's rating label
first). Then connect both of clamps with battery terminals, turn on the power
switch and began charging, final select appropriate current.
SPECIFICATIONS PARAMETERS
•Rated input: 120V AC 50/60 HZ MAX 100W
•Max. Output: 6A
•Output: 12V/6VDC 2/6A
•Battery Type: 6V/12V Lead-acid Battery
•Max. capacity: 1 00Ah
•Output Display: LED and ammeter
Meaning of crossed -out wheeled dustbin:
•Do not dispose of electrical appliances as unsorted municipal waste, use
separate collection facilities.
•Contact you local government for information regarding the collection
systems available.
•If electrical appliances are disposed of in landfills or dumps, hazardous
substances can leak into the groundwater and get into the food chain,
damaging your health and well-being.
