2-WIRE TRANSMITTER
WITH HART®PROTOCOL
PRetop 5335
CONTENTS
Application................................................................................................. 2
Technical characteristics...................................................................... 2
Mounting / installation ......................................................................... 2
Applications............................................................................................... 3
Accessories ............................................................................................... 4
Order: 5335............................................................................................... 4
Electrical specifications........................................................................ 4
Connections .............................................................................................. 8
Block diagram........................................................................................... 9
Programming ............................................................................................ 10
Connection of transmitters in multidrop mode.......................... 12
Mechanical specifications ................................................................... 12
Mounting of sensor wires ................................................................... 12
Appendix.................................................................................................... 13
ATEX Installation Drawing - 5335A ............................................ 14
IECEx Installation Drawing - 5335A............................................ 16
ATEX Installation Drawing - 5335D ............................................ 17
IECEx Installation Drawing - 5335D............................................ 19
FM Installation Drawing - 5335D................................................. 21
CSA Installation Drawing - 5335D............................................... 23
INMETRO Instruções de Segurança ............................................. 24

2 5335V116-UK
2-WIRE TRANSMITTER
WITH HART®PROTOCOL
PRetop 5335
• RTD, TC, Ohm, or mV input
• Extremely high measurement accuracy
• HART® communication
• Galvanic isolation
• For DIN form B sensor head mounting
Application
• Linearised temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or
TC sensor.
• Differenceoraveragetemperaturemeasurementof2resistanceorTCsensors.
• Conversionoflinearresistancevariationtoastandardanaloguecurrent
signal, for instance from valves or Ohmic level sensors.
• AmplificationofabipolarmVsignaltoastandard4...20mAcurrentsignal.
• Connectionofupto15transmitterstoadigital2-wiresignalwithHART®
communication.
Technical characteristics
• Withina few seconds the user can program PR5335 to measure temperatures
within all ranges defined by the norms.
• TheRTDandresistanceinputshavecablecompensationfor2-,3-and4-wire
connection.
• The5335hasbeendesignedaccordingtostrictsafetyrequirementsandis
thus suitable for application in SIL 2 installations.
• Continuouscheckofvitalstoreddataforsafetyreasons.
• Sensorerror detection according to the guidelines in NAMUR NE 89.
Mounting / installation
• ForDINformB sensor head mounting. In non-hazardous areas the 5335 can be
mounted on a DIN rail with the PR fitting type 8421.
• NB: As Ex barrier for 5335D we recommend 5106B and 9106B.

5335V116-UK 3
APPLICATIONS
+-
+-
V+
mA
V+
mA
+-
+-
V+
mA
+-
+-
V+
mA
V+
mA
+-
+-
+-
+-
+
-
+
-
+-
+-
+-
+-
21
2
21
1
RTD to 4...20 mA
TC to 4...20 mA
Resistance to 4...20 mA
Dierence or average
RTD, TC or mV
2-wire installation
in control room
2-wire installation
in control room
2-wire installation
in control room
2-wire installation
in control room
mV to 4...20 mA 2-wire installation
in control room

4 5335V116-UK
Electrical specifications
Specifications range:
-40°C to +85°C
Common specifications:
Supply voltage, DC
Standard............................................................. 8.0...35 V
CSA, FM, ATEX, IECEx & INMETRO........... 8.0...30 V
Isolation voltage, test / operation.................... 1.5 kVAC / 50 VAC
Warm-uptime............................................................ 30 s
Communications interface ...................................  HART®and Loop Link
Signal / noise ratio .................................................. Min. 60 dB
Response time (programmable)......................... 1...60 s
EEprom error check................................................. < 10 s
Signal dynamics, input........................................... 22 bit
Signal dynamics, output ....................................... 16 bit
Calibration temperature ........................................ 20...28°C
Accuracy, the greater of general and basic values:
Order: 5335
Type Version
5335 Standard : A
CSA, FM, ATEX, IECEx & INMETRO : D
General values
Input type Absolute accuracy Temperature coefficient
All ≤±0.05% of span ≤±0.005% of span / °C
5909 = Loop Link USB interface and PReset Software
8421 = DIN rail clip
Accessories

5335V116-UK 5
Effect of supply voltage variation.................... < 0.005% of span / VDC
Vibration...................................................................... IEC 60068-2-6 Test FC
 2...25Hz............................................................. ±1.6 mm
 25...100Hz.................................................. ±4 g
Max. wire size............................................................ 1 x 1.5 mm2 stranded wire
Screw terminal torque ........................................... 0.4 Nm
Relative humidity.....................................................  <95%RH(non-cond.)
Dimensions................................................................. Ø 44 x 20.2 mm
Protection degree (enclosure / terminals)..... IP68 / IP00
Weight .......................................................................... 50 g
Basic values
Input type Basic accuracy Temperature coefficient
Pt100 & Pt1000 ≤±0.1°C ≤±0.005°C/°C
Ni100 ≤±0.2°C ≤±0.005°C/°C
Lin. R ≤±0.1 Ω ≤ ±5 mΩ/ °C
Volt ≤±10 µV ≤±0.5 µV / °C
TC type:
E, J, K, L, N, T, U ≤±0.5°C ≤±0.025°C / °C
TC type:
B,R,S,W3,W5 ≤±1°C ≤±0.1°C / °C
EMC immunity influence.................................................. < ±0.1% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst ................................. < ±1% of span

6 5335V116-UK
Electrical specifications, input:
Max. offset ................................................................. 50% of selec. numerical max. value
RTD and linear resistance input:
Cable resistance per wire (max.) ....................... 5 Ω
(up to 50 Ωper wire is possible with reduced measurement accuracy)
Sensor current........................................................... Nom. 0.2 mA
Effect of sensor cable resistance (3- / 4-wire) .... < 0.002 Ω/Ω
Sensor error detection........................................... Yes
Short circuit detection........................................... If 0% > 30 Ω
TC input:
Cold junction compensation ................................ < ±1.0°C
External CJC with Ni100 or Pt100 ................... -40 ≤Tamb. ≤135°C
Sensor error detection........................................... Yes
Sensor error current:
 Whendetecting............................................... Nom. 33 μA
Else....................................................................... 0 μA
Short circuit detection........................................... No
Type Min. temperature Max. temperature Min. span Standard
B
E
J
K
L
N
R
S
T
U
W3
W5
+400°C
-100°C
-100°C
-180°C
-100°C
-180°C
-50°C
-50°C
-200°C
-200°C
0°C
0°C
+1820°C
+1000°C
+1200°C
+1372°C
+900°C
+1300°C
+1760°C
+1760°C
+400°C
+600°C
+2300°C
+2300°C
100°C
50°C
50°C
50°C
50°C
50°C
100°C
100°C
50°C
50°C
100°C
100°C
IEC584
IEC584
IEC584
IEC584
DIN 43710
IEC584
IEC584
IEC584
IEC584
DIN 43710
ASTM E988-90
ASTM E988-90
RTD
type Min. value Max. value Min. span Standard
Pt100
Ni100
Lin. R
-200°C
-60°C
0 Ω
+850°C
+250°C
7000 Ω
10°C
10°C
25 Ω
IEC 60751
DIN 43760
-----

5335V116-UK 7
Voltage input:
Measurement range................................................ -800...+800 mV
Min. span ..................................................................... 2.5 mV
Input resistance........................................................ 10 MΩ
Current output:
Signal range............................................................... 4...20 mA
Min. signal range...................................................... 16 mA
Updating time ........................................................... 440 ms
(660 ms for diff.)
Fixed output signal................................................. Between 4 and 20 mA
Output signal at EEprom error............................ ≤ 3.5 mA
Load resistance......................................................... ≤ (Vsupply - 8) / 0.023 [Ω ]
Load stability............................................................. < ±0.01% of span / 100 Ω
Sensor error detection:
Programmable........................................................... 3.5...23 mA
(shorted sensor error detection is ignored at TC and mV input)
NAMUR NE43 Upscale........................................... 23 mA
NAMUR NE43 Downscale..................................... 3.5 mA
Of span = Of the presently selected range
Approvals:
EMC 2004/108/EC .................................................. EN 61326-1
GOST R
Marine approval:
Det Norske Veritas, Ships & Offshore............. Stand. for Certific. No. 2.4
Ex / I.S.:
5335A:
ATEX 94/9/EC.................................................. KEMA 03ATEX1508 X
IECEx.................................................................... KEM 10.0083 X
5335D:
ATEX 94/9/EC.................................................. KEMA 03ATEX1537
IECEx.................................................................... KEM 10.0083 X
FM......................................................................... 2D5A7
CSA ....................................................................... 1125003
INMETRO............................................................ NCC 12.0844 X
GOST Ex
Functional Safety:
HardwareassessedforuseinSILapplications
FMEDA report - www.prelectronics.com

8 5335V116-UK

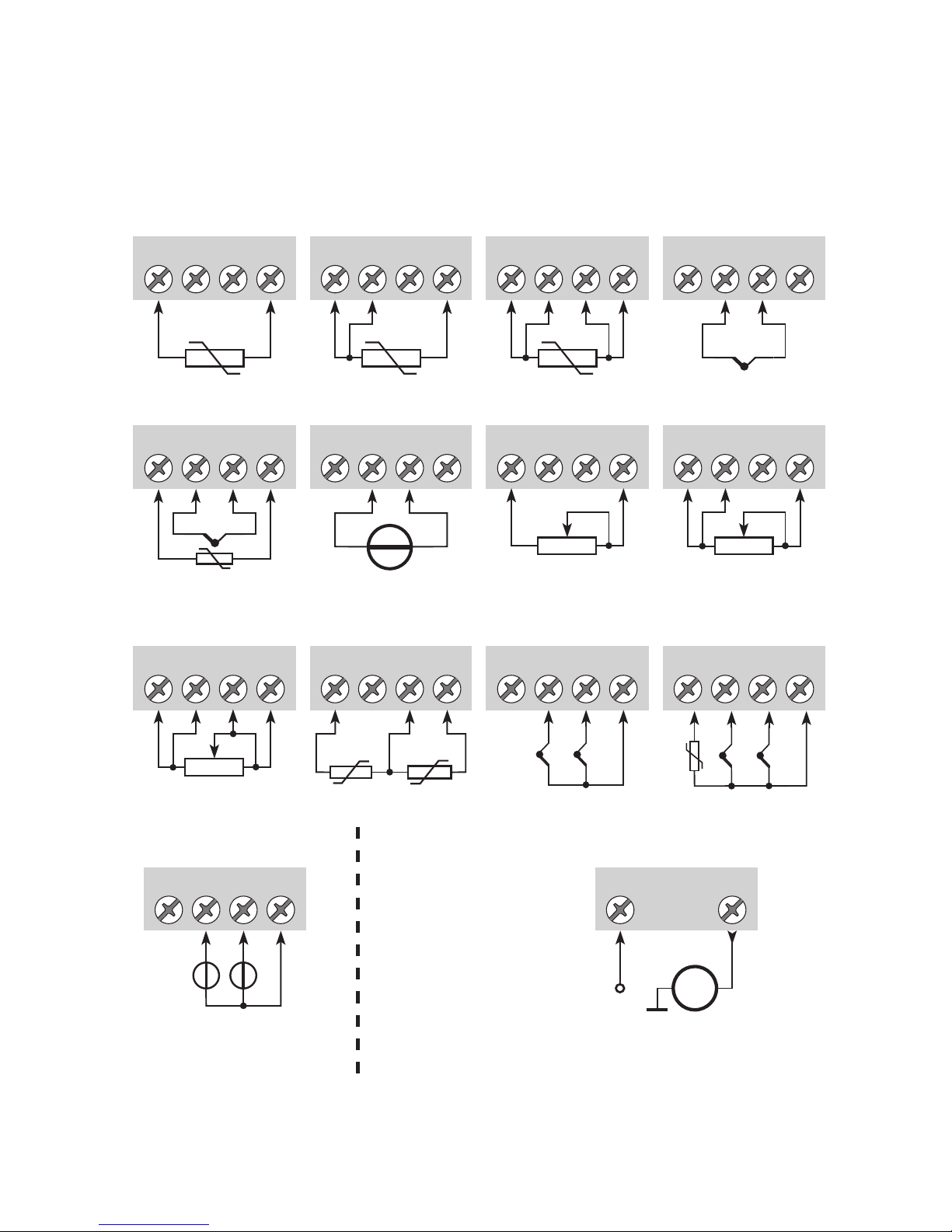

CONNECTIONS
3465 3 465 3 465 3 465
+
-
3465
+
-
3465
+
-
3465 3 465
3465 3 465
12
3465
+
-
1
+
-
2
3465
+
-
+
-
12
3465
+
-
+
-
1 2
mA -
+
2 1
Output: 2-wire installation
Input:
Resistance, 2-wire Resistance, 3-wire
RTD, 2-wire RTD, 3-wire RTD, 4-wire TC, internal CJC
TC, external CJC mV
Resistance, 4-wire
TC, dierence
or average,
with external CJC
mV, dierence
or average
RTD, dierence
or average
TC, dierence
or average,
with internal CJC

5335V116-UK 9
BLOCK DIAGRAM
0...16
mA
432
1
5 6 4 3
2
+
-
+
-
mV
mA
M UX
4 mA
5335
PGA
D /A
A /D
C PU
EE PRO M
Inputgnd.
Supply -
4...20 mA
TC
Ext.
CJC
mV RTD,lin.R
-wire
Int.
CJC
Ex circuit, only 5335D
Supply+
8.0...35VDC
Comm.

10 5335V116-UK
PROGRAMMING
PRetop 5335 can be configured in the following 3 ways:
1.WithPRelectronicsA/S’communicationsinterfaceLoopLinkandPResetPC
configuration software.
2.WithaHART®modem and PReset PC configuration software.
3.WithaHART®communicator with PR electronics A/S’ DDL driver.
1:Loop Link
For programming please refer to the drawing below and the help functions in
PReset.
Loop Link is not approved for communication with modules installed in
hazardous (Ex) areas.
1
2
*
*
PRetop 5335
Loop
Link 5909 - USB
FileProductInputOutputCommunication LanguageOption08:30:00
PRetop5331
Date:2004-8-10
043201594
PRelectronics
AnaloginputAnalogoutput
Serial no:
Inputtype:Outputtype:4-20mA
Upscale
Sensorerror:
Pt100DIN/IEC
0.00-50.00C
3-wire
1.00sec
------
Inputrange:
Connection:
Coldjunctioncomp:
Response time:
Tag no:
Disconnect
+Vsupply
*Connectedonlyfor
on-lineprogramming
Black
Red Yellow
Green
Input
Receiving
Equipment
Connector

5335V116-UK 11

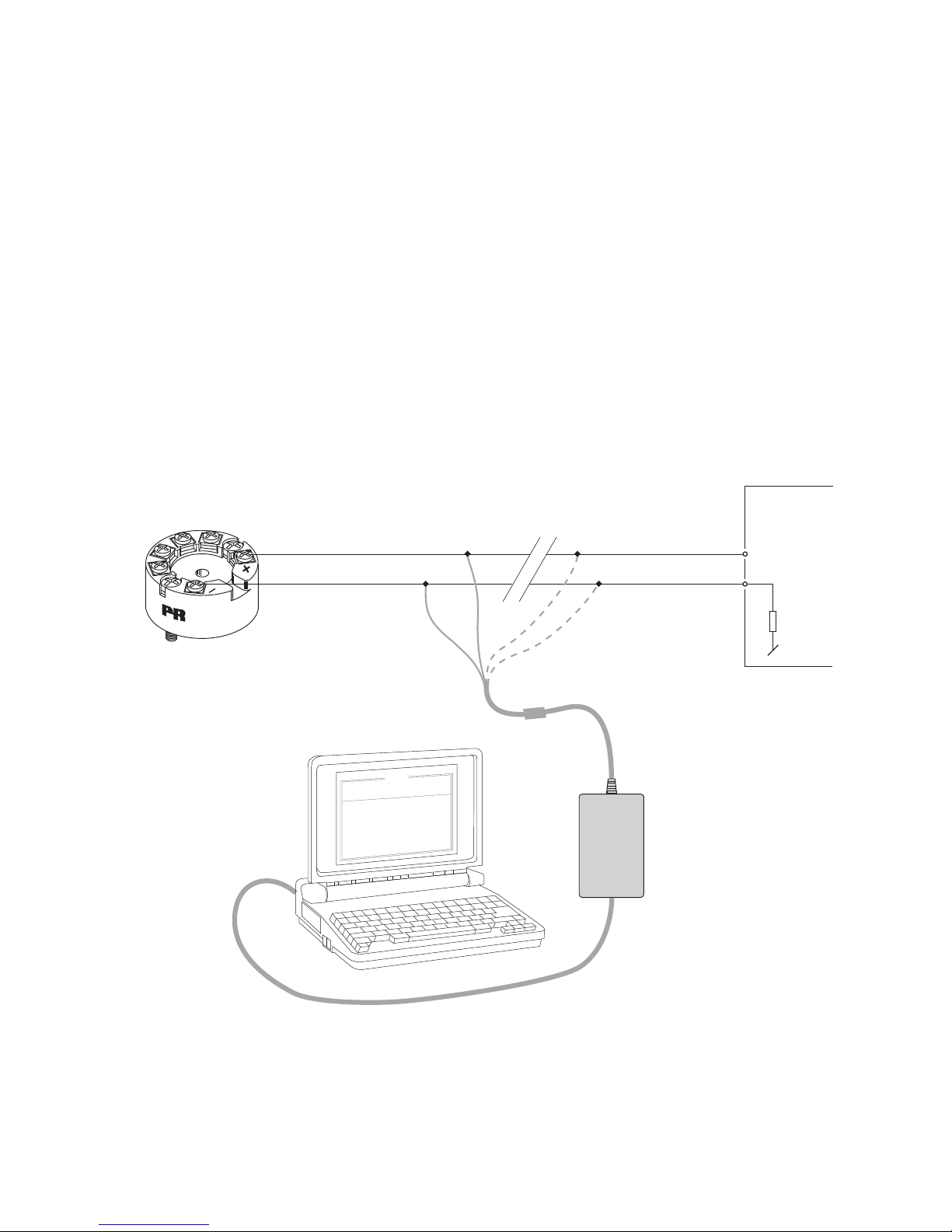

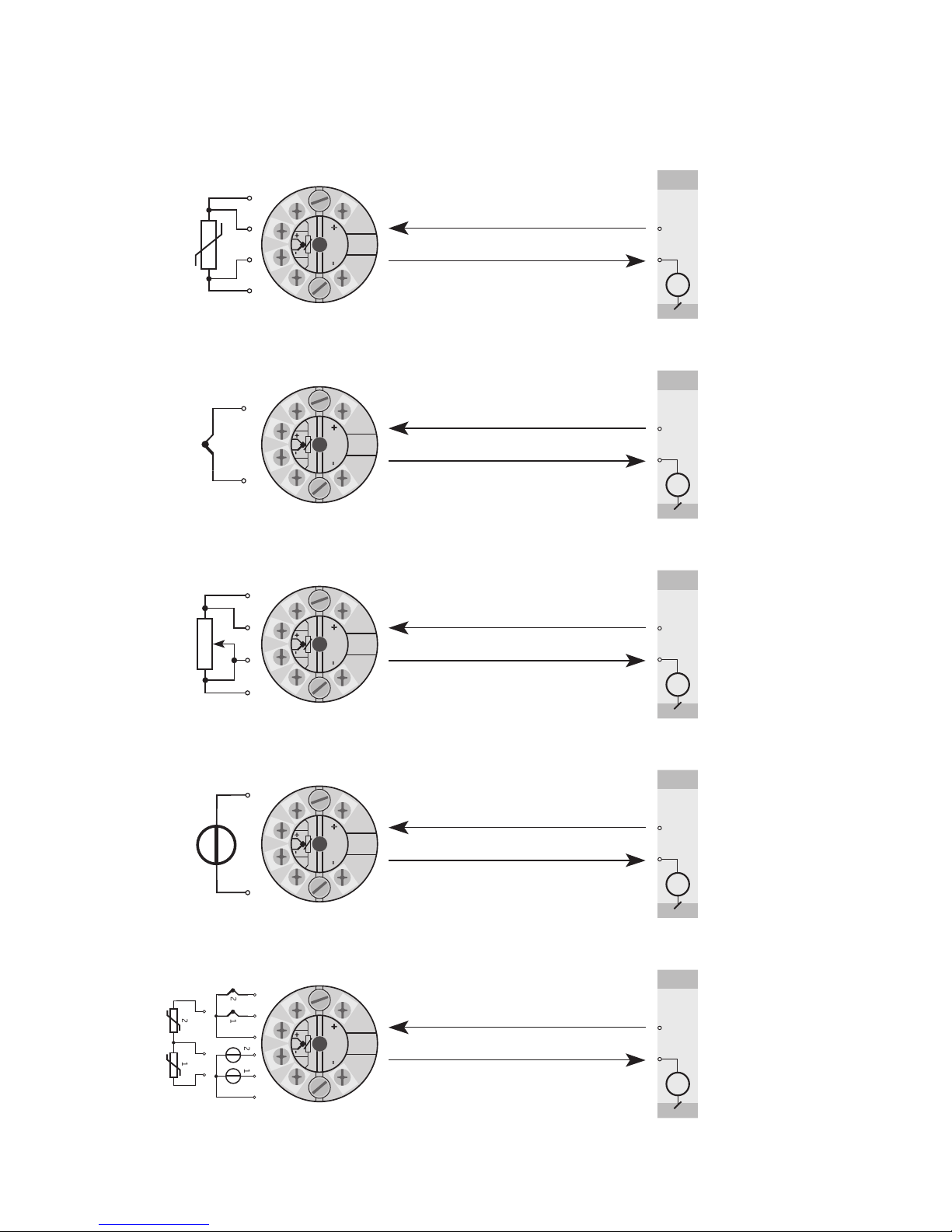

2:HART®modem
For programming please refer to the drawing below and the help functions in
PReset.
3:HART®communicator
For programming please refer to the drawing below. To gain access to
product-specificcommands,theHART®communicator must be loaded with
thePRelectronicsA/SDDLdriver.ThiscanbeorderedeitherattheHART®
Communication Foundation or at PR electronics A/S.
PRetop 5335
1
2
FileProductInputOutputCommunicationLanguageOption08:30:00
PRetop5331
Date:1994-8-10
943201594
PRelectronics
AnaloginputAnalogoutput
Serialno:
Inputtype:Outputtype:4-20mA
Upscale
Sensorerror:
Pt100DIN/IEC
0.00-50.00C
3-wire
1.00sec
------
Inputrange:
Connection:
Coldjunctioncomp:
Responsetime:
Tagno:
+Vsupply
Input
Receiving
Equipment
Rload > 250 Ω, < 1100 Ω
HART®modem
PRetop 5335
1
2
Safe area
+Vsupply
Input
Receiving
Equipment
area
Rload > 250 Ω, < 1100 Ω

20.2 mm
+ -
+ -
ø 6 mm
33 mm
ø 44 mm
12 5335V116-UK
CONNECTION OF TRANSMITTERS IN
MULTIDROP MODE
TheHART®communicator or a PC modem can be connected accross AB or BC.
The outputs of max. 15 transmitters can be connected in parallel for a digital
HART®communication on 2-wires.
Before it is connected, each transmitter must be configured with a unique number
from 1 to 15. If 2 transmitters are configured with the same number, both will
be excluded. The transmitters must be programmed for multidrop mode (with a
fixed output signal of 4 mA). Maximum current in the loop is therefore 60 mA.
The communication is either by means of a HART® communicator or a HART®
modem.
The PReset PC configuration software can configure the individual transmitter for
multidrop mode and provide it with a unique polling address.
Mechanical specifications Mounting of sensor wires
R
A
B
C
PRetop
5335
+
-
+
-
PRetop
5335
PRetop
5335
Power
supply
Max. 15 transmitters
Rload >250Ω,<1100Ω
Wiresmustbemountedbetweenthemetal
plates.

APPENDIX
ATEX Installation Drawing - 5335A
ATEX Installation Drawing - 5335D
IECEx installation drawing - 5335A
IECEx installation drawing - 5335D
FM Installation Drawing - 5335D
CSA Installation Drawing - 5335D
INMETRO Instruções de Segurança - 5335D
5335V116-UK 13

14 5335V116-UK
5335QE01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Doc. No.
5335QA02 V4R0
Page:
1/2
ATEX Installation drawing 5335QA02
For safe installation of 5335A or 5337A the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
ATEX Certificate KEMA 03ATEX 1508X
Marking
Standards EN60079-0:2012, EN60079-11:2012, EN60079-15:2010
General installation instructions
If the enclosure is made of non-metallic materials or of painted metal, electrostatic charging
shall be avoided.
For an ambient temperature ≥ 60ºC, heat resistant cables shall be used with a rating of at
least 20 K above the ambient temperature.
For installation in a potentialy explosive gas atmosphere, the following instructions apply:
For “Ex ic” the transmitter must be installed in an enclosure providing a degree of protection of
at least IP20 according to EN60529 that is suitable for the application and is correctly
installed.
For “Ex nA” the transmitter must be installed in an enclosure providing a degree of protection
of at least IP54 according to EN60529 that is suitable for the application and is correctly
installed, or in an enclosure with type of protection Ex n or Ex e.
Cable entry devices and blanking elements shall fulfill the same requirements
For installation in a potentially explosive dust atmposphere, the following instructions apply:
If the transmitter is supplied with an intrinsically safe signal "ic" and interfaces an intrinsically
safe signal "ic" (e.g. a passive device), the transmitter shall be mounted in a metal enclosure
form B according to DIN 43729 that provides a degree of protection of at least IP6X according
to EN60529, and that is suitable for the application. Cable entry devices and blanking
elements shall fulfill the same requirements.
T4: -40 ≤ Ta ≤ 85ºC
T6: -40 ≤ Ta ≤ 60ºC
II 3 G Ex nA [ic] IIC T6..T4 Gc
II 3 G Ex ic IIC T6..T4 Gc
II 3 D Ex ic IIIC Dc
Terminal: 3,4,5,6
Ex nA [ic]
Uo: 9.6 V
Io: 28 mA
Po: 67 mW
Lo: 45 mH
Co: 28 μF
Terminal: 1,2
Ex nA
U ≤ 35 VDC
I = 4 - 20 mA
Terminal: 1,2
Ex ic
Ui = 35 VDC
Li = 10 μH
Ci = 1.0 nF

5335V116-UK 15
5335QE01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Doc. No.
5335QA02 V4R0
Page:
2/2
If the transmitter is supplied with an non-sparking signal "nA", or interfaces a non
sparking signal, the transmitter shall be mounted in a metal enclosure form B according to
DIN 43729 providing a degree of protection of at least IP6X according to EN60529, and in
conformance with type of protection Ex tD and suitable for the application. Cable entry
devices and blanking elements shall fulfill the same requirements.

5335QE01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Doc. No.
5335QI02 V4R0
Page:
1/1
IECEx Installation drawing 5335QI02
For safe installation of 5335A or 5337A the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
IECEx Certificate IECEx KEM 10.0083X
Marking
Standards IEC 60079-0 : 2011, IEC 60079-11 : 2011, EN 60079-15 : 2010
General installation instructions
If the enclosure is made of non-metallic materials or of painted metal, electrostatic charging
shall be avoided.
For an ambient temperature ≥ 60ºC, heat resistant cables shall be used with a rating of at
least 20 K above the ambient temperature.
For installation in a potentialy explosive gas atmosphere, the following instructions apply:
For “Ex ic” the transmitter must be installed in an enclosure providing a degree of protection of
at least IP20 according to IEC60529 that is suitable for the application and is correctly
installed.
For “Ex nA” the transmitter must be installed in an enclosure providing a degree of protection
of at least IP54 according to IEC60529 that is suitable for the application and is correctly
installed, or in an enclosure with type of protection Ex n or Ex e.
Cable entry devices and blanking elements shall fulfill the same requirements
For installation in a potentially explosive dust atmposphere, the following instructions apply:
If the transmitter is supplied with an intrinsically safe signal "ic" and interfaces an intrinsically
safe signal "ic" (e.g. a passive device), the transmitter shall be mounted in a metal enclosure
form B according to DIN 43729 that provides a degree of protection of at least IP6X according
to IEC60529, and that is suitable for the application. Cable entry devices and blanking
elements shall fulfill the same requirements.
If the transmitter is supplied with an non-sparking signal "nA", or interfaces a non
sparking signal, the transmitter shall be mounted in a metal enclosure form B according to
DIN 43729 providing a degree of protection of at least IP6X according to IEC60529, and in
conformance with type of protection Ex tD and suitable for the application. Cable entry
devices and blanking elements shall fulfill the same requirements.
T4: -40 ≤ Ta ≤ 85ºC
T6: -40 ≤ Ta ≤ 60ºC
Ex nA [ic] IIC T6..T4 Gc
Ex ic IIC T6..T4 Gc
Ex ic IIIC Dc
Terminal: 3,4,5,6
Ex nA [ic]
Uo: 9.6 V
Io: 28 mA
Po: 67 mW
Lo: 45 mH
Co: 28 μF
Terminal: 1,2
Ex nA
U ≤ 35 VDC
I = 4 - 20 mA
Terminal: 1,2
Ex ic
Ui = 35 VDC
Li = 10 μH
Ci = 1.0 nF
16 5335V116-UK

5335V116-UK 17
5335QE01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Doc. No.
5335QA01 V4R0
Page:
1/2
ATEX Installation drawing 5335QA01
For safe installation of 5335D or 5337D the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws, directives
and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
ATEX Certificate KEMA 03ATEX 1537
Marking
Standards: EN 60079-0 : 2012, EN 60079-11 : 2012, EN 60079-26 : 2007
Non Hazardous Area
Hazardous area
Zone 0, 1, 2, 20, 21, 22, and Coal mining
T4: -40 ≤ Ta ≤ 85ºC
T6: -40 ≤ Ta ≤ 60ºC
II 1 G Ex ia IIC T6 ...T4 Ga
II 1 D Ex ia IIIC Da
I M1 Ex ia I Ma
1
2
6
5
4
3
+
-
Barrier
5335D
5337D
Terminal: 3,4,5,6
Uo: 9.6 VDC
Io: 28 mA
Po: 67 mW
Lo: 35 mH
Co: 3.5μF
Terminal: 1,2
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10μH
Ci: 1.0nF

18 5335V116-UK
5335QE01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Doc. No.
5335QA01 V4R0
Page:
2/2
Installation notes
General installation instructions
The sensor circuit is not infallibly galvanic isolated from the supply output circuit. However, the
galvanic isolation between the circuits is capable of withstanding a test voltage of 500Vac
during 1 minute.
If the enclosure is made of aluminium, it must be installed such, that even in the event of rare
incidents, ignition sources due to impact and friction, sparks are excluded.
If the enclosure is made of non-metallic materials or painted metals electrostatic charging shall
be avoided
For installation in a potentially explosive gas atmosphere, the following instructions apply:
The transmitter shall be mounted in an enclosure form B according to DIN43729 or equivalent
that is providing a degree of protection of at least IP20 according to EN60529 that is suitable
for the application and correctly installed.
For installation in a potentially explosive dust atmosphere, the following instructions apply:
The transmitter shall be mounted in a metal enclosure form B according to DIN43729 or
equivalent, that is providing a degree of protection of at least IP6X according to EN60529 that
is suitable for the application and correctly installed.
Cable entries and blanking elements shall be used that are suitable for the application and
correctly installed.
For installalation in mines the following instructions apply:
The transmitter shall be mounted in a metal enclosure that is providing a degree of protection
of at least IP6X according to EN60529, and is suitable for the application and correctly
installed.
Cable entries and blanking elements shall be used that are suitable for the application and
correctly installed
If the enclosure is made of aluminum, it must be installed such, that even in the event of rare
incidents, ignition sources due to impact and friction, sparks are excluded.
If the enclosure is made of non-metallic materials or painted metals electrostatic charging shall
be avoided.
The enclosure shall not contain by mass more than
a) 15 % in total of aluminium, magnesium, titanium and zirconium, and
b) 7,5 % in total of magnesium, titanium and zirconium.
