PR electronics PRetop 5334 User manual

5334
CCOE
2-Wire Programmable
Transmitter
No. 5334V110-UK
From ser. no. 141365001

1707
Revision Notes
The following list provides notes concerning revisions of this document.
Rev. ID Date Notes
108 13/45 IECEx and INMETRO approvals added
109 15/14 PESO/CCOE approval added
GOST approval replaced with
EAC approval
115 17/07 INMETRO installation drawings updated

5334V110-UK 1
2-WIRE
PROGRAMMABLE TRANSMITTER
5334
CONTENTS
Application................................................................................................. 2
Technical characteristics...................................................................... 2
Mounting / installation ......................................................................... 2
Applications............................................................................................... 3
Order: 5334............................................................................................... 4
Electrical specifications........................................................................ 4
Connections .............................................................................................. 7
Block diagram........................................................................................... 8
Programming ............................................................................................ 9
Mechanical specifications ................................................................... 10
Mounting of sensor wires ................................................................... 10
Appendix .................................................................................................... 11
ATEX Installation Drawing - 5334A ............................................ 12
ATEX Installation Drawing - 5334B ............................................ 13
IECEx Installation Drawing - 5334A............................................ 15
IECEx Installation Drawing - 5334B............................................ 16
INMETRO Instruções de Segurança - 5334A........................... 18
INMETRO Instruções de Segurança - 5334B........................... 19

2 5334V110-UK
2-WIRE PROGRAMMABLE TRANSMITTER
5334
• TC input
• High measurement accuracy
• Galvanic isolation
• Programmable sensor error value
• For DIN form B sensor head mounting
Application
• Linearised temperature measurement with TC sensor.
• Amplification of bipolar mV signals to a 4...20 mA signal, optionally linearised
according to a defined linearisation function.
Technical characteristics
• Within a few seconds the user can program PR5334 to measure temperatures
within all TC ranges defined by the norms.
• Cold junction compensation (CJC) with a built-in temperature sensor.
• Continuous check of vital stored data for safety reasons.
Mounting / installation
• For DIN form B sensor head mounting. In non-hazardous areas the 5334 can be
mounted on a DIN rail with the PR fitting type 8421.

5334V110-UK 3

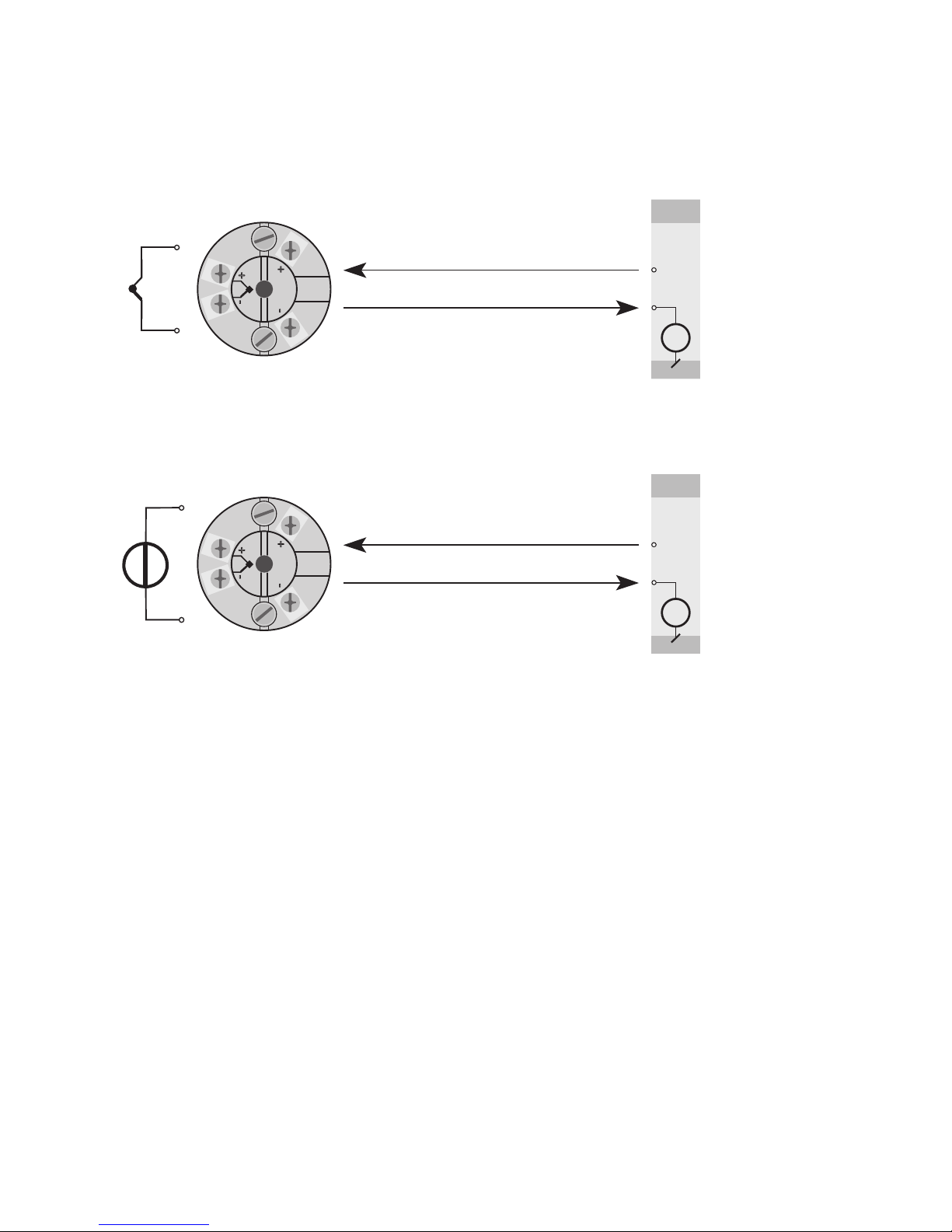

APPLICATIONS
+
-
+
-
V+
mA
+-
-
+
V+
mA
+-
-
+
2-wire installation
in control room
mV to 4...20 mA
2-wire installation
in control room
TC to 4...20 mA

4 5334V110-UK
Electrical specifications
Specifications range:
-40°C to +85°C
Common specifications:
Supply voltage, DC
Standard.................................................................. 7.2...35 V
ATEX Ex, IECEx & INMETRO............................ 7.2...30 VDC
Internal power dissipation
Standard.................................................................. 25 mW...0.8 W
CSA, FM, ATEX, IECEx & INMETRO................ 25 mW...0.7 W
Voltage drop .............................................................. 7.2 VDC
Isolation voltage, test / operation.................... 1.5 kVAC / 50 VAC
Warm-up time............................................................ 5 min.
Communications interface ................................... Loop Link
Signal / noise ratio .................................................. min. 60 dB
Response time (programmable)......................... 1...60 s
EEprom error check................................................. < 3.5 s
Signal dynamics, input........................................... 18 bit
Signal dynamics, output ....................................... 16 bit
Calibration temperature ........................................ 20...28°C
Accuracy, the greater of general and basic values:
Order: 5334
Type Version Ambient
temperature Galvanic isolation
5334 Standard : A
ATEX Ex, IECEx &
INMETRO : B
-40°C...+85°C : 3 1500 VAC : B
General values
Input type
Absolute
accuracy
Temperature
coefficient
All ≤±0.05% of span ≤±0.01% of span / °C

5334V110-UK 5
Effect of supply voltage variation.................... < 0.005% of span / VDC
Vibration...................................................................... IEC 60068-2-6 : 2007
2...25 Hz.................................................................. ±1.6 mm
25...100 Hz............................................................ ±4 g
Max. wire size............................................................ 1 x 1.5 mm2stranded wire
Screw terminal torque ........................................... 0.4 Nm
Humidity...................................................................... < 95% RH (non-cond.)
Dimensions................................................................. Ø 44 x 20.2 mm
Protection degree (enclosure / terminal)....... IP68 / IP00
Weight .......................................................................... 50 g
Electrical specifications, input:
Max. offset ................................................................. 50% of selec. max. value
TC input:
Basic values
Input type
Basic
accuracy
Temperature
coefficient
Volt ≤±10 µV ≤±1 µV / °C
TC type:
E, J, K, L, N, T, U ≤±1°C ≤±0.05°C / °C
TC type: B, R, S,
W3, W5, LR ≤±2°C ≤±0.2°C / °C
EMC immunity influence................................................ < ±0.5% of span
Extended EMC immunity:
NAMUR NE 21, A criterion, burst ............................... < ±1% of span
Type
Min.
temperature
Max.
temperature
Min.
span Standard
B
E
J
K
L
N
R
S
T
U
W3
W5
LR
+400°C
-100°C
-100°C
-180°C
-100°C
-180°C
-50°C
-50°C
-200°C
-200°C
0°C
0°C
-200°C
+1820°C
+1000°C
+1200°C
+1372°C
+900°C
+1300°C
+1760°C
+1760°C
+400°C
+600°C
+2300°C
+2300°C
+800°C
100°C
50°C
50°C
50°C
50°C
50°C
100°C
100°C
50°C
50°C
100°C
100°C
50°C
IEC584
IEC584
IEC584
IEC584
DIN 43710
IEC584
IEC584
IEC584
IEC584
DIN 43710
ASTM E988-90
ASTM E988-90
GOST 3044-84

6 5334V110-UK
Cold junction compensation ................................ < ±1.0°C
Sensor error detection........................................... Yes
Sensor error current:
When detecting ................................................... Nom. 33 mA
Else ........................................................................... 0 mA
Voltage input:
Measurement range................................................ -12...150 mV
Min. span ..................................................................... 5 mV
Input resistance........................................................ 10 MΩ
Output:
Current output:
Signal range ............................................................... 4...20 mA
Min. signal range...................................................... 16 mA
Updating time ........................................................... 440 ms
Output signal at EEprom error............................ ≤3.5 mA
Load resistance......................................................... ≤(Vsupply - 7.2) / 0.023 [Ω]
Load stability............................................................. < ±0.01% of span / 100 Ω
Sensor error detection:
Programmable ........................................................... 3.5...23 mA
Namur NE43 Upscale............................................. 23 mA
Namur NE43 Downscale....................................... 3.5 mA
Of span = Of the presently selected range
Approvals:
EMC................................................................................ 2014/30/EU
CCOE .............................................................................. P337392/1
RoHS ............................................................................. 2011/65/EU
EAC................................................................................. TR-CU 020/2011
Marine approval:
DNV-GL, Ships & Offshore.................................... Standard for Certification No. 2.4
Ex / I.S.:
ATEX 2014/34/EU
5334A...................................................................... KEMA 10ATEX0002 X
5334D...................................................................... KEMA 06ATEX0062 X
IECEx............................................................................. DEK 13.0035 X
INMETRO ..................................................................... DEKRA 16.0013 X
CCOE .............................................................................. P337392/2
EAC Ex TR-CU 012/2011 ..................................... RU C-DK.GB08.V.00410

5334V110-UK 7

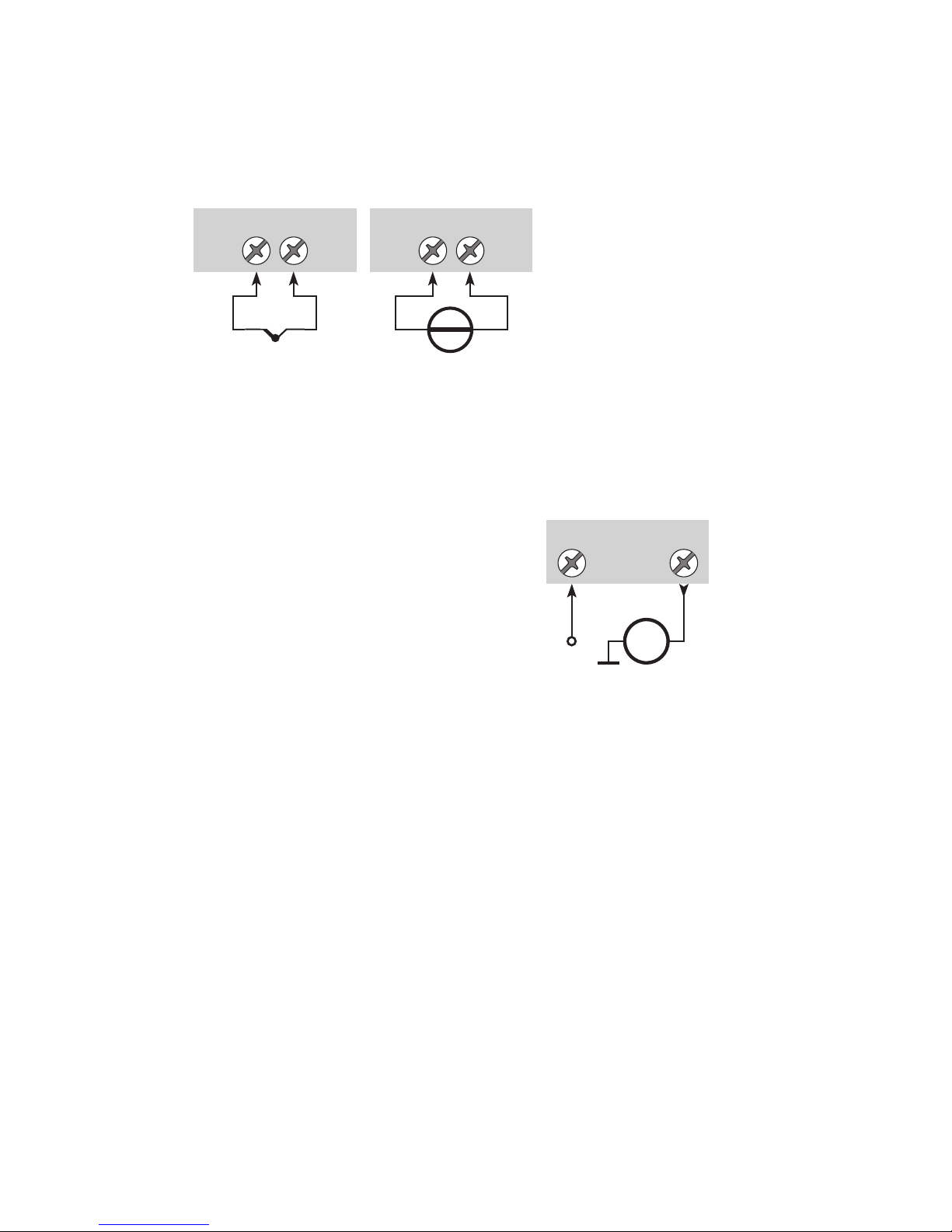

CONNECTIONS
1 2
mA -
+
45
+
-
45
+
-
Output:
2-wire installation
Input:
TC, internal CJC mV

8 5334V110-UK

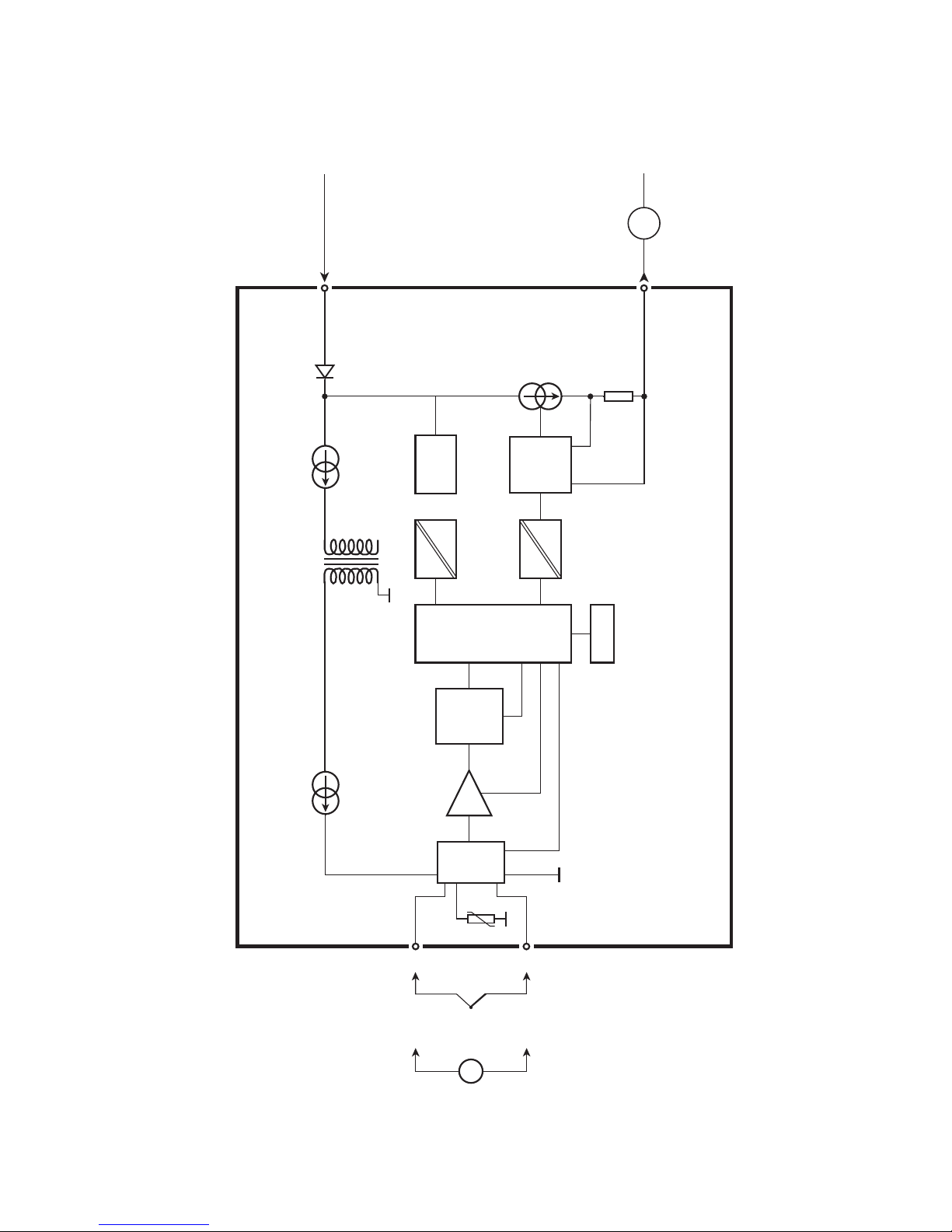

BLOCK DIAGRAM
0...16
mA
1
5 4
2
+
-
+
-
mV
mA
M UX
4 mA
5334
PGA
D /A
A /D
C PU
EEPRO M
Supply -
4...20 mA
Int.
CJC
Supply +
7.2...35 VDC
TC
mV
Comm.

5334V110-UK 9
PROGRAMMING
• Loop Link is a communications interface that is needed for programming 5334.
• For programming please refer to the drawing below and the help functions in
PReset.
• Loop link is not approved for communication with modules installed in
harzardous (Ex) areas.
Order: Loop Link
5334
1
2
*
*
Loop
Link 5909 - USB
FileProductInputOutputCommunication LanguageOption08:30:00
PRetop5331
Date:2004-8-10
043201594
PRelectronics
AnaloginputAnalogoutput
Serial no:
Inputtype:Outputtype:4-20mA
Upscale
Sensorerror:
Pt100DIN/IEC
0.00-50.00C
3-wire
1.00sec
------
Inputrange:
Connection:
Coldjunctioncomp:
Response time:
T
ag no:
Disconnect
+Vsupply
* Connected only for
on-line programming
Black
Red Yellow
Green
Input
Receiving
Equipment
Connector

20.2m m
+-
+-
ø 6 mm
33 mm
ø 44 mm
10 5334V110-UK
Mechanical specifications Mounting of sensor wires
Wires must be mounted between the metal
plates.

APPENDIX
ATEX INSTALLATION DRAWING - 5334A
ATEX INSTALLATION DRAWING - 5334B
IECEx INSTALLATION DRAWING - 5334A
IECEx INSTALLATION DRAWING - 5334B
INMETRO INSTRUÇÕES DE SEGURANÇA - 5334A
INMETRO INSTRUÇÕES DE SEGURANÇA - 5334B
5334V110-UK 11

12 5334V110-UK
5331QA02
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2013-08-07
Version Revision
V2R0
Page:
1/1

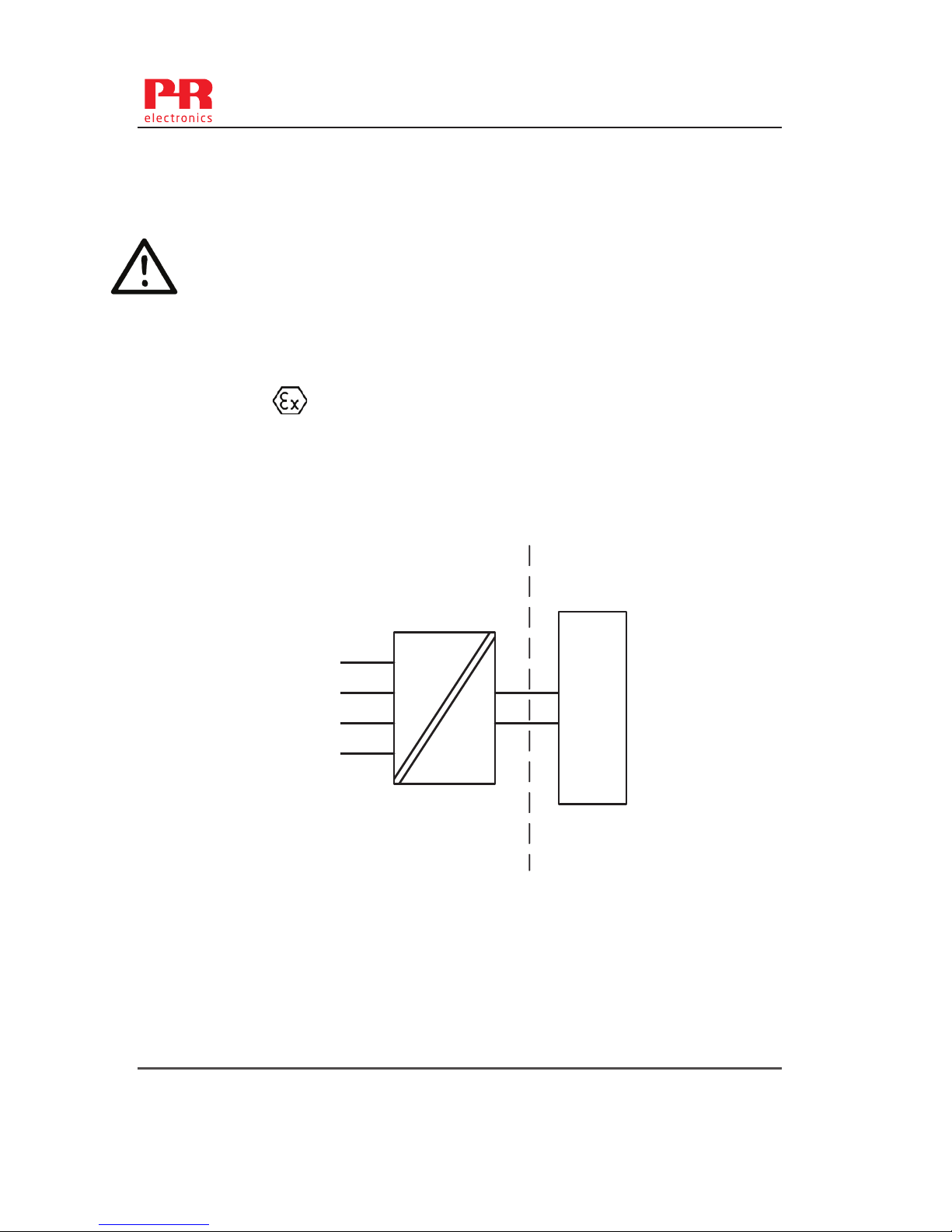

ATEX Installation drawing
For safe installation of 5331A3B or 5334A3B the following must be observed. The module shall
only be installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
ATEX Certificate KEMA 10ATEX 0002 X
Marking
Standards EN 60079-0 : 2012, EN 60079-11 : 2012, EN 60079-15 : 2010
Special conditions for safe use.
For type of protection Ex nA, the transmitter shall be mounted in a metal enclosure providing a
degree of protection of at least IP54 according to EN60529.
For use in the presence of combustible dusts the transmitter shall be mounted in an enclosure
providing a degree of protection of at least IP6X in accordance with EN60529, the surface
temperature of the outer enclosure is 20 K above the ambient temperature.
For an ambient temperature ≥60ºC, heat resistant cables shall be used with a rating of at least
20 K above the ambient temperature.
T4: -40 ≤Ta ≤85ºC
T6: -40 ≤Ta ≤60ºC
II 3 G Ex nA [ic] IIC T4 … T6 Gc
II 3 G Ex ic IIC T4…T6 Gc
II 3 D Ex ic IIIC Dc
Terminal: 3,4,5,6
Ex nA [ic]
Uo: 9.6 V
Io: 25 mA
Po: 60 mW
Lo: 33 mH
Co: 2.4 μF
Terminal: 1,2
Ex nA
Umax ≤35 VDC
Terminal: 1,2
Ex ic
Ui = 35 VDC
Ii = 110 mA
Li = 10 μH
Ci = 1.0 nF

5334V110-UK 13
5331QA01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2013-08-07
Version Revision
V2R0
Page:
1/2
ATEX Installation drawing
For safe installation of 5331D or 5334B the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws, directives
and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
ATEX Certificate KEMA 06ATEX 0062 X
Marking
Standards EN 60079-0 : 2012, EN 60079-11 : 2012, EN 60079-26 : 2007,
EN 60079-15 :2010
Non Hazardous Area
Hazardous area
Zone 0, 1, 2, 20, 21, 22
II 1 G Ex ia IIC T4...T6 Ga
II 1 D Ex ia IIIC Da
I M1 Ex ia I Ma
1
2
6
5
4
3
+
-
Barrier
5331D
5334B
Terminal: 3,4,5,6
Uo: 9.6 VDC
Io: 25 mA
Po: 60 mW
Lo: 33 mH
Co: 2.4μF
Terminal: 1,2
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10 μH
Ci: 1.0 nF
T4: -40 ≤ Ta ≤ 85ºC
T6: -40 ≤ Ta ≤ 60ºC

14 5334V110-UK
5331QA01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2013-08-07
Version Revision
V2R0
Page:
2/2
Installation notes.
The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic
isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1
minute.
In a potentially explosive gas atmosphere, the transmitter shall be mounted in an enclosure in
order to provide a degree of protection of at least IP20 according to EN60529.
If the transmitter is installed in an explosive atmosphere requiring the use of equipment of
category 1 G, 1 M or 2 M, and if the enclosure is made of aluminum, if must be installed such,
that ignition sources due to impact and friction sparks are excluded.
if the enclosure is made of non-metallic materials, electrostatic charging shall be avoided.
For installation in a potentially explosive dust atmosphere, the following instructions apply:
The transmitter shall be mounted in a metal enclosure form B according to DIN43729 that is
providing a degree of protection of at least IP6X according to EN60529, that is suitable for the
application and correctly installed.
Cable entries and blanking elements shall be used that are suitable for the application and
correctly installed.
For an ambient temperature ≥ 60ºC, heat resistant cables shall be used with a rating of at least
20 K above the ambient temperature.
The surface temperature of the enclosure is equal to the ambient temperature plus 20 K, for a
dust layer with a thickness up to 5 mm

5331QI02
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2013-06-03
Version Revision
V1R0
Page:
1/1
IECEx Installation drawing
For safe installation of 5331A or 5334A the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
Certificate IECEx DEK 13.0035X
Marking
Standards IEC 60079-0 : 2011, IEC 60079-11 : 2011, IEC 60079-15 : 2010
Installation note:
For installation in a potentialy explosive gas atmosphere, the following instructions apply:
For nA installation the transmitter must be installed in an metal enclosure, e.g. a form B
enclosure providing a degree of protection of at least IP54 according to IEC60529 or in an
enclosure with type of protection Ex n or Ex e.
For ic installation the transmitter must be installed in enclosure providing a degree of
protection of at least IP20 according to IEC60529 and that is suitable for the application.
Cable entry devices and blanking elements shall fulfill the same requirements
For an ambient temperature ≥60ºC, heat resistant cables shall be used with a rating of at
least 20 K above the ambient temperature.
For installation in a potentially explosive dust atmposphere, the following instructions apply:
The surface temperature of the enclosure is equal to the ambient temperature plus 20 K, for a
dust layer with a thickness up to 5 mm.
The transmitter must be mounted in a enclosure according to DIN 43729 that provides a
degree of protection of at least IP6X according to IEC60529, and that is suitable for the
application. Cable entry devices and blanking elements shall fulfill the same requirements.
T4: -40 ≤Ta ≤85ºC
T6: -40 ≤Ta ≤60ºC
Ex nA [ic] IIC T4..T6 Gc
Ex ic IIC T4..T6 Gc
Ex ic IIIC Dc
Terminal: 3,4,5,6
Uo: 9.6 V
Io: 25 mA
Po: 60 mW
Lo: 33 mH
Co: 2.4 μF
Terminal: 1,2
Ex nA
Umax =35 VDC
Terminal: 1,2
Ex ic
Ui = 35 VDC
Ii = 110mA
Li = 10 μH
Ci = 1.0 nF
5334V110-UK 15

5331QI01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2013-06-03
Version Revision
V1R0
0Page:
1/2
IECEx Installation drawing
For safe installation of 5331D or 5334B the following must be observed. The module shall only be
Installed by qualified personnel who are familiar with the national and international laws, directives
and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
.
Certificate IECEx DEK 13.0035X
Marking
Standards IEC 60079-0 : 2011, IEC 60079-11 : 2011, IEC 60079-26:2006
Non Hazardous Area
Hazardous area
Zone 0, 1, 2, 20, 21, 22, M1
Ex ia IIC T4…T6 Ga
Ex ia IIIC Da
Ex ia I Ma
1
2
6
5
4
3
+
-
Barrier
5331D
5334B
Terminal: 3,4,5,6
Uo: 9.6 VDC
Io: 25 mA
Po: 60 mW
Lo: 33 mH
Co: 2.4 μF
Terminal: 1,2
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10 μH
Ci: 1.0 nF
T4: -40 ≤Ta ≤85ºC
T5: -40 ≤Ta ≤60ºC
T6: -40 ≤Ta ≤45ºC
16 5334V110-UK

5331QI01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2013-06-03
Version Revision
V1R0
0Page:
2/2
Installation notes.
The sensor circuit is not infallibly galvanic isolated from the input circuit. However, the galvanic
isolation between the circuits is capable of withstanding a test voltage of 500Vac during 1
minute.
In a potentially explosive gas atmosphere, the transmitter shall be mounted in a metal form B
enclosure in order to provide a degree of protection of at least IP20 according to IEC60529. If
however the environment requires a higher degree of protection, this shall be taken into
account.
If the transmitter is installed in an explosive atmosphere requiring the use of equipment
protection level Ga, Ma and Mb, and if the enclosure is made of aluminum, it must be installed
such, that ignition sources due to impact and friction sparks are excluded.
For installation in a potentially explosive dust atmosphere, the following instructions apply:
For explosive dust atmospheres, the surface temperature of the outer enclosure is 20 K above
the ambient temperature.
The transmitter shall be mounted in a metal enclosure form B according to DIN43729 that is
providing a degree of protection of at least IP6X according to IEC60529, that is suitable for the
application and correctly installed.
Cable entries and blanking elements shall be used that are suitable for the application and
correctly installed.
For an ambient temperature ≥60ºC, heat resistant cables shall be used with a rating of at least
20 K above the ambient temperature.
5334V110-UK 17

5331QB02
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2016-10-28
Version Revision
V2R0
Page:
1/1
Desenho de Instalação INMETRO
Para instalação segura do 5331A ou 5334A o seguinte deve ser observado. O modelo deve
apenas ser instalado por pessoas qualificadas que são familiarizadas com as leis nacionais e
internacionais, diretrizes e padrões que se aplicam a esta área.
O ano de fabricação pode ser pego dos dois primeiros dígitos do número de série.
Certificado DEKRA 16.0013 X
Marcas
Normas ABNT NBR IEC 60079-0 : 2013; ABNT NBR IEC 60079-11 : 2013
ABNT NBR IEC60079-15 : 2012
Notas para instalação
Para a instalação em uma atmosfera de gás potencialmente explosivo, aplicam-se as instruções a
seguir:
Para a instalação nA o transmissor deve ser instalado em um invólucro de metal, por exemplo,
gabinete em forma B que forneça um grau de proteção de pelo menos IP54 de acordo com ABNT
NBR IEC60529 ou em um invólucro com tipo de proteção Ex n ou Ex e.
Para a instalação Ex ic o transmissor deve ser instalado em um invólucro proporcionando um grau de
proteção IP20de acordo com a norma ABNT NBR IEC60529. E o invólucro deve, pelo menos, ser
adequado para a aplicação e corretamente instalado.
Dispositivos de entrada de cabos e elementos de supressão devem cumprir os mesmos requisitos.
Para temperatura ambiente >= 60ºC, fios de resistência ao calor devem ser usados com uma faixa de
pelo menos 20K acima da temperatura ambiente.
Para a instalação em uma atmosfera de poeira potencialmente explosiva , aplicam-se as instruções a
seguir:
O transmissor deve ser montado em invólucro de metal forma B de acordo com DIN43729 que está
fornecendo pelo menos um grau de proteção IP6X de acordo com ABNT NBR IEC60529.
O invólucro deve ser adequado para aplicação e instalado corretamente.
As entradas dos cabos e os elementos de obturação que podem ser utilizados devem ser adequados
à aplicação pretendida e corretamente instalados.
A temperatura da superfície do invólucro é igual à temperatura ambiente mais 20 K, para uma
camada de pó, com uma espessura de até 5 mm.
T4: -40 ≤ Ta ≤ 85ºC
T6: -40 ≤ Ta ≤ 60ºC
Ex nA [ic] IIC T4..T6 Gc
Ex ic IIC T4..T6 Gc
Ex ic IIIC Dc
Terminais:
3,4,5,6
Uo: 9,6 V
Io: 25 mA
Po: 60 mW
Lo: 33 mH
Co: 2,4 μF
Terminais: 1,2
Ex nA
U ≤35 VDC
Terminais: 1,2
Ex ic
Ui = 35 VDC
Ii = 110 mA
Li = 10 μH
Ci = 1,0 nF
18 5334V110-UK
