PR Lighting CSL 1037 User manual

CSL 1037
PR-3206D
This product manual contains important information about the safe installation and use of this unit. Please
read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2/14
INDEX
SAFE USAGE OF THE UNIT 3
INSTALLING THE UNIT
POWER SUPPLY-MAINS 4 5
CONTROLCONNECTION 6
DMX TERMINATOR 7
SETUP OPTIONS-UNIT CONFIGURATION 7
TO SETTHE DMX STARTADDRESS 8
OPERATION MENU 8
DMX PROTOCOL 8
MAINTENANCE 9
TROUBLESHOOTING 9
TECHNICALDATA 10
ELECTRICALDIAGRAM 12
COMPONENT ORDER CODES 13
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to
change without notice. Whilst every care is taken in the preparation of this manual we reserve the right to change
specifications in the course of product improvement. The publishers cannot be held responsible for the accuracy of the
information herein, or any consequence arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the
unit are in good condition before installation and use. Should there be any damage caused by transportation, consult
your dealer and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer and
/ or dealer.
ACCESSORIES
These items are packed together with the unit:
Name Quantity Unit Remark
Barn Door 1 Pc
Clamp 1 Pc
Safety Cord 1 Pc
XLR Cable 1 Pc With male and female sockets
Power Cord 1 Pc
User’s Manual 1 Pc

When unpa
c
any damage
The unit ca
n
with water o
r
The unit is n
o
The unit is o
n
Do not proj
e
Avoid direct
Do not atte
m
Electrical co
n
Before insta
l
It is essentia
l
Do not conn
e
Make sure t
h
Only handle
When the u
n
fixing for sa
f
Exterior sur
f
There is no
u
If any questi
o
Alwa
y
s
d
maintena
n
c
king and befo
r
caused by tran
s
n
b
e
only used
i
r
other liquids.
o
t designed or
i
n
ly intended fo
r
e
ct the beam on
t
exposure to th
e
m
pt to dismantl
e
n
nection must
o
l
lation, ensure t
h
l
that each unit
i
e
ct
t
his device
t
h
at the powe
r
-
c
the powe
r
-cor
d
n
i
t
is hanged t
o
f
ety seasons. F
o
f
ace temperatur
e
u
ser serviceabl
e
o
ns, don’t hesit
a
d
isconnectio
n
n
ce work !
S
r
e disposing o
f
s
portation, con
s
i
ndoors, IP20.
T
i
ntended to be
m
r
installation, o
p
t
o inflammable
e
light from the
e
and/or modif
y
o
nly be carried
o
h
at the voltage
a
i
s correctly eart
h
t
o any other ty
p
c
ord is never cr
i
d
by the plug.
N
o
a high place,
p
o
r details, refer
t
e
s of the unit a
ft
e
parts inside th
e
a
te to consult y
o
n
from th
e
S
AFE U
S
f
the carton, ch
e
s
ult your dealer
T
he fixture sho
u
m
ounted directl
y
p
eration and m
a
surfaces, mini
m
lamp. The ligh
t
y
the unit in any
o
ut by qualifie
d
a
nd frequency
o
h
ed and that el
e
p
es of dimmer
ap
i
mped or dam
a
N
ever pull out t
h
p
lease use a s
a
t
o “INSTALL
T
ft
er 5 minutes’
o
e
unit, do not o
p
o
ur dealer or
m
e
power, w
h
3/14
S
AGE OF
e
ck there is no
t
and do not use
u
ld be kept in
d
y
on to inflam
m
a
intenance by
q
m
um distance i
s
t
is harmful to
e
way.
d
personnel.
o
f power suppl
y
e
ctrical installat
i
ap
paratus.
a
ged by sharp e
d
h
e plug by
t
ugg
i
a
fety cord prov
i
T
HE UNIT “se
c
o
peration is 45
℃
p
en the housin
g
m
anufacturer.
h
en the de
v
THE UN
I
t
ransportation
d
the apparatus.
d
ry place with
o
m
able surfaces.
q
ualified person
n
s
2m. 2m
e
yes.
y
match the po
w
i
on conforms t
o
d
ges. Never le
t
i
ng the powe
r
-
c
i
ded to pass th
r
c
tion.
℃
, when achie
v
g
and never ope
r
v
ice is not
I
T
d
amage before
o
ut excessive d
a
n
el.
w
er requireme
n
o
all relevant st
a
t
the power-cord
c
ord.
r
ough the unit’
s
v
ing steady stat
e
r
ate the unit wi
t
in use or
b
using the unit.
a
mpness, heat,
n
ts of the unit.
a
ndards.
comeinto conta
c
s
support as a
s
e
it is 60℃.
t
h the covers re
m
b
efore clea
n
Should there
b
dust and conta
c
c
twithothercabl
e
s
econdary safe
t
m
oved.
n
in
g
or an
y
b
e
c
t
e
s.
t
y
y

4/14
INSTALLTHE UNIT
Safety Cord Clamp
Knob
Barn Door
The fixture works while being hung. Its head can be manually rotated with the range of 240 degrees. Before moving the head, loosen the
two angle-knobs.After the head is at the angle desired, tighten the two knobs.
Take 1 clamp and 1 safety cord out from the package and mount 1 clamp on the axis of the support with 1 retainer. Hang the fixture on
the structure and fasten the screws attached to the clamp. Always ensure that the fixture is firmly anchored to avoid vibration
and slipping whilst functioning. Always ensure that the structure to which you are attaching the unit to is secure and
strong enough to support the weight of the fixture. For safety the unit should have a secondary fixing with a safety
cord through the support of the unit to ensure safe mounting.
Warning:
1. Clamp is only used for installation. The unit MUST be lifted or carried via supporting frame instead of clamps.
2. For safety the safety cord should afford 10 times of the unit’s weight

5/14
POWER SUPPLY-MAINS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before connection with mains power, make sure that the voltage and frequency marked on the rating plate of the projector match what
are supplied. It is recommended that each projector be supplied separately so that they may be individually switched on and off.
Note: If some fixtures are connected in series via POWER INs and POWER OUTs, connect the POWER IN of the first fixture with
external power and connect its POWER OUT with the POWER IN of the second fixture and so on till all the fixtures are connected.If
the voltage is 200V~240V, 12pcs can be connected at maximum. If the voltage is 100V~120V, the maximum is 6pcs. The diameter of
the core of the wire of the XLR cable should be equal or bigger than 2.5mm2
IMPORTANT
It is essential that each fixture is correctly earthed(yellow/green twin wire) and the electrical installation conforms to all
relevant standards.
POWER POWER OUTPOWER IN POWER OUTPOWER IN POWER OUTPOWER IN

6/14
CONTROL CONNECTION
4N/C
N/C
5
PIN FUNCTION
GND
1
3DATA+
DATA-2
DMX 512
5 PIN
DMX IN
DMX OUT
1
2
3
4
55
4
3
2
1
Connection between the controller and a unit and between one unit and another must be made with a 2 core-screened cable, with each
core having at least a 0.5mm diameter. Please use the unit’s cannon 5- pin signal input and output cables as connection. The 5-pin
signal connections are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not
connected in any way. The unit accepts digital control signals in protocol DMX512 (1990).
The maximum of units in parallel for operation is 32 pcs. Connect the controller’s output to the first fixture’s input using 5-pin XLR
cable, and connect the first fixture’s output to the second fixture’s input and connect the rest fixtures in the same way. Eventually
connect the last fixture’s output to a DMX terminator as shown in the figure below. Note: for synchronous control, the start addresses
of all slaves should be same.
Each unit should be connected to power supply individually and the voltage and frequency of the power supply should match those
indicated on nameplate.
DMX OUT
DMX IN TERMINOTER DMX IN
DMX OUTDMX IN FROM
CONTROLLER

7/14
DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω(ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last unit in the chain. The connections are illustrated below.
SETUPOPTIONS-UNIT CONFIGURATION
Press the buttoms gentally to set the DMX address and other settings.
To browse through or change configurations, press ENTER button for about 3s to unlock the digtial display. The display will
show its menus. Each main menu has its own sub-menus. And each menus stands for designated funciton. For details, pleaes
refer to “Opertaion Menu” hereinafter.
To set or browse through funtions or settings , pess FUNC button.
Press buttonENTER to save changes or enter into sub-menus. Press buttoms UP or DOWM to change numbers(plus or
minus)
PressFUNC to go back to main menus or the upper level menus.
Afte the exit of the menus, the birghtness of the display is the one currently set .(the display’s range is between 0 and 255)
If DMX signal available, the display will show current DMX address

8/14
TO SET THE DMX STARTADDRESS
Each unit must be given a DMX start address so that the correct unit responds to the correct control signals. This DMX start address is
the channel number from which the unit starts to “listen” to the digital control information being sent out from the controller. The unit
has 2 DMX channels, so set the No. 1 unit’s address 001, No. 2 unit’s address 003, No. 3 unit’s address 005, and so on.
While the display is locked( initial stage of the display), press the FUNC for more than 3 seconds to unlock it,
Press FUNC to locate menu
Press ENTER to show DMX address
Press UP or DOWN to set or change parameters
While the set address is flashing, press ENTER to confirm. After this, the start address has been automatically stored. After
power-on next time, the latest number will be shown.
Press FUNC to go back t o1st level menus
Operations Menu
1ST Level menu 2nd level menu 3rd level menu Remarks
DMX Address（ADDR）
XXX
（DMX：001~512）
DMX Address
Configuration （CNFG）
Display settings（DISP）
（Default：ON）
(
ON
)
Digital Display always
on
（OFF）
The digital display off
3 minutes after no
buttons are pressed
after the exit of the
menus
Dimme
r
（DIMM）
000-255
From Dark to Bri
g
h
t
Brightness Value
Displayed
Information （INFO）
Fixture’ s temperature
（TEM
P
）
XXX Fixture’s Temperature
Fixtur
e
’s hours （
T
IME）
XXXX Fixture’s use time
Software Version（VE
R
）
X.X.X Version Displayed
DMX PROTOCOL
CHANNEL FUNCTION DMX DESCRIPTION
1 Dimmer 000-255 From dark to bright
2 Strobe
000 - 007 NO strobe
008 - 255 Strobe speed from slow to fast

9/14
MAINTENANCE
To prolong the life of the unit, it is very important to do the maintenance work. If the unit is idle for a long time, damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on its cover and housing. So it should be cleaned to maintain
an optimum light output and at the same time to prevent it from being corrupted by acid gas.
Cleaning frequency depends on the environment in which the fixture operates. Soft cloth and typical glass cleaning products should be
used for cleaning. It is recommended to clean unit at least once every 20 days.
Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
TROUBLESHOOTING
PROBLEM ACTION
The unit doesn’t switch on
¾Power connection is not correct.
¾Power supply is damaged or abnormal. Call a qualified personnel to fix
it.
¾Connection of control board is not correct. Call a qualified personnel to
fix it.
The unit can be turned on, but LEDs do not emit
light and are out of control.
¾Connection of LED board is not correct. Call a qualified personnel to fix
it.
The lamp comes on but the unit doesn’t respond
to the controller
¾Make sure that the unit is correctly configurated.
¾Replace or repair the DMX cable.
The beam appears dim ¾The unit is too hot.Take ventilation measures to make it cool.

10/14
TECHNICAL DATA
VOLTAGES:
100V~240V AC，50/60Hz
POWER CONSUMPTION:
330@220V
LED:
Power consumption 10W
Quantity 37pcs
CT
CRI
5600K
Ra≥70
Manufacturers Rated LED Life 50000 Hours
DIMMER:
0-100% linearly adjustable
STROBE:
Electronic Strobe,0.3-20 F.P.S
BEAMANGLE:
FieldAngle (θ1/2 peak) 14.7°
CONTROL:
DMX512, 5pin interfaces
2Channels
OTHE FUNCTIONS:
Display of fixture’s hours
Display of software version
Display of LED lamp PCB’s temperature
Input signal isolation
LED over-temp protection
HOUSING:
High-intensity aluminum alloy, IP20
WORK ENVIRONMENTTEMPERATURE:
-20°C~40°C
WEIGHT:
7KG

11/14
SIZES:
515
269
274
Light Output
5m
6m
5m
6m 7m
4m
2m
4m
2m
0m 1m
1m
3m
3m
7m
0m 5m 10m 15m 20m 25m 30m
3865558681543347213887
14.7°(1/2)lux
7.816.515.213.92.61.30
0
14.7°
14.7°DIAMETER(m)
DISTANCE(m)

12/14

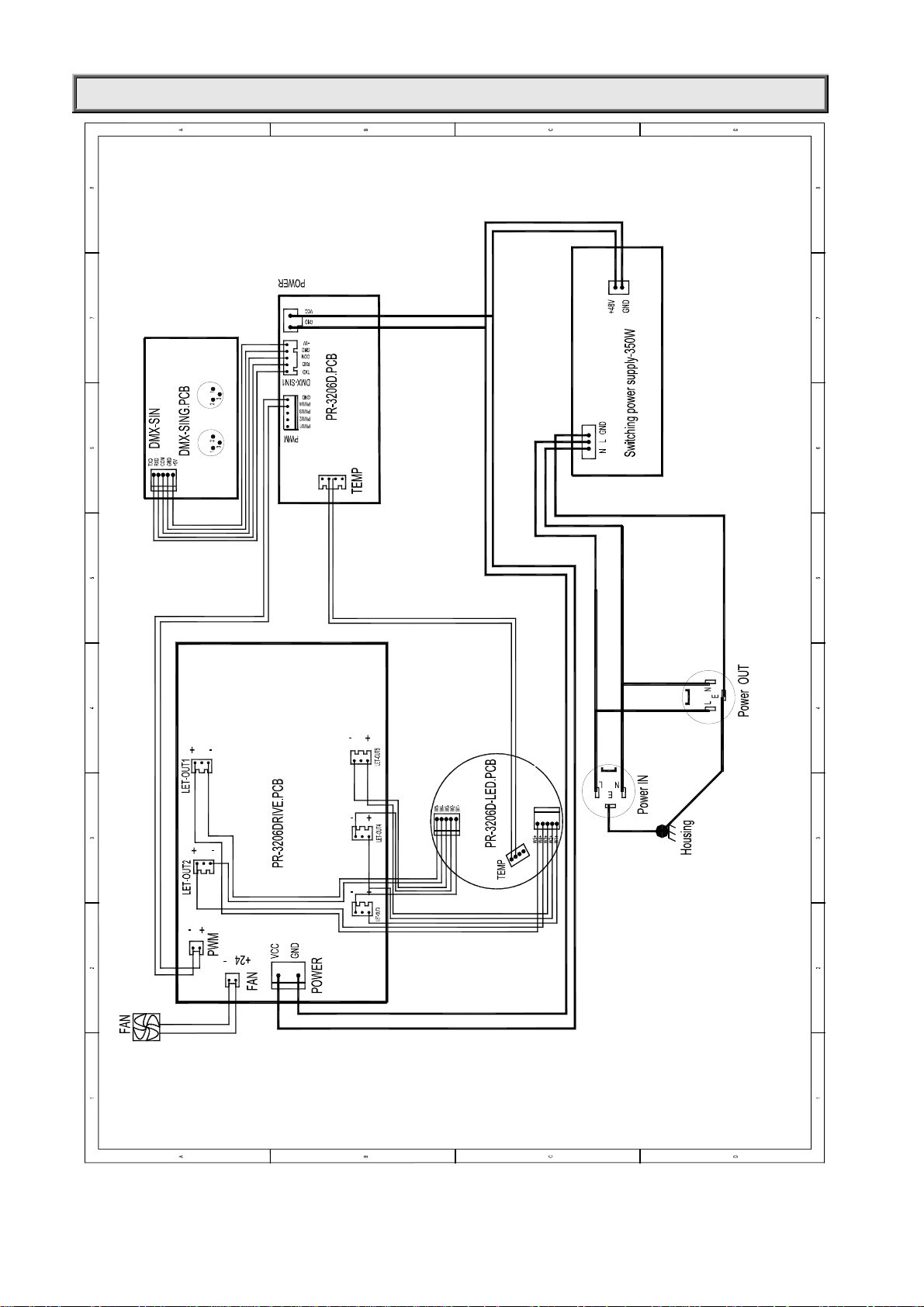

ELECTRICAL DIAGRAM

13/14
COMPONENT ORDER CODES
NAME PART NO. QUANTITY REMARK
LED LAMPS’LENS 070070056 37 15°
LED LAMP 150020297 37 10W
POWER SWTICH 192010195 1
LED LAMPPCB 230060441 1
LED DRIVER BOARD 230060437 1
CONTRAL BOARD 230060435 1
FAN 030060101 1 ￠95X25
XLR CALBE 242810033 1 5M
POWER CORD 120080012 1 1.5M

14/14
PR LIGHTING LTD.
PR New Hi-tech Science Park, 1582 XingyeAvenue
Nancun Panyu, Guangzhou, 511442 China
TEL: [phone]
FAX: [phone]
P/N:320020306
Version: 20150615
