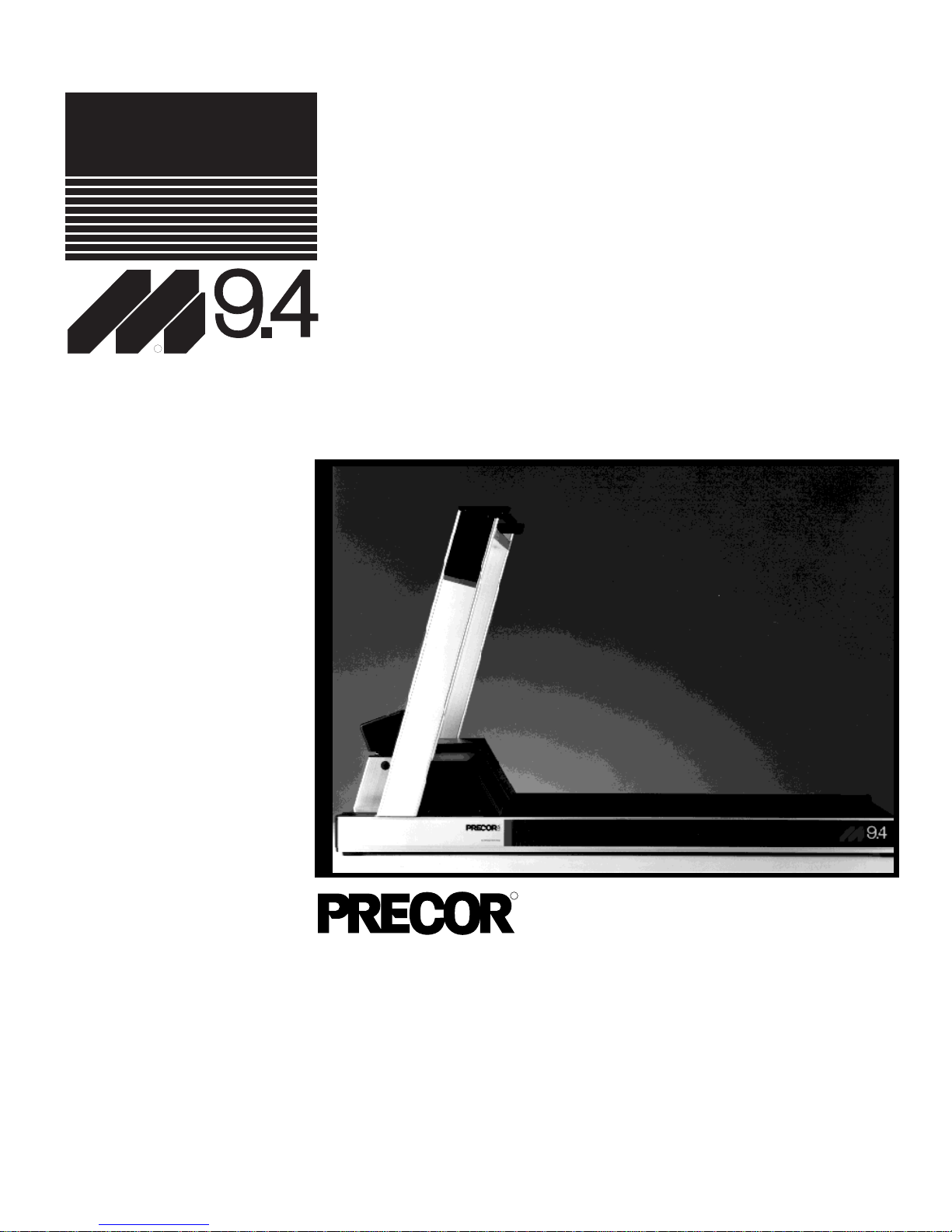

Precor Electronic M9.4 User manual

page 1
Electronic
TreadmillErgometer
R
Owner’sManual
USA
R

page 2
Safety Information
Before beginning any fitness program, you should have a complete physical
examination by your personal physician.
Review this manual to become familiar with the M9.4 Electronic Treadmill
Ergometer operations. Be sure to read and observe the following guidelines
when using this treadmill:
• Read the Owner’s Manual and follow all instructions.
Note for Club Owners: To ensure the proper use and safety of the M9.4
treadmill, make sure that all users review this manual. Please make this
manual a part of your training program.
• Assemble and operate the M9.4 treadmill on a solid, level surface. Locate
the treadmill at least 4 feet from walls or furniture. Keep the area behind the
treadmill clear.
• Do not allow children on or near the M9.4 treadmill. Do not leave children
unsupervised around the treadmill.
• Check the M9.4 treadmill before each use. Do not use the treadmill if it is
not completely assembled or is damaged in any way.
• Keep hands away from moving parts.
• Do not use the M9.4 treadmill if you weigh over 350 lbs. The M9.4 tread-
mill is built to handle runners up to 350 lbs. at speeds up to 12 mph.
• Wear proper exercise clothing and shoes for your workout—no loose
clothing. Do not wear shoes with heels or leather soles. Check the soles of
your shoes and remove any embedded stones. Tie long hair back.
• Keep all loose clothing and towels away from the treadmill running surface.
A treadmill running belt will not stop immediately if any object becomes
caught in the belt or rollers.
• Use care when getting on or off the M9.4 treadmill. Use the handrails
whenever possible. Do not get on or off the treadmill when the running belt
is moving.
• Before starting the running belt, straddle the belt by placing your feet firmly
on the right and left staging platforms. You should also step off the belt and
onto the staging platforms after turning off the treadmill.
• Do not turn ON the treadmill when someone is standing on the machine.
• Keep your body and head facing forward. Never attempt to turn around on
the treadmill when the running belt is moving.
• Do not rock the unit. Do not stand or climb on the handrails, electronic
console, or hood.

page 3
• Do not set anything on the handrail, electronic console, or hood. Never
place liquids on any part of the treadmill.
• Keep all electrical components, such as the motor, power cord, and
ON/OFF switch, away from water or other liquids to prevent shock.
• Do not use accessory attachments that are not recommended by the
manufacturer—such attachments might cause injuries.
• Do not attempt to service the M9.4 treadmill yourself. This treadmill does
not have any user-serviceable parts. See Getting Service at the end of this
manual for service information.
• Turn OFF the treadmill and wait for the belt to come to a complete stop
before adjusting or working near the rear roller. Do not make any adjust-
ments to the running belt when someone is standing on the machine.
• This treadmill is manufactured with six safe “fail-off” systems. If the tread-
mill encounters a problem, it will trigger a “fail-off” system, allowing the
running belt to come to a gradual stop. Continued use of the treadmill after
a fail-off system occurs is not recommended. Instead, have your treadmill
serviced as described in Getting Service later in this manual.
• Do not overexert yourself or work to exhaustion.
• Stop your workout immediately if you feel any pain or abnormal symptoms,
and consult your physician.
Precor treadmills are designed for the enjoyment of the serious runner as well
as the dedicated walker. By following the above precautions and using good
common sense, you will have many safe and pleasurable hours of healthful
exercise with your Precor M9.4 Electronic Treadmill Ergometer.

page 4
Table of Contents
Before You Begin 5
About this Manual 5
Unpacking the M9.4 Treadmill 6
Setting Up the M9.4 Electronic
Treadmill Ergometer 7
Installation Requirements 7
Assembly Instructions 7
Checking the Alignment of the Running Belt 11
Using the M9.4 Electronic
Treadmill Ergometer 12
Understanding the Electronic Console 12
Running on the M9.4 Electronic Treadmill 14
Getting the Most Out of Your Workout 16
How Hard Should I Exercise? 17
How Long Should I Exercise? 18
How Often Should I Exercise? 18
Maintaining the M9.4 Electronic
Treadmill Ergometer 19
Cleaning the Treadmill 19
Adjusting the Running Belt 19
Getting Service 21
2
3
4
5
1

page 5
Before You Begin
1Congratulations on purchasing one of the newest, most technologically
advanced electronic treadmills available, the Precor M9.4 Electronic Treadmill
Ergometer. This treadmill belongs to Precor’s exciting "M" series of exercise
equipment, a superior combination of high technology and ergonomics.
The precision engineered M9.4 treadmill features a monocoque aluminum
frame, a running platform designed with built-in shock absorption, and the most
durable and comfortable running surface available. These features, coupled
with a heavy duty 2.2 h.p. motor and CMOS electronics, make the M9.4
treadmill an exceptionally strong and reliable performer.
The M9.4 Electronic Treadmill Ergometer has many unique features which set
it apart from conventional treadmills. To maximize your use of the M9.4 tread-
mill, please study this guide thoroughly.
About this Manual
This manual explains how to assemble, use, and maintain the M9.4 Electronic
Treadmill Ergometer. You will also find a basic explanation of aerobic condition-
ing and tips for developing your own fitness program with this treadmill.
The following conventions are used in this manual:
Note: Contains additional information that applies to the preceding text.
Important: Indicates information to which you should pay special attention.
CAUTION: Indicates steps or information necessary to prevent harm to
yourself or damage to the equipment.

page 6
Unpacking the M9.4 Treadmill
Your M9.4 treadmill is carefully inspected before shipment, so it should arrive in
good operating condition. Precor ships the unit in five pieces as listed below:
• running bed assembly
• handrail/display assembly
• lift motor
• lift motor cover
• hardware kit (contents described below)
Carefully unpack the parts from the original shipping container.
CAUTION: This unit weighs over 150 pounds. To avoid back strain and to
ensure the safety of the unit and yourself, we suggest that you drop the
sidewalls of the box and slide the running bed assembly from the box,
rather than lifting the running bed assembly from the box.
After unpacking the treadmill, open the hardware kit and make sure that you
have the following items:
two hex-head shoulder bolts
one long shoulder bolt
four 3/8" screws
one 3/8" locknut
two plastic plug caps
three cable ties
one 1/4" hex key
one 5/16" hex key
If any items are missing, contact your authorized Precor dealer. For the dealer
nearest you, call 1-800-4-PRECOR.
Important: The packaging for this equipment was designed to protect it during
shipment. Please store the original packaging in a safe place in case you need
to ship the M9.4 treadmill in the future.

page 7
Setting Up the M9.4 Electronic Treadmill
Ergometer
2You do not need any special knowledge or experience to set up an M9.4
Electronic Treadmill Ergometer. However, you must carefully review and follow
the instructions in this manual. If you do not assemble and use this treadmill
according to the following guidelines, you could void the Precor warranty.
Installation Requirements
Follow these installation requirements when installing the treadmill:
•Set up the M9.4 treadmill on a solid flat surface. Do not install the
treadmill on deeply padded, plush, or shag carpeting due to possible
damage to the carpet and machine. If the treadmill is placed on a carpeted
surface, place a piece of heavy cardboard, plywood, or other smooth, flat
surface under the unit to protect the carpet and treadmill.
•Locate the treadmill at least 4 feet from walls and furniture. Be sure to
provide ample space in front of the machine to allow easy access to the
ON/OFF power switch. Open space to the sides and back of the machine
makes for a safer mount and dismount and easier belt adjustment.
•Use a standard 120-volt household outlet. Precor recommends that you
plug the treadmill into an outlet with a dedicated 20 amp circuit breaker.
The treadmill comes with a 20 amp circuit breaker to protect the electrical
and electronic components from sustained overloads, and an integral
3-prong plug grounded for your safety and to protect the machine.
CAUTION: Do not remove or otherwise bypass the plug with an adapter
in order to use a non-grounded outlet.
Assembly Instructions
Follow these instructions to assemble the M9.4 treadmill:
1. Make sure that the treadmill is unplugged and turned OFF. Do not
assemble the M9.4 treadmill if it is plugged in and turned ON.
2. Remove the black hood by unscrewing the eight phillips-head screws.

page 8
3. Remove the four 5/16" locknuts and washers (two on each side) from the
handrail/display assembly mounts near the front of the running bed as
shown in Photo 1.
4. Position the handrail assembly so both the right and left handrail columns
align over the mounts. Replace the washers and locknuts. Using the hex
key provided in the hardware kit, securely tighten each locknut.
5. Locate the ribbon cable connector that protrudes from the handrail/display
assembly.
Handrail/display
assembly
Handrail/display assembly
Photo 1
6. Align the tab on the side of the ribbon cable connector with its correspond-
ing receptacle on the printed circuit board located near the motor. (See
Photo 2.) Make sure that all pins are aligned and fully engaged. The
connector is designed to engage in one direction only. Do not force the
connector into the receptacle.
Installing ribbon
cable connector
Photo 2
Handrail/display assembly mounts
Running bed
Handrail/display assembly
Ribbon cable receptacle
Ribbon cable connector
Printed circuit board

page 9

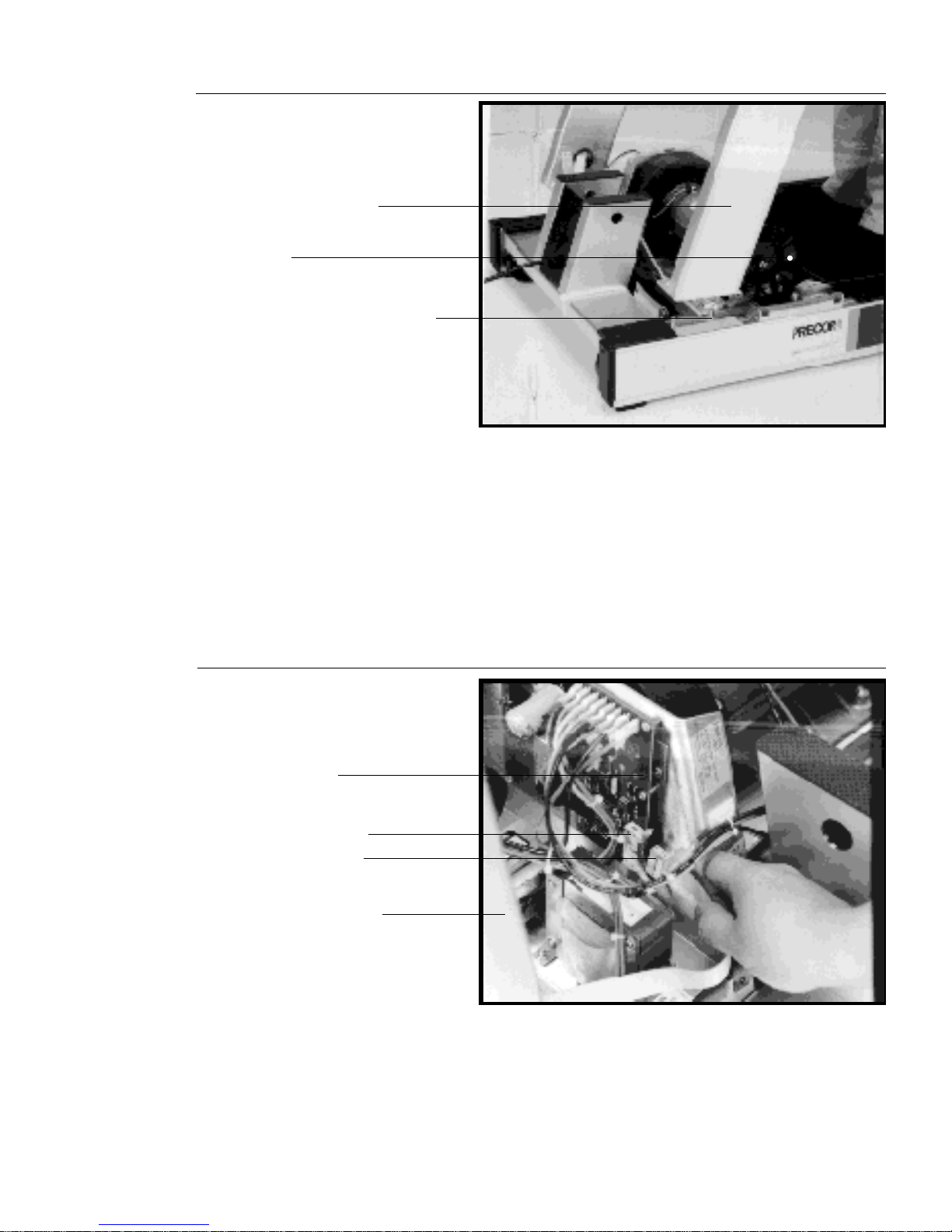

Installing lift
motor
Photo 3
7. Slide the lift motor into position, shaft side down, with the long tube toward
the front of the treadmill and the short tube facing the treadmill motor. (See
Photo 3.)
8. Secure the lift motor by placing one of the two hex-head shoulder bolts on
the 5/16" hex wrench (both are found in the hardware kit). Insert the bolt
through the lift motor mount and into the lift motor. Follow the same proce-
dure for the second shoulder bolt. (See Photo 3.) Align the motor and
securely tighten the shoulder bolts.
9. Locate the two plastic plug caps in the hardware kit. Insert the plastic plug
caps over the two shoulder bolts on the lift motor support mount.
Lift motor
Lift motor support
mount
10. Plug the lift-motor wiring harness into the receptacle on the printed circuit
board. (See Photo 4.)
11. Using the cable ties supplied in the hardware kit, secure the lift-motor
wiring to the lower board chassis. Cut the ends of the cable ties so the
excess plastic does not interfere with the motor or circuit board.
Plug lift-motor
wiring harness
into printed circuit
board
Photo 4
Lift motor wiring
harness
Printed circuit
board
Lower board
chassis

page 10
12. Place the lift motor cover onto the lift motor. Using the four 3/8" screws
found in the hardware kit, securely attach the cover to the lift motor.

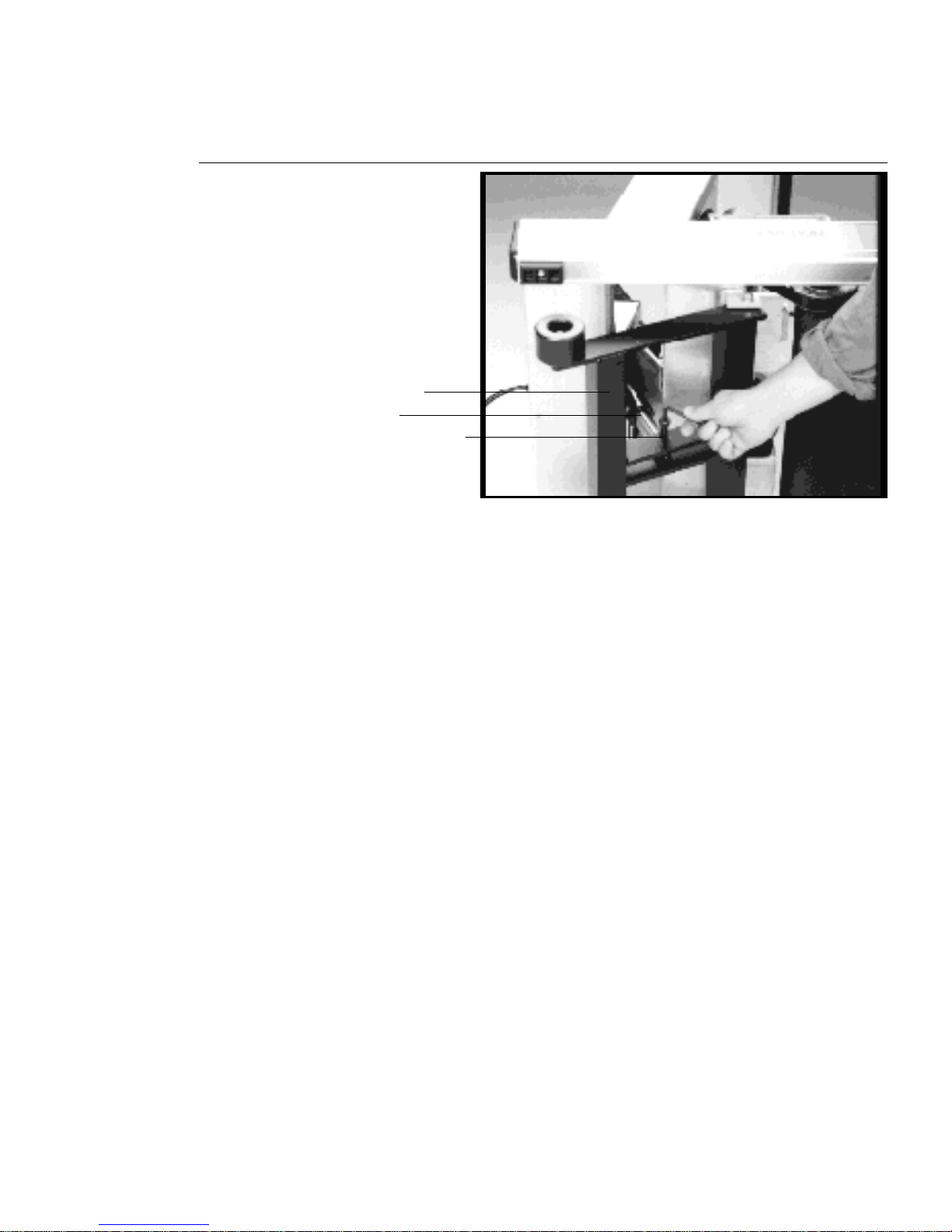

Photo 5
Secure lift
platform and lift
tube
13. Lay the treadmill on its right-hand side with the help of another person.
Note: Right and left are determined while standing behind the treadmill,
facing towards the front of the machine.
14. Locate the long shoulder bolt and 3/8" locknut in the hardware kit. Insert
the long shoulder bolt through the center of the lift platform and the lift tube.
Secure the lift platform and tube together by fastening the 3/8 " locknut to
the end of the shoulder bolt. Fully tighten the bolt with the hex key pro-
vided. (See Photo 5.)
15. Return the treadmill to an upright position, so it rests flat on the floor.
16. Replace the black hood that you removed in Step 1 and tighten the eight
phillips-head screws.
CAUTION: Precor recommends that two people move the treadmill to
its final location. A fully-assembled M9.4 treadmill is very heavy, and
might cause back strain if one person tries to move it.
17. If you need to move the treadmill, ask for assistance from another person.
Roll the treadmill on its front wheels to the new location by lifting the rear
end of the unit.
CAUTION: Do not remove or otherwise bypass the 3-prong plug with
an adapter in order to use a non-grounded outlet.
18. Plug the treadmill into a standard 120v household outlet. Make sure that no
other major appliances use the same circuit as the treadmill.
19. Continue to Checking the Alignment of the Running Belt to complete the
installation of the M9.4 treadmill.
Lift platform
Lift tube
Long shoulder bolt
