Pro-face GP-4114T User manual

GP-4100 Series Color Model
Installation Guide

3
English
Safety Information
Important Information....................................................................................... 5
Model Numbers
Model Numbers................................................................................................ 7
Global Code ..................................................................................................... 7
Overview
Package Contents............................................................................................ 8
About the Manual............................................................................................. 8
Part Numbers and Functions
Part Numbers and Functions ........................................................................... 9
Specifications
Electrical Specifications ................................................................................. 10
Environmental Specifications......................................................................... 10
Interface
Interface Caution............................................................................................ 11
Serial Interface............................................................................................... 11
Installation
Panel Cutout Dimensions .............................................................................. 15
Installation Requirements .............................................................................. 16

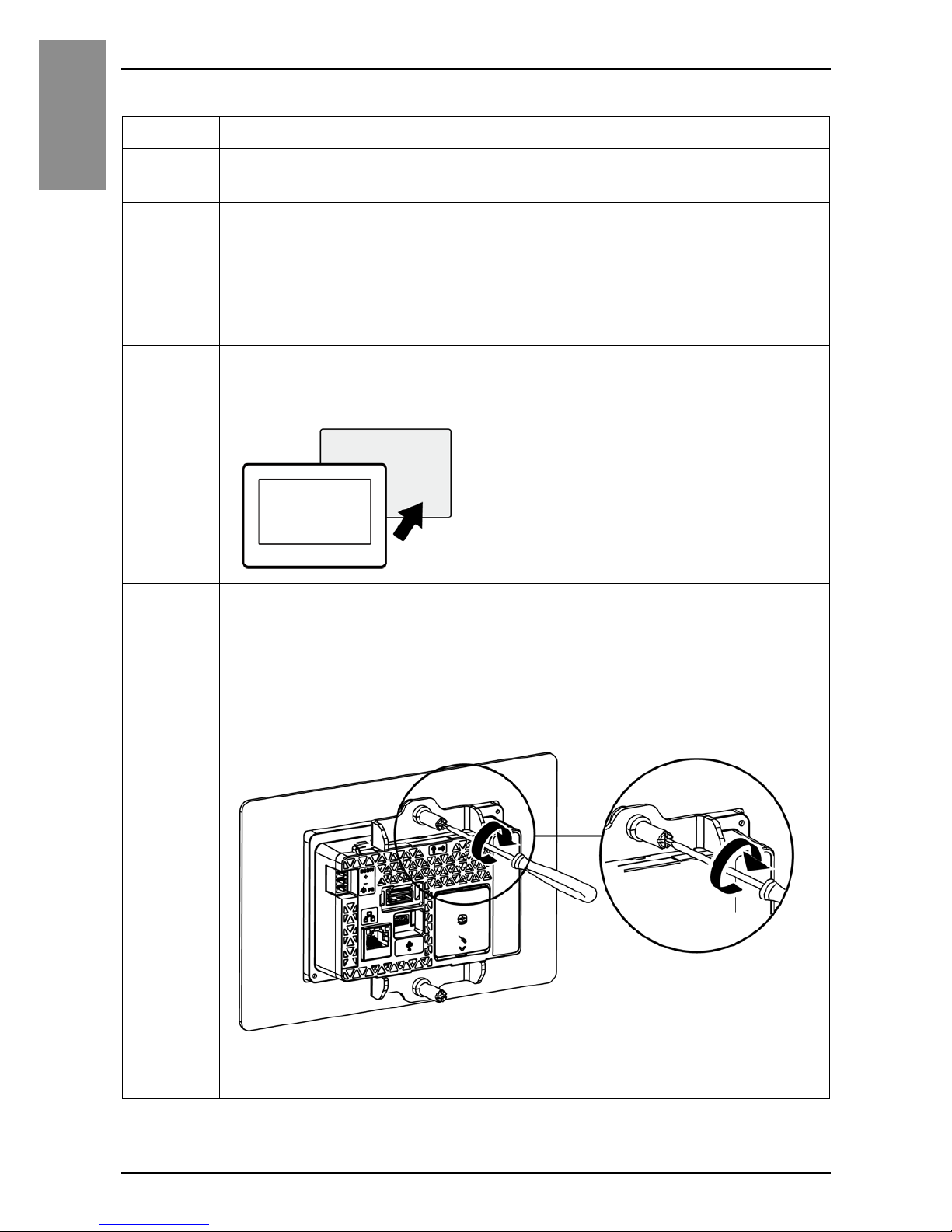

Installation Procedure .................................................................................... 19
Wiring
Wiring............................................................................................................. 25
Connecting to the USB Interface
Connecting to the USB Interface ................................................................... 30
USB Clamp .................................................................................................... 31
Please read the “Warning/Caution Information” on the attached
sheet before using the product.

4
English
RTC Battery Set
Overview ........................................................................................................ 34
Attaching the RTC Battery Set ...................................................................... 34
Replacing the Battery..................................................................................... 36
Maintenance
Cleaning this product ..................................................................................... 37
Standards
Standards....................................................................................................... 38

5
English
Safety Information

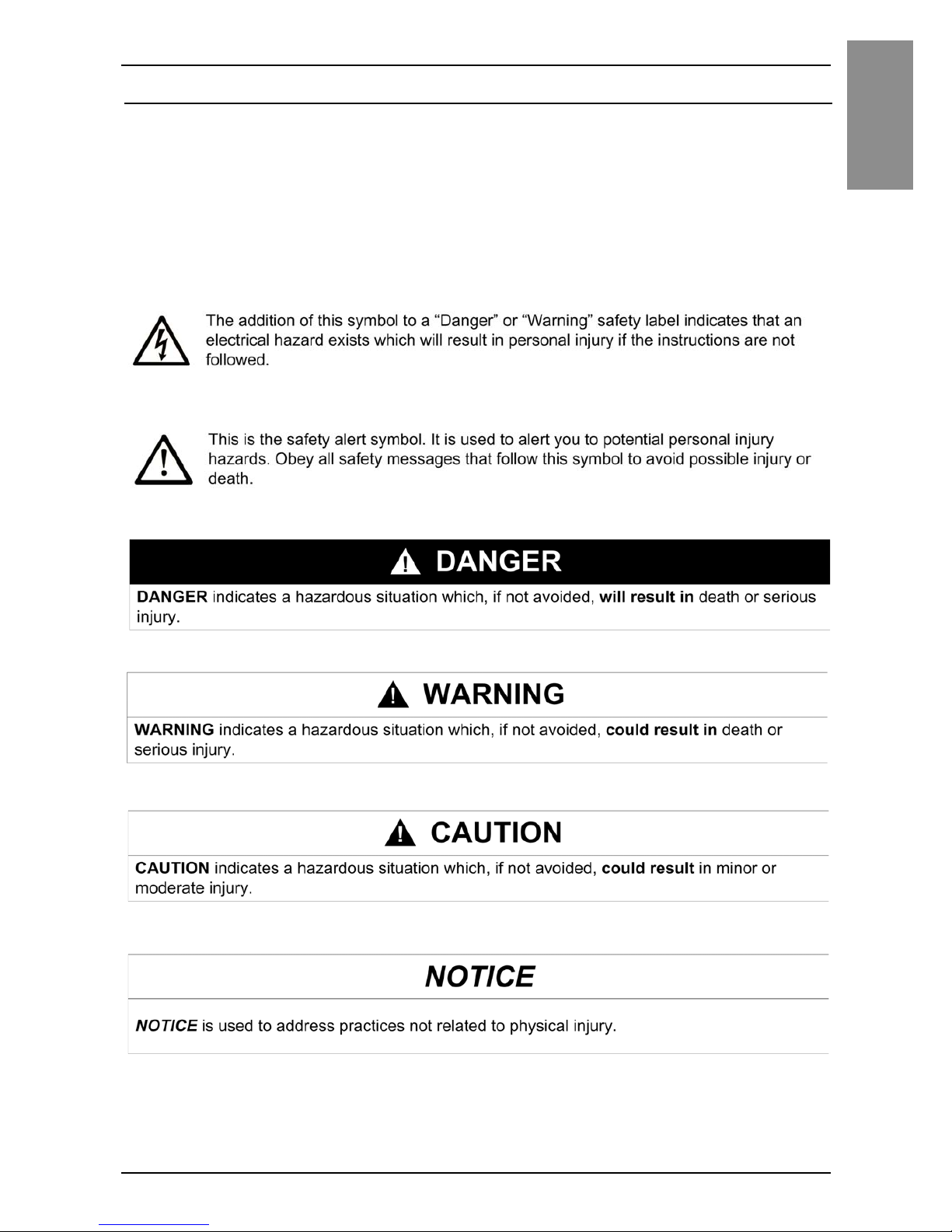

Important Information
Notice
Read these instructions carefully, and look at the equipment to become
familiar with the device before trying to install, operate, or maintain it. The
following special messages may appear throughout this documentation or on
the equipment to warn of potential hazards or to call attention to information
that clarifies or simplifies a procedure.

6
English
Safety Information
PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained
only by qualified personnel. No responsibility is assumed by Pro-face for any
consequences arising out of the use of this material.
A qualified person is one who has skills and knowledge related to the
construction and operation of electrical equipment and its installation, and has
received safety training to recognize and avoid the hazards involved.
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.

7
English
Model Numbers
Model Numbers
*1 Includes models with additional alphanumeric characters at the end of the
model number.
Global Code
A global code is assigned to every Pro-face product as a universal model
number.
For more information on product models and their matching global codes,
please refer to the following URL.
http://www.pro-face.com/trans/en/manual/1003.html
Series Model name Model number *1
GP-4100 Series
Color Model
Ethernet type GP-4114T PFXGP4114T1D
PFXGP4114T2D
RS-232C type GP-4115T PFXGP4115T1D
PFXGP4115T2D
RS-422/485 type GP-4116T PFXGP4116T1D
PFXGP4116T2D

8
English
Overview

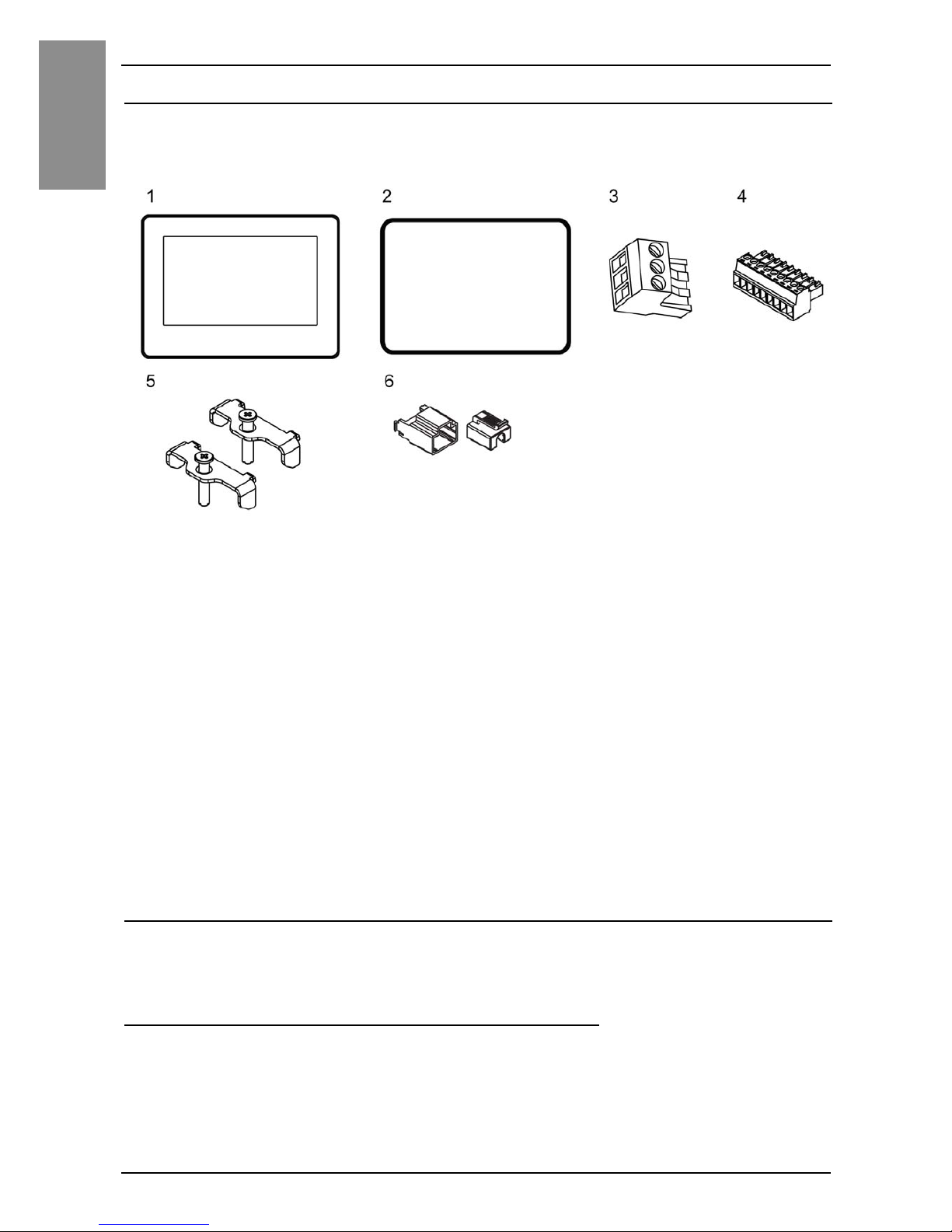

Package Contents
The following items are included in the package. Before using this product,
please confirm that all items listed here are present.
1GP-4100 Series Color Model: 1
2Installation Gasket: 1 (attached to this product)
3DC Power Supply Connector: 1 (attached to this product)
4COM I/F Connector: 1 (for RS-232C and RS-422/485 types)
5Installation Fastener: 2 pieces/set
6USB Clamp Type A (1 port): 1
7GP-4100 Series Color Model Installation Guide (this guide): 1
8Warning/Caution Information: 1
This product has been carefully packed, with special attention to quality.
However, should you find anything damaged or missing, please contact your
local distributor immediately.
About the Manual
This manual describes wiring and installation procedures. For more detailed
information, refer to the GP-4100 Series Color Model Hardware Manual.
You can download the manual from our website at
http://www.pro-face.com/trans/en/manual/1001.html.

9
English
Part Numbers and Functions
Part Numbers and Functions
A: Power Connector
B: USB (Type A) Interface
C: USB (mini-B) Interface
D: RTC Battery Set Cover
E: Ethernet Interface
F: Serial Interface
G: DIP Switch (see page 12)
Only on RS-422/485 type.
Ethernet type
(Rear view)
RS-232C type, RS-422/
485 type
(Rear view)

10
English
Specifications
Electrical Specifications
Environmental Specifications
*1 The designated range for the surrounding air temperature is 0 to 45 °C (32
to 113 °F) when the output current of USB (Type A) Interface is from 0.25 A
to 0.5 A.
GP-4114T GP-4115T GP-4116T
Power Supply
Rated input
voltage 12...24 Vdc
Input voltage limits 10.2...28.8 Vdc
Voltage drop 12 Vdc: 1 ms or less
24 Vdc: 3 ms or less
Power consumption
When power is
not supplied to
USB devices
3.9 W or less 3.4 W or less 3.6 W or less
When power is
supplied to
USB devices
8.1 W or less 7.5 W or less 7.7 W or less
In-rush current 12 Vdc: 20 A or less
24 Vdc: 40 A or less
Voltage endurance 1,000 Vac, 20 mA for 1 minute
(between charging and FG terminals)
Insulation resistance 500 Vdc, 10 MΩor more
(between charging and FG terminals)
Physical environment
Surrounding air
temperature 0...50 °C (32...122 °F)*1
Storage temperature -20...60 °C (-4...140 °F)
Surrounding air and
storage humidity
10...90% RH (non-condensing, wet bulb
temperature 39 °C [102.2 °F] or less)
Dust 0.1 mg/m3(10-7 oz/ft3) or less (non-conductive
levels)
Pollution degree For use in Pollution Degree 2 environment
Atmospheric
pressure
(operating altitude)
800...1,114 hPa (2,000 m [6,561 ft] or lower)

11
English
Interface
Interface Caution
Use only the SELV (Safety Extra-Low Voltage) circuit to connect the COM,
USB, and LAN interfaces.
Serial Interface
For information on how to connect controllers and other types of equipment,
refer to the corresponding device driver manual of your screen editing
software.
The serial interface is not isolated. The SG (signal ground) and the FG
(functional ground) terminals are connected inside this product.
NOTE : Use within the rated current.
DANGER
ELECTRIC SHOCK AND FIRE
When using the SG terminal to connect an external device to this product:
• Verify that a short-circuit loop is not created when you set up the system.
• Connect the SG terminal to remote equipment when the external device is
not isolated.
• Connect the SG terminal to a known reliable ground connection to reduce
the risk of damaging the circuit.
Failure to follow these instructions will result in death or serious injury.
CAUTION
LOSS OF COMMUNICATION
• All connections to the communication ports must not put excessive stress
on the ports.
• Securely attach communication cables to the panel wall or cabinet.
Failure to follow these instructions can result in injury or equipment
damage.

12
English
Interface

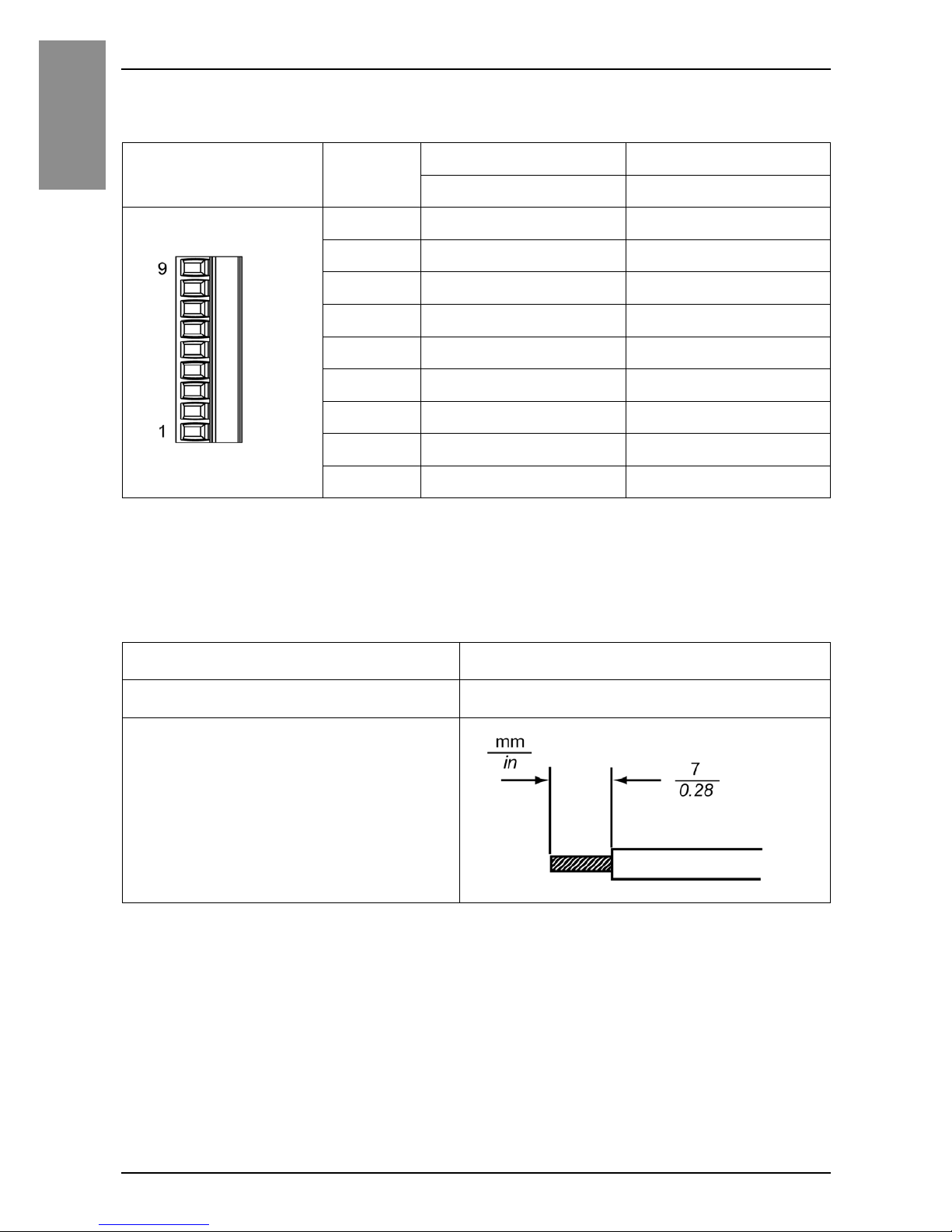

RS-232C and RS-422/485
COM I/F Connector (9-pin, 2-piece terminal block)
NOTE : You can set a termination resistor using the DIP Switch (4-bit) on the rear of the
RS-422/485 type. Factory default settings are “OFF” (no termination resistor).
Check the termination resistor requirement for connection to the connected device
(PLC) and set up if necessary.
Communication Cable Specifications
*1 When inserting two wires into one terminal connector, the simple wire
diameter is 0.08 to 0.5 mm2(AWG 28 to 22), and the stranded wire
diameter is 0.08 to 0.75 mm2(AWG 28 to 20).
*2 If the conductor's stranded wires are not twisted correctly, the ends of the
wires may either short against each other, or against an electrode.
Cable connection
side
Pin No. RS-232C RS-422/485
Signal name Signal name
1CI(RI) CSB
2CD CSA
3 CS(CTS) ERB
4 RS(RTS) ERA
5SG SG
6 DR(DSR) RDB
7 ER(DTR) RDA
8 RD(RXD) SDB
9SD(TXD) SDA
Communication cable diameter*1 0.14...1.5 mm2(AWG 28...16)
Conductor type Simple or stranded wire*2
Conductor length

13
Interface
English
Wiring the COM Interface Connector
DANGER
ELECTRIC SHOCK
Always disconnect the connector from this product before wiring the
connector.
Failure to follow these instructions will result in death or serious injury.
Step Action
1 Use a flat-blade screwdriver (Size 0.4 X 2.5) to loosen the
terminal screws.
2 Strip the communications cable, and attach it to the terminal
connector.
1 Communication cable
2 COM I/F Connector
3 Use a flat-blade screwdriver to tighten the terminal screws on the
terminal connector from step 2.
NOTE : The torque required to tighten these screws is 0.196 N•m (1.735 lb-
in).
4 Insert the connector to this product’s serial interface.

14
English
Interface
NOTICE
BROKEN ENCLOSURE
Do not exert more than 0.196 N•m (1.735 lb-in) of torque when tightening
the screws.
Failure to follow these instructions can result in equipment damage.

15
English
Installation

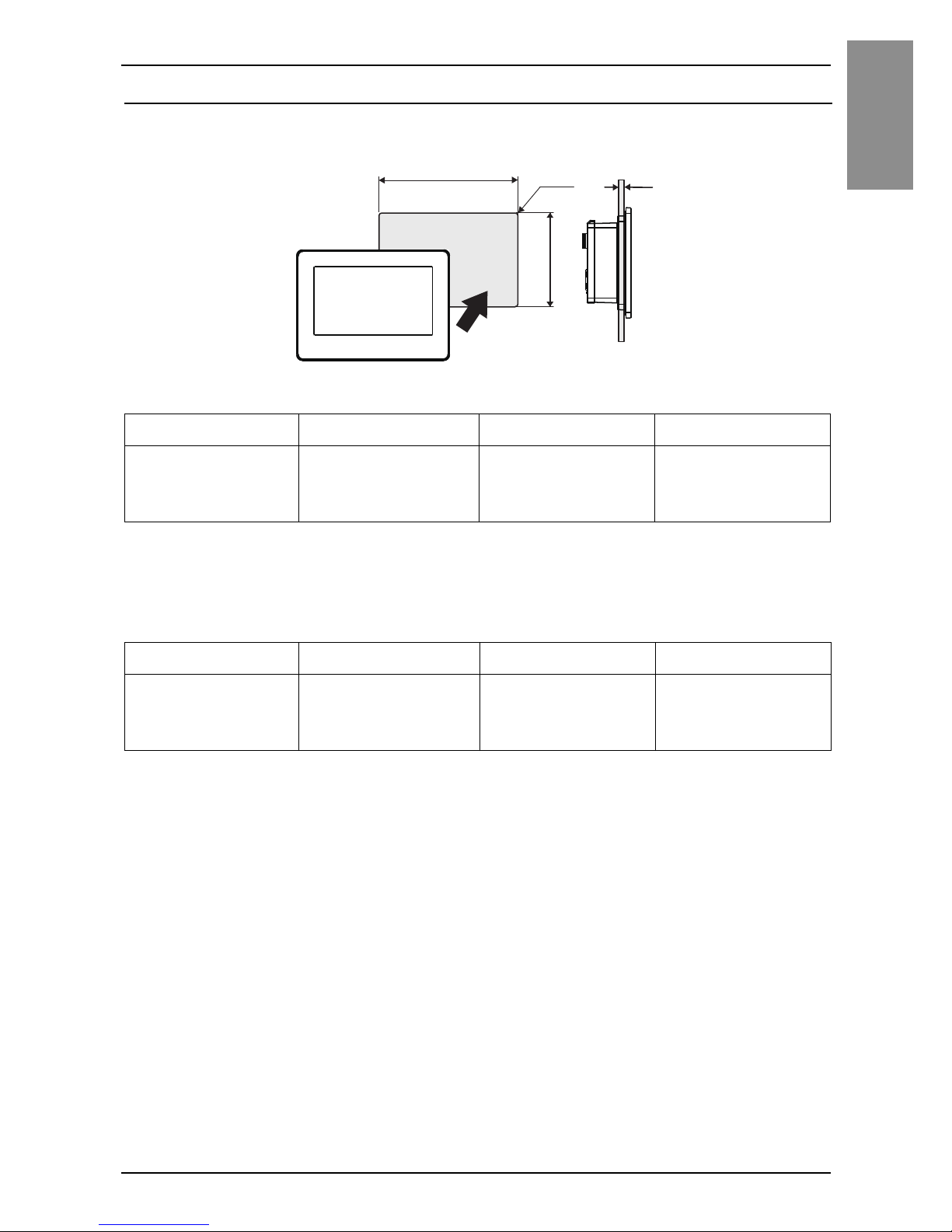

Panel Cutout Dimensions
Based on the panel cutout dimensions, open a mount hole on the panel.
Panel cutout dimensions for color model
When installing to panel cutout for monochrome model (GP-410*)
NOTE : The panel cutout adapter (model number: PFXZCFAD31) is required for this type
of installation.
WH X R
112.5 mm
(4.43 in)
77.5 mm
(3.05 in)
1.5...6 mm
(0.06...0.24 in)
2...3 mm
(0.08...0.12 in)
WH X R
105 mm
(4.13 in)
66 mm
(2.6 in)
1.5...6 mm
(0.06...0.24 in)
2...3 mm
(0.08...0.12 in)
X
WR
H
+1
-0
+0.04
-0
+1
-0
+0.04
-0
+1
-0
+0.04
-0
+1
-0
+0.04
-0

16
English
Installation
Installation Requirements
This product is designed for use on flat surfaces of Type 1, Type 4X (Indoor
Use Only), Type 13 Enclosure or IP65F.
Be aware of the following when building this product into an end-use product:
• The rear face of this product is not approved as an enclosure. When building this
product into an end-use product, be sure to use an enclosure that satisfies
standards as the end-use product’s overall enclosure.
• Install this product in an enclosure with mechanical rigidity.
• This product is not designed for outdoor use. UL certification obtained is for
indoor use only.
• Install and operate this product with its front panel facing outward.
NOTE :
• IP65F is not part of the UL certification.
• The necessary torque to fasten the screw of the enclosed installation fasteners is
0.35 N•m (3.1 lb-in).

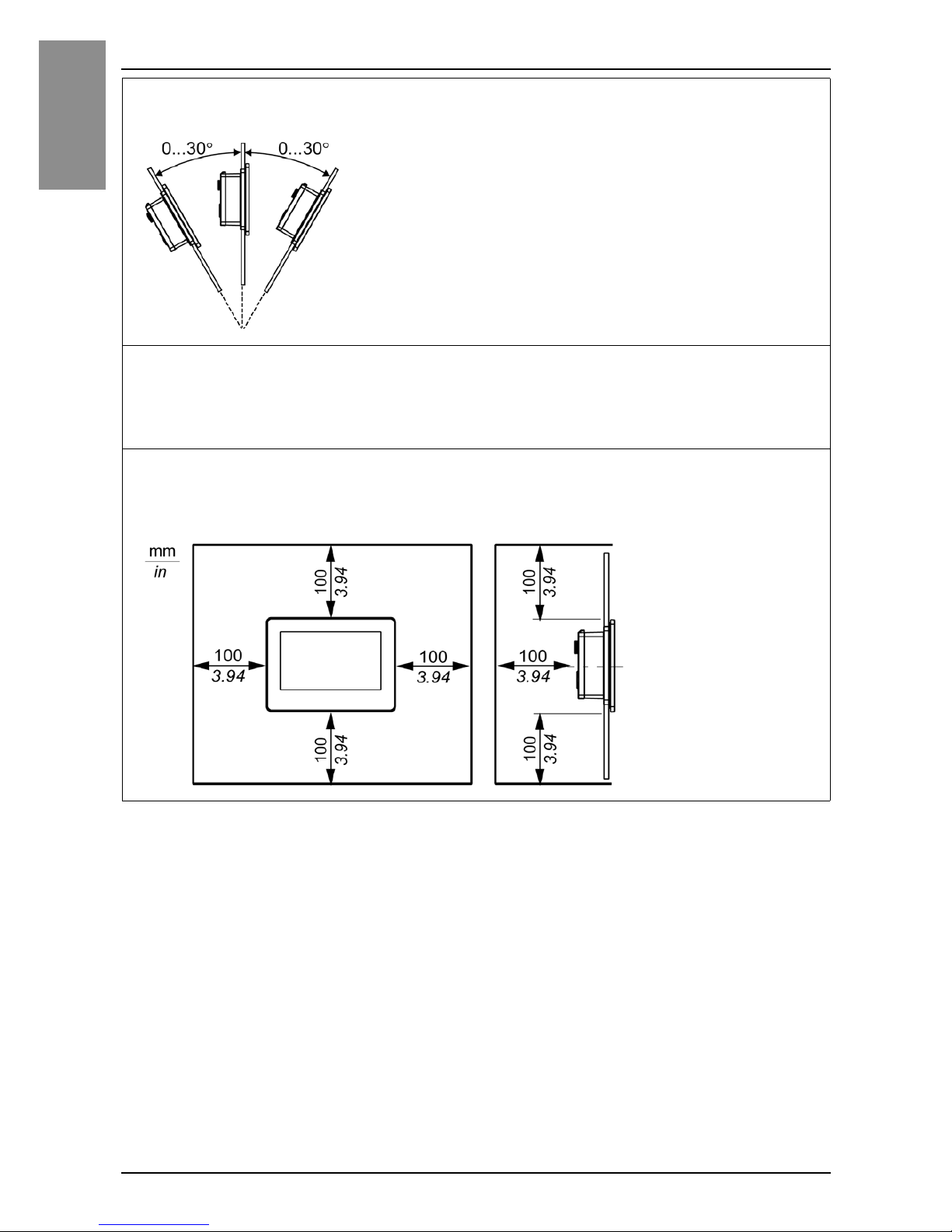

Check that the installation wall or cabinet surface is flat, in good condition
and has no jagged edges. Metal reinforcing strips may be attached to the
inside of the wall, near the panel cutout, to increase its rigidity.
Decide on the thickness of the enclosure wall, based on the level of strength
required: 1.5...6 mm (0.06...0.24 in).
Even if the installation wall thickness is within the recommended range for
the panel cutout dimensions, depending on wall’s material, size, and
installation location of this product and other devices, the installation wall
could warp. To prevent warping, the installation surface may need to be
strengthened.

17
Installation
English
Be sure that the surrounding air temperature and the ambient humidity are
within their designated ranges. Surrounding air temperature: 0 to 50 °C (32
to 122 °F); ambient humidity: 10 to 90% RH; wet bulb temperature:
maximum 39 °C (102 °F) (see page 10). When installing this product in a
cabinet or enclosure, the surrounding air temperature is the cabinet’s or
enclosure’s internal temperature.

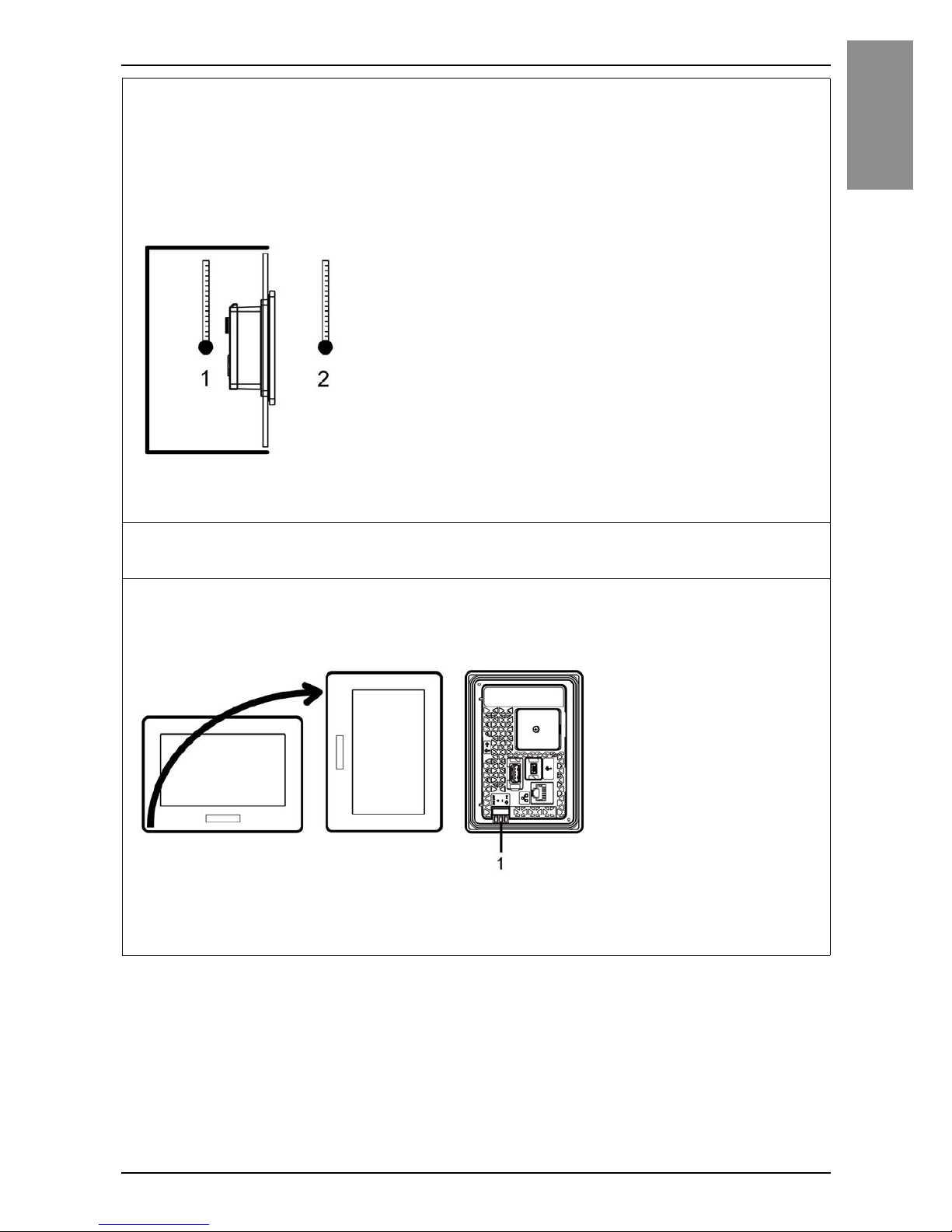

1 Cabinet interior
2 Panel face
Be sure that heat from surrounding equipment does not cause this product
to exceed its standard operating temperature.
When mounting this product vertically, ensure that the left side of this
product faces up. In other words, the DC power connector should be at the
bottom.
1 Power connector
NOTE : For a vertical mounting, make sure your screen editing software supports the
function.

18
English
Installation
When installing this product in a slanted position, the product face should
not incline more than 30°.
When installing this product in a slanted position with an incline more than
30°, the ambient temperature must not exceed 40 °C (104 °F). You may
need to use forced air cooling (fan, A/C) to ensure the ambient operating
temperature is 40 °C or less (104 °F or less).
For easier maintenance, operation and improved ventilation, install this
product at least 100 mm (3.94 in) away from adjacent structures and other
equipment as shown in the following illustration:

19
Installation
English
Installation Procedure
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
• Remove all power from the device before removing any covers or elements
of the system, and prior to installing or removing any accessories,
hardware, or cables.
• Unplug the power cable from both this product and the power supply.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace and secure all covers or elements of the system before applying
power to this product.
Failure to follow these instructions will result in death or serious injury.
NOTICE
EQUIPMENT DAMAGE
Keep this product stabilized in the panel cutout while you are installing or
removing the screw fasteners.
Failure to follow these instructions can result in equipment damage.

20
English
Installation
Installing to panel cutout for Color Model
Step Action
1 Place this product on a clean and level surface with the screen
facing down.
2 Check that this product’s gasket is seated securely into the
bezel’s groove, which runs around the perimeter of the display
panel frame.
NOTE : Always use the installation gasket, since it absorbs vibration in
addition to repelling water. For the procedure on replacing the installation
gasket, refer to the GP-4100 Series Color Model Hardware Manual.
3 Based on this product’s panel cutout dimensions (see page 15),
open a mount hole on the panel and attach this product to the
panel from the front side.
4 Insert the installation fastener hooks into the insertion slots on
this product.
In a clockwise direction, tighten the installation fastener's screws
with a screwdriver.
There are two insertion slots on both the top and bottom of this
product.
The necessary torque is 0.35 N•m (3.1 lb-in)
NOTE : If you exceed the recommended torque when tightening the
installation fastener’s screws, the front of this product may become distorted.

21
Installation
English
NOTICE
BROKEN ENCLOSURE
Do not exert more than 0.35 N•m (3.1 lb-in) of torque when tightening the
fastener’s screws.
Failure to follow these instructions can result in equipment damage.
CAUTION
RISK OF INJURY
Do not drop this product when you remove it from the panel.
• Hold this product in place after removing the fasteners.
• Use both hands.
Failure to follow these instructions can result in injury or equipment
damage.
