USER’S MANUAL
Serial
Number
Decal
www.iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEVEL73011.0
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if there are
missing parts, please contact us:
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................14
MAINTENANCE AND TROUBLESHOOTING.....................................................24
EXERCISE GUIDELINES ....................................................................26
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
TABLE OF CONTENTS

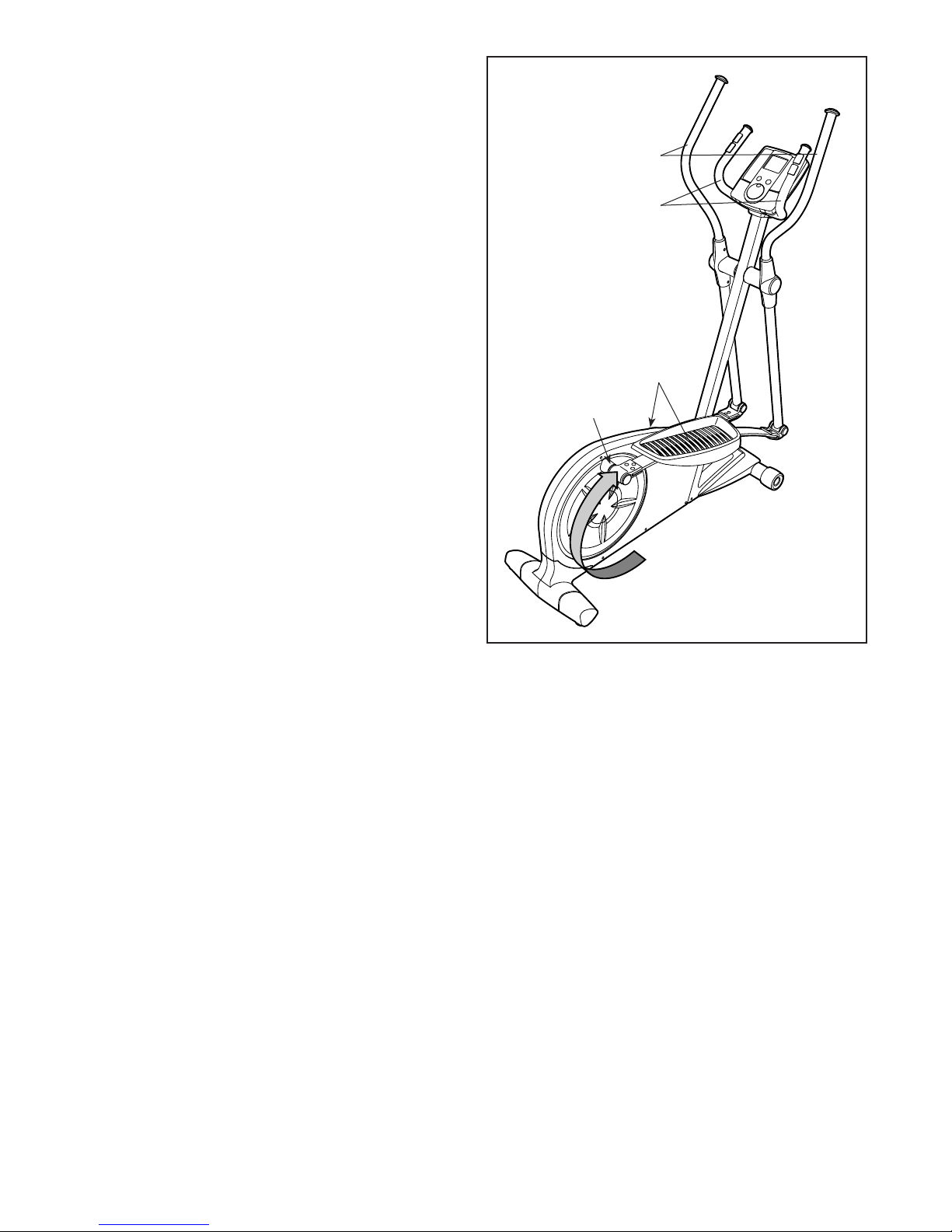

This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 265 lbs. (120 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the ellip-
tical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
BEFORE YOU BEGIN
Thank you for purchasing the PROFORM®310 CE
elliptical. The 310 CE elliptical provides a wide array
of features designed to make your workouts at home
more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the back cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate
Monitor
Handlebar
Upper Body Arm
Pedal Disc
Wheel
Pedal
Console
Leveling Foot
Length: 5 ft. 4 in. (163 cm)
Width: 2 ft. (61 cm)
Weight: 117 lbs. (53 kg)

5
M10 Split
Washer (78)–6
M6 Locknut
(77)–14
M8 Locknut
(82)–8
M6 Washer
(35)–2
M4 x 16mm
Round Head Screw
(84)–16
M6 x 36mm Button
Bolt (76)–4
M6 x 16mm
Screw (80)–2
M4 x 16mm Flat
Head Screw (73)–4
M10 x 41mm Shoulder
Screw (63)–2
M10 x 20mm
Screw (79)–6
M6 x 28mm Flat Head
Bolt (31)–10

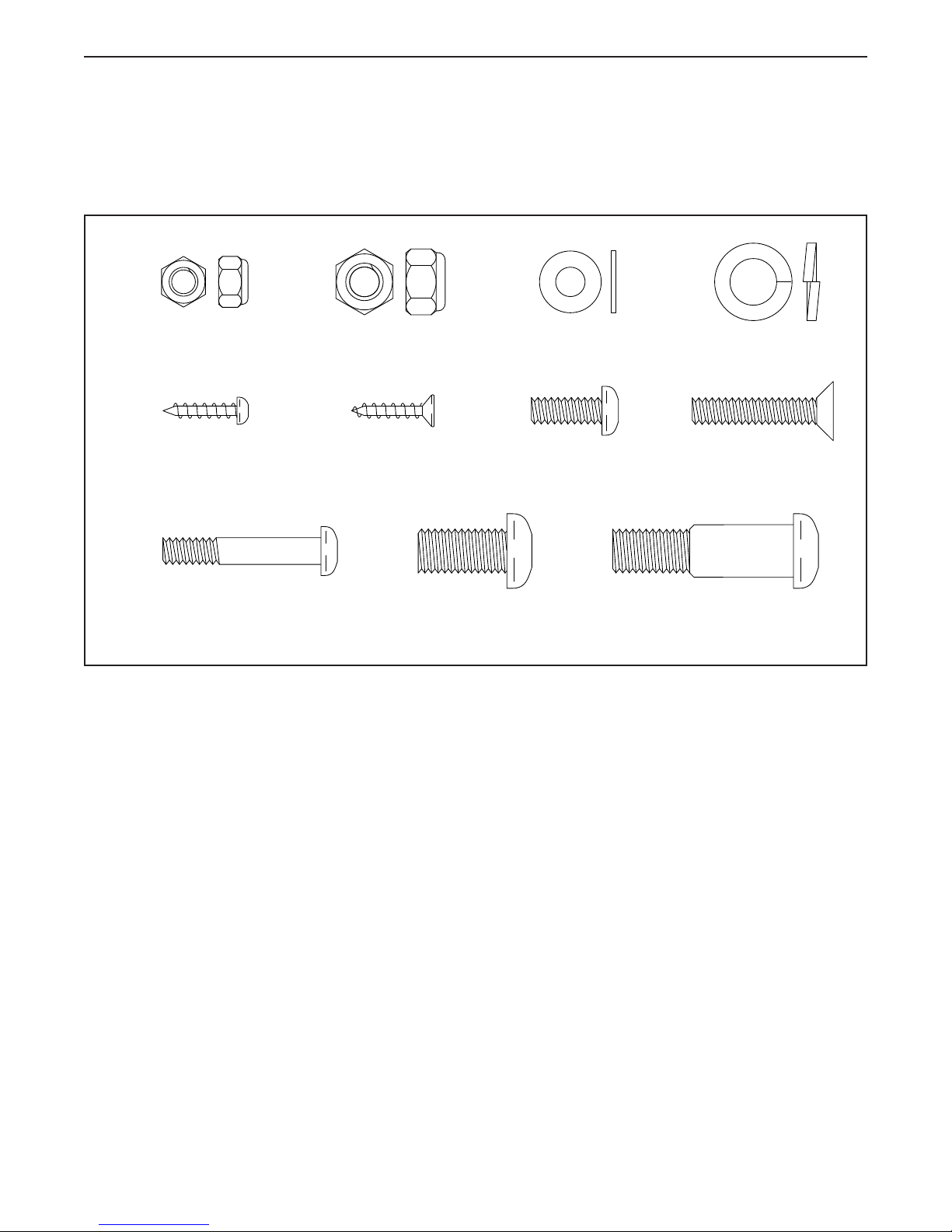

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

6

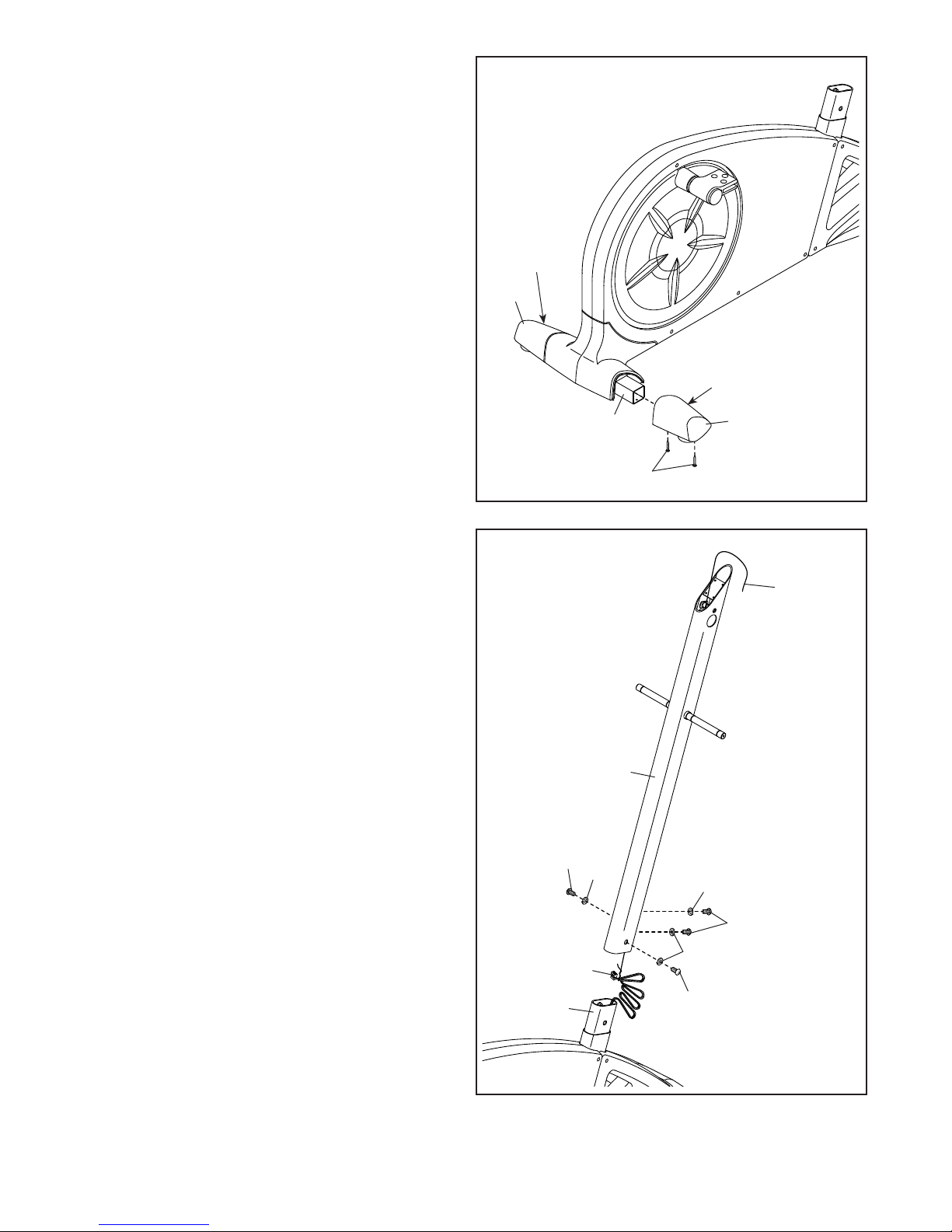

1. Attach a Wheel (50) to the front of the Frame (1)
with an M10 x 41mm Shoulder Screw (63).
Repeat this step to attach the other Wheel
(not shown).
1
1
63
50
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY

7
3. Have another person hold the Upright (2) near
the Frame (1).
Locate the wire tie in the Upright (2). Tie the
lower end of the wire tie to the Wire Harness
(86). Next, pull the upper end of the wire tie until
the Wire Harness is routed through the Upright.
Then, untie and discard the wire tie.
Tip: To prevent the Wire Harness (86) from
falling inside the Upright (2), secure the Wire
Harness with a rubber band.
Tip: Avoid pinching the Wire Harness (86).
Attach the Upright (2) to the Frame (1) with four
M10 x 20mm Screws (79) and four M10 Split
Washers (78). Do not tighten the Screws yet.
3
Avoid pinching the
Wire Harness (86)
2
1
86
78
78
78
79
79
79
Wire Tie
2
2. Identify the Left and Right Frame Covers (48,
49), which are marked with “Left” and “Right”
stickers.
Orient the Left and Right Frame Covers (48, 49)
with the rounded sides in the indicated
locations.
While another person lifts the rear of the Frame
(1), attach each Frame Cover (48, 49) to the
Frame with two M4 x 16mm Round Head
Screws (84).
48
1
Rounded
Side
Rounded
Side
84
49

8
5

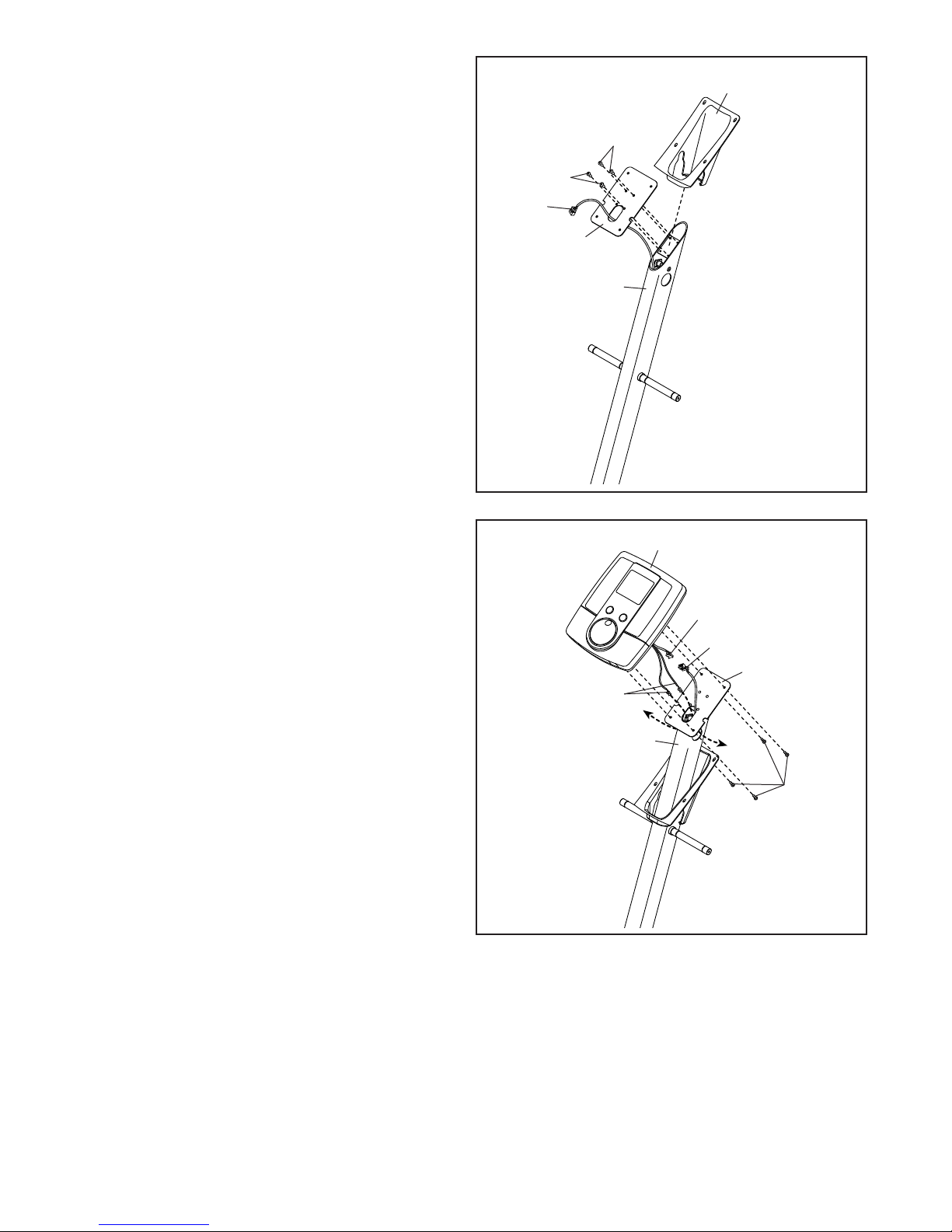

5. While another person holds the Console (4) near
the Console Bracket (3), connect the console
wire to the Wire Harness (86).
Then, insert the console pulse wires downward
into the Upright (2). Pull one console pulse wire
outward from each side of the Upright.
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x
16mm Round Head Screws (84).
4
3
2
84
86
Console Wire
Pulse Wires
Avoid pinching
the wires
4. Slide the Console Cover (96) onto the Upright
(2) and move it downward.
Orient the Console Bracket (3) so that the sticker
faces upward. Then, hold the Console Bracket
near the Upright (2) and insert the Wire Harness
(86) upward through the Console Bracket.
Tip: Avoid pinching the Wire Harness (86).
Attach the Console Bracket (3) to the Upright (2)
with four M4 x 16mm Flat Head Screws (73).
4
Avoid pinching the
Wire Harness (86)
73
73
86
96
2
3

9
7
7. Identify the Left and Right Handlebars (5, 16),
which are marked with “Left” and “Right” stickers.
Have another person hold the Right Handlebar
(16) near the Upright (2).
Connect the console pulse wire in the
Upright (2) to the Pulse Wire (37) in the Right
Handlebar (16).
Tip: Avoid pinching the wires. Attach the
Right Handlebar (16) to the Upright (2) with
an M10 x 20mm Screw (79) and an M10 Split
Washer (78).
Repeat this step for the Left Handlebar (5).
16
79
78
5
2
37
Avoid pinching
the wires
Pulse Wire
6
6. Slide the Console Cover (96) upward to the
Console (4). Insert the console pulse wires
downward through the Console Cover.
Tip: Avoid pinching the wires. Attach the
Console Cover (96) with four M4 x 16mm Round
Head Screws (84).
96
Pulse Wires
84
4
Avoid pinching
the wires

10
9. Attach the Right Pedal Arm (99) to the right
Crank Arm Bracket (29) with three M6 x 28mm
Flat Head Bolts (31) and three M6 Locknuts (77).
Make sure that the Locknuts are inside the
hexagonal holes.
Repeat this step for the Left Pedal Arm (not
shown).
9
99
77
29
31
Hexagonal
Holes
8
99
13
15
Bumper
Hole
82
8. Identify the Right Pedal (13) and the Right Pedal
Arm (99), which are marked with “Right” stickers,
and orient them as shown.
Locate the bumper on the underside of the Right
Pedal Arm (99). Then, position the hole in a
Pedal Bracket (15) over the bumper.
Attach the Right Pedal (13) and the Pedal
Bracket (15) to the Right Pedal Arm (99) with
four M8 Locknuts (82).
Repeat this step for the Left Pedal and the
Left Pedal Arm (not shown).

11
11. Apply a generous amount of the included grease
to the axles on the Upright (2).
Orient an Inner Arm Cover (22) and the right
Upper Body Leg (6) as shown.
Slide the Inner Arm Cover (22) and the right
Upper Body Leg (6) onto the right side of the
Upright (2).
Attach the right Upper Body Leg (6) with an M6 x
16mm Screw (80) and an M6 Washer (35).
Attach the left Upper Body Leg (6) in the
same way.
622
22
6
35
80
35
80
2
Grease
11
10. Identify the Right Upper Body Arm (9), which is
marked with a “Right” sticker.
Orient the Right Upper Body Arm (9) and an
Upper Body Leg (6) as shown. Make sure
that the hexagonal holes and the wide side
of the Upper Body Leg are in the indicated
locations.
Slide the Right Upper Body Arm (9) onto the
Upper Body Leg (6).
Attach the Right Upper Body Arm (9) with two
M6 x 36mm Button Bolts (76) and two M6
Locknuts (77). Make sure that the Locknuts
are inside the hexagonal holes.
Repeat this step for the Left Upper Body Arm
(not shown) and the other Upper Body Leg
(not shown).
10
9
77
76 Hexagonal
Holes
Wide
Side
6

12
12. Attach an Outer Arm Cover (20) around the left
Upper Body Leg (6) with two M4 x 16mm Round
Head Screws (84).
Attach the other Outer Arm Cover (20) around
the right Upper Body Leg (6) in the same way.
12
6
6
20
20
84
84
13. Insert the Right Pedal Arm (99) into the right
Upper Body Leg Bracket (21).
Attach the Right Pedal Arm (99) to the right
Upper Body Leg Bracket (21) with two M6 x
28mm Flat Head Bolts (31) and two M6 Locknuts
(77). Make sure that the Locknuts are inside
the hexagonal holes.
Repeat this step for the left side of the
elliptical.
See step 3. Tighten the four M10 x 20mm
Screws (79). Tip: Tighten the two Screws on
the front of the elliptical before tightening the
other two Screws.
13
21
6
99
77
31
Hexagonal
Holes

13
15. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.

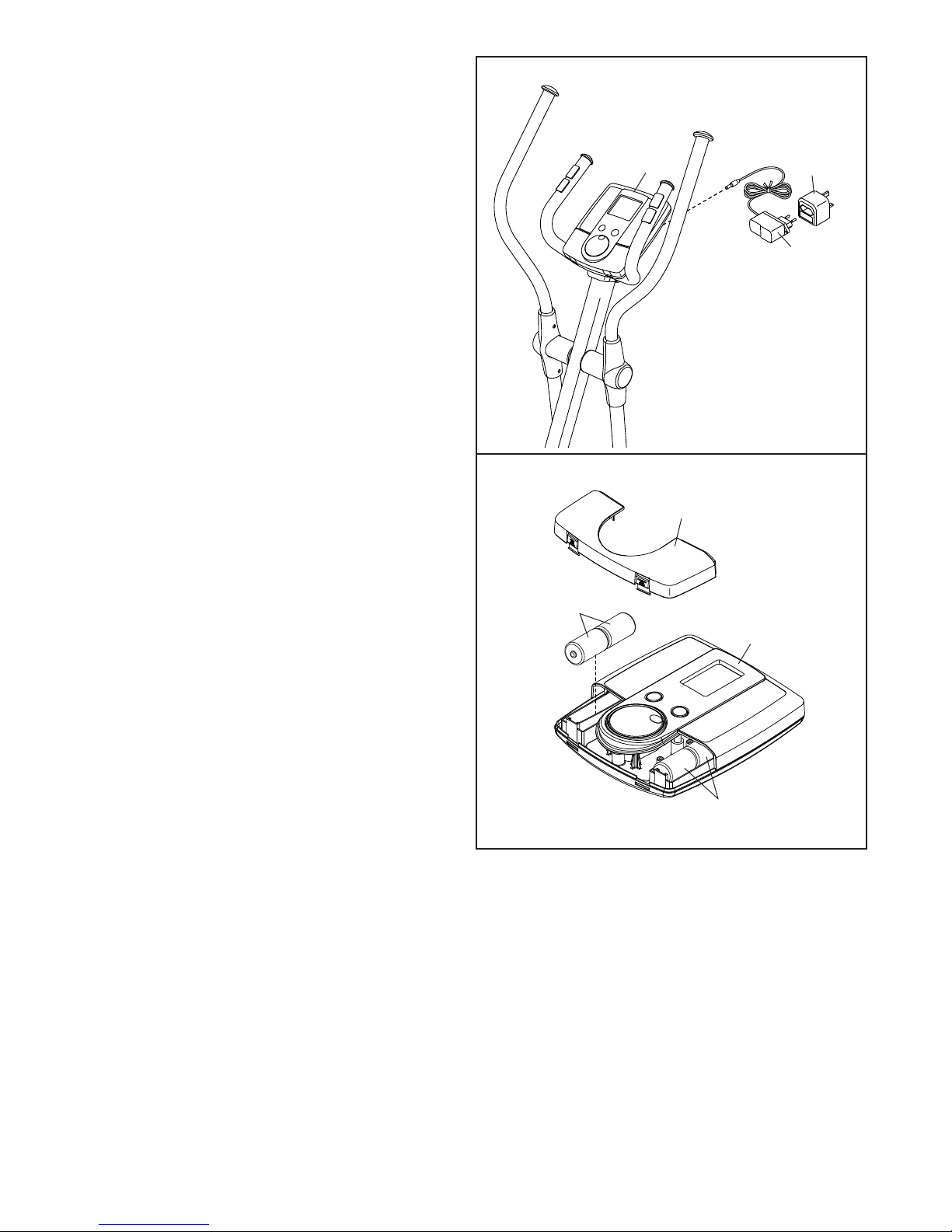

14. See the upper drawing. Plug the Power
Adapter (100) into the receptacle on the
Console (4).
If necessary, plug the Power Adapter (100) into
the plug adapter (A).
To plug the Power Adapter (100) into an outlet,
see HOW TO PLUG IN THE POWER ADAPTER
on page 14.
See the lower drawing. The Console (4) can
use four D batteries (not included); alkaline bat-
teries are recommended. Do not use old and
new batteries together or alkaline, standard, and
rechargeable batteries together.
IMPORTANT: If the Console (4) has been
exposed to cold temperatures, allow it to
warm to room temperature before you insert
batteries. Otherwise, you may damage the
console displays or other electronic com-
ponents. Remove the battery cover and insert
batteries into the battery compartments. Make
sure to orient the batteries as shown by the
diagrams inside the battery compartments.
Then, reattach the battery cover. Note: The bat-
tery cover may be attached with screws.
4
Batteries
Batteries
Cover
14
A
100
4

14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before plugging in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter into the
receptacle on the
console. Next,
plug the power
adapter into the
plug adapter if
necessary. Then,
plug the plug
adapter into an
appropriate outlet
that is properly
installed in accor-
dance with all
local codes and ordinances.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn the leveling feet (see the drawing above) under
the rear of the elliptical until the rocking motion is
eliminated.
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, stand in front of it, place one
foot against one of the wheels, and firmly hold the
upright. Pull the upright forward until you can move the
elliptical on the wheels. Carefully move the elliptical to
the desired location and then lower it to the floor. To
decrease the risk of injury, do not attempt to move
the elliptical over an uneven surface.
Power Adapter
Plug
Adapter
Place
your foot
here
Upright
Wheel
Leveling
Foot

15
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or the
handlebars and step onto the highest pedal. Then, step
onto the other pedal. Push the pedals until they move
with a continuous motion. Note: The crank arms can
turn in either direction. It is recommended that you
turn the crank arms in the direction shown by the
arrow; however, for variety you can turn the crank
arms in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal. Pedals
Crank Arm
Upper Body Arms
Handlebars

16
Fenway
ELPE74008
EBPE74108
ELPE73011
PFEVEX74108.0
PFEVEL74008.0
PFEVEL73011.0
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you select the manual mode of the console, you
can change the resistance of the pedals with a touch
of the dial. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor or
the optional chest heart rate monitor.
The console also offers sixteen trainer workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
You can also use two calorie goal workouts designed
to help you burn 150 or 200 calories. The calorie goal
workouts automatically control the resistance of the
pedals and prompt you to increase or decrease your
pedaling pace while counting the calories you burn.
In addition, the console offers two heart rate workouts
that change the resistance of the pedals to keep your
heart rate near a target heart rate while you exercise.
IMPORTANT: Before you use the console for the
first time, you must select BIKE or ELLIPTICAL;
if you do not do this, the console will not display
correct feedback. (See HOW TO ENTER CONSOLE
SETTINGS on page 17.)
To enter console settings, see page 17. To use the
manual mode, see page 18. To use a trainer work-
out, see page 20. To use a calorie goal workout, see
page 21. To use a heart rate workout, see page 22.
Note: If there is a sheet of plastic on the face of the
console, remove the plastic.
Resistance Dial
CONSOLE DIAGRAM

17
HOW TO ENTER CONSOLE SETTINGS
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, the display will light.
2. Select the user mode.
The user mode allows you to select the type of
product that the console is operating, select a unit
of measurement for an exercise bike, and select a
backlight option for the console.
To select the user mode, press and hold the
Workout Select button (see the drawing on page
16) for several seconds until the words BIKE and
ELLIPTICAL appear in the display.
3. Select a product type.
Select BIKE or ELLIPTICAL as the product type.
The arrow in the display indicates the currently
selected product type. To change the selection,
press the Priority Display button repeatedly.
If the console is operating an exercise bike,
select BIKE as the product type. If the console is
operating an elliptical, select ELLIPTICAL as the
product type.
Then, press the Workout Select button to save
your selection. The other console settings will then
appear in the display.
IMPORTANT: If you selected BIKE, go to step 4.
If you selected ELLIPTICAL, go to step 5.
4. If the console is operating an exercise bike,
select a unit of measurement.
When the console operates an exercise bike, the
console can show speed and distance in either
miles or kilometers.
If you selected BIKE as the product type, the word
ENGLISH (for English miles) or the word METRIC
(for metric kilometers) will appear in the display to
show which unit of measurement is selected.
To change the unit of measurement, turn the resis-
tance dial until the desired unit of measurement
appears in the display.
5. Select a backlight option, if desired.
The console has three backlight options. The ON
option keeps the backlight on while the console is
on. The AUTO option keeps the backlight on only
while you are pedaling. The OFF option turns the
backlight off.
To select a backlight option, press the Priority
Display button repeatedly until the desired back-
light option appears in the display.
6. Exit the user mode.
Press the Workout Select button to save the con-
sole settings and exit the user mode.

18
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, the display will light.
2. Select the manual mode.
Each time you turn
on the console, the
manual mode will
be selected. If you
have selected a
workout, reselect
the manual mode
by pressing the Workout Select button repeatedly
until the word MANUAL appears in the lower left
corner of the display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the ped-
als by turning the resistance dial. To increase the
resistance, turn the resistance dial clockwise; to
decrease the resistance, turn the resistance dial
counterclockwise. Note: After you change the resis-
tance, it will take a moment for the pedals to reach
the selected resistance level.
4. Follow your progress with the display.
The upper left corner of the display will show the
elapsed time. Note: When a workout is selected,
the display will show the time remaining in the
workout instead of the elapsed time.
The lower left corner of the display will show the
distance you have pedaled.
Note: If the console is operating an exercise bike,
the distance will be shown in miles or kilometers. If
the console is operating an elliptical, the distance
will be shown in total number of revolutions.
The upper right corner of the display will show
the approximate number of calories you have
burned. The upper right corner of the display will
also show your heart rate when you use the hand-
grip heart rate monitor (see step 5 on page 19).
Note: When a calorie goal workout is selected, the
display will count down the approximate number of
calories that have been burned.
The lower right corner of the display will show
your pedaling pace.
Note: If the console is operating an exercise bike,
your pedaling pace will be shown in miles per hour
or kilometers per hour. If the console is operating
an elliptical, your pedaling pace will be shown in
revolutions per minute (rpm).
The center of the display will show the resistance
level of the pedals for a few seconds each time the
resistance level changes.
You can also view selected information at a larger
size. Press the Priority Display button repeatedly
to view time and distance information, time and
calorie information, or time and pace information.
Press the Priority Display button again to view all
information.

19
5. Measure your heart rate if desired.
You can measure you heart rate using either the
handgrip heart rate monitor or the optional chest
heart rate monitor (see page 23 for information
about the optional chest heart rate monitor).

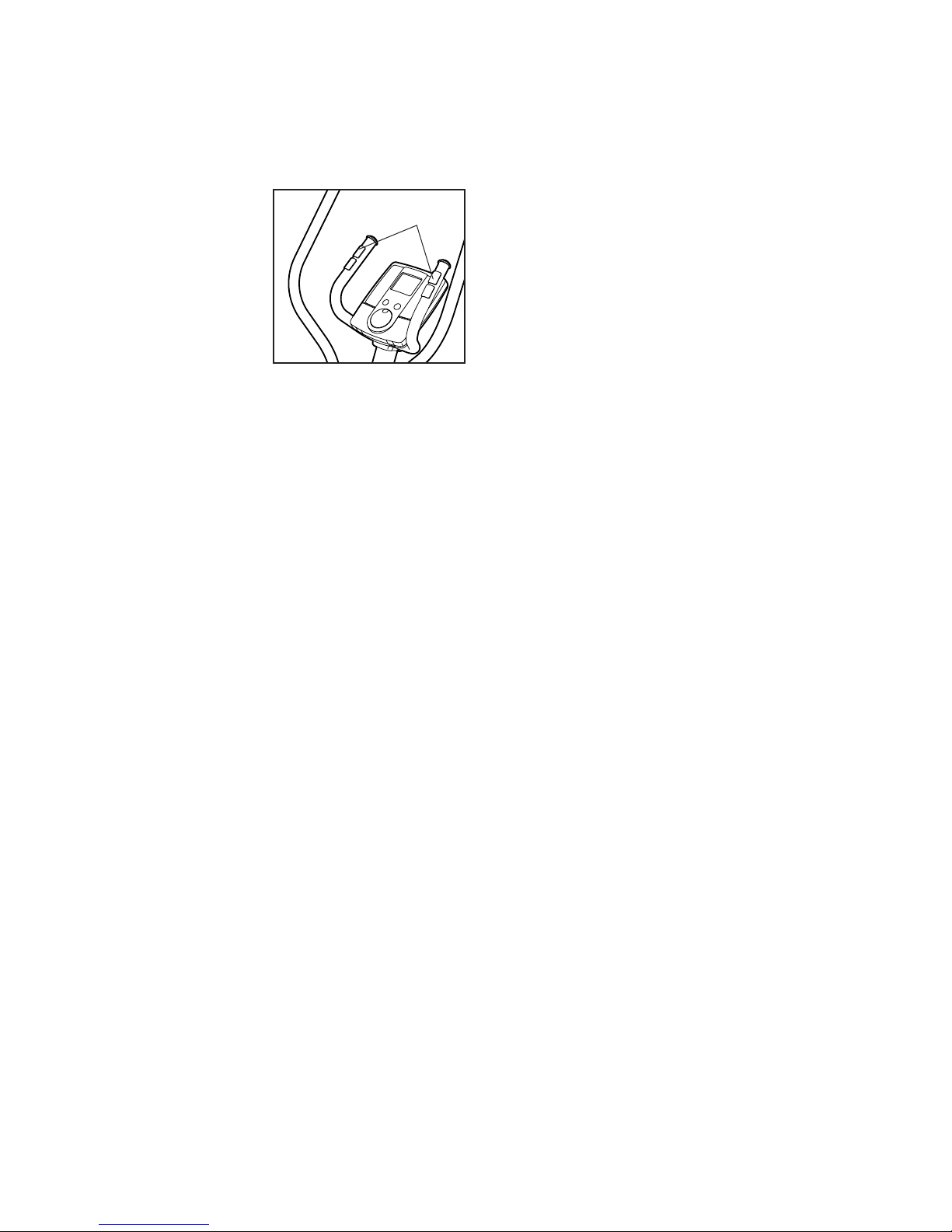

If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate moni-
tor, remove the
plastic. To mea-
sure your heart
rate, hold the
handgrip heart rate
monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, one, two, or three
dashes will appear in the display, and then your
heart rate will be shown. For the most accurate
heart rate reading, hold the contacts for at least 15
seconds. Note: If you continue to hold the handgrip
heart rate monitor, the display will show your heart
rate for up to 30 seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal perfor-
mance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Whenyouarenishedexercising,theconsole
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause. If the
pedals do not move for several minutes and the
buttons are not pressed, the console will turn off
and the display will be reset.
Contacts

20
HOW TO USE A TRAINER WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
A moment after you begin pedaling or press a but-
ton, the display will light.
2. Select a trainer workout.
To select a trainer
workout, press the
Workout Select
button repeatedly
until the number
of the desired
workout appears
in the display. The
workout time and
a profile of the resistance levels for the workout will
also appear in the display.
Note: The number and profile of each trainer work-
out is printed on the console.
3. Begin pedaling to start the workout.
Each workout is divided into several one-minute
segments. One resistance level and one target
pace (rpm) are programmed for each segment.
Note: The same resistance level and/or target pace
may be programmed for consecutive segments.
The workout profile will show your progress (see
the drawing above). The flashing segment of the
profile represents the current segment of the work-
out. The height of the flashing segment indicates
the resistance level for the current segment.
When the first segment of the workout ends, the
resistance level and the target pace for the second
segment will appear in the center of the display for
a few seconds to alert you. The next segment of
the profile will begin to flash, and the pedals will
automatically adjust to the resistance level for the
next segment.
As you exer-
cise, you will
be prompted to
keep your pedal-
ing pace near the
target pace for the
current segment.
When an upward arrow appears in the display,
increase your pace. When a downward arrow
appears, decrease your pace. When no arrow
appears, maintain your current pace.
IMPORTANT: The target pace is intended only
to provide motivation. Your actual pace may be
slower than the target pace. Make sure to pedal
at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by turning the resistance dial. IMPORTANT:
When the current segment of the workout ends,
the pedals will automatically adjust to the resis-
tance level for the next
segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the workout,
simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 18.
5. Measure your heart rate if desired.
See step 5 on page 19.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 19.
Profile
