Pro-Form 490 LE User manual

Serial
Number
Decal
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference.
Model No. PFEL05009.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
USERʼS MANUAL
www.proform.com

TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEELLIPTICAL .............................................................13
MAINTENANCEANDTROUBLESHOOTING ...................................................21
EXERCISEGUIDELINES ...................................................................22
PARTLIST ..............................................................................24
EXPLODEDDRAWING ....................................................................26
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
2
WARNING DECAL PLACEMENT
PROFORM is a registered trademark of ICON IP, Inc.

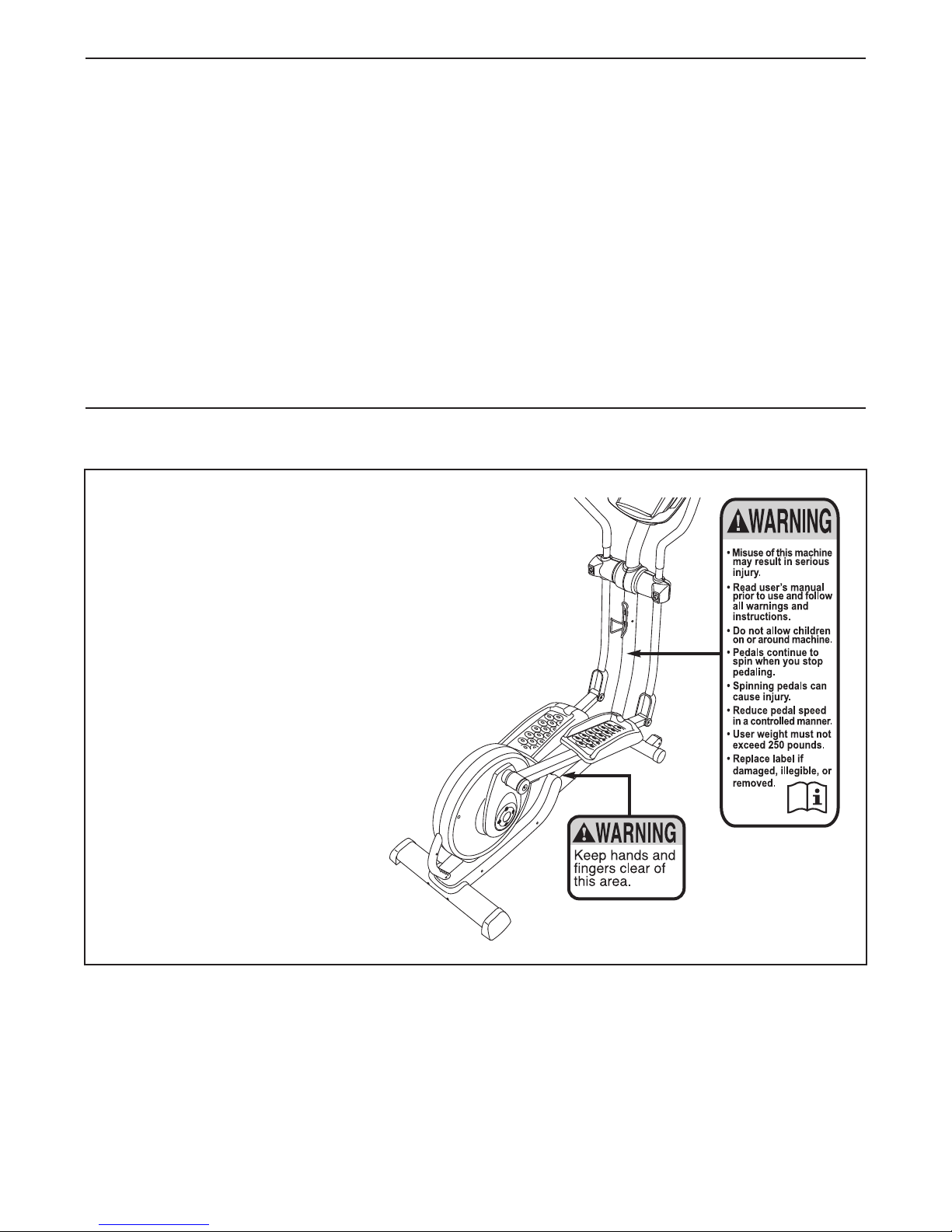

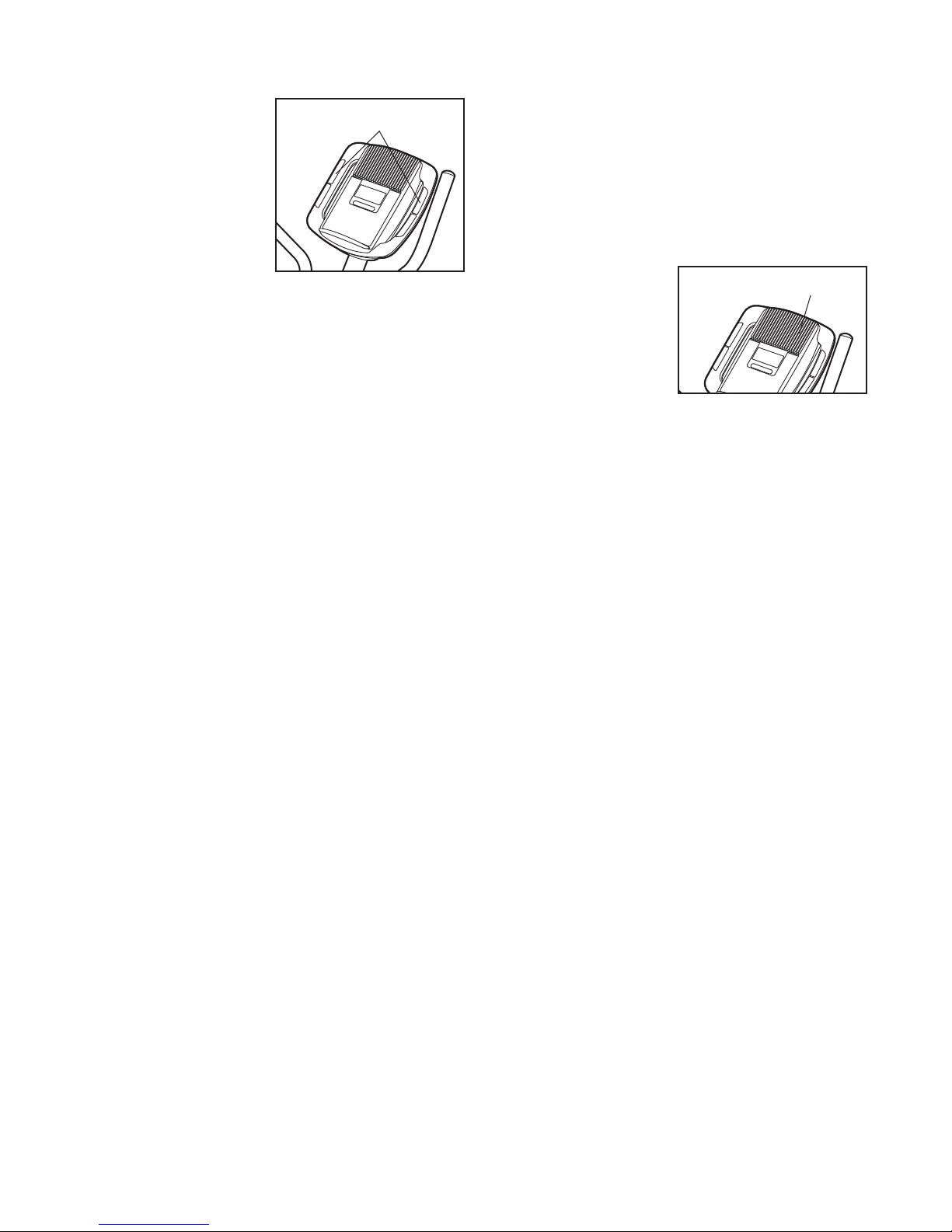

This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. eep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. eep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handgrip pulse sensors or the
upper body arms when mounting,
dismounting, or using the elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. eep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

4
Handgrip Pulse Sensor
Handlebar
Pedal Disc
Wheel
Pedal
Console
Water Bottle Holder*
Leveling Foot
Handle
Storage Latch
Storage Magnet
Fan
Pedal Arm Latch
*Water bottle is not included
BEFORE YOU BEGIN
Thank you for purchasing the PROFORM®490 LE
elliptical. The 490 LE elliptical provides an array of
features designed to make your workouts at home
more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

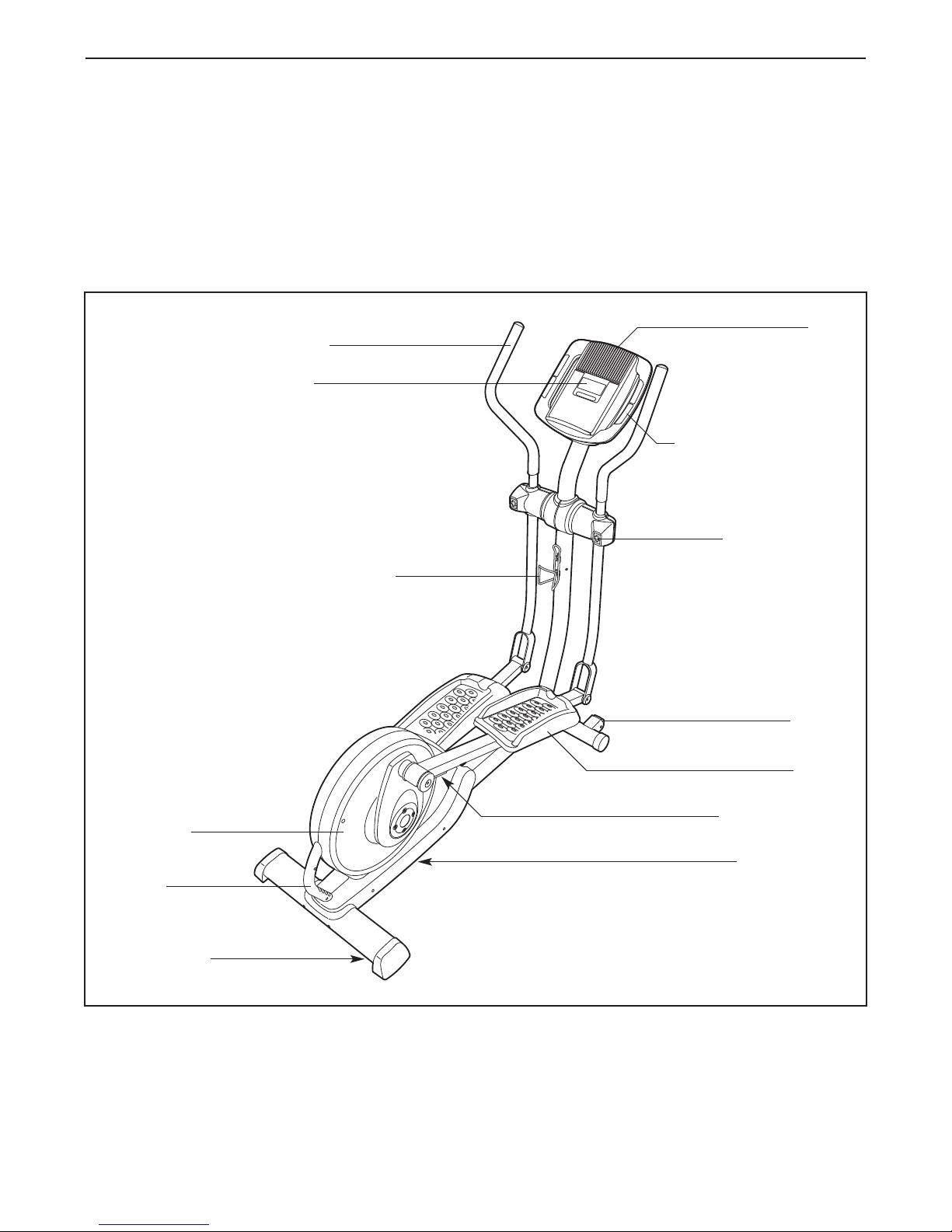

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

5
M10 x 127mm Button Screw (83)–2
M10 Locknut
(81)–2
M8 Jam Nut
(79)–5
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 x 23mm Button
Screw (84)–4
M8 Split
Washer
(90)–3
M8 x 41mm Button
Bolt (78)–4
M4 x 16mm
Round Head
Screw (101)–8
M4 x 32mm
Round Head
Screw (105)–6
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
M10 x 80mm Carriage
Bolt (82)–2
Hub Screw (87)–8
M4 Split
Washer
(112)–8
M4
Washer
(102)–8
M4 x 47mm Screw
(108)–2
M4 x 16mm
Blunt Screw
(104)–8
ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
Use the drawings below to identify small parts. The number in parentheses below each drawing is the key num-
ber of the part, from the PART LIST near the end of this manual. The number following the parentheses is the
quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has been pre-
assembled.

6

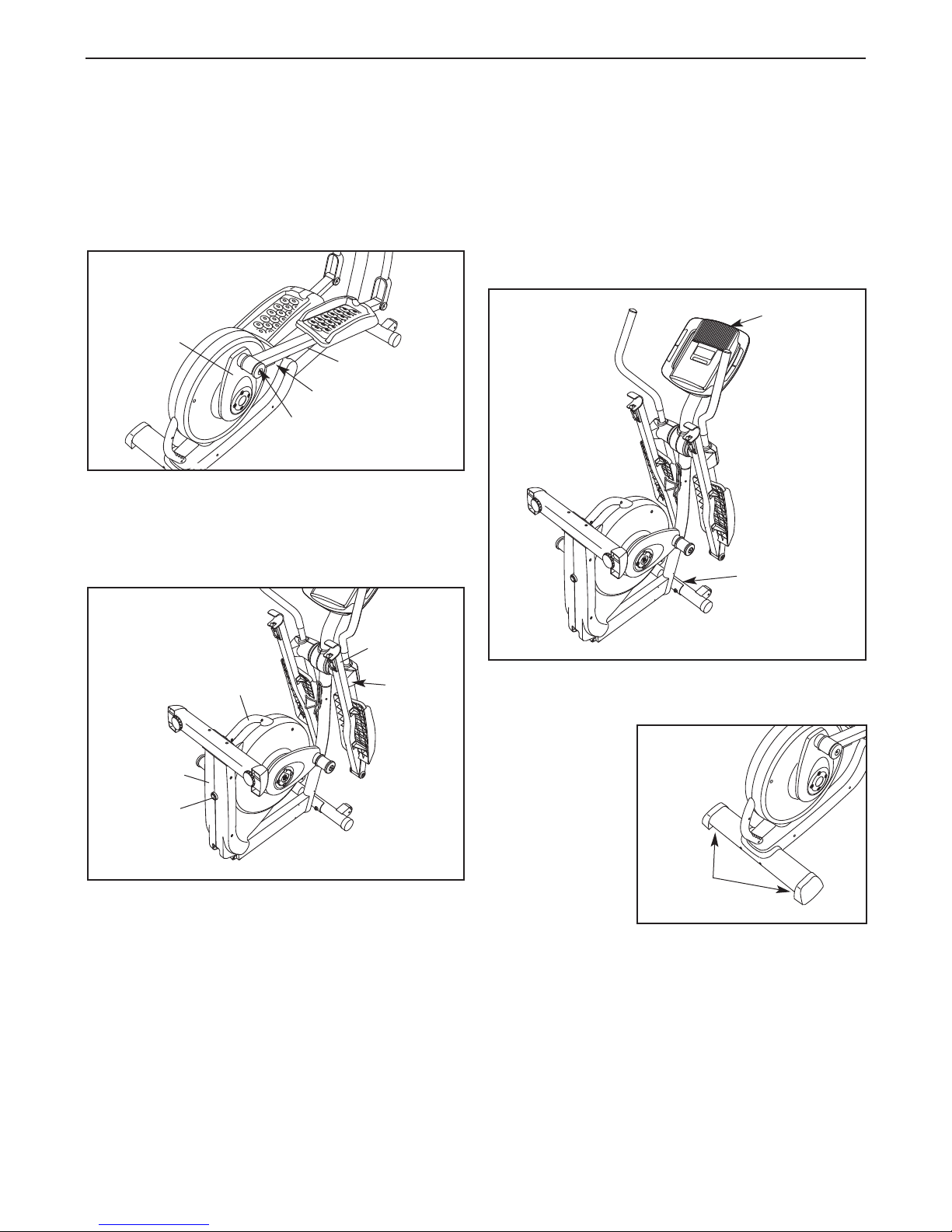

1.
While another person lifts the Base (1),
attach the Front Stabilizer (6) to the Base
with two M10 x 80mm Carriage Bolts (82)
and two M10 Locknuts (81).
2. Remove the indicated screw and the ship-
ping bracket from the Base (1). Discard the
screw and the shipping bracket.
Next, tighten the Base Foot (26) into the
Base (1).
6
81
81
82
1
1
Shipping
Bracket
26
Screw
2
1
To make assembly easier, read the
information on page 5 before you
begin.

7
3. Attach the Rear Stabilizer (7) to the Frame
(2) with two M10 x 127mm Button Screws
(83).
Next, hold the handle on the Frame (2),
press the Latch Button (68), and lower the
Frame until the Rear Stabilizer (7) rests on
the floor.
383
7
Handle
2
68
4. Hold a Hub Cover (75) and a Crank Arm
(36) against the left Crank Hub (38).
Align the holes in the Hub Cover (75) and
the Crank Arm (36) with the unused holes in
the left Crank Hub.
Insert four Hub Screws (87) into the Hub
Cover (75) and the Crank Arm (36), and fin-
ger tighten the Hub Screws into the left
Crank Hub. Tighten one Hub Screw, and
then tighten the Hub Screw across from
the first Hub Screw. Then, tighten the
remaining two Hub Screws.
Repeat this step on the right side of the
elliptical.
Make sure that the Crank Arms (36) are
oriented with the Crank Bushing Sleeves
(43) in the positions shown. Note: There
are no Pulley Screws (98) on the right side.
4
36
38
98
75
87
87
36
43
43

8
6. Identify the Left Upright Cover (17), which is
marked with a “Left” sticker, and hold it
against the left side of the Upright (3).
Attach the Left Upright Cover (17) with two
M4 x 16mm Round Head Screws (101).
Attach the Right Upright Cover (116) in
the same way.
5. While another person holds the Upright (3)
near the Base (1), connect the Upper Wire
Harness (48) to the Lower Wire Harness
(49).
Tip: Avoid pinching the wires. Insert the
Upright (3) into the Base (1). Attach the
Upright with an M8 x 69mm Button Bolt
(80), an M8 Split Washer (90), and an M8
Jam Nut (79). Do not tighten the Button
Bolt yet; make sure that the Jam Nut is
in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Button
Screws (84) and two M8 Split Washers (90)
into the Base (1). Do not tighten the
Button Screws yet.
Attach the Water Bottle Holder (22) to the
Base (1) with two M4 x 16mm Blunt Screws
(104).
6
17
116
3
101
101
3
80
48
49
22
84
84
90
90
90 104
Avoid pinching
the wires
79
1
5

9
7. The Console (5) can use four D batteries
(not included); alkaline batteries are recom-
mended. IMPORTANT: If the Console has
been exposed to cold temperatures,
allow it to warm to room temperature
before inserting batteries. Otherwise,
you may damage the console displays or
other electronic components. Remove
the battery cover, insert the batteries into
the battery compartment, and reattach the
battery cover. Make sure to orient the bat-
teries as shown by the diagram inside
the battery compartment.
To purchase an optional AC adapter,
contact the store where you purchased
this product or call the telephone num-
ber on the cover of this manual. To avoid
damaging the console, use only a manu-
facturer-supplied AC adapter. Plug one
end of the AC adapter into the jack on the
console; plug the other end into an outlet
installed in accordance with all local codes
and ordinances.
7
5
Batteries
Cover
8. While another person holds the Console (5)
near the Upright (3), connect the wire har-
ness on the Console to the Upper Wire
Harness (48).
Insert the excess wire harness into the
Upright (3).
Tip: Avoid pinching the wires. Attach the
Console (5) to the Upright (3) with four M4 x
16mm Round Head Screws (101).
48
5
3
101
Wire
Harness
8
Avoid pinching
the wires

10
10. Insert the Pivot Axle (74) into the Upright (3)
and center it. Apply a generous amount of
the included grease to the Pivot Axle.
Orient the Left Upper Body Leg (11) as
shown, and slide it onto the left end of the
Pivot Axle (74). Slide the Right Upper Body
Leg (12) onto the right end of the Pivot
Axle.
Tighten an M8 x 23mm Button Screw (84)
with an M8 Washer (88) and a Wave
Washer (111) into each end of the Pivot
Axle (74). Make sure that the Wave
Washers are on the ends of the Pivot
Axle.

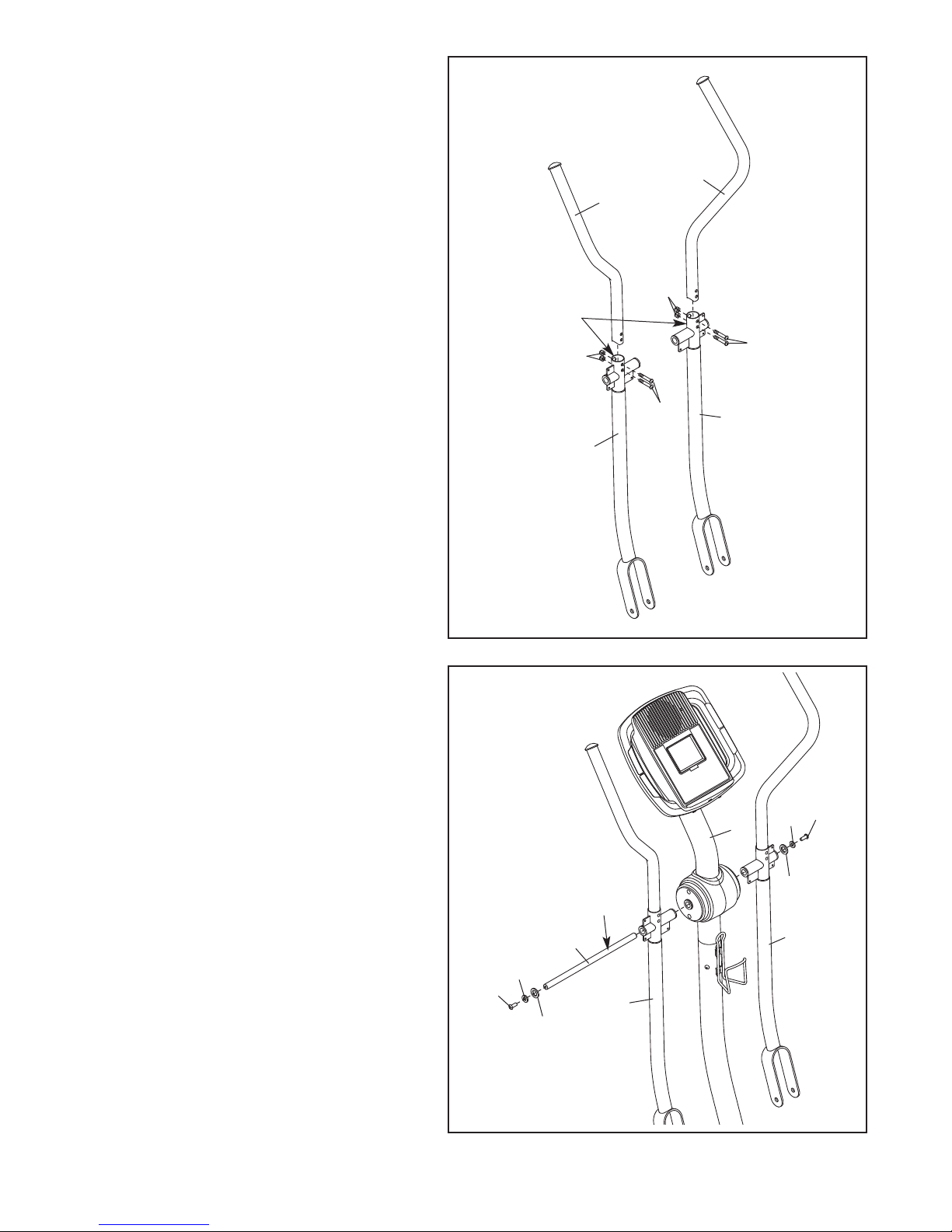

9. Identify the Left Upper Body Arm (8) and
the Left Upper Body Leg (11), which are
marked with “Left” stickers, and orient them
as shown.
Insert the Left Upper Body Arm (8) into the
Left Upper Body Leg (11).
Attach the Left Upper Body Arm (8) with two
M8 x 41mm Button Bolts (78) and two M8
Jam Nuts (79). Make sure that the Jam
Nuts are in the hexagonal holes in the
Left Upper Body Leg (11).
Attach the Right Upper Body Arm (9) to
the Right Upper Body Leg (12) in the
same way.
9
11
8
9
12
88 84
111
88
74
3
84
111
12
11
78
78
79
79
Hexagonal
Holes
Grease
10

11

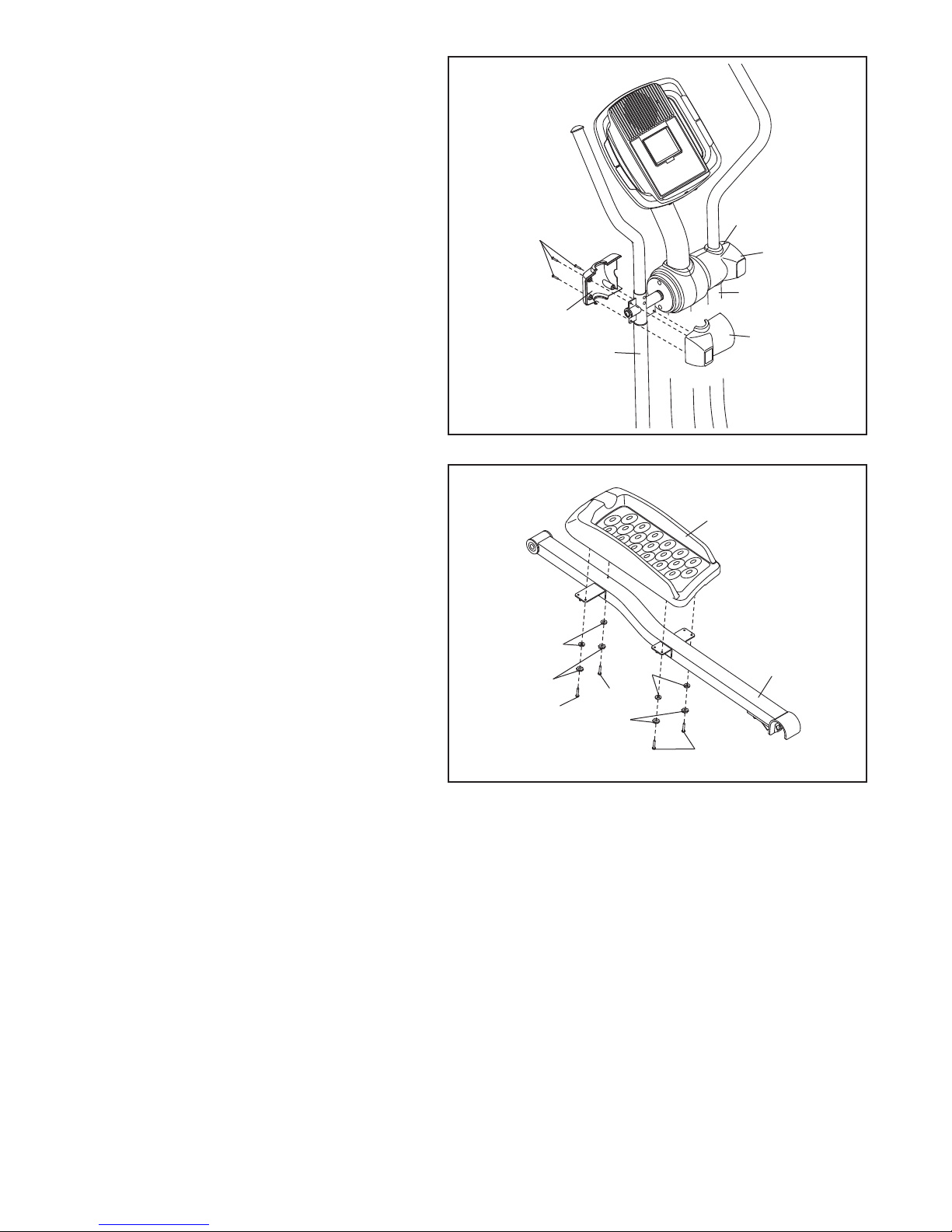

11. Hold the Left Front Handlebar Cover (18)
and the Left Rear Handlebar Cover (19)
around the Left Upper Body Leg (11).
Attach the Handlebar Covers (18, 19) with
three M4 x 32mm Round Head Screws
(105).
Attach the Right Front Handlebar Cover
(20) and the Right Rear Handlebar Cover
(21) in the same way.
20
21
105
12
19
11
18
11
12. Identify the Left Pedal (13) and the Left
Pedal Arm (14), which are marked with
“Left” stickers.
Attach the Left Pedal (13) to the Left Pedal
Arm (14) with an M4 x 47mm Screw (108),
three M4 x 16mm Blunt Screws (104), four
M4 Split Washers (112), and four M4
Washers (102).
Attach the Right Pedal (not shown) to
the Right Pedal Arm (not shown) in the
same way.
12
13
14
104
104
112
102
102
112
108

12
14. Lift the latch on the underside of the Left
Pedal Arm (14), and set the Left Pedal Arm
on the left Crank Bushing Sleeve (43).
Release the lever, and make sure that the
Left Pedal Arm (14) is securely connected
to the Crank Bushing Sleeve (43).
Connect the Right Pedal Arm (not
shown) in the same way.
See step 5. Tighten the M8 x 69mm Button
Bolt (80) and the two M8 x 23mm Button
Screws (84).
15. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
Latch
43
14
Grease
13
115
32
88
31
12
11
14
88
115
13. Apply a small amount of grease to one of
the Pedal Arm Axles (32).
Next, slide an M8 Washer (88) and a Pedal
Arm Cover (31) onto an M8 x 23mm
Shoulder Screw (115), and turn the
Shoulder Screw a few turns into the Pedal
Arm Axle (32).
While another person holds the front end of
the Left Pedal Arm (14) inside the bracket
on the Left Upper Body Leg (11), insert the
Pedal Arm Axle (32) into both parts.
Slide an M8 Washer (88) and a Pedal Arm
Cover (31) onto another M8 x 23mm
Shoulder Screw (115), and turn the
Shoulder Screw a few turns into the Pedal
Arm Axle. Tighten both Shoulder Screws.
Repeat this step to attach the Right
Pedal Arm (not shown) to the Right
Upper Body Leg (12).
31
14

13

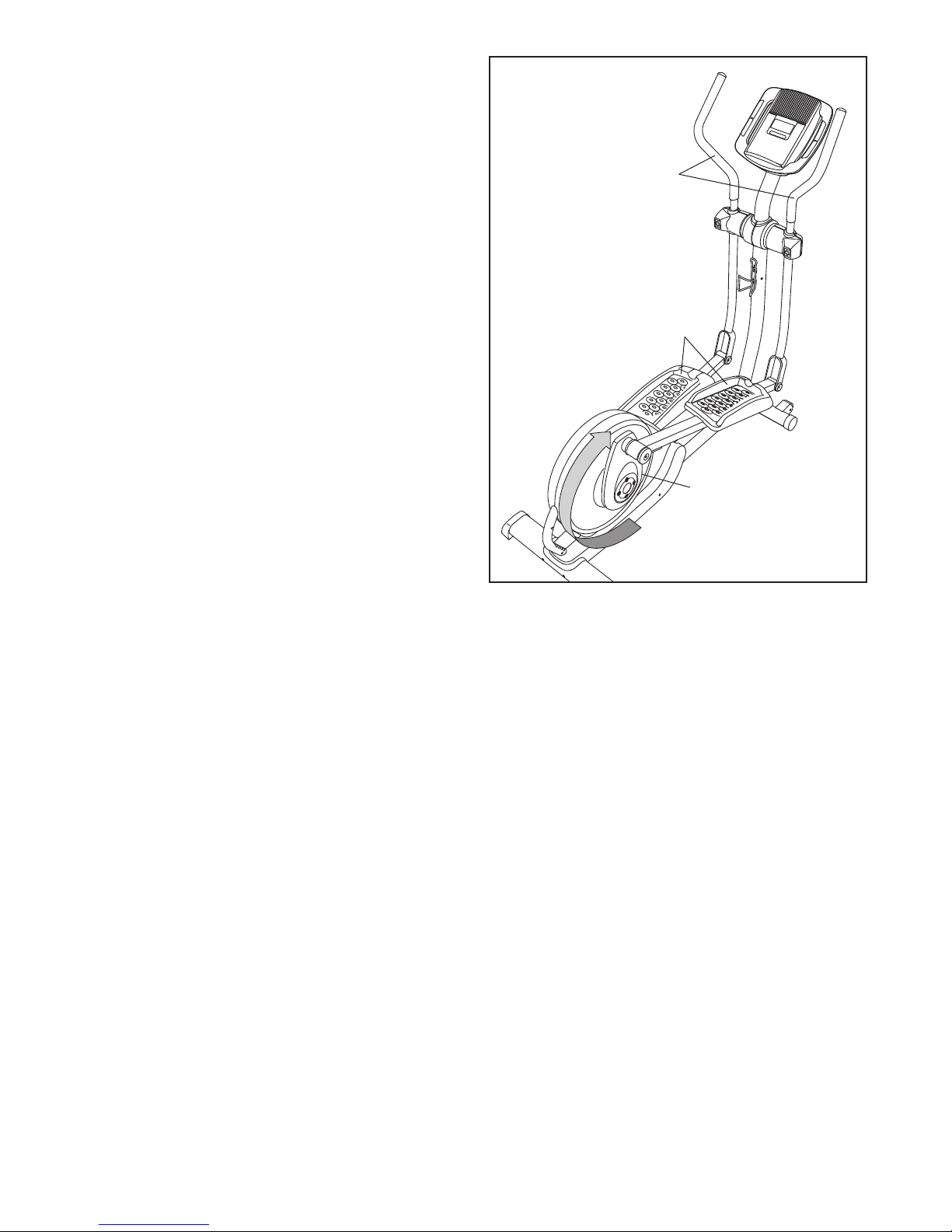

HOW TO USE THE ELLIPTICAL
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
pedal arm, and lift the pedal arms off the sleeves on
the crank arms.
Next, raise the pedal arms until they touch the mag-
nets on the upper body arms; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the pedal arms off the magnets on the upper
body arms. Then, lift the latches under the pedal
arms, and set the pedal arms on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal arms are securely connected to the crank
arms.
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described at the
left. Next, stand in front of the elliptical, hold the han-
dle on the upright, and place one foot against the
center of the front stabilizer. Pull the handle until the
elliptical will roll on the front wheels. Carefully move
the elliptical to the desired position, and then lower it.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during
use, turn one or
both of the level-
ing feet beneath
the rear stabilizer
until the rocking
motion is elimi-
nated.
Latch
Sleeve
Pedal Arm
Crank
Arm
Handle
Place
your foot
here
Magnet
Handle
Frame
Latch
Button
Pedal Arm
Leveling
Feet

14
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical, hold the handlebars and step
onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety, you can turn the crank arms in the oppo-
site direction.
To dismount the elliptical, wait until the pedals come
to a complete stop. Note: The elliptical does not
have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the highest pedal first. Then, step
off the lowest pedal.
Pedals
Crank Arm
Handlebars

15
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you select the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console also offers two timed workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
In addition, the console features six calorie workouts
designed to help you burn 150, 200, 300, 350, 400, or
500 calories. Each workout automatically changes the
resistance of the pedals and prompts you to increase
or decrease your pedaling pace while counting the
calories you burn.
The console features the iFit interactive workout sys-
tem, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals. For example, lose unwanted
pounds with the 8-week Weight Loss workout. iFit
workouts control the resistance of the pedals while the
voice of a personal trainer coaches you through your
workouts. iFit cards are available separately. To pur-
chase iFit cards, go to www.iFit.com or see the
front cover of this manual. iFit cards are also
available at select stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 16. To use a
timed workout, see page 18. To use a calorie work-
out, see page 19. To use an iFit workout, see page
20. To use the sound system, see page 20.
Note: Before using the console, make sure that batter-
ies are installed (see step 7 on page 9). If there is a
sheet of clear plastic on the display, remove the plas-
tic.
CONSOLE DIAGRAM

16
HOW TO USE THE MANUAL MODE
1. Press any button on the console or begin
pedaling to turn on the console.
When you turn on the console, the display and the
target pacer coach will turn on. The console will
then be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing any of the
Quick Time and Calorie Workouts buttons repeat-
edly until a track appears in the left display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change
the resistance of the
pedals by pressing the
Quick Resistance but-
tons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the displays.
The upper right
display can show the
elapsed time, the dis-
tance (total number of
revolutions) you have
pedaled, the approxi-
mate number of calories you have burned, and the
approximate number of grams of carbs you have
burned. The display will change modes every few
seconds.
The lower right
display can show your
pedaling pace in revo-
lutions per minute
(rpm) and the resis-
tance level of the
pedals. The display will change modes every few
seconds.
The display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 17).
The left display will
show a track repre-
senting 640
revolutions. As you
exercise, indicators will
appear in succession
around the track until
the entire track
appears. The track will then disappear and the
indicators will again begin to appear in succession.
To change the display mode, press the Display
button repeatedly until the desired exercise infor-
mation appears in the upper or lower right display.
After several seconds, the display will change
modes automatically as before.
To view the trip distance, press the Odometer but-
ton. The information will appear in the display for a
few seconds. To reset the trip distance, hold down
the Odometer button for a few seconds. To view
the total distance pedaled since the elliptical was
purchased, press the Odometer button a second
time.
Note: The number on the right side of the display
multiplied by the number on the left side equals
the trip distance or the total distance.
To adjust the volume level of the console, first
press and hold down the Display button until the
display becomes blank. When you release the
Display button, the volume level will then appear in
the display. Press the 20 Min and 30 Min buttons
to select a volume level. Then, press the Display
button.

17
5. Measure your heart rate if desired.
If there are
sheets of clear
plastic on the
metal contacts on
the handgrip
pulse sensor,
remove the plas-
tic. In addition,
make sure that
your hands are
clean. To measure
your heart rate, hold the handgrip pulse sensor
with your palms resting against the metal contacts.
Avoid moving your hands or gripping the con-
tacts tightly.
When your pulse is detected, a heart-shaped sym-
bol will flash in the display each time your heart
beats and then your heart rate will be shown. For
the most accurate heart rate reading, hold the con-
tacts for at least 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
The fan has high, low, and auto speed settings;
while the auto mode is selected, the speed of the
fan will automatically increase or decrease as you
increase or decrease your pedaling speed. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off auto-
matically.
Pivot the thumb tab
on the right side of
the fan to adjust
the fan angle.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the displays will be
reset.
Contacts
Thumb Tab

18
HOW TO USE A TIMED WOR OUT
1. Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 16.
2. Select a timed workout.
To select a timed workout, press the 20 Min or 30
Min button.
When you select a timed workout, the name of the
workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
3. Begin pedaling to start the workout.
Each workout is divided into 20 or 30 one-minute
segments. One resistance level and one target
pace setting is programmed for each segment.
Note: The same resistance level and/or target
pace setting may be programmed for consecutive
segments.

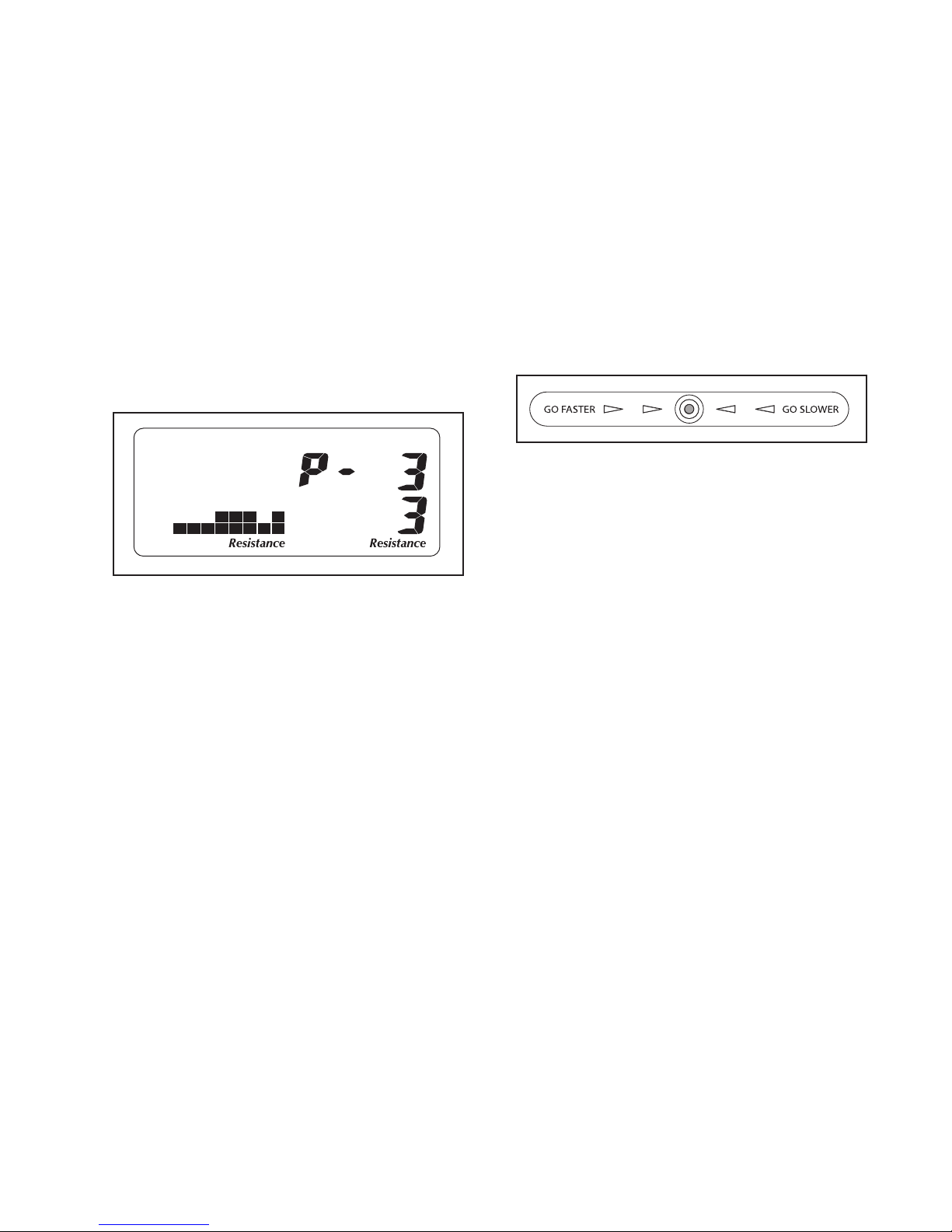

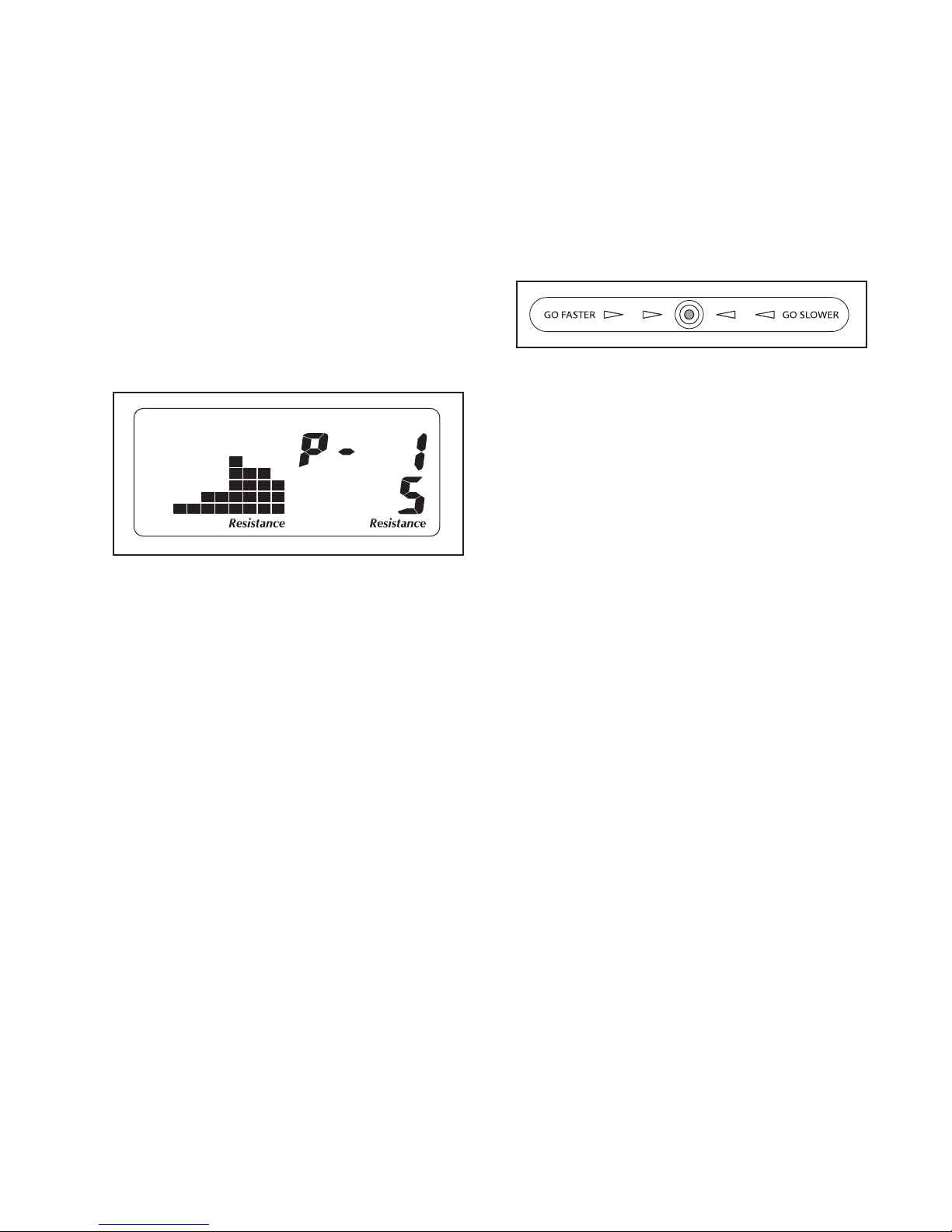

During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash.
If a different resistance level is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
During the workout, the target pacer coach will
prompt you to keep your pedaling pace near the
target pace setting for the current segment.
When a left indicator lights, increase your pace;
when a right indicator lights, decrease your pace.
When the center indicator lights, maintain your
current pace. IMPORTANT: The target pacer
coach is intended only to provide motivation.
Make sure to pedal at a pace that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Quick Resistance
buttons. However, when the current segment
ends, the resistance of the pedals will automati-
cally adjust to the resistance level for the next
segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the workout ends.
4. Follow your progress with the displays.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.

19
HOW TO USE A CALORIE WOR OUT
1. Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 16.
2. Select a calorie workout.
To select a calorie workout, press the 150 Cals,
200 Cals, 300 Cals, 350 Cals, 400 Cals, or 500
Cals button.
When you select a calorie workout, the name of
the workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
3. Begin pedaling to start the workout.
Each calorie workout will help you burn 150, 200,
300, 350, 400, or 500 calories. During each work-
out, the console will count the approximate
number of calories you have burned.
Each workout is divided into 20, 25, 30, or 45 one-
minute segments. One resistance level and one
target pace setting is programmed for each seg-
ment. Note: The same resistance level and/or
target pace setting may be programmed for con-
secutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flash-
ing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash.
If a different resistance level is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
During the workout, the target pacer coach will
prompt you to keep your pedaling pace near the
target pace setting for the current segment.
When a left indicator lights, increase your pace;
when a right indicator lights, decrease your pace.
When the center indicator lights, maintain your
current pace. IMPORTANT: The target pacer
coach is intended only to provide motivation.
Make sure to pedal at a pace that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the Quick Resistance
buttons. However, when the current segment
ends, the resistance of the pedals will automati-
cally adjust to the resistance level for the next
segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the workout ends.
4. Follow your progress with the displays.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.

20
HOW TO USE AN IFIT WOR OUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this
manual. iFit cards are also available at select stores.
1. Press any button on the console or begin
pedaling to turn on the console.
See step 1 on page 16.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted,
the indicator next to the slot will turn on and the
word IFIT will appear in the display.
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout. iFit workouts work in the same way
as timed workouts. To use the workout, see steps
3 to 7 on page 18.
3. When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player.
Note: You can also adjust the volume of the console
as described in step 4 on page 16.

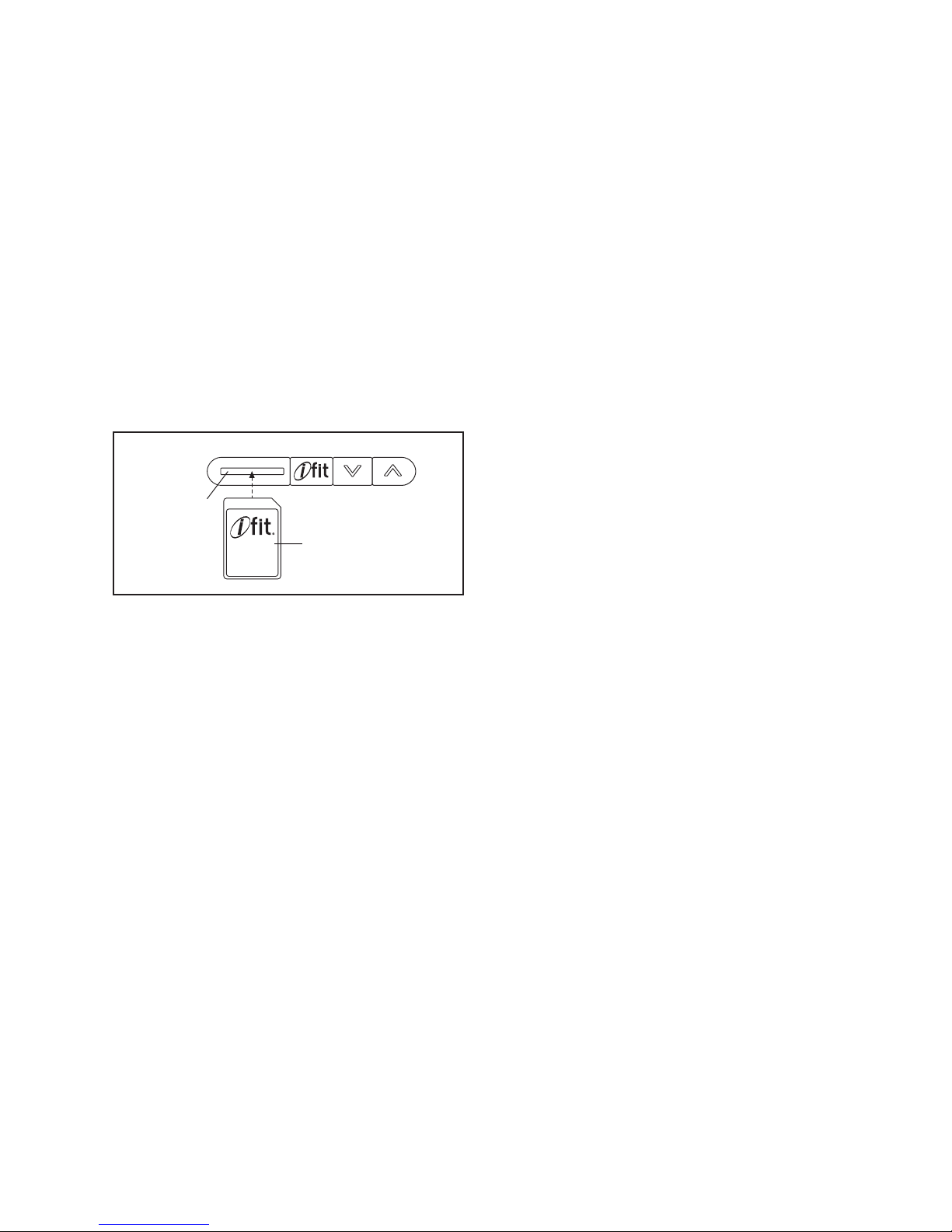

iFit Slot
iFit Card
