ProLights EclGalleryProfile FC User manual

USER MANUAL
REV.02-03/21 English version
EclGalleryProfile FC
60W RGBW/FC zoomable LED ellipsoidals
with framing shutter

All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be
reproduced in any form or by any means for any commercial use.
In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
All revisions and updates are available in the ‘manuals’ section on site www.musiclights.it

1
PROLIGHTS - EclGalleryProfile FC
Packing content • GALLERYECLFC
• User manual
TABLE OF CONTENTS Safety
General instructionsGeneral instructions
Warnings and installation precautionsWarnings and installation precautions
1 Introduction
1. 1 Description and specications1. 1 Description and specications
1. 2 Operating elements and connections1. 2 Operating elements and connections
2 Installation
2. 1 Mounting2. 1 Mounting
3 Functions and settings
3. 1 Operation3. 1 Operation
3. 2 Basic3. 2 Basic
3. 3 Menu structure3. 3 Menu structure
3. 4 DMX mode3. 4 DMX mode
3. 5 DMX conguration3. 5 DMX conguration
3. 6 Wireless setting3. 6 Wireless setting
3. 7 Channels DMX3. 7 Channels DMX
3. 8 Setting3. 8 Setting
3. 9 Fixture settings3. 9 Fixture settings
DimmerDimmer
White calibrationWhite calibration
Led frequencyLed frequency
ResetReset
3. 10 Fixture Information3. 10 Fixture Information
3. 11 Operations in automatic mode3. 11 Operations in automatic mode
Master/SlaveMaster/Slave
SequenceSequence
StaticStatic
4 Maintenance
4. 1 Maintenance and cleaning the unit4. 1 Maintenance and cleaning the unit
4. 2 Trouble shooting4. 2 Trouble shooting
2
2
3
5
6
7
7
8
10
10
10
11
12
12
12
12
12
13
13
13
13
13
13
15
15

2PROLIGHTS - EclGalleryProfile FC
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make any modications on the unit not described in this instruction manual, otherwise you will
risk an electric shock.
• Connection must be made to a power supply system tted with ecient earthing (Class I appliance ac-
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
• The connection to the main network of electric distribution must be carried out by a qualied electrical
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
• Never use the xture under the following conditions:
- in places subject to vibrations or bumps;
- in places with a temperature of over 45 °C.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Do not dismantle or modify the xture.
• All work must always be carried out by qualied technical personnel. Contact the nearest sales point for
an inspection or contact the manufacturer directly.
• If the unit is to be put out of operation denitively, take it to a local recycling
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
• If this device will be operated in any way dierent to the one described in this manual, it may suer
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Before starting any maintenance work or cleaning the projector, cut o power from the main supply.
• Always additionally secure the projector with the safety rope.When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
in which the xture’s being used.
• Install the xture in a well ventilated place.
• Keep any inammable material at a safe distance from the xture.
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
that their eectiveness is impaired.
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
• Never look directly at the light beam. Please note that fast changes in lighting, e. g. ashing light, may
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
• This product was designed and built strictly for the use indicated in this documentation. Any other use,
not expressly indicated here, could compromise the good condition/operation of the product and/or
be a source of danger.
• We decline any liability deriving from improper use of the product.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.

3
PROLIGHTS - EclGalleryProfile FC
- 1 - INTRODUCTION
1.1 GALLERYECLFC - DESCRIPTION AND TECHNICAL SPECIFICATIONS
GALLERY ECL is a compact LED ellipsoidal luminaire designed for gallery, product, and shop window light-
ing. Featuring a beautiful controllable beam, and stunning aesthetics, the GALLERY ECL is a exible tool
for commercial and product lighting.
LIGHT SOURCE
• Source: 60W custom RGBW LEDs
• Luminous Flux: (19°) 458 lm (36°) 570lm
• Lux: (19°) 570lux @3m Full
• Lux: (36°) 166lux @3m Full
• Source Life Expectancy: >30.000 h
OPTICS
• Zoom:19°~36 ° Manual
• Lens Type: HQ glass lens optics
• Focus: Manual
COLOR SYSTEM
• Color Mixing: RGBW/FC
DYNAMIC EFFECTS
• Static Color Mode: Selection of static color
• Manual Color Mode: Manual adjustment of color
• Auto Mode: Built-in programs with execution speed adjustment
BODY
• Body: Sturdy die-cast aluminium body conceived for long-time durability
• Body Color: Black
CONTROL
• Protocols: WDMX
• Dmx Channels: 4-6-11 ch
• W-DMX: Included, Wireless Solution receiver
• Display: Black OLED high resolution display
ELECTRONICS
• Dimmer: Linear 0~100% electronic dimmer
• Dimmer Curves:4 Dierent dimming curves available
• Strobe/Shutter:1-30 Hz, electronic
• Operating Temperature: -10° ~ +45°
• Flicker: Flicker free operation
ELECTRICAL
• Power Supply: 100-240V – 50/60Hz
• Power Consumption (at 230V):43,5 W
• Power Consumption (at 120V):43,8 W

4PROLIGHTS - EclGalleryProfile FC
Fig.1 - Technical drawing
GALLERYECLFC
230
95 378
PHYSICAL
• Power Connection: 16A Shuko plug
• IP: 30
• Cooling: Natural cooling of the peculiar chassis and to absence of fans
• Dimensions (WxHxD): 183x230x338mm
• Weight: 2.9kg

GALLERYECLFC
44
5
5
7
11
9
8
2
3
6
Fig.2
5
PROLIGHTS - EclGalleryProfile FC
1.2 OPERATING ELEMENTS AND CONNECTIONS
1. GALLERYECLFC
2. LOCKING KNOB for optics proler
3. SAFETY EYE to attach safety cable.
4. ROTARY ARM
5. CONTROL PANEL with display and 4 buttons
used to access the control panel functions
and manage them
6. GALLERYECLFC optics proler
7. FOCUS AND ZOOM ADJUSTING SCREW to
zoom the projected image clearly
8. SHUTTER
9. FIXING TILT

Fig.4
1
2
3
6PROLIGHTS - EclGalleryProfile FC
- 2 - INSTALLATION
2.1 MOUNTING
GALLERYECLFC is designed for applications in exhibition areas, commercial spaces, museums, restaurant,
churches, and any other installation where size is an important factor. For xing, stable mounting clips are
required. The mounting place must be of sucient stability and be able to support a weight of 10 times
of the unit’s weight.
When carrying out any installation, always comply scrupulously with all the regulations (particularly re-
garding safety) currently in force in the country in which the xture’s being used.
• Install the projector at a suitable location.
• Always additionally secure the projector with the safety rope from falling down. For this purpose, fas-
ten the safety rope at a suitable position so that the maximum fall of the projector will be 20 cm. The
adjust the projector and use the knobs.
NOTE - For the installation of the GALLERYECLDY make sure that the ridge of the adaptor is in with the
groove of the track. Turn knobs 90° to connect the adaptor to the circuit. Please see the gure 4.

7
PROLIGHTS - EclGalleryProfile FC
- 3 - FUNCTIONS AND SETTINGS
3.1 OPERATION
To turn on the GALLERYECLFC connect the supplied main cable to a socket (100-240 VAC-50/60 Hz). Then
the unit is ready for operation. You can also adjust the dimmer and zoom using the knobs.
To switch o, disconnect the mains plug from the socket. For a more convenient operation it is recom-
mended to connect the unit to a socket which can be switched on and o via a light switch.
NOTE - To operate the projector GALLERYECL you need a system track. The track system must be installed
and maintained by a suitably qualied person in compliance with latest construction and relevant legisla-
tion. It is the responsibility of the installer to ensure the electrical, mechanical and thermal compatibility
of the track system and the ttings. The connection to the main network of electric distribution must be
carried out by a qualied electrical installer.
ATTENTION - Mains voltage must be switched o before mounting; maintenance; insert and replace
Adaptors; spots and luminaires.
3.2 BASIC
Access control panel functions using the four panel buttons located directly underneath the LED Display
(g.5).
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
Used to select and store the
current menu or conrm the
current function value or
option within a menu
MENU UP DOWN ENTER
Fig.5- Functions of the buttons

MENU
1CONNECT ðDMX Address ðValue (001-512)
DMX Mode ð4CH
6CH
11CH
Wireless ðReceive On/O
Receive Reset
2SETUP
ðScreen Back Light ð
On
10S
20S
30S
Flip Display ðNO-Yes
Key Lock ðNO-Yes
3ADVANCED ðDimmer Mode ð
O
Dimmer 1
Dimmer 2
Dimmer 3
White Balance ðO
Adjust ðRed <125-255>
Green <125-255>
Blue <125-255>
White <125-255>
Led Frequency ð
600Hz
1200 Hz
2000 Hz
4000 Hz
6000Hz
25kHZ
Reset Factory ðNO-Yes
4INFORMATION ðFixture Hours ð0-9999
Temperature ð58°C
Version ðV1.0
5STANDALONE ðMaster/Slave ðMaster/Slave
Eects ðShow 1
Speed 1~100
Show 2
Show 3
Show 4
Show 5
8PROLIGHTS - EclGalleryProfile FC
3.3 MENU STRUCTURE

Static Fixed Color ðR RW
G GW
BBW
W RGW
GB RBW
RB GBW
RG RGBW
RGB
Color Temperature ð3000K
4000K
5000K
6000K
7000K
8000K
9000K
10000K
Manual Color ðRed <0-255>
Green <0-255>
Blue <0-255>
White <0-255>
9
PROLIGHTS - EclGalleryProfile FC

10 PROLIGHTS - EclGalleryProfile FC
3.4 DMX MODE
• Press the button MENU so many times until the display shows DMX ADDRESS, and press the button ENTER
to conrm.
• Press UP/DOWN button to select the desired value (001-512). Press and hold to scroll quickly.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.

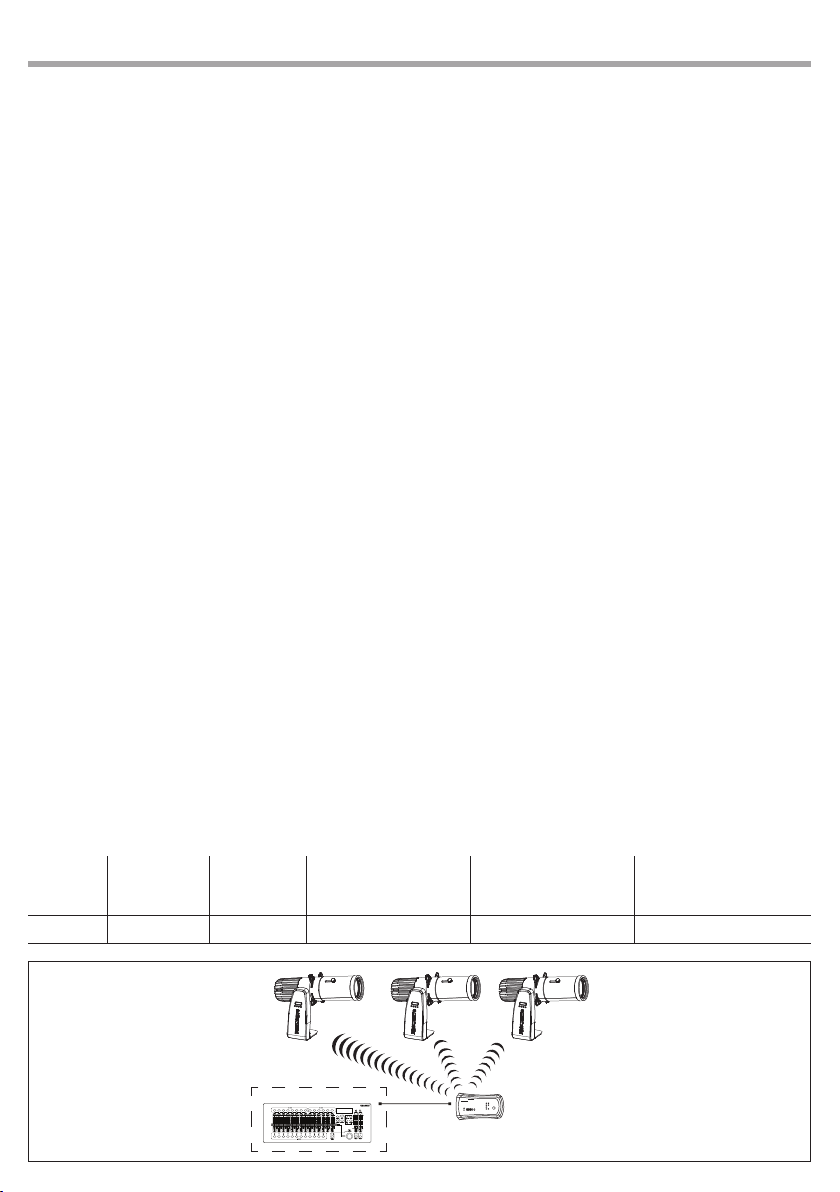

To able to operate the GALLERYECLFC/TRWD with a light controller, adjust the DMX start address for the
rst a DMX channel. If e. g. address 33 on the controller is provided for controlling the function of the rst
DMX channel, adjust the start address 33 on the GALLERYECLFC/TRWD. The other functions of the light
eect panel are then automatically assigned to the following addresses.
An example with the start address 33 is shown below:
3.5 DMX CONFIGURATION
GALLERYECLFC/TRWD is equipped with dierent DMX conguration.
• Press the button MENU so many times until shows DMX CHANNEL, and press the button ENTER to conrm.
• Select the desired DMX conguration (4CH - 6CH - 11CH ) through the buttons UP/DOWN.
The tables on page 14 indicate the operating mode and DMX value.
3.6 WIRELESS SETTING
To set the wireless mode refer to the following guide:
• Press the MENU button until the display shows Wireless Setting, then press the ENTER button.
• Use the UP/DOWN button until the display reads Wireless Receive, and then press the ENTER button
and select the ON mode.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
NOTE - After you complete these steps, you have to synchronize with any wi unit with which you want
to communicate by pressing the sync button present on the same. Then connect any DMX console to wi
unit for to open the communication with the GALLERYECLFC/TRWD unit.
• To reset the unit press the MENU button until the display shows Wireless Reset, then press the ENTER
button.
• Use the UP/DOWN button until the display reads Yes, and then press the ENTER button.
Press the MENU button to go back or to meet the waiting time to exit the setup menu.
Number of
DMX
channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
11 33 33-43 44 55 65
Fig.6
DMX512 Controller wireless
solution

4 CANALI
MODE FUNCTION DMX
Value
4 Ch
1RED
0~100% 000 - 255
2GREEN
0~100% 000 - 255
3BLUE
0~100% 000 - 255
4WHITE
0~100% 000 - 255
6 CANALI
MODE FUNCTION DMX
Value
6 Ch
1DIMMER
0~100% 000 - 255
2RED
0~100% 000 - 255
3GREEN
0~100% 000 - 255
4BLUE
0~100% 000 - 255
5WHITE
0~100% 000 - 255
6
STROBE
NO Function
Strobe Slow to Fast
000 - 010
011 - 255
11 CANALI
MODE FUNCTION DMX
Value
11 Ch
1DIMMER
0~100% 000 - 255
2RED
0~100% 000 - 255
3GREEN
0~100% 000 - 255
4BLUE
0~100% 000 - 255
5WHITE
0~100% 000 - 255
6
STROBE
NO Function
Strobe Slow to Fast
000 - 010
011 - 255
11 CANALI
MODE FUNCTION DMX
Value
11 Ch
7
COLOR MACRO
No Function
R 100%, G 0~100%, B 0%
R 100%~0%, G 100%, B 0%
R 0%, G 100%, B 0~100%
R 0% G 100%~0% B 100%
R 0%~100% G 0% B 100%
R 100% G 0% B 100%~0%
R 100% G 0%~100% B 0%~100%
R 100%~0% G 100%~0% B 100%
R 100% G 100% B 100%
Color1
Color2
Color3
Color4
Color5
Color6
Color7
Color8
Color9
Color10
Color11
000 - 010
011 - 030
031 - 050
051 - 070
071 - 090
091 - 110
111 - 130
131 - 150
151 - 170
171 - 200
201 - 205
206 - 210
211 - 215
216 - 220
221 - 225
226 - 230
231 - 235
236 - 240
241 - 245
246 - 250
251 - 255
8
COLOR TEMPERATURE
NO function
3000k
4000k
5000k
6000k
7000k
8000k
9000k
10000k
NO function
000 - 005
006 - 039
040 - 069
070 - 099
100 - 129
130 - 159
160 - 189
190 - 219
220 - 250
251 - 255
9
AUTO PROGRAMS
No Function
Auto Program 1
Auto Program 2
Auto Program 3
Auto Program 4
Auto Program 5(Auto Program1- 4)
000 - 010
011 - 060
061 - 110
111 - 160
161 - 210
211 - 255
10 AUTO SPEED
Auto speed slow to fast 000 - 255
11
DIMMER SPEED MODE
Preset dimmer speed from display menu
Dimmer speed mode o
Dimmer speed mode1 (fast speed)
Dimmer speed mode2 (middle speed)
Dimmer speed mode3 (slow speed)
000 - 051
052 - 101
102 - 152
153 - 203
204 - 255
11
PROLIGHTS - EclGalleryProfile FC
3.7 CHANNELS DMX

12 PROLIGHTS - EclGalleryProfile FC
3.8 SETTINGS
You can change the parameters for the device by following these steps:
SCREEN
You can change the following parameters related to the display, following the same procedure:
• Press the ENTER button to access the main menu.
• Press the UP / DOWN keys to scroll the menu, select the Set Up icon, then press the ENTER button to
enter the next menu.
• Press UP / DOWN to scroll through the menu, then select Screen, and press the ENTER button to enter
the next menu.
• Press UP / DOWN to scroll through the menu, and then select one of the following settings for the dis-
play and press the ENTER key to display it.
- Back Light - Backlight display Auto O. This feature allows you to automatically turn o the backlight
after a specied time that you can set using the arrow buttons. To have the display always on select
Always On or choose another value to turn o the display after the amount of time you choose.
- Flip Display - Orientation of the display. This function allows you to rotate the display 180° to get a
better view of the display when the unit is hanging upside down. Select YES to activate or NO to dis-
able this function.
- Key Lock - Lock keys. With this function, you can lock the buttons on the control panel. If this function
is activated, the keys are automatically locked. To disable or temporarily disable the key lock func-
tion, press the buttons in the following order to regain access to menu commands: UP, DOWN,UP,
DOWN, ENTER. Select YES to activate or NO to disable.
• Press the ENTER button to conrm your choice.
• Press the LEFT button repeatedly to exit the menu and save changes.
3. 9 FIXTURE SETTINGS
It is possible to change the parameter value in the following way:
DIMMER
• Enter in Dimmer mode to select specic dimming curve, press the button MENU so many times until
shows DIM MODE, and press the button ENTER to conrm.
• Press the button UP/DOWN to select OFF - DIM1 - DIM2 - DIM3.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
WHITE CALIBRATION
• Press the button MENU then press the button UP/DOWN so many times until show WHITE CALIBRATION.
Press the button ENTER to conrm.
• Select the color Red - Green - Blue - White through the buttons UP/DOWN. Press the button ENTER
to conrm.
• Set the value (125 - 255), using the buttons UP/DOWN.
• Continue until the desired setting is obtained.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
LED FREQUENCY
• To adjust the frequency of the LEDs, press the MENU button repeatedly until the display shows LED
Frequency, and then press the ENTER button.
• Select the frequency (600Hz - 1200Hz - 2000Hz - 4000Hz - 6000Hz - 25kHz) using the UP/DOWN buttons.
• To conrm, press the ENTER key.
• Press the MENU button to go back or wait a few seconds to exit the setup menu.

13
PROLIGHTS - EclGalleryProfile FC
RESET FACTORY
Selezionare questa funzione per ripristinare l’unità alle impostazioni di fabbrica:
• To activate RESET FACTORY display press the button MENU so many times until shows RESET FAC-
TORY,and press the button ENTER to conrm.
• Press ENTER button to conrm the selection.
• Press the MENU button to go back or to meet the waiting time to exit from the setup menu automati-
cally.
3. 10 FIXTURE INFORMATION
To view all the information on the device, proceed as follows:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the icon Information, then press the ENTER but-
ton to enter the next menu.
• Press the UP/DOWN button to scroll through the menu, then select one of the following information
and press the ENTER button to display it.
- Fixture Time - Through the Fixture Time function you can display the operating time of the projector.
- Temperature - Through the Temperature function can be displayed the temperature inside the xture,
near the lamp. The temperature can be displayed in degrees Celsius or Fahrenheit.
- Software Version - Through Software Version function you can display the currently installed software
version.
• Press the LEFT button repeatedly to exit the menu.
3. 11 OPERATIONS IN AUTOMATIC MODE
MASTER SLAVE
Press the UP/DOWN button to scroll through the menu, select Master/Slave and press ENTER to conrm your
choice.
• Press the UP/DOWN button to select the mode of operation:
- Master, if the unit is connected in series with other units and it acts as the Master;
- Slave, if the unit is not connected to other units.
• Press the ENTER button to conrm your choice.
EFFECTS
The unit independently runs through its show. Before you send an automatic program you need to set the
drive as Master/Alone:
• Press the ENTER button to access the main menu.
• Press the UP/DOWN button to scroll the menu, select the Eects icon, then press the ENTER button to
enter the next menu.
• Press the UP/DOWN button to select the mode of operation: Eects 1, Eects 2, Eects 3, Eects 4, Eects 5
• Press the ENTER button to conrm your choice.
• Press the LEFT button repeatedly to exit the menu and save changes.
The unit will go into automatic mode by executing the program automatically.
STATIC MODE
This xture has the ability to accept custom static color settings. Access these chases via the control panel
on the back of the xture.
• Press the button MENU so many times until the display shows STATIC, then press the button ENTER.
• Select Fixed Color through the buttons UP/DOWN, then press the button ENTER.
• Set the colors R, G, B, W, GB, RB, RG, RGB, RW, GW, BW, RGW, RBW, GBW, RGBW, through the buttons UP/DOWN,
then press the button ENTER.

14 PROLIGHTS - EclGalleryProfile FC
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
• Select Color Temperature through the buttons UP/DOWN, then press the button ENTER.
• Set the colors temperatur: 3000K, 4000K, 5000K, 6000K, 7000K, 8000K, 9000K, 10000K, through the buttons UP/
DOWN, then press the button ENTER.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
• Select Manual Color Mixer through the buttons UP/DOWN, then press the button ENTER.
• Set the colors Red, Green, Blue, White, through the buttons UP/DOWN, then press the button ENTER.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.

15
PROLIGHTS - EclGalleryProfile FC
- 4 - MAINTENANCE
4.1 MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• Switch o the unit, unplug the main cable and wait until the unit has cooled down.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
• Housings, xations and installation spots (ceiling, trusses, suspensions) should be totally free from any
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent. Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
4.2 TROUBLESHOOTING
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• Faulty LED
• Check the power supply voltage
• Increase the value of the dimmer channels
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
• Clean the xture regularly
• Install lens assembly properly
Fixture does not power up • No power
• Loose or damaged power cord
• Check for power on power outlet
• Check power cord
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.

REV.02-03/21
Music & Lights S.r.l. si riserva ogni diritto di elaborazione in qualsiasi forma delle presenti istruzioni per l’uso.
La riproduzione - anche parziale - per propri scopi commerciali è vietata.
Al ne di migliorare la qualità dei prodotti, la Music&Lights S.r.l. si riserva la facoltà di modicare, in
qualunque momento e senza preavviso, le speciche menzionate nel presente manuale di istruzioni.
Tutte le revisioni e gli aggiornamenti sono disponibili nella sezione 'Manuali' sul sito www.musiclights.it

3
PROLIGHTS - EclGalleryProfile FC
• GALLERYECLFC
• Manuale utente
Contenuto dell'imballo:
INDICE Sicurezza
Avvertenze generaliAvvertenze generali
Attenzioni e precauzioni per l’installazioneAttenzioni e precauzioni per l’installazione
1 Introduzione
1. 1 Descrizione e speciche tecniche1. 1 Descrizione e speciche tecniche
1. 2 Elementi di comando e di collegamento1. 2 Elementi di comando e di collegamento
2 Installazione
2. 1 Montaggio2. 1 Montaggio
3 Funzioni e impostazioni
3. 1 Funzionamento3. 1 Funzionamento
3. 2 Impostazione base3. 2 Impostazione base
3. 3 Struttura menù3. 3 Struttura menù
3. 4 Modalità DMX3. 4 Modalità DMX
3. 5 Congurazione canali3. 5 Congurazione canali
3. 6 Impostazioni Wireless3. 6 Impostazioni Wireless
3. 7 Canali DMX3. 7 Canali DMX
3. 8 Impostazioni del proiettore3. 8 Impostazioni del proiettore
3. 9 Funzioni del dispositivo3. 9 Funzioni del dispositivo
DimmerDimmer
Bilanciamento biancoBilanciamento bianco
Frequenza ledFrequenza led
ResetReset
3. 10 Informazioni sul dispositivo3. 10 Informazioni sul dispositivo
3. 11 Modalità Automatica3. 11 Modalità Automatica
Master/SlaveMaster/Slave
SequenceSequence
Modalità staticaModalità statica
4 Manutenzione
4. 1 Manutenzione e pulizia del sistema ottico4. 1 Manutenzione e pulizia del sistema ottico
4. 2 Risoluzione dei problemi4. 2 Risoluzione dei problemi
4
4
5
7
8
9
9
10
12
12
12
13
14
14
14
14
14
15
15
15
15
15
15
17
17

4PROLIGHTS - EclGalleryProfile FC
ATTENZIONE! Prima di effettuare qualsiasi operazione con l’unità, leggere con attenzione
questo manuale e conservarlo accuratamente per riferimenti futuri. Contiene informazioni
importanti riguardo l’installazione, l’uso e la manutenzione dell’unità.
SICUREZZA
Avvertenze generali
• I prodotti a cui questo manuale si riferisce sono conformi alle Direttive della Comunità Europea e per-
tanto recano la sigla .
• Il dispositivo funziona con pericolosa tensione di rete 230V~. Non intervenire mai al suo interno al di
fuori delle operazioni descritte nel presente manuale; esiste il pericolo di una scarica elettrica.
• È obbligatorio eettuare il collegamento ad un impianto di alimentazione dotato di un’eciente messa
a terra (apparecchio di Classe I secondo norma EN 60598-1). Si raccomanda, inoltre, di proteggere le
linee di alimentazione delle unità dai contatti indiretti e/o cortocircuiti verso massa tramite l’uso di
interruttori dierenziali opportunamente dimensionati.
• Le operazioni di collegamento alla rete di distribuzione dell’energia elettrica devono essere eettuate
da un installatore elettrico qualicato. Vericare che frequenza e tensione della rete corrispondono alla
frequenza ed alla tensione per cui l’unità è predisposta, indicate sulla targhetta dei dati elettrici.
• L’unità non per uso domestico, solo per uso professionale.
• Evitare di utilizzare l’unità:
- in luoghi soggetti a vibrazioni, o a possibili urti;
- in luoghi a temperatura superiore ai 45°C.
• Evitare che nell’unità penetrino liquidi inammabili, acqua o oggetti metallici.
• Non smontare e non apportare modiche all’unità.
• Tutti gli interventi devono essere sempre e solo eettuati da personale tecnico qualicato. Rivolgersi al
più vicino centro di assistenza tecnica autorizzato.
• Se si desidera eliminare il dispositivo denitivamente, consegnarlo
per lo smaltimento ad un’istituzione locale per il riciclaggio.
Attenzioni e precauzioni per l’installazione
• Se il dispositivo dovesse trovarsi ad operare in condizioni dierenti da quelle descritte nel presente
manuale, potrebbero vericarsi dei danni; in tal caso la garanzia verrebbe a decadere. Inoltre, ogni altra
operazione potrebbe provocare cortocircuiti, incendi, scosse elettriche, rotture etc.
• Prima di iniziare qualsiasi operazione di manutenzione o pulizia sull’unità togliere la tensione dalla rete
di alimentazione.
• È assolutamente necessario proteggere l’unità per mezzo di una fune di sicurezza. Nell’eseguire qual-
siasi intervento attenersi scrupolosamente a tutte le normative (in materia di sicurezza) vigenti nel
paese di utilizzo.
• Installare l’unità in un luogo ben ventilato.
• Mantenere i materiali inammabili ad una distanza di sicurezza dall’unità.
• I ltri, le lenti o gli schermi ultravioletti se danneggiati possono limitare la loro ecienza.
• I LED devono essere sostituiti se danneggiati o termicamente deformati.
• Non guardare direttamente il fascio luminoso. Tenete presente che i veloci cambi di luce possono pro-
vocare attacchi d’epilessia presso persone fotosensibili o epilettiche.
• Non toccare l’alloggiamento del prodotto quando è in funzione perché potrebbe essere molto caldo.
• Questo prodotto è stato progettato e costruito esclusivamente per l’utilizzo indicato in questa docu-
mentazione. Qualsiasi altro utilizzo non espressamente indicato potrebbe pregiudicare la funzionalità
del prodotto e/o rappresentare fonte di pericolo.
• Si declina qualsiasi responsabilità derivata dall’uso improprio del prodotto.
