ProLights EclProfile FW IP User manual

USER MANUAL
REV.01-02/22 English version
EclProfile FW IP
High quality Full White LED ellipsoidal
available in Tungsten and Daylight
versions

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS servicesor
PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
Visit the download area
of the product page

PROLIGHTS - EclProfile FW IP 01
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05

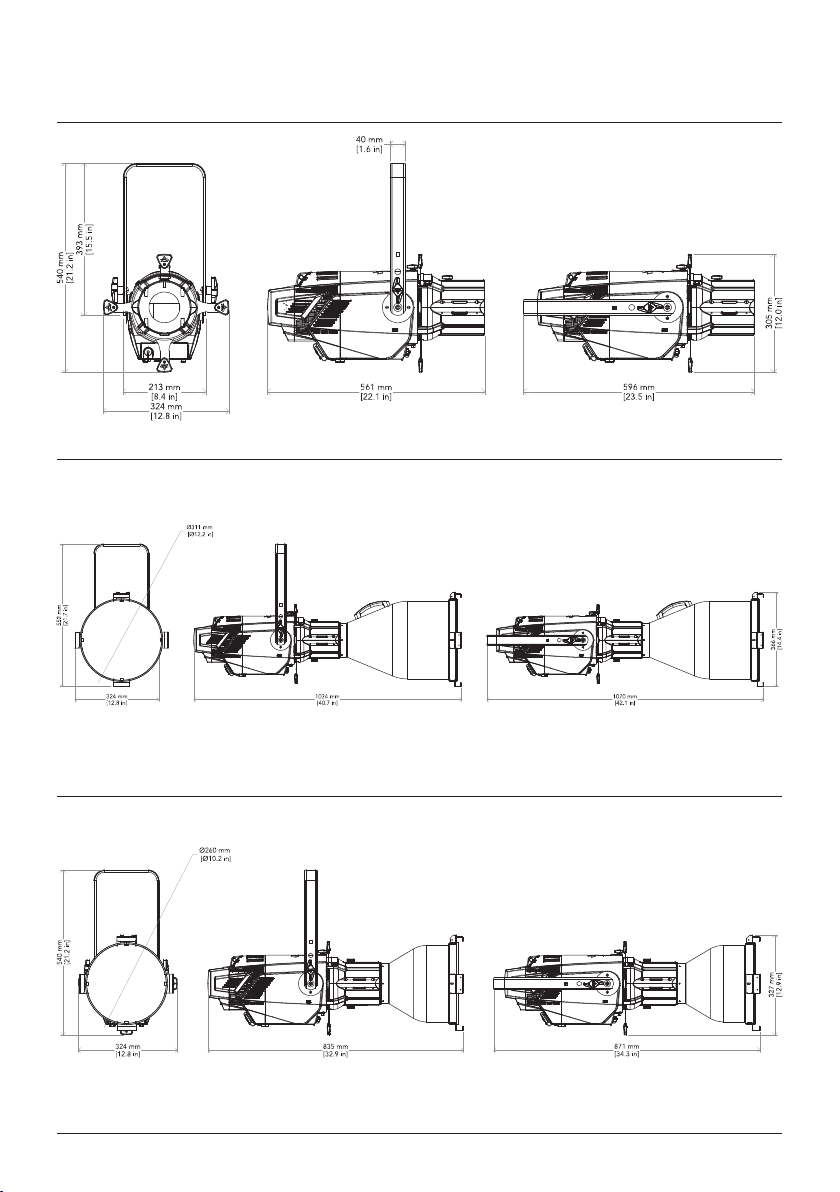

2 - TECHNICAL DRAWING 06
3 - INSTALLATION 09
MOUNTING.................................................................................................................... 09
4 - CONNECTION TO THE MAINS SUPPLY 10
5 - START UP 10
CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 10
6 - PRODUCT OVERVIEW 11
7 - DMX CONNECTION 12
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 12
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 12
CONNECTION DAISY CHAIN........................................................................................ 12
CONNECTION OF THE DMX LINE................................................................................ 12
CONSTRUCTION OF THE DMX TERMINATION ........................................................... 13
DMX ADDRESSING ........................................................................................................ 13
8 - CONTROL PANEL 14
DISPLAY AND BUTTONS LAYOUT................................................................................. 14
9 - MENU STRUCTURE 15
10 - RDM FUNCTIONS 17
11 - SHORTCUTS 18
12 - ERROR MESSAGES 18
13 - DMX CHARTS 19
13 - ACCESSORIES INSTALLATION 24
OPTIC (CODE ECLPRL - OPTIONAL) ............................................................................. 24
GEL FILTER FRAME (CODE ECLPRTPG - OPTIONAL) ................................................... 25
GOBO HOLDER (CODE ECLPRGH - OPTIONAL).......................................................... 26
STEEL IRIS DIAPHRAM (CODE ECLPRIRIS - OPTIONAL)............................................... 28
SOFT EDGE FILTER (CODE ECLPRSEF1 - OPTIONAL).................................................. 29
SOFT FOCUS DIFFUSION (CODE ECLPRSMOOTHF1 - OPTIONAL)............................ 30
POLE OPERATED YOKE (CODE ECLPRPOYO - OPTIONAL)......................................... 31
ROTATING GOBO ASSEMBLY (CODE ECLPRIPROTGOBO1 - OPTIONAL).................. 32
14 - TEST OF IP65 RATING 33
15 - MAINTENANCE 34
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 34
REPLACING THE FUSE................................................................................................... 34
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 34
TROUBLESHOOTING..................................................................................................... 35

PROLIGHTS - EclProfile FW IP
02
SAFETY INFORMATION
WARNING!
• Please read carefully the instruction reported in this section before installing, power-
ing, operating or servicing the product and observe the indications also for its future
handling.
This unit is not for household and residential use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, ca-
ble, or other components are damaged, defective, deformed or showing signs of
overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.
0,3 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 0.3 meters (0.98 ft) from the lens of the projector.

PROLIGHTS - EclProfile FW IP 03
T
45°
C
a
Max operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).
T
-15°
C
a
Minimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -15 °C (5 °F).
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
IP65
Outdoor (temporary) use
• This product is rated with an IP (Ingress protection) for temporary outdoor use when
used and serviced according to the instruction contained in this document.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty
T
58°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 58 °C (136.4 °F) during operation. Avoid
contact with people and materials.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 2 according to EN 62471.
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
• The device should be positioned so that prolonged staring into the luminaire at a
distance closer than 3.30 m is not expected.

PROLIGHTS - EclProfile FW IP
04
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
3.30 m
10.83 ft
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment (WEEE). To preserve the environment please dis-
pose/ recycle this product at the end of its life according to the local regulation.
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD).
• 2014/30/EU - Electromagnetic Compatibility (EMC).
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS).
The products to which this manual refers comply with:
• UL 1573 + CSA C22.2 No. 166 - Stage and Studio Luminaires and Connector Strips.
• UL 1012 + CSA C22.2 No. 107.1 - Standard for power units other than class 2.
FCC Compliance:
• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Other approvals
• The product meets the safety requirements of the certification procedures of the
market in which it is placed and sold.

PROLIGHTS - EclProfile FW IP 05
1 - PACKAGING
PACKAGE CONTENT
• 1 x ECLFWIPDY/TU;
• 1x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector);
• User manual.
OPTIONAL ACCESSORIES
• INF53415L03: dmx cable HC5340. SETMC5MXXB XLR 5p->SETMC5FXXB XLR (f) 5p;
• 9333FXWL03: ass. 3x2.5mm TH07 cable, SHUKO plug, SETSAC3FX socket, L.3m
• 9313FXWL03: ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, SETSAC3FX socket, L.3 m;
• 938225L03: 3x2.5mm TH07 Cable, 16A SETSAC3MX, 16A SETSAC3FX, L. 3m;
• RSR0630A/B: steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black;
• C6040: heavy-load aluminum clamp, 200kg load, 48-51mm tubes, M10 bolt inc;
• C6002: slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt;
• FCLECLPRIP: ightcase to contain 8 pcs ECLFWIP / ECLCTPLUS with lenses 19°, 26°, 36°, 50°;
• FCLECLPRLZ: ightcase to contain 8 ECLPRLZ zoom lenses;
• ECLPRL05BK: 5° PRL lens barrel for EclProle xtures, black housing;
• ECLPRL10BK: 10° PRL lens barrel for EclProle xtures, black housing;
• ECLPRL14BK: 14° PRL lens barrel for EclProle xtures, black housing;
• ECLPRL19BK: 19° PRL lens barrel for EclProle xtures, black housing;
• ECLPRL26BK: 26° PRL lens barrel for EclProle xtures, black housing;
• ECLPRL36BK: 36° PRL lens barrel for EclProle xtures, black housing;
• ECLPRL50BK: 50° PRL lens barrel for EclProle xtures, black housing;
• ECLPRL70BK: 70° PRL lens barrel for EclProle xtures, black housing;
• ECLPRLZ1530BK: zoom 15°-30° PRL lens barrel for EclProle xtures, black housing;
• ECLPRLZ2550BK: zoom 25°-50° PRL lens barrel for EclProle xtures, black housing;
• ECLPRTPG: gel lter frame for ECL Prole PRL lens barrel, comp. with 19°,26°,36° and 50°;
• ECLPRGH: gobo holder for ECL Prole xtures;
• ECLPRIRIS: iris accessory for ECL Prole xtures;
• ECLPRSEF1: soft edge lter and holder kit for ECL Prole xtures;
• ECLLZLLKA: hexagonal head screw, to adapt and mount ECLLZ lenses on ECLCTPLUS and ECLFS;
• ECLPRSMOOTHF1: smooth/homogenizer lter with aluminium frame and magnets for Ecl Prole xture;
• ECLPRPOYO: pole operated aluminium yoke bracket for ECLCTPLUS and ECLFS;
• ECLPRIPROTGOBO1BK/WH: rotating gobo assembly for ECL Prole xtures, black/white;
• IPTESTBOX: portable vacuum and pressure tester for ProLights IP xtures;
• SPGM12: 28mm spigot for xtures, M12 bolt;
• SPGM10: 28mm spigot for xtures, M10 bolt;
• UPBOX2P5: rmware uploader kit, USB IN, 5-pin XLR DMX OUT.

PROLIGHTS - EclProfile FW IP
06
2 - TECHNICAL DRAWING
Weight: 7.3 kg - 16.09 lbs ECLFWIP without optic
Weight: 10.2 kg - 22.48 lbs ECLFWIP with ECLPRL05
Weight: 9.2 kg - 20.28 lbs ECLFWIP with ECLPRL10

PROLIGHTS - EclProfile FW IP 07
Weight: 10.6 kg - 23.37 lbs ECLFWIP with ECLPRL14
Weight: ECLPRL19: 9.5 kg - 20.94 lbs
Weight: ECLPRL26: 9.7 kg - 21.38 lbs
Weight: ECLPRL36: 9.4 kg - 20.72 lbs
Weight: ECLPRL50: 9 kg - 19.84 lbs
ECLFWIP with ECLPRL19
ECLFWIP with ECLPRL26
ECLFWIP with ECLPRL36
ECLFWIP with ECLPRL50
Weight: 9.1 kg - 20.06 lbs ECLFWIP with ECLPRL70

PROLIGHTS - EclProfile FW IP
08
Weight: 11.3 kg - 24.91 lbs ECLFWIP with ECLPRLZ1530
Weight: 11.3 kg - 24.91 bs ECLFWIP with ECLPRLZ2550
Fig. 01

PROLIGHTS - EclProfile FW IP 09
Fig. 02
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
213 mm
[8.4 in]
40 mm
[1.6 in]
80 mm
[3.1 in]
Ø13 mm
[Ø0.5 in]
RSR0630A/B
steel security cable
C6002
clamp
RSR0630A/B
steel security cable
C6040
clamp

PROLIGHTS - EclProfile FW IP
10
5 - START UP
CONNECT AND DISCONNECT POWER FROM THE PRODUCT
To apply and disconnect power to the product:
• Check that the product is installed and secured as indicated in the Safety Informations, and that
personal safety will not be put at risk when the xture lights up.
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).
• The product is then ready for its operations and can be controlled through the available input sig-
nals on board.
• To disconnect power from the product, disconnect the Mains from the socket.
4 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 264W.
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth

PROLIGHTS - EclProfile FW IP 11
6 - PRODUCT OVERVIEW
1. OPTIC (optional accessory);
2. KNOB for focus;
3. BLADES for FRAMING SYSTEM;
4. KNOB for bracket;
5. KNOB for locking the middle part;
6. BRACKET;
7. SAFETY EYE to attach safety cable;
8. HANDLE;
9. USER INTERFACE with display and buttons for access to the control panel functions.
10.DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C;
11.DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C;
12.MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T5A, 250 V););
13.POWER IN: for connection to the Mains 100-240V~/50-60Hz;
14.POWER OUT: power output for connection of multiple units in series;
15.GORE VALVE.
Fig. 03
9
8
6
7
4
8
3
2
1
5
10 11 12 13
14
15

PROLIGHTS - EclProfile FW IP
12
7 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has XLR sockets for DMX input and output.

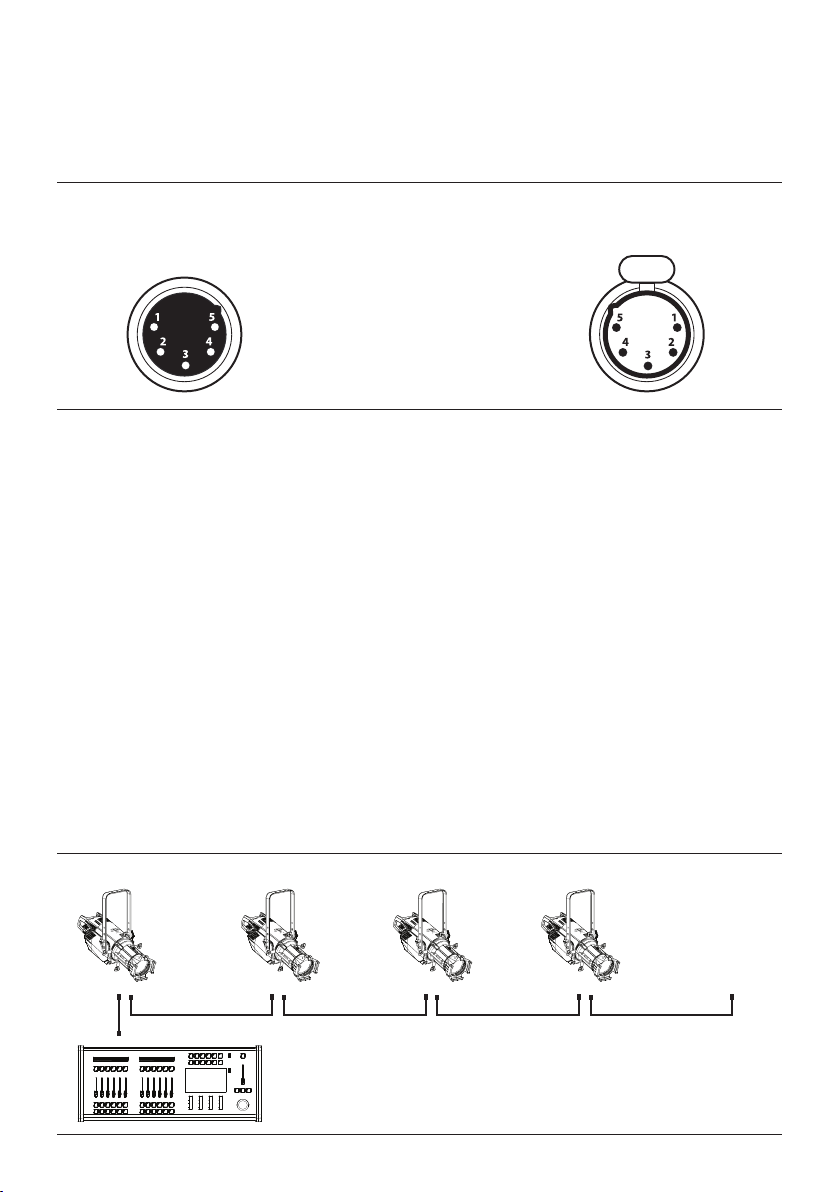

The default pin-out on both socket is as the following diagram:
Fig. 04
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
Pin4 : N/C
Pin5 : N/C
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
CONNECTION DAISY CHAIN
Connect the DMX data output from the DMX source to the product DMX input (male connector XLR)
socket.
Run the data link from the product XLR output (female connector XLR) socket to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination. If a splitter is used, terminate
each branch of the link.
Install a DMX termination plug on the last xture on the link.
CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω im-
pedance and low capacity.
The following diagram shows the connection mode:
Fig. 05 - Example 9 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 33 DMX Address: 60DMX Address: 42 DMX Address: 51
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT DMX OUT DMX OUT DMX OUT

PROLIGHTS - EclProfile FW IP 13
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode in the MENU before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
To set the xture’s DMX address:
1. Press MENU to open the main menu.
2. Reach the addressing menu, then select the DMX ADDRESS settings.
3. Select the address from 1 to 512 using the navigation arrows/buttons and conrm by pressing
ENTER.
4. Press Menu to exit and return to the Home screen.
CONSTRUCTION OF THE DMX TERMINATION
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR
connector, as shown in gure.
Fig. 06
Example:
5 pin XLR connector
4

PROLIGHTS - EclProfile FW IP
14
Fig. 07
8 - CONTROL PANEL
The product has a display and buttons for access to the control panel functions.
DISPLAY AND BUTTONS LAYOUT
HIGHLIGHT: Press and hold for three seconds to temporary turn ON the product at Full ON
for user focusing operations.
MENU: Used to access the menu tree or to return a previous menu window.
UP: Browse upwards through the menu list and increases the numeric value displayed.
DOWN: Browse downwards through the menu list and decreases the numeric value displayed.
ENTER: Used to conrm the current menu or conrm the current function value or option
within a menu.

PROLIGHTS - EclProfile FW IP 15
9 - MENU STRUCTURE
The following chart describes the MENU tree of the product, the terms shown in BOLD indicates the
default settings.
MENU
1 Connect DMX Address 001 - 512
DMX Mode Gobo Rot OFF Gobo Rot
ON
Uno Uno Gobo
Duo Basic Gobo
Standard Std Gobo
2 Advanced Dimmer Curve Linear
S-Curve
Square Law
Inverse Square Law
Select different curve behaviour of dimmer.
Dimmer Speed Auto
Slow
Medium
Fast
Linear speed behaviour.
Dimmer speed adding long fade.
Dimmer speed adding medium fade.
Dimmer speed adding little fade.
LED Frequency 600 Hz
1282 Hz
2500 Hz
5000 Hz
6400 Hz
25 kHz
Select PWM frequency.
Fan Mode Auto
Balanced
Silent
Full
Select the product Fan mode.
Auto mode: fan speed from 0% to 100% following
temperature curve.
Balanced mode: fan speed from 0% to 50%
following temperature curve.
Silent mode: speed fan from 0% to 30% following
temperature curve.
Full mode: fan speed at 100% without following
xture temperature.
Gobo Rot. Off
On
Enable / Disable Gobo functionality.
DMX Mode in use is automatically converted to
"Gobo" version. DMX Mode list is switched to
"Gobo Rot On" version.
3 SETUP Display Flip Regular
Top Down
Allows you to rotate the display
by 180°.
Back Light On
10 s
20 s
30 s
Allows you to select the timing after that display
will switch automatically off when unactive.
Key Lock Locked
Unlocked
Allows you lock the buttons on the control panel
by a password.
Press following combinations (password) in order
to access to the user menu: UP, DOWN, UP,
DOWN.
Gobo Rot. Reset Abort
Reference
Transfer Cong Abort
Without DMX Addr
With DMX Address
To transfer the same menu settings of one xtures
to all the other in the daisy chain, including or not
the dmx address.

PROLIGHTS - EclProfile FW IP
16
4 DMX LOST Blackout Fixture go in blackout if it lose dmx
signal.
Hold Fixture hold last dmx frame if it lose
dmx signal.
Master Static Dimmer
Gobo Rot.
Gobo Rot. F.
000 ÷ 255
Select the dimmer value of the se-
lected white point.
Effect 1 Dimmer
Duration
Attack
Decay
Gobo Rot.
Gobo Rot. F.
0÷255
0.0s÷30.0s ÷60.0s
0% ÷ 100%
0% ÷ 100%
0 ÷ 255
0 ÷ 255
Edit and choose effect 1.
... ... ...
Effect 3 Dimmer
Duration
Attack
Decay
Gobo Rot.
Gobo Rot. F.
0÷255
0.0s÷30.0s ÷60.0s
0% ÷ 100%
0% ÷ 100%
0 ÷ 255
0 ÷ 255
Edit and choose effect 3.
Slave Set the units to be slave.
5 INFORMA-
TION
Operating
Hours
Lamp Hours
Power Cycles
Power
Consumtion
LED
Temperature
Fan Speed
Gobo Rot.
DEG
Gobo Rot.
RPM
RDM Id
Version
View informations about product.
6 FACTORY
SETTINGS
Abort
Set Default
Values
To reset the unit to factory default
settings.

PROLIGHTS - EclProfile FW IP 17
10 - RDM FUNCTIONS
The product can communicate using RDM (Remote Device Management) protocol over a DMX512
Networks.
RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open
standard for DMX512 device conguration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting
existing non-RDM equipment. It allows a console or dedicated RDM controller to send commands to
and receive messages from specic xtures.
The PIDs in the following tables are supported in the product.
Parameter PID GET SET
SUPPORTED_PARAMETERS 0x0050 x
DEVICE_INFO 0x0060 x x
DEVICE_MODEL_DESCRIPTION 0x0080 x
MANUFACTURER_LABEL 0x0081 x
DEVICE_LABEL 0x0082 x x
FACTORY_DEFAULTS 0x0090 x x
SOFTWARE_VERSION_LABEL 0x00c0 x
BOOT_SOFTWARE_VERSION_ID 0x00c1 x
BOOT_SOFTWARE_VERSION_LABEL 0x00c2 x
DMX_PERSONALITY 0x00e0 x x
DMX_PERSONALITY_DESCRIPTION 0x00e1 x
DMX_START_ADDRESS 0x00f0 x x
SENSOR_DEFINITION 0x0200 x
SENSOR_VALUE 0x0201 x
DEVICE_HOURS 0x0400 x
LAMP_HOURS 0x0401 x
LAMP_STRIKES 0x0402 x
DEVICE_POWER_CYCLES 0x0405 x
IDENTIFY_DEVICE 0x1000 x x
RESET_DEVICE 0x1001 x
MOTOR_ENABLE 0x8200 x x
MOTOR_RESET 0x8201 x x

PROLIGHTS - EclProfile FW IP
18
Keys Mode Description
ENTER + MENU after power on Flip Display Directly ip display without enter inside menu.
UP + ENTER then power on Bootloader Force rmware upgrade.
12 - ERROR MESSAGES
11 - SHORTCUTS
Group Message Type Comment
Cong "Not Calibrated" Error
Temperature sensor "Temp. Sensor failed" Warning Checksum error ROM
code
"T: Can't read ROM code" Error
"T: Can't get input" Error
"T: Can't read status" Error
Temperature management "Overtemperature" Error
"LED Temperature" Error Cannot read LED tem-
perature
Transfer cong "DMX active" Error Cannot transfer with active
DMX
Flash memory "Initializing Flash" Information
"Invalid ash entry" Warning
"Can't unlock ash (WR)" Error
"Can't unlock ash (ER)" Error
"Can't lock ash" Error
"Can't load Pg1" Error
"Can't load Pg2" Error
"Can't load ash" Error
Gobo Rot. "Gobo position lost" Warning Refernce signal at unex-
pected position
"Gobo ref. disabled" Information Use of reference position
automatically disabled
after referencing failed
