PROLUMIA LUMIAFLEX 1004 User manual

www.prolumia.com
LUMIAFLEX
46020001 Lumiaex 1004, 24 Vdc, 10 W/m, 5 m reel, 900 lm/m, 2700 K
46020002 Lumiaex 1004, 24 Vdc, 10 W/m, 5 m reel, 920 lm/m, 3000 K
46020003 Lumiaex 1004, 24 Vdc, 10 W/m, 5 m reel, 1000 lm/m, 4000 K
46020005 Lumiaex 1004, 24 Vdc, 10 W/m, 5 m reel, 980 lm/m, 6500 K
OPERATING INSTRUCTION
1004

2
www.prolumia.com

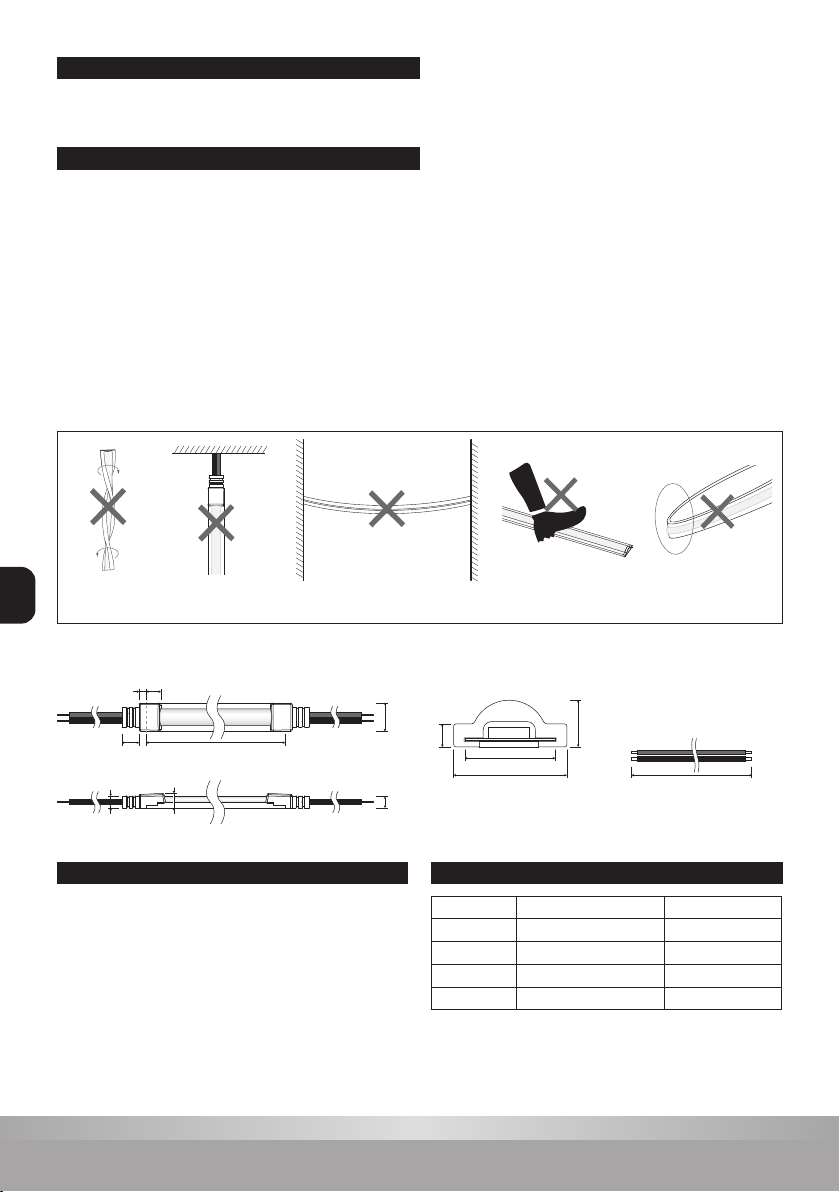

Do not twist
the light.
Do not suspend
the power cable.
Do not leave the light
hanging in the air.
Prohibit trample. Small angle bending
is prohibited.
2.5 mm
7 mm
6 mm
4.2 mm 5.1 mm
5000 mm
10 ± 0.2 mm4 mm
200 mm
Black: V –
Red: V +
Red & black 2-core cable:
Red V+ / Black V-
2 ± 0.15 mm
4 ± 0.2 mm
10 ± 0.2 mm
8 mm
Cross section
ATTENTION
CAUTION
TECHNICAL DATA TECHNICAL INFORMATION
Please read the following instructions carefully to ensure that mounting operation will be carried out correctly.
These instructions should be properly preserved for future reference.
Supply voltage: 24 Vdc
Power: 10 W/m
Cutting length: 29.4 mm
Light source: LED SMD2835
CRI: > 90
Colour consistency: <5 SDCM
Lifetime (L70): >60,000 hours
Electrical safety class: Class III
Operating temperature: -20°C ~ +45°C
IP rating: IP65 (indoor use only)
1. The unused light should be sealed with the packaging bag to avoid prolonged exposure.
2. Please use DC24V isolated constant voltage power supply with ripple voltage less than 5%. Using other types of power supply may damage
the light or cause other safety risks.
3. In practical application, 20% excess power capacity should be anticipated for the driver to ensure a stable operation of the lighting system.
4. It is recommended that professionals connect the power supply. Do not connect the power supply with live power to avoid electric shock.
5. Please make sure the constant voltage power supply corresponds with the operating voltage of the system. Pay attention to the red (+) and black (-)
polarity of the DC-wires, reversed polarity may cause irreparable damage to the luminaire.
6. If the actual application length exceeds the specied length, it will lead to overload, heating and uneven brightness of the light.
7. During installation, please do not scratch, twist, or bend the light irregularly. Otherwise, the light may be damaged beyond repair.
8. To ensure the life and reliability of the light, please do not over bend the light, which will damage the product itself.
9. To protect your eyes, please avoid staring at the glowing surface of the light for a long time.
10. Non-professionals are forbidden to install, disassemble and maintain the product.
11. Do not use any acid or alkaline adhesive to x the light (including but not limited to glass glue, etc.)
Art. no. Color temperature (K) Eciency (lm/m)
46020001 2700 900
46020002 3000 920
46020003 4000 1000
46020005 6500 980
EN

3
www.prolumia.com
Cutting line
Center line of scissor
Limiter of scissor
Limit line of the quick connector
Cover of the quick connector
led strip
Limiter of scissor
Triangle sign
14 mm
10.2 mm
8 mm
22.6 mm150 mm
1
4
2
3
Quick connector (Art. no.: 46020013)
Dimensions: 14 x 22.6 x 8 mm
Scissors
(Art. no.: 46000288)
ASSEMBLY / DISASSEMBLY QUICK CONNECTOR
CUTTING MARK
ASSEMBLY
Align the scissor with the cutting line on the back of the strip.
Align the led strip with the limit line on the quick connector,
and then press the cover until you hear the click sound.
Place the led strip parallel to the scissor and cut the led strip neatly.
Align the triangle sign on the led strip with that on the quick connector.
Note: The directions of the two triangle signs must be consistent
to avoid short circuit.
Remark: The bottom of the led strip has transparent window,
the black marker is the cutting position.
Use professional scissors to cut vertically
at the cutting mark.
Cutting mark
EN

4
www.prolumia.com
1 2
Peel the protective paper from 3M tape.
Check to make sure 3M tape is attached to led strip. Clean the required installation position before installation.
Stick the led strip on the
position to be installed
and switch on the driver.
1
A
B C
D
2
5
Schematic diagram of installation completion.
DISASSEMBLY
Use a at-head screwdriver to pry the side of the quick connector along
the side gap, and then pry another side.
Open the cover and remove the led strip from the needle. Note: When the
removed led strip is used again, the unit length of led strip that FPCB has
been punctured must be cut o to avoid poor contact during reinstallation.
INSTALLATION WITH 3M TAPE
EN

5
www.prolumia.com
12.3 mm
5 mm
7 mm
14 mm
ø 3.2 mm
ø 6 mm
Mounting clip accessory (Art. no.: 46020010)
Dimensions: 14 x 12.3 x 5 mm
Secure the plastic clips to the mounting surface with a screwdriver.
The installation is complete. Switch on the driver.
Clip the led strip onto the plastic clips and x it.
1 2
3
MOUNTING CLIP
INSTALLATION WITH MOUNTING CLIPS
EN
