Promac 947VA User manual

947AV METAL LATHE
Original:
G
B
O
perating Instructions
M-BD-947VA-M
Schweiz / Suisse
JPW (TOOL) AG
Tämperlistrasse 5
CH-8117 Fällanden Switzerland
www.promac.ch
France
TOOL France / PROMAC
57, rue du Bois Chaland, Z.I. du Bois Chaland
case postale 2935 FR-91029 Evry Cedex
www.promac.fr
2016-05


CE‐ConformityDeclaration
CE‐Konformitätserklärung
DéclarationdeConformitéCE

Product/Produkt/Produit:
MetalLathe 
Metalldrehbank
Touràmétaux
947VA
Brand/Marke/Marque:
PROMAC
Manufacturer/Hersteller/Fabricant:
JPW(Tool)AG,Tämperlistrasse5,CH‐8117Fällanden
Schweiz/Suisse/Switzerland

Weherebydeclarethatthisproductcomplieswiththeregulations
Wirerklärenhiermit,dassdiesesProduktderfolgendenRichtlinieentspricht
Parlaprésente,nousdéclaronsqueceproduitcorrespondauxdirectivessuivantes
2006/42/EC
MachineryDirective
Maschinenrichtlinie
DirectiveMachines
2014/30/EU
electromagneticcompatibility
elektromagnetischeVerträglichkeit
compatibilitéélectromagnétique
designedinconsiderationofthestandards
undentspechendfolgenderzusätzlicherNormenentwickeltwurde
etétédéveloppédanslerespectdesnormescomplémentairessuivantes
ENISO12100:2010
ENISO23125:2015
EN60204‐1:2006+A1:2009
EN61000‐6‐2:2005
EN61000‐6‐4:2007+A1:2011
ResponsiblefortheDocumentation/Dokumentations‐Verantwortung/RésponsabilitédeDocumentation:
HansjörgMeier
HeadProduct‐Mgmt./LeiterProdukt‐Mgmt./Resp.GestiondesProduits
JPW(Tool)AG

2016‐05‐24AlainSchmid,GeneralManager
JPW(Tool)AG,Tämperlistrasse5,CH‐8117Fällanden
Schweiz/Suisse/Switzerland

1

Table of Contents
INTRODUCTION......................................................................................................................4
MAIN PARAMETERS……………………………………………………………………......5

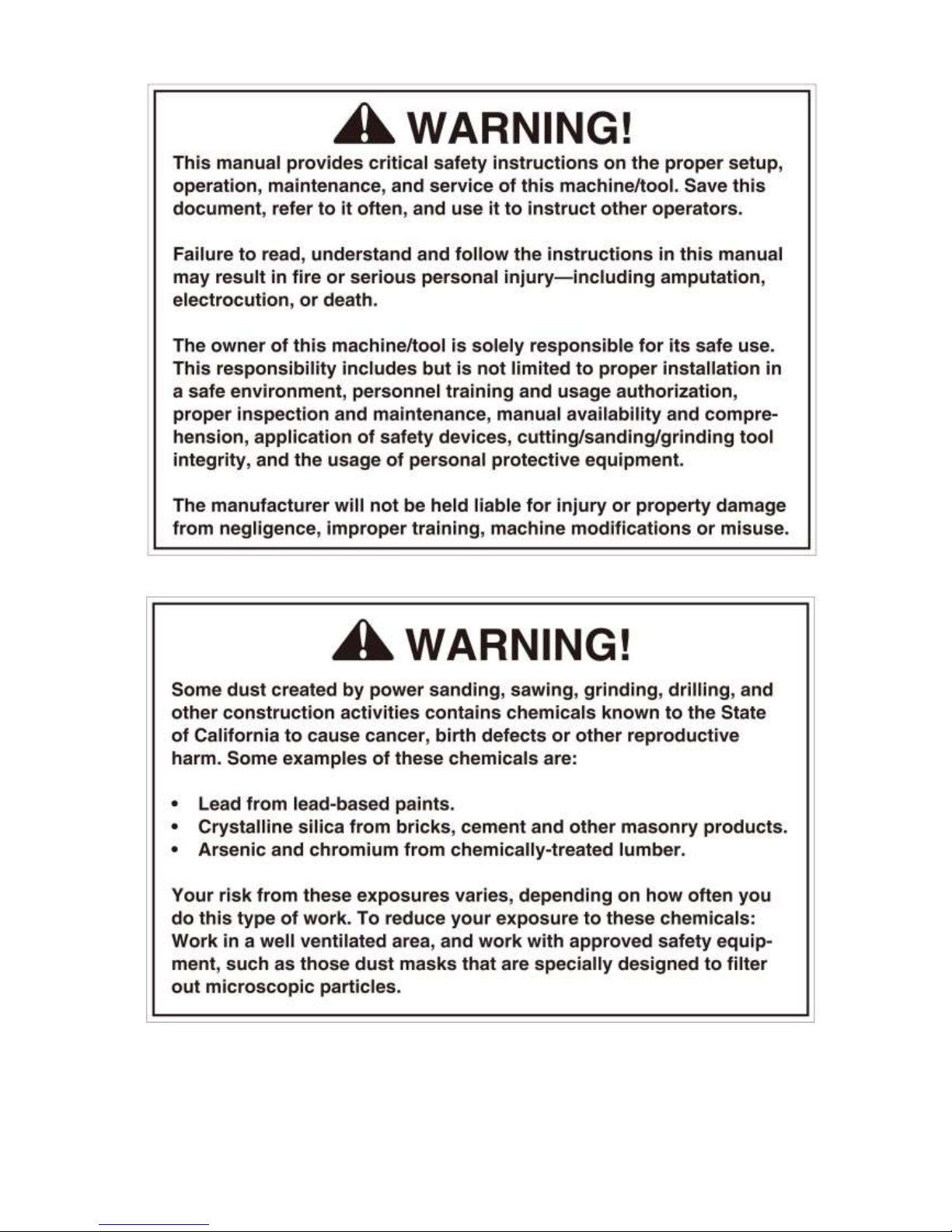

SECTION 1: SAFETY...............................................................................................................7
SECTION 2: POWER SUPPLY...............................................................................................9
Availability………………………………………………………………………9
Circuit Requirements…………………………………………………………..9
Grounding & Plug Requirements…………………………………………….10
Extension Cords……………………………………………………………….10
SECTION 3: SETUP……………………………………………………………………...…11
Unpacking……………………………………………………………………...11
Inventory………………………………………………………………………11
Clean Up……………………………………………………………………….12

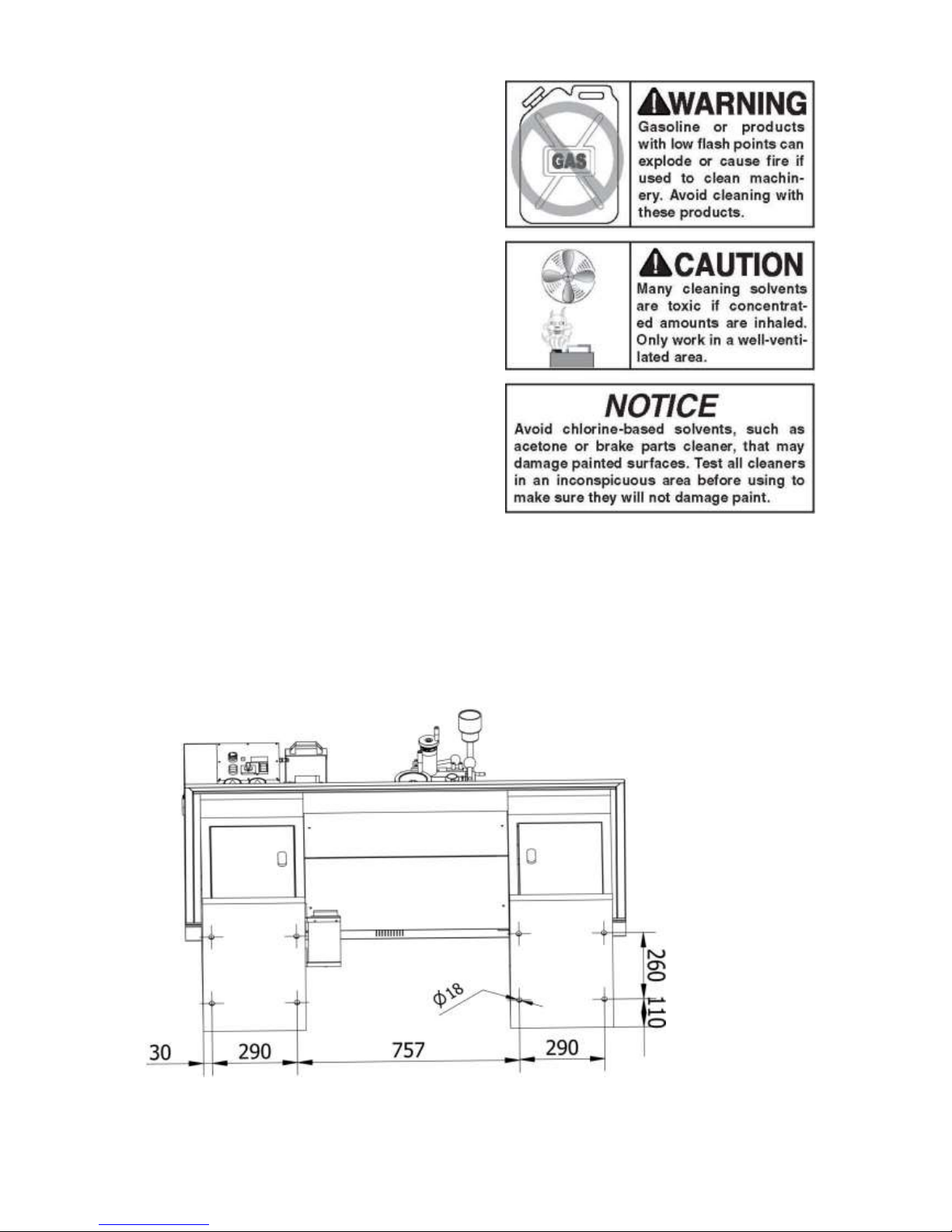

Installation Dimensions……………………………………………………….12
Check Gearbox Oil……………………………………………………………12
Open the Cover………………………………………………………………..13
Install belt and Chang speeds………………………………………………...13
Test Run Lathe………………………………………………………………...14
SECTION 4: OPERATE……………………………………………………………………..15
General…………………………………………………………………………15

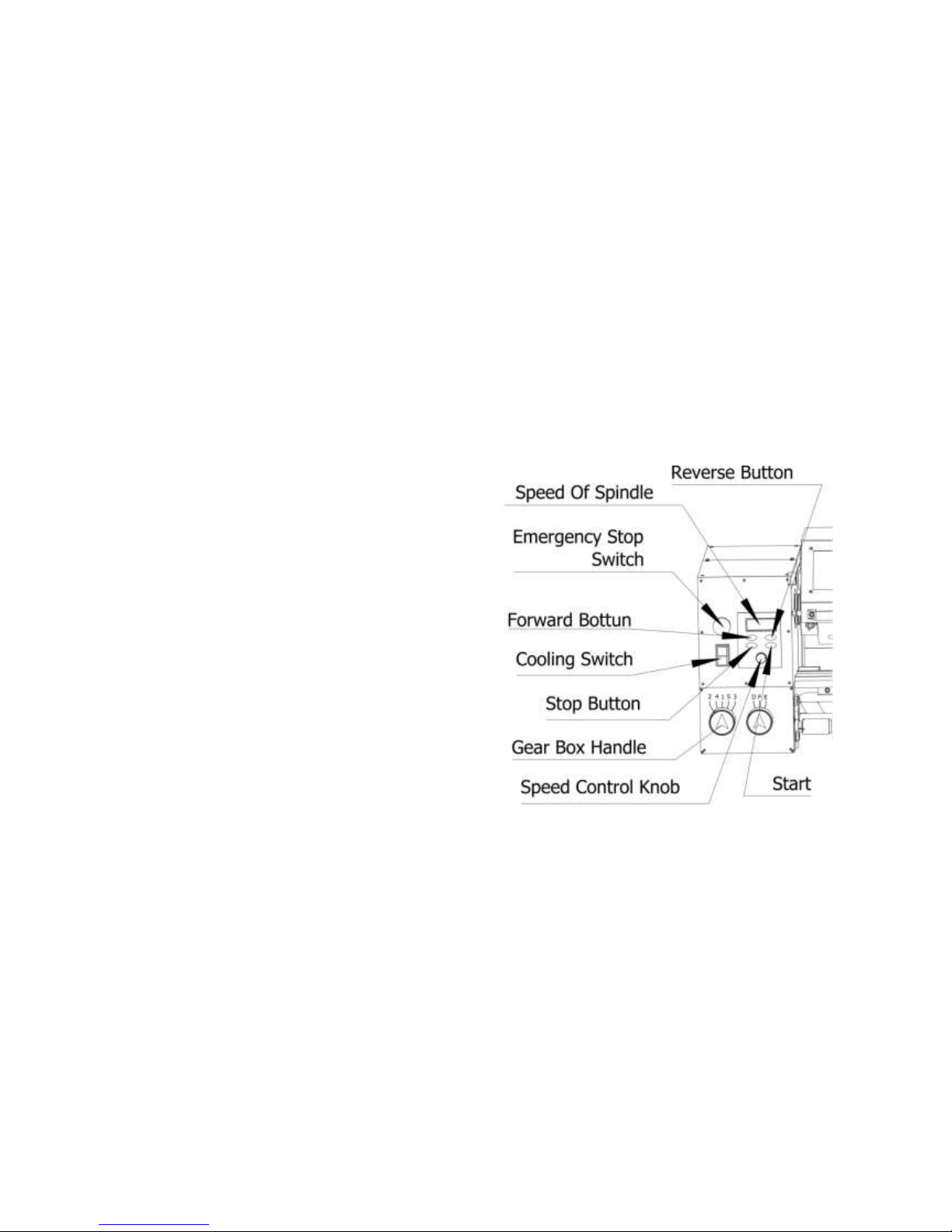

Controls…………………………………………………………...……………15
Removing/Installing Chuck or Faceplate…………………………………...16
Dead Centers…………………………………………………………………..17
Tailstock Positioning…………………………………………………………..18
Changing Tool Posts…………………………………………………………..18
Cross Slide…………………………………………………………………......18
Compound Slide……………………………………………………………….19
Carriage Handwheel…………………………………………………………..20
Half Nut Lever…………………………………………………………………20
Carriage/Cross Feed Lever…………………………………………...………20
Carriage Lock………………………………………………………………….20
Gearbox Levers………………………………...……………………………...20
Threads and Change gears……………………………………………………21
Left threads and reverse cutting feed………………………………………...21
Clutch Overload…………………………………………………...…………..22
SECTION 5: MAINTENANCE……………………………………………………….……..23
Lubrication…………………………………………………………………….23
Ball oilers............................................................................................................23
Feed Rate Gearbox Oil Reservoir....................................................................24
Gibs…………………………………………………………………………….25
Bearing Preload……………………………………………………………….26
2

IDENTIFICATION
The following is a list of controls and components on the lathe. Please take time to become
familiar with each term and its location. These terms will be used throughout the manual
and knowing them is essential to understanding the instructions and terminology used in
this manual.
1. Door
2. Emergency Stop Switch
3. Forward Button
4. Stop Button
5. Lathe Cooling pump switch
6. Gear Box
7. Speed Control Knob
8. Start Button
9. Clutch Overload
10. Stopping Plate
11. Carriage Handwheel
12. Half Nut Lever
13. Carriage/Cross Feed Lever
14. Tailstock Barrel Handwheel
15. Tailstock Clamp Bolt
16. Tailstock Center Lock
17. working lamp
18. Compound Slide Handwheel
19. Cooling pipe
20. Tool Post
21. Cross Slide
22. Carriage
23. Headstock Eyeshield
24. Lathe Chuck
25. Reverse Button
26. Speed of Spindle(rpm)
27. Foot Swhich
28. Work Table
