QDI Advance 10T Series User manual

Notice
The information in this document is subject to change in order to improve reliability, design,
or function without prior notice and does not represent a commitment on the part of this
company. In no event will we be liable for direct, indirect, special, incidental, or consequen-
tial damages arising out of the use or the possibility of such damages.
All trademarks are the property of their respective owners.
If you need any further information, please visit our web-site www.qdigrp.com.
Item Checklist
This item checklist is only available for retail market.Completely check your package,If you
discover damaged or missing items, contact your retailer.
Advance 10T series mainboard
QDI Driver CD 2000
Users manual
1 IDE ribbon cable
1 floppy ribbon cable
I/O shield(option)
1 10-pin ribbon cable with bracket for USB3 and USB4(option)

Declaration of conformity
QUANTUM DESIGNS(HK) LTD.
20th loor, Devon House, Taikoo Place, 979 Kings Road,
Quarry Bay, Hong Kong
declares that the product
Mainboard
Advance 10T
is in conformity with
(reference to the specification under which conformity is declared in
accordance with 89/336 EEC-EMC Directive
!"EN 55022 Limits and methods of measurements of radio disturbance
characteristics of information technology equipment
!"EN 50081-1 Generic emission standard Part 1
Residential, commercial and light industry
!"EN 50082-1 Generic immunity standard Part 1
Residential, commercial and light industry
European Representative
QDI COMPUTER ( UK ) LTD QDI COMPUTER ( SCANDINAVIA ) A/S
QDI SYSTEM HANDEL GMBH QDI EUROPE B. V.
QDI COMPUTER (FRANCE) SARL QDI COMPUTER HANDELS GMBH
LEGEND QDI SPAIN S.L . QDI COMPUTER (SWEDEN) AB
Signature Place / Date HONG KONG/2001
Printed Name Xu Wenge Position/ Title Assistant President

Declaration of conformity
Trade Name: QDI Computer ( U. S . A. Inc.
Model Name: Advance 10T
Responsible Party: QDI Computer ( U. S. A. Inc.
Address: 41456 Christy Street
Fremont, CA 94538
Telephone: [phone]
Facsimile: (510 668-4966
Equipment Classification: FCC Class B Subassembly
Type of Product: Mainboard
Manufacturer:Quantum Designs (HK) Inc.
Address: 20th Floor, Devon House, Taikoo Place
979 Kings Road, Quarry Bay, HONG
KONG
Supplementary Information:
This device complies with Part 15 of the FCC Rules. peration is subject to
the following two conditions : (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2001

II
CONTENTSCONTENTS
CONTENTSCONTENTS
CONTENTS
1. Introduction.....................................................1
Overview.........................................................................1
Key eatures...................................................................1
2. Installation Instructions...................................4
External Connectors..................................................4
PS/2 Keyboard & PS/2 Mouse Connectors......................4
USB1,USB2 connectors...................................................4
USB3,4Connectors...........................................................5
Parallel Port, Serial Port Connectors................................5
Line-in, Microphone-in, Speaker-out jacks
and MIDI/Joystick connector(optional)..............................5
ATX Power Supply Connector
& Power Switch(POWER SW)........................................6
Hard Disk LED Connector (HD_LED)................................6
Reset Switch (RESET).................................................... 6
Speaker Connector (SPEAKER).......................................6
Power LED Connector (PWR LED)...................................7
GREEN LED Connector (GREEN LED)...............................7
ACPI LED Connector (ACPI LED).....................................7
Hardware Green Connector (SLEEP SW)........................7
Key Lock Connector (KEY LK)(Reserved).......................7
Wake-Up On LAN (WOL)..................................................8
Wake-Up On Internal Modem (WOM)................................8
Audio Connectors ( CD_IN,MODEM,AUXIN)......................9
an Connectors (BAK AN, CPU AN, CHS AN)..............9
Infrared Header (IrDA).....................................................10
Audio/Modem Riser Interface Connector(AMR)
& AMR Sound Option(JSD).............................................10
Audio Interface(Reserved)..............................................11
Chassis Security Switch (CHSSEC)................................12
Main Expansion Slots and Connectors...........................12

II
Jumper Settings..............................................................13
Overclocking Jumper Setting (JCLK1, JCLK2) ....................13
SB requency Selection(J SB1,J SB2)............................14
Enable USB Device Wake-up unction(JUSB1,JUSB2).......14
CPU Bus Ratio Selection(JX1,JX2,JX3,JX4)(optional)..........15
Clear CMOS(JCC).................................................................16
CPU Core Voltage Setting
(JV1,JV2,JV3,JV4,JVT1)(optional)........................................16
BIOS Protection unction Jumper (JAV)...............................18
Enable/Disable on-board Audio (JSD)..................................19
3. BIOS Description.....................................................20
Utility Support...................................................................20
AWD LASH.EXE......................................................................20
AWAR (Phoenix) BIOS escription............................21
Entering Setup......................................................................21
Load ail-Safe Defaults........................................................21
Load Optimized Defaults......................................................21
Standard CMOS eatures Setup..........................................21
CPU SpeedEasy Setup.........................................................25
Advanced BIOS eatures Setup..........................................26
Advanced Chipset eatures Setup......................................29
Power Management Setup...................................................32
PNP/PCI Configuration Setup................................................35
Integrated Peripherals..........................................................36
PC Health Status...................................................................39
Password Setting.................................................................40
Boot with BIOS defaults.......................................................40
Appendix........................................................................41
QDI Driver Utility CD .............................................................41
LogoEasy...................................................................................42
RecoveryEasy.........................................................................43
BIOS-ProtectEasy.................................................................52
Norton AntiVirus...................................................................52
ManageEasy............................................................................53
QDI SpeedEasy ...................................................................54
QDI BootEasy........................................................................56
QDI StepEasy(optional)........................................................60
Advance 10T( rancais).......................................................62
CONTENTSCONTENTS
CONTENTSCONTENTS
CONTENTS

Caution
1. Be sure to add some Silicone Grease between the CPU and the
heatsink of FAN to keep them fully contact , meanwhile to meet the
heat sink requirement.
2. Never run the processor without the heatsink properly and firmly
attached.
Note:
This manual is suitable for mainboards of Advance 10T series.
Each mainboard is carefully designed for the PC user who
wants diverse features.
A10T: without onboard Audio
A10T A: with onboard Audio

Manual for Advance 10T
Chapter 1
Introduction
Overview
The Advance 10T is a high performance, cost-effective and energy efficient mainboard
for the implementation of desktop personal computer system from 66MHz, 100MHz to
133MHz based on Socket 370 processors. The green mainboard utilizes VIA Apollo Pro
133T chipset consisting of VT82C694T and VT82C686B. It supports the ATA33/66/100
standard, AGP 4X, PC100/PC133 SDRAM and VCM SDRAM. In addition, advanced
features are supported such as wake-up on LAN, wake-up on internal/external modem
and system monitoring.Suspend to RAM, the optimal implementation of the Advanced
Configuration and Power Interface (ACPI) specification, makes the PCs power con-
sumption drop to the lowest possible level and enable quick wakeup. ManageEasy, our
system management application is also supplied to enable remote monitoring and con-
figuration of the system.BootEasy, lets the PC boot freely and rapidly.
Key Features
Form Factor
#"ATX: 305mm x193mm
Microprocessor
#Supports 66/100/133MHz SB speed
#Supports all Intel® Coppermine Pentium III C-PGA processors at 533/550/600/650/667/
700/733/750/800/850/866/933MHz/1.0/1.1GHz and future processors
#Supports all Intel® Coppermine Celeron C-PGA processors at 533/566/600/633/667/
700/733/766/800/850MHz and future processors
#Supports all Intel® Tualatin Pentium® III/ CeleronTM C-PGA2 processors at 1.13/1.20/
1.26GHz and future processors
#Supports VIA Ezra (Samual-III) 800MHz and future processors
Chipset
# VIA Apollo Pro 133T: VT82C694T + VT82C686B
Chapter 1

Manual for Advance 10T
Memory
#" Provides three168-pin 3.3V 100/133MHz DIMM sockets
#"Supports PC100/PC133 SDRAM and VCM ( VC133 )SDRAM
#"Supports STR( Suspend to RAM )
#"The largest total memory is up to 1.5GB
Onboard I E
#" Supports ATA 100/66/33, PIO mode
##
##
#""
""
"Two fast IDE interfaces supporting four IDE devices including IDE hard disks and
CD-ROM drives
##
##
#""
""
"Supports Independent timing of up to 4 drives
Onboard I/O
##
##
#""
""
"One floppy port supporting up to two 3.5’’or 5.25’’ floppy drives with 360K/720K/
1.2M/1.44M/2.88M format
##
##
#""
""
"Two high speed 16550 fast compatible UART(COM1/COM2/COM3/COM4 selective) with
16-byte transmit/receive I Os
##
##
#""
""
"One parallel port supports SPP/EPP/ECP mode
##
##
#""
""
"Supports PS/2 mouse and PS/2 keyboard
##
##
#""
""
"Provides four USB ports
##
##
#""
""
"Provides one IrDA connector
##
##
#""
""
"All I/O ports can be enabled/disabled in the BIOS setup
Onboard Audio(available on A10T-A)
##
##
#""
""
"Standard AC97 Codec interface
#" Provides onboard Line-in Jack, Microphone-in Jack, Speaker-out Jack with onboard
amplifier and MIDI/Joystick Connector
AGP Slot
##
##
#Supports AGP 4X
##
##
#AGP v2.0 compliant
Advanced Features
##
##
#""
""
"PCI- 2.2 compliant
##
##
#""
""
"Provides Trend ChipAwayVirus® On Guard
##
##
#""
""
"Supports wake-up on LAN
Introduction

Manual for Advance 10T
##
##
#""
""
"Supports wake-up on internal/external modem
##
##
#Supports system monitoring( monitors system temperature, CPU temperature, voltages
and fan speed )
##
##
#Supports QDI innovations: SpeedEasy,ManageEasy, LogoEasy, RecoveryEasy ,BootEasy
and BIOS-ProtectEasy,StepEasy(Optional)
BIOS
#"#"
#"#"
#" Licensed advanced AWARD(Phoenix) BIOS
#"#"
#"#"
#"Supports lash ROM with plug and play ready
#"#"
#"#"
#" Supports IDE CDROM or SCSI bootup
Green Function
#"#"
#"#"
#" Supports ACPI ( Advanced Configuration and Power Interface ) and ODPM ( OS
Directed Power Management )
#Supports ACPI power management status: S0( ull-on ), S1( power on Suspend ),
S3( Suspend to RAM ), S4( Suspend to Disk ,depends on OS)andS5( Soft-off )
Expansion slots
#"1 AGP slot
#"5 PCI slots
#"1 AMR slot
#"1 ISA slot
Chapter 1

--This page is intentionally left blank--

Manual for Advance 10T
Chapter 2
Chapter 2
Installation Instructions
This section covers External Connectors and Jumper Settings. Refer to the motherboard
layout chart for the locations of all jumpers, external connectors, slots and I/O ports.
urthermore, this section lists all necessary connector pin assignments for your reference.
The particular states of the jumpers, connectors and ports are illustrated in the following
figures. Before setting the jumpers or inserting these connectors, please pay attention to
the directions.
External Connectors
PS/2 Keyboard Connector, PS/2 Mouse Connector
PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size
keyboard, an adapter should be used to fit this connector. PS/2 mouse connector is for the
usage of PS/2 mouse.

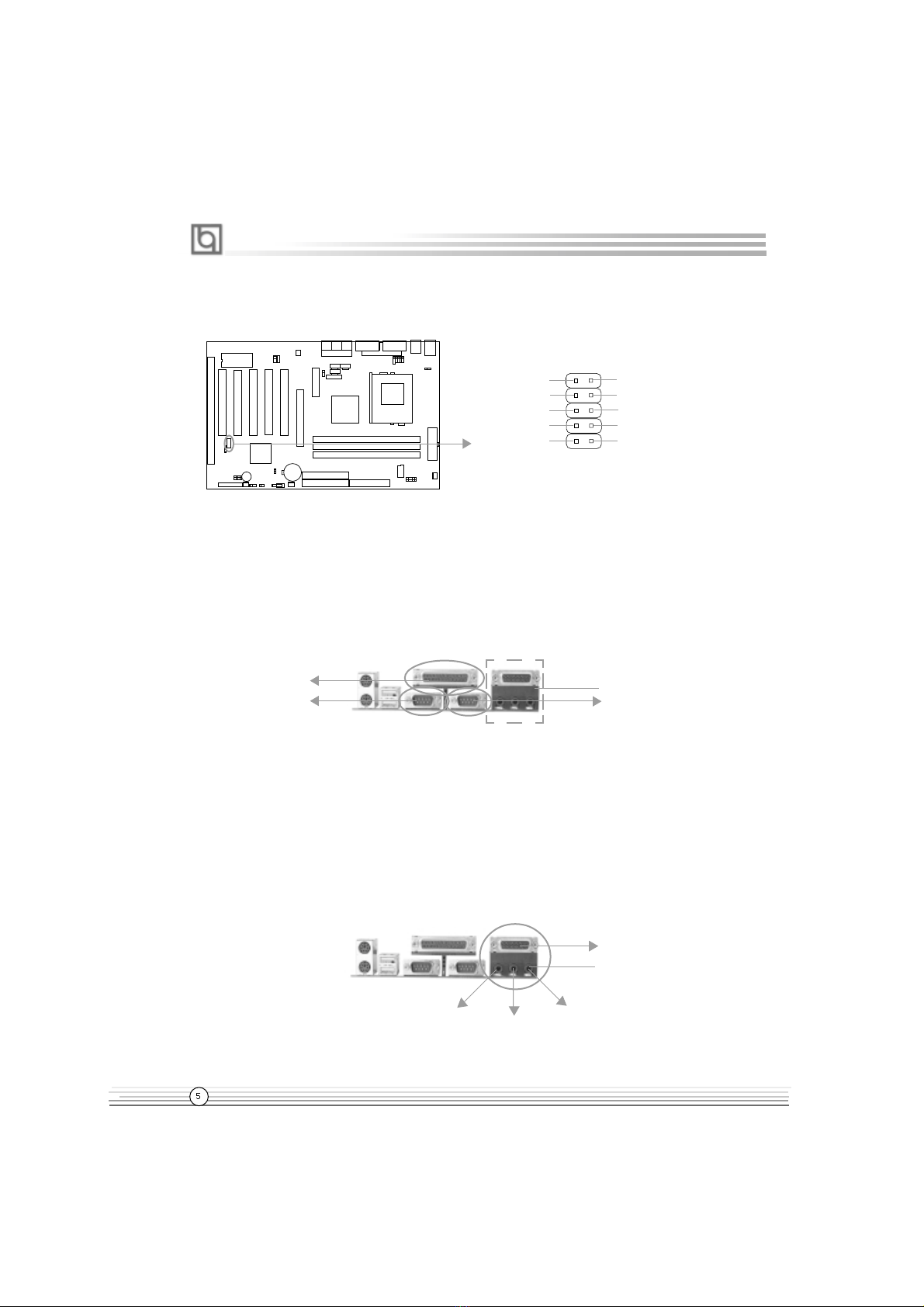

USB1 ,USB2 Connectors
Two USB ports are for connecting USB devices.
Be sure to unplug the AC power supply before adding or removing expansion
cards or other system peripherals, otherwise your motherboard and expan-
sion cards might be seriously damaged.
PS/2 Mouse Connector
PS/2 Keyboard Connector optional
USB1
USB2
optional

Manual for Advance 10T
USB3,4 Connectors
Besides USB1 and USB2 ports on the back panel,the mainboard also has a header on
board which may connect to front panel USB cable to provide additional 2 USB Ports.
Parallel Port, Serial Port Connectors (UART1, UART2)
The parallel port connector can be connected to a parallel device such as a printer. The serial
ports UART1&UART2 connectors can be connected to serial port devices such as serial port
mouses. You can enable/disable them and choose the IRQ or I/O address in INTEGRATED
PERIPHERALS from AWARD BIOS SETUP.
Line-in Jack, Microphone-in Jack, Speaker-out Jack and MIDI/
Joystick Connector(available on A10T-A)
The Line-in jack can be connected to devices such as a cassette or minidisc player for
playback or recording. The Microphone-in jack can be connected to a microphone for voice
input. The Speaker-out jack allows you to connect to speakers or headphones for audio
output from the internal amplifier.The MIDI/Joystick connector allows you to connect a game
joystick or a MIDI device.
Installation Instructions
MIDI/Joystick
Speaker out Line in Microphone in
optional
USB3,4
GND
GND
CUT
D1+
D1-
+5V
D0+
1
+5V
D0-
CUT
Parallel Port
UART1 UART2
optional

Manual for Advance 10T
ATX Power Supply Connector & Power Switch( POWER SW)
Be sure to connect the power supply plug to this connector in its proper orientation. The
power switch ( POWER SW) should be connected to a momentary switch (power button).
When powering up your system, first turn on the mechanical switch of the power supply (if
one is provided), then push once the power button. When powering off the system, you
neednt turn off the mechanical switch, just Push once* the power button.
ote: * If you change soft-off by PWRBT  from default Instant-off to Delay 4
Sec in the POWER MA AGEME T SETUP section of the BIOS, the power button
should be pressed for more than 4 seconds before the system powers down.
Hard Disk LED Connector (HD_LED)
The connector connects to the cases IDE indicator LED indicating the activity status of IDE
hard disk. The connector has an orientation. If one way doesnt work, try the other way.
Reset Switch (RESET)
The connector connects to the cases reset switch. Press the switch once, the system
resets.
Speaker Connector (SPEAKER)
The connector can be connected to the speaker on the case.
Chapter 2
ATX Power Supply Connector
POWER SW
20
1
5V
5V
-5V
GND
GND
PS-ON
-12V
3.3V
GND
12V
5VSB
5V
GND
3.3V
GND
5V
GND
PW-OK
3.3V
GND

Manual for Advance 10T
Installation Instructions
Power LED Connector (PWRLED)
When the system is in S0 status, the LED is on. When the system is in S1 status, the LED
is blink; When the system is in S3,S4, S5 status, the LED is off. The connector has an
orientation.
GREEN LED Connector (GREENLED)
When the system is in S0,S1,S4 ,S5 status, the LED is off,When the system is in S3 status,
the LED is on.
ACPI LED Connector (ACPILED)
The ACPI LED is a dual-color light with three pins. Pin1and Pin2 drive different color lights.
If Pin1 drives the orange light , then, Pin2 drives the green light, the following status will
come out. When the system is in S0 status, the LED is green on. When the system is in S1
status, the LED is green blink. When the system is in S3 status, the LED is orange on.
When the system is in S4, S5 status, the LED is off.
Hardware Green Connector (SLEEP SW)
Push once the switch connected to this header, the system enters suspend mode.
Key Lock Connector (KEYLK)(Reserved)
The connector can be connected to the keyboard lock switch on the case for locking the
keyboard.
HD _LED
SPEAKER
ACPI LED
RESET
POWER
SW
SLEEP
SW
GREEN LED KEYLK
POWER LED
HDDLED +
HDDLED -
SPKDATA
NC
GND
VCC
HD _LED
SPEAKER
GND
RESET
RESET
EMPTY
LED+
LED -
LED -
GREEN LED
KEYLOCK
GND
KEYLK
ORANGE(-)
GREEN(-)
LED+
POWER
GND
EMPTY
LED +
LED -
LED -
SLEEP
GND
EMPTY
ACPI
LED
POWER
SW
SLEEP
SW
POWER
LED

Manual for Advance 10T
Wake-Up On LAN ( WOL )
Through the Wake-Up On LAN function, a wake event occurring from the network can
wake up the system. If this function is to be used, please be sure an ATX 2.01 power supply
of which 5VSB line is capable of delivering 720mA, and a LAN adapter which supports this
function are used. Then connect this header to the relevant connector on the LAN adapter,
set Wake up on LAN/Ring as Enabled in the POWER MANAGEMENT SETUP section of the
BIOS. Save & exit, then boot the operating system once to make sure this function takes
effect.
Wake-Up On Internal Modem ( WOM )
Through the Wake-Up On Internal Modem function, the system which is in the suspend or
soft-off status can be powered on by a ring signal received from internal modem. If this
function is to be used, be sure an internal modem card which supports this function is used.
Then connect this header to the relevant connector on the modem card, set Wake up on
LAN/Ring  as Enabled in the POWER MANAGEMENT SETUP section of the BIOS. Save &
exit, then boot the operating system once to make sure this function takes effect.
Chapter 2
+5V SB
GND
Si nal for wakin up
1
WOL
+5V Standby
GND
Si nal for wakin up
WOM
1

Manual for Advance 10T
Installation Instructions
Internal Audio Connectors ( CD_IN, MODEM,AUXIN)
(available on Advance 10T-A)
CD_IN is a Sony standard CD audio connector, it can be connected to a CD-ROM drive
through a CD audio cable. The MODEM connector allows the onboard audio to interface
with a voice modem card with a similar connector. It allows connecting the mono_in (such
as a phone) or mono_out (such as a speaker) between the onboard audio and the voice
modem card. AUXIN allows you to receive audio input from sound sources such as a CD-
ROM,TV tuner,or MPEG card.
an Connectors (BAK AN,CPU AN, CHS AN)
The fan speeds of CPU AN and CHS AN can be detected and viewed in PC Health section
of the BIOS. They will be automatically turned off after the system enters suspend mode.
BAKFAN
CPUFAN
CHSFAN
FAN GND
+12V
NC
FAN GND
+12V
SENSE
FAN GND
+12V
SENSE
Phone-In (from Modem)
MODEM
GND
Mono-Out (to Modem)
CD_IN
Common
Ri ht Channel Left Channel
AUXIN
Ri ht AudioChannel
LeftAudio Channel
GND

Manual for Advance 10T
Infrared Header (IrDA)
This connector supports Infrared transmitting and receiving. If using this function, set
UART2 Mode to HPSIR or ASKIR and configure the settings in the INTEGRATED PERIPH-
ERALS section of the BIOS.
Audio/Modem Riser Slot (AMR) & AMR Sound Option(JSD)
(Jumper JSD is available on Advance 10T-A)
The AMR Interface Connector is the interface between the mainboard and the Audio/
Modem Riser card. The connector provides all necessary signals which supports several
different configurations of audio and modem in the system, such as audio and modem on
the riser, audio on the mainboard and modem on the riser, or no audio with modem on the
riser. Either AMR (Audio/Modem Riser) card or MR (Modem Riser) card can be used on this
system. To avoid conflict, the onboard audio can be disabled in BIOS when using AMR
Audio Riser card.
Chapter 2
Enable AMR Primary Sound
Disable AMR Primary Sound
JSD
Pin2-Pin3 closed
1
1JSD
Pin1-Pin2 closed
Enable Onboard Audio
Disable Onboard Audio 2
3
2
3
AMR Slot
ote: The Advance 10T mainboard supports Primary AMR card only.
VCC
CUT
IRRX
GND
IRTX
VCC
1
Infrared Header

Manual for Advance 10T
Audio Interface(Reserved)
The audio interface provides three kinds of audio output choices: the rontAudio, the
RearAudio and the ActiveAudio. Their priority level is as sequence. When the rontAudio
is available, the RearAudio and the ActiveAudio( in-case speakers ) will be cut off. When
the RearAudio is available, the ActiveAudio will be cut off. An onboard amplifier is pro-
vided for the case of earphone plugged into. When the rontAudio is absent, Pin11 and
Pin12, Pin13 and Pin14 must be short connected.
Installation Instruction
BLSPK
(Audio Interf ce)
6
10
1214
15 13579
11
13
16
Pin
No.
Symbol Pin
No.
Symbol
1 Active LINE Out(R) 2 Active LINE Out(L)
3 GND (ALO) 4 GND (ALO)
GND(+12) 6 GND(+12)
7 +12V(1A) 8 (Cut awa y )
9 MIC 10 GND ( MIC )
11 Front LINE Out( R ) 12 LINE Next( R )
13 Front LINE Out( L ) 14 LINE Next( L )
1 GND (FL O) 16 (Cut away )
FrontLineOutR
FrontLineOutL
LineNextR
LineNextL
GND
Speaker Out
Line in
Microphone in
Speaker
(Active Audio)
Earphone
(Front Audio)
2
84
Front Audio j ck

Manual for Advance 10T
Main Expansion Slots and Connectors
Slot/Port (Quantity) Description
PCI( 5 ) PCI slots
ISA( 1 ) ISA slot
AMR( 1 ) AMR slot
AGP( 1 ) AGP slot
IDE( 2 ) IDE ports
LOPPY( 1 ) loppy Drive port
DIMM( 3 ) DIMM sockets
USB( 4 ) USB connectors
UART( 2 ) UART connectors
PARALLEL( 1 ) Parallel connector
IrDA( 1 ) IrDA connector
MIDI/Joystick( 1 ) MIDI/Joystick connector
Chassis Security Switch (CHSSEC)
The connector connects to the chassis security switch on the case. The system can
detect the chassis intrusion through the status of this connector. If the chassis has been
opened , the system will record the status and indicate the chassis has been opened. You
can receive this information from QDI ManageEasy software.
Chapter 2
VCC3
Indicate si nal
CHSSEC

Manual for Advance 10T
Jumper Settings
Jumpers are located on the mainboard, they represent, clear CMOS jumper JCC, enable
BIOS Protection function jumper JAV etc. Pin 1 for all jumpers are located on the side with a
thick white line ( Pin1→ ), refer to the mainboards silkscreen. Jumpers with three
pins will be shown as to represent pin1 & pin2 (1-2)connected and
to represent pin2 & pin3 (2-3)connected.
Overclocking Jumper Setting (JCLK1, JCLK2)
The jumpers JCLK1 and JCLK2 provide users with CPU overclocking feature. If they are set
as Auto, the system will detect the CPU SB (front side bus) automatically.
or more SB frequency selection, you can check it in SpeedEasy CPU Setupsection of
BIOS and set the proper CPU SB speed that you need. You can also adjust the CPU
frequency by running StepEasy(optional).
Whether or not your system can be overclocked depends on your processors capability. We
do not guarantee the overclocking system to be stable.
Warning: Be sure your selection is right. CPU over speed will be dangerous! We
will not be responsible for any damages caused.
Installation Instructions
JCLK1
JCLK2
1
1
32
23
CPU FSB
1-2: pin1 & pin2 closed
2-3: pin2 & pin3 closed
JCLK1
2-3
66MHz
100MHz
133MHz
1-2
1-2
JCLK2
2-3
2-3
1-2
