Qtx PB-COB User manual

PB-COB
Zoom LED PAR Bar with
Wireless Foot Control
Item ref: 151.557UK
User Manual
Thank you for choosing this QTX PB-COB PAR bar. A PAR bar kit fantastic for mobile DJs and
performers who need their lighting to be quick to set up and easily transportable. This PAR bar
boasts 4 high power Cans, each fitted with 1 x 30W 4-in-1 COB LEDs. Smooth colour blending
control can be achieved with the included wireless foot controller or via DMX. The main unit
also has 4 built in white LEDs to add a flash effect, adding extra dynamics to the light display.
In the box:
Your PB-COB should arrive to you in a single carton in good condition.
Carton 1:
PAR bar with 4 LED PAR Cans
Wireless foot controller
Padded carry case
2 x IEC mains lead (UK and EU)
Tripod stand
Mounting/free standing brackets
Warning:
To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments.
In the event of a spillage, disconnect the mains and allow the unit to dry out naturally.
Qualified personnel should then check the unit before continuing use.
Always check the correct supply voltage and the condition of the IEC lead before
connecting to a power outlet.
Always ensure any DMX leads used are in good condition with no shorted connections or
damaged plugs.
Please read through this manual thoroughly before use, any damage cause by
misuse of product will not be covered by warranty.
Please do not open cover, contains high voltage. This
product is not serviceable or repairable by the end user.
Please refer to qualified personnel for service and repair.
er or professional when unit malfunction.

151.557UK User Manual
Setup:
PB-COB is ready to use straight from the box, no complicated set up required. Simply erect
the tripod stand supplied and slot in the PAR bar unit on top of stand via the 35mm top hat.
Pan and tilt for each PARcan can be adjusted individually to illuminate the required area.
The PB-COB is also suitable for free standing or ceiling mounting, simply attach the supplied
brackets to both ends of the PAR bar as free standing feet or for mounting to the ceiling.
Product Layout:
1. DMX signal out (XLR male socket)
2. DMX signal in (XLR female plug)
3. IEC power out
4. IEC power in
5. Built in microphone
6. Microphone sensitivity
7. 7 Segment LCD display
8. Manual control button
9. White flash LED
10. 10W 4in1 COB PAR cans
11. Earth connection screw Do NOT
remove
12. Wireless antenna

151.557UK User Manual

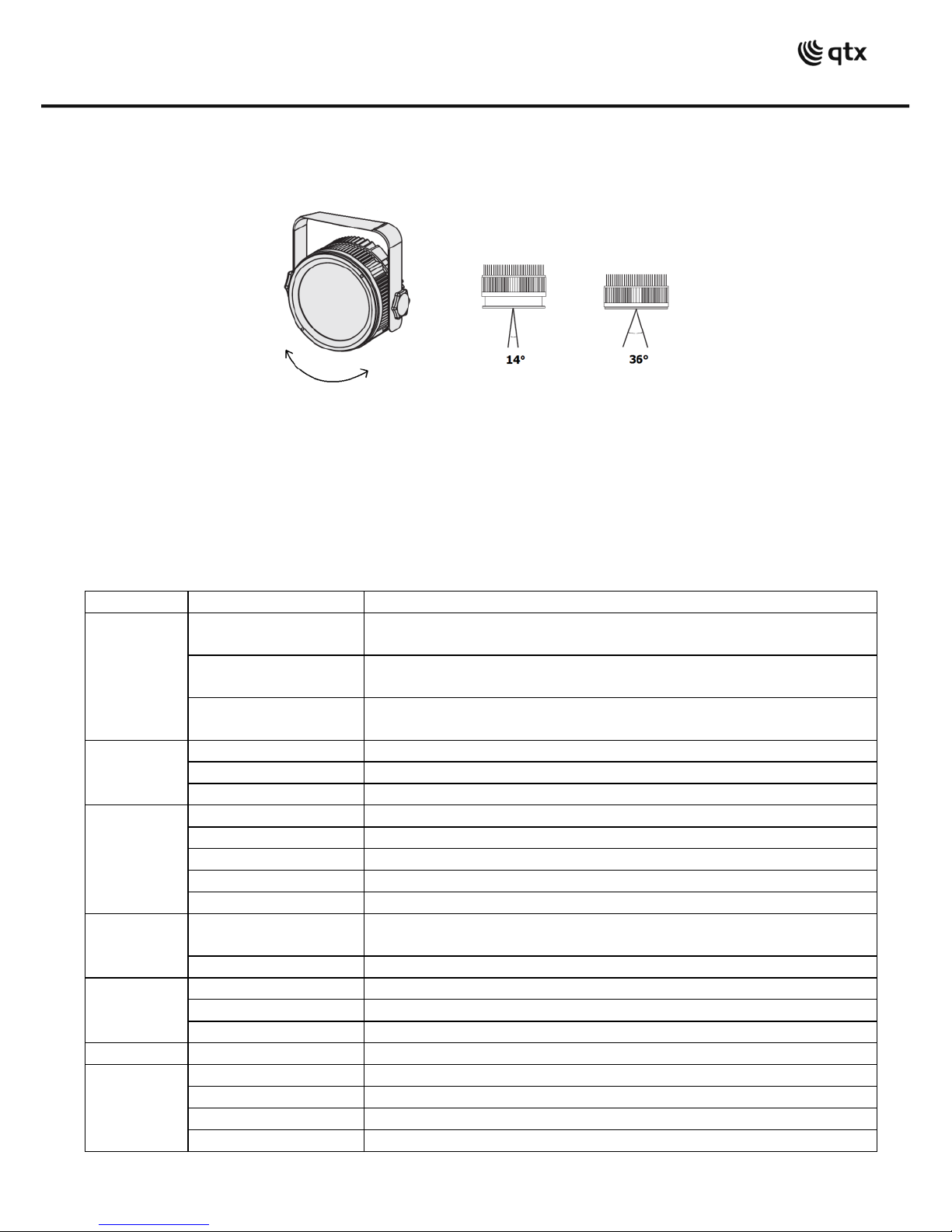

Zoom-able cans:
One of the special features on PB-COB is that each individual can has an adjustable focal lens
to allow light output to focus for a spot effect or dilate as wash effect to suit different
applications.
Each can is capable of projecting a beam angle from 14° to 36°. To adjust, turn the front focal
lens anti-clockwise for a focused spot effect or turn clockwise for a dilated wash effect.
Manual control menu:
Press the “menu” button to enter the setting menu.
Press “up” and “down” to navigate through various setting options.
Press “enter” to enter the desired setting.
Choose set value by “up” and “down” buttons and confirm setting by pressing “enter”.
Menu
Sub menu
Function

()
PAR light only auto program 1-17,  speed
adjustment, slow to fast
()
Flash light only auto program 1-10,  speed
adjustment, slow to fast
()
PAR light and flash auto program 1-3,  speed
adjustment, slow to fast

()
PAR light only sound activate program 1-12
()
Flash light only sound activate program 1-10
()
PAR light and flash sound activate program 1-3


Manual colour mixing, red value 0% to 100% brightness

Manual colour mixing, green value 0% to 100% brightness

Manual colour mixing, blue value 0% to 100% brightness

Manual colour mixing, white value 0% to 100% brightness

Strobe setting for manual colour mixing mode, slow to fast


Synchronised auto mode,  speed adjustment, slow
to fast

Synchronised sound activate mode


DMX 3 channel mode, start address setting

DMX 6 channel mode, start address setting

DMX 28 channel mode, start address setting


Slave mode, ID value


Enable as master for synchronised set up 

Enable wireless function for foot control

Unit self function test

Reset to initial factory setting

151.557UK User Manual
Operation:
The PB-COB can operate in stand-alone, master, slave or DMX modes.
Stand-alone:
For stand-alone display show, Auto, sound-activated or manual colour mode may be selected.
Simply select  (auto mode) or  (sound activate mode) from the menu and select if you
want PAR cans only (XX or XX), Flash only (XX or XX) or PAR cans and flash (XX or
XX). For auto modes, speed (to ) can be set after the preferred mode is confirmed.
For manual colour modes, select  and enter each RGBW colour mixing value and strobe
speed, if required.
Master/Slave:
More than one units of PB-COB can be operated together via a DMX link. To set a unit as
master, select  from the menu follow by , select  to enable unit as master.
In addition to mirroring the master unit effect, all slave units can also perform a sequential
chase. In order to perform the sequential chase correctly, all slave units need to have their ID
value set accordingly. The master unit will recognize slave units in order of ID value, for
example a setup of four slave units with address value of 1,2,3,4 with be the same as
1,12,24,56.
Synchronise mode:
Two units of PB-COB can be synchronised with each other via a DMX connection. When under
synchronised mode, both units will share the same speed, pattern or sound activation but
display a different light show. To enter synchronised mode, simply select  from the menu
and choose from  for synchronized auto mode or  for synchronized sound-activated
mode.
DMX mode:
The PB-COB can be controlled by DMX signal, simply connect the DMX signal source to the
DMX in at the rear of the unit via a balanced XLR lead. Extra fixtures can be controlled by the
same DMX signal by looping through the DMX out on the PB-COB. To enter DMX mode, select
from the menu and choose which channel mode you wish to use (3, 6 or 28 channel
mode). Confirm the correct DMX start address. A flashing address value indicates that the unit
has correctly entered DMX mode and is awaiting a DMX signal. The DMX address value will
remain lit as soon as DMX signal is detected from the DMX connection.

151.557UK User Manual
Foot Controller:
PB-COB uses wireless technology to allow wire-free control from the foot controller.
This greatly increases the flexibility for light set up and controlling, great for mobile gigs and
performances.
Wireless foot control is powered by a single A23 cell. The battery compartment is located at
the bottom of the foot controller (a Philips tip screwdriver is required to open the
compartment).
To enable the wireless function on the PB-COB unit, select > from the menu and
select yes to confirm. Make sure both antennas are pointed upward from the foot controller
and from the PB-COB unit. Now the PB-COB is ready to be controlled by the foot controller.
AUTO –Press to cycle through various preset auto programs, cycling through  > >
 > > >….etc
MUSIC –Press to cycle through various preset sound to light programs, cycling through 
> >  > > >….etc
COLOUR –Press to cycle through 15 preset static colours
BLACKOUT –press to enter and exit blackout mode

151.557UK User Manual
DMX channel value reference:
3 channel mode (channel 2/3 functions is depend on the value of channel 1):
Channel
DMX Value
Function
Channel 1
000-009
Black out
010-050
PAR only auto show
051-090
Flash only auto show
091-130
PAR and flash auto show
131-170
PAR only auto show
171-210
Flash only auto show
211-255
PAR and flash auto show
Channel 2 (channel 1 at 010-050)
000-014
PAR only auto program 1
015-029
PAR only auto program 2
030-044
PAR only auto program 3
045-059
PAR only auto program 4
060-074
PAR only auto program 5
075-089
PAR only auto program 6
090-104
PAR only auto program 7
105-119
PAR only auto program 8
120-134
PAR only auto program 9
135-149
PAR only auto program 10
150-164
PAR only auto program 11
165-179
PAR only auto program 12
180-194
PAR only auto program 13
195-209
PAR only auto program 14
210-224
PAR only auto program 15
225-239
PAR only auto program 16
240-255
PAR only auto program 17
Channel 2 (channel 1 at 051-090)
000-024
Flash only auto program 1
025-049
Flash only auto program 2
050-074
Flash only auto program 3
075-099
Flash only auto program 4
100-124
Flash only auto program 5
125-149
Flash only auto program 6
150-174
Flash only auto program 7
175-199
Flash only auto program 8
200-224
Flash only auto program 9
225-255
Flash only auto program 10
Channel 2 (channel 1 at 091-130)
000-099
PAR and flash auto program 1
100-199
PAR and flash auto program 2
200-255
PAR and flash auto program 3

151.557UK User Manual
Channel 2 (channel 1 at 131-170)
000-014
PAR only auto program 1
015-029
PAR only auto program 2
030-044
PAR only auto program 3
045-059
PAR only auto program 4
060-074
PAR only auto program 5
075-089
PAR only auto program 6
090-104
PAR only auto program 7
105-119
PAR only auto program 8
120-134
PAR only auto program 9
135-149
PAR only auto program 10
150-164
PAR only auto program 11
165-179
PAR only auto program 12
180-194
PAR only auto program 13
195-209
PAR only auto program 14
210-224
PAR only auto program 15
225-239
PAR only auto program 16
240-255
PAR only auto program 17
Channel 2 (channel 1 at 171-210)
000-024
Flash only auto program 1
025-049
Flash only auto program 2
050-074
Flash only auto program 3
075-099
Flash only auto program 4
100-124
Flash only auto program 5
125-149
Flash only auto program 6
150-174
Flash only auto program 7
175-199
Flash only auto program 8
200-224
Flash only auto program 9
225-255
Flash only auto program 10
Channel 2 (channel 1 at 211-255)
000-099
PAR and flash auto program 1
100-199
PAR and flash auto program 2
200-255
PAR and flash auto program 3
Channel 3 (Channel 1 at 010-130)
000-255
Auto program speed, slow to fast
6 channel mode:
Channel
DMX Value
Function
Channel 1
000-255
PAR Red dimmer 0-100%
Channel 2
000-255
PAR Green dimmer 0-100%
Channel 3
000-255
PAR Blue dimmer 0-100%
Channel 4
000-255
PAR White dimmer 0-100%
Channel 5
000-191
Flash dimmer 0-100%
192-200
Sound to light flash
201-249
Continuous flash
250-255
All on
Channel 6
000-255
Flash speed 0-100%

151.557UK User Manual
28 channel mode:
Channel
DMX Value
Function
Channel 1
000-255
PAR 1 Red dimmer 0-100%
Channel 2
000-255
PAR 1 Green dimmer 0-100%
Channel 3
000-255
PAR 1 Blue dimmer 0-100%
Channel 4
000-255
PAR 1 White dimmer 0-100%
Channel 5
000-255
PAR 1 Master dimmer 0-100%
Channel 6
000-255
PAR 1 Strobe speed 0-100%
Channel 7
000-255
PAR 2 Red dimmer 0-100%
Channel 8
000-255
PAR 2 Green dimmer 0-100%
Channel 9
000-255
PAR 2 Blue dimmer 0-100%
Channel 10
000-255
PAR 2 White dimmer 0-100%
Channel 11
000-255
PAR 2 Master dimmer 0-100%
Channel 12
000-255
PAR 2 Strobe speed 0-100%
Channel 13
000-255
PAR 3 Red dimmer 0-100%
Channel 14
000-255
PAR 3 Green dimmer 0-100%
Channel 15
000-255
PAR 3 Blue dimmer 0-100%
Channel 16
000-255
PAR 3 White dimmer 0-100%
Channel 17
000-255
PAR 3 Master dimmer 0-100%
Channel 18
000-255
PAR 3 Strobe speed 0-100%
Channel 19
000-255
PAR 4 Red dimmer 0-100%
Channel 20
000-255
PAR 4 Green dimmer 0-100%
Channel 21
000-255
PAR 4 Blue dimmer 0-100%
Channel 22
000-255
PAR 4 White dimmer 0-100%
Channel 23
000-255
PAR 4 Master dimmer 0-100%
Channel 24
000-255
PAR 4 Strobe speed 0-100%
Channel 25
000-255
Flash 1 speed 0-100%
Channel 26
000-255
Flash 2 speed 0-100%
Channel 27
000-255
Flash 3 speed 0-100%
Channel 28
000-255
Flash 4 speed 0-100%

151.557UK User Manual
Specifications
Power
110-240Vac, 50/60Hz (IEC)
Power consumption
130W
Fuse rating
T3.15A
LED type
4 x 30W RGBW COB LED and 4 x
1W white LED
Beam angle
14-36°
DMX channels
3, 6 or 28
Height adjustment
1.5 - 2.5m
Dimensions : PAR bar
1023 x 215 x 71mm
Weight
11.2kg
LED safety standard
BSEN62471:2008
Troubleshooting
No power (mains)
Check mains voltage is correct and outlet is switched on
Check IEC lead and fuse (if fuse continually blows, refer to your
dealer)
No light output
Check control panel mode settings (standby, slave, sensitivity, DMX)
Check DMX settings from controller (dimmer levels, blackout etc.)
Check foot control ensure unit not in black out mode
No strobe output
Check strobe settings on control panel or from DMX controller
Check Mic sensitivity is not set to minimum
Unresponsive to DMX
Check DMX connection and leads
Check that unit is in DMX mode and ensure DMX address remains lit
to confirm receiving DMX signal
Check DMX controller is not set to black out
Check DMX controller is on correct fixture/page
Check master dimmer value
Check correct DMX address is set
Overheating/
cutting out
Check that the unit is not too close to a heat source
Foot control not
working
Check wireless function is enabled on the light unit
Check control has battery inserted and battery is not flat
Check antennas on both light unit and control are lifted
Check the unit and control is not located next to wireless router as
interference may occur

151.557UK User Manual
This product is classed as Electrical or Electronic equipment and should not be disposed
with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2015. AVSL Group Ltd.
