Quick DYLAN DH User manual

REV 001A
High
Quality
Nautical
Equipment
Manuale d'uso SALPA ANCORA VERTICALI
User's Manual VERTICAL WINDLASSES
DYLAN DH
DH 1512
DH 1512 D
DH 1712
DH 1712 D
DH 1724
DH 1724 D
DH 2024
DH 2024 D
IT
GB


3
DYLAN DH 1500/1700/2000W - REV001A
Pag. 4 Caratteristiche tecniche
Pag. 5 Installazione
Pag. 6 Schema di collegamento
Pag. 7 Uso - Avvertenze importanti
Pag. 8/9 Schema di collegamento trifase
Pag. 10/11 Salpa ancora idraulico
Pag. 12/13 Manutenzione
Pag. 14/15 Set
INDICE
INDEX
IT
GB
Pag. 16 Technical data
Pag. 17 Installation
Pag. 18 Connection diagram
Pag. 19 Usage - Warning
Pag. 20/21 three-phase connection diagram
Pag. 22/23 Hydraulic windlass
Pag. 24/25 Maintenance
Pag. 26/27 Set

4
CARATTERISTICHE TECNICHE
IT
DYLAN DH 1500/1700/2000W - REV007A
COME SI LEGGE IL MODELLO DEL SALPA ANCORA:
Quick®si riserva il diritto di apportare modifiche alle caratteristiche tecniche dell'apparecchio e al contenuto di questo manuale senza alcun preavviso.
In caso di discordanze o eventuali errori tra il testo tradotto e quello originario in italiano, fare riferimento al testo italiano o inglese.
F
a
a b c d a b c d
a
a
a
a
a
a
a
1° ESEMPIO:
DYLAN DH1512D
2° ESEMPIO:
DYLAN DH2024
DYLAN DH 15 12 D DYLAN DH 20 24 -
Nome della serie:
[ DYLAN DH ] =
base ovale in acciaio inox AISI 316 e
alluminio anodizzato in ossido duro
Potenza motore:
[ 15 ]
= 1500 W
[ 17 ]
= 1700 W
[ 20 ]
= 2000 W
[ 30 ]
= 3000 W
Tensione alimentazione motore:
[ 12 ]
= 12 V
[ 24 ]
= 24 V
[ TR ]
= 220 V / 380 V
Campana:
[ D ] =
con campana
[ - ]
= senza campana
(1) Dopo un primo periodo d’uso.
(2) Misure effettuate con barbotin per catena da 12/13 mm.
(3) Valore minimo consigliato per una lunghezza totale L<20m (Vedi pag. 28). Calcolare la sezione in funzione della lunghezza del collegamento.
(4) Con interruttore specifico per correnti continue (DC) e ritardato (magneto-termico o magneto-idraulico).
(5) Su richiesta possono essere forniti alberi e prigionieri per spessori di coperta maggiori.
a b c d
(*) Per i codici dei barbotin fare riferimento all’esploso a pag 11.
(**) I valori in tabella si riferiscono ad una cima in poliestere a 3 legnoli con la giunzione cima/catena secondo il sistema “Quick
®
”.
BARBOTIN (*) 10 mm - 3/8” 12/13 mm
Catena supportata 10 mm 10 mm 3/8” 3/8” 13 mm 12 mm 7/16”
DIN 766 ISO G4 BBB DIN 766 ISO G4
Cima supportata (**) 5/8” - 3/4” 3/4”
MODELLO DYLAN DH – / D
POTENZA MOTORE 1500W 1700W 2000W
Tensione motore 12V 12V 24V 24V
Tiro istantaneo massimo 1100 Kg (2425,1 lb) 1150 Kg (2535,3 lb) 1200 Kg (2645,5 lb) 1600 Kg (3527,4 lb)
Carico di lavoro massimo 400 Kg (881,8 lb) 470 Kg (1036,2 lb) 570 Kg (1256,6 lb) 750 kg (1653,5 lb)
Carico di lavoro 135 Kg (297,6 lb) 155 kg (341,7 lb) 190 Kg (418,9 lb) 250 Kg (551,1 lb)
Assorbimento corrente al carico di lavoro (1) 150 A 170 A 95 A 105 A
Velocità massima di recupero (2) m/min 35,2 (115,5 ft/min) 33,5 (109,9 ft/min) 39,0 (128,0 ft/min) 35,0 (114,8 ft/min)
Velocità di recupero al carico di lavoro (2) m/min 19,0 (62,3 ft/min) 16,2 (53,1 ft/min) 20,8 (68,2 ft/min) 22,3 (73,2 ft/min)
Sezione minima cavi motore (3) 50 mm2 (AWG0) 50 mm2 (AWG0) 25 mm2 (AWG3) 35 mm2 (AWG2)
Interruttore di protezione (4) 100 A 100 A 60 A 80 A
Spessore coperta (5) 25 ÷ 50 mm (31/32” ÷ 1”
31/32) 30 ÷ 70 mm (1” 3/16” ÷ 2” 3/4)
Peso - modello senza campana 25,8 Kg (56,9 lb) 26,2 Kg (57,8 lb) 26,4 kg (58,2 lb) 31,4 Kg (69,2 lb)
Peso - modello con campana 27,8 Kg (61,3 lb) 28,2 Kg (62,2 lb) 28,8 kg (63,5 lb) 33,4 Kg (73,6 lb)
MODELLO DYLAN DH - / D
POTENZA MOTORE 3000W TR
Tensione motore
220/380 V
Tiro istantaneo massimo 2800 kg 6172,9 lb
Carico di lavoro massimo 930 kg 1984,2 lb
Velocità massima di recupero (2) 15 m/min 49,2 ft/min
Spessore coperta (5) 30 ÷ 70 mm 1” 3/16 ÷ 2” 3/4
Peso - modello senza campana 38,0 kg 83,8 lb
Peso - modello con campana 40,0 Kg 88,2 lb
Dimensioni dei modelli a pagina 29

5

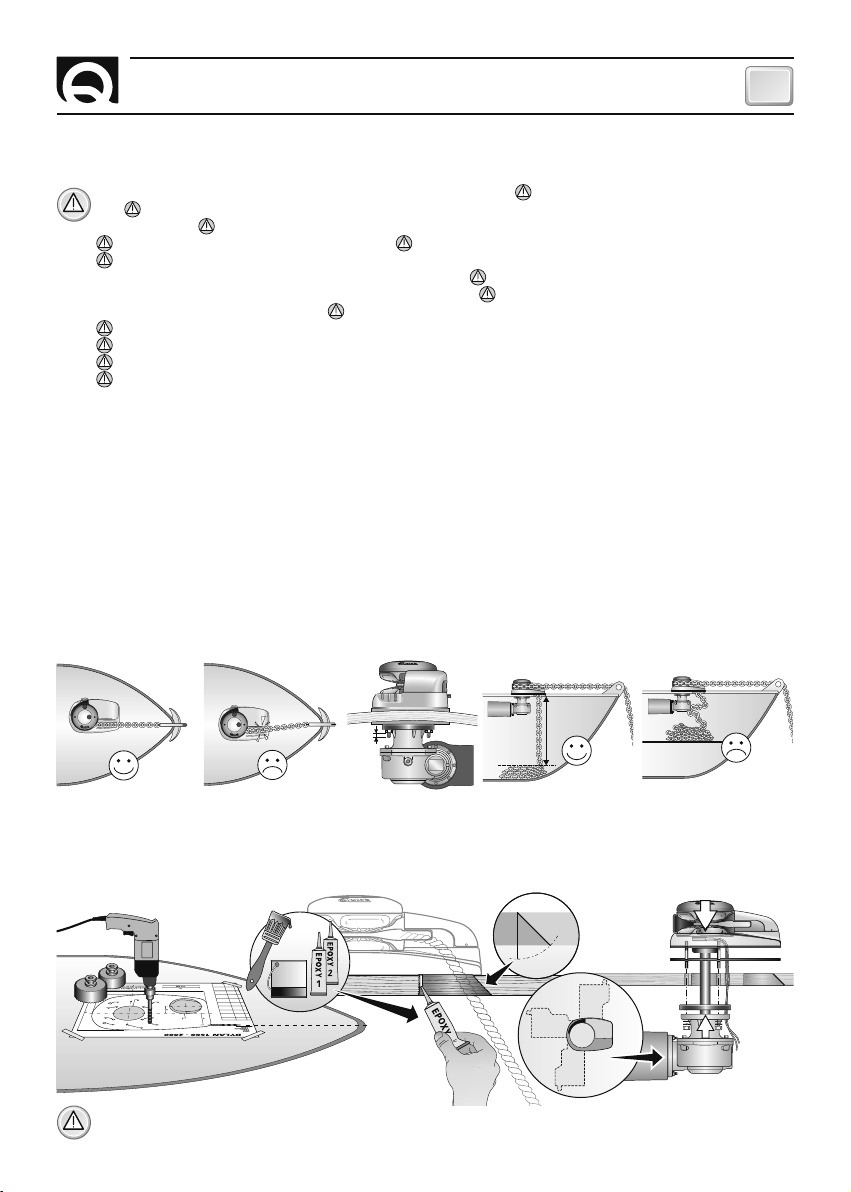

INSTALLAZIONE
IT
DYLAN DH 1500/1700/2000W - REV001A
ATTENZIONE:
prima di effettuare il collegamento accertarsi che non sia presente l'alimentazione su cavi.
PRIMA DI UTILIZZARE IL SALPA ANCORA LEGGERE ATTENTAMENTE IL PRESENTE MANUALE D'USO.
IN CASO DI DUBBI CONSULTARE IL RIVENDITORE QUICK
®
.
ATTENZIONE:
i salpa ancora Quick
®
sono stati progettati e realizzati per salpare l'ancora. Non utilizzare questi apparecchi
per altri tipi di operazioni. Quick
®
non si assume alcuna responsabilità per i danni diretti o indiretti causati da un uso impro-
prio dell'apparecchio. Il salpa ancora non è progettato per sostenere carichi generati in particolari condizioni atmosferiche
(burrasca). Disattivare sempre il salpa ancora quando non è in uso. Accertarsi che non vi siano bagnanti nelle vicinanze
prima di calare l’ancora. La giunzione tra la cima e la catena deve avere dimensioni ridotte per poter scorrere agevolmente
dentro la sagoma del barbotin. Per qualsiasi problema o richiesta contattare l’assistenza Quick
®
. Per maggiore sicurezza, nel
caso in cui uno si danneggi suggeriamo di installare almeno due comandi per l’azionamento del salpa ancora.
Consigliamo l’uso dell’interruttore magneto-idraulico Quick
®
come sicurezza per il motore. Bloccare la catena con un
fermo prima di partire per la navigazione. La scatola teleruttori o teleinvertitori deve essere installata in un luogo protetto da
possibili entrate d’acqua. Dopo aver completato l’ancoraggio, fissare la catena o cima a punti fissi quali chian stopper o bitta.
Per prevenire rilasci non voluti l’ancora deve essere fissata, il salpa ancora non deve essere usato come unica presa di forza.
Isolare il salpa ancora dall’impianto elettrico durante la navigazione (disinserire l’interruttore di protezione del motore) e bloc-
care la catena ad un punto fisso dell’imbarcazione.
LA CONFEZIONE CONTIENE:
salpa ancora (top + motoriduttore) - cassetta teleruttori - guarnizione della base - dima di foratura - leva
- viterie (per l'assemblaggio) - manuale di istruzioni - condizioni di garanzia.
ATTREZZI NECESSARI PER L'INSTALLAZIONE: trapano con punte: Ø 5 mm (3/16”), Ø 9 mm (23/64") e Ø 11 mm (7/16"); a tazza Ø 80 mm
(3" 9/64); chiave esagonale: 13 mm.
ACCESSORI QUICK®CONSIGLIATI:
deviatore da pannello (mod. 800) - Pulsantiera stagna (mod. HRC 1002) - Pulsante a piede (mod.
900) - Interruttore magneto-idraulico - Conta catena per l'ancoraggio (mod. CHC 1102M e CHC 1202M) - Sistema di comando via radio
RRC (mod. R02, PO2, H02).
REQUISITI PER L'INSTALLAZIONE
:il salpa ancora va posizionato allineando il barbotin con il puntale di prua. Verificare che le
superfici superiore e inferiore della coperta siano più parallele possibili; se ciò non dovesse accadere compensare opportunamente la
differenza (la mancanza di parallelismo potrebbe causare perdite di potenza del motore). Lo spessore di coperta dovrà essere compreso
fra i valori indicati in tabella. Se si avessero spessori differenti è necessario consultare il rivenditore Quick
®
. Non devono esistere ostacoli
sotto coperta per il passaggio di cavi, cima e catena, la poca profondità del gavone potrebbe provocare inceppamenti.
P
A
I
N
T
PROCEDURA DI MONTAGGIO:
stabilita la posizione ideale praticare i fori utilizzando la dima di foratura fornita a corredo. Rimuo-
vere il materiale in eccesso dal foro di passaggio della catena/cima, rifinirlo e lisciarlo con un prodotto specifico (vernice marittima, gel o
resina epossidica) assicurando il libero passaggio della catena/cima. Posizionare la parte superiore, inserendo la guarnizione fra la coper-
ta e la base e collegare a questa la parte inferiore, infilando l'albero nel riduttore. Fissare il salpa ancora avvitando i dadi sui prigionieri di
bloccaggio. Collegare i cavi di alimentazione provenienti dal salpa ancora al teleruttore.
40 cm (16”)
Max
5 mm
(3/16”)
45°
90°
90°
90°

6
IT
DYLAN DH 1500/1700/2000W - REV007A
-
+

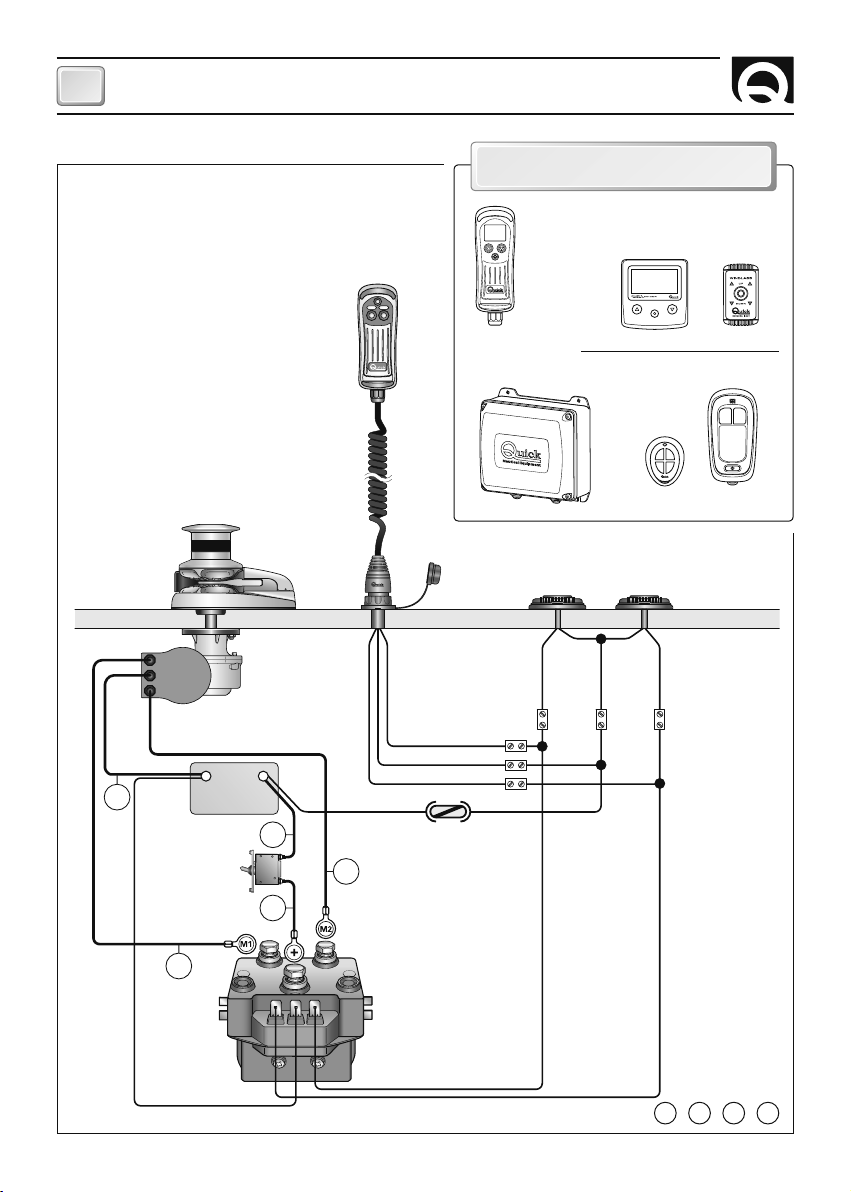

SISTEMA BASE
SCHEMA DI COLLEGAMENTO
GENERALE PAG. 44
PULSANTIERA
MULTIUSO
MOD. HRC 1002
SALPA ANCORA
MOTORE
BATTERIA
INTERRUTTORE
MAGNETO
IDRAULICO
(vedi tabella pag.4)
CASSETTA
TELERUTTORI
MOD. T6315-12 (12V)
MOD. T6315-24 (24V)
C
A2
PULSANTI A PIEDE
MOD. 900U E 900D
NERO
MARRONE
BLU
MARRONE
NERO
BLU
A1
FUSIBILE
4A (12V)
2A (24V)
L = L1 + L2 + L3 + L4
L4
L2
L3
L1
L3
SCHEMA DI COLLEGAMENTO
CONTACATENA
DA PANNELLO
COMANDO
DA PLANCIA
PULSANTIERA
CONTACATENA
TASCABILE - PULSANTIERA
RICEVITORE
ACCESSORI QUICK
®
PER L'AZIONAMENTO
DEL SALPA ANCORA
TRASMETTITORI
RADIOCOMANDI

7
IT
DYLAN DH 1500/1700/2000W - REV001A
ATTENZIONE:
Prima di salpare l'ancora sbloccare il bar-
botin. Accertarsi che il comando (32/33), che attiva il blocco
sul barbotin, sia disattivato.
1) Sbloccare la sicurezza blocco barbotin (33).
2) Scorrere il comando blocco barbotin (32) verso poppa.
3) Inserimento automatico del blocco barbotin (31).
ATTENZIONE: non avvicinare parti del corpo o oggetti alla zona in cui scorrono catena, cima e barbotin. Accertarsi che non sia
presente l'alimentazione al motore elettrico quando si opera manualmente sul salpa ancora (anche quando si utilizza la leva per al-
lentare la frizione); infatti persone dotate di comando a distanza del salpa ancora (pulsantiera remota o radiocomando) potrebbero
accidentalmente attivarlo.
ATTENZIONE: Bloccare la catena con un fermo prima di partire per la navigazione.
ATTENZIONE: Non attivare elettricamente il salpa ancora con la leva inserita nella campana o nel coperchio del barbotin.
ATTENZIONE: Quick
®
consiglia di utilizzare un interruttore specifico per correnti continue (DC) e ritardato (magneto termico o
magneto idraulico) per proteggere la linea del motore da surriscaldamenti o corto circuiti. L’interruttore può essere utilizzato per
isolare il circuito di comando del salpa ancora evitando così azionamenti accidentali.
USO DELLA FRIZIONE
Il barbotin è reso solidale all'albero principale (19, 20, 21 o 22) dalla frizione (8 e 10). La frizione si apre (stacco)
utilizzando la leva (1) che inserita nella bussola della campana (7) o del coperchio barbotin (2), dovrà ruotare in senso antiorario. Ruotan-
do in senso orario si provocherà la chiusura (attacco) della frizione.
PER SALPARE
Accendere il motore dell'imbarcazione. Assicurarsi che la frizione sia serrata ed estrarre la leva. Premere il pulsante
UP del comando a vostra disposizione. Se il salpa ancora si arresta senza che l'interruttore magneto-idraulico (o magnetotermico) sia
scattato, attendere qualche secondo e riprovare (evitare una pressione continuata del pulsante). Se l'interruttore magneto-idraulico (o
magnetotermico) è scattato, riattivare l'interruttore e attendere qualche minuto prima di riprendere a salpare. Se, dopo ripetuti tentativi,
il salpa ancora continua a bloccarsi consigliamo di manovrare l'imbarcazione per disincagliare l'ancora. Controllare la salita degli ultimi
metri di catena per evitare danni alla prua.
PER CALARE
La calata dell'ancora si può effettuare tramite comandi elettrici oppure manualmente. Per effettuare l'operazione ma-
nualmente occorre aprire la frizione lasciando libero il barbotin di girare sul proprio asse e trascinare la catena o la cima in acqua. Per
frenare la caduta dell'ancora bisogna ruotare la leva in senso orario. Per calare l'ancora elettricamente occorre premere il pulsante
DOWN del comando a vostra disposizione. In questo modo la calata è perfettamente controllabile e lo svolgimento della catena o della
cima è regolare. Per evitare sollecitazioni sul salpa ancora, una volta ancorati, bloccare la catena con un fermo oppure fissarla ad un
punto saldo con una cima.
RECUPERO MANUALE (versione senza campana)
Interrompere l'alimentazione elettrica del salpa ancora. Agire sul comando
(32/33) per attivare il blocco (31) sul barbotin (9); aprire la frizione (almeno due giri della bussola in senso antiorario), inserire la leva (1) nel-
l'apposita sede del coperchio barbotin (4) e recuperare manualmente la catena facendo ruotare la leva in senso orario. Terminata la proce-
dura di recupero manuale, rimuovere la leva dalla sua sede e inserirla nella bussola (2) per serrare la frizione. Estrarre la leva (1) dal co-
perchio barbotin (4). Sbloccare il barbotin (9) agendo sulla leva di comando (32/33). Ripristinare l'alimentazione elettrica del salpa ancora.
RECUPERO MANUALE (versione con campana)
Interrompere l'alimentazione elettrica del salpa ancora. Agire sul comando
(32/33) per attivare il blocco (31) sul barbotin (9). Con la leva (1) svitare completamente la bussola (7), estrarre la campana (6) e montare
il recupero manuale (45) sul barbotin con le apposite viti (5). Inserire la leva (1) nell'apposita sede del recupero (45) e recuperare manual-
mente la catena facendo ruotare la leva in senso orario. Terminata la procedura di recupero manuale, rimuovere la leva dalla sua sede,
reinserire la campana e avvitare la bussola (7) per serrare la frizione. Estrarre la leva (1) dalla bussola (7). Sbloccare il barbotin (9)
agendo sulla leva di comando (32/33). Ripristinare l'alimentazione elettrica del salpa ancora.
USO DELLA CAMPANA
ATTENZIONE: Prima di eseguire operazioni di tonneggio, accertarsi che l'ancora e relativa cima o catena siano fissate saldamente
ad una bitta o ad altro punto resistente dell'imbarcazione.
Per l'uso indipendente della campana (6), agire sul comando (32/33) per attivare il blocco (31) sul barbotin (9). Con la leva (1) aprire la
frizione (almeno due giri della bussola in senso antiorario). Rimuovere la leva dalla bussola (7), avvolgere la cima sulla campana in senso
antiorario (almeno 3 giri). Attivare il comando DOWN del salpa ancora mantenendo in tensione la cima durante il recupero. Variando
questa tensione in fase di recupero è possibile modificare la velocità di avvolgimento della cima.
ATTENZIONE: durante il recupero, mantenere un'adeguata distanza di sicurezza tra mani e campana salpa ancora.
Terminata la procedura di recupero serrare la frizione stringendo la bussola del barbotin in senso orario e assicurare la cima ad
una bitta o ad altro punto resistente dell'imbarcazione.
BLOCCO DISINSERITO BLOCCO INSERITO
USO - AVVERTENZE IMPORTANTI
1
2
3
33
32
31

8
IT
DYLAN DH 1500/1700/2000W - REV007A
24V KM1
W2
U1
R
S
T
L
1 XP
PE XP
R
V1 W1
U1
V1
W1
XP XP XP
U2 V2
U1 V1 W1
24V KM2
FU1 13-25A aM
FU1 13-25A aM
L
2 XP S
FU1 13-25A aM
L
3 XP T
RS T
M
1〜
SISTEMA BASE DYLAN DH 3000W 220V
CONTACATENA A
PULSANTIERA
MOD. CHC1102 M
CONTACATENA PER
ANCORAGGIO
MOD. CHC1202 M
-
+
DOWN
UP
BLU
MARRONE
NERO
BLU
MARRONE
NERO
DOWN
SENSORE
UP
-
+
CAN H
CAN L
GRIGIO
ROSSO
VERDE
MARRONE
BIANCO
BLU
NERO
BLU
MARRONE
NERO
150
CAN H
CAN L
CAN H
CAN L
SALPA ANCORA
MOTORE
220V CA Max
5,5KW
MORSETTIERA
BATTERIA 24V
PULSANTIERA
MULTIUSO
MOD. HRC1002
RADIO RECEVITORE RRC
MOD. R02 (2CH)
COMANDO
DA PLANCIA
MOD. 800
MOD. 900/D
DOWN
PULSANTI A PIEDE
MOD. 900/U
UP

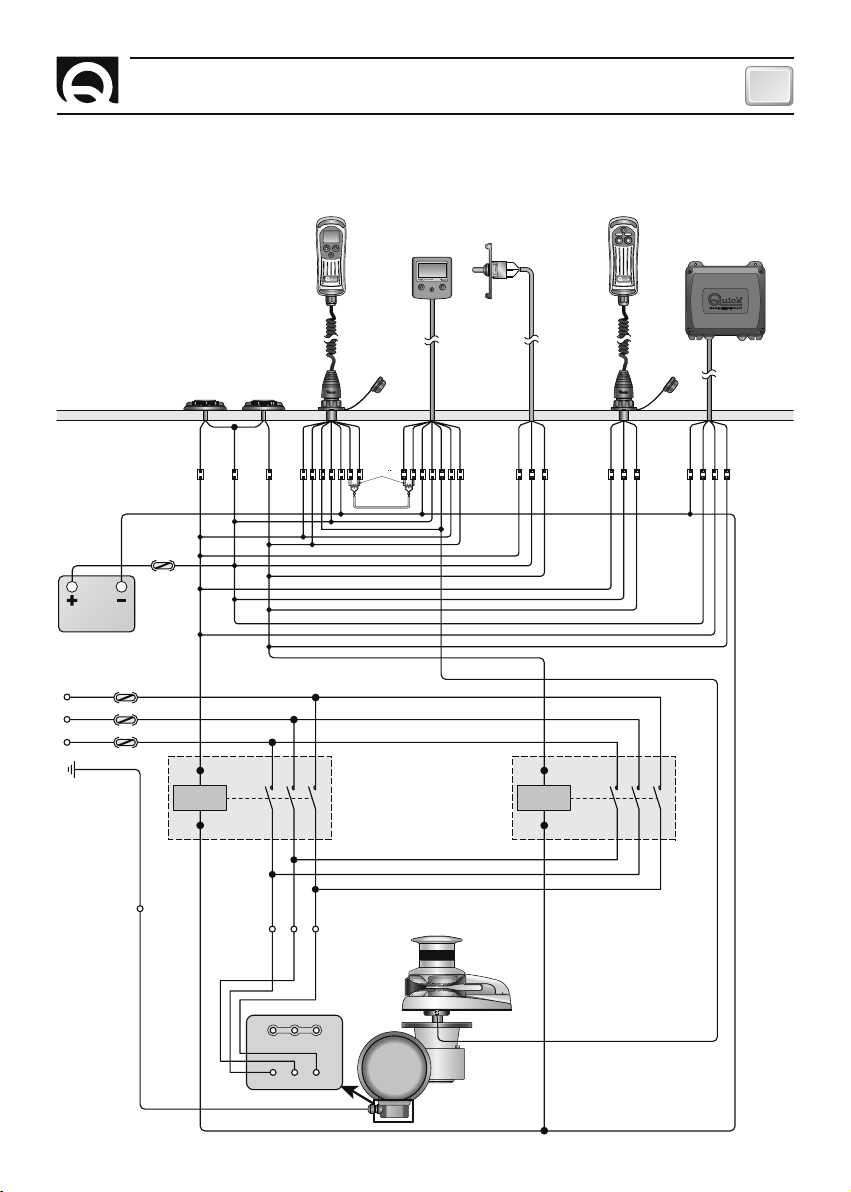

SCHEMA DI COLLEGAMENTO TRIFASE
SENSORE

9
IT
DYLAN DH 1500/1700/2000W - REV001A
SCHEMA DI COLLEGAMENTO TRIFASE
M
1〜
24V KM1
W2
U1
R
S
T
L
1 XP
PE XP
R
V1 W1
U1
V1
W1
XP XP XP
U2 V2
U1 V1 W1
24V KM2
FU1 8 -16A aM
FU1 8 -16A aM
L
2 XP S
FU1 8 -16A aM
L
3 XP T
RS T
SISTEMA BASE DYLAN DH 3000W 380V
CONTACATENA A
PULSANTIERA
MOD. CHC1102 M
CONTACATENA PER
ANCORAGGIO
MOD. CHC1202 M
-
+
DOWN
UP
BLU
MARRONE
NERO
BLU
MARRONE
NERO
DOWN
SENSORE
UP
-
+
CAN H
CAN L
GRIGIO
ROSSO
VERDE
MARRONE
BIANCO
BLU
NERO
BLU
MARRONE
NERO
150
CAN H
CAN L
CAN H
CAN L
SALPA ANCORA
MOTORE
380V CA Max
5,5KW
MORSETTIERA
BATTERIA 24V
PULSANTIERA
MULTIUSO
MOD. HRC1002
RADIO RECEVITORE RRC
MOD. R02 (2CH)
COMANDO
DA PLANCIA
MOD. 800
MOD. 900/D
DOWN
PULSANTI A PIEDE
MOD. 900/U
UP
SENSORE

10
IT
DYLAN DH 1500/1700/2000W - REV007A
MANUTENZIONE
MOTORIDUTTORE 2000WMOTORIDUTTORE 1500W - 1700W
41
39
38
40
37
36
6
7
75
15
12
2
3
4
8
10
13
14
28
27 25
29
31 30
32
33
34
18
16
1921
5
5
5
5
5
9
11
35
42
23232323
20
22
17
16
1
24
26
50 51
52
53
54
55
56
49
48
47
46
70
44
45
46
43 44
45
71
67
68 69
63
64
65
66
60
62
61
59
71
58 44
57
A corredo nella scatola
solo nella versione [ D ]

11
IT
DYLAN DH 1500/1700/2000W - REV001A
ATTENZIONE:
accertarsi che non sia presente l'alimentazio-
ne al motore elettrico quando si opera manualmente sul sal-
pa ancora; rimuovere con cura la catena o cima dal barbotin
o la cima dalla campana.
I salpa ancora Quick
®
sono costituiti da materiali resistenti all'am-
biente marino: è indispensabile, in ogni caso, rimuovere periodica-
mente i depositi di sale che si formano sulle superfici esterne per
evitare corrosioni e di conseguenza danni all'apparecchio.
Lavare accuratamente con acqua dolce le superfici e le parti in cui
il sale può depositarsi.
Smontare una volta all'anno il barbotin e la campana attenendosi
alla seguente sequenza:
VERSIONE CON CAMPANA
Con la leva (1) svitare la bussola (7); estrarre la campana (6) ed il
cono frizione superiore (8); svitare le viti di fissaggio (11) dello stac-
ca catena (12) e rimuoverlo; estrarre il barbotin (9).
VERSIONE SENZA CAMPANA
Con la leva (1) svitare la bussola (2) e le viti (5); estrarre il coper-
chio barbotin (4) ed il cono frizione superiore (8); svitare le viti
di fissaggio (11) dello stacca catena (12) e rimuoverlo; estrarre il
barbotin (9).
Pulire ogni parte smontata affinché non si verifichino attacchi di
corrosione e ingrassare (con grasso marino) il filetto dell'albero (19,
20, 21 o 22) e il barbotin (9) dove appoggiano i coni frizione (8 e 10).
Rimuovere eventuali depositi di ossido sui morsetti della cassetta
teleruttori; cospargerli di grasso.
MANUTENZIONE
51 Guarnizione morsetteria 1000W PCGPMMR00000
52 Coperchio morsetteria 1000W PCCPPMMR0000
53 Vite MBV02213AXSC
54 Guarnizione fondo 1000W PGGPMFN00000
55 Coperchio fondo 1000W PCCPPMFN0000
56 Passacavo PPM20B000000
57 Riduttore 2000W - serie Quick SLMR20TG7000
58 Vite MBV0825MXE00
59 O-ring riduttore 2000W PGR025980000
60 Carter motore 2000/2300W PCCCPM200000
61 Chiavetta 6x6x30 MBH0606030X0
62 Motore 2000W 24V EMF202400000
63 O-ring coperchio fondo PGR035250000
64 Coperchio fondo PCCPPMFN2000
65 Guarnizione morsetteria inf. PCGPMMR2N000
66 Guarnizione morsetteria sup. PCGPMMR2S000
67 Coperchio morsetteria sup. PCCPPMMR2000
68 Vite autofilettante M3.9x22 MBV03922AXCC
69 Vite autofilettante M3.9x32 MBV03932AXCC
70 Guarniz. flangia ridut. TOP TG60 PGFLRDTG6000
71 Guarniz. flangia ridut. TOP TG70 PGFLRDTG7000
72 O-ring bussola PGR031500000
POS.
DENOMINAZIONE CODICE
1 Leva salpa piegata ZSLMSHR10000
2 Bussola frizione “DN” cromata SGMSD1500000
3 O-ring PGR033000000
4 Coperchio barbotin SGMSGB10AL00
5 Vite M5x16 MBV0516MXCE0
6 Campana SPMSE15DNR01
7 Bussola frizione “DN” cromata SGMSDCPDN150
8 Cono frizione superiore SLMSF15DND00
9A Barbotin 1500W 10mm - 3/8" ZSB151038000
9B Barbotin 1500W 12/13mm ZSB151213000
10 Cono frizione inferiore SLMSF15DNN00
11 Vite 6x35 MBV0635MXCE0
12 Staccacatena MSNDN0000000
13 Rondella di rinforzo MBR307025X00
14 Paraolio 30x55x10 PGPRL3055100
15 Anello elastico interno MBAN5520Y000
16 Anello elastico esterno MBAE3015Y000
17 Cuscinetto MBJ600600000
18 Paraolio 30x50x7 P GPRL3050070
19 Albero corto 1500W MSAS15367R00
20 Albero corto 1700/2000W MSAS20367R00
21 Albero lungo 1500W MSAS15411R01
22 Albero lungo 1700/2000W MSAS20411R01
23 Chiavetta MBH0807140X0
24 Cover guida catena DH inox -
25 Vite -
26 Supporto guida catena SGMSN15DN000
28 Molla tendicima MMTC15DNC000
27 Perno tendicima -
29 Leva tendicima PDLVTD150000
30 Molla blocco barbotin MMBLBRATC000
31 Leva blocco barbotin MSH10ATCX000
32 Comando leva blocco barbotin MSVLBBATCX00
33 Sicurezza comando leva blocco PDSCLVBB0000
34 Perno blocco barbotin MSVPR10ATC00
35 Base DH -
36 Guarnizione DYLAN DH -
37 Sensore Reed KNREEDCL0000
38A Prigioniero 8x80 MBP080807X00
38B Prigioniero 10x110 MBP101100X00
39A Rondella 1500W MBR08X000000
39B Rondella 1700/2000W MBR10X000000
40A Rondella dentellata 1500W MBR08XDE0000
40B Rondella dentellata 1700/2000W MBG10X000000
41A Dado 1500W MBD08MXEN000
41B Dado 1700/2000W MBD10MXEN000
42 Inserto per recupero manuale PDRM15000000
43 Riduttore 1500W - serie Quick SLMR15TG7000
44 Rondella MBR061815X00
45 Dado autobloccante MBD06MXET000
46 O-ring riduttore1500/1700W PGR023000000
47 Riduttore - 1700W - serie Quick SLMR17TG7000
48 Chiavetta 5x5x15 MBH050515F00
49A Motore 1500W 12V EMF071200000
49B Motore 1700W 12V EMF101200000
49C Motore 1700W 24V EMF102400000
50 Carter 1500/1700W PCCCPM100000

12
IT
DYLAN DH 1500/1700/2000W - REV007A
SALPA ANCORA IDRAULICO
309,5 (12 3/16)
170 (6 3/4)
180 (7)
87
(3
1
/
2
)
105 (4
1
/
4
)
277 (10 59/64)
118 (4 5/8)
189.5 (7 29/64)
DIMENSIONI DEL MODELLO IDRAULICO - / D mm ( inch )
PROCEDURA DI MONTAGGIO
Posizionare la parte superiore e collegare a questa la parte inferio-
re, infilando l'albero nel riduttore.
Fissare il salpa ancora avvitando i dadi sui prigionieri di bloccaggio.
Collegare i tubi provenienti dalla valvola distributrice alle due flan-
gette del motore idraulico (vedi schema di collegamento a pag.13).
Quick®si riserva il diritto di apportare modifiche alle caratteristiche tecniche dell'apparecchio e al contenuto di questo manuale senza alcun preavviso.
In caso di discordanze o eventuali errori tra il testo tradotto e quello originario in italiano, fare riferimento al testo italiano o inglese.
F
LA CONFEZIONE CONTIENE:
salpa ancora idraulico (top + motoriduttore) - dima di foratura - leva - viterie (per l'assemblaggio) -
manuale di istruzioni - condizioni di garanzia.
ATTREZZI NECESSARI PER L'INSTALLAZIONE:
trapano con punta: Ø 12 mm (15/32"); a tazza Ø 90 mm (3"1/2);
chiave esagonale: 17 mm.
ACCESSORI QUICK®CONSIGLIATI:
deviatore da pannello (mod. 800) - Pulsantiera stagna (mod. HRC 1002) - Pulsante a piede (mod.
900) - Interruttore magneto-idraulico - Conta catena per l'ancoraggio (mod. CHC 1102M e CHC 1202M) - Sistema di comando via radio
RRC (mod. R02, PO2, H02).
(1) Misure effettuate con barbotin per catena da 12 mm.
(2) Su richiesta possono essere forniti alberi e prigionieri per spessori di coperta maggiori.
MODELLO IDRAULICO DYLAN DH - / D
Tipologia motore Reversibile ad ingranaggi
Cilindrata 9,6 cc 0,59 in3
Capacità di sollevamento • 100 bar = 600 kg • 150 bar = 1000 kg • 1450 psi = 1322,8 lb • 2176 psi = 2204,6 lb
Velocità di recupero al carico di lavoro (1) 40 lt /min = 20 mt/min 9,1 USG/min = 76 ft/min
Spessore coperta (2) 40 ÷ 80 mm 1” 9/16 ÷ 3” 5/32 inch
Peso - modello senza campana 39,0 kg 86,0 lb
Peso - modello con campana 44,2 kg 97,4 lb
VALORI DI REGOLAZIONE (consigliati da Quick)
Portata 40 lt/min 9,1 USG/min
Pressione massima 150 bar 2176 psi

13
IT
DYLAN DH 1500/1700/2000W - REV001A
SALPA ANCORA IDRAULICO
62 78
81
82 47
83
82
79
80
60
47
61

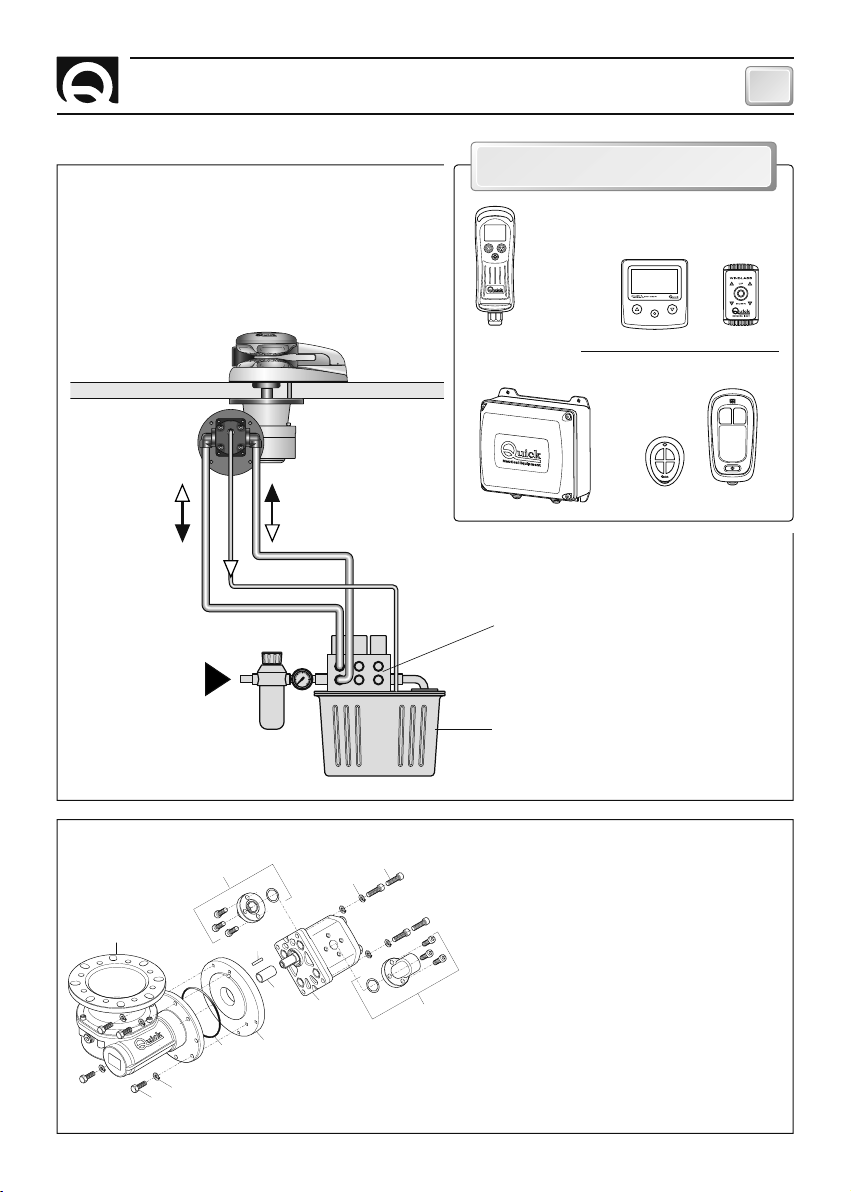

SISTEMA BASE DYLAN DH IDRAULICO
SCHEMA DI COLLEGAMENTO
INGRESSO
PRESSIONE
SERBATOIO
VALVOLA
DISTRIBUTRICE
MOTORE IDRAULICO
CONTACATENA
DA PANNELLO
COMANDO
DA PLANCIA
PULSANTIERA
CONTACATENA
TASCABILE - PULSANTIERA
RICEVITORE
ACCESSORI QUICK
®
PER L'AZIONAMENTO
DEL SALPA ANCORA IDRAULICO
TRASMETTITORI
RADIOCOMANDI
POS. DENOMINAZIONE CODICE
47 Grower Ø 8 inox MBG08X000000
60 Riduttore - 2000W - serie Quick S L M R20TG7000
61 Vite 8*25 inox MBV0825MXE00
62 O-ring 2,5*98mm PGRM25980000
78 Flangia SGMMGR2B1471
79 Adattatore Ø19-Ø15 TG70 MS LA D1915H00
80 Chiavetta 6*6*25 inox SLM BH0606025
81 Motore ad ingranaggi 9,6 cc
bidirezionale
82 Flangetta 90° G3/4 femmina MNFL90F34D40
33 Vite 8*30 inox MBV0830MXCE0

14
TECHNICAL DATA
GB
DYLAN DH 1500/1700/2000W - REV001A
HOW TO IDENTIFY THE WINDLASS THROUGH THE CODE:
Quick®reserves the right to introduce changes to the equipment and the contents of this manual without prior notice.
In case of discordance or errors in translation between the translated version and the original text in the Italian language, reference will be made to the Italian or English text.
F
a
a b c d a b c d
a
a
a
a
a
a
a
1° EXAMPLE:
DYLAN DH1512D
2° EXAMPLE:
DYLAN DH2024
DYLAN DH 15 12 D DYLAN DH 20 24 -
Name of the line:
[ DYLAN DH ] =
oval
base in stainless steel AISI 316
and anodized aluminium in hard oxide
Motor power:
[ 15 ]
= 1500 W
[ 17 ]
= 1700 W
[ 20 ]
= 2000 W
[ 30 ]
= 3000 W
Motor supply voltage:
[ 12 ]
= 12 V
[ 24 ]
= 24 V
[ TR ]
= 220 V / 380 V
Drum:
[ D ] = with drum
[ - ] = without drum
(1) After an initial period of use.
(2) Measurements taken with a gypsy for a 12/13 mm chain.
(3) Minimum allowable value for a total length L<20m (see pag. 28). Determine the cable size according to the length of the wiring.
(4) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
(5) On request, shafts and studs can be supplied for greater deck thicknesses.
a b c d
(*) For the gypsy codes, please consult the exploded drawing on page 23.
(**) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick
®
” system.
GYPSY (*) 10 mm - 3/8” 12/13 mm
Chain size 10 mm 10 mm 3/8” 3/8” 13 mm 12 mm 7/16”
DIN 766 ISO G4 BBB DIN 766 ISO G4
Rope size (**) 5/8” - 3/4” 3/4”
MODEL DYLAN DH – / D
MOTOR POWER 1500W 1700W 2000W
Motor supply voltage 12V 12V 24V 24V
Maximum pull 1100 Kg (2425,1 lb) 1150 Kg (2535,3 lb) 1200 Kg (2645,5 lb) 1600 Kg (3527,4 lb)
Maximum working load 400 Kg (881,8 lb) 470 Kg (1036,2 lb) 570 Kg (1256,6 lb) 750 kg (1653,5 lb)
Working load 135 Kg (297,6 lb) 155 kg (341,7 lb) 190 Kg (418,9 lb) 250 Kg (551,1 lb)
Current absorption @ working load (1) 150 A 170 A 95 A 105 A
Maximum chain speed (2) m/min 35,2 (115,5 ft/min) 33,5 (109,9 ft/min) 39,0 (128,0 ft/min) 35,0 (114,8 ft/min)
Max. chain speed @ working load (2) m/min 19,0 (62,3 ft/min) 16,2 (53,1 ft/min) 20,8 (68,2 ft/min) 22,3 (73,2 ft/min)
Motor cable size (3) 50 mm2 (AWG0) 50 mm2 (AWG0) 25 mm2 (AWG3) 35 mm2 (AWG2)
Protection circuit breaker (4) 100 A 100 A 60 A 80 A
Deck thickness (5) 25 ÷ 50 mm (31/32” ÷ 1”
31/32) 30 ÷ 70 mm (1” 3/16” ÷ 2” 3/4)
Weight - model without drum 25,8 Kg (56,9 lb) 26,2 Kg (57,8 lb) 26,4 kg (58,2 lb) 31,4 Kg (69,2 lb)
Weight - model with drum 27,8 Kg (61,3 lb) 28,2 Kg (62,2 lb) 28,8 kg (63,5 lb) 33,4 Kg (73,6 lb)
MODEL DYLAN DH - / D
MOTOR POWER 3000W TR
Motor supply voltage
220/380 V
Maximum pull 2800 kg 6172,9 lb
Maximum working load 930 kg 1984,2 lb
Maximum chain speed (2) 15 m/min 49,2 ft/min
Deck thickness (5) 30 ÷ 70 mm 1” 3/16 ÷ 2” 3/4
Weight - model without drum 38,0 kg 83,8 lb
Weight - model with drum 40,0 Kg 88,2 lb
Models’ dimensions on page 29

15
INSTALLATION
GB
DYLAN DH 1500/1700/2000W - REV001A
WARNING: before wiring up, be sure the electrical cables are not live.
BEFORE USING THE WINDLASS READ THESE INSTRUCTIONS CAREFULLY.
IF IN DOUBT, CONTACT YOUR NEAREST “QUICK
®
” DEALER.
WARNING:
the Quick
®
windlasses are designed to weigh the anchor. Do not use the equipment for other purpo-
ses. Quick
®
shall not be held responsible for damage to equipment and/or personal injury, caused by a faulty use
of the equipment. The windlass is not designed for the loads that might occur in extreme weather conditions (storms).
Always deactivate the windlass when not in use. Check that there are no swimmers nearby before dropping anchor.
The splice between the rope and the chain must be tightly woven for the rope to slide easily into the gypsy shape. For any
problem or request, feel free to contact Quick
®
Technical Service. For improved safety we recommend installing at least
two anchor windlass controls in case one is accidentally damaged. We recommend the use of the Quick
®
hydraulic-ma-
gnetic switch as the motor safety switch. Secure the chain with a further device before starting the navigation.
The contactor unit or reversing contactor unit must be installed in a point protected from accidental water contact.
After completing the anchorage, secure the chain or rope to fixed points such as chain stopper or bollard.
To prevent accidental releases, the anchor must be secured. The windlass shall not be used as the only securing device.
Isolate the windlass from the power system during navigation (switch the circuit breaker off) and lock the chain securing it to
a fixed point of the boat.
THE PACKAGE CONTAINS:
windlass (on deck unit + motorgearbox) - contactor unit - base gasket - drill template - handle - bolts and
screws (for assembly) - user’s manual - conditions of warranty.
TOOLS REQUIRED FOR INSTALLATION:
drill and drill bits: Ø 5 mm (3/16”), Ø 9 mm (23/64”) and Ø 11 mm (7/16”) - Ø 80 mm (3" 9/64)
hollow mill; hexagonal wrenche: 13 mm.
“QUICK®”ACCESSORIES RECOMMENDED:
anchoring RL control board (mod. 800) - Waterproof hand helds R/C (mod. HRC1002)
- Foot switch (mod. 900) - Hydraulic-magnetic circuit breaker - Anchor chain counter (mod. CHC1102M and CHC1202M) - Radio control
RRC (mod. R02, PO2, H02).
INSTALLATION REQUIREMENTS:
the windlass must be positioned with the gypsy aligned with the bow roller. Ensure that the
upper and lower surfaces of the deck are as parallel as possible. If this is not the case, compensate the difference appropriately (a lack
of parallelism could result in a loss of motor power). The deck thickness must be included among the figures listed in the table. In cases
of other thicknesses it is necessary to consult a Quick
®
retailer. There must be no obstacles under deck to the passage of cables, rope
and chain; lack of depth of the peak could cause jamming.
FITTING PROCEDURE:
when the ideal position has been established, drill four holes using the drilling template provided.
Remove excess material from the chain passage, refine and flatten with a specialized product (marine paint, gel coat or two pack epoxy)
to assure free passage for both rope and chain. Position the upper section, inserting the gasket between the deck and the base and
connect the lower section to the assembly, inserting the shaft into the reduction unit.
Fix the windlass by screwing the nuts onto the fixing studs. Connect the supply cables from the windlass to the contactor unit.
P
A
I
N
T
40 cm (16”)
Max
5 mm
(3/16”)
45°
90°
90°
90°

16
GB
DYLAN DH 1500/1700/2000W - REV001A
-
+
BASIC SYSTEM
SEE PAGE 44
SHOWING THE MAIN
CONNECTION DIAGRAM
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
WINDLASS
MOTOR
BATTERY
HYDRAULIC-
MAGNETIC
CIRCUIT BREAKER
(see table on
page 12)
CONTACTOR UNIT
MOD. T6315-12 (12V)
MOD. T6315-24 (24V)
C
A2
FOOT SWITCHES
MOD. 900U AND 900D
BLACK
BROWN
BLUE
BROWN
BLACK
BLUE
A1
FUSE
4A (12V)
2A (24V)
L = L1 + L2 + L3 + L4
L4
L2
L3
L1
L3
CONNECTION DIAGRAM
RADIO POCKET
WATERTIGHT
PANEL
CHAIN COUNTER
WINDLASSES
CONTROL
BOARD
WATERTIGHT HAND HELD
CHAIN COUNTER
HANDHELD
RECEIVER
QUICK
®
ACCESSORIES
FOR WINDLASS OPERATION
TRANSMITTERS
REMOTE RADIO CONTROLS
RADIO POCKET

17
GB
DYLAN DH 1500/1700/2000W - REV001A
WARNING:
before weighing anchor release the gypsy.
Check that the control (32/33) that locks the gypsy is
disengaged.
1) Release the gypsy safety lock (33).
2) Have the gypsy lock control (32) slide toward the stern.
3) Automatic inserting of the gypsy lock (31).
WARNING:
stay clear of the chains, ropes and gypsy. Make sure the electric motor is off when windlass is used manually
(even when using the handle to disengage the clutch). In fact people with windlass remote controls (hand-held remote
control or radio-controlled systems) might accidentally operate it.
WARNING:
secure the chain with a device before starting the navigation.
WARNING:
do not operate the windlass by using the electrical power when the handle is inserted in the drum or into the
gypsy cover.
WARNING:
Quick
®
recommend using a circuit breaker designed for direct current (DC) with delayed-action (thermal-mag-
netic or hydraulic-magnetic) to protect the motor supply line from overheating or short circuits. The circuit breaker can be
used to cut off power to the windlass control circuit and so avoid accidental activation.
CLUTCH USE - The clutch (8 and 10) provides a link between the gypsy and the main shaft (19, 20, 21 or 22). The clutch can be
released (disengagement) by using the handle (1) which, when inserted in the bush (7) of the drum or of the gypsy cover (2),
must be turned counter-clockwise. The clutch will be re-engaged by turning it clockwise (engagement).
WEIGHING THE ANCHOR - Turn on the engine. Make sure the clutch is engaged and remove the handle. Press the UP button
on the control provided. If the windlass stops and the hydraulic magnetic switch (or thermal cutout) has not tripped, wait a few
seconds and try again (avoid keeping the button pressed). If the hydraulic magnetic switch, has tripped, reset it and wait a few
minutes before weighing anchor once again. If, after a number of attempts, the windlass is still blocked, we suggest to move
the boat to release the anchor. Check the upward movement of the chain for the last few meters in order to avoid damages to
the bow.
CASTING THE ANCHOR - The anchor can be cast by using the electrical control or manually. To operate manually, the clutch
must be disengaged allowing the gypsy to revolve and letting the rope or chain fall into the water. To slow down the chain, the
handle must be turned clockwise. To cast the anchor by using the electrical power, press the DOWN button on the control pro-
vided. In this manner, anchor casting is under control and the chain and rope unwind evenly. In order to avoid any stress on the
windlass -once the boat is anchored- fasten the chain or secure it in place with a rope.
MANUAL ANCHOR WEIGHING (no drum version) Disconnect the windlass power supply. Use the lock lever control (32/33) to
engage the lock lever (31) on the gypsy (9). Disengage the clutch (at least 2 turns of the bush anticlockwise), insert the lever (1)
into the seat in the gypsy cover (4) and manually take up the chain by rotating the lever clockwise. After the manual weighing
procedure remove the lever from its seat and insert it into the bush (2) to tighten the clutch. Remove the lever (1) from the
gypsy cover (4). Release the gypsy (9) using the control lever (32/33). Reconnect the windlass power supply.
MANUAL ANCHOR WEIGHING (drum version) Disconnect the windlass power supply. Use the lock lever control (32/33) to en-
gage the lock lever (31) on the gypsy (9). Use the lever (1) to completely loosen the bush (7) and pull off the drum (6). Insert the
lever (1) into the seat in the anchor weighing (45) and manually take up the chain by rotating the lever clockwise.
After the manual weighing procedure, remove the lever from its seat, reinsert the drum (6) and tighten the bush (7) to tighten
the clutch. Remove the lever (1) from the bush (7). Release the gypsy (9) using the control lever (32/33). Reconnect the
windlass power supply.
DRUM USE
WARNING:
Before carrying out warping operations, check that the anchor and relative rope or chain are solidly fixed to a
bitt or another strong point on the boat.
For the independent use of the drum (6), turn the lock lever control (32/33) to engage the lock lever (31) of the gypsy (9), release
the clutch with the handle (1), (at least 2 turns of the bush anticlockwise). Remove the handle from the bush (7) on the gypsy,
wrap the rope around the drum (at least 3 turns). Activate the windlass control, keeping the rope under tension during take up.
By varying the tension during take up it is possible to modify the rope winding speed.
WARNING:
during take up maintain a safe distance between hands and windlass drum.
Once take up is complete, screw up the clutch by tightening the gypsy drum clockwise and secure the rope to a bitt or other
strong point on the boat.
USAGE - WARNING
LOCK DISENGAGED LOCK ENGAGED
1
2
3
33
32
31

18
GB
DYLAN DH 1500/1700/2000W - REV001A
24V KM1
W2
U1
R
S
T
L
1 XP
PE XP
R
V1 W1
U1
V1
W1
XP XP XP
U2 V2
U1 V1 W1
24V KM2
FU1 13-25A aM
FU1 13-25A aM
L
2 XP S
FU1 13-25A aM
L
3 XP T
RST
M
1〜
BASIC SYSTEM DYLAN 3000W 220V
WINDLASS
MOTOR
220V CA Max
5,5KW
TERMINAL BOARD
THREE-PHASE CONNECTION DIAGRAM
SENSOR
WATERTIGHT
HAND HELD
CHAIN-COUNTER
MOD. CHC1102 M
WATERTIGHT PANEL
CHAIN-COUNTER
MOD. CHC1202 M
-
+
DOWN
UP
BLUE
BROWN
BLACK
BLUE
BROWN
BLACK
DOWN
SENSOR
UP
-
+
CAN H
CAN L
GREY
RED
GREEN
BROWN
WHITE
BLUE
BLACK
BLUE
BROWN
BLACK
150
CAN H
CAN L
CAN H
CAN L
BATTERY 24V
MULTI-PURPOSE
WATERTIGH HAND HELD
REMOTE CONTROL
MOD. HRC1002
RADIO RECEIVER RRC
MOD. R02 (2CH)
WINDLASS
CONTROL BOARD
MOD. 800
MOD. 900/D
DOWN
FOOT SWITCH
MOD. 900/U
UP

19
GB
DYLAN DH 1500/1700/2000W - REV001A
THREE-PHASE CONNECTION DIAGRAM
M
1〜
24V KM1
W2
U1
R
S
T
L
1 XP
PE XP
R
V1 W1
U1
V1
W1
XP XP XP
U2 V2
U1 V1 W1
24V KM2
FU1 8 -16A aM
FU1 8 -16A aM
L
2 XP S
FU1 8 -16A aM
L
3 XP T
RST
BASIC SYSTEM DYLAN 3000W 380V
WINDLASS
MOTOR
380V CA Max
5,5KW
TERMINAL BOARD
SENSOR
WATERTIGHT
HAND HELD
CHAIN-COUNTER
MOD. CHC1102 M
WATERTIGHT PANEL
CHAIN-COUNTER
MOD. CHC1202 M
-
+
DOWN
UP
BLUE
BROWN
BLACK
BLUE
BROWN
BLACK
DOWN
SENSOR
UP
-
+
CAN H
CAN L
GREY
RED
GREEN
BROWN
WHITE
BLUE
BLACK
BLUE
BROWN
BLACK
150
CAN H
CAN L
CAN H
CAN L
BATTERY 24V
MULTI-PURPOSE
WATERTIGH HAND HELD
REMOTE CONTROL
MOD. HRC1002
RADIO RECEIVER RRC
MOD. R02 (2CH)
WINDLASS
CONTROL BOARD
MOD. 800
MOD. 900/D
DOWN
FOOT SWITCH
MOD. 900/U
UP

20
GB
DYLAN DH 1500/1700/2000W - REV001A
MAINTENANCE
MOTORGEARBOX 2000WMOTORGEARBOX 1500 - 1700W
Provided in the box
only in the version [ D ]
41
39
38
40
37
36
6
7
75
15
12
2
3
4
8
10
13
14
28
27 25
29
31 30
32
33
34
18
16
1921
5
5
5
5
5
9
11
35
42
23232323
20
22
17
16
1
24
26
50 51
52
53
54
55
56
49
48
47
46
70
44
45
46
43 44
45
71
67
68 69
63
64
65
66
60
62
61
59
71
58 44
57
This manual suits for next models
8
Table of contents
Languages:
Other Quick Marine Equipment manuals

Quick
Quick DP Series User manual

Quick
Quick GENIUS Series User manual

Quick
Quick GP2 Genius 1500 Series User manual

Quick
Quick MSC400 Reference manual

Quick
Quick EAGLE E 712 D User manual

Quick
Quick MC2 Series Guide

Quick
Quick DP2 L 770 User manual

Quick
Quick Totem 600 User manual

Quick
Quick GP2 Genius 1500 Series Reference manual

Quick
Quick HR5 1712 DC series User manual
