R82 bronco User manual

bronco
© 2004 R82 A/S. All rights reserved.
The R82 logo and the Bronco are registered trademarks of R82 A/S.
TM
04.2007
English user manual

2
G
B
GB Contents
Bronco ............................................................................... 3
Safety ................................................................................ 4
Guarantee.......................................................................... 4
Tools .................................................................................. 4
Washing............................................................................. 4
Maintenance...................................................................... 4
Ready for use .................................................................... 5
Height adjustment of seat and body support..................... 6
Angle adjustment of the body support............................... 6
Brake ................................................................................. 7
Directional stabilizer .......................................................... 7
Abdominal pad................................................................... 8
Rear support...................................................................... 8
Head support..................................................................... 9
Handbrace....................................................................... 10
Armrest ............................................................................ 10
Side supports................................................................... 11
Helper’s handle ............................................................... 11
Vertical hand grips, mounted at the ends ........................ 12
Vertical hand grips, mounted in the middle...................... 13
Product identification ....................................................... 14
Measurements................................................................. 15
Technical data.................................................................. 16
Producer.......................................................................... 16
Distributor ........................................................................ 16

3
Pat. pend.
G
B
BronCo
Congratulations on choosing the Bronco. We are convinced that it will fully live up
to your expectations.
The Bronco is the outdoor walking aid from R82 for children from 1½ to 8 years
of age.
This manual describes and illustrates all functions, and will enable you to take
maximum advantage of your Bronco.
GB

4
G
B
safety
The Bronco has earned the CE-mark. This certify that it meets all relevant
European safety requirements.
The durability of this product is 7 years when it is used on a daily basis.
Hereafter we recommend that the product should be renovated (by R82
personnel) to extend the lifetime.
Remove the CE-mark, when re-building the product or when using other
than original R82 spare parts and fittings.
Never leave your child unattended in this product. Ensure permanent
supervision by an adjult. Incorrect use of the Bronco, may cause serious
injury on the user. Take care that all the fixations and adjustments are
placed and fitted correctly and check it on a regular basis.
GB
Guarantee
Notification of defects will be received at R82 A/S within two years.
The Bronco is guaranteed for 12 months. The guarantee is only valid when
using original R82 spare parts and fittings. All special adjustments must be
made by R82. R82 will not be held responsible for damage or injury caused by
use of non-original parts or repairs made by a non-authorized R82 person.
GB
tools
Behind the rear support you will find a 6 mm Allan key. This key is used to
perform some of the adjustments described in this manual.
GB
WashinG
We recommend to clean the frame frequently.
GB
MaintenanCe
- Clean the frame on a regular basis, especially when it has been in contact
with rainwater / saline water.
Do not use any cleaning materials containing chlorine or methylated
spirit.
Adjustments which are not described in this manual, must only be made
by authorized R82 personnel.
GB

5
A
B
C
D
E
F
A
G
B
GB ready for use
The Bronco is delivered in parts to make it take
up as little room as possible during transporta-
tion. To make your Bronco ready for use, please
follow the below description.
1) Dismount the fitting (A).
2) Mount the seat (B) on the vertical bar on the
frame and fasten with the enclosed Allen key.
Remount the fitting (A).
3) Mount the rear support (C) beneath the sean
and fasten using the handle (D).
4) Mount the handlebar (E) on the body support
(F) and fasten with the enclosed Allen key.
5) Mount the body support (F) in the vertical bar
on the frame and fasten the fitting (A).
Your Bronco is now ready for use.

6
A
B
C
G
B
GB
GB
heiGht adjustMent
of seat and Body
support
Use the Allen key as shown (A) to adjust the seat
height. Fasten at the right position.
Adjust the height or remove the body support by
using the Allen key. (B)
anGle adjustMent of
the Body support
Pull the small handle forward as shown (C), to
release the gasspring.
Release the handle at the right angle.

7
B
A
B
A
G
B
GB Brake
The Bronce is equipped with brakes on all four
wheels. The brakes can be activated when
needed.
1) Activate the brake (A) using a foot.
2) Deactivate the brake (B) using a foot.
Make sure that all four brakes are activated
before placing the user into the Bronco.
GB direCtional
staBilizer
The directional stabilizer prevents the wheels
from turning. Directional stabilizers are mounted
on all four wheels.
Follow the below to activate the directional sta-
bilizers:
1) Place the wheel in a forward pointing position
(A).
2) Turn the button (B) and the stabilizer activa-
tes.
Lift and turn around the button (B) to deactivate
the stabilizers.

8
D
A
B
C
G
B
GB aBdoMinal pad
Use the Allen key to height adjust the abdominal
pad (A).
Use the Allen key to depth adjust the abdominal
pad (B).
The abdominal pad is only to be used on
size 1+2.
rear support
Remove or adjust the depth of the rear support
by utilizing the handle behind the seat. (C)
Use the Allen key to adjust the height of the rear
support. (D)
GB

9
A
B
C
D
E
G
B
head support
Follow the below to mount the head support
correctly on the Bronco:
1) Loosen the screw (A) to dismount the rear
support and the side supports.
2) Mount the head support beneath the seat and
fasten the screw (B).
3) Loosen the handles (C), (D) and (E) to height,
width and angle adjust the head support.
When both head support and side sup-
ports are needed, the side supports have
to be mounted on the body support bar.
Please notice that Bronco size 2 can not
be equipped with both head support and
side supports.
GB

10
B
A
C
G
B

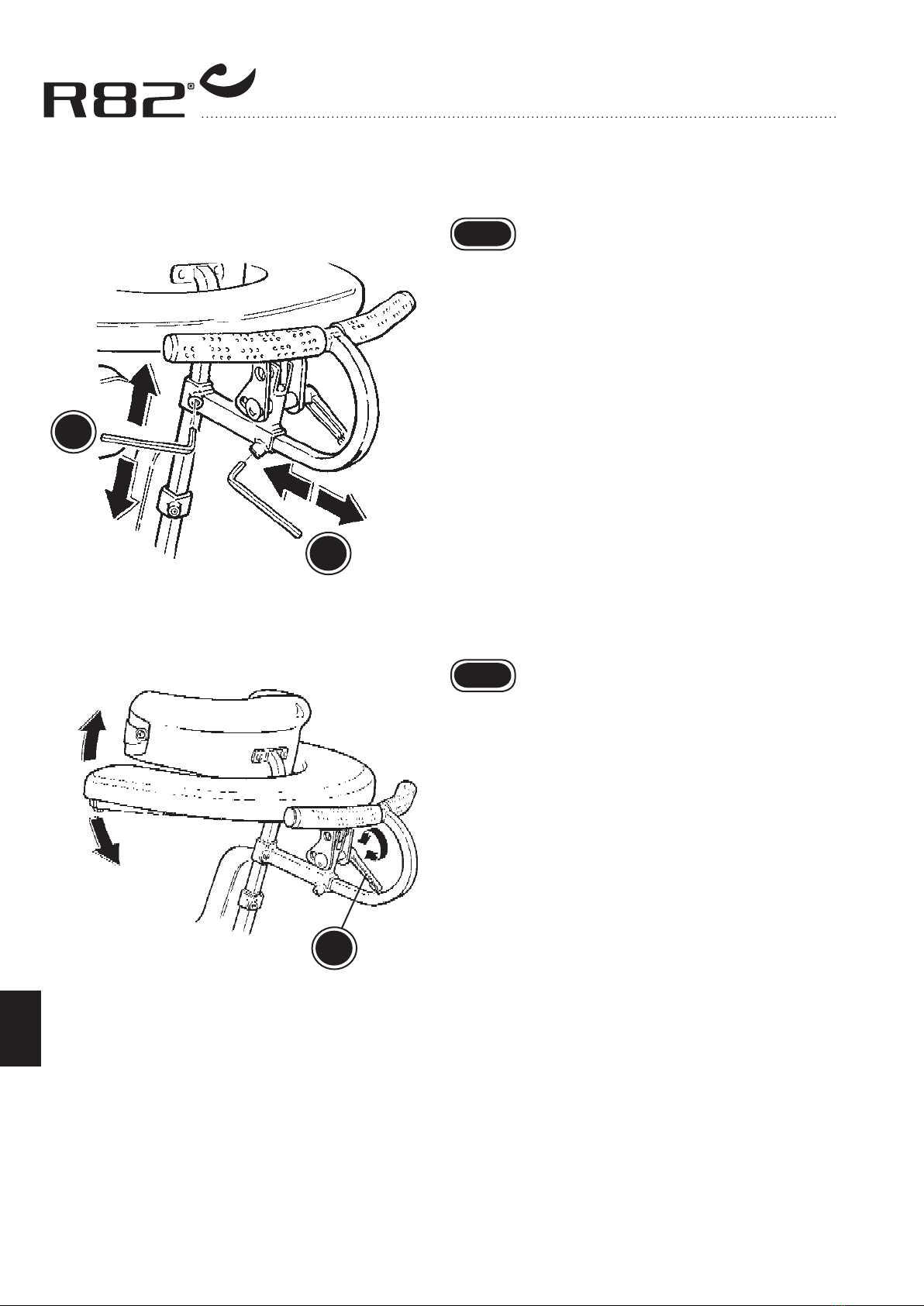

GB handBraCe
Use the enclosed 6 mm Allen key (A) to height
adjust the handbrace.
Depth adjustment of the handbrace is done with
the 6 mm Allen key (B).
arMrest
To adjust the angle, loosen the black lever (C)
below the armrest.
GB

11
A
B
C
G
B
GB
GB

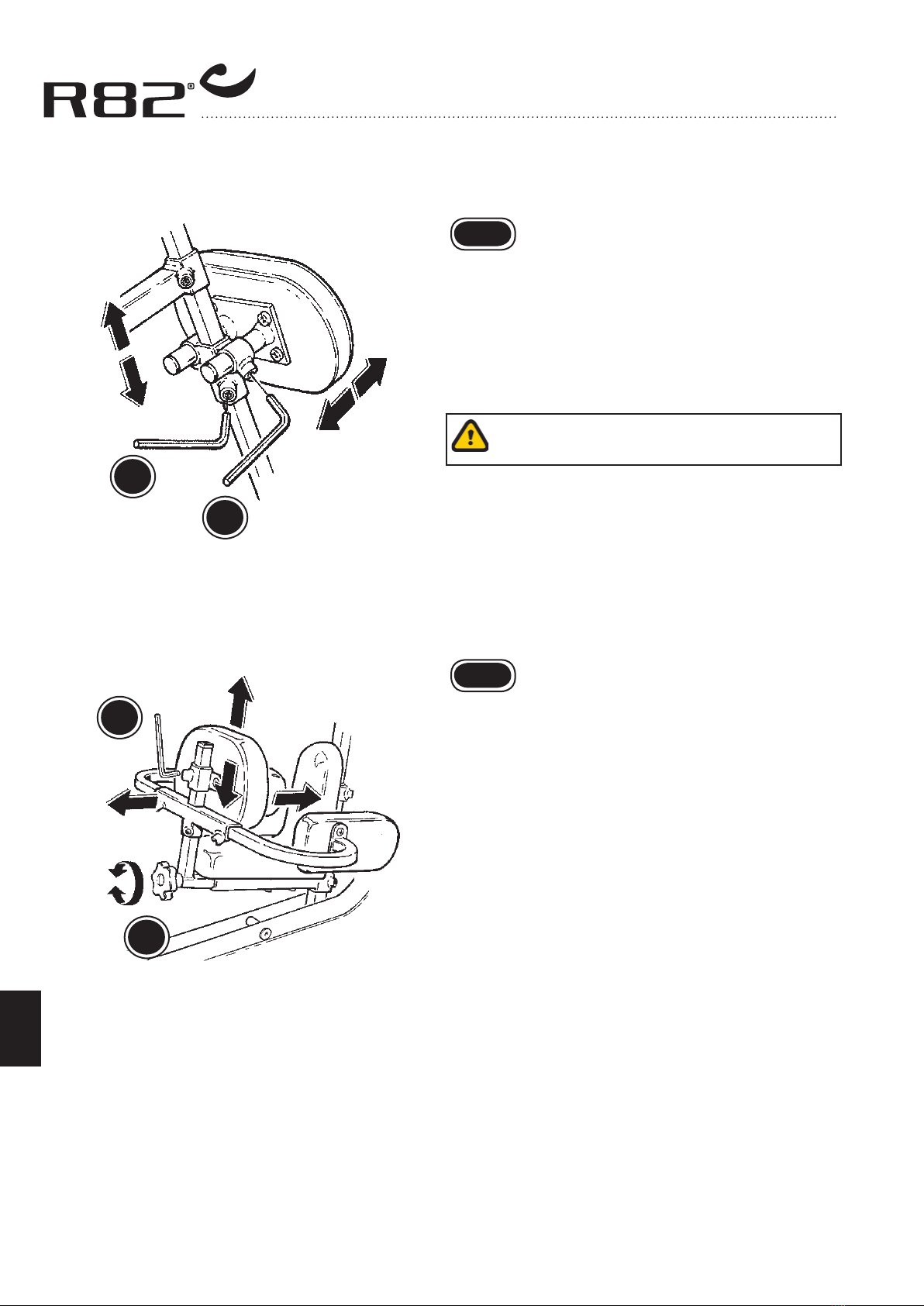

side supports
The side supports are individually adjustable in
width as shown. (A)
The side supports are mounted on the rear sup-
port bar. Adjust the height with the attached 6
mm Allen key. (B)
helper’s handle
The helper’s handle is mounted in the back of
the Bronco, as shown (C).
Fasten with the black lever.
Do not lift the Bronco by using the helper’s
handle.

12
CA
B
G
B
GB VertiCal hand Grips,
Mounted at the ends
Mount the vertical hand grips at the end of the
hand brace in the following manner:
1) Pop out the stopper (A) with a screwdriver.
2) Insert the grip and the supplied bushing (B)
into the hand brace at the desired angle.
3) Tighten with the Allen key (C).

13
A
C
B
E
D
G
B

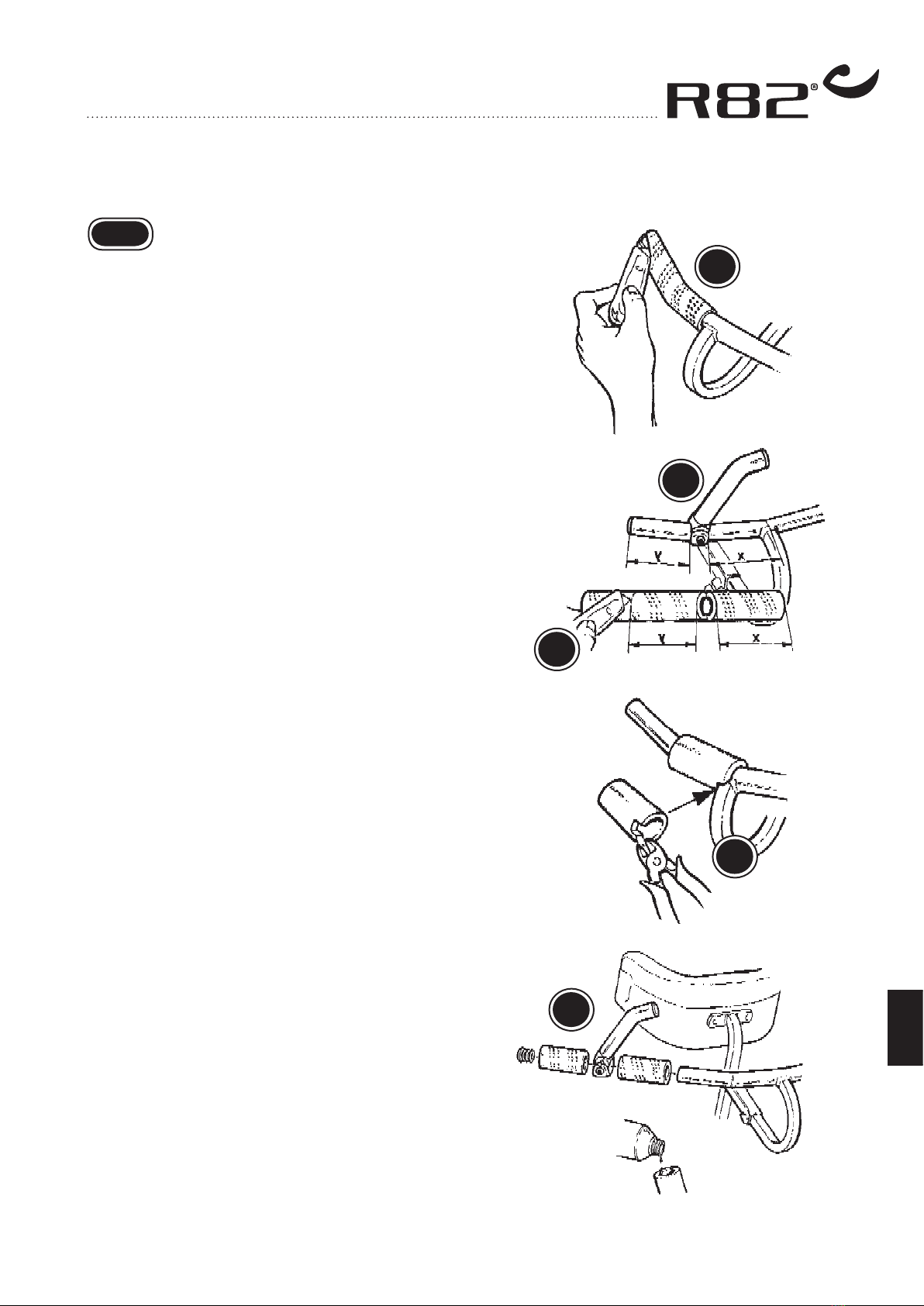

GB VertiCal hand Grips,
Mounted in the
Middle
1. Cut the grip material (A) and remove it from
the handbrace. Remove the stopper.
2. Determine placement of the hand grip (B)
and take measurements to determine length
of new grip material required for both sides
of the hand grip. Cut grip material (C) to fit
handle.
3. You can notch the grip material as shown (D)
for complete coverage of the handle.
4. Mount the inside piece of the grip material.
(Pouring some ethyl alcohol into the grip helps
it slide onto the hand brace). Mount the hand
grip (E) and tighten with the Allen key. Mount
the outer grip material and replace the stop-
per.

14
A
B
Dato: 31-01-02 Belast: kg
SN: 0840-01-111878-001
Varenr: 880003
5707292 134158
A
B
Parallelvej 3
DK-8751 Gedved
G
B

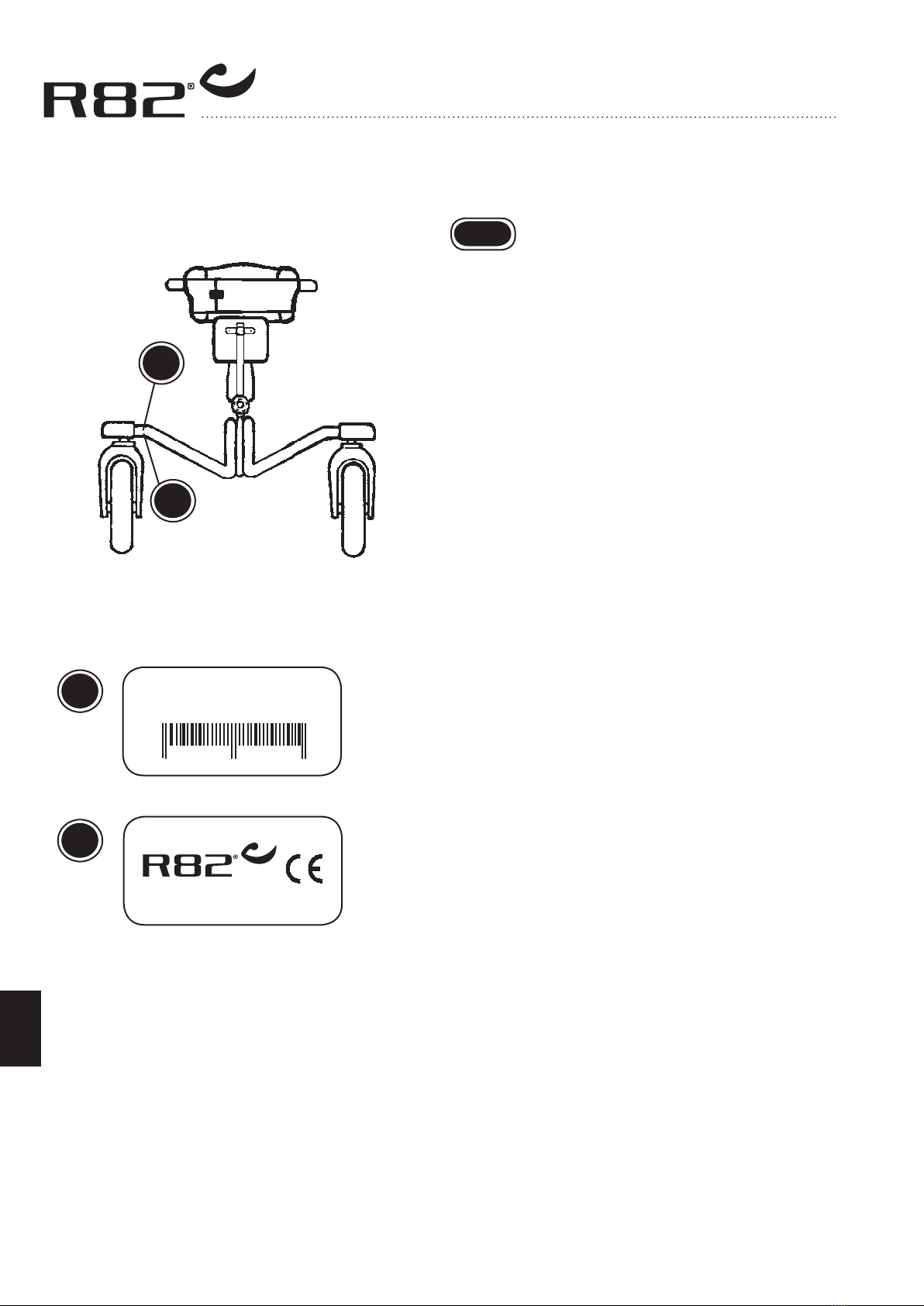

GB produCt
identifiCation
A) Serial number
The label is placed just next to the left rear
wheel.
B) Manufacturer
The label is placed just next to the left rear
wheel.

15
G
B
GB MeasureMents
Size 0 Size 1 Size 2
cm (inch) cm (inch) cm (inch)
Length (L) 95 (37") 107 (41¾") 125 (28¾")
Width (W) 59 (23") 66 (25¾") 73 (28½")
Height (H) 54-66 (21-25¾") 58-81 (22½-31½") 70-103 (27¼-40¼")
Seat height (SH) 27-37 (10½-14½") 33-51 (12¾-20") 43-61 (16¾-23¾")
Angle frequency (A) 17° 17° 17°
Weight 12,5 kg (27,5 lb) 13,5 kg (30 lb) 15,5 kg (34 lb)
Max load 30 kg (66 lb) 40 kg (88 lb) 50 kg (110 lb)
A
SH
L W
H

16
G
B
GB
GB
teChniCal data
Frame: Chrome or powder lacquered steel
Upholstery: PUR (Polyurethane foam)
produCer
R82 A/S
Parallelvej 3
8751 Gedved
Denmark
distriButor
GB
Please find your distributor on www.r82.com
