R82 Gator User manual

gator
06.2011
TM
© 2008 R82 A/S. All rights reserved.
The R82 logo and the walking aid Gator are registered trademarks of R82 A/S.
English user manual
G
B

2
G
B
CONTENTS
Gator.................................................................................. 3
Safety ................................................................................ 4
Warranty ............................................................................ 4
Tools .................................................................................. 4
Maintenance ...................................................................... 4
Gator.................................................................................. 5
Handle rotation .................................................................. 5
Anti-reverse wheel stop ..................................................... 6
Directional Stabilizers ........................................................ 6
Locking lever ..................................................................... 7
Locking ring ....................................................................... 7
Forearm support ................................................................ 8
Forearm support depth adjustment ................................... 8
Pelvic pad .......................................................................... 9
Back prompt .................................................................... 10
Lateral pads ..................................................................... 11
Strap for lateral pads ....................................................... 11
Pelvic strap ..................................................................... 12
Anti-tip device .................................................................. 13
Ankle prompts.................................................................. 14
Sling seat ......................................................................... 14
Product identification ....................................................... 15
Technical data.................................................................. 16
Producer .......................................................................... 16
Distributor ........................................................................ 16
GB

3
G
B
GATOR
Congratulations on choosing the Gator form R82. We feel confident, that this
product will meet and exceed your expectations.
The Gator is an indoor device, designed for children from approximately 18 months
to 6 years of age.
In this user manual we will describe and illustrate the most important working
actions of the Gator, in order to insure your benefit from the Gator.
GB

4
G
B
GB
GB
GB
GB SAFETY
The Gator har earned the CE-mark. This certifies that it meets all relevant
European safety requirements. The durability of this product is 5 years when
it is used on a daily basis. Hereafter the product must be renovated (by R82
personnel) to extend the lifetime.
Remove the CE-mark, when rebuilding the product or when using other than
original R82 spare parts.
Never leave your child unattended in this product. Ensure constant supervision
by an adult. Incorrect use of the product, may cause serious injury to the user.
Ensure that the belt is securely fixed to the frame product every use.
WARRANTY
R82 offers a 2-year warranty against defects in workmanship and
materials. The warranty would be adversely affected if the customer’s
responsibility of servicing and/or daily maintenance is not carried out
according to the guidelines and intervals prescribed by the supplier and/
or stated in the manual. For further information, we refer to the R82
homepage/download. The warranty can only be sustained if the R82
product is in use in the same country where it was purchased and if
the product can be identified by the serial number. The warranty does
not cover accidental damage, including damage caused by misuse or
neglect. The warranty does not extend to non-durable parts, which are
subject to normal wear and tear and need periodic replacement. The
warranty is null and void if non-original R82 parts/accessories are used,
or if the product is repaired or altered by anyone other than an autho-
rised R82 representative or by trained personnel officially recognised
by R82 for repair and maintenance of R82 products. R82 reserves the
right to inspect the product being claimed for and the relevant docu-
mentation before agreeing to the warranty claim, and to decide upon
whether to replace or repair the defective product. It is the customer’s
responsibility to return the item being claimed for under warranty to the
address of purchase. The warranty is given by R82 or, subsequently,
an R82 dealer.
MAINTENANCE
To clean the frame and tires on Gator use a common household cleaner.
Do not use a steam cleaner.
TOOLS
Along with your Gator you receive two Allen keys (6 mm + 3/16 inch.), the
use of the key is described in the next pages of this user manual.

5
12
5
4
3
A
B
G
B

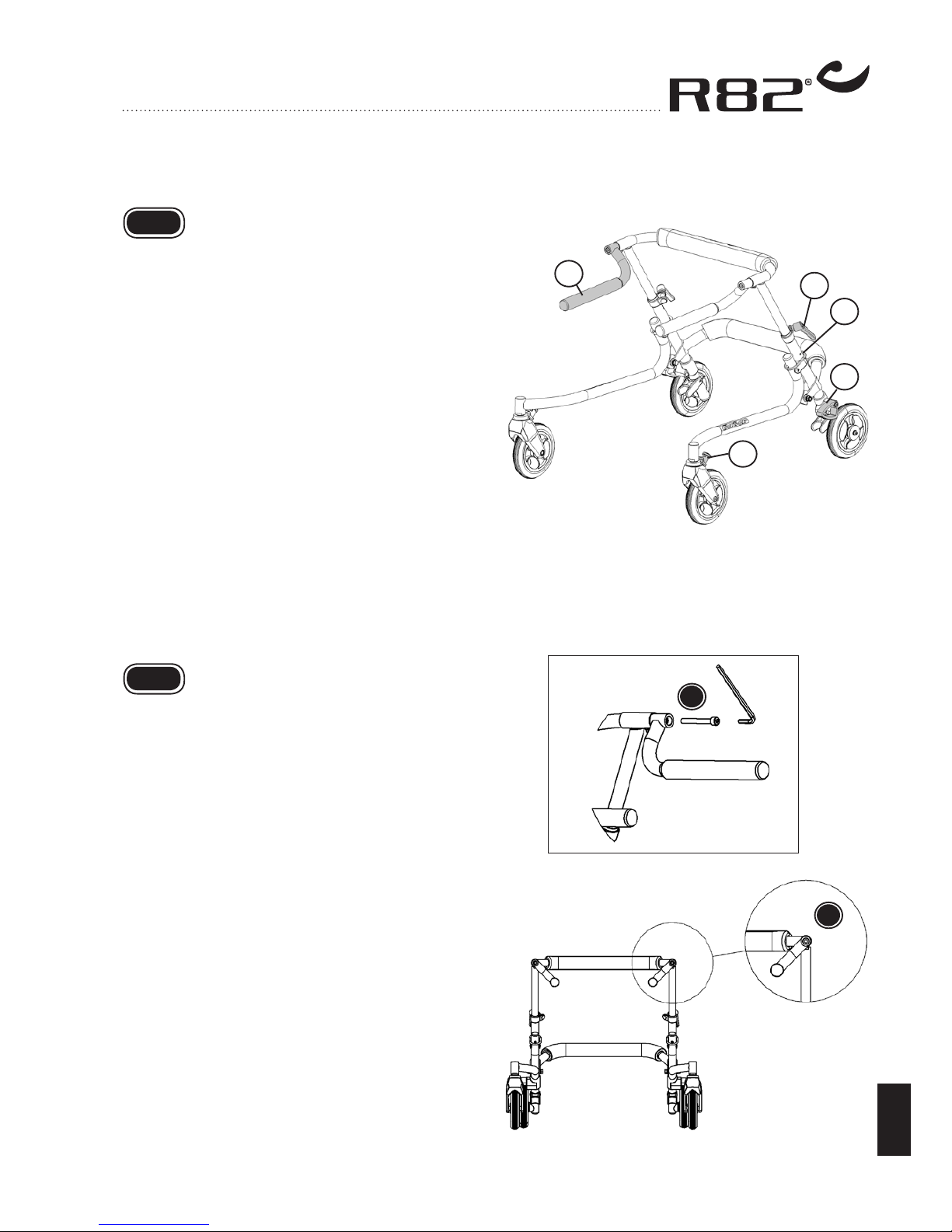

GATOR
1) Handle Rotation
2) Handle Height Locking Lever
3) Locking Ring
4) Anti-Reverse System
5) Caster Directional Lock
GB
HANDLE ROTATION
1) Loosen socket head cap screw, using sup-
plied 6 mm Allen key (A)
3) Rotate handle (B)
4) Retighten very securely
GB

6
A
B
C
D
A
B
G
B

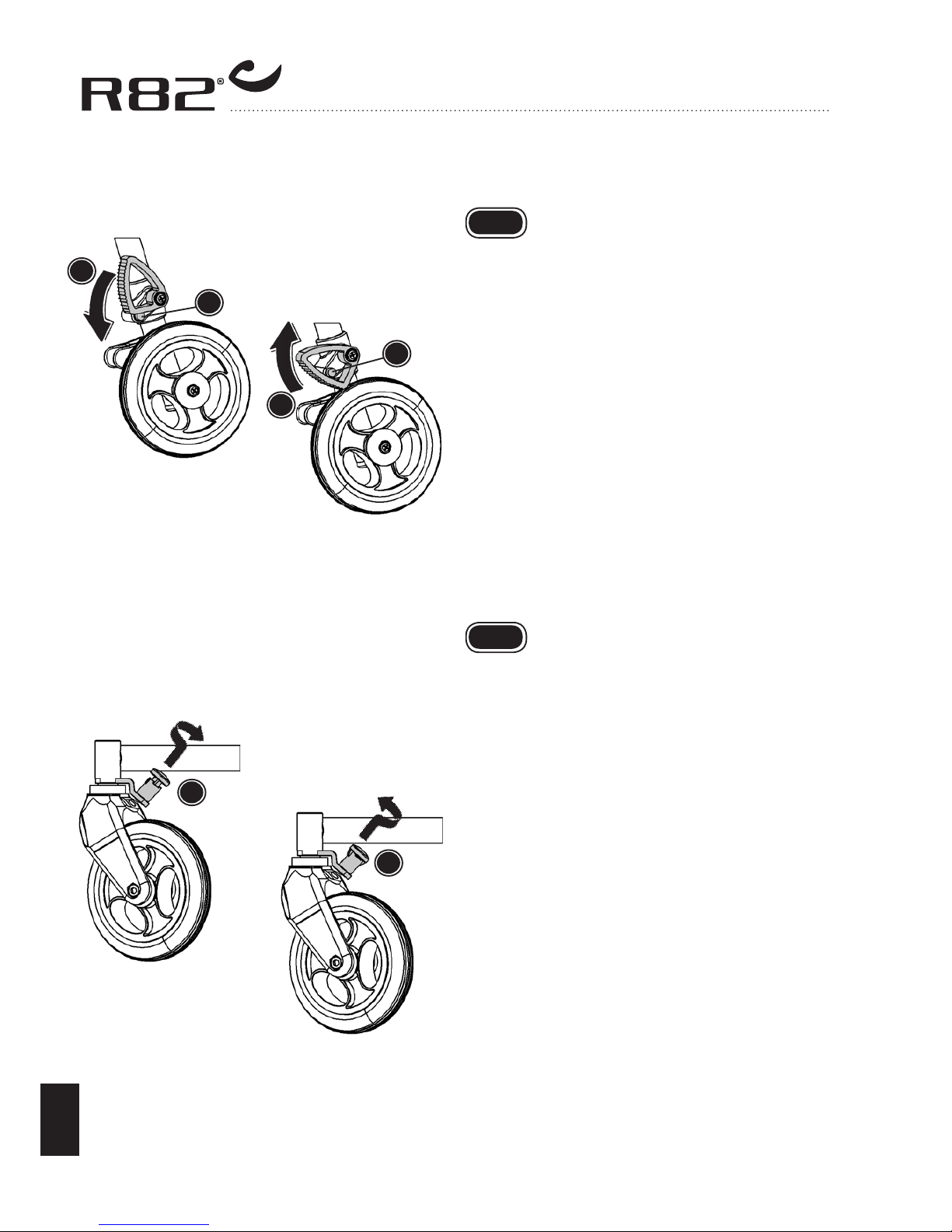

ANTI-REVERSE
WHEEL STOP
To activate:
Press the security pin (A) and flip down the anti-
reverse wheel stop (B). The anti-reverse wheel
stop is now engaged.
To deactivate:
Press the security pin (C) and flip up the anti-
reverse wheel stop (D). When the securety pin
clicks out the wheel stop is activated.
DIRECTIONAL
STABILIZERS
The directional stabilizers lock the front wheels
in a forward facing direction.
1) To activate the directional stabilizers pull the
button, turn it clockwise and release it so it
engages in the slot (A).
The button should then appear as shown.
This locks the front wheels in a forward facing
position only.
2) To deactivate the directional stabilizers pull
the button, turn it counter-clockwise so it no
longer fits into the slot, and release it (B).
The button should then appear as shown.
This allows the front wheels to turn in any
direction.
GB
GB

7
A
G
B
LOCKING LEVER
Handle Height Locking Lever
To change lever direction pull lever towards ar-
row and rotate (A).
LOCKING RING
The ring must be secure over both tubes before
the Gator is used. Lift the ring from leg tube
before folding.
GB
GB

8
A
D
C
B
G
B
FOREARM
SUPPORT DEPTH
ADJUSTMENT
1) Remove foam cover
2) Remove two Phillips head screws
3) Move plastic forearm trough until the holes
line up at the required depth. NB! Please note
the plastic forearm support can be turned 180
degrees for a total of four different settings.
4) Replace screws
5) Replace foam cover
GB
FOREARM
SUPPORT
1) Remove existing grip (A)
2) Clamp forearm support assembly to rotational
handle (B)
3) Adjust rotation and height (C). Clamp securely
using the supplied 3/16“ Allen key.
4) Adjust grip angle using 6 mm Allen key
through cap hole (D)
GB

9
A
B
C
G
B
PELVIC PAD
1) Remove one piece cover (A)
2) Split foam tube apart (B)
3) Attach receiver with clamps as shown (C)
4) Cover foam with split covers
5) Insert square backrest post into receiver and
tighten all knobs and fasteners
GB

10
A
B
G
B

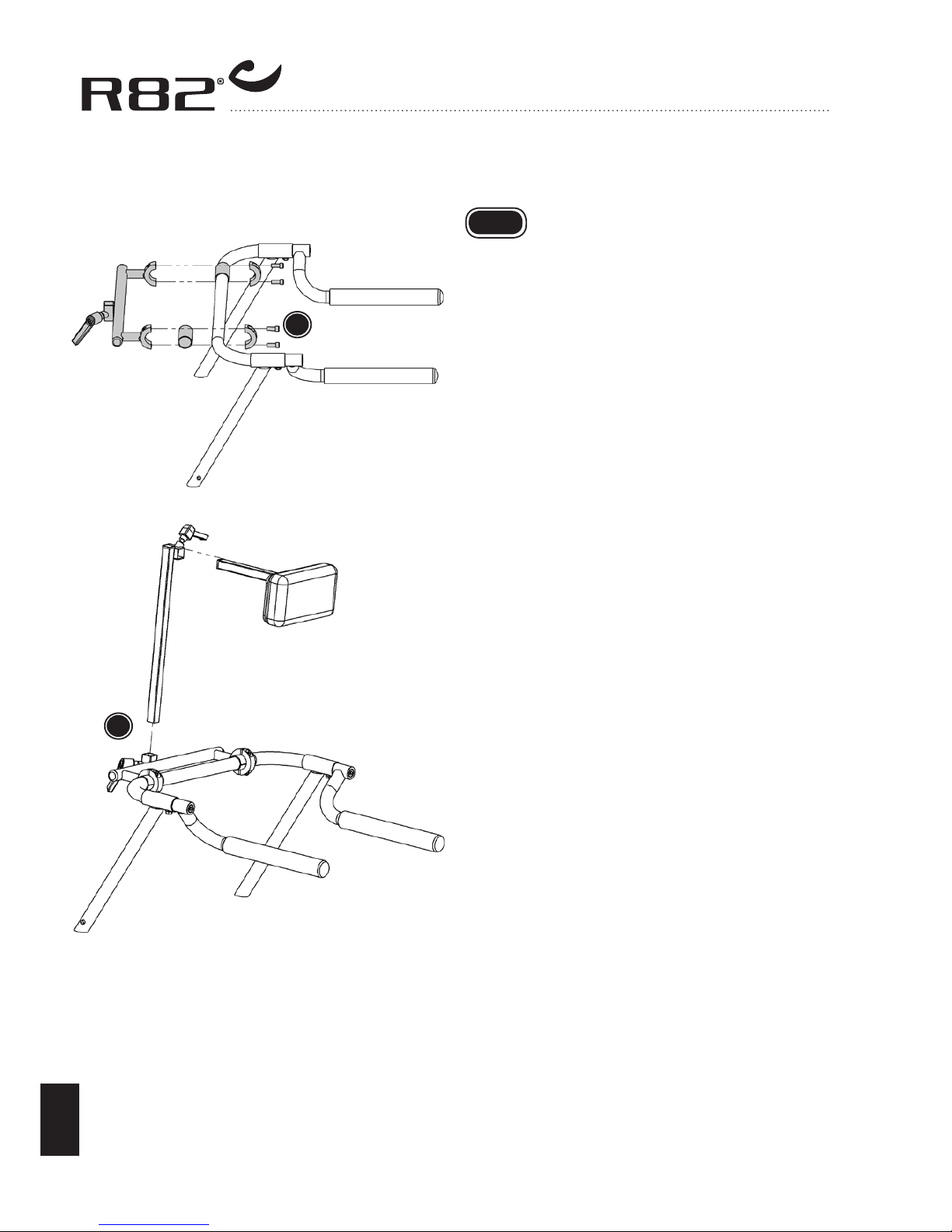

BACK PROMPT
1) Install back prompt mount to the Gator handle
bar as shown (A). Make sure to include pla-
stic spacers to avoid slipping.
2) Install back prompt as shown (B)
GB

11
A
B
A
B
A
G
B

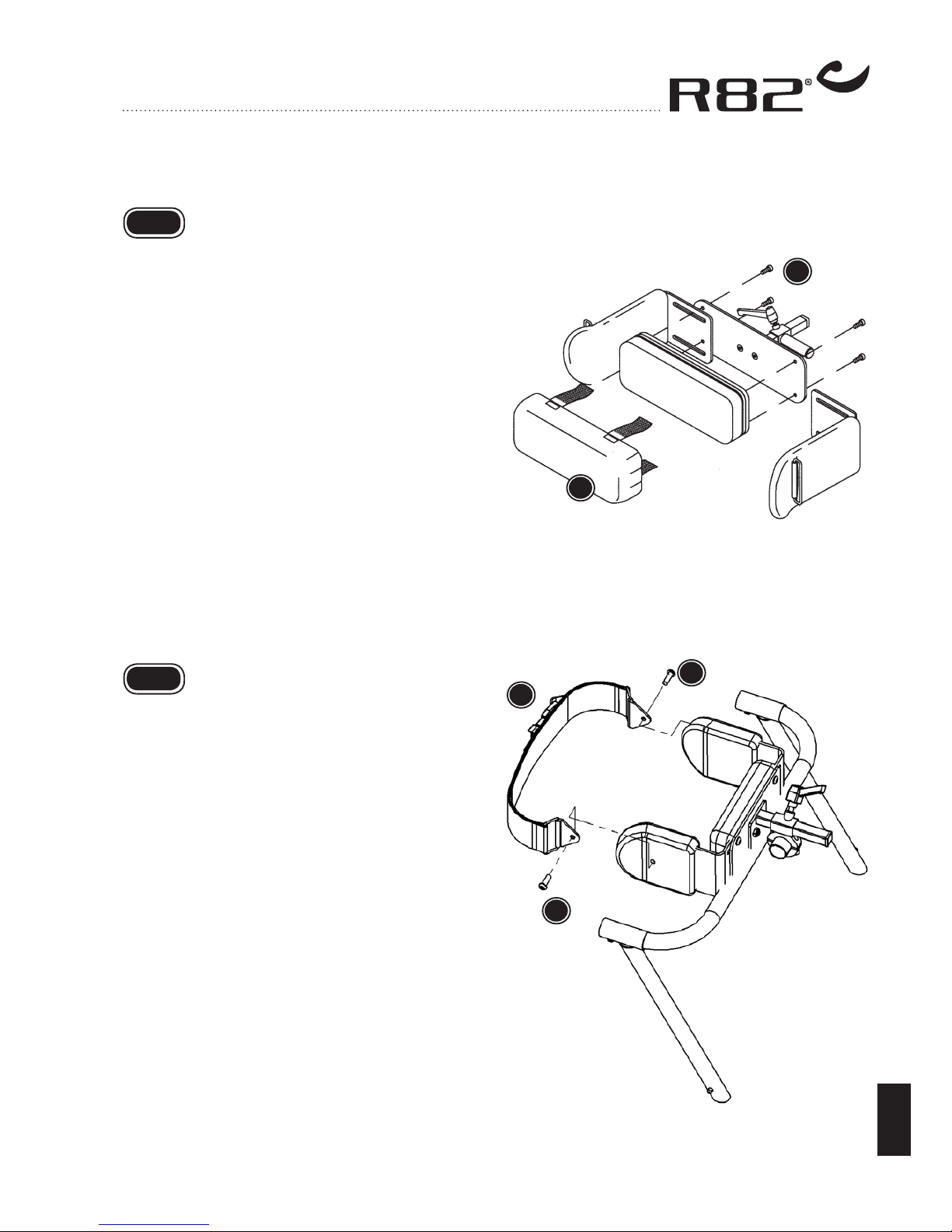

LATERAL PADS
1) Remove cover (A)
2) Remove the Allen screws using supplied 3/16“
Allen key (B)
3) Thread cap screws through aluminum
mounting plate and side pad slots into foam
backing plate t-nuts
4) Adjust the side pad width and tighten secu-
rely
GB
STRAP FOR
LATERAL PADS
1) Attach strap (B) with machine screws (A).
GB

12
A
G
B

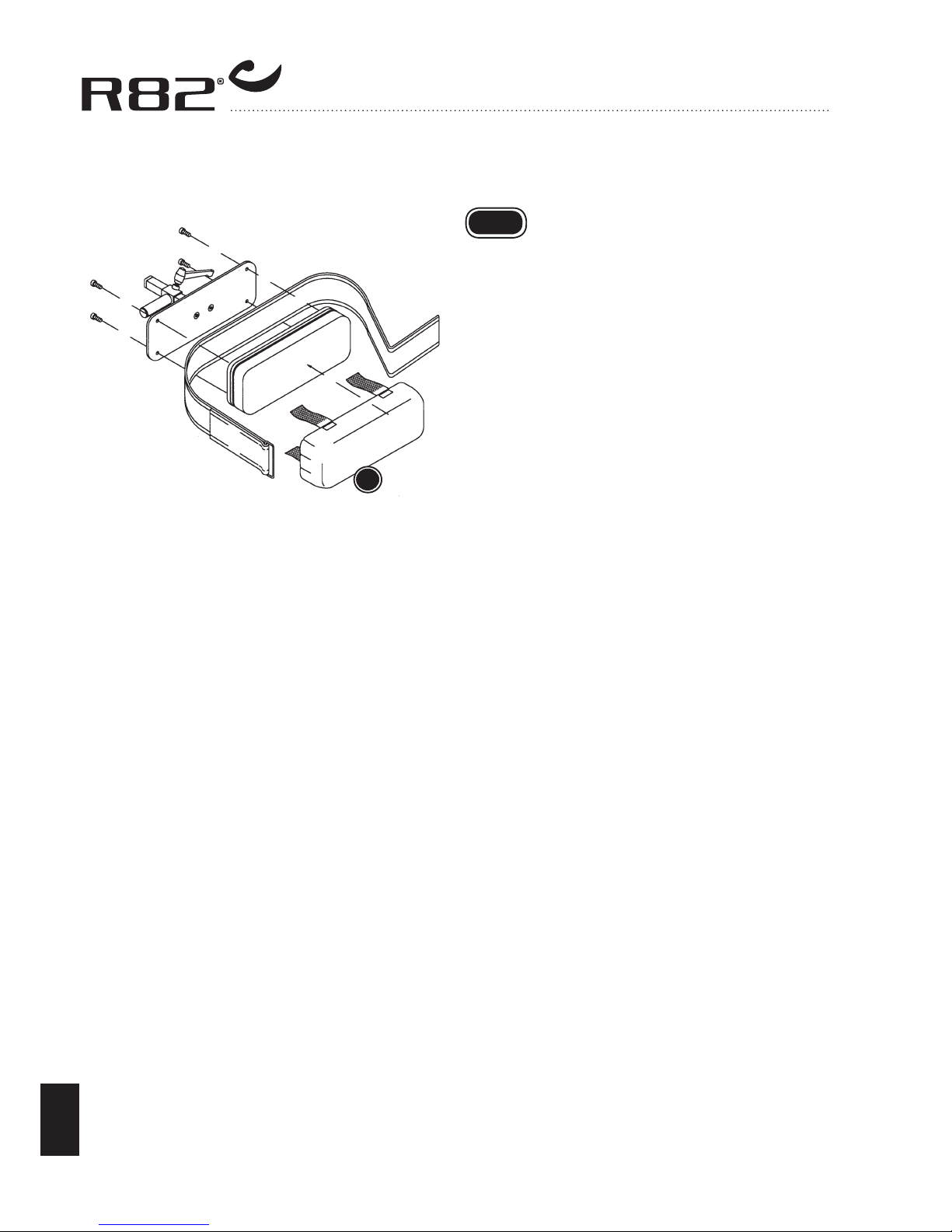

PELVIC STRAP
1) Remove cover (A)
2) Remove Allen screws using supplied 3/16“
Allen key
3) Sandwich the supplied belt between the alu-
minum mounting pad and the foam backing
plate
4) Thread fasteners through aluminum mounting
pad into foam backing plate t-nuts
5) Tighten evenly and securely
GB

13
G
B
ANTI-TIP DEVICE
1) Secure anti-tips as shown. N.B.! The wheels
should be positioned 6 mm to 13 mm above
the floor. The wheels must be positioned
parallel to the rear wheels as shown.
GB

14
A
B
C
G
B
ANKLE PROMPTS
1) The ankle prompts can be mounted over or
under the leg as shown.
Secure the ankles with the supplied hook
& loop straps.
GB
SLING SEAT
1) Attach front clamps to handles as shown
(A).
2) Attach rear clamps to back prompt mount as
shown (B).
3) Clip seat to forward straps as shown (C).
Ensure sling seat is securely mounted and
buckled prior to use and do not leave child
unattended when using the sling seat.
GB

15
A
B
Dato: 31-01-02 Belast: kg
SN: 0840-01-111878-001
Varenr: 880003
5707292 134158
Parallelvej 3
DK-8751 Gedved
A
B
G
B
PRODUCT
IDENTIFICATION
A) Serial number
The label is placed below the padding on the
lower through-going bar.
B) Producer
The label is placed just above the left rear
wheel.
GB

16
G
B
TECHNICAL DATA
cm (inch)
Maximum user height 114,5 (44½")
Maximum load 32 kg (70,4 lb)
Weight of unit 7,5 kg (16,5 lb)
Frame width 46 (18")
Handle width (min/max) 29-46 (11¼-18")
Handle height (min/max) 34-66 (13¼-25¾")
PRODUCER
R82 A/S
Parallelvej 3
8751 Gedved
GB
GB
DISTRIBUTOR
GB
Please find your distributor on www.R82.com
