R82 SWAN User manual

TM
English user manual
G
B
G
B
swan
© 2009 R82 A/S. All rights reserved.
The R82 logo and the bathing chair Swan are registered trademarks of R82 A/S.
07.2016 - rev.4

G
B
G
B
GB CONTENTS
Safety ................................................................................ 4
Warranty ............................................................................ 4
Washing............................................................................. 4
Tools .................................................................................. 4
Maintenance...................................................................... 5
Preparing for use............................................................... 5
Height Adjustment ............................................................. 6
Seat angling....................................................................... 6
Mounting wheels................................................................ 7
Disassembling the wheels................................................. 7
Headrest............................................................................ 8
Mounting various belts....................................................... 8
Mounting the upholstery .................................................... 9
Splash guard ................................................................... 10
Mounting the pan............................................................. 10
Footrest ........................................................................... 10

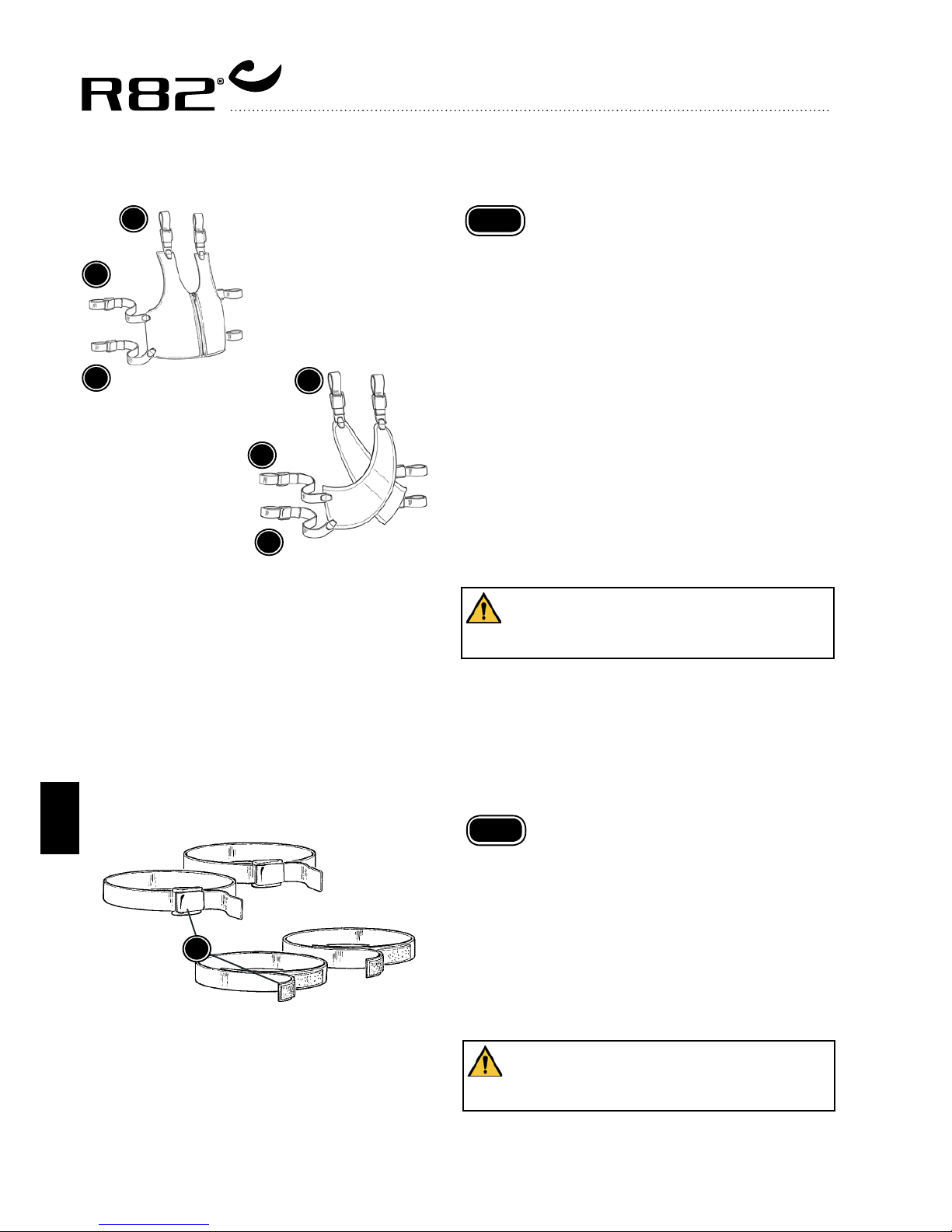

Vest and crossvest .......................................................... 12
Foot straps....................................................................... 12
Hip belt ............................................................................ 13
H-belt............................................................................... 13

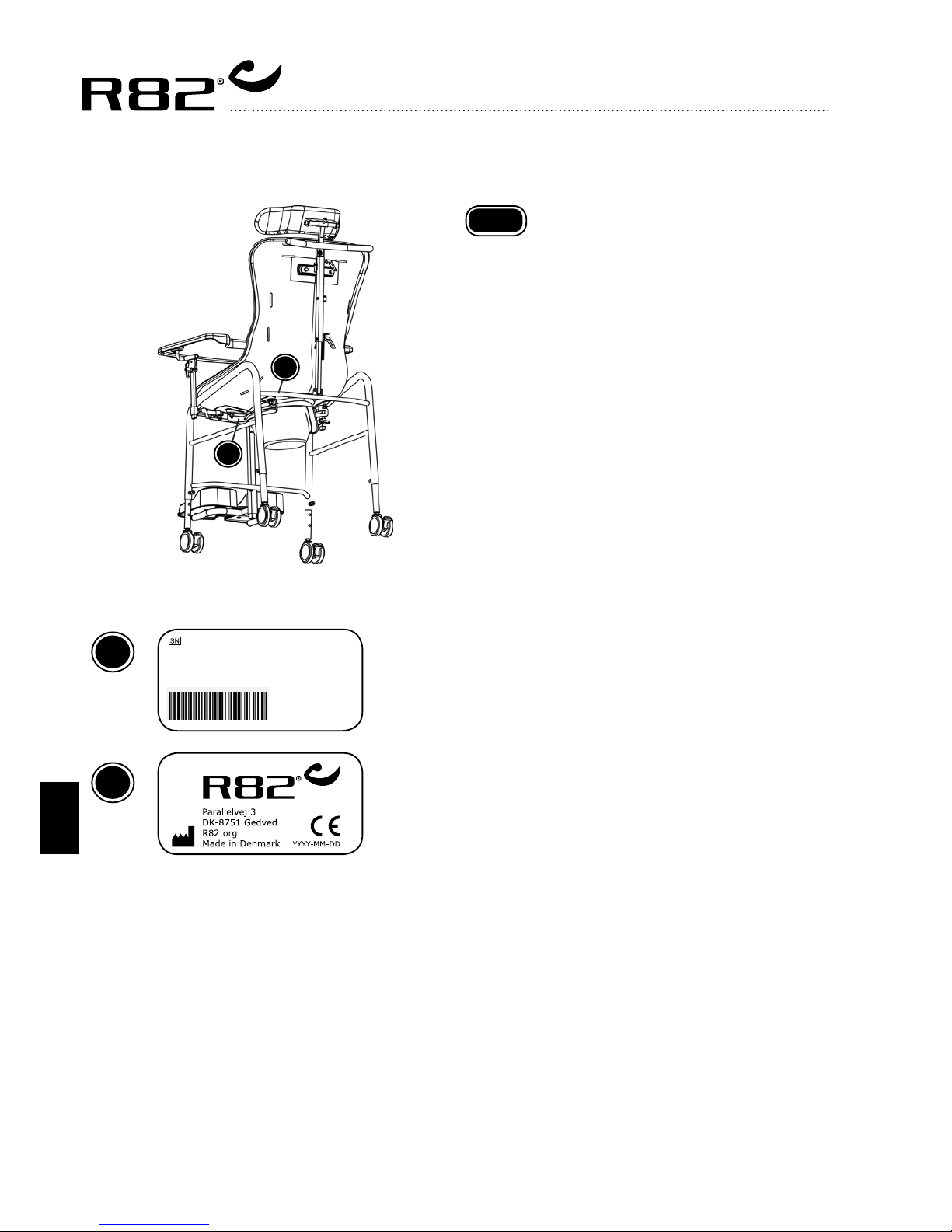

Product identification ....................................................... 14
Measurements................................................................. 15
Technical data.................................................................. 16
Producer.......................................................................... 16
Distributor ........................................................................ 16
2

G
B
G
B

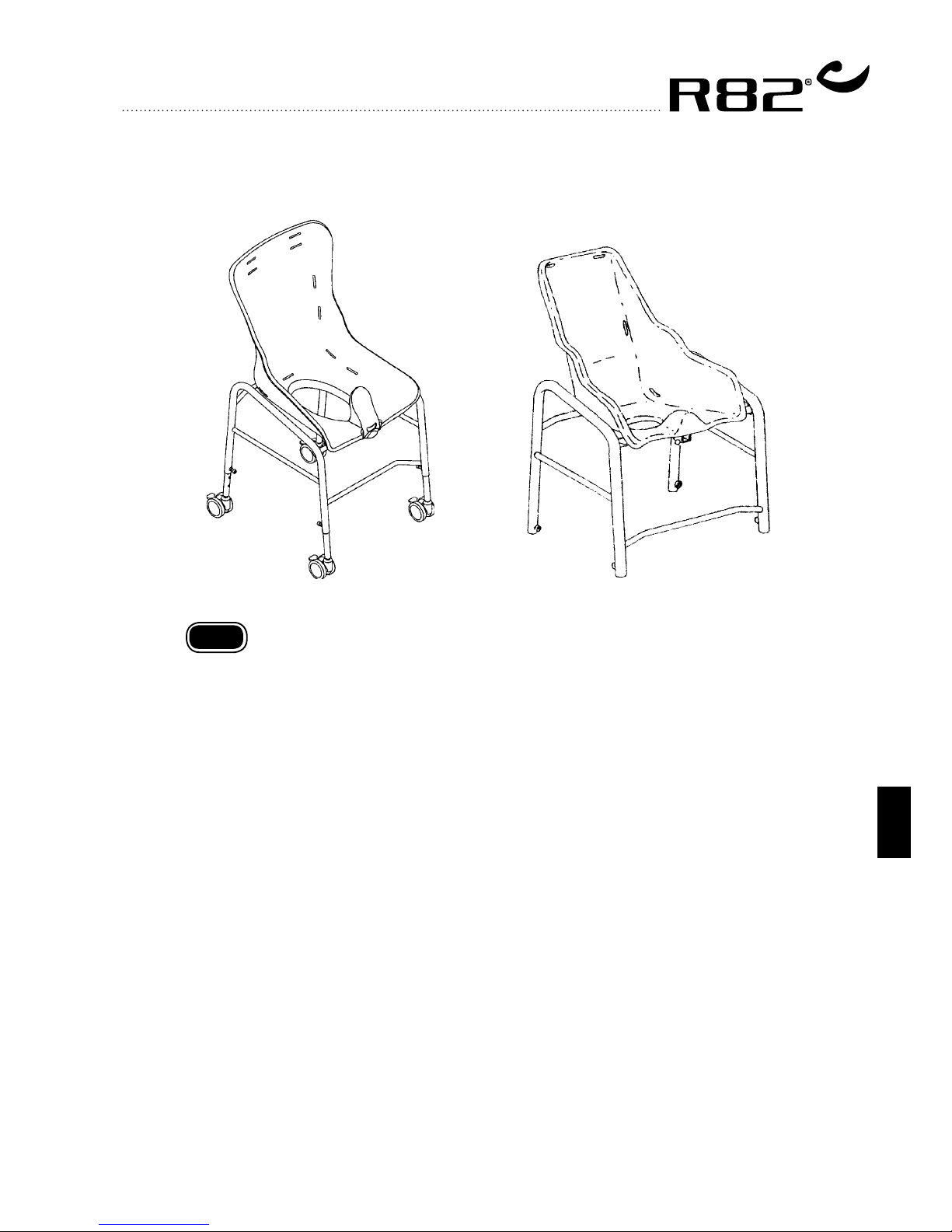

SWAN
The Swan is a classic commode from R82. The seat is made of fibre glass and the
frame of powdercoated and stainless steel respectively, which means the Swan
is also splendid as a bathing chair.
The Swan has been especially developed by R82 after many years of experience
designing and manufacturing custom-made aids for disabled children and adults.
The ergonomic design of the chair and its many functions and features offer the
user and the caregiver the highest possible standards of comfort and safety.
The Swan glides over most toilets, or it can be equipped with a commode pan.
The Swan is available in 6 different sizes with an extensive range of accessories.
The seat tilts 45° and the legs are height adjustable so that the seat can be adjusted
17 cm in height.
GB
3

G
B
G
B
SAFETY
The Swan has earned the CE-mark. This certifies that it meets all relevant European
safety requirements.
The durability of this product is 5 years when it is used on a daily basis. Hereafter
the product must be renovated (by R82 personnel) to extend the lifetime.
Remove the CE-mark, when rebuilding the product or when using other than
original R82 spare parts and fittings.
Never leave your child unattended in this product. Ensure constant supervi-
sion by an adult. Incorrect use of the product, may cause serious injury to the
user. Ensure that the belt is securely fixed to the product before every use.
The chair is constructed for one user only. Do not place more than one user
in the chair.
The latest version of the manual is always available online: www.R82.com
GB
WARRANTY
R82 offers a 2-year warranty against defects in workmanship and materials. The
warranty would be adversely affected if the customer’s responsibility of servicing
and/or daily maintenance is not carried out according to the guidelines and intervals
prescribed by the supplier and/or stated in the manual. For further information, we
refer to the R82 homepage/download. The warranty can only be sustained if the R82
product is in use in the same country where it was purchased and if the product can
be identified by the serial number. The warranty does not cover accidental damage,
including damage caused by misuse or neglect. The warranty does not extend to
non-durable parts, which are subject to normal wear and tear and need periodic
replacement. The warranty is null and void if non-original R82 parts/accessories
are used, or if the product is repaired or altered by anyone other than an authorised
R82 representative or by trained personnel officially recognised by R82 for repair
and maintenance of R82 products. R82 reserves the right to inspect the product
being claimed for and the relevant documentation before agreeing to the warranty
claim, and to decide upon whether to replace or repair the defective product. It is the
customer’s responsibility to return the item being claimed for under warranty to the
address of purchase. The warranty is given by R82 or, subsequently, an R82 dealer.
GB
GB
GB
WASHING
It is important to keep the frame clean to maintain the warranty of the chair. The
upholstery is washable at 60° in a washing machine - min. 9kg machine.
TOOLS
On the back of the chair you will find a 6 mm Allen key. This key is used to perform
some of the adjustments described in this manual.
4

G
B
G
B
GB
Size 2+3
Size 4+5+6+7

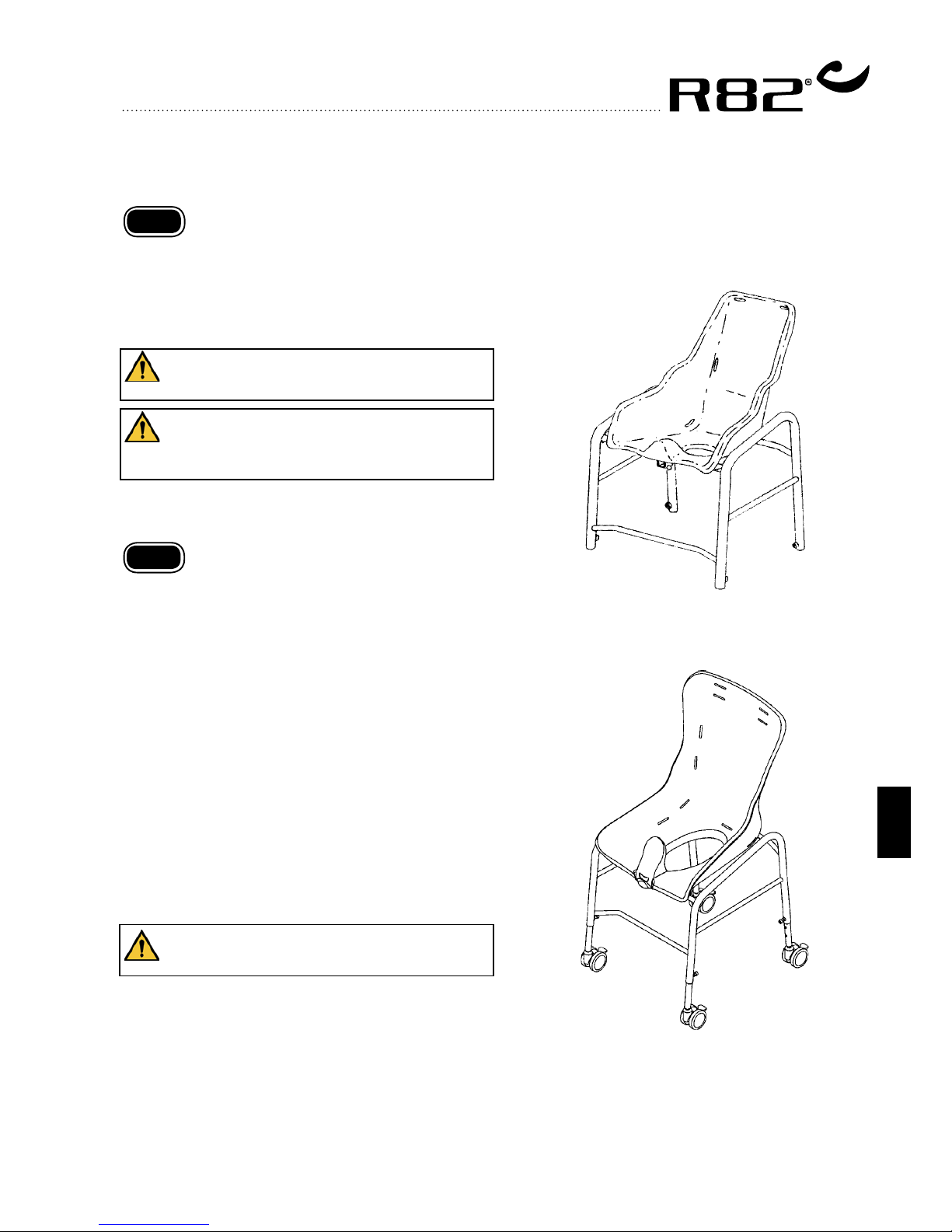

PREPARING FOR
USE
Follow the instructions below to ready your Swan
for use:
1) Remove the wrapping and wipe the chair with
a cloth before use.
2) Remove the wooden bar on the back of the
frame, which protect the chair during trans-
portation.
Follow the instructions on the next pages to
adjust the chair and accessories.
The Swan is ready for use.
Do not use any cleaning materials contai-
ning chlorine or methylated spirit.
MAINTENANCE
Clean the chair frequently. Use a concentrate
of acetic acid if calcareous deposits turn into
a problem. Rinse off after 10-15 minutes with
clean water.
Do not use any cleaning materials contain-
ing chlorine or methylated spirit.
Adjustments which are not described in this
manual, must only be made by authorized
R82 personnel.
GB
5

A
A
B
C
√
G
B
G
B
GB
GB

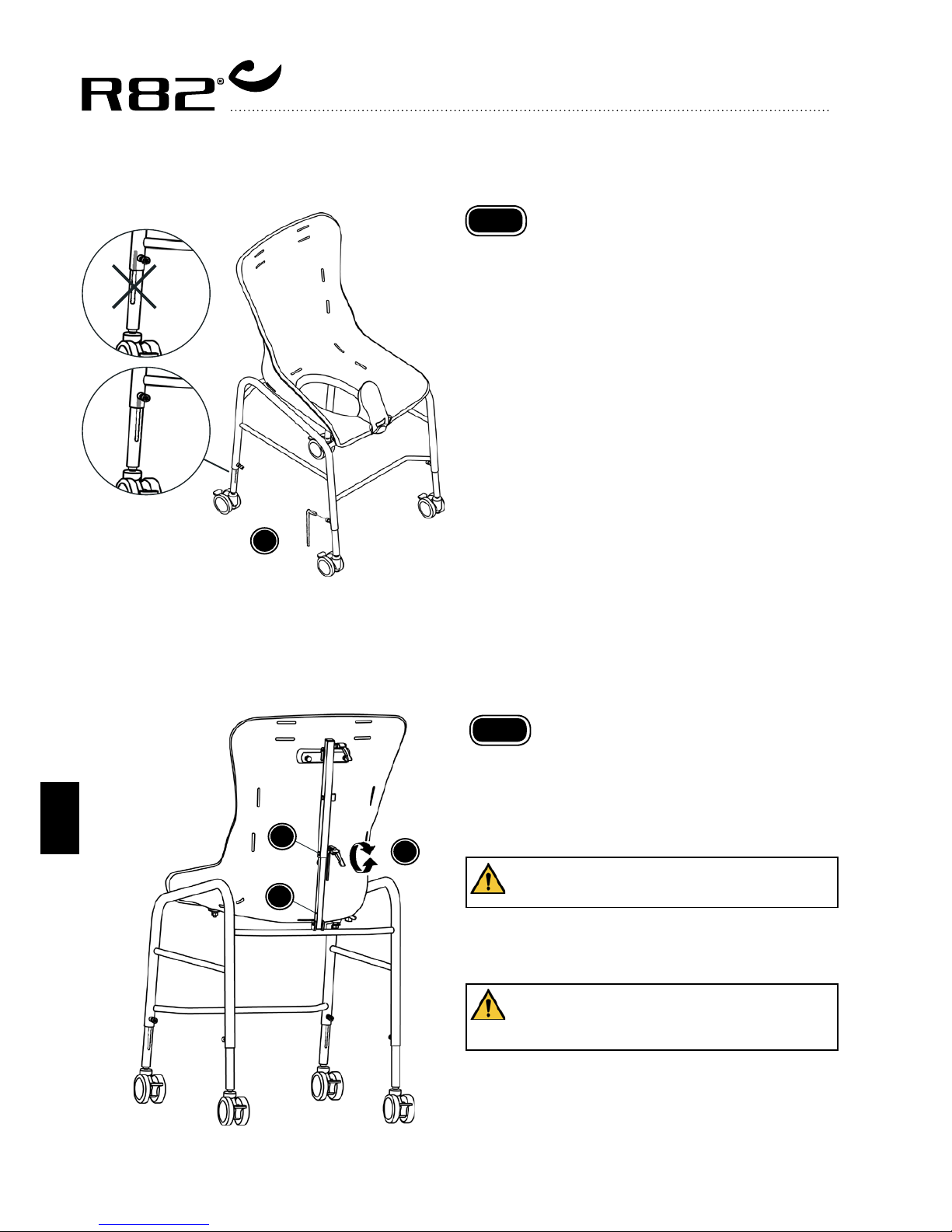

HEIGHT
ADJUSTMENT
1) Start by loosening all screws (A). Remove the
screws. Left rear wheel and both front wheels
are to be adjusted to the holes in the internal
rod.
2) Tighten the screws when the desired height
is reached.
3) The right rear wheel is for adjustment and
to avoid rocking. Adjust the fourth leg so the
chair is at the right plane.
SEAT ANGLING
1) Loosen the locking handle (A)
2) Push the spring clip (B), and carefully tilt the
seat unit.
Do not tilt the seat unit further back than
the lower spring clip (C).
3) Tighten the handle (A), when the seat unit is
in the required position
Always make sure you have a grip off the
seatback, before loosening the tightening
handle.
6

A
B
A
B
G
B
G
B

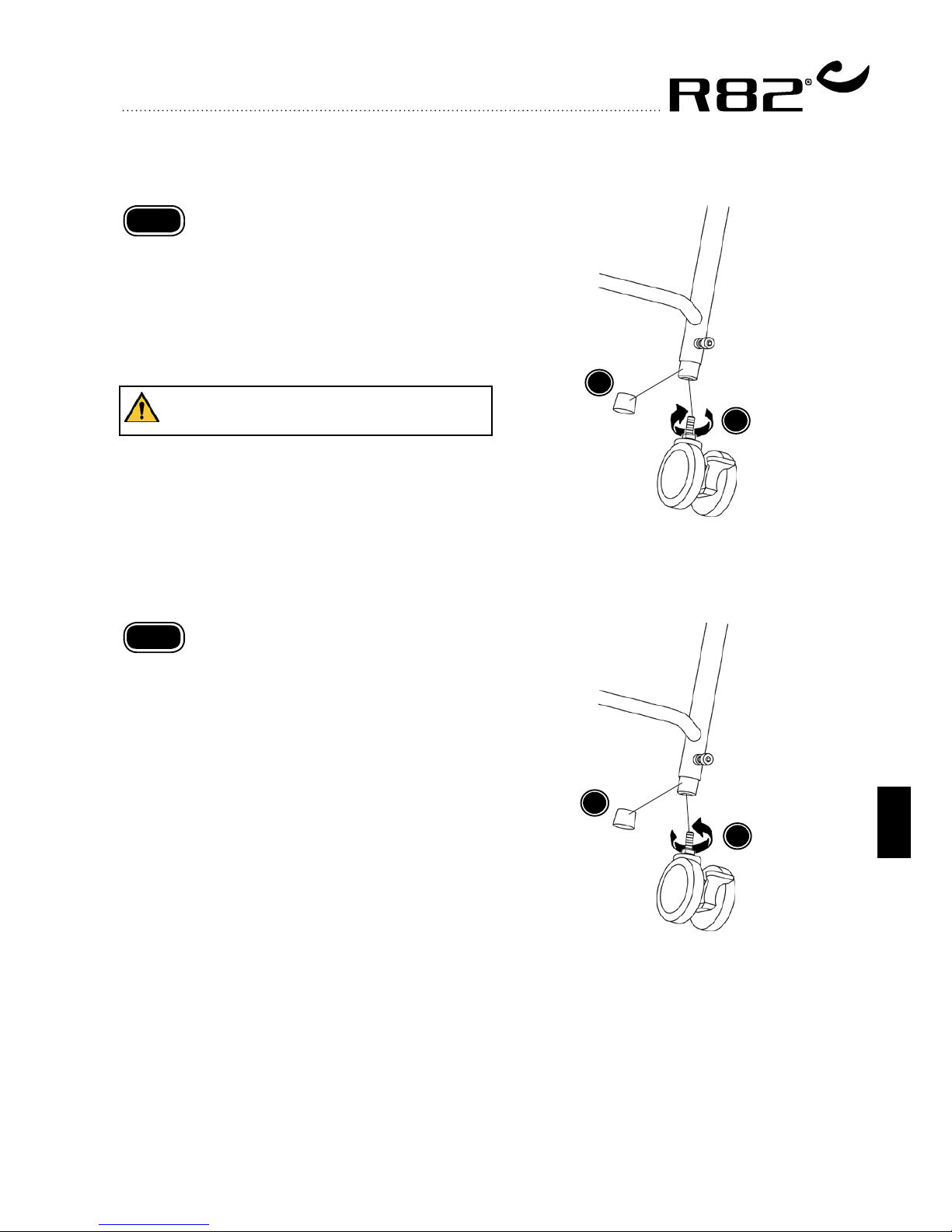

GB MOUNTING
WHEELS
1) Remove the ferrules (A)
2) Screw on the wheels (B) and tighten with a
13 mm spanner.
For information on adjusting the height, see
passage on ‘Height adjustment’
GB DISASSEMBLING
THE WHEELS
Follow the instructions below to disassemble the
wheels on swan:
1) Loosen the screws (A) with a 13 mm span-
ner.
2) Mount ferrules (B) at the end of the legs.
7

A
C
A
B
B
G
B
G
B
GB HEADREST
1) Loosen the tightening handle (A) and place the
headrest in the white fitting. Tighten the handle
when the requested height is reached.
2) Loosen the screw (B) to adjust the headrest
from side to side.
Push handle
1) Loosen the tightening handle (A) and place
the push handle in the white fitting. Tighten the
handle when the requested height is reached.
If both headrest and push handle is required,
the push handle is mounted on the headrest bar.
Mount the heard rest as mentioned above. The
extra bar is not needed.
MOUNTING
VARIOUS BELTS
1) Mount the shoulder straps (A) in the slots in
the back, according to the height of the child.
Attach behind the seat with the snap lock.
2) Mount the hip straps (B) in the slots in the
seat, and attach behind the seat with the snap
lock.
3) The belts can be adjusted by means of the
snap lock.
If upholstery is mounted, please cut through
welding line to mount the vest or belt.
Take care that all the fixations and adjust-
ments are placed and fitted correctly and
check it on a regular basis.
GB
8

B
A
G
B
G
B
MOUNTING THE
UPHOLSTERY
To mount the upholstery correctly, follow below
instructions.
Swan size 1+2+3:
1) Place the upholstery in the chair and lead the
Velcro straps through the slots in the seat.
2) Velcro the straps together behind the seat. (A)
Swan 4+5+6+7:
1) Place the upholstery in the seat, and pull the
white strap through the slot in the seatback.
2) Use the white holder (B) to mount through the
strap and tighten.
We recommend that the upholstery is
frequently cleaned with normal cleaning
material. The upholstery is washable at 60° in
a washing machine - min. 9kg machine.
GB
9

A
B
G
B
G
B
SPLASH GUARD
Only for size 4+5+6+7
To mount the splash guard just push it down
until it locks.
To remove the splash guard pull out the front
edge and lift.
MOUNTING THE
PAN
The pan is mounted from the back of the chair.
GB
GB
FOOTREST
Follow the instrucions below to mount the foot-
rest correctly:
1) Loosen the screw (A). Place the horizontal
part of the footrest bar into the fitting under
the seat.
2) Tighten the screw (A)
3) Loosen the screw (B) on the footplate and
mount the footplate from below. Tighten the
screw when the required height is reached.
GB
10
