Radio Shack Vektor Drone User manual

© 2015 RadioShack Corporation.
All rights reserved. RadioShack is a registered trademark used by RadioShack Corporation.
04A15
6001357, 6001376
Printed in China
Vektor Drone
Install Batteries in the Remote
Control
1. On the remote control, set the ON/OFF switch to OFF.
2. Use a screwdriver to open the battery compartment.
3. Insert two AAA batteries (not included), matching
the polarities (+and –) marked inside. Use alkaline
batteries for optimal performance. Replace the cover.
Note: If the remote control’s LED ashes during use, the
batteries are low and should be replaced.
Age 12+
Get Ready to Fly
1. Turn on the drone. The LED ashes green.
2. Place the drone on level ground.
3. Turn on the remote control. The remote control's LED ashes.
4. Move the throttle all the way up and then down to pair the remote control with the drone.
The drone’s blades remain still during pairing. When paired, the LEDs on both the remote
control and drone light steadily.
Note: If pairing fails, turn o the drone and remote control and repeat the steps above, or change
locations to avoid electrical interference.
Fly Your Drone
1. After pairing, push the steering control in to switch between high speed (double beep) and low
speed (single beep).
2. With the drone on the ground, move the throttle forward to ascend. To avoid ground air
turbulence, y the drone at least 1 ft. (30cm) o the ground.
For advanced users: Hold the remote control with one hand, resting your thumb on the throttle.
Throw the drone about 9 ft. (3m) away from you, and move the throttle forward to y. The drone
adjusts itself automatically and ies smoothly.
IMPORTANT: If your drone crashes upside down, pull the throttle down and switch o the remote
control rst. Never touch the drone when blades are still moving.
We hope you enjoy your Vektor Drone from
RadioShack. Please read this user’s guide before
setting up and using your drone.
What’s Included
• Vektor Drone • Remote Control
• USB Charging Cable • Spare Blades (4)
• 3.7V Drone Battery • User’s Guide
Charge the Drone
Your drone uses a built-in lithium polymer battery for power.
1. Use the USB charging cable to connect the battery to a USB power
source (such as a laptop). The LED on the USB connector lights red
during charging, and turns o when charging is complete.
A full charge takes about 35 minutes. A fully charged battery
provides up to 4 minutes of ight time.
2. After charging, unplug the USB charging cable. Do not attempt to
overcharge the battery.
Caution: Use only the included USB charging cable to charge the
drone's battery. Using any other cable may damage the drone.

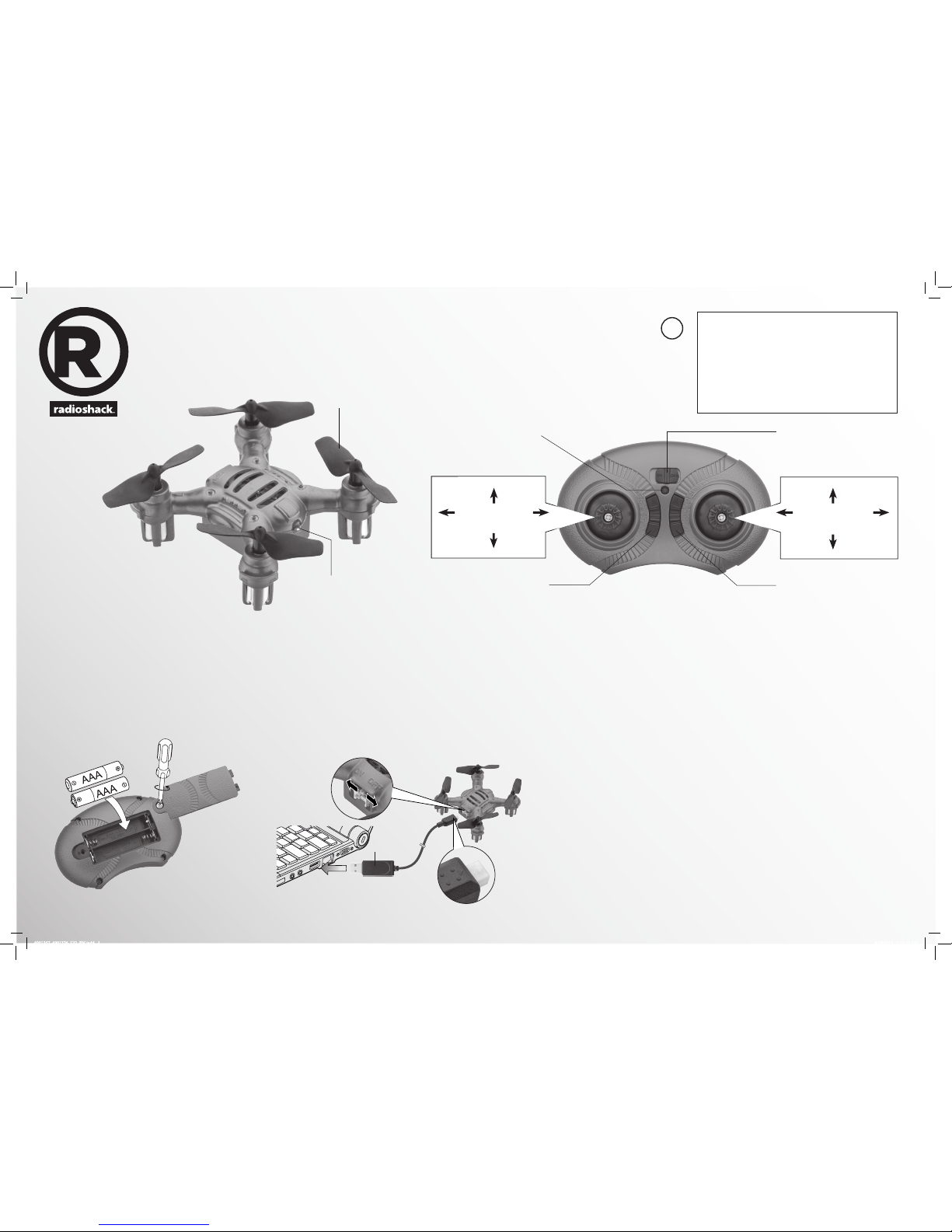

LED ON/OFF
LED
Arrow
side up
LED
Rotor Blades (4)
Left/Right Slide Trim
Forward/Reverse Movement Trim
Throttle Steering
Forward
Ascend
Backward
Descend
Slide rightTurn right Slide leftTurn left
Push
(Stunt mode)
Push
(High/low
speed)
BC
ON/OFF
6001357, 6001376_UG_EN.indd 1 4/29/2015 2:23:36 PM

Trim Your Drone
Move the throttle forward and see how the drone
reacts.
Forward/Reverse Movement Trim: If the drone
tends to move forward, press 6 ; if it tends to
move backward, press 5.
Left/Right Slide Trim: If the drone tends to slide
right, press 5; if it tends to slide left, press 6 .
Note: The remote control beeps when you press
a trim control but stops beeping when you reach
maximum trim adjustment.
Land Your Drone
1. Slowly move the throttle backward to descend.
Avoid moving the throttle too quickly, as it can
stop the blades instantly and cause the drone to
crash.
2. When you nish ying, turn o the remote control
and drone.
Perform Stunts
1. Push the throttle control in so that the remote
control beeps repeatedly, indicating the drone is in
stunt mode.
2. Use the steering control to perform stunts:
• Frontip: Move steering forward
• Backip: Move steering backward
• Barrel roll: Move steering right or left
3. The drone automatically exits stunt mode after
performing a stunt, or you can push in the throttle
control again to exit immediately.
IMPORTANT: Make sure there is enough space for the
drone to perform stunts without crashing into objects
or people.
Calibrate the Drone
If controlling the drone becomes dicult, use
the following steps to calibrate the drone.
1. Select an open location without strong
magnetic interference and place the drone
on level ground.
2. Turn on the drone and the remote control,
then pair the remote control with the
drone.
3. With the throttle all the way down, move
the steering control all the way up until the
drone's LED ashes rapidly.
4. When the drone's LED lights steadily, your
drone is calibrated and should y smoothly.
Fly Safely
• When ying outdoors, keep the drone away
from power lines, trees, weeds, and water.
• When ying indoors, keep the drone away
from walls, air conditioning, air vents, fans,
breakable objects, and other obstacles.
• Do not y the drone near or at other people
or animals.
• Keep eyes, hands, hair, and loose clothing
away from moving blades.
• Adult supervision is recommended at all
times.
CHOKING HAZARD! Small parts. Not for
children under 3 years.
Specications
Power ..............................................................................
Drone.........................................................................
........... 3.7V 100 mAh lithium polymer battery
Remote Control....................2 × AAA batteries
Remote Control........................4 channel, 2.4GHz
Control Distance ...................................65 ft. (20m)
Specications are subject to change and
improvement without notice. Actual product may
vary from the images found in this document.
Troubleshooting
Drone does not respond
• Make sure the drone and remote control are
switched on and paired. When paired, the
LEDs of the drone and remote control light
steadily.
• The drone battery may be low. Fully charge
the battery. See “Charge the Drone.“
• Remote control batteries may be low.
Replace the batteries.
• Make sure the drone is within the control
range (65 ft./20m) and in line of sight.
Dronediculttocontrol
• The blades may be deformed due to a
crash. Adjust deformed blades by hand. If
you cannot adjust them, replace with the
spare blades.
• The throttle control is very sensitive. Use
small, ne movements to control.
• If you are a beginner, set to low speed mode.
See “Fly Your Drone.“
Battery Notes
• Always let the drone battery cool before
recharging.
• Dispose of old batteries promptly and
properly. Do not burn or bury them. Use
only fresh batteries of the required size and
recommended type.
• Do not mix old and new batteries, dierent
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
dierent capacities.
• If you do not plan to use the drone for a
long period, remove the batteries from the
remote control. Batteries can leak chemicals
that can damage electronic parts.
Lithium Battery Notes
• Do not puncture or crush. Do not disassemble.
• Do not dispose of lithium batteries in the trash.
• If the electrolyte in the cells should get on
your skin, thoroughly wash with soap and
water. If in the eyes, rinse thoroughly with cool
water. Immediately seek medical attention.
• Follow the manufacturer’s instructions
for charging the drone and do not charge
longer than recommended. Unplug the
charging cable when the drone is charged.
• Do not attempt to charge or operate
damaged toys.
FCC Information
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment o and on, the user is encouraged to tr y
to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit dierent from that to which the receiver is
connected.
• Consult your local RadioShack store or an
experienced radio/TV technician for help.
If you cannot eliminate the interference, the FCC
requires that you stop using your equipment.
Changes or modications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Limited Warranty
RadioShack warrants this product against defects
in materials and workmanship under normal use
by the original purchaser for ninety (90) days after
the date of purchase from a RadioShack-owned
store or an authorized RadioShack franchisee or
dealer. RADIOSHACK MAKES NO OTHER EXPRESS
WARRANTIES.
This warranty does not cover: (a) damage or failure
caused by or attributable to abuse, misuse, failure
to follow instructions, improper installation or
maintenance, alteration, accident, Acts of God (such
as oods or lightning), or excess voltage or current;
(b) improper or incorrectly performed repairs by
persons who are not a RadioShack Authorized Service
Facility; (c) consumables such as fuses or batteries;
(d) ordinary wear and tear or cosmetic damage; (e)
transportation, shipping or insurance costs; (f) costs
of product removal, installation, set-up service,
adjustment or reinstallation; and (g) claims by persons
other than the original purchaser.
Should a problem occur that is covered by this
warranty, take the product and the RadioShack sales
receipt as proof of purchase date to any RadioShack
store in the U.S. RadioShack will, at its option, unless
other wise provided by law (a) replace the product with
the same or a comparable product, or (b) refund the
purchase price. All replaced products, and products
on which a refund is made, become the property of
RadioShack.
RADIOSHACK EXPRESSLY DISCLAIMS ALL
WARRANTIES AND CONDITIONS NOT STATED
IN THIS LIMITED WARRANTY. ANY IMPLIED
WARRANTIES THAT MAY BE IMPOSED BY
LAW, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY AND, IF APPLICABLE,
THE IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, SHALL EXPIRE ON THE
EXPIRATION OF THE STATED WARRANTY PERIOD.
EXCEPT AS DESCRIBED ABOVE, RADIOSHACK
SHALL HAVE NO LIABILITY OR RESPONSIBILITY
TO THE PURCHASER OF THE PRODUCT OR ANY
OTHER PERSON OR ENTITY WITH RESPECT TO ANY
LIABILIT Y, LOSS OR DAMAGE CAUSED DIRECTLY
OR INDIRECTLY BY USE OR PERFORMANCE
OF THE PRODUCT OR ARISING OUT OF ANY
BREACH OF THIS WARRANTY, INCLUDING, BUT
NOT LIMITED TO, ANY DAMAGES RESULTING
FROM INCONVENIENCE AND ANY LOSS OF
TIME, DATA, PROPERTY, REVENUE, OR PROFIT
AND ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES, EVEN IF
RADIOSHACK HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This
warranty gives you specic legal rights, and you may
also have other rights which vary from state to state.
You may contact RadioShack at:
RadioShack Customer Relations
300 RadioShack Circle
Fort Worth, TX 76102 02/14
www.radioshack.com
Replace Damaged Blades
The left and right blades of the drone are dierent (see Aand B
markings on the drone and blades). Make sure you insert the correct
blade in the correct location to y properly. If you need additional blades,
visit your local RadioShack store for help.
To replace a damaged blade, remove the old one and press the new
one onto the blade axle. If you cannot remove the old blade by hand,
use pliers.
WARNING:
• To avoid injury and damage, inspect the blades for nicks and breaks
and make sure they are securely attached before and after each
ight. Replace nicked, chipped, cracked or broken blades.
• Use only the supplied blades. Do not alter, modify, or customize the
blades.
A
B
A B
Complies with the European
Union’s “Restriction of
Hazardous Substances
Directive,” which protects the
environment by restricting
specic hazardous materials
and products.
6001357, 6001376_UG_EN.indd 2 4/29/2015 2:23:37 PM
