Raidon SafeTANK SL5640-LB2 User manual

www.RAIDON.com.tw
Your Data Security Guardian
SL5640-LB2
User’s Guide
SafeTANK
V1.0 (February 2012)

www.RAIDON.com.tw
Your Data Security Guardian
About this User’s Guide
Congratulations on your purchase of the RAIDON SL5640 series product made by
Raidon Technology Co. ("RTC"). This User’s Guide (hereinafter referred to as "Guide")
introduces you to the RAIDON SL5640 series products. Read this Guide carefully before using
your SL5640 series product. Even though the information contained in this Guide has been
verified before release, actual specifications depend on the product purchased by you. The
product specifications and latest update information are available on our website at
www.RAIDON.com.tw or can be provided by your sales representative at any time and
without need for notice by RTC.
For any inquiries on RTC's products or latest product information, user’s guide, or firmware,
please contact us at [email protected]. RTC's service personnel shall reply to you at
the earliest opportunity.
Note: RTC's technical support and services are available to agents and dealers who bought
products directly from RTC. Consumers and/or users who did not get their products directly from
RTC are required to contact dealers from whom the product was purchased for better support
and faster responses. Please do not try to directly contact RTC for support if your product was
not purchased from RTC directly as you may get no reply at all.
All rights reserved.
© Raidon Technology Co.

www.RAIDON.com.tw
Your Data Security Guardian
Table of Contents
Chapter 1 Hardware devices
Chapter 2 Initial setup
Chapter 3 Introduction to user interface
1.1
1.2
1.3
Accessories and SL5640-LB2 at a glance
LCD message and light indicators
Hardware installation
3.1
3.2
3.3
3.4
Structure of user interface
Login
Systems management
Permission management
3.5 Permission management
3.3.1 Disk / RAID setup
3.3.2 Device name
3.3.3 Setup date and time
3.3.4 Language
3.3.5 Network setup
3.3.6 Buzzer / fan setup
3.3.7 Power management
3.3.8 Event log
3.3.9 System settings backup and master reset
3.3.10 Firmware update
3.3.11 Systems information
3.3.12 iSCSI
3.4.1 User
3.4.2 Group
3.4.3 Public folder
3.4.4 Window AD
3.5.1 Apple network
3.5.2 Linux NFS service
3.5.3 FTP
3.5.4 SSH
3.6 Application services
3.6.1 Path for download
3.6.2 File manager
3.6.3 Multimedia service
3.6.4 Cloud Server (SyncBox)
3.7 External device
3.7.1 USB drive
3.7.2 USB printer
3.3.1.1 Disk and disk space
3.3.1.2 Information: display hard disk relevant information

www.RAIDON.com.tw
Your Data Security Guardian
Chapter 4 Appendices
Appendix A: BT downloads
Appendix B: AjaXplorer Windows Explorer
Appendix C: cloud server Syncbox
Appendix D: SearchNAS.exe (for Windows OS only)

www.RAIDON.com.tw
Your Data Security Guardian
Chapter 1 Hardware devices
1.1 Accessories and SL5640-LB2 at a glance
Your shipment package shall contain the components listed below:
•SL5640-LB2 main body
•AC power cord
•Network cable
•Quick installation guide
•CD (this Guide)
•Parts package
Please ensure that the SL5640-LB2 and its accessories are contained in the package and are not
damaged. Contact your dealer or sales representative for any uncertainties.
Note:
※After the Gigabit LAN port is connected to a Gigabit LAN, the light indicator to the left turns a steady
green while the one to the right turns orange.
※Press and hold the Reset key for 5 seconds to reset the system back to the factory default setting after
your system is in ready status.
※SL5640 dual Gigabit LAN Port, mainly as a Hub functions as a network expansion interface, a network
device can be connected through the SL5640.
※Do not connect two Gigabit LAN at the same time, this will result in the SL5640 unable to connect to
the network, select one Gigabit LAN Port can use.
Reset
USB
LAN 1
LAN 2
HDD Status LED
Tray Handle
Tray Button
LCD Monitor
UP
DOWN
ENTER
ESC
Power LED
Fail LED
Fan
Reset to Default
USB Port
AC Power Connector
Power Switch
RJ45 Port
Lock Hole
Drive Position(1)
Drive Position(2)
Drive Position(3)
Drive Position(4)
Enter Esc
Front view Back view

www.RAIDON.com.tw
Your Data Security Guardian
1.2 LCD message and light indicators
1. SL5640 LCD key and LCD messages
＞LCD key
Left/right: toggle switch between left and right
ESC: back to last page
Enter: OK and go to the next page
＞LCD message
LCD message tree and description
LCD message tree overview
1-1 Main screen: display IP address
1-2 System information
2-1 RAID message
2-1-1 Display information on existing disk arrays
2-2 Network information
2-2-1 IP address of DHCP server
2-3 Disk information
2-3-1 The underlying message of the hard disk
XXX.XXX.XXX.XXX
PORT:80
Information
(Enter or Esc)
RAID Info
(Enter or Esc)
RAID Info
XXXXXXXXXXXXX
IP Info
(Enter or Esc)
Network Info
XXXXXXXXXXXXX
Disk Info
(Enter or Esc)
Disk Info
XXXXXXXXXXXXX
Level 1 Level 1 Level 1
1-1
1-2 2-1 2-1-1
2-2 2-2-1
2-3 2-3-1

www.RAIDON.com.tw
Your Data Security Guardian
2. Light indicator
SL5640-LB2
Status
Power on/standby
Data access
Fan failure
Overheat (System temperature above 55℃or
CPU temperature above 85℃)
Hard disk failure
Rebuilding
Light indicator
Power light turns blue
HDD light flashes blue
Failure light turns red
Failure light turns red
HDD light turns red
HDD light flashes blue
1.3 Hardware installation
Install your SL5640 product by following the steps described below:
Step 1 Remove your product from the shipping package. (Please ensure that the SL5640-LB2
and its accessories are in the package and not damaged. Contact your dealer or sales
representative for any uncertainties.)
Step 2 Place your product on a flat and stable surface. Make sure that the ventilation fan is not
blocked and adequate clearance is kept around your product. (Please keep your product
away from water or any environment that can damage the product.)

www.RAIDON.com.tw
Your Data Security Guardian
Step 3 Remove the tray and install the hard disk in it. Make sure that your hard disk is locked
with screws to the tray to avoid any damage to the hard disk caused by unexpected
movements.
Step 4 Insert the tray back into place and lock it firmly at the proper location.
Step 5 Connect your product to a Gigabit LAN through the Gigabit LAN port. Connect the power
cord.
Step 6 Power on your product for the required setup and application.
Step 7 See Chapter 3 on setting up your product for the relevant management interface.
Your SL5640 product employs a GUI for system management and setup. It takes about 1~2 minutes for
your SL5640 to start up. Your SL5640 cannot be discovered by your system before it has been started.
Step 1: Open your browser and enter the IP address
(a) To use auto IP (IP address assigned by the DHCP server):
After being connected to a local area network and powered on, the LCM displays the assigned IP
address. Open your browser and type the IP address to enter the Web GUI for setup.
You may use an IP detection utility (e.g., the SearchNAS.exe includes a CD with operating instructions
contained in Appendix D) to search for the IP address assigned to SL5640.
(b) To use static IP:
Your SL5640 product has a default IP address of 192.168.1.20. Please change the IP address of the
PC connected with your product to be in the same network segment (e.g., 192.168.1.xxx) before
opening your browser. Type in the default IP address to enter the Web GUI for setup and change the
IP address of the SL5640. See Chapter 3 on changing the IP address.
Note:
The SearchNAS.exe software contained in the CD supports the Windows system only.
Chapter 2 Initial setup

www.RAIDON.com.tw
Your Data Security Guardian
Step 2 : Enter the login screen
The login screen will be displayed after the IP address has been entered. Enter your account, pssword
and verification code to go to the setup screen.
Default account and password
User name: admin
Password: admin
Step 3 :
When using your SL5640 product for the first time, you are required to select one standalone hard disk
or create one disk array before doing other setup operations. Click on the Hard disk/RAID Setup in the
System Management to display the list of hard disks existing in the SL5640. Click on one of the four
options in the Hard Disk Management to set up the desired disk array. Once the disk array is created in
the system reboot, you can then make another setup after logging in the system again. See Chapter 3
for further information on the system setup.

www.RAIDON.com.tw
Your Data Security Guardian
Chapter 3 Introduction to user interface
3.1 Structure of user interface
See table below for the structure of user interface:
Disk drive / RAID setup
Device name
Date and setup time
Language
Network setup
Buzzer / fan setup
Power management
Event log
Systems settings backup and master reset
Firmware update
System message
iSCSI
User
Group
Public folder
WINDOWS AD
Apple network
Linux NFS service
FTP
SSH
Download path
File manager
Multimedia service
Cloud server (SyncBox)
USB disk drive
USB printer
Systems
management
External
device
Permission
management
Network
service
Application
service

www.RAIDON.com.tw
Your Data Security Guardian
3.2 Login
Your SL5640 product manages the system with a GUI. The diagrams listed below are illustrated
based on Internet Explorer 8.0. The diagrams may vary with different browser software.
Open the browser program and type in the IP address shown in the LCD.
Default account and password
User name: admin
Password: admin
Click on options in the function setup pane to the left of the screen for various setup operations
after logging in successfully.
Note: When using your SL5640 product for the first time, you are required to select one
standalone hard disk or create one disk array before doing other setup operations.

www.RAIDON.com.tw
Your Data Security Guardian
3.3 Systems management
Set up the basic SL5640 function in the systems management screen
3.3.1 Disk / RAID setup
3.3.1.1 Disk and disk space
(1) Hard disk information
This screen displays the hard disk information including the brand and model number, capacity
and disk status. The status of the hard disk is shown in the status column. You may select the
Information tab to view the relevant information.
(2) Hard disk management
Your SL5640 product supports the standalone hard disk (JBOD) as well as the RAID 0 / RAID 1
/ RAID 5 disk array application level.
Click to display the hard disk menu, select the number of the hard disk that fits the given mode,
press Create to start the hard disk formatting and RAID system setup.

www.RAIDON.com.tw
Your Data Security Guardian
After a hard disk has been created you are prompted to format it
Click on OK to start the disk formatting. The format operations may take some time, please wait
for a while. A progress bar along with the Formatting message displays during formatting. Your
SL5640 product restarts after a hard disk has been formatted.

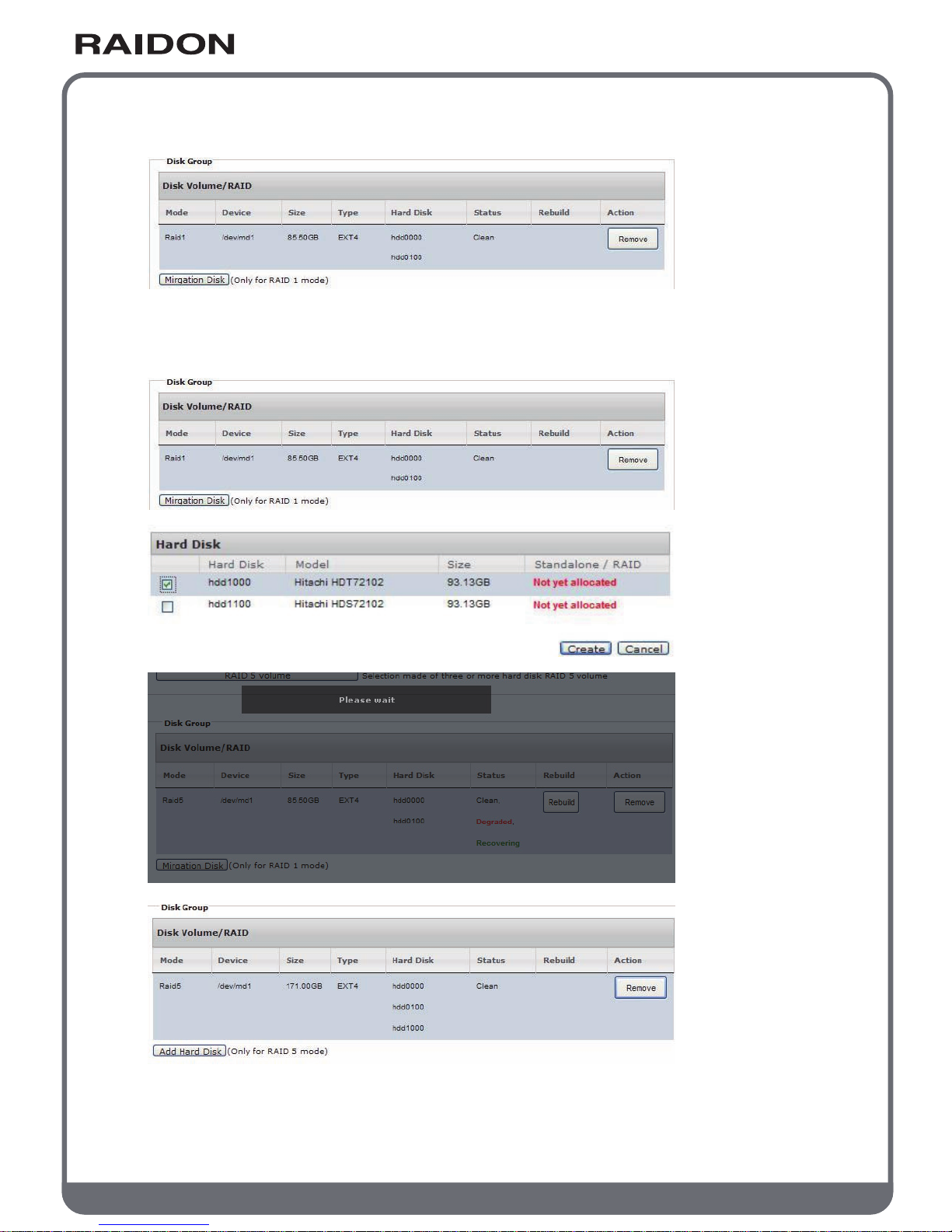

(3) Disk group
Existing disks are shown here with the standalone hard disk with an ID of sda, sdb and so on
and a disk array with an ID of md1, md2 and so on.
•Standalone hard disk: Select one for formatting.
•RAID 0: Select 2 or 4 hard disks for this.

www.RAIDON.com.tw
Your Data Security Guardian
•RAID 1: Select 2 hard disks for this
Migration: In case there is any un-allocated hard disk with a volume greater than that of the
current RAID 1 in the RAID1 mode, a Migration option displays at the bottom of the screen. You
may select one of the un-allocated hard disks to upgrade the existing RAID 1 to the RAID 5 level.

www.RAIDON.com.tw
Your Data Security Guardian
Note:
1. DO NOT power off the system or do any operations during migration and be patient. The system
will restart automatically after the migration is successfully completed. The time required for
migration varies with the disk volume.
2. In case you need to replace the hard disk in the RAID 1 mode, please power off the system in
advance.
3. Insert a new HDD and power on the system, click on the Rebuilding icon and select HDD in the
Disk Group window to rebuild the data in the new hard disk. DO NOT power off the system or
do any operations during rebuilding and be patient. The system will restart automatically after
the rebuilding operation is successfully completed. The time required for rebuilding varies with
the disk volume.
RAID 5: Select 3 or 4 HDD for it.
Adding a hard disk: In case your RAID 5 volume is composed of three hard disks and there is any
un-allocated hard disk with a volume greater than the lowest capacity of the three hard disks in
the existing RAID5 mode, an Add Hard Disk option will be displayed at the bottom of the screen.
You may select one of the un-allocated hard disks to add in the existing RAID 5 (from 3 to 4 hard
disks) for an expanded RAID capacity.

www.RAIDON.com.tw
Your Data Security Guardian
Note:
1. DO NOT power off the system or do any operations during the adding disk operation and be
patient. The system will restart automatically after the adding disk operation is successfully
completed. The time required for adding a disk varies with disk volume.
2. In case of any disk failure, the control panel alarm light indicator will turn red and a short beep
will sound.
3. In case you need to replace the hard disk in a RAID 5 mode, please power off the system in
advance.
4. Insert a new HDD and power on the system, click on the Rebuilding icon and select HDD in the
Disk Group window to rebuild the data in the new hard disk. DO NOT power off the system or
do any operations during rebuilding and be patient. The system will restart automatically after
the rebuilding operation is successfully completed. The time required for rebuilding varies with
0the disk volume
3.3.1.2 Information: display hard disk relevant information

www.RAIDON.com.tw
Your Data Security Guardian
Click on SMART key to enter the information screen
The Network Time Protocol (NTP) server synchronizes the time of your host machine through the
Internet. You may select either one of the two NTP servers provided by the system :
time.windows.com by Microsoft and time.nist.gov by The U.S. National Institute of Standards and
Technology.
3.3.2 Device name
You can assign a unique name for your SL5640 product in a local area network
3.3.3 Setup date and time
Set up the system date, time, time zone and NTP server on this screen.

www.RAIDON.com.tw
Your Data Security Guardian
3.3.4 Language
The system automatically selects a language based on the language used by your browser. There
are six available options: Traditional Chinese, Simplified Chinese, English, German, Russian and
Korean.
3.3.5 Network setup
You may get network setup information or set up a network IP address here. The systems default
value is DHCP.
Obtaining an IP address automatically
If a DHCP server is available, the system automatically gets an IP address from DHCP server.
In case the IP address cannot be assigned automatically the default address is 192.168.1.20.
Using a static IP address
Please consult your network administrator for the IP address, subnet mask and default gateway
and fill in the required fields.
Automatically obtaining a DNS server address
Your system automatically gets a DNS server's IP address from DHCP server.
Using a static DNS server address
Please consult your network administrator for a DNS IP address and fill in the required field.
Note:
After your SL5640 product is connected to a network, it automatically gets its IP address from the
DHCP server. Otherwise, it sets its IP address to the default one (192.168.1.20). You can access
the system login screen only with a PC in the same network segment.
You may employ an IP address searching software to find the IP address of your SL5640 product.
Please refer to Appendix D.

www.RAIDON.com.tw
Your Data Security Guardian
3.3.6 Buzzer / fan setup
Set to mute the buzzer and the display speed of fan on this screen. In case of fan failure, its
speed is displayed in red zero "0" and to mute status. The control panel alarm light indicator turns
red and sounds two short beeps.
3.3.7 Power management
You may restart or power off your SL5640 product on this screen
3.3.8 Event log
There are five event categories available here: System, Samba, FTP, AFP, and Ajaxplorer. Please
remove all entries regularly as the system may take a very long time to retrieve the required
information.

www.RAIDON.com.tw
Your Data Security Guardian
3.3.9 System settings backup and master reset
Backup system settings
Keep and save the current systems settings in a hard disk.
3.3.10 Firmware update
This page displays the current firmware edition.
Online notice for firmware upgrade
Once this function is enabled, your system automatically detects and determines if the current
system firmware is the latest one while the network is connected. If not, the firmware will be
updated automatically by clicking on the Update icon.
Restoring systems settings
You can restore previous backup settings in case the current one is damaged, lost or modified
incorrectly. Give the location of setup file and click on Restore to restore the settings to the
earlier backup.
Resetting to factory default
Press Reset to reset the systems setup back to factory default. All systems settings, including the
user and network are reset to the factory value. The systems login account and password are also
reset to admin/admin.
