Rail King RealTrax 0-42 User manual

MTH
ELECTRIC TRAINS, INC.
7020 Columbia Gateway Drive
Columbia, MD 21046-1532
WWW.MTH-RAILKING.COM
O-42
SWITCH
MTH RealTrax® switches add
flexibility and reliability to your O
Gauge RealTrax
layout. Designed to
provide years of
trouble free,
smooth operation,
RealTrax switches
are the perfect
additions to expand
®
your RailKing
empire.
®
®

Table of Contents
Introduction: 3
Switch Operating Instructions: 4
RealTrax O-42 Switch Components: 4
Screw Terminal Definition: 6
Remote Switch Wiring Instructions: 7
Basic Switch Operation: 7
Changing Switch Block Positions: 8
Accessory Operation From Switch Power Out: 9
Multiple Connections Under Screw Terminal 9
Multiple Switch Operating Instructions (Track Power): 9
Multiple Switch Operation Through One Remote Switch, 9
Track Power, Identical Throws:
Multiple Switch Operation Through One Remote Switch, 10
Track Power, Opposite Throws:
Auxiliary Powered Switch Operating Instructions: 10
Multiple Switch Operation Through Separate Remote Switches 11
Multiple Switch Operation Through One Remote Switch, 11
Auxiliary Power, Identical Throws
Multiple Switch Operation Through One Remote Switch, 12
Auxiliary Power, Opposite Throws
RealTrax O-42 Switches In Tubular Rail Layouts: 13

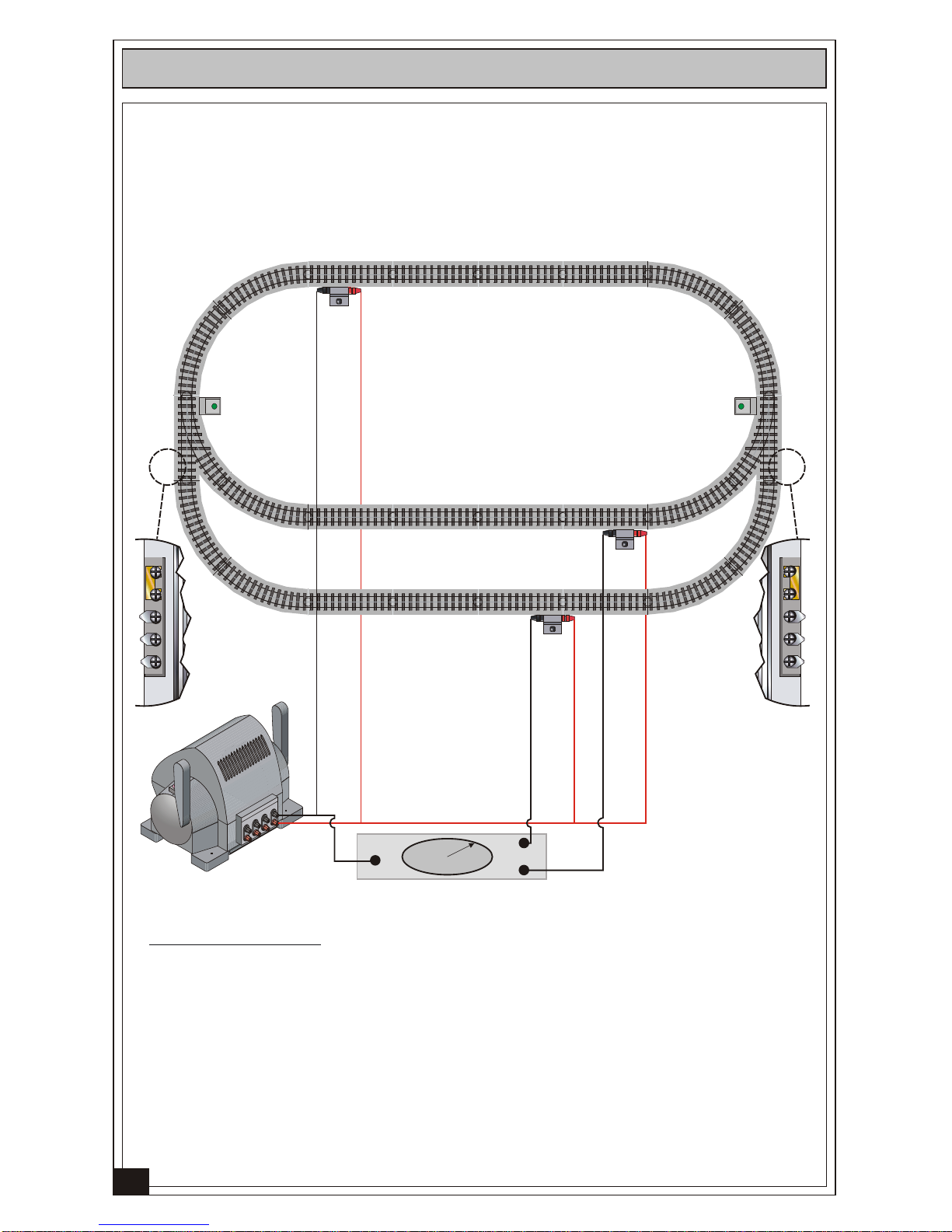

Multiple Train Operation Using Powered/Unpowered Sidings: 14
Troubleshooting 15
Service and Warranty Information 16
Operating Caution 16
How to Get Service Under The Terms of The Limited One Year Warranty16
Limited One Year Warranty 16
2

Introduction
Thank you for purchasing the MTH Electric Trains RealTrax O-42 Switch. As
with all RealTrax products, you will find the O-42 Switch easy to install into
your layout whether it be a permanent or temporary one. There are no
plastic and/or metal pins to lose or confuse. The setup is simple; with only
three connections of easy to attach connectors and the turn of a screw, your
RealTrax Switch will be up and running in no time!
The RealTrax O-42 Switch performs all of the functions of other switches,
but better. It has a double-microswitch driven non-derailing feature. Inside
the Switch Block (lantern housing) are four powerful but efficient and quiet
solenoid coils that drive the switch points back and forth at a voltage and
current draw as yet unexperienced in model railroading. The RealTrax
Switch operates on only 10Volts and 1.25Amps. It has a spring assisted
mechanism that ensures that the points always will be in the correct
position. If you change directions with a RealTrax Switch, you will not have
to worry about derailments or electrical short circuits.
The RealTrax Switch can be wired for operation via track power or auxiliary
power. Also, you will be able to operate several RealTrax Switches together
by following the appropriate illustrated diagram(s) in this manual. It can be
installed into a layout to have powered and unpowered sidings for multiple
train operation (see figure 14).
The RealTrax O-42 Switch is constructed of sturdy ABS plastic, solid
extruded rails and simple yet sturdy electronics. The design has been
streamlined with features like a Switch Block Cover that hides the opening
to the switch's underside and a Screw Terminal Cover that hides the
traditionally unsightly yet necessary wire connections. The design follows
other RealTrax items so that it blends into your layout, instead of standing
out. With its ruggedness and slim styling, the RealTrax O-42 Switch will
give you years of trouble-free operation on either your RealTrax or your
tubular rail O-Gauge model railroad.
3

1) Switch:
Consists of the roadbed, rails, points, frog, screw terminals, operating
circuitry and mechanisms.
2) Screw Terminal Cover:
Plastic cover that attaches to the roadbed and conceals the screw terminals.
3) Jumper:
Removable metal connector between 4th and 5th screw terminals. The
Jumper acts as a switch between track and auxiliary power.
4) Switch Block:
Consists of housing, solenoid coils and lantern. The Switch Block attaches
to either rectangular port at the converging end of the Switch. The Switch
Block may be attached to either side of the switch.
(See Figure 4)
5) Switch Block Cover:
Plastic cover that attaches to and conceals the unused Switch Block port.
6) Remote Switch:
Separate manual switch with momentary action. The Remote Switch can
operate your switch from anywhere on your layout.
RealTrax O-42 Switch Components:
RealTrax® O-42 Switch Operating Instructions:
4
6

5
1
2
3
4
5
Figure 1a:

Screw Terminal Definition
There are five Screw Terminals located under the Screw Terminal Cover on
the straight edge of every RealTrax Switch. The positions of the Screw
Terminals on a Right-Hand Switch mirror those on the Left-Hand Switch (see
figure 1b, below).
Figure 1b:
Straight AC Screw Terminal: This Screw Terminal is the input connection
of AC power that causes the points (rails that shift positions) to
align with the straight direction of travel. The Straight AC Screw
Terminal may be connected to either the GREEN wire of the
Remote Switch or an external AC power source.
Curved AC Screw Terminal: This Screw Terminal is the input connection of
AC power that causes the points (rails that shift positions) to align
with the curved direction of travel. The Curved AC Screw Terminal
may be connected to either the RED wire of the Remote Switch or
an external AC power source.
ACG (Common) Screw Terminal: This Screw Terminal is the electrical
ground connection for all power and Remote Switch inputs.
Auxiliary Power AC In Screw Terminal: This Screw Terminal is the input
connection of an outside power source's AC (powered) terminal.
(Note: the jumper between the Auxiliary Power AC In Screw
Terminal and the Track AC Out Screw Terminal must be removed
to operate your switch via auxiliary power).
Track AC Out Screw Terminal: This Screw Terminal is connected directly
to track power (center rail).
Curved AC Screw Termial
ACG (Common) Screw Terminal
Aux Power AC In Screw Terminal
Track AC Out Screw Terminal
Straight AC Screw Terminal
6

Remote Switch Wiring Instruction
You will have to wire the RealTrax O-42 Remote Control Switch to the
proper Screw Terminals. To do this, follow Illustration 2:
Figure 2:
(REMOTE SWITCH)
(SCREW TERMINAL
COVER)
!Connect the GREEN wire of the REMOTE SWITCH to the Straight AC
SCREW TERMINAL (found under the removable SCREW TERMINAL
COVER).
!Connect the RED wire of the REMOTE SWITCH to the Curved AC
SCREW TERMINAL.
!Connect the BLACK wire of the REMOTE SWITCH to the ACG
(Common) SCREW TERMINAL.
!The JUMPER between the fourth and fifth SCREW TERMINALS remains
in place.
Basic Switch Operation:
Now that your RealTrax Switch is wired,
you will be able to operate it via any of the
following methods: Figure 3:
(1) (2)
(3) (3)
!Remote Switch operation (1). Push the remote switch lever toward the
green light for ‘straight’ operation. Push the remote switch lever toward
the red light for ‘curved’ operation.
!Manual (lantern) operation (2). Simply turn the lantern on the Switch
Block to align the points in the desired direction.
!Automatic non-derail operation (3). If your consist enters the diverging
end of the switch, the points will automatically align to the correct
orientation (if necessary). 7

3b
3a 3c

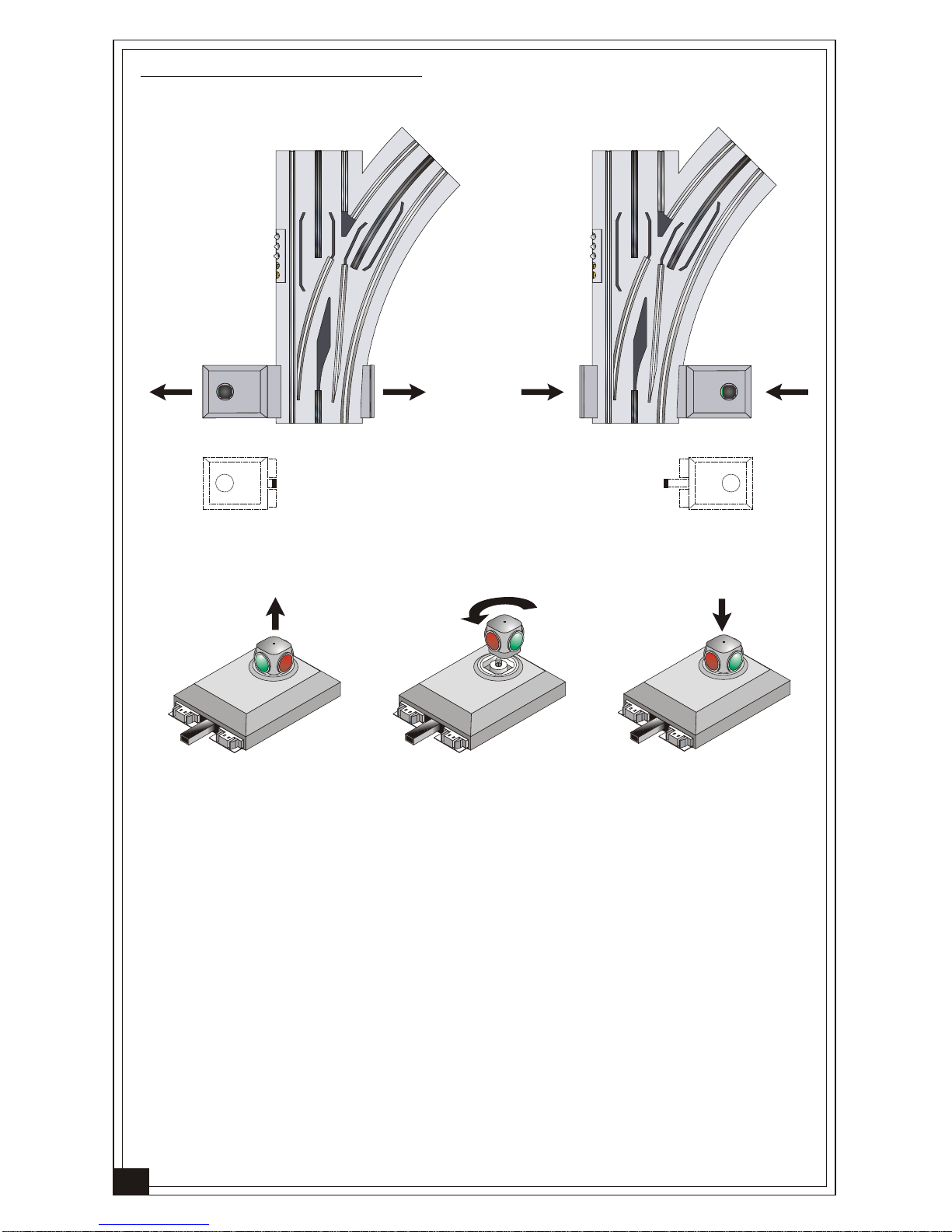

Changing Switch Block Position:
Figure 4:
To change the position of the Switch Block, follow the steps below:
1) Remove the Switch Block by pulling it firmly out of the roadbed.
Remove the Switch Block Cover by sliding it down out of the roadbed.
2) Install the Switch Block into the other side by pushing it firmly into the
roadbed. Install the Switch Block Cover into the other side.
3) You will have to change the position of the Switch Block Lantern so that
the Green lenses align to the straight direction and the red lenses align
to the curved direction.
a) Hold the Switch Block Lantern between your thumb and forefinger.
Gently pull the Lantern out of its socket.
b) Rotate the Lantern 90 Degrees (one-quarter turn).
c) Press the Lantern back into the Switch Block. You will hear a "snap"
when it is in place.
1 2
8

ACG Track AC out
Accessory Operation from Switch Track AC Out Screw Terminal:
Figure 5:
Multiple switch operation through one Remote Switch (track power,
identical throws):
Figure 7:
Cut Insulation with
wire strippers Separate Insulation to reveal bare wire Wrap around screw
Primary Switch
Secondary Switch
To Remote
Switch
!Connect the ACG (Common) terminal of the accessory to the ACG
(Common) screw terminal of the Switch.
!Connect the AC (Powered) terminal of the accessory to the Track AC Out
screw terminal of the Switch.
!Connect Remote Switch as shown in Figure 2.
!Connect the STRAIGHT AC screw terminal of the Primary Switch to the
STRAIGHT AC screw terminal of the Secondary Switch.
!Connect the CURVED AC screw terminal of the Primary Switch to the
CURVED AC screw terminal of the Secondary Switch.
!Connect the ACG (Common) screw terminal of the Primary Switch to the
ACG (Common) screw terminal of the Secondary Switch.
RealTrax® O-42 Switch Multiple Switch Operation
9
Figure 6:
Making Multiple Connections Under One Screw Terminal
If you do not use female disconnect type connectors to make your wire
terminations for multiple connections, you are encouraged to reduce the
number of wires under each Screw Terminal by stripping a section in the
middle of a single wire (see figure 6, below):
(Note: MTH recommends that 18 gauge or thicker wire be used in wiring the RealTrax switch.)

Aux. ACG (Common)(Black)
Aux. AC Power In (Red)

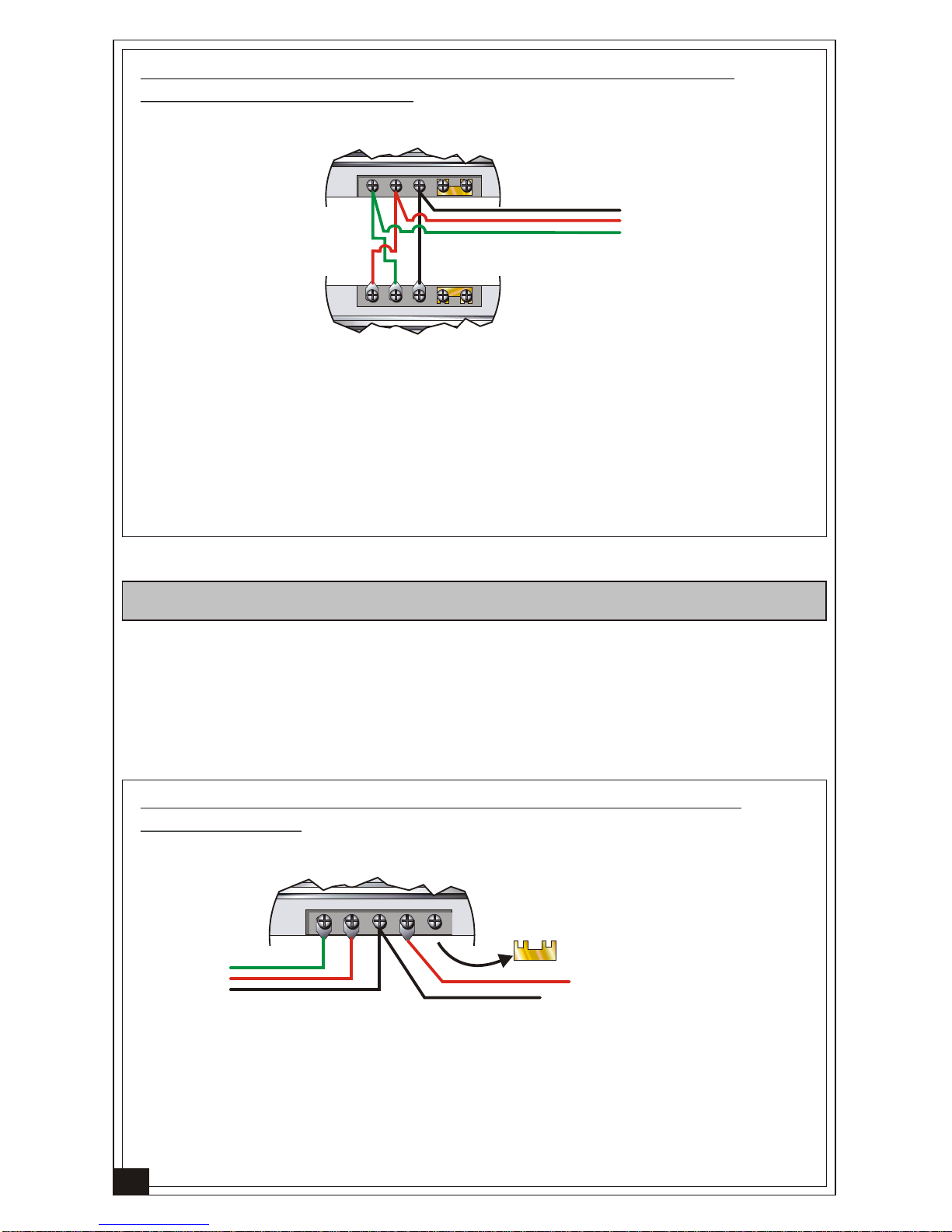

Auxiliary power switch operation (to power switch from source other
than track power):
Figure 9:

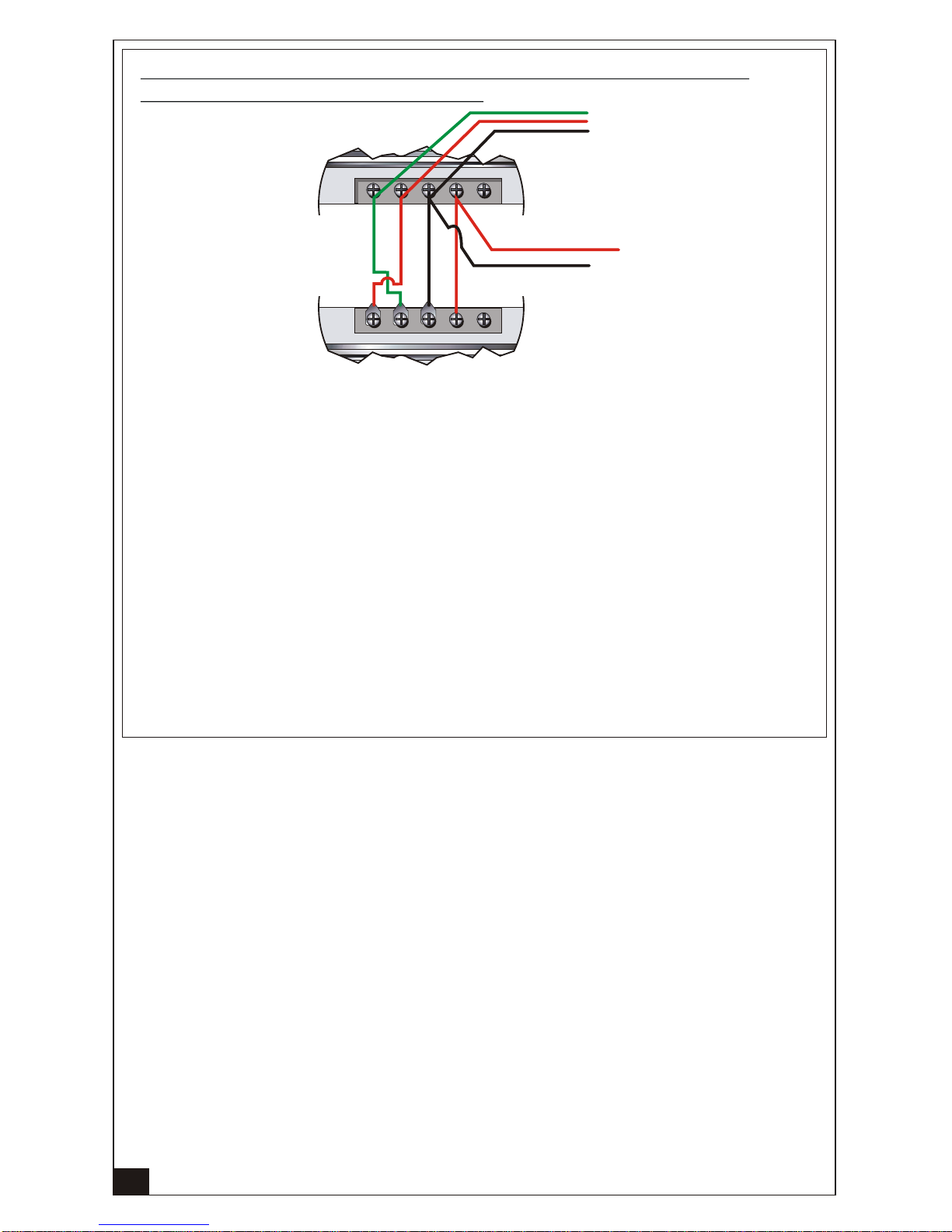

Multiple switch operation through one Remote Switch (track power,
simultaneous opposite throws):
Figure 8:
Primary Switch
Secondary Switch
To Remote
Switch
To Remote
Switch
!Connect Remote Switch as shown in Figure 2.
!Connect the STRAIGHT AC screw terminal of the Primary Switch to the
CURVED AC screw terminal of the Secondary Switch.
!Connect the CURVED AC screw terminal of the Primary Switch to the
STRAIGHT AC screw terminal of the Secondary Switch.
!Connect the ACG (Common) screw terminal of the Primary Switch to the
ACG (Common) screw terminal of the Secondary Switch.
!Remove Jumper between Track AC Out terminal and Aux. Power AC In
terminals (Save the jumper for future use).
!Connect Remote Switch as shown in Figure 2.
!Connect Auxiliary Power AC to Auxiliary Power AC In screw terminal
!Connect Auxiliary Power ACG (Common) to ACG (Common) screw
terminal.
Auxiliary Powered Switch Operating Instructions
The RealTrax Switch can be powered from an auxiliary power source (either
another channel on your transformer or a separate transformer altogether).
Powering your Switch from auxiliary power will ensure that varying track
power does not affect the action of the switch. Also, if you operate at low
voltages or wish to operate many switches at once, auxiliary power operation
may be desirable.
10

Auxiliary power operation of multiple switches through single Remote
Switch (simultaneous identical throws):
Figure 11:
Auxiliary power operation of multiple switches through separate Remote
Switches (separate throws):
Figure 10:
To Remote
Switch
To Remote
Switch Aux. ACG (Common)(Black)
Aux. AC Power In (Red)
Primary Switch
Secondary Switch
To Remote
Switch Aux. ACG (Common)(Black)
Aux. AC Power In (Red)
Primary Switch
Secondary Switch
!Remove Jumpers from all auxiliary powered switches.
!Connect Remote Switches as shown in Figure 2.
!Connect Auxiliary Power ACG (Common) to all auxiliary powered
switch ACG screw terminals, either in series (from one Switch ACG
terminal to the next, as shown) or in parallel (each Switch ACG terminal
is wired directly to the auxiliary power source).
!Connect Auxiliary Power AC to all auxiliary powered switch Aux. Power
In AC screw terminals, either in series (from one Switch AC terminal to
the next) or in parallel (each Switch AC terminal is wired directly to the
auxiliary power source).
!Remove Jumpers from all auxiliary powered switches.
!Connect Remote Switch to primary switch as shown in Figure 2.
!Connect Auxiliary Power AC to Auxiliary Power AC In screw terminal of
primary switch.
!Connect Auxiliary Power ACG (Common) to ACG (Common) screw
terminal of primary switch.
!Connect the STRAIGHT AC screw terminal of the Primary Switch to the
STRAIGHT AC screw terminal of the Secondary Switch.
!Connect the CURVED AC screw terminal of the Primary Switch to the
CURVED AC screw terminal of the Secondary Switch.
!Connect the ACG (Common) screw terminal of the Primary Switch to
the ACG (Common) screw terminal of the Secondary Switch.
!Connect Aux AC Power In screw terminal of the Primary Switch to the
Aux AC Power In screw terminal of the secondary switch. 11

Auxiliary power operation of multiple switches through single Remote
Switch (simultaneous opposite throws):
Figure 12:
Aux. ACG (Common)(Black)
Aux. AC Power In (Red)
Primary Switch
Secondary Switch
!Remove Jumpers from all auxiliary powered switches.
!Connect Remote Switch to primary switch as shown in Figure 2.
!Connect Auxiliary Power AC to Auxiliary Power AC In screw terminal of
primary switch.
!Connect Auxiliary Power ACG (Common) to ACG (Common) screw
terminal of primary switch.
!Connect the STRAIGHT AC screw terminal of the Primary Switch to the
CURVED AC screw terminal of the Secondary Switch.
!Connect the CURVED AC screw terminal of the Primary Switch to the
STRAIGHT AC screw terminal of the Secondary Switch.
!Connect the ACG (Common) screw terminal of the Primary Switch to the
ACG (Common) screw terminal of the Secondary Switch.
!Connect Aux AC Power In screw terminal of the Primary Switch to the
Aux AC Power In screw terminal of the secondary switch.
12
To Remote
Switch

The RealTrax O-42 Switch can be installed into O-Gauge tubular rail layouts
with the use of three RealTrax Adapter Track sections. Simply attach one
Adapter Track section (5" long) to each arm of the RealTrax O-42 Switch. The
steel pins of your tubular track will insert into the tubular rail portion of the
RealTrax Adapter Track.
Figure 13:
13
RealTrax Adapter Track Section
(40-1011)
RealTrax
Adapter
Track
Section
(40-1011)
RealTrax
Adapter
Track
Section
(40-1011)
RealTrax® O-42 Switches In Tubular Rail Layouts:

The following layout wiring diagram illustrates the use of two switches wired
for simultaneous operation, identical throw. With this wiring arrangement,
you will be able to operate two trains on your layout without collision
(provided that no part of either consist obstructs the “Main Line” portion of
the layout).
14
Multiple Train Operation (Powered/Unpowered Siding)
Figure 14:
Layout Instructions:
Note: this layout requires a Single Pole, Double Throw switch (minimum 3A
rating) available at a hardware or electrical store.
1) To assemble a RealTrax layout for Powered, Unpowered Siding
Operation, you will have to isolate the outside rail of the "A" Line and the
outside rail of the "B" Line. To do this, bend back and remove the brass
connector under one end of the rail that is to be isolated (marked with an
"X" on the layout in figure 14).
2) Assemble the layout as shown.
Main Line
“A” Line
“B” Line
11 22 33
B
A
SPDT
XXXXXXXX

15
Wiring Instructions:
1) Connect the Powered (Red) transformer output to the Powered (Red,
center rail) terminals of the Main Line, “A” Line and “B” Line lock-ons.
2) Connect the Common (Black) transformer output to the Common (Black,
outside rail) terminal of the Main Line lock-on.
3) Connect the Common (Black) transformer output to the input side of a
Single-Pole, Double Throw (SPDT) switch (purchased separately).
4) Connect one output terminal of the SPDT switch to the Common (Black,
outside rail) terminal of “A” Line. Connect the other output terminal of the
SPDT switch to the Common (Black, outside rail) terminal of “B” Line.
5) Connect the RealTrax Switches as shown in figure 7 for track power
operation or as shown in figure 11 for auxiliary power operation.
Troubleshooting
Remedy
If using track power to operate the switch,
check that the jumper between the Track
AC Out Screw terminal and the Auxiliary
AC Power In Screw Terminal is installed.
If using Aux Power, check connection.
If using auxiliary power to operate the
switch, check that the jumper between
the Track AC Out Screw Terminal and the
Auxiliary AC Power In Screw Terminal is
removed.
If using track power, check connection.
Check that the operating voltage (track or
auxiliary) is at least 10V.
If operating your consist at < 10V, use
auxiliary power for your switch(es).
Realign Remote Switch spade connectors
to be perpendicular to the edge of the
roadbed.
If multiple wires under Screw Terminals,
use female spade type connectors like
those found on the ends of the Remote
Switch wires.
Symptom
Switch will not operate at all. Switch
Block Lantern is not illuminated.
Switch will not operate. Switch Block
Lantern is illuminated
Switch Points do no align completely
into either the "straight" or "curved"
position
Screw Terminal Cover will not fully
attach to the roadbed - gap
*RealTrax layout created with RR-Track™ available from R&S Enterprises

CAUTION - ELECTRICALLY OPERATED PRODUCT:
Not recommended for children under eight years of age without adult supervision. As
with all electric products, precautions should be observed during handling and use to
reduce the risk of electric shock.
WARNING: When using electrical products, basic safety precautions should be
followed including the following:
!Read this manual thoroughly before using this device.
!MTH recommends parents examine the Switch periodically for conditions that
may result in the risk of fire, electric shock, or injury to persons, such as damage
to wires, clips or other parts, and that, in an event such conditions exist, the
Switch should not be used until properly repaired.
!This Switch is intended to be used indoors. Do not use if water is present.
Serious or fatal injury may result.
!Do not operate the Switch with damaged wires or clips.
!If damaged call MTH service for instructions.
!Do not use this Switch for other than its intended purpose. This unit was
designed to operate with any AC or DC output toy train transformer. See the
individual transformer’s operating manual for more operating and safety
information.

Service & Warranty Information
How to Get Service Under the Terms of the Limited One-Year Warranty
When you suspect an item is defective, please check the operator's manual for standard
operation and trouble-shooting techniques that may correct the problem. Additional
information may be found on the M.T.H. Website. Should you still require service, follow
the instructions below to obtain warranty service.
First, e-mail, write, call or fax a M.T.H.Authorized Service Center (ASC) in your area to obtain Repair
Authorization. You can find the list of ASCs on the M.T.H. Website, www.mth-railking.com. Authorized Service
Centers are required to make warranty repairs on items sold only from that store; all other repairs may-- or may not
be done at the store's own discretion. If you did not purchase the item directly from the ASC, you will need to
select a National Authorized Service Center (NASC). These centers are compensated by M.T.H. to perform
warranty service for any customer whose repair qualifies for warranty service. A list of NASC retailers can be
located on the M.T.H. Website or by calling 1-888-640-3700. Should the warranty no longer apply, you may
choose either an ASC or NASC retailer to service your M.T.H. Product. A reasonable service fee will be charged.
CAUTION: Make sure the product is packed in its original factory packaging including its foam and plastic
wrapping material to prevent damage to the merchandise. There is no need to return the entire set if only one of
the components is in need of repair unless otherwise instructed by the Service Center. The shipment must be
prepaid and we recommend that it be insured. A cover letter including your name, address, daytime phone
number, e-mail address (if available), Return Authorization number (if required by the service center, a copy of
your sales receipt and a full description of the problem must be included to facilitate the repairs. Please include
the description regardless of whether you discussed the problem with a service technician when contacting the
Service Center for your Return Authorization.
Please make sure you have followed the instructions carefully before returning any merchandise for service.
Authorized M.T.H. Service Centers are independently owned and operated and are not agents or representatives of
M.T.H. Electric Trains. M.T.H. assumes no responsibility, financial or otherwise, for material left in their
possession, or work done, by privately owned M.T.H.Authorized Service Centers.
If you need assistance at any time email MTH Service at , or call 410 381-2580.
Limited One-Year Warranty
All M.T.H. products purchased from anAuthorized M.T.H. Train Merchant are covered by this warranty.
See our website at or call 1-888-640-3700 to identify an Authorized M.T.H.Train Merchant near you.
M.T.H. products are warrantied for one year from the date of purchase against defects in material or workmanship, excluding wear
items such as light bulbs, pick-up rollers, batteries, smoke unit wicks, and traction tires. We will repair or replace (at our option)
the defective part without charge for the parts or labor, if the item is returned to an M.T.H.Authorized Service Center (ASC) or
M.T.H. National Authorized Service Center (NASC) within one year of the original date of purchase.This warranty does not cover
damages caused by improper care, handling, or use. Transportation costs incurred by the customer are not covered under this
warranty.
Items sent for repair must be accompanied by a return authorization number, a description of the problem, and a copy of the
original sales receipt from an Authorized M.T.H. Train Merchant, which gives the date of purchase. If you are sending this
product to an Authorized Service Center, contact that Center for their return authorization.
This warranty gives you specific legal rights, and you may have other rights that vary from state to state. Specific questions
regarding the warranty may be forwarded to M.T.H. directly.
Service Department
M.T.H. Electric Trains
7020 Columbia Gateway Drive
Columbia MD 21046-1532
[email protected]
www.mth-railking.com

CATOCTIN MOUNTAIN TRAINS FAIRCHANCE PHARMACY
CANADA & HOBBIES FAIRCHANCE
TOY TRAIN WORKSHOP THURMONT 724-564-7817
CUMBERLAND 301-694-8331
613-833-8331 TOBY TYLER'S HOBBY
CENTER
THE TRAIN ROOM MICHIGAN PITTSBURGH
FERGUS MICHIGAN MODEL TRAIN 412-653-5030
519-787-3280 CENTER
PINCKNEY
734-426-1651 VIRGINIA
CALIFORNIA LOCUST GROVE TRAINS
TIN PLATE JUNCTION BRASSEUR ELECTRIC TRAINS LOCUST GROVE
OAKLAND INC. 540-854-8955
510-444-4780 SAGINAW
989-793-4753 DAVIS HOBBYSUPPLIES
COLORADO PORTSMOUTH
MIZELL TRAINS INC 757-397-1983
NEW HAMPSHIRE
WESTMINSTER TREASURED TOYS
303-429-4811 T S G HOBBIES
SALEM WARRENTON
603-898-7224
CONNECTICUT 540-347-9212
NEW ENGLAND HOBBY NEW YORK
SUPPLY WISCONSIN
AURORA RAILS & HOBBIES
MANCHESTER SOMMERFELD'S TRAINS
EAST AURORA
860-646-0610 BUTLER
716-652-5718 262-783-7797
FLORIDA OHIO
ROUNDHOUSE SOUTH GRAMPA'S TRAIN SHOP
DAVIS ELECTRONICS
PORT ORANGE RICE LAKE
MILFORD
386-304-7002 715-234-2996
513-831-6425
MARYLAND RICK'S TOY TRAINS
PLAZA HOBBY TOLEDO
CUMBERLAND 419-478-0171
301-729-6424
PENNSYLVANIA
ENGINE HOUSE HOBBIES BUSSINGER TRAINS
GAITHERSBURG AMBLER
301-590-0816 215-628-2366
PARTICIPATING N.A.S.C.
RETAILER LIST
AUTHORIZEDSERVICECENTER
www.mth-railking.com
AUTHORIZEDSERVICECENTERAUTHORIZEDSERVICECENTER
7020 Columbia Gateway Dr. - Columbia, MD 21046
Information: 410-381-2580 Fax: [phone]

DOLLHOUSES TRAINS & MORE FRANK'S TRAINS & HOBBIES
CANADA NOVATO OLDSMAR
TOY TRAIN WORKSHOP 415-883-0388 813-855-1041
CUMBERLAND
613-833-8331 TIN PLATE JUNCTION COLONIAL PHOTO & HOBBY
OAKLAND ORLANDO
THE TRAIN ROOM 510-444-4780 407-841-1485
ERGUS
519-787-3280 RON'S WORLD WARRICK CUSTOM HOBBIES
SAN CLEMENTE PLANTATION
CREDIT VALLEY RAILWAY 949-361-5596 954-370-0708
COMPANY
STREETSVILLE TRUCKS & TRAINS HOBBIES ROUNDHOUSE SOUTH
905-826-1306 SANTA ROSA PORT ORANGE
707-537-6586 386-304-7002
B H TRAINS
TERREBONNE
450-492-0317 COLORADO ILLINOIS
CUSTOM RAILWAY SUPPLY BIKE & CHOO CHOO
COLORADO SPRINGS CONNECTION
ALABAMA 719-634-4616 SCHAUMBURG
SOUTHERLAND STATION 847-882-7728
HUNTSVILLE CABOOSE HOBBIES
256-533-4720 DENVER INDIANA
303-777-6766
LIL' BOBBY'S HOBBIES Y. O. R. K.TRAINS
MONTGOMERY MUNSTER
MIZELL TRAINS
334-277-1715 219-838-9999
WESTMINSTER
303-429-4811 SAMUELSON'S TRAIN SHOP
ARIZONA VALPARAISO
ARIZONA TRAIN DEPOT CONNECTICUT 219-462-2708
MESA NEW ENGLAND HOBBY
480-833-9486 SUPPLY IOWA
MANCHESTER CABOOSE STOP HOBBIES
CALIFORNIA 860-646-0610 CEDAR FALLS
CENTRAL COAST TRAINS 800-642-7012
ATASCEDERO FLORIDA
805-466-1391 HOLLYWOOD STATION KENTUCKY
HOLLYWOOD
TRAIN SHACK L&N TRAINS & THINGS
954-921-2700
BURBANK LOUISVILLE
818-842-3330 502-897-9005
DEPOT HOBBY SHOP
LAKE WORTH
ROUNDHOUSE LOUISIANA
561-585-1982
NORTH HOLLYWOOD AMERICA'S TRAIN YARD
818-769-0403 BATON ROUGE
READY TO ROLL 225-926-5592
MIAMI
305-688-8868
PARTICIPATING A.S.C.
RETAILER LIST
AUTHORIZEDSERVICECENTER
www.mth-railking.com
AUTHORIZEDSERVICECENTERAUTHORIZEDSERVICECENTER
7020 Columbia Gateway Dr. - Columbia, MD 21046
Information: 410-381-2580 Fax: [phone]

TREASURED TOYS AMERICANA STORE
MAINE SALEM TIVOLI
WHEELS, WINGS & THINGS 603-898-7224 845-757-4246
LUDLOW
207-532-6277 NEW JERSEY KROSS HARDWARE
COUNTRY AND STUFF
MARYLAND WEST BABYLON
ANDOVER
PLAZA HOBBY 631-669-3069
973-786-7086
CUMBERLAND
301-729-6424 COLUMBUS TRAIN STATION NORTH CAROLINA
COLUMBUS THE ROUNDHOUSE &
HOBBYTOWN U S A 609-518-1800 BACKSHOP
FREDERICK CARY
301-694-7395 ATLANTIC RAILS 919-465-0810
HAMMONTON
ENGINE HOUSE HOBBIES 609-567-8490 TRAINS LTD.
GAITHERSBURG CHARLOTTE
301-590-0816 GRAND CENTRAL STATION 704-566-9070
KEARNY
J & B TRAINS 201-955-6200 DRY BRIDGE STATION
HAGERSTOWN MOUNT AIRY
240-420-4930 J & B TRAINS, INC. 336-786-9811
MAPLE SHADE
THE TRAIN ROOM 856-414-0092 THE FREIGHT YARD
HAGERSTOWN SMITHFIELD
301-745-6681 HOBBY SHOP 919-934-6229
MATAWAN
PURKEY'S TOY TRAINS 732-583-0505 TRAIN LOFT
SYKESVILLE WINSTON-SALEM
410-549-6061 HOBBYMASTERS, INC 336-760-9817
RED BANK
CATOCTIN MOUNTAIN TRAINS 732-842-6020
& HOBBIES OHIO
THURMONT GLEN'S TRAIN SHOP
RIDGEFIELD HOBBY
301-694-8331 AKRON
RIDGEFIELD 330-253-6527
201-943-2636
MASSACHUSETTS E & S TRAINS
NORTHEAST TRAINS TOM’S MODEL TRAINS AKRON
PEABODY SCOTCH PLAINS 330-745-0785
978-532-1615 908-322-6122 T & K HOBBY SHOP
EAST BAYHOBBIES TRAINS & THINGS BRIDGEPORT
SEEKONK TRENTON 740-633-6607
508-336-5573 609-883-8790 PARMAHOBBY
MICHIGAN COAST TRAINS AND CLEVELAND
MICHIGAN MODEL TRAIN COLLECTIBLES 216-741-6440
CENTER WALL
PINCKNEY 732-556-9005 SANDY'S HOBBY'S &
734-426-1651 COLLECTIBLES
HOLLY BEACHTRAIN DEPOT ELYRIA
BRASSEUR ELECTRIC TRAINS WILDWOOD 440-365-9999
INC. 609-522-2379
SAGINAW HUDSON TOY, TRAIN &
989-793-4753 NEW YORK HOBBY
AURORA RAILS & HOBBIES HUDSON
MISSOURI EAST AURORA 330-653-2997
SWITCH STAND 716-652-5718
SAINT LOUIS CLEARVIEW TRAIN & HOBBY
314-781-4458 NASSAU HOBBY CENTER, INC. LORAIN
FREEPORT 440-277-4488
MARK TWAIN HOBBYCENTER 516-378-9594
ST. LOUIS DIXIE UNION STATION
636-946-2816 HOBBY WORLD MASON
MONTICELLO 513-459-0460
NEVADA 845-794-8770
RENO RAILS DAVIS ELECTRONICS
RENO CITY DEPOT, INC. MILFORD
775-337-6669 NEW HAMPTON 513-831-6425
845-374-3010
NEW HAMPSHIRE
RAILROAD SPECIALTIES SCAG’S ELECTRIC TRAINS
NASHUA STATEN ISLAND
603-801-0801 718-727-7373
