RAILZ 18-001 User manual

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 1of 8
RAILZ SCOOTER MODELS COVERED BY THESE INSTRUCTIONS
MODEL
NUMBER
ASSEMBLY
NUMBER
UPC
DESCRIPTION
RIDER
AGE
RIDER WEIGHT
18-001
100-00018-001
793573890191
Youth Snow Scooter
Silver/Red
5+
200 lbs.
(91kg) MAX
18-004
100-00018-004
040232562433
Youth Snow Scooter
Black/Red
5+
200 lbs.
(91kg) MAX
20-001
100-00020-001
793573234520
Full Size Snow Scooter
Silver/Red
12+
200 lbs.
(91kg) MAX
20-004
100-00020-004
040232562440
Full Size Snow Scooter
Black/Blue
12+
200 lbs.
(91kg) MAX
WARNINGS
1. Always wear safety equipment such as helmet, knee pads and elbow pads. Always wear a
helmet when riding your scooter and keep the chinstrap securely buckled. Always wear
shoes.
2. Ride on smooth, paved surfaces away from motor vehicles.
3. Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly
stop.
4. Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet
weather impairs traction, braking, and visibility.
5. Avoid riding on surfaces with exposed soil, rocks and other debris that may contain hidden
obstacles.
6. Do not ride at night.
7. Brake will get hot from continuous use. Do not touch after braking
8. Avoid excessive speed associated with downhill rides.
9. Avoid excessively steep terrain. Do not steer straight down a slope, steer across sloped
terrain.
10. Adults must assist children in the initial adjustment procedures to unfold scooter, adjust
handlebar and steering to height, and finally to fold scooter.
11. Obey all local traffic and scooter riding laws and regulations.
12. Watch out for pedestrians.
13. Watch for other riders.
14. Check and secure all fasteners before every ride.
15. Replace worn or broken parts immediately.
16. To be used under adult supervision.
17. Observe all warning and use at your own risk.
18. Youth Scooters: Ages 5+ and maximum rider weight of 200lbs (91kg).
19. Full Size Scooters: Ages 12+ and maximum rider weight of 200lbs (91kg).

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 2of 8
FEATURES & SPECIFICATIONS
18-001
18-004
20-001
20-004
Overall Length with skis
attached
32" (81 cm)
32" (81 cm)
39" (99 cm)
39" (99 cm)
Product Weight
7 lb.
(3.2 kg)
7 lb.
(3.2 kg)
8lb.
(3.6 kg)
8lb.
(3.6 kg)
Adjustable Handle Bar
Height, from the ground
28" - 32"
(71 - 81 cm)
28" - 32"
(71 - 81 cm)
32" - 38"
(81 –96 cm)
32" - 38"
(81 –96 cm)
Adjustable Handle Bar
Height, from the deck
26" - 30"
(66 - 76 cm)
26" - 30"
(66 - 76 cm)
30" - 36"
(76 - 91 cm)
30" - 36"
(76 - 91 cm)
Handle Bar Width
13" (33 cm)
13" (33 cm)
14" (36 cm)
14" (36 cm)
Deck Length (overall)
15" (38 cm)
15" (38 cm)
22" (55 cm)
22" (55 cm)
Deck Length (footbox)
12" (31cm)
12" (31cm)
18" (46 cm)
18" (46 cm)
Product Colors
Silver & Red
Black & Red
Silver & Red
Black & Blue
Deck Material
Aluminum
Aluminum
Aluminum
Aluminum
Handle Bar Material
Steel
Steel
Steel
Steel
Front Fork Material
Steel
Steel
Steel
Steel
Headtube Angle
80 deg
80 deg
80 deg
80 deg
Handle Grips
Black EVA Foam
Black EVA Foam
Black EVA Foam
Black EVA Foam
Wheel Compatibility
100 - 125 mm
100 - 125 mm
100 - 125 mm
100 - 125 mm
Grip Tape
Foot box area
Foot box area
Foot box area
Foot box area
Headtube Clamp
Double Stack
Double Stack
Double Stack
Double Stack
Skis
Red
Red
Red
Blue
Ski Brake
Black
Black
Black
Black

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 3of 8
HOW TO INSTALL SKIS ON A RAILZ SCOOTER
Step 1 –Locate the RAILZ Scooter, the two RAILZ
Skis, the two axle bolts, and the two 5mm hex keys.
Follow instructions on next page to open the RAILZ
Scooter.
Step 4 –Tighten the axle using the two 5mm hex
keys.
Step 2 –Align one of the RAILZ Skis with the front fork
axle hole and insert the internal thread axle bolt
through the front fork axle hole and the ski bushing.
Step 5 –Repeat steps 2 and 3 for the rear ski. You
may have to depress the RAILZ brake a little to allow
the axle bolt to align with the rear fork axle hole.
Step 3 –Insert the external thread axle bolt through
the front fork hole from the other side and thread
clockwise into the internal thread bolt.
Step 6 –Tighten the rear axle bolt using the two 5mm
hex keys, and you are ready to ride!

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 4of 8

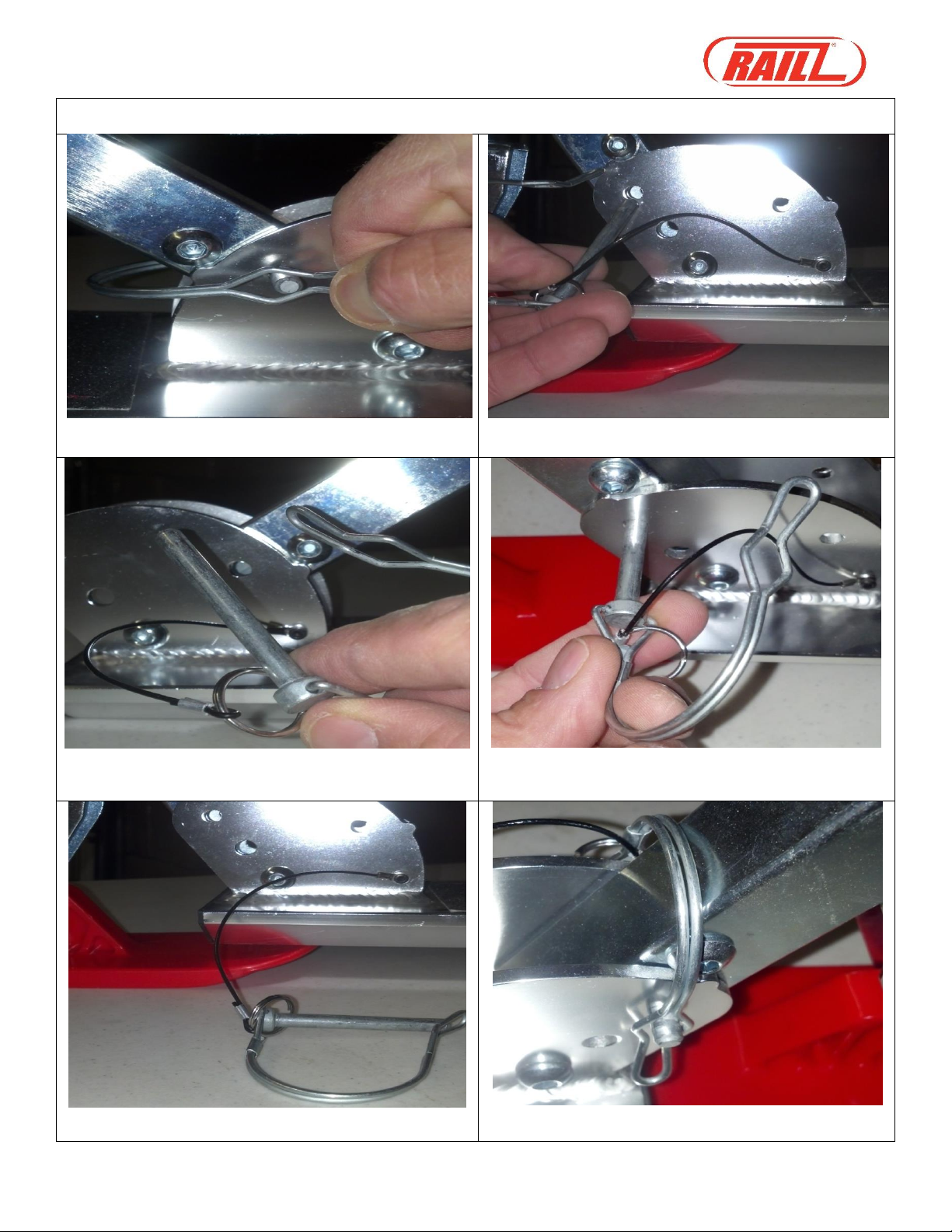

HOW TO OPEN A RAILZ SCOOTER
Step 1 –Lift the bail on the lynch pin and swing it
away from the pin.
Step 4 –Insert the lynch pin into the open position
hole (upper hole).
Step 2 –Pull lynch pin out.
Step 5 –Push lynch pin through the brackets (pin will
fit tight and will need to be aligned and manipulated
to get pin pushed through the brackets).
Step 3 –Swing handle bar up to the open position.
Step 6 –Snap lynch pin bail down over the exposed
end of the pin. Proceed to step 7 on page 5.

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 5of 8
HOW TO OPEN A RAILZ SCOOTER
Step 7 –Locate the safety bolt (attached to
scooter in a zip bag).
Step 9 –Install the threaded bolt from the other
side.
Step 8 –Push the bolt through the bracket as
shown.
Step 10 –Tighten the safety bolt using the 5mm
hex wrenches provided.

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 6of 8

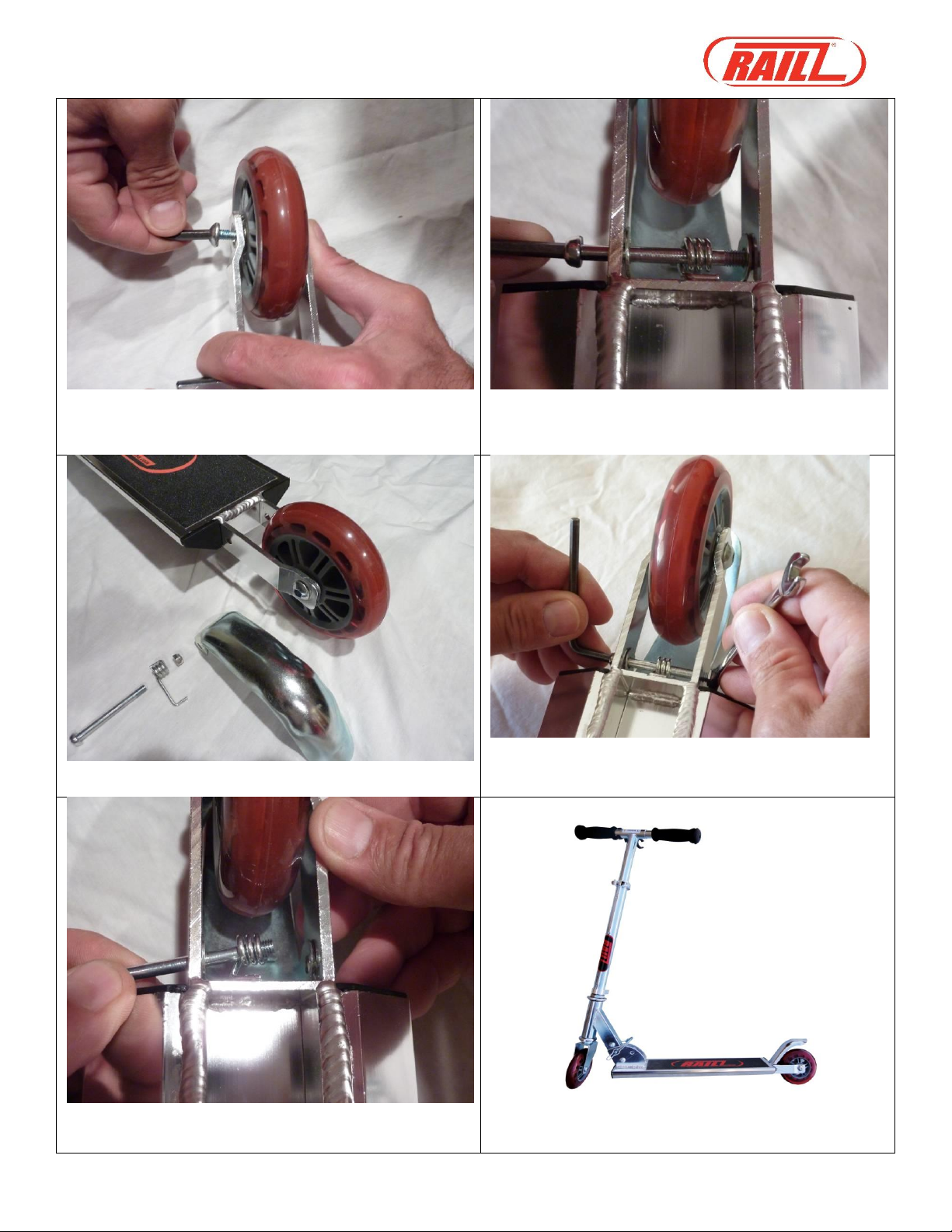

HOW TO CONVERT FROM SNOW SCOOTER TO WHEEL SCOOTER
Step 1 –Remove rear axle bolt using two 5mm
hex keys.
Step 4 - Remove brake axle bolt using 8mm
wrench and 4mm hex key.
Step 2 –Axle bolt removed from rear ski.
Step 5 –Brake axle bolt and spring removed
from Scooter & Brake.
Step 3 –Remove front axle bolt using two 5mm
hex keys.
Step 6 –Insert wheel axle bolt through the rear
axle mount and wheel (align axle bolt through
wheel bearings and internal bearing spacer).
Proceed to step 7 on page 7.

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 7of 8
Step 7 –Insert axle bolt from opposite side of
axle and use two 5mm hex keys to tighten
(ensure that wheel still spins freely).
Step 10 - Use 4mm hex key with twisting motion
to compress spring and allow axle to be pushed
through opposite side holes.
Step 8 –Locate wheel brake, axle, nut and spring.
Step 11 –Install the 8mm nut on the brake axle
bolt and tighten using a 4mm hex key and 8mm
wrench.
Step 9 –Start axle bolt through wheel brake and
spring.
Step 12 –Completed conversion to wheeled
scooter, reverse process to convert back to
snow scooter.

Recreational Kick Scooters, Warnings, Specifications & Instructions
Dwg #: 600-00002-001 Rev G © 2004 RAILZ, LLC. All rights reserved Page 8of 8
Be sure to check out additional instructions at: www.railzusa.com
Check out all these kits & accessories to customize your scooter or skateboard at
www.railzusa.com
Item
Model
Description
For use with:
1
23-001
100mm Red Youth wheel/brake kit
RAILZ Youth Snow Scooters, 18-001, 18-004, 20-001 &
20-004
2
23-002
125mm Red Adult wheel/brake kit
RAILZ Adult Snow Scooters, 18-001, 18-004, 20-001 &
20-004
3
23-003
125mm Blue Adult wheel/brake kit
RAILZ Adult Snow Scooters, 18-001, 18-004, 20-001 &
20-004
4
26-001
100mm Green Pro Wheel/Brake kit
RAILZ Pro Snow Scooter, 27-001, 27-002 & 28-001
5
30-001
Pro-66 Dual ski kit, Green
All RAILZ Scooters
6
30-003
Pro-66 Dual ski kit, Red
All RAILZ Scooters
7
30-005
Pro-66 Dual ski kit, Blue
All RAILZ Scooters
8
06-001
Steel Coiled Safety Lanyard
All RAILZ Scooters
9
24-001
Snow Brake Kit
All RAILZ Scooters
10
30-002
Pro-66 Quad ski kit, Green
Skateboards and all RAILZ Scooters
11
30-004
Pro-66 Quad ski kit, Red
Skateboards and all RAILZ Scooters
12
30-006
Pro-66 Quad ski kit, Blue
Skateboards and all RAILZ Scooters
