RAIS 700 Technical manual

ENGLISH RAISmanualforRais700
1
INSTRUCTIONSFORINSTALLATION,
USEANDMAINTENANCE
RAIS700
IMPORTANTINFORMATION
Onfirstlightingthestoveyoumustbecarefulnottotouchthepainted
surfacesanditisMOSTIMPORTANTthatthedooriskeptslightly‘ajar’in
orderforthedoorsealandsealanttocure.
Thiswillpreventthedoorsealstickingtothepaintedbodyandbecoming
damaged.

ENGLISH RAISmanualforRais700
2

ENGLISH RAISmanualforRais700
3
Revision
Date :2011
INTRODUCTION ………………………………………………………….. 4
WARRANTY …………………………………………………….………….. 4
SPECIFICATIONS………………………………………………………….. 5
INSTALLATIONINSTRUCTIONS ………………………………….……… 6
CONVECTION……………………………………..……….………... 7
CHIMNEY……………………..…………………………….…………. 78
FLUEOUTLETPOSITIONS…………………………………………. 9
HEARTH……...………………………………………………………… 10
QUICKGUIDEDRAWINGS …...……………………………………. 1112
VENTILATION…………………………………………………………. 13
COMBUSTIONAIRSUPPLY………………………………………… 14
INSTALLATION……………………………………………………….. 1415
INSTALLATIONDISTANCE…………………………………………. 1621
COMMISSIONINGANDHANDOVER………………………………. 21
OPERATINGINSTRUCTIONS
FUEL……………………………………………………………………. 2223
REGULATIONOFCOMBUSTIONAIR…………………………….. 23
USINGTHEWOODBURNINGSTOVE……………………………. 24
ADJUSTMENTOFAIRDAMPER …………………………………... 24
CONTROL……………………………………………………………… 24
FIRSTUSAGE…………………………………………………………. 24
LIGHTINGANDFUELLING………………………………………….. 2627
MAINTENANCE
CLEANINGANDCARE ………………………………………………. 27
CHIMNEYCLEANING………………………………………………… 28
CLEANINGTHEFLUEWAYS………………………………………. 29
PROBLEMSOLVING…………….………………………………….. 30
DO’SANDDON’TS………………………………………………….. 31
ACCESSORIESANDSPAREPARTS…………………………………... 32
Rais700

ENGLISH RAISmanualforRais700
4
ARaiswoodburningstoveismorethanjustaheatsource:italsoshowsthatyou
careaboutdesignandqualityinyourhome.
Tomakethemostofyourwoodburningstoveitisimportantthatyoureadthemanual
thoroughlybeforeinstallingandusingit.
Inthecaseofwarrantycoverage,andforgeneralqueriesregardingyourwood
burningstove,itisimportantthatyouknowthestove’sproductionnumber.
Wethereforerecommendthatyounotedownthenumberinthetablebelow.
Theproductionnumberislocatedinthetopoftheconvectionbox.
WARRANTY
YourRaiswoodburningstovecomeswitha5yearwarranty.
Thewarranty,however,doesnotcoverheatinsulatingmaterials,glassandseals.
TheseareavailabletoorderfromyourlocalRaisdealer/stockist.
Anyalterationsmadetothestovewillvoidthewarranty.
INTRODUCTION
ThankyouforpurchasingaRaiswoodburningstove.
TheseapplianceshavebeenapprovedbyHETASas
intermittentoperatingappliancesforburningwoodlogsonly.
TheseapplianceshavebeenapprovedforuseinSmokeless
Zones.

ENGLISH RAISmanualforRais700
5
Nominaloutput(kW):
Min./Max.output(kW):
Efficiency(%):
ParticlesafterNS3058/3059(g/kg):
DustmeasuredaccordingtoDin+(mg/Nm
3
):
Smokegasmassflow(g/s):
Smokegastemperature(°C):
Intermittentoperation:
Heatingarea(m
2
):
Size,width/depth/height(mm):
Combustionchamberwidth/depth/height(mm).
Recommendedamountofwoodwhenfuelling(kg)
(Basedon2  3logsofwoodapprox.25cm)
Min.uptake(Pascal):
Weight(kg):
5.2
3  7
80
2.6
8
5.1
268
Fuellingshouldbeundertaken
within3hours.
ca.60  105
1.8
12
125
RAIS700
Rais700
Nominaloutput(kW): 5.2
Min./Max.output(kW): 37
Heatingarea(m
2
): Ca.60105
Size,width/depth/height(mm): 825/485/535
Combustionchamberwidth/depth/height(mm). 562/289/300
Recommendedamountofwoodwhenfuelling(kg)
(Basedon2  3logsofwoodapprox.25cm)
1.8
Min.uptake/Min.draught(Pascal): 12
Weight(kg): 125
Efficiency(%): 80
ParticlesafterNS3058/3059(g/kg): 2.6
DustmeasuredaccordingtoDin+(mg/Nm
3
): 8
Smokegasmassflow(g/s): 5.1
Smokegastemperature(°C): 268
Intermittentoperation: Fuellingshouldbe
undertaken
within3hours
SPECIFICATIONS

ENGLISH RAISmanualforRais700
6
INSTALLATIONINSTRUCTIONS
Thefollowingpagesgiveinstructionsforthesafeandproperinstallationofthisheating
applianceintheUK.Theseinstructionscoverthebasicprinciplesofinstallation,
althoughsomedetailsmayneedslightmodificationtosuitparticularlocalsiteconditions.
InallcasestheinstallationmustcomplywithcurrentUKBuildingRegulations,Local
AuthorityByelawsandotherspecificationsorregulationsastheyaffecttheinstallationof
thestove.
PleasenotethatitisalegalrequirementunderEnglandandWalesBuildingRegulations
thattheinstallationofthestoveiseithercarriedoutunderlocalAuthorityBuilding
ControlapprovalorisinstalledbyaCompetentPersonregisteredwithaGovernment
approvedCompetentPersonsScheme.HETASoperatesuchaschemeandalistingof
theirregisteredCompetentPersonscanbefoundontheirwebsiteatwww.hetas.co.uk.
ItshouldbenotedthatthecurrentBuildingRegulationsrequirementsaregivenin
ApprovedDocumentJ.Theserequirementsmayalsobemetbyadoptingtherelevant
recommendationsgiveninBritishStandardsBS8303,BSEN152871:2007.
WARNING.HealthandSafetyAdviceNotice.
TheinstallationofthisheatingapplianceisgovernedbytheHealthandSafetyatWork
Act1974.itistheresponsibilityoftheinstallertoensurethatallrequirementsofthisAct
aremetduringtheinstallationworks.Attentionisdrawninparticulartothefollowing:
Handling: Theapplianceisaheavyitemandadequatefacilitiesmustbeavailable
forloading,unloadingandsitehandling.
FireCement: Sometypesoffirecementarecausticandshouldnotbeallowedtocome
intocontactwiththeskin.Protectiveglovesshouldbewornwhen
handlingfirecement.Incaseofcontactwiththeskin,washimmediately
withplentyofwater.
Asbestos: Thisstovecontainsnoasbestos.Ifthereisapossibilityofdisturbingany
asbestosinthecourseoftheinstallation,thenpleaseseekspecialist
guidanceanduseappropriateprotectiveequipment.
MetalParts: Wheninstallingorservicingthisstovecareshouldbetakentoavoidthe
possibilityofpersonalinjury.
ImportantWarning  PreparatoryWorkandsafetyChecks:
· Thisstovemustnotbeinstalledintoachimneywhichservesanyotherheating
appliance.
· Theremustnotbeanextractorfanfittedinthesameroomasthestove,asthiscan
causethestovetoemitfumesintotheroom.
· Ifthisapplianceisinstalledintoanexistingchimney,thechimneymustfirstbe
sweptandexaminedforsoundnessandsuitability,beforetheapplianceisinstalled
(seealsosectionheaded‘Chimney’).

ENGLISH RAISmanualforRais700
7
Thestovesareequippedwithcooldoorhandles  aRaisspecialfeature whichmeans
youcouldalmostdoawaywithgloves.Beaware,however,thatallexteriorsurfaces
becomehotduringuse  sotakeextremecare.
Convection
Raisstovesareconvectionstoves.Thismeansthatthestove’sbackandsidepanelsare
notoverheated.Convectionmeansthatthereisacirculationofair,whichensuresthat
theheatisdistributedmoreevenlythroughouttheentireroom.Thecoldairissuckedinat
thebaseofthestoveandupthroughtheconvectionchannel,whichrunsalongthe
stove’scombustionchamber.Theheatedaircomesoutatthetopofthestove,which
ensuresacirculationofwarmairthroughouttheroom.
Chimney
Inorderforthestovetoperformsatisfactorilythechimneyheightmustbesufficientto
ensureanadequatedraughtofapproximately15Pasoastocleartheproductsof
combustionandpreventsmokeproblemsintotheroom.
NOTE:Achimneyheightofnotlessthan4.5metresmeasuredverticallyfromtheoutletof
thestovetothetopofthechimneyshouldbesatisfactory.Alternativelythecalculation
proceduregiveninEN133841maybeusedasthebasisfordecidingwhethera
particularchimneydesignwillprovidesufficientdraught.
Theoutletfromthechimneyshouldbeabovetheroofofthebuildinginaccordancewith
theprovisionsofBuildingRegulationsApprovedDocumentJ.
Ifinstallationisintoanexistingchimneythenitmustbesoundandhavenocracksor
otherfaultswhichmightallowfumesintothehouse.Olderproperties,especially,may
havechimneyfaultsorthecrosssectionmaybetoolargei.e.morethan230mmx230
mm.Remedialactionshouldbetaken,ifrequired,seekingexpertadvice,ifnecessary.Ifit
isfoundnecessarytolinethechimneythenafluelinersuitableforsolidfuelmustbeused
inaccordancewithBuildingRegulationsApprovedDocumentJ.
Anyexistingchimneymustbeclearofobstructionandhavebeensweptclean
immediatelybeforeinstallationofthestove.Ifthestoveisfittedinplaceofanopenfire
thenthechimneyshouldbesweptonemonthafterinstallationtoclearanysootfalls
whichmayhaveoccurredduetothedifferenceincombustionbetweenthestoveandthe
openfire.
Ifthereisnoexistingchimneythenanynewsystemmustbetothedesignation
describedaboveandinaccordancewithBuildingRegulationsApprovedDocumentJ.
Asinglewallmetalfluepipeissuitableforconnectingthestovetothechimneybutisnot
suitableforuseasthecompletechimney.Thechimneyandconnectingfluepipemust
haveaminimumdiameterof150mmanditsdimensionshouldbenotlessthanthesize
oftheoutletsocketofthestove.

ENGLISH RAISmanualforRais700
8
Anybendinthechimneyorconnectingfluepipeshouldnotexceed45°.
90°bendsshouldnotbeused.
Combustiblematerialshouldnotbelocatedwheretheheatdissipatingthroughthe
wallsoffireplacesorfluescouldigniteit.Thereforewheninstallingthestoveinthe
presenceofcombustiblematerialsdueaccountmustbetakenoftheguidanceonthe
separationofcombustiblematerialgiveninBuildingRegulationsApprovedDocument
Jandalsointhesestoveinstructions.
Ifitisfoundthatthereisexcessivedraughtinthechimneythenadraughtstabiliser
shouldbefitted.Fittingofadraughtstabiliserwillaffecttherequirementforthe
permanentairsupplyintotheroominwhichthestoveisfittedinaccordancewith
ApprovedDocumentJ(seealsocombustionairsupply).
Adequateprovisione.g.easilyaccessiblesootdoorordoorsmustbeprovidedfor
sweepingthechimneyandconnectingfluepipewhereitisnotintendedforthe
chimneytobesweptthroughtheappliance.
ChimneyFires
Ifthechimneyisthoroughlyandregularlyswept,chimneyfiresshouldnotoccur.
However,ifachimneyfiredoesoccurturnoffthestoveimmediatelyandisolatethe
mainselectricitysupply(ifapplicable),andtightlyclosethedoorsofthestove.This
shouldcausethechimneyfiretogoout.Ifthechimneyfiredoesnotgooutwhenthe
aboveactionistakenthenthefirebrigadeshouldbecalledimmediately.Donotrelight
thestoveuntilthechimneyandfluewayshavebeencleanedandexaminedbya
professional.

ENGLISH RAISmanualforRais700
9
FlueOutletPositions

ENGLISH RAISmanualforRais700
10
Hearth
Thehearthshouldbeabletoaccommodatetheweightofthestoveandits
chimneyifthechimneyisnotindependentlysupported.Theweightofthestoveis
indicatedinthebrochure.
Thestoveshouldpreferablybeinstalledonanoncombustiblehearthofasizeand
constructionthatisinaccordancewiththeprovisionsofthecurrentBuilding
RegulationsApprovedDocumentJ.
Theclearancedistancestocombustiblematerialbeneath,surroundingoruponthe
hearthandwallsadjacenttothehearthshouldcomplywiththeguidanceonthe
separationofcombustiblematerialgiveninBuildingRegulationsApproved
DocumentJandalsointhesestoveinstructions.
If the stove is to be installed on a combustible floor surface, it must be covered
withanoncombustiblematerialatleast12mmthick,inaccordancewithBuilding
RegulationsApprovedDocumentJ,toadistanceof30cminfrontofthestoveand
15cmtoeachsidemeasuringfromthedoorofthecombustionchamber.

ENGLISH RAISmanualforRais700
11

ENGLISH RAISmanualforRais700
12

ENGLISH RAISmanualforRais700
13
Ventilation  makethebestpossibleuseoftheinserts.
Thestoveisequippedwithfourconvectionairoutlets,whichcanbeconnectedwith
suitableairductstootherrooms.
Note,thisisNOTaworkingdrawing.

ENGLISH RAISmanualforRais700
14
Combustionairsupply
Inorderforthestovetoperformefficientlyandsafelytheremustbeanadequateair
supplyintotheroominwhichthestoveisinstalledtoprovidecombustionair.The
provisionofairsupplytothestovemustbeinaccordancewithcurrentBuilding
RegulationsApprovedDocumentJ.Anopeningwindowisnotappropriateforthis
purpose.
Installation
Itisprohibitedtocarryoutunauthorisedalterationstothestove.
Theremustbeplentyoffreshairintheroomwherethestoveisbeinginstalled,inorderto
ensurepropercombustion.Notethatanymechanicalexhaustventilatione.g.an
extractionhoodisnotpermitted.Anyairgrillesmustbeplacedinsuchamanner,that
theairsupplyisnotblocked.
Thestoveisequippedwithfourconvectionairoutlets,whichmaybeconnectedwith
suitableairductstootherrooms.
BuildingRegulationsApprovedDocumentJgivesspecificguidanceontherequired
permanentventilationintotheroomforcombustionairofsolidfuelappliances.
Thefloorstructuremustbeabletocarrytheweightofthewoodburningstove,aswellas
theweightofachimney,ifnecessary.
WhenyouchoosewheretosetupyourRAISwoodburningstove,youshouldconsiderthe
heatdistributiontotheotherrooms.Thiswillenableyoutogetthebestuseoutofyour
stove.
Thestoveshouldbesetupatasafedistancefrominflammablematerials.
Seethemanufacturer'splateonthewoodburningstove.
Installationofstove:
NOTE! Adecisionmustbemadeconcerningthepositioningoftheinletsandoutletsof
theconvectionsystem.Discolourationofthewallabovethedoorsandthe
convectionairoutletsmayoccurduetoconvectedhotair.
RAIScannottakeresponsibilityforanybuildingworkorconsequentialdamage.
Thestoveshouldbeinspectedfordefectsatreceipt.

ENGLISH RAISmanualforRais700
15
Itispossibletoorder‘madetomeasure’frames.
ContactyourRaisdealer.
A A
Liftthestovefromthepallettotheplaceofinstallationontoasuitablyprotectedfloor.
Thestovecanbemountedontheoptionaladjustablestand(seepage29).
TheseareavailabletoorderfromyourlocalRaisdealer/stockist.
Usingaspiritlevelagainstthedoorandbodyofthestove,ensurethatthestoveis
perfectlylevelandmakeadjustmentsusingthelevellingboltsinthebase.
Removetheframeanddoorfromthestove.Becarefulnottodamagetheglassor
paint.
Sealthefluepipeontotheflueoutletusingfirecementandselftappingscrewsand
connecttothechimney.
Connecttheconvectionairducts,ifrequired.
Installairsystemmanifoldkit(A)tothepipestub,ifrequired(optional).
Thestoveisnowreadytobebuiltinusingeitherstudwallsorsolidwalls.
Whenthewallshavebeenfinishedanddecorated,theframeanddoorcanbe
refitted.Removeallprotectiveplasticandtapepriortocommissioning.

ENGLISH RAISmanualforRais700
16
InsulationabilitysuchasAquapanel(coefficientofthermalconductivity0.36W/mk)
orbetter.Pleaseusemetalstud.
Insulateceilingif
necessary

ENGLISH RAISmanualforRais700
17
Insulateceilingif
necessary

ENGLISH RAISmanualforRais700
18

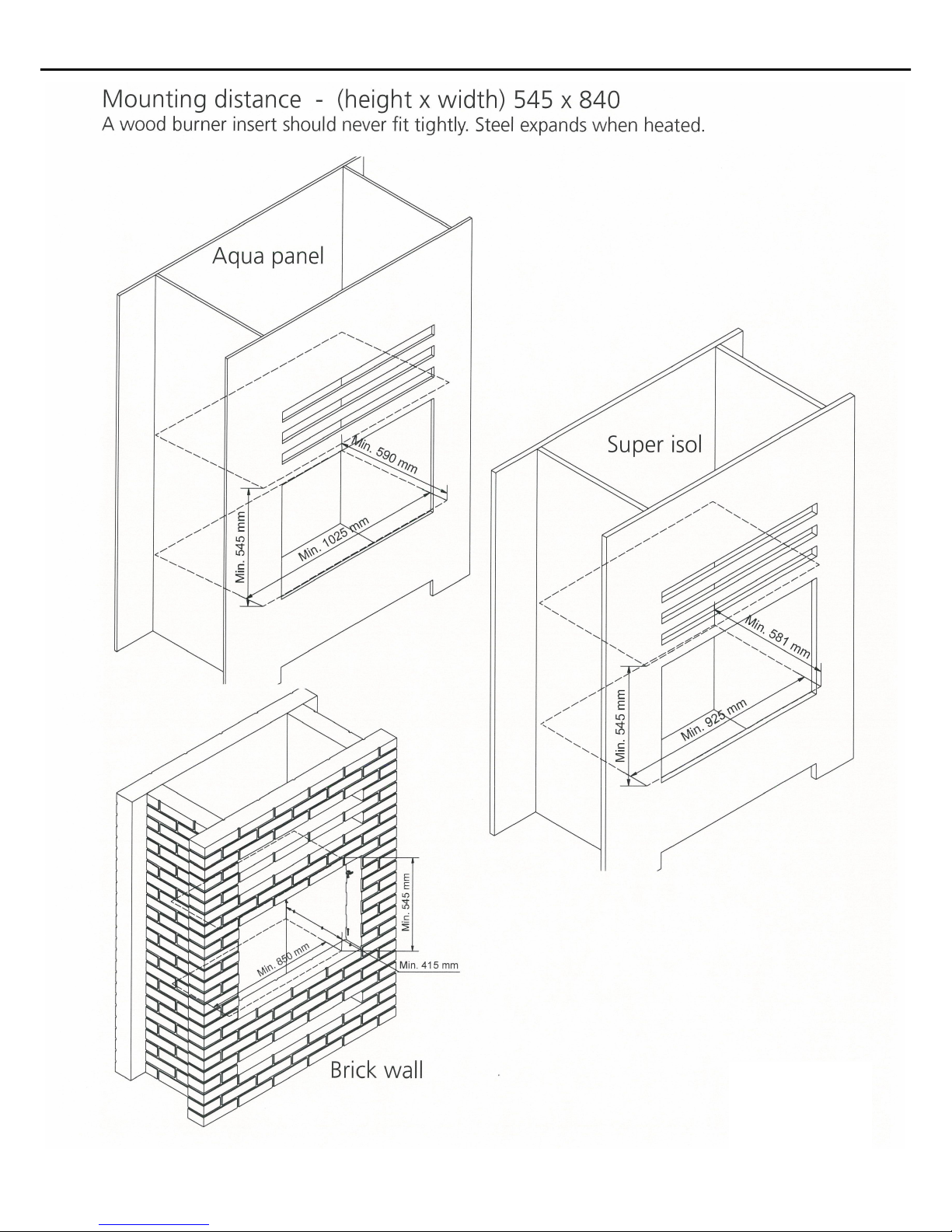

Distancetonon
combustiblematerial
50mmmin Distancetonon
combustiblematerial
50mmmin
Insulateceilingif
necessary

ENGLISH RAISmanualforRais700
19

ENGLISH RAISmanualforRais700
20
