Razor Sportmod User manual

OWNER’S MANUAL
Read and understand this entire manual before riding!
For assistance contact Razor. DO NOT RETURN TO STORE.
Item Number:
15130412
Español
..............
Página 14
Français .............Page 28

WARNING:
Riding the Sport Mod can be a hazardous activity.
Certain conditions may cause the equipment to fail without fault of the
manufacturer. Like other electric vehicles, the Sport Mod can and is intended
to move, and it is therefore possible to lose control, fall off and/or get into
dangerous situations that no amount of care, instruction or expertise can
eliminate. If such things occur you can be seriously injured or die, even when
using safety equipment and other precautions. RIDE AT YOUR OWN RISK
AND USE COMMON SENSE.
This manual contains many warnings and cautions concerning the
consequences of failing to maintain, inspect or properly use your Sport Mod.
Because any incident can result in serious injury or even death, we do not
repeat the warning of potential serious injury or death each time such a
possibility is mentioned.
APPROPRIATE RIDER USE AND
PARENTAL SUPERVISION
This manual contains important safety information. It is your responsibility
to review this information and make sure that all riders understand all
warnings, cautions, instructions and safety topics and assure that young
riders are able to safely and responsibly use this product. Razor recommends
that you periodically review and reinforce the information in this manual with
younger riders, and that you inspect and maintain your children’s vehicle to
insure their safety.
The recommended rider age of 12 and older for Sport Mod is only an
estimate, and can be affected by the rider’s size, weight or skills. Any rider
unable to fi t comfortably on the Sport Mod should not attempt to ride it.
A
parent’s decision to allow his or her child to ride this product should
be based on the child’s maturity, skill and ability to follow rules.
Keep this product away from small children and remember that this product
is intended for use only by persons who are, at a minimum, completely
comfortable and competent while operating the vehicle.
DO NOT EXCEED THE WEIGHT LIMIT OF 220
pounds.
Rider weight does not necessarily mean a person’s size is appropriate to fi t
or maintain control of the Sport Mod.
Do not touch the motor on your Sport Mod when in use as it can become
very hot.
Refer to the section on safety for additional warnings.
ACCEPTABLE RIDING PRACTICES AND
CONDITIONS
Always check and obey any local laws or regulations which may affect the
locations where the Sport Mod may be used on public property. The Sport
Mod is meant to be used only in controlled environments free of potential
traffi c hazards and not on public streets or sidewalks. Do not ride your
Sport Mod in any areas where pedestrian or vehicle traffi c is present.
Ride defensively. Watch out for potential obstacles that could catch your
wheel or force you to swerve suddenly or lose control. Be careful to avoid
pedestrians, skaters, skateboards, scooters, bikes, children or animals who
may enter your path, and respect the rights and property of others.
Do not attempt or do stunts or tricks on your Sport Mod. The Sport Mod is
not made to withstand abuse from misuse such as jumping, curb grinding or
any other type of stunts.
Maintain a hold on the handlebars at all times.
Never carry passengers or allow more than one person at a time to ride the
Sport Mod.
Never use near steps or swimming pools.
Keep your fi ngers and other body parts away from the drive chain, steering
system, wheels and all other moving components.
Never use headphones or a cell phone when riding.
Never hitch a ride with another vehicle.
Do not ride the Sport Mod in wet weather and never immerse the Sport Mod
in water, as the electrical and drive components could be damaged
by water or create other possibly unsafe conditions.
The Sport Mod is intended for use on solid, fl at, clean and dry surfaces such
as pavement or level ground without loose debris such as rocks or gravel.
Wet, slick or uneven and rough surfaces may impair traction and contribute
to possible accidents. Do not drive the Sport Mod in mud, ice, puddles or
water. Avoid excessive speeds that can be associated with downhill rides.
Never risk damaging surfaces such as carpet or fl ooring by use of a Sport
Mod indoors.
Do not ride at night or when visibility is impaired.
PROPER RIDING ATTIRE
Always wear proper protective equipment such as an approved safety
helmet, elbow pads and kneepads. A helmet may be legally required by local
law or regulation in your area. Always wear shoes, never drive barefooted or
in sandals, and keep shoelaces tied and out of the way of the wheels, motor
and drive system.
USING THE CHARGER
The charger supplied with the Sport Mod should be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event of such
damage, the bike must not be charged until the charger has been repaired or
replaced.
Use only with the recommended charger.
The charger is not a toy.
Always disconnect from the charger prior to wiping down and cleaning your
Sport Mod with liquid.
FAILURE TO USE COMMON SENSE AND HEED THE
ABOVE WARNINGS INCREASES RISK OF SERIOUS
INJURY. USE WITH APPROPRIATE CAUTION AND
SERIOUS ATTENTION TO SAFE OPERATION.
SAFETY WARNINGS
Safety Warnings
............................................................
1
Before You Begin
...........................................................
2
Assembly and Set-Up
.................................................
3-4
Repair and Maintenance
.............................................
4-6
1
Troubleshooting Guide
................................................
7-8

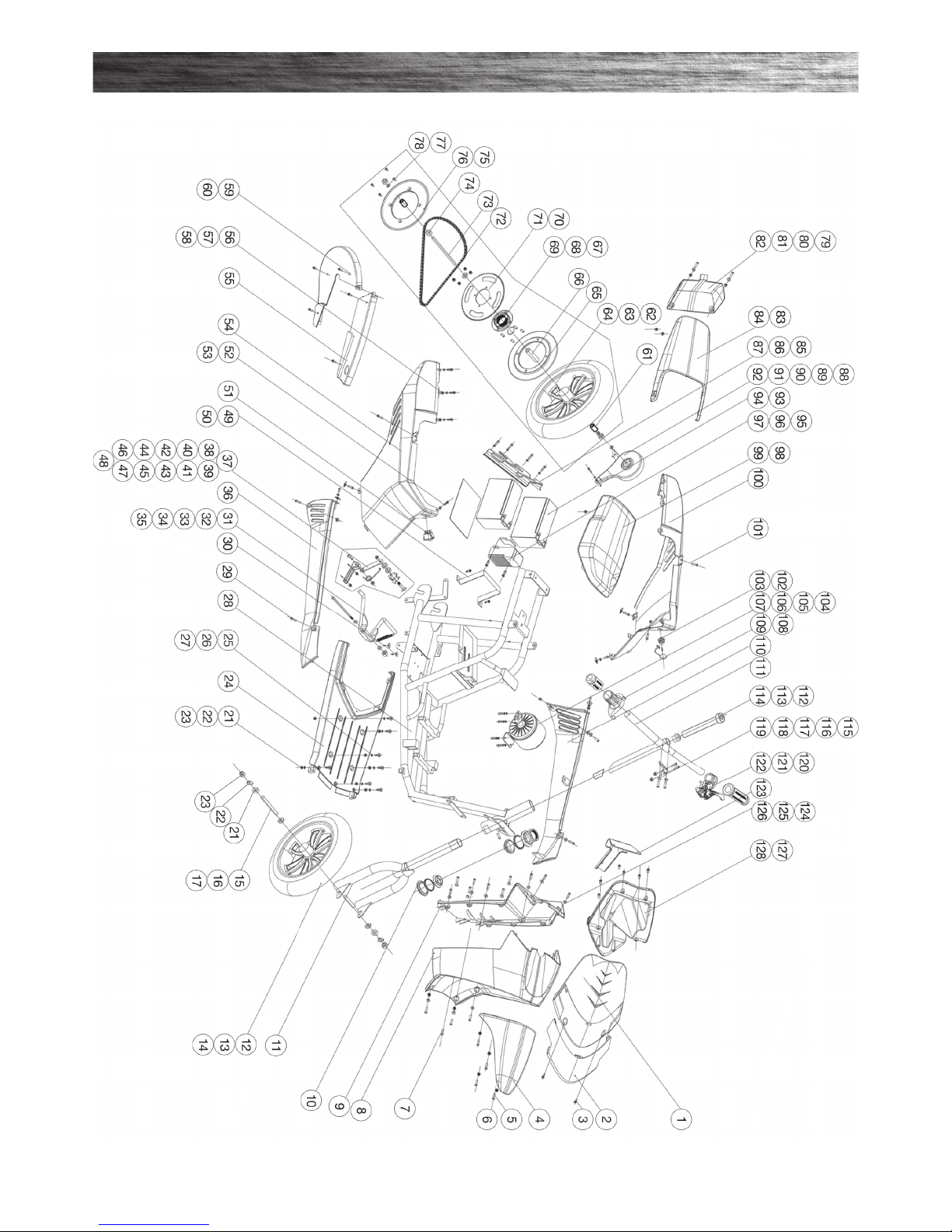

Sport Mod Parts
.......................................................
9-10
Safety Reminders
........................................................
12
Warranty
......................................................................
12
CONTENTS

Remove contents from box. Remove the foam separators that protect the components from damage during shipping.
Inspect the contents of the box for scratches in the paint, dents or kinked cables that may have occurred during
shipping. Because the Sport Mod was 95 percent assembled and packed at the factory, there should not be any
problems, even if the box has a few scars or dents.
❑
Estimated Assembly and Set-Up Time
Razor recommends assembly by an adult with experience in bicycle mechanics.
Allow up to 15 minutes for assembly, not including initial charge time.
Allow up to 12 hours for initial charge (see page 3 for charging information).
BEFORE YOU BEGIN
2
WARNING:
DO
NOT USE NON-RAZOR
PRODUCTS WITH YOUR
RAZOR SPORT MOD.
The Sport Mod has been built to
certain Razor design specifi cations.
The original equipment supplied at
the time of sale was selected on
the basis of its compatibility with
the frame, fork and all other parts.
Certain aftermarket products may
or may not be compatible.
❑

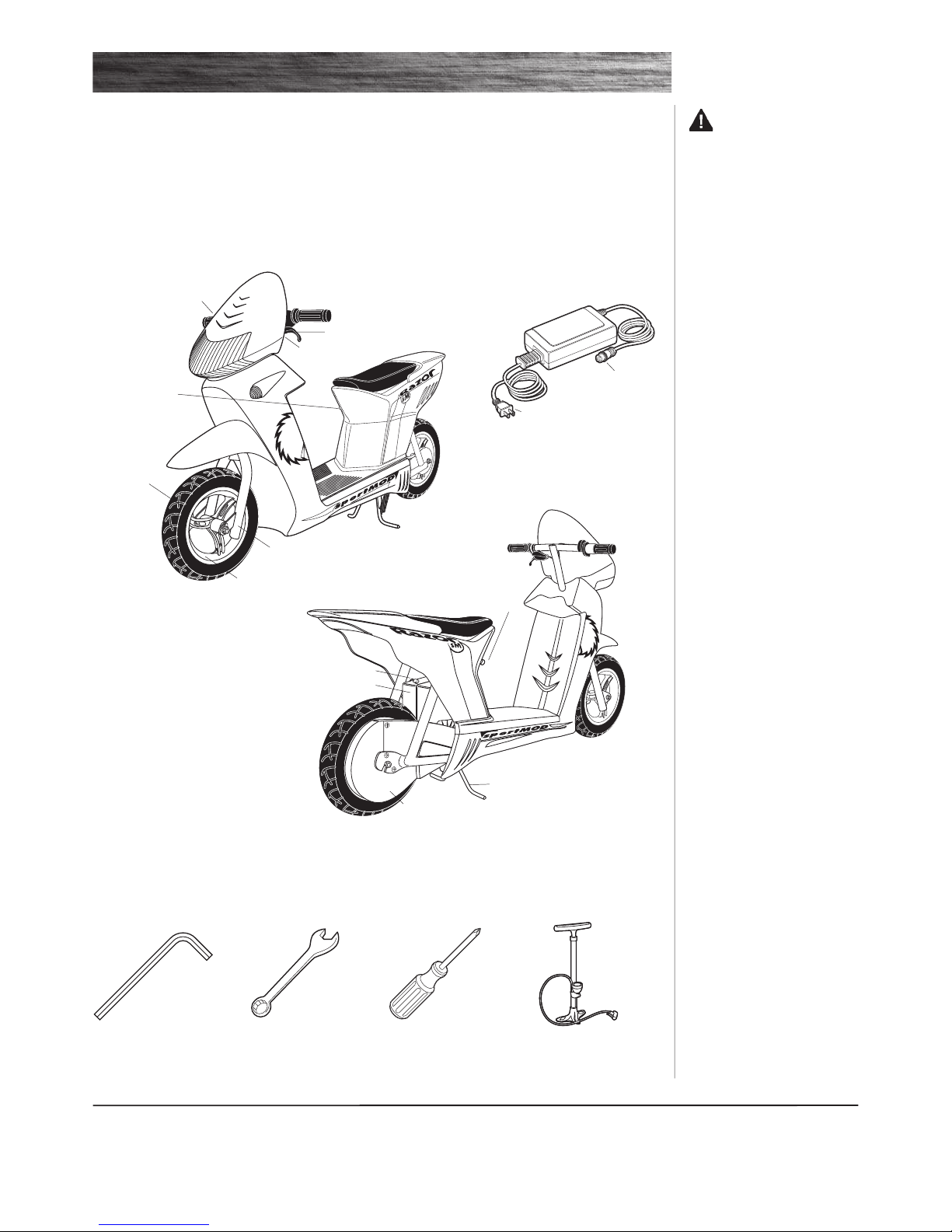

Required Tools
Some tools may be supplied; however, we recommend the use of mechanic’s grade tools. Use the supplied tools only
as a last resort.
Need Help?
Visit our web site for updates and a list of authorized service centers at
www.razor.com
or call toll-free at
866-467-2967
Monday - Friday 8:00 AM - 5:00 PM Pacifi c Time.
3mm and 6mm
hexagonal key wrenches
(included)
Bicycle-style tire pump
for Schrader valve tires,
with pressure gauge
Kick Stand
Brake Lever
Brake Lever
Adjuster
Chain Guard
Speed Control
Front Fork
Charger
Charger
Plug
Charger
Port
Tire
Front Wheel
On/Off
Switch
Charger
Charger
Port
Fuse Box
Battery
8mm, 10mm and 17mm
wrenches
Phillips screwdriver

3
ASSEMBLY AND SET-UP
❑
Charging the Battery
Your Sport Mod may not have a fully charged battery; therefore you must charge the battery prior to use.
• Initial charge time: 12 hours • Run time: up to 40 minutes
• Recharge time: up to 8 hours • Average battery life: 250 charge/discharge cycles
• Fully charge once a month when not in use • Do not store below 32 degrees - this can damage the battery.
1
Plug the charger port into the
port on the Sport Mod. The charger
works with the power switch in
either the on or off position.
2
Plug the charger plug into a wall
outlet.
WARNING:
Rechargeable batteries are only to
be charged under adult supervision.
Always disconnect your Sport Mod
from the charger before cleaning
with liquid.
Note:
If your charger does not
look like the one illustrated,
your unit has been supplied
with an alternative charger.
The specifi cations and charging
procedure would not change.
The charger has a small window
with one LED or two LEDs to
indicate the charge status. Refer
to the illustration on the charger
unit for the actual “charging” and
“charged” status indications for
your model charger.
Chargers have built-in over-charge
protection to prevent battery from
being over-charged.
Be sure to properly align the
groove on the charger input
plug with the corresponding
socket on the case; otherwise,
no charging action will occur.
Charger
Plug
Charger
Port
WARNING:
Failing to
properly adjust and tighten the
clamps and retainers that affi x the
handlebar can cause you to lose
control and fall.
1
Loosen the two hexagonal
bolts with the 3mm hexagonal
wrench and remove the plastic
handlebar cover.
2
Insert handlebar assembly into
the fork until it stops. Raise to
desired height, keeping the stem
and fairing aligned within the red
arrows of the safety zone.
❑
Attaching the Handlebars
3
Tighten down the hexagonal
bolt with the 6mm hexagonal
wrench.
4
Put the plastic handlebar
cover back in place.
5
Secure the two hexagonal bolts
with the 3mm hexagonal wrench.

4
REPAIR AND MAINTENANCE
WARNING:
The brake
is capable of skidding the tire and
throwing an unsuspecting rider.
Practice in an open area free from
obstacles until you are familiar with
the brake function. Avoid skidding
to a stop as this can cause you to
lose control or damage the rear tire.
Note:
The brake lever contains a
safety switch to stop the motor
when the brake is applied. In an
emergency, applying the brake
will always stop the motor. Do not
disable or replace this lever with
anything other than a genuine Razor
replacement part.
❑
Adjusting the Brakes
1
To adjust the brake play, thread
the brake lever adjuster in or out 1/4
to 1/2 turn until the desired brake
adjustment is attained. Most
adjustments are complete at this
step. If brake still needs further
adjustment, proceed to step 2.
2
If the brake lever adjuster is
threaded outward and the brake
still has too much slack, use the
rear brake adjuster for additional
adjustment.
❑
Testing the Brakes
To use the brake, squeeze the lever to increase the pressure on the brake. The brake lever is fi tted with a cable adjuster
to compensate for cable stretch and/or to fi ne-tune the lever movement to brake engagement. If the brake is not
engaging properly, follow instructions for adjusting the brakes outlined below.
❑
Infl ating the Tires
Tires are infl ated when shipped, but they invariably lose some pressure between the point of manufacturing and
your purchase.
1
Using a bicycle style tire pump
equipped for a Schrader-type valve,
infl ate the front tire to the PSI
indicated on the sidewall of the
tire.
Note:
The pressurized air supplies
found at gasoline stations are
designed to infl ate high-volume
automobile tires. If you decide to
use such an air supply to infl ate
your Sport Mod tires, fi rst make
sure the pressure gauge is working,
then use very short bursts to
infl ate to the correct PSI. If you
inadvertently over-infl ate the
tire, release the excess pressure
immediately.
1
Remove the packing material
from the front fork.
2
Insert the wheel into the front
fork with the lock washers on the
outside of the fork.
❑
Attaching the Front Wheel
3
Insert the tab on the lock
washer into the hole on the front
fork and tighten the nuts with the
supplied wrench.
ASSEMBLY AND SET-UP
Check the Razor web site for any updates on the latest repair and maintenance procedures.
Turn power switch off before conducting any maintenance procedures.

5
REPAIR AND MAINTENANCE
❑

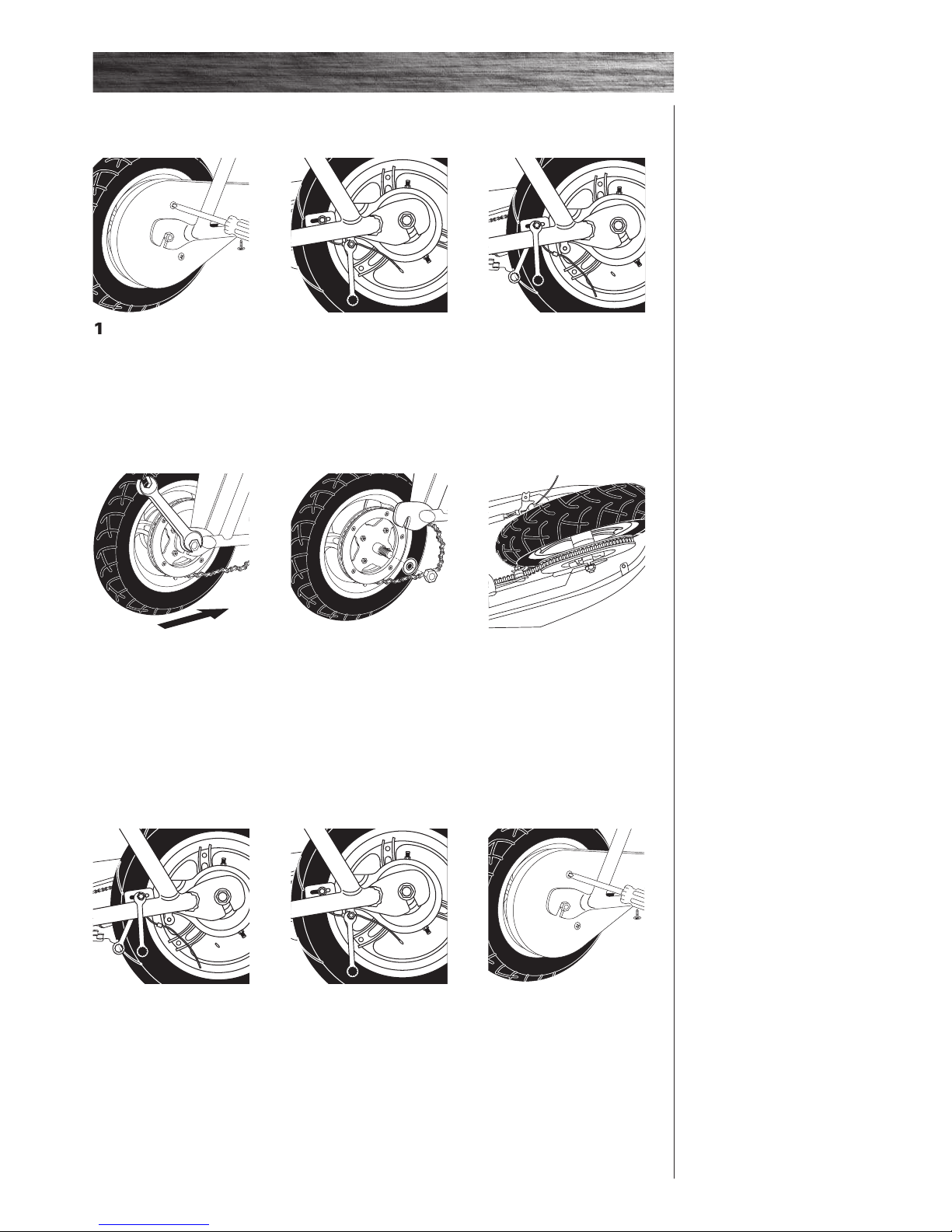

Chain and Rear Tire Replacement
Tools required:
Phillips screwdriver, 10mm wrench, two (2) 8mm wrenches, and two (2) 17mm wrenches.
1
With a Phillips screwdriver,
remove the screws that secure the
chainguard. Remove chainguard.
2
With a 10mm wrench, loosen
the brake cable anchor and
disconnect the brake cable.
3
With two 8mm wrenches,
loosen the brake housing anchor and
disconnect. Keep the spacer and
washers together.
4
With two 17mm wrenches,
loosen the axle nuts. Push the
wheel forward in the slots to loosen
the chain.
5
Pull the wheel out. Note the
arrangement of the hardware
sequence.
Note:
Your hands will get greasy
doing this.
6
Install the new chain or wheel
by slipping the chain around the
axle. Slide the axle into the slots on
the frame. Slide the wheel forward
and maneuver the chain onto the
rear sprocket, front sprocket and
chain tensioner. Tighten the axle
nuts.
Note:
This step will work better
with the Sport Mod fl ipped upside
down.
7
Tighten the brake housing
anchor securely.
8
Re-connect the brake cable and
tighten the brake cable anchor.
9
Re-attach the chain guard. Test
ride and check. Readjust as needed.

6
❑
Battery Care and Disposal
Do not store the battery in temperatures above 75° or below -10° F.
CONTAINS SEALED LEAD BATTERY. BATTERY M
UST B
E RECYCLED.
Disposal:
Your Razor product uses sealed lead-acid batteries which must be recycled or disposed of in an
environmentally sound manner. Do not dispose of a lead-acid battery in a fi re. The battery may explode or leak. Do not
dispose of a lead-acid battery in your regular household trash. The incineration, land fi lling or mixing of sealed lead-
acid batteries with household trash is prohibited by law in most areas. Return exhausted batteries to a federal or state
approved lead-acid battery recycler or a local seller of automotive batteries. If you live in Florida or Minnesota, it is
prohibited by law to throw away lead-acid batteries in the municipal waste stream.
❑
Charger
The transformer/charger supplied with the Sport Mod should be regularly examined for damage to the cord, plug,
enclosure and other parts, and, in the event of such damage, the bike must not be charged until it has been repaired or
replaced.
Use ONLY with the recommended charger.
❑
Replacement Parts
The most frequently requested replacement parts (wheels, tires, tubes, batteries and chargers) are available for
purchase at some Razor retail partners or online at www.razorama.com. For other parts contact an authorized Razor
repair center.
❑
Repair Centers
For a list of authorized Razor repair centers:
• Check online at www.razor.com.
• Send e-mail to [email protected] or call 866-467-2967 for the center nearest you.
WARNING:
If a battery
leak develops, avoid contact with
the leaking acid and place the
damaged battery in a plastic bag.
Refer to the disposal instructions at
left. If acid comes into contact with
skin or eyes, fl ush with cool water
for at least 15 minutes and contact
a physician.
REPAIR AND MAINTENANCE
❑

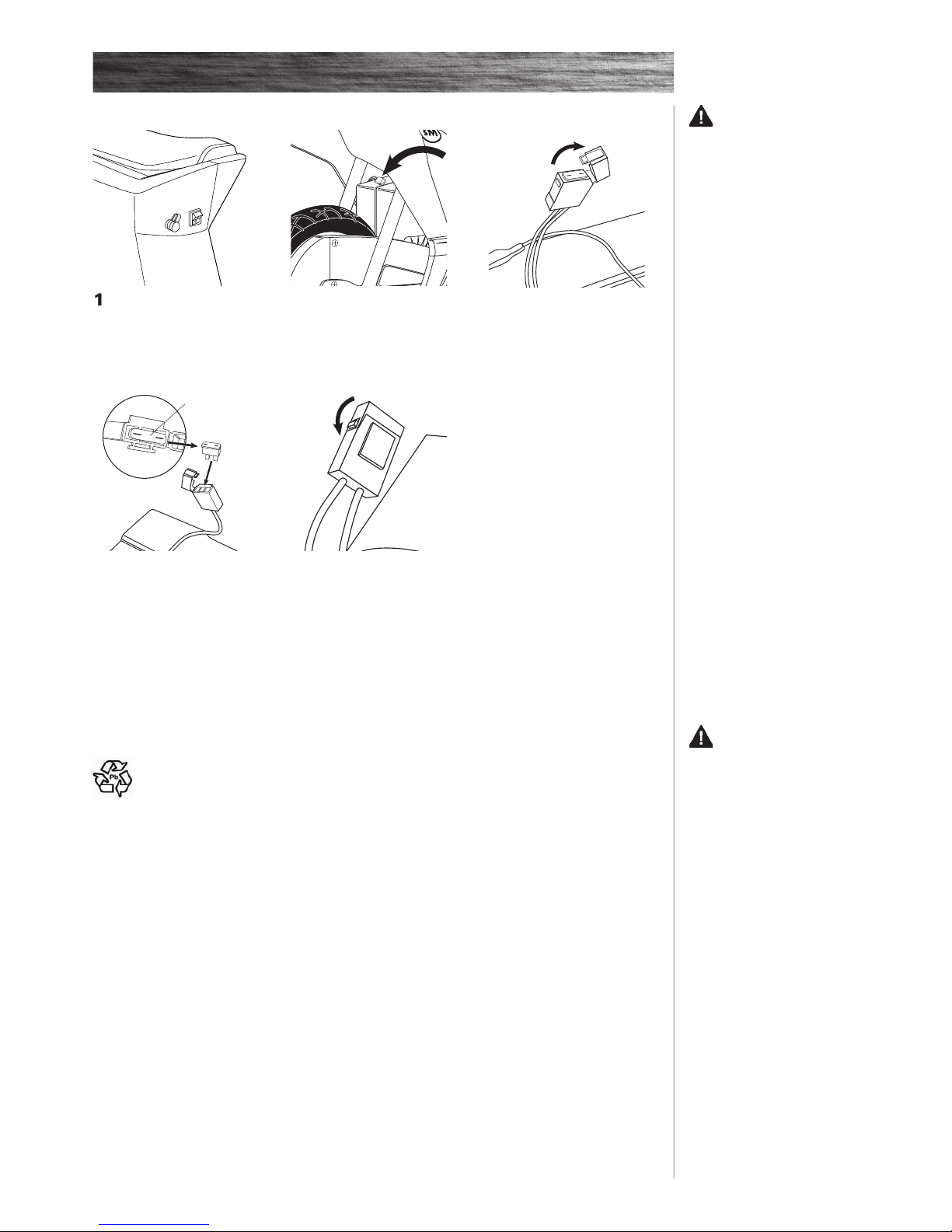

Replacing the Fuse
WARNING:
To prevent
shock or short circuit, please follow
the instructions in order and do not
skip or combine any steps.
4
Remove the fuse and replace
with a new one of equal
amperage.
Note:
Amperage rating is
located on top of fuse. Fuse must
be replaced with one of equal
amperage.
5
Close the fuse cover.
Amperage
number
1
Make sure the power switch is
turned off.
3
Open the fuse cover to expose
the fuse.
2
Locate fuse cover on top of
battery assembly through the rear
fender.

7
Vehicle does not run
Vehicle was running but
suddenly stopped
Short run time (less than
30 minutes per charge)
Vehicle runs sluggishly
Problem Possible Cause Solution
Undercharged battery
Charger is not working
Loose wires or connectors
Blown fuse
Undercharged battery
Battery is old and will not accept
full charge
Brakes are not adjusted properly
Driving conditions are too stressful
Tires are not properly infl ated
Vehicle is overloaded
Charge the battery. A new battery should have been charged for at least 12
hours before using the vehicle for the fi rst time and up to 8 hours after each
subsequent use.
Check all connections. Make sure the charger port is tightly plugged into
the charging port on the Sport Mod, and that the charger is plugged into the
wall.
Make sure power fl ow to the wall outlet is on.
You may check to see if your charger is working by using a volt meter or
asking your local Razor authorized service center to test your charger for you.
Check all wires and connectors to make sure they are tight.
If the motor is overloaded it could blow the fuse. Replace fuse. Refer to
instructions on page 6.
An excessive overload, such as too heavy a rider or too steep a hill, could
cause the motor to overheat. If the Sport Mod suddenly stops running,
wait a few seconds and then push the breaker to reset the circuit. Correct the
conditions that caused the breaker to trip and avoid repeatedly tripping
the breaker.
Charge the battery. A new battery should have been charged for at least 12
hours before using the vehicle for the fi rst time and up to 8 hours after each
subsequent use.
Check all wires and connectors. Make sure the battery connector is tightly
plugged into the charger connector, and that the charger is plugged into
the wall.
Make sure power fl ow to the wall outlet is on.
Even with proper care, a rechargeable battery does not last forever. Average
battery life is 1 to 2 years depending on vehicle use and conditions. Replace
only with a Razor replacement battery.
Refer to adjusting the brakes instructions on page 4.
Use only on solid, fl at, clean and dry surfaces such as pavement or level
ground.
The tires are infl ated when shipped, but they invariably will lose some
pressure between the point of manufacturing and your purchase.
Refer to tire infl ation instructions on page 4.
Make sure you do not overload the vehicle by allowing more than one rider
at one time, exceeding the 220 lb. maximum weight limit, going up a hill
or towing objects behind the vehicle. If the vehicle is overloaded, the
circuit breaker may trip and shut off power to the motor. Correct the driving
conditions that caused the overload, wait a few seconds, and then push the
breaker to reset the circuit. Avoid repeatedly tripping the circuit breaker.
TROUBLESHOOTING GUIDE

8
Sometimes the vehicle
doesn’t run, but other times
it does
Charger gets warm during
use
Vehicle does not stop when
applying the brake
Vehicle makes loud noises
or grinding sounds
Problem Possible Cause Solution
Loose wires or connectors
Motor or electrical switch damage
Normal response to charger use
Brakes are not adjusted properly
Chain is too dry
Check all wires around the motors and all connectors to make sure they are
tight.
Contact your local Razor authorized service center for diagnosis and repair.
No action required. This is normal for some chargers and is no cause for
concern. If your charger does not get warm during use, it does not mean that
it is not working properly.
Refer to adjusting the brakes instructions on page 4.
Apply a lubricant such as 3 in 1
TM
or Tri-Flow
TM
to the chain.
TROUBLESHOOTING GUIDE
Need Help?
Visit our web site for updates and a list of authorized service centers at
www.razor.com
or call toll-free at
866-467-2967
Monday - Friday 8:00 AM - 5:00 PM Pacifi c Time.

Keep your Sport Mod running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability.
(Specifi cations subject to change without notice.)
SPORT MOD PARTS
9
1 Front Head Shell
2 Head Shell Decorative Light
3 Crossed Bolt M4
4 Front Fender
5 Hex Socket Screw M5x12
6 Washer M5
7 Rubber Washer M6
8 Hex Socket Screw M6X12
9 Flat Washer M6
10 Rubber Washer M6
11 Front Cover
12 Front Sutural Cover
13 7 PC Headset
14 Fork
15 Front Wheel Hub
16 Front Tire (Outer)
17 Front Tire (Inner)
18 Front Wheel Bearing Sleeve
(Inner)
19 Front Wheel Bearing Sleeve
(Outer)
20 Front Wheel Axle
21 Bearing 6001
22 Safety Washer M10
23 M10 Non-metal inbuilt Nut
24 Hex Socket Screw M6X16
25 Flat Washer M6
26 Rubber Washer M6
M6 Non-metal inbuilt Nut
27 Deck
28 Hex Socket Screw M6X12
29 Flat Washer M6
30 Rubber Washer M6
31 M6 Non-metal inbuilt Nut
32 Frame
33 Hex Socket Screw M6X12
Flat Washer M6
34 Screw
Hex Socket Screw M5x14
Flat Washer M5
36 Kickstand
Screw Spring
Hex Socket Screw M8x80
Locknut M8
Kickstand Sleeve
41 Side Protect Plate (Right)
42 Axle, chain tensioner roller
Chain Tensioner Protect
Spring
43 Spring for chain tensioner
arm
44-46 Arm, chain tensioner roller
Chain Tensioner Seat
Chain Tensioner Arm Bolt
Hex Socket Screw M6
Washer M6
M6 Non-metal inbuilt Nut
M5 Non-metal inbuilt Nut
Bearing 606
Tensioner Arm Cover
47 Battery Set Fixed Belt
48 Hex Socket Screw M5x16
49 Switch
50 Hex Socket Screw M5X12
Flat Washer M5
53 Side Cover (Right)
54 Chain Cover (Upper)
Crossed Bolt M5
57 Hex Socket Screw M5x12
Flat Washer M5
60 Chain Cover (Bottom)
Crossed Bolt M5
63 Rear Wheel Bearing
Sleeve(Outer)
64 Rear Wheel Hub
65 Rear Tire (Outer)
66 Rear Tire (Inner)
67 Sprocket Wheel Protector
Left
68 Rear Wheel Bearing Sleeve
(Inner)
69 Free Wheel
70 Spacer for Axle
71 Hex Socket Screw M6x14
72 Sprocket Wheel
73 M6 Non-metal inbuilt Nut
74 Chain
75 Rear Axle
76 Bearing 6001
77 Sprocket Wheel Protector
Right
78 Crossed Sunk Bolt M6X16
M10 Non-metal inbuilt Nut
Flat Washer M10
79 Rear Decorative Light
Hex Socket Screw M6X12
M6 Non-metal inbuilt Nut
Flat Washer M6
83 Rear Decorative Plate
M6 Non-metal inbuilt Nut
85 Battery Protect Plate
Hex Socket Screw M6X12
Rubber Washer M6
Flat Washer M6
89 Band Brake
Bolt Hexagonal M5x20
Washer �5
Nylon Locknut M5
94 Battery
Foam
96 Controller
Z Foam
Hex Socket Screw M5X14
99 Saddle
M6 Non-metal inbuilt Nut
101 Side Plate (Left)
102 Hex Socket Screw M6X12
Flat Washer M6
104 Charger
Charger Rubber Sleeve
107 MY1016 250W Motor
Hex Socket Screw M6x14
Spring Washer �6
Flat Washer �6
112 TwistT Shifter
Half Grip (Right)
114 Side Protect Plate (Left)
115 Handbar
116 Hex Socket Screw M8x260
Fixed Bolt
Skew
119 Head Shell Fixed Plate
Hex Socket Screw M5 Flat
Hex Socket Screw M6 Flat
Flat Washer M5
Flat Washer M6
M5 Non-metal inbuilt Nut
122 Left Grip
Brake Cable
V Brake Left
125 Head Shell Decorative Board
126 Bolt
Hex Socket Screw M6 Flat
Flat Washer M5
Flat Washer M6
129 Rear Head Shell
Bolt

10
SPORT MOD PARTS

SB 1918 (CALIFORNIA) DECLARATION
YOUR INSURANCE POLICIES MAY NOT PROVIDE COVERAGE FOR ACCIDENTS
INVOLVING THE USE OF THIS SCOOTER/ELECTRIC VEHICLE. TO DETERMINE
IF COVERAGE IS PROVIDED, YOU SHOULD CONTACT YOUR INSURANCE
COMPANY OR AGENT.
11

Tire Infl ation
Periodically inspect the tires for excess wear, and regularly check
the tire pressure and re-infl ate as necessary. If you get a fl at tire,
the inner tube can be patched or a new tube can be purchased
from Razor or an authorized repair center.
Safety Gear
Always wear proper protective equipment such as an approved
safety helmet, elbow pads and kneepads. Always wear shoes
(lace-up shoes with rubber soles), never drive barefooted or
in sandals, and keep shoelaces tied and out of the way of the
wheels, motor and drive system.
Razor Limited Warranty
The manufacturer warranties this product to be free of manufacturing defects
for a period of 90 days from date of purchase. This Limited Warranty does
not cover normal wear and tear, tires, tubes or cables, or any damage, failure
or loss caused by improper assembly, maintenance, or storage or use of the
Razor Sport Mod.
This Limited Warranty will be void if the product is ever
• used in a manner other than for recreation;
• modifi ed in any way;
• rented.
The manufacturer is not liable for incidental or consequential loss or damage
due directly or indirectly to the use of this product.
Razor does not offer an extended warranty. If you have purchased an
extended warranty, it must be honored by the store at which it was
purchased.
WARRANTY
Need Help?
Visit our web site for updates and a list of authorized service centers at
www.razor.com
or call toll-free at
866-467-2967
Monday - Friday 8:00 AM - 5:00 PM Pacifi c Time.
Patent Pending
Printed in China for:
Razor USA LLC
PO Box 3610
Cerritos, CA 90703
© Copyright 2006 Razor USA. All rights reserved.
For your records, save your original sales receipt with this manual and write
the serial number below.
__________________________________________
Item Number:
15130412
Loose Parts
Check and secure all fasteners before every ride. Make sure
steering stem clamp bolts are locked properly in place. There
should not be any unusual rattles or sounds from loose parts
or broken components. If you are not sure, ask an experienced
mechanic to check.
Brake
Check the brake for proper function. When you squeeze the lever,
the brake should provide positive braking action. When you apply
the brake with the speed control on, the brake cut-off switch will
stop the motor.
Frame, Fork and Handlebars
Check for cracks or broken connections. Although broken frames
are rare, it is possible for an aggressive driver to bash into a curb
or wall and wreck and bend or break a frame. Get in the habit of
inspecting yours regularly.
SAFETY REMINDERS
❑
❑
❑
❑
❑
PRE-RIDE CHECKLIST
12
10052006
DO NOT RETURN TO STORE
Do not use this vehicle for the fi rst time until you
have infl ated the tires to the correct PSI and
charged the battery for at least 12 hours.
Failure to follow these instructions may damage
your vehicle and void your warranty.

MANUAL DEL PROPIETARIO
¡Lea y familiarícese con todo el manual antes de conducir!
Para asistencia, comuníquese con Razor.
NO DEVUELVA EL VEHICULO A LA TIENDA
Número del artículo:
15130412
14

ADVERTENCIA:
Conducir la Sport Mod puede resultar una
actividad peligrosa.
Ciertas condiciones pueden hacer que el equipo falle no por culpa del
fabricante. Como sucede con otros vehículos eléctricos, la Sport Mod se
ha ideada para trasladarse y, por lo tanto, es posible perder el control, caer
y/o encontrarse en situaciones peligrosas que ningún cuidado extremo,
instrucción o experiencia pueden evitar por completo. En caso de que tales
situaciones se produzcan, usted puede resultar gravemente herido o morir,
aun cuando se haga uso de equipo de seguridad y otras precauciones.
USTED CONDUCE POR SU PROPIA CUENTA Y RIESGO. SIEMPRE APLIQUE EL
SENTIDO COMÚN.
Este manual contiene muchas advertencias y precauciones acerca de las
consecuencias de no realizar el mantenimiento y las inspecciones o de utilizar
su Sport Mod de manera inadecuada. Como cualquier accidente puede
producir lesiones e incluso la muerte, no repetimos la advertencia sobre
posibles lesiones serias o muerte cada vez que se mencione tal posibilidad.
USO CORRECTO POR PARTE DEL CONDUCTOR Y
SUPERVISIÓN DE LOS PADRES
Este manual contiene información importante sobre la seguridad. Es su
responsabilidad examinar esta información y asegurarse que todos los
conductores comprendan todas las advertencias, precauciones, instrucciones
y pautas sobre la seguridad y garantizar que los conductores jóvenes sean
capaces de hacer un uso seguro y responsable de este producto. Razor
le recomienda que en forma periódica revise y refuerce la información de
este manual con los conductores jóvenes y que inspeccione y realice el
mantenimiento del vehículo de sus hijos para garantizar su seguridad.
La edad recomendada del conductor de 12 años o más para la Sport Mod
es sólo una estimación y puede variar según el tamaño, peso y habilidades
del conductor. Todo conductor al que no le resulte cómodo la Sport Mod
debe evitar conducirla.
La decisión de los padres de permitir a su hijo
conducir este producto debe estar basada en la madurez, habilidad y
capacidad del niño para seguir las reglas.
Mantenga este producto lejos de niños pequeños y recuerde que este
producto ha sido ideado para ser utilizado por personas que, como mínimo,
estén completamente cómodos y sean competentes durante la operación del
vehículo.
NO EXCEDA EL LÍMITE DE PESO DE 220 LIBRAS (100 kg).
El peso del conductor no necesariamente signifi ca que el tamaño de una
persona es el adecuado para sentirse cómodo o mantener el control de la
Sport Mod.
No toque el motor de la Sport Mod cuando esté en funcionamiento ya que
puede estar muy caliente.
Consulte la sección sobre seguridad, donde encontrará advertencias
adicionales.
PRÁCTICAS DE CONDUCCIÓN Y CONDICIONES
ACEPTABLES
En todo momento verifi que y obedezca todas las leyes y reglamentaciones
locales que puedan afectar donde se pueda hacer uso de la Sport Mod en
lugares públicos. La Sport Mod fue diseñada para utilizarse únicamente
bajo condiciones controladas en lugares donde no hay peligros potenciales
de tráfi co; no la conduzca por las vías públicas ni sobre las aceras. No
conduzca su Sport Mod en áreas donde hay presentes transeúntes o tráfi co
de vehículos.
Conduzca a la defensiva. Tenga cuidado con los posibles obstáculos que
pudieran atrapar la rueda de su vehículo o hacer que usted tenga que
desviarse de manera repentina y perder el control. Sea cuidadoso y evite a
los transeúntes, patinadores, patinetas, scooters, bicicletas, niños o animales
que puedan cruzarse en su camino, y respete los derechos y la propiedad de
las demás personas.
No intente ni realice piruetas o trucos con la Sport Mod. La Sport Mod no
ha sido diseñada para soportar el abuso a causa de su mala utilización, por
ejemplo: saltar, pisar el cordón de la acera u otro tipo de trucos.
En todo momento manténgase aferrado al manillar.
Nunca transporte pasajeros ni permita que más de una persona conduzca la
Sport Mod.
Nunca la utilice cerca de escalones o piscinas.
Mantenga sus dedos y otras partes del cuerpo lejos de la cadena de
transmisión, del conjunto de dirección, de las ruedas y demás componentes
móviles.
Nunca utilice audífonos ni teléfono celular mientras conduzca.
Nunca se sujete a otro vehículo.
No conduzca la Sport Mod con clima húmedo y nunca la sumerja en agua ya
que los componentes eléctricos y de transmisión pueden dañarse con el agua
o crear otro tipo de condiciones que posiblemente sean inseguras.
La Sport Mod ha sido construida para utilizarse sobre superfi cies sólidas,
planas, limpias y secas tales como el pavimento o piso nivelado sin
materiales sueltos como por ejemplo piedras o grava. Las superfi cies
húmedas, resbaladizas, desiguales o ásperas pueden dañar la tracción y
propiciar posibles accidentes. No conduzca la Sport Mod en lodo, hielo,
charcos o agua. Evite las altas velocidades generadas al conducir cuesta
abajo. Nunca se arriesgue a dañar superfi cies tales como alfombras o pisos
por utilizar la Sport Mod en interiores.
No conduzca durante la noche o cuando se vea perjudicada la visibilidad.
VESTIMENTA ADECUADA PARA CONDUCIR
Siempre viste equipo de protección adecuado, por ejemplo: un casco de
seguridad homologado, coderas y rodilleras. Las leyes o reglamentaciones
locales de su área pueden requerir legalmente el uso de un casco. Siempre
viste zapatos; nunca conduzca descalzo o con sandalias, y tenga siempre los
cordones atados y lejos de las ruedas, motor y sistema de transmisión.
CÓMO UTILIZAR EL CARGADOR
El cargador provisto con la Sport Mod debe ser examinado con regularidad
para determinar la existencia de daños en el cable de conexión, enchufe,
compartimiento y demás partes y, en caso de que tal daño exista, no se
deberá cargar la moto hasta que sea reparado o reemplazado el cargador.
Sólo utilizar el cargador recomendado.
El cargador no es un juguete.
Antes de frotar con un trapo la Sport Mod y limpiarlo con líquido, siempre
desconéctelo del cargador.
NO APLICAR EL SENTIDO COMÚN Y NO PRESTAR
ATENCIÓN A LAS ADVERTENCIAS MENCIONADAS
AUMENTA EL RIESGO DE CAUSAR GRAVES
LESIONES. UTILICE LA SPORT MOD CON LA DEBIDA
PRECAUCIÓN Y PRESTE CUIDADOSA ATENCIÓN
PARA GARANTIZAR EL MANEJO SEGURO DEL
MISMO.
ADVERTENCIAS DE SEGURIDAD
Advertencias de seguridad
..........................................
15
Antes de comenzar
.....................................................
16
Armado y preparación
............................................
17-18
Reparación y mantenimiento
..................................
19-21
15
Guía para la corrección de fallas
.............................
22-23
Piezas de repuesto de la Sport Mod
......................
24-25
Puntos a recordar sobre la seguridad
..........................
26
Garantía
.......................................................................
26
CONTENIDO

Retire el contenido de la caja. Retire los separadores de espuma que protegen los componentes de los daños durante
el envío. Inspeccione el contenido de la caja para detectar rayas en la pintura, abolladuras o doblamiento de cables
que se puedan haber producido durante el envío. Debido a que la Sport Mod se armó un 95 por ciento y se empaquetó
en la fábrica, no debería haber problemas, incluso si la caja presentara alguna abolladura o señal de deterioro.
❑
Tiempo estimado para el armado y la preparación
Razor recomienda que un adulto con experiencia en mecánica de bicicletas realice el armado.
Calcule unos 15 minutos para el montaje, sin incluir el tiempo de carga inicial.
Deje transcurrir hasta 12 horas para la carga inicial (vea la página 17, donde encontrará información sobre la operación
de carga).
ANTES DE COMENZAR
16
ADVERTENCIA:
NO
UTILICE PRODUCTOS QUE
NO SEAN RAZOR, CON LA
SPORT MOD DE RAZOR.
La Sport Mod ha sido fabricada
de acuerdo con ciertas
especifi caciones de diseño de
Razor. El equipo original que se
entrega al momento de la venta
fue elegido teniendo en cuenta su
compatibilidad con el cuadro, la
horquilla y demás piezas. Ciertos
productos que se pueden comprar
en el mercado de repuestos pueden
no ser compatibles.
❑
Herramientas necesarias
Algunas de las herramientas pueden ser proporcionadas; sin embargo, se recomienda el uso de herramientas para el
mecánico profesional. Utilice las herramientas provistas sólo como último recurso.
¿Necesita ayuda?
Visite nuestro sitio web para obtener actualizaciones y una lista de centros de
servicio autorizados en
www.razor.com
o comuníquese gratis al
866-467-2967
de lunes a viernes
de 8:00 AM a 5:00 PM hora del Pacífi co.
Llaves hexagonales de
3 mm y 6 mm
(provistas)
Bomba para neumáticos
de bicicleta con
válvula Schrader, con
manómetro.
Soporte de
moto
Palanca del freno
Ajustador de la palanca
Ajustador de la palanca
del freno
Guardacadena
Acelerador
Horquilla delantera
Cargador
Clavija del
cargador
Enchufe hembra
del cargador
Neumático
Rueda delantera
Interruptor de
encendido/apagado
Puerta del
cargador
Caja de fusible
Batería
Llaves de 8, 10 y 17 mm
Destornillador Phillips

17
ARMADO Y PREPARACIÓN
❑
Cómo cargar la batería
Su Sport Mod eléctrica puede tener la batería no totalmente cargada; por eso se recomienda cargar la batería antes
del uso.
• Tiempo de carga inicial: 12 horas • Tiempo de funcionamiento: hasta 40 minutos
• Tiempo de carga subsiguiente: hasta de 8 horas • Duración media de la batería: 250 ciclos de carga y descarga
• Si está fuera de uso, cargue completamente el • No debe guardar la batería debajo de 32°F, para evitar daño
vehículo una vez al mes. alguno en la misma.
1
Conecte el enchufe hembra
del cargador en la puerta de la
Sport Mod. El cargador funciona
con el interruptor de alimentación
en la posición de encendido o de
apagado (on ó off).
2
Conecte la clavija del cargador
en una toma de corriente de pared.
ADVERTENCIA:
Las baterías recargables deben
cargarse únicamente bajo la
supervisión de un adulto. Siempre
desconecte la Sport Mod del
cargador antes de limpiarla con
líquido.
Nota:
Si su cargador no se parece
al que se muestra en la ilustración,
signifi ca que se le ha suministrado
un cargador alternativo con la
unidad. Las especifi caciones y
el procedimiento de carga no
cambian.
El cargador cuenta con una
pequeña ventana con uno o dos
diodos luminosos que indican el
estado de la operación de carga.
Consulte la ilustración del cargador
para obtener indicaciones sobre
el estado real de “en proceso de
carga” y “cargado ” para su modelo
de cargador.
Los cargadores cuentan con una
protección incorporada que evita la
sobrecarga de la batería.
Asegúrese de alinear
correctamente la ranura
del enchufe de entrada del
cargador con el receptáculo
correspondiente en la caja;
de lo contrario, no se da la
operación de carga.
Clavija del
cargador
Enchufe hembra
del cargador
ADVERTENCIA:
Si no
se ajustan y aprietan debidamente
las abrazaderas y fi adores que
sujetan el manillar, el conductor
puede perder el control y sufrir una
caída.
1
Afl oje los dos tornillos
hexagonales con la llave
hexagonal de 3 mm y quite la
cubierta plástica del manillar.
2
Introduzca el conjunto del
manillar en la horquilla hasta que
pare. Levante la horquilla a la
altitud deseada, manteniendo bien
alineados el cuerpo y el carenado
dentro de las fl echas de la zona
segura.
❑
Cómo armar el manillar
3
Apriete el perno hexagonal con
la llave hexagonal de 6 mm.
4
Vuelva a colocar la cubierta
plástica del manillar.
5
Apriete los dos pernos
hexagonales con la llave hexagonal
de 3 mm.

18
REPARACIÓN Y MANTENIMIENTO
ADVERTENCIA:
El
freno es capaz de hacer derrapar el
neumático y lanzar sorpresivamente
al conductor. Practique en un área
abierta libre de obstáculos hasta
que esté familiarizado con el
funcionamiento de los frenos. Evite
derrapar al detenerse ya que esto
puede hacer que pierda el control o
dañe el neumático trasero.
Nota:
La palanca de freno contiene
un conmutador de seguridad que
detiene el motor cuando se activa
el freno. Activar el freno en caso
de emergencia, siempre parará
el motor. Esta palanca no debe
ponerse fuera de funcionamiento ni
reemplazarse con una pieza que no
sea una pieza de repuesto original
de marca Razor.
❑
Cómo ajustar los frenos
1
Para ajustar el juego del cable de fre-
no, enrosque el ajustador de la palanca
de freno de 1/4 a 1/2 de vuelta hacia
adentro o hacia afuera hasta lograr el
ajuste de frenos deseado. La mayoría
de los ajustes se realizan en este paso.
Si aún necesita un ajuste adicional el
freno, proceda con el paso 2.
2
Si se desenrosca el ajustador
de la palanca de freno hacia
afuera, y aún así tiene mucha hol-
gura el freno, use el ajustador del
freno trasero para efectuar ajustes
adicionales.
❑
Prueba de frenos
Para utilizar el freno, oprima la palanca para aumentar la presión en el mismo. La palanca de freno cuenta con un
ajustador de cable que compensa la tensión del mismo y/o ajusta con precisión el movimiento de la palanca para
accionar el freno. Si el freno no funciona de manera adecuada, siga las instrucciones para ajustarlo, las cuales fi guran
más abajo.
❑
Cómo infl ar los neumáticos
Los neumáticos se infl an al efectuarse el envío, pero invariablemente pierden parte de la presión entre el lugar de
fabricación y donde se realiza la compra.
1
Utilizando una bomba para neumáticos
de bicicleta con válvula tipo Schrader, infl e el
neumático delantero hasta alcanzar la presión
indicada en el costado del neumático.
Nota:
Las bombas de aire
comprimida de las estaciones de
gasolina están diseñadas para infl ar
los neumáticos de gran volumen
de los automóviles. Si decide
utilizar dichas bombas de aire para
infl ar los neumáticos de la Sport
Mod, primero asegúrese de que
el manómetro esté funcionando,
luego aplique breves golpes de
aire comprimida para infl ar hasta
alcanzar la presión adecuada.
Si de forma involuntaria se infl a
excesivamente el neumático, libere
la presión excesiva de inmediato.
1
Quite de la horquilla delantera
el material de empaque.
2
Inserte la rueda dentro de
la horquilla delantera con las
arandelas de retén en el exterior de
la horquilla.
❑
Armar la rueda delantera
3
Inserte la orejeta de la arandela
de retén dentro del agujero de
la horquilla delantera y sujete
las tuercas utilizando las llaves
proporcionadas.
ARMADO Y PREPARACIÓN
Consulte el sitio web de Razor para obtener toda la información actualizada sobre los más recientes procedimientos de
reparación y mantenimiento.
Apague el interruptor antes de realizar cualquier tarea de mantenimiento.

19
REPARACIÓN Y MANTENIMIENTO
❑
Reemplazo de la cadena y del neumático trasero
Herramientas necesarias:
Destornillador Phillips, llave de 10 mm, dos (2) llaves de 8 mm y dos (2) llaves de 17 mm.
1
Con el destornillador Phillips,
retire los tornillos que sujetan
el guardacadena. Retire el
guardacadena.
2
Con una llave de 10 mm afl oje el
ancla del cable del freno y desco-
necte el cable.
3
Con dos llaves de 8 mm afl oje
el ancla del alojamiento del freno y
desconéctelo. Mantenga juntos el
separador y las arandelas.
4
Con dos llaves de 17 mm afl oje
el eje. Empuje hacia delante la
rueda en las ranuras para afl ojar la
cadena.
5
Extraiga la rueda. Observe la
disposición de la secuencia de las
piezas.
Nota:
Al hacer esto, sus manos
quedarán grasientas.
6
Instale la nueva cadena o rueda
deslizando la cadena alrededor del
eje. Deslice el eje en las ranuras
del cuadro. Empuje hacia adelante
la rueda y maniobre la cadena en
la rueda dentada posterior, la rueda
dentada anterior y el tensionador
de la cadena. Apriete las tuercas
del eje.
Nota:
Este paso funcionará mejor
con la Sport Mod de arriba abajo.
7
Apriete fi rmemente el ancla del
alojamiento del freno.
8
Conecte de nuevo el cable de
freno y apriete el ancla del cable
de freno.
9
Vuelva a sujetar el guardacadena.
Efectúe un recorrido de prueba y
verifi que los ajustes. Realice ajustes
adicionales según sean necesarios.
