Real-El X-787 User manual

USER MANUAL
PORTABLE SPEAKER SYSTEM
WITH BLUETOOTH AND FM
X-787

1
X-787
Operation Manual
Technical support: www.real-el.com
ENG
Congratulations on your purchase of the REAL-EL speaker system!
COPYRIGHT
© 2021. ENEL GROUP OU.
This Manual and information contained in are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
1. BUYER RECOMMENDATIONS
ϜUnpack the device carefully. Make sure there are no accessories left in the box. Check up
WKHGHYLFHIRUGDPDJHLIWKHSURGXFWZDVGDPDJHGGXULQJWUDQVSRUWDWLRQDGGUHVVWKHԛUP
which carried out the delivery; if the product functions incorrectly, address the dealer at
once.
ϜCheck up the package contents and availability of the warranty card.
ϜDo not switch on the speaker system immediately after you bring it into a room from
environment with negative temperature! After unpacking, the speaker system should be kept
in conditions of room temperature for at least 4 hours.
ϜBefore installing and using the speaker system, read this Manual carefully and keep it for
future reference.
2. PACKAGE CONTENTS
ϜPortable speaker system — 1 pc
ϜFM Antenna / 3.5 mm mini-jack to 3.5 mm mini-jack signal cable — 1 pc
ϜUSB to Micro USB power cable — 1 pc
ϜRemote control (RC) — 1 pc
ϜMicrophone holder — 2 pcs
ϜUser manual — 1 pc
ϜWarranty card — 1 pc
1
1
2
2
5
7
CONTENTS
1. BUYER RECOMMENDATIONS ..................................................
2. PACKAGE CONTENTS ............................................................
3. SAFETY PRECAUTIONS ..........................................................
4. TECHNICAL DESCRIPTION ......................................................
5. CONNECTION AND OPERATION ...............................................
6. TECHNICAL SPECIFICATIONS ..................................................

2
X-787
Operation Manual
Technical support: www.real-el.com
ENG
3. SAFETY PRECAUTIONS
Ϝ Do not open the portable speaker system (PSS) and do not perform repairs by yourself.
6HUYLFH DQG UHSDLUV VKRXOG EH SHUIRUPHG RQO\ E\ TXDOLԛHG VSHFLDOLVWV DW DXWKRUL]HG VHUYLFH
FHQWHUV7KHOLVWRIDXWKRUL]HGVHUYLFHFHQWHUVLVon www.real-el.com
ϜMake sure that foreign objects do not get inside the holes of the PSS.
ϜProtect the PSS from high humidity, water and dust.
Ϝ Protect the PSS from heating: do not place it closer than 1 m from a heat source. Do not
expose it to direct sunlight.
ϜDo not use any chemical agents for cleaning. Clean it with dry soft cloth only.
ϜIn case of PSS does not work properly. Please contact place of purchase or service center.
Special features
ϜFM radio
ϜRemote control
ϜTWS - simultaneous connection of two systems to one audio source
ϜBluetooth audio transmission
ϜUSB, Micro SD (TF)
ϜTwo microphone inputs for Karaoke with Echo adjustment
ϜAUX connection for use with PC, TV and other sources
ϜEQ function
ϜExtended running time
ϜRGB backlight
4. TECHNICAL DESCRIPTION

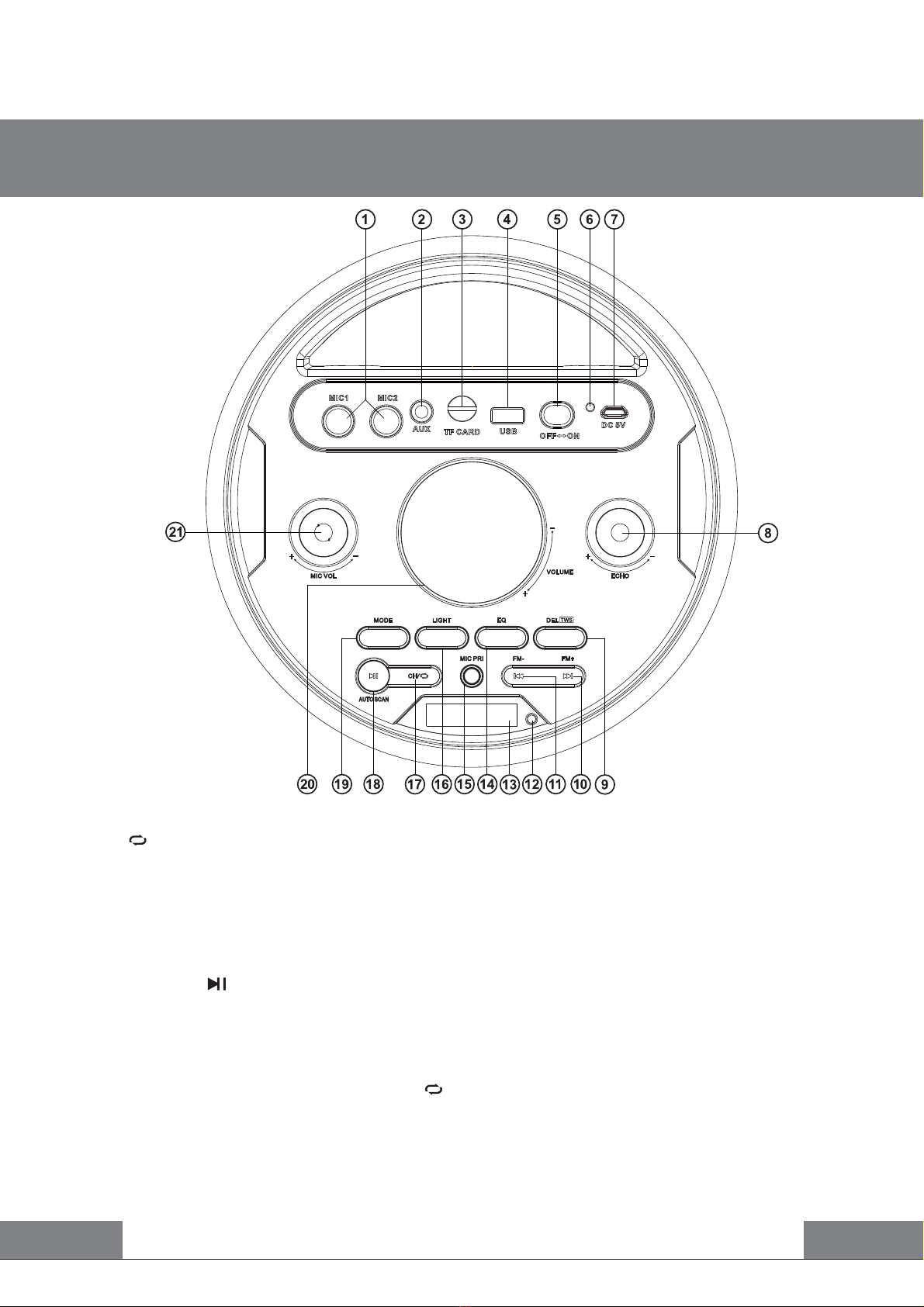

Control panel
"MIC: 6.3 mm jack microphone jack
#AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
$TF CARD: Micro SD card slot
%USB port
&Power ON/OFF
'Indicator
(Charging DC 5V
)ECHO +/-: Microphone echo adjustment
*DEL/TWS: FM station delete (long press in Radio mode);
Connect an additional speaker (Bluetooth mode only)
+FM+/ : Next track (short press in Player and Bluetooth mode);
Navigation on the track (long press in Player mode);
Next track/station (in Radio mode)
,FM-/ : Previous track (in Player and Bluetooth mode);
Navigation on the track (long press in Player mode);
Previous station (in Radio mode)
-IR receiver
.Display
/(46RXQG(ԚHFWPRGHVKRUWSUHVV5HVHWORQJSUHVV
0MIC PRI: mute with a connected microphone
1LIGHT: switching backlight modes (short pressing);
7XUQLQJRQRԚWKHEDFNOLJKWORQJSUHVVLQJ

3
X-787
Operation Manual
Technical support: www.real-el.com
ENG
2CH/ : Button for switching between stations or frequency (in Radio mode);
Switch playback mode (ALL, ONE, RANDOM):
ONE – Repeats the current track;
RAND – Play tracks in the random order;
ALL – Plays all tracks in the sequential order
Disconnect from device (long pressing in Bluetooth mode);
Save the selected frequency of the radio station in memory (long pressing in Radio mode)
3AUTO SCAN/ : Play/Pause button (in Player and Bluetooth mode);
Start/Stop auto scan (long press in Radio mode);
Mute (short pressing in Radio and AUX mode);
There is a possibility of manual tuning of the receiving frequency in the range (without storing
VWDWLRQVIURP0+]WR0+]ZLWKDVWHSRI0+]7RGRWKLVVZLWFKWKHUHFHLYHUWR
the frequency display mode with the “CH/ ” button, and use the “FM +” and “FM -” buttons
to make settings
4MODE: Bluetooth/FM/USB/Micro SD/AUX (short press);
Turn ON/OFF prompt system tone (long press)
5VOLUME+/-: Volume control
6MIC VOL +/-: Microphone volume control

4
X-787
Operation Manual
Technical support: www.real-el.com
ENG
Remote control
"MODE: Switching modes button: Bluetooth/FM/USB/Micro SD/AUX (short press);
Long press: turn ON/OFF prompt system tone.
#LIGHT: Switching backlight modes (short press); Light OFF (long press).
$REP: Disconnect from the device (long press Bluetooth mode);
Switch playback mode (ALL, ONE, RANDOM)
%EQ: Select EQ mode
&VOL-/+: Volume up/down
'CH- : Previous track (in Player and Bluetooth mode);
Previous station (in Radio mode).
(CH+ : Next track (in Player and Bluetooth mode);
Next station (in Radio mode).
)AUTO SCAN : Play/Pause button (in Player and Bluetooth mode);
Start auto scan (long press in Radio mode);
*FM-/+: Frequency change (in Radio mode).
+0-9: Numeric pad for entering track number (in Player mode) or number track/station in Radio
mode)

5
X-787
SD
TF
CARD
Operation Manual
Technical support: www.real-el.com
ENG
5. CONNECTION AND OPERATION
Charging the battery
Ϝ The speaker must be fully charged before use. Before charging, turn the switch to the OFF
position. Charge the speaker with a universal DC 5V USB charger rated for at least 2A. The charger
is not included.
Ϝ Insert the charging cable into the charger connector, connect the other end to the charger, the
charging indicator will be activated. The red charging indicators will light up until in full charge.
Note: It is not recommended to leave the device for a long time connected to the charger after it is
fully charged.
Do not charge the speaker at low ambient temperatures. The minimum charge temperature is at
least 10 ° C.
Bluetooth mode
Ϝ Turn the unit into Bluetooth mode with the «Mode» button repeatedly until «bt» appears on the
display. After 2-3 seconds the device will go into search mode.
Ϝ Select a Bluetooth device search mode on the audio source (mobile phone, tablet, etc.). The
display will show the name "REAL-EL X-787" which need to establish a connection. After a
successful connection, the loudspeaker will sound a signal.
Note: To disconnect the speaker from the audio source that was connected in Bluetooth mode,
hold down the "CH/ " button on the speaker panel.

6
X-787
TWS mode (connecting two systems in stereo at the same time)
Connection is possible only in Bluetooth mode
ϜTurn on both speakers in Bluetooth mode.
ϜConnect the signal source to one of the speakers, the other speaker must be in Bluetooth signal
search mode.
ϜOn the other speaker (which need to connect), press and hold the DEL (TWS) button.
ϜIf the two speakers are successfully connected to each other, TWS will be activated.
KARAOKE mode
To start using, connect the microphone to the connector", adjust the volume level. The karaoke
mode is activated automatically with any audio sources except FM mode.
Use a dynamic microphone with a 6.3 mm (1/4 ”) TS plug as the karaoke microphone.
FM mode
΅)0PRGHUHTXLUHVH[WHUQDODQWHQQD8VH$8;FDEOHPPPLQLMDFN DVDQWHQQDIRUUDGLRPRGH
Ϝ Turn the FM mode with the Mode button repeatedly until the frequency of the radio station
appears on the display.
ϜIn the playback mode, long press the "AUTO SCAN/ " button to automatically search FM stations
and save them automatically. Press the " " or " " buttons to switch between stations.
ϜPress DEL button to delete saved radio station. Radio works its external antenna only!
Playback mode
Ϝ ,QVHUW D 6' FDUG RU 86% ԜDVK GULYH LQWR WKH FRUUHVSRQGLQJ VORW WKH DXGLR WUDFN ZLOO EH SOD\HG
DXWRPDWLFDOO\ ,Q WKH SOD\EDFN PRGH EULHԜ\ SUHVV WKH RUEXWWRQ WR VHOHFW WKH GHVLUHG
tracks.
ϜPress the " " button to play or pause.
Note: During Bluetooth playback mode, if you insert a SD card or USB, Bluetooth will be turned off
and USB or SD card will play. Press the "Mode" button to return to Bluetooth mode again.
The USB port is designed for connecting USB storage media only. Do not use this connector for
charging purposes, as this may cause damage of the speaker.
File system of micro SD - FAT32. The maximum capacity is 32 GB. It is not recommended to use
micro SD Ultra Speed.
AUX mode
ϜFor compatible music devices, use an audio cable with the 3.5 mm mini jack supplied in the box.
Connect the cable to the audio input of the AUX and to any audio source with a 3.5 mm mini jack.
Then press the "Mode" button to switch to AUX mode.
Note: The volume of the system is regulated by two controls - the VOLUME knob located on the
speaker cabinet and the VOL + / VOL- buttons on the remote control. The volume of the system will
be determined by the smallest value of the settings set by these controls. Therefore, if the volume
is low or no sound at all, check the settings made on these two controls. If the remote control has
been lost or damaged, to reset the settings set by it, press and hold the "EQ" button on the
speaker, then press the " " button. The volume level set by the remote control will be maximum.
You must turn off the power button "OFF/ON." If the system is not used for a long time.
Operation Manual
Technical support: www.real-el.com
ENG

7
X-787
6. SPECIFICATION
Parameter
Output power (RMS)
Frequency range
Dimension of the speaker drivers
6XSSRUWHG%OXHWRRWK3URԛOHV
Connection types
Power supply
Battery
Bluetooth operation distance
Case material
Dimensions of the product
Weight
Value
80 (2 × 40) W
+]
2 × Ø 32 mm + 2 × Ø 145 mm
L2CAP/A2DP
USB/micro SD/Aux/Bluetooth
86%9'&ƴ
lithium-ion 2 × 4400 mAh, DC 3.7 V
up to 10 m
ABS plastic
230 x 640 x 260 mm
5.2 kg
Operation Manual
Technical support: www.real-el.com
ENG
Notes:
΅7HFKQLFDOVSHFLѷFDWLRQVJLYHQLQWKLVWDEOHDUHVXSSOHPHQWDOLQIRUPDWLRQDQGFDQQRWJLYH
occasion to claims.
΅7HFKQLFDOVSHFLѷFDWLRQVDQGSDFNDJHFRQWHQWVDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFHGXH
to the improvement of REAL-EL production.

Manufacturer: ENEL GROUP OU, Harju maakond, Rae vald, Jüri alevik, Aruküla tee 55a, 75301, Estonia.
® Registered Trademark of ENEL GROUP OU. Estonia.
