Rear view safety RVS-091406 User manual

What’s in the Box?
•1 Color MT9V136 Weather Proof Camera with Infra-Reds
•1 4.3" T T LCD Color Monitor
•1 Cigarette Lighter Power Cable
•1 Power Cable for Camera
•1 Digital Transmitter
•Suction cup mount
•1 Screw Kit for Installation

3
Table of Contents
Introduction....................................................................................................4
Safety Information ...................................................................................5-7
Settings/Maintenance..................................................................................8
Installation Guide ...................................................................................9-11
Positioning....................................................................................................12
Pairing/Connecting.....................................................................................13
Monitor Dimensions...................................................................................14
Monitor Specifications..............................................................................15
Camera Dimensions .................................................................................. 16
Camera Specifications...............................................................................17
Troubleshooting...........................................................................................18
Warranty .......................................................................................................19
Disclaimer .....................................................................................................20

REAR VIEW SAFETY
4
Introduction
Congratulations on purchasing a Rear View Backup Camera
System! With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already ex-
ists in your vehicle. The Backup Camera System should not be
used as a substitute for the standard rear view mirror or for any
other mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located for-
ward of the back of the driver’s seat or in any location that is vis-
ible, directly or indirectly, to the driver while operating the
vehicle.

5
Reverse Wi h Confidence™
Safety Information
Please read the entire manual and follow the instructions and
warnings carefully. ailure to do so can cause serious damage
and/or injury, including loss of life. Be sure to obey all applica-
ble local traffic and motor vehicle regulations as it pertains to
this product. Improper installation will void manufacturer’s
warranty.
USAGE
•The Rear View Camera System
is designed to help the driver
safely detect people and/or
objects helping to avoid
damage or injury. However,
you the driver, must use it
properly. Use of this system is
not a substitute for safe,
proper or legal driving.
•Never back up while looking
at the monitor alone. You
should always check behind
and around the vehicle when
backing up, in the same way
as you would if the vehicle
did not have the Rear View
Camera System. If you back
up while looking only at the
monitor, you may cause
damage or injury. Always
back up slowly.
•The Rear View Camera
System is not intended for
use during exstensive back-up
maneuvers or backing into
cross traffic or pedestrian
walkways.
•Please, always remember,
the area displayed by the
Rear View Camera System is
limited. It does not display
the entire panorama that is
behind you.

INSTALLATION
•Electric shock or product
malfunction may occur if
this product is installed
incorrectly.
•Use this product within
the voltage range specified.
ailure to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to firmly affix the
product before use.
•If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may
touch a metal case, cover the
cable with a friction tape. A
short circuit or disconnected
wire may cause a fire.
• While installing the Rear
View System be careful with
the wire positioning in order
to avoid wire damage.
•The Rear View System should
only be used when the vehi-
cle is in reverse.
•Do not watch movies or
operate the monitor while
driving; as it may cause an
accident.
•Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
•Dropping the unit may cause
possible mechanical failure.
REAR VIEW SAFETY
6
Safety Information

7
Reverse Wi h Confidence™
Safety Information
IN NO EVENT SHALL SELLER OR MANU ACTURER BE
LIABLE OR ANY DIRECT OR CONSEQUENTIAL DAMAGES O
ANY NATURE, OR LOSSES OR EXPENSES RESULTING ROM
ANY DE ECTIVE PRODUCT OR THE USE O ANY PRODUCT.
If you have questions about this product, contact:
Customer Service:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]

REAR VIEW SAFETY
8
We recommend doing a benchmark test before installation
to insure that all components are working properly.
SYSTEM COMES PAIRED.
• But if there is no image on monitor, your system is NOT paired
and needs to be paired. (see page 13)
Camera Connection:
• Locate the clearance lights wiring on your vehicle. You
may need to remove the interior panel in order to locate.
Connect the power cables for camera: Red wire to light's
positive; Black wire to chassis ground.
Monitor Connection:
• irmly insert the lighter plug to cigarette lighter socket.
Do not install the monitor where it may obstruct driver’s view
or obstruct and air bag device.
.............................................................................................................................
Cleaning
• If dirt, rain or snow attaches to the camera, the monitor may
not clearly display objects.
• Do not use alcohol, benzene or thinner to clean the camera.
This will cause discoloration. To clean the camera, wipe with a
clean cloth dampened with mild cleaner diluted with water
and then wipe with a dry cloth.
Settings/Maintenance

9
Reverse Wi h Confidence™

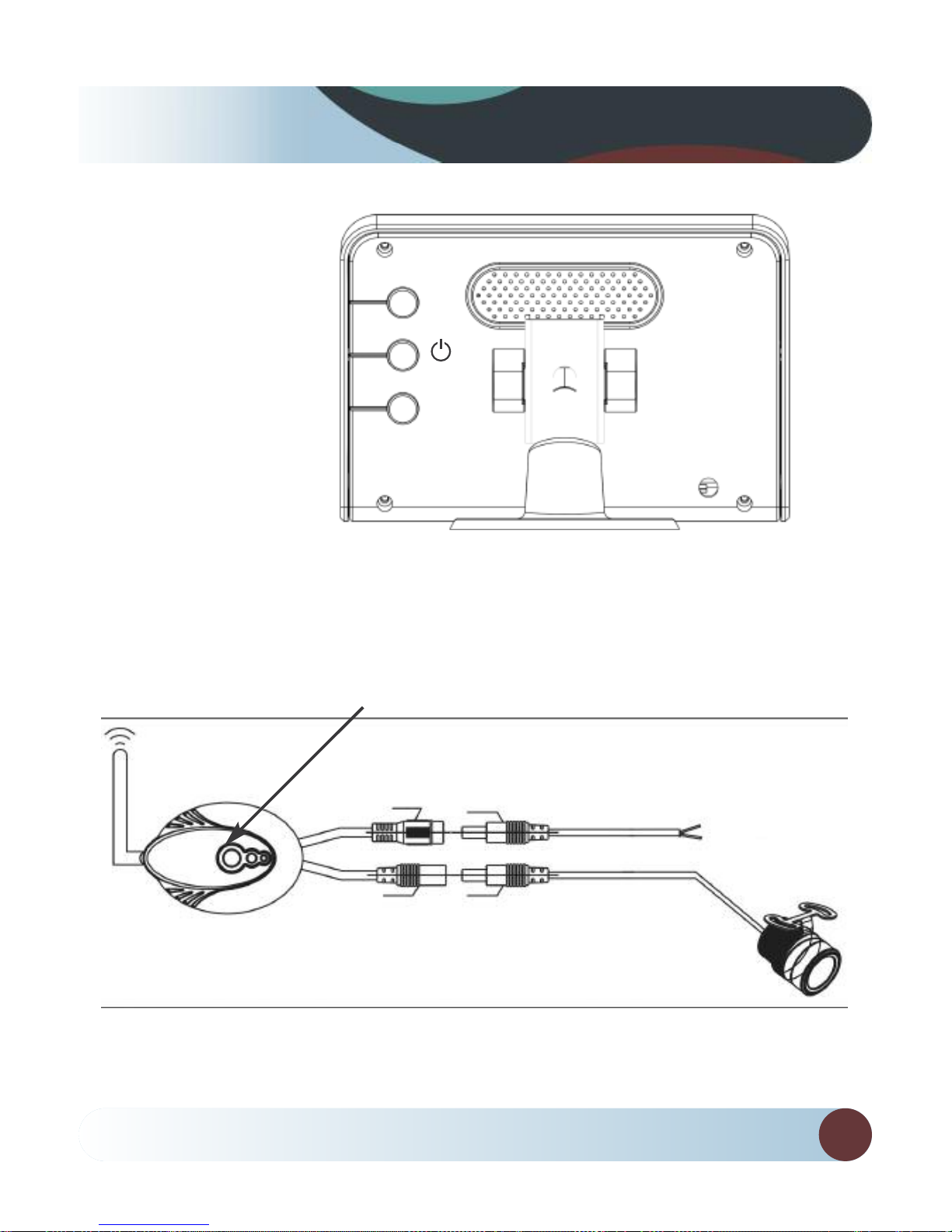

Installation Guide
Transmitter
DC emale DC Male
BMW Male
BMW emale
Power+(Red)
Power-(Black)
Monitor
s
t
M
Diagram A
Diagram B
Pair Button
Up Arrow
Down Arrow
Power &
Menu Select

REAR VIEW SAFETY
10
Installation Guide
1. Locate the reverse taillights wiring behind your reverse light.
You may need to remove the interior panel in order to locate.
You only need to attach the signal booster power wire to
ONE of the reverse lights, not both. If you cannot manually
locate the tail light cables, please contact the vehicle manufac-
turer or reference a wiring diagram for your vehicle.
2. At your taillight, remove the light bulb socket from the
reverse light housing.
3. Determine the reverse light power wires for your car, designat-
ing the positive and negative wires.
4. Connecting the Power Cables:
Insert the power cable into the transmitter (red input).
Connect red wire to reverse light’s positive wire.
Connect black wire to reverse light’s negative wire.
• Plug the attached wire from the Camera into the Wireless
Transmitter. Ensure that the wires are not tangled.
• Determine the best place to mount the Transmitter. The
Transmitter is not waterproof and needs to be protected.
5. Determine the best route for the Camera Cable from the top
of your license plate to the Transmitter. You may need to drill
a small hole in the panel behind where the license plate is situ-
ated.

11
Reverse Wi h Confidence™
Installation Guide
6. While sitting in the driver’s seat of the car with the key in
the ignition position. The monitor will automatically start
when vehicle is put in reverse. If when you place the vehicle
in reverse there is no image, you may need to pair the
camera with the monitor. (see page 13)
7. Put the vehicle in reverse. If you have a clear picture, put
the vehicle back in park and turn the key to the off position.
You are now ready for final step.
8. Take the Wireless Transmitter and using the double sided 3M
Sticker attach the box to the inside of your car.
9. Replace the light socket back into the reverse light housing.
10. Replace any interior panels that may have been removed to
access the taillight and close your trunk or rear hatch.
1. Power O /OFF
• The Dash Monitor will automatically turn ON when it is
connected to a power source, and the camera is receiving
power.
2. Rearview Image
• Rearview image will automatically appear on the screen
during reverse and will remain in standby when the vehicle
is in any other gear.

REAR VIEW SAFETY
12
Positioning

13
Reverse Wi h Confidence™
Pairing & Connecting
Figure 1 Figure 2
Pairing is not necessary as the unit has already been paired.
If you are not able to connect the camera, please try to pair the
camera by the following steps:
1. Press “Pair” button See page 9, Diagram B) on the Wireless
Digital Transmitter. You will see the LED Blinking in RED/BLUE.
The unit will remain in Pair mode for 15 seconds
2. Go to the monitor and do the following step:
a. Press “MENU”
b. Go to camera settings, push menu again to start pairing
sequence. (Below igure 1)
c. The unit is now in pair mode - if the unit was able to
search and connect with the camera, the display will show
“Pair OK”. (If you see “Timed Out”, please repeat all steps.)
d. Press and hold “MENU” button on rear of monitor (see
page 9, Diagram A) until picture appears.
3. Distance Grid: select grid line on/off.

REAR VIEW SAFETY
14
Monitor Dimensions
5”
3.5”
1”
4.3”

15
Reverse Wi h Confidence™
Monitor Speciifications
TFT LCD Monitor
Screen Size 4.3”
Dot Resolution 1400(H) x 234 (V)
Display ormat 16:9
Display Brightness 350cd/m2
Viewing Angle 90° Min
Video Input 1 channel
Video Source 1Vp-p, 75Ω
Power Supply DC 12V-24V (+/- 10%)
Power Consumption 5W
Operating Temperature -10°C ~ +65° C
Video System Auto NTSC/PAL
Overall Dimensions 5”Lx 4”Hx 1”D
Weight 400G
Impact Rating 5G
Active Area 154.08(h) x 86.58(v)
Sync System Internal

REAR VIEW SAFETY
16
Camera Dimensions

17
Reverse Wi h Confidence™
Camera Specifications
Camera MT9V136
Picture Elements 250,000 pixels
Gamma Correction r=0.45 to 1.0
Image Sensor 420TV lines, PAL 500(h)x
582(v), TSC:510(h)x492(v)
Lens 2.1mm
View Angle 130°
Sync System Internal Synchronization
Infrared distance 30 Feet (9 Infrared)
Usable Illumination 0 Lux (IR On)
Power Source DC 12V-24V (+/- 10%)
S/ Ratio More than 48dB
Electronic Iris 1/50, 160-1/100,000sec
Video Output 1Vp.p 75ohm
IR Switch Control ACDS Automatic Control
Impact Rating 10G / 100G
Operating Temperature -10°C ~ +50°C/RH 95%Max
Storage Temperature -25°C ~ +60°C/RH 95%Max

REAR VIEW SAFETY
18
Troubleshooting
Monitor Displays Blue Screen & Displays No Signal
•Do a hard reset, unplug all
cables and power cables from
multiplexer (silver box) leave
out for 1 minute and then
re-connect them.
•Check to ensure that the con-
nection to the camera is tight.
•Verify camera cable is plugged
into port labeled Backup Camera
• Verify that the blue positive
trigger on power harness is
put to power 12v+.
If the problem still persists, ver-
ify that alternate ports work. If
alternate ports do not work, re-
move Blue Trigger wire from
12V+ and select alternate chan-
nels.
Monitor Will Not Power-Up (no backlight on power button)
•Check fuse
•Check 12v+ to monitor
•Check ground connection
No Image On Screen
•Verify camera is on correct
camera input
•Verify cable is connected to
monitor
•Verify camera is connected to
cable
•Connect known working
camera and cable to monitor.
•Verify Blue trigger is receiving
power
Audio on Camera
•Verify chosen camera has audio
•Verify volume setting
•Confirm that the Blue audio
trigger is connected to 12v+

19
Reverse Wi h Confidence™
Warranty
One Year Warranty
Rear View Safety, Inc. warrants this product against material defects
for a period of one year from date of purchase. We reserve the right
to repair or replace any such defective unit at our sole discretion.
Rear View Safety, Inc. is not responsible for a defect in the system as
a result of misuse, improper installation, damage or mishandling of
the electronic components. Rear View Safety, Inc. is not responsible
for consequential damages of any kind.
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the unautho-
rized use of nonconforming parts; the damage is due to normal wear and tear, this
damage is due to abuse, improper maintenance, neglect or accident; or the damage is
due to use of the Rear View Safety, Inc. system after partial failure or use with im-
proper accessories.
Warranty Performance
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW SA ETY
PRODUCT EXHIBIT A DE ECT IN MATERIAL OR WORKMANSHIP, SUCH DE ECT
WILL BE REPAIRED WHEN THE COMPLETE REAR VIEW SA ETY, INC. PRODUCT
IS RETURNED, POSTAGE PREPAID AND INSURED, TO REAR VIEW SA ETY, INC.
OTHER THAN THE POSTAGE AND INSURANCE REQUIREMENT, NO CHARGE
WILL BE MADE OR REPAIRS COVERED BY THIS WARRANTY.
Warranty Disclaimers
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE
ABOVE WARRANTY IS MADE WITH REGARD TO THIS REAR VIEW SA ETY, INC.
REAR VIEW SA ETY, INC. DISCLAIMS ANY IMPLIED WARRANTY OR MERCHANT-
ABILITY OR ITNESS OR A PARTICULAR USE OR PURPOSE AND ALL OTHER
WARRANTIES IN NO EVENT SHALL REAR VIEW SA ETY. INC. LIABLE OR ANY
INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR OR ANY
COSTS, ATTORNEY EES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE O ANY DAMAGE TO, AILURE O , OR DE ECT IN ANY PROD-
UCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS OR LOSS O PRO ITS.

REAR VIEW SAFETY
20
Disclaimer
Rear View Safety and/or its affiliates does not guarantee or promise
that the user of our systems will not be in/part of an accident or
otherwise not collide with an object and/or person. Our systems are
not a substitute for careful and cautious driving or for the consistent
adherence to all applicable traffic laws and motor vehicle safety
regulations. The Rear View Safety products are not a substitute for
rearview mirrors or for any other motor vehicle equipment mandated
by law. Our camera systems have a limited field of vision and do not
provide a comprehensive view of the rear or side area of the vehicle.
Always make sure to look around your vehicle and use your mirrors
to confirm rearward clearance and that your vehicle can maneuver
safely. Rear View Safety and/or its affiliates shall have no responsi-
bility or liability for damage and/or injury resulting from accidents
occurring with vehicles having some of Rear View Safety products
installed and Rear View Safety and/or its affiliates, the manufacturer,
distributor and seller shall not be liable for any injury, loss or
damage, incidental or consequential, arising out of the use or
intended use of the product. In no event shall Rear View Safety
and/or its affiliates have any liability for any losses (whether direct
or indirect, in contract, tort or otherwise) incurred in connection
with the systems, including but not limited to damaged property,
personal injury and/or loss of life. Neither shall Rear View Safety
and/or its affiliates have any responsibility for any decision, action
or inaction taken by any person in reliance on Rear View Safety
systems, or for any delays, inaccuracies and/or errors in connection
with our systems functions.
