Rear view safety RVS-718-3SC User manual

Reverse With Condence ™ 1
G-Series Rear View Replacement Mirror Monitor
with Three 3.5” Displays
RVS-718-3SC
Instruction Manual
Rear View Safety, Inc. © 2015

Rear View Safety
2
Introduction...............................03
SafetyInformation..........................04-06
Before Beginning Installation. . . . . . . . . . . . . . . . . . . . . . . 07
InstallationGuide.......................... 08-09
InstallationandWire.........................10-13
BasicFunctions............................14-17
MonitorSpecications..........................18
Troubleshooting............................19
Warranty&Disclaimer........................ 20-21
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemis limited.It doesnotdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
•Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
•If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
•While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
•The Rear View System should only
be used when the vehicle is in
reverse.
•Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
•Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
•Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

Rear View Safety
6
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot or moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system. If the
system seems to not be operating properly see troubleshooting (page
19).
BEFORE YOU BEGIN

Rear View Safety
8
Replacement Monitor
The mirror monitor replaces the existing car mirror. Carefully remove
the mirror o the“pin”. Slide the replacement mirror on to the pin and
secure it with the screw provided (already in the screw hole).Dier-
ent cars have dierent brackets. Depending on your vehicle make and
manufacturer. There are many methods to remove the original rear-
view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for damage caused to your
car because of wrong mirror installation. Figure 1.1
Clip-On Monitor
1. The Mirror Monitor attaches to the existing rear view mirror in
vehicle with the pressurized clips on the back of the monitor.
2. Attach monitor to existing mirror, and adjust mounting angle to
allow optimum driver viewing comfort.
Camera & Cable
Be sure to position the cable properly. The aviation camera cable uses
aircraft grade connectors which means the camera cable can be ex-
posed to all weather elements. Do not run the cable over sharp edges,
do not kink the cable and keep away from HOT and rotating parts.
Fasten all cables and secure all excess cable. Connect camera to the
camera extension cable which runs inside the vehicle. Figure 1.2
INSTALLATION GUIDE

Reverse With Condence ™ 9

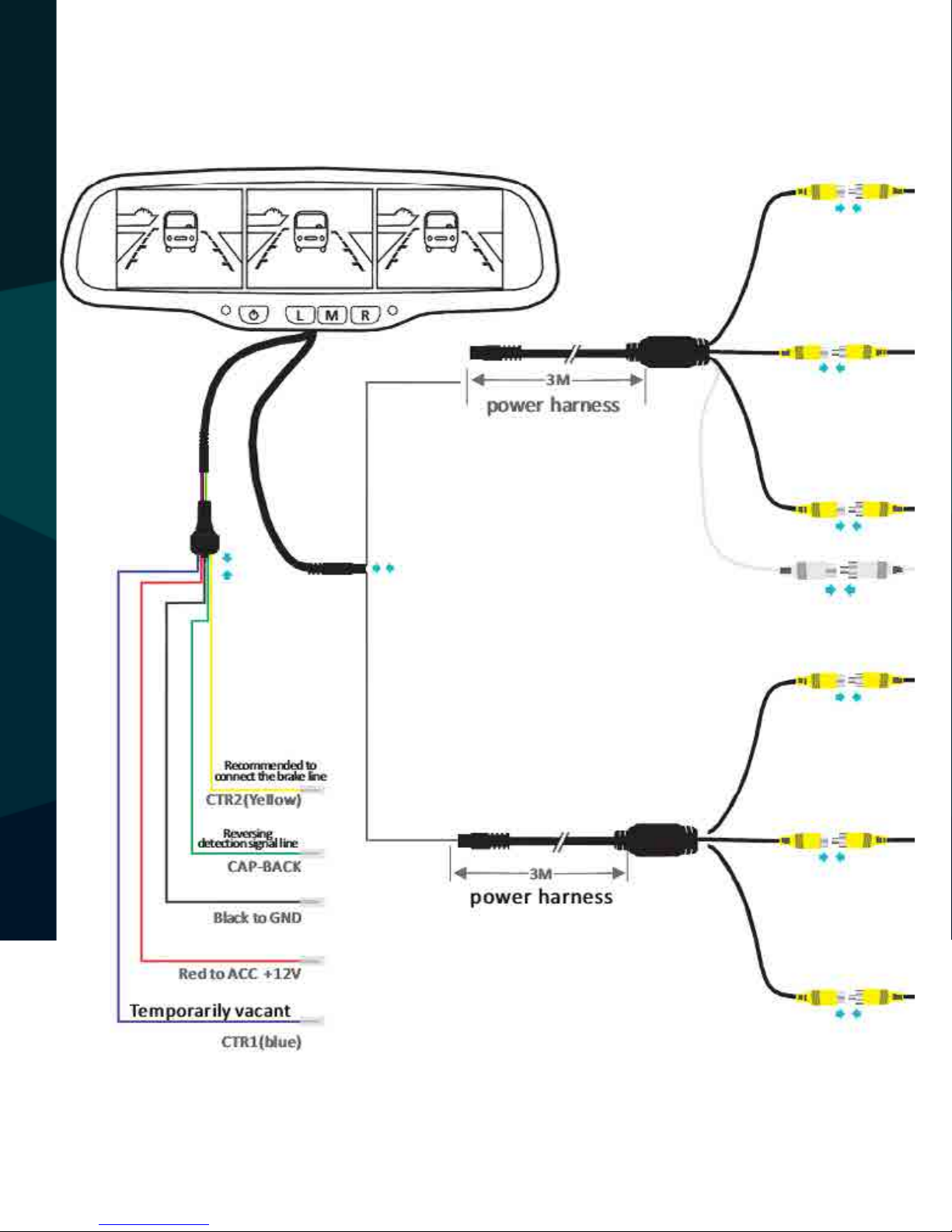

Wiring
After connecting the camera to the“camera cable” the camera should
be plugged into AV2 input. Connect the RED 12V power wire to an
ignition power source and the BLACK 12V ground wire to a chassis
ground.The GREEN wire is the REVERSE trigger wire. Connect this wire
to the vehicle’s backup light circuit to activate the rear-view image
whenever the vehicle shifts into reverse. To connect a second camera,
connect it to AV1 and it can be turned on by pressing the power button
on the monitor. Figure 2.1, Figure 2.2
Precautions for use of Mirror Monitor
I. The Mirror Monitor is made of glass. Do not subject it to a
mechanical shock by dropping it from a high place, etc.
II. Do not apply excessive force to the monitor surface or the
adjoining areas since this may cause the color tone to vary.
III. Clean with a soft dry cloth and/or Windex only.
IV. Do not attempt to disassemble the mirror monitor.
Safety
• Before drilling, be sure no cable or wire is on the other side.
• Feed as much cable as possible into vehicle & clamp securely.
This reduces the possibility of cable being hooked or snagged.
INSTALLATION GUIDE + TIPS

Rear View Safety
10
INSTALLATION AND WIRE

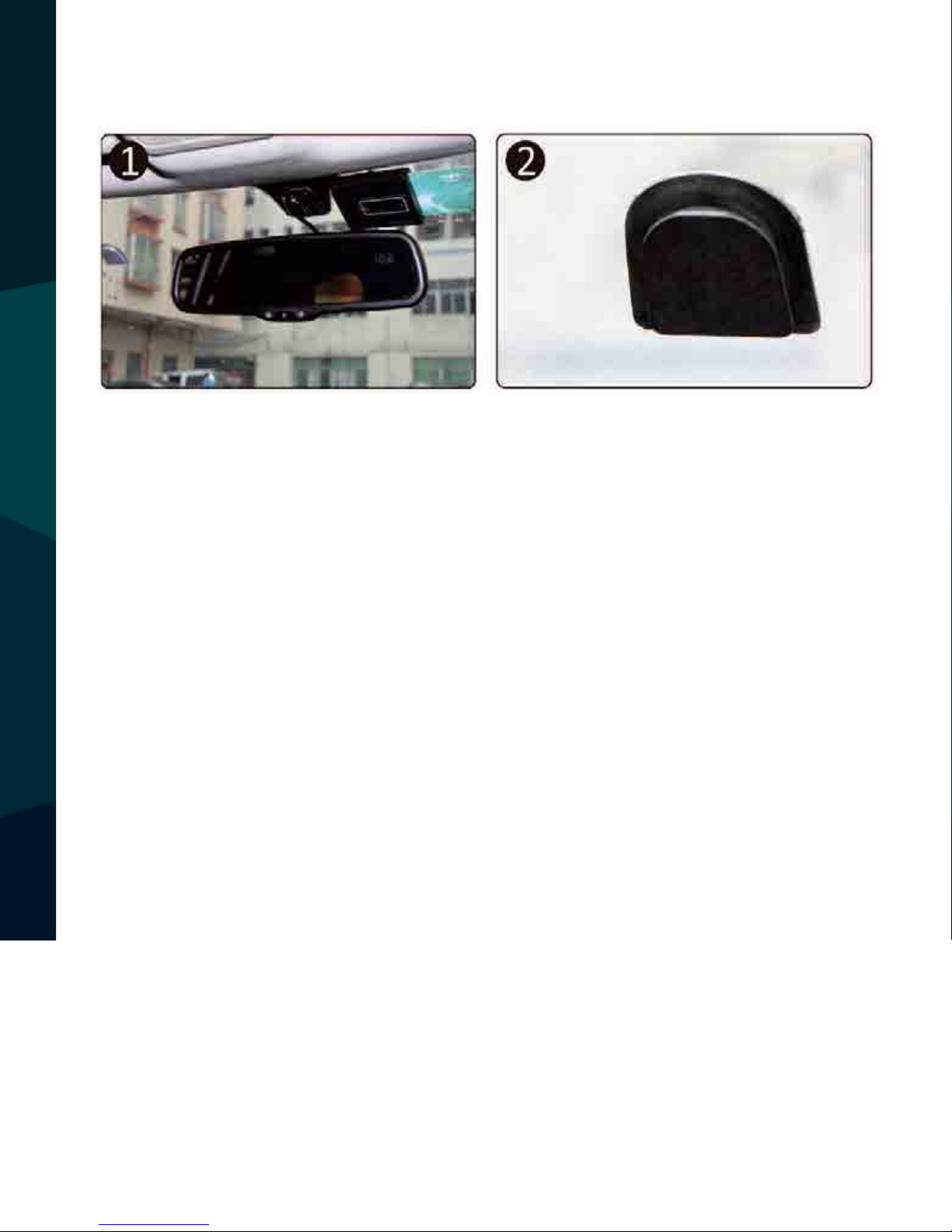

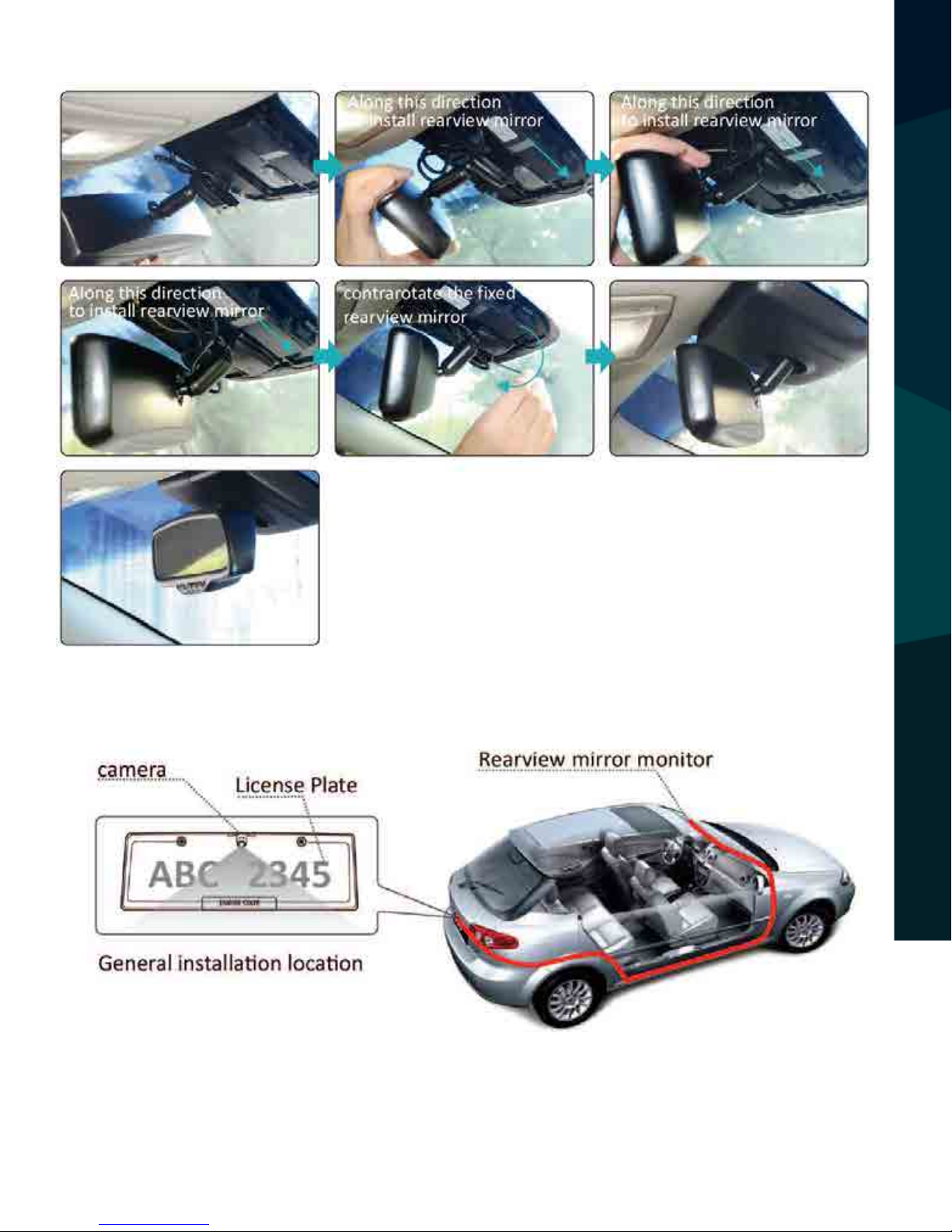

FIGURE 1.1
Dierent cars have dierent brackets. It depends on your vehicle maker
and manufacturer. There are many methods to remove the original
rear-view mirror, however, please don’t force the mirror o the bracket.
The manufacturer will not be responsible for any damage caused by an
incorrect installation of the mirror.

Reverse With Condence ™ 11
INSTALLATION AND WIRE
FIGURE 1.2
A good position to install a camera at the rear of car is the top of the
license plate, as shown in the image above.

Rear View Safety
12
INSTALLATION AND WIRE
FIGURE 2.2

Reverse With Condence ™ 13
INSTALLATION AND WIRE

Rear View Safety
14
BASIC FUNCTIONS
When the system is turned on, a booting up logo will appear. If during
this process the car is put into reverse and a rear view camera is connected,
the logo will be interrupted and the system will enter into reverse mode. If
there is a video signal, the system will enter a standby mode. In this state,
short press the center button to turn the screen display on or o.
The mirror will enter reverse mode when the car is put into reverse. If a rear
view camera is connected, the monitor will turn on and the standby indicator
will disappear. If no rear view camera is connected, the monitor will remain
o and the standby indicator will remain. The mirror will remain in reverse
mode until the car is taken out of reverse.
Please note:There will be a short delay when switching between video views.
The front video images will be displayed during normal driving.
In case of sudden emergency braking, the rear video mirror will automatically
switch to the video behind the car. It will automatically return to the front
video after releasing the brake.
The views can also be switched manually by pressing the left, right, or middle
buttons.

Reverse With Condence ™ 15
BASIC FUNCTIONS
Location Recommendation
Of Camera Installation

Rear View Safety
16
BASIC FUNCTIONS

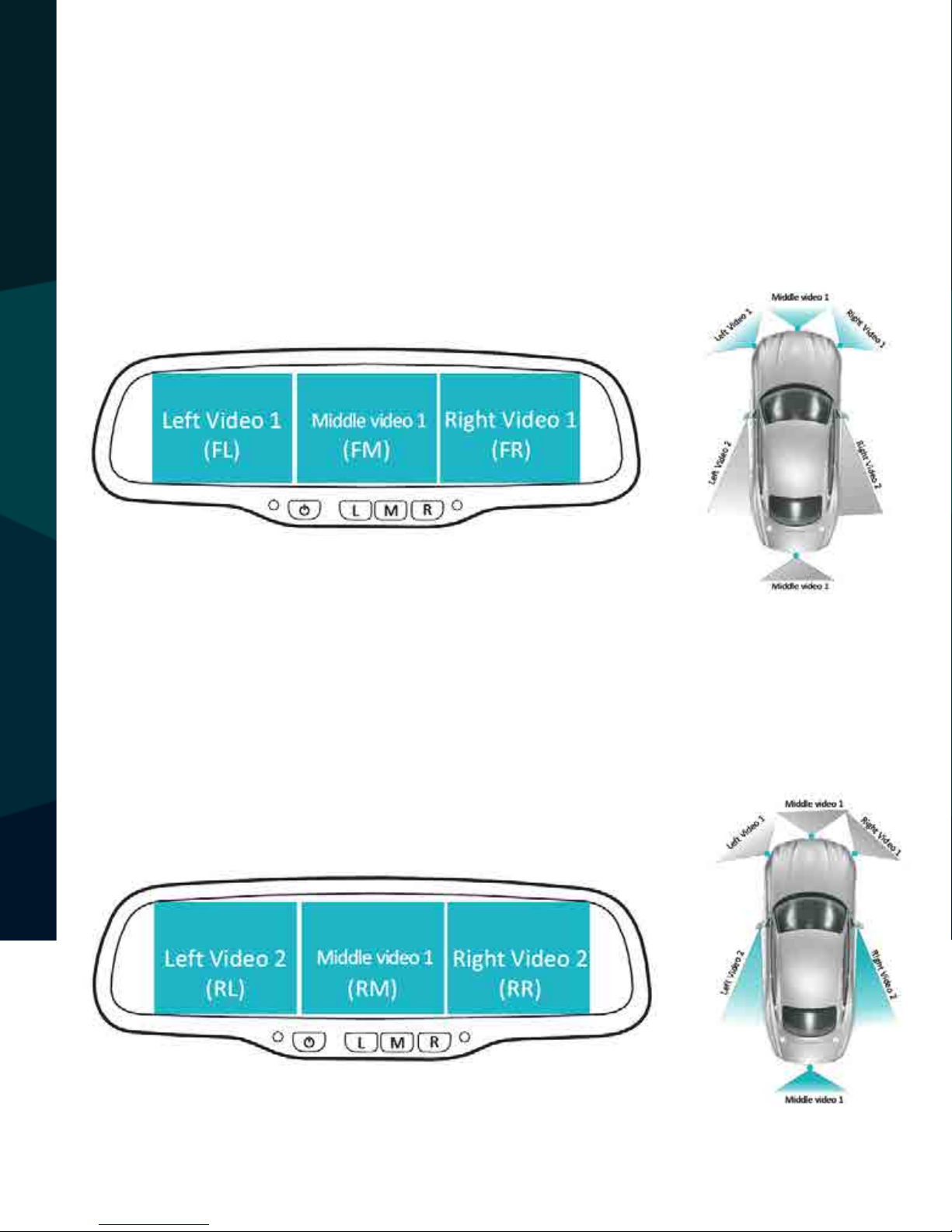

How To Display The Rear View Mirror Screen.
Driving: When driving, the mirror will display the images from the
front cameras. The left screen displays FL (front left), the middle
screen displays FM (front middle), and right screen displays FR (front
right).The corresponding acronyms will appear in the left corner of
the screens.
Reversing: When the car is in reverse, the left screen displays
displays RL (rear left), the middle screen displays RM (rear middle),
and the right screen displays RR (rear right). The corresponding acro-
nyms will appear in the left corner of the screens.

Reverse With Condence ™ 17
BASIC FUNCTIONS
Basic Functions
Braking: If the screen o before braking, FL will be displayed on the left
screen, FM will displayed on the middle screen, and FR will be displayed
on the right screen.
Highly Reective Mirror
In addition to being a monitor, the system is also highly reective mir-
ror.
Backup Camera Display
When the car is reverse, the mirror will automatically switch to the
backup camera view.
Normal mirrorHighly reective mirror

Rear View Safety
18

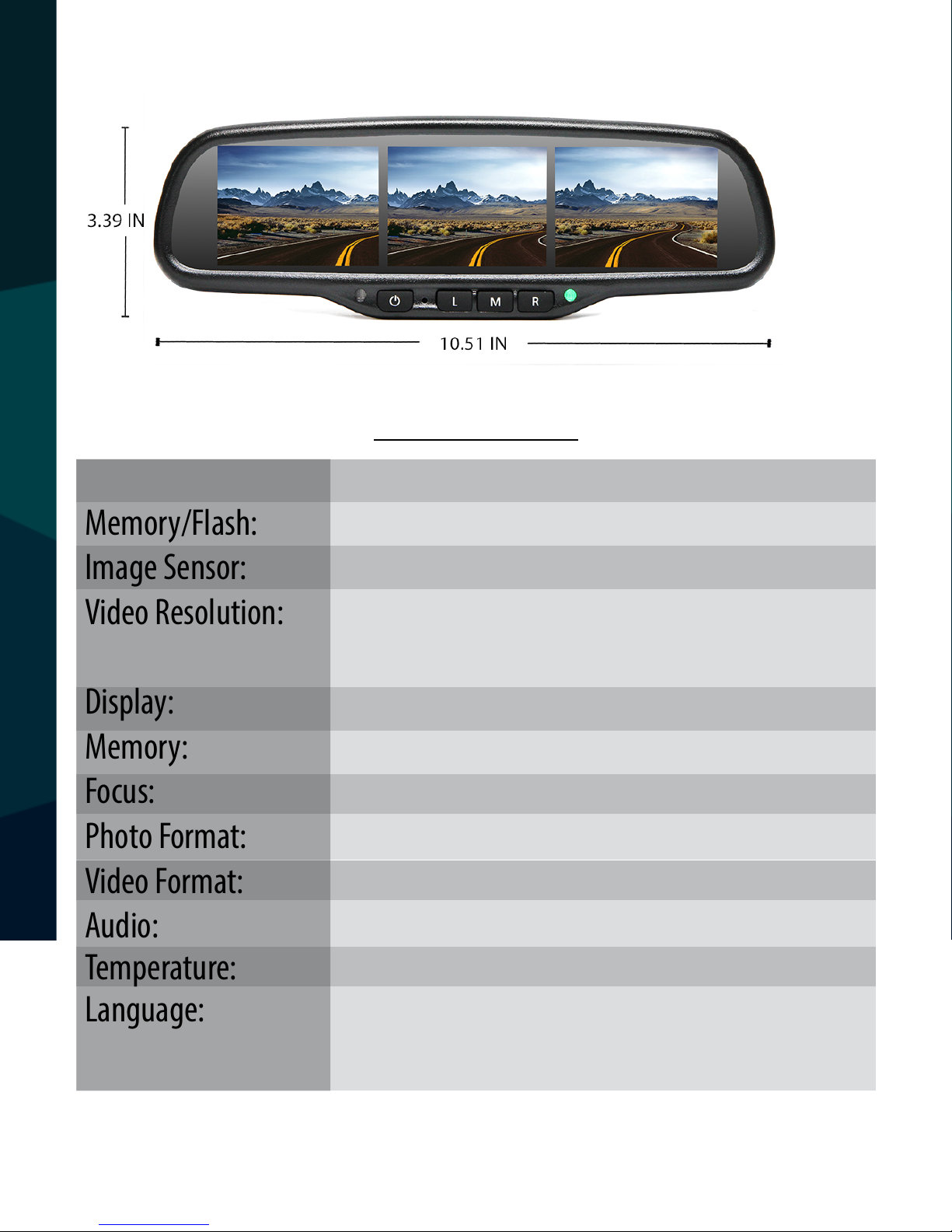

MONITOR SPECIFICATIONS
SPECIFICATIONS:
CPU:
Memory/Flash:
Image Sensor:
Video Resolution:
Display:
Memory:
Focus:
Photo Format:
Video Format:
Audio:
Temperature:
Language:
AmbarellaA7LA30
32MB/ 1GB
CMOSOV04689-H67A
HDR1920X1080 30f/ 1920x1080 30f/
1280x720 60f/ 1280x720 30f
4.3”16:9 TFT Display
SD card (MAX32GB)
12cm-innite
JPEG
Mp4
Built in microphone and speaker
-30c°~70c°
English/ Japanese/ French/ Portuguese/
Italy/ Russian/ German/ Spanish
Certications: The DVR mirror has passed E-MARK/FCC/C-TICK and is compliant with ROHS.

Reverse With Condence ™ 19
TROUBLESHOOTINGTROUBLESHOOTING
Problems Diagnoses Solutions
Recording frequently stops 1. Motion detection is on
2. The SD card is too small to read and store information 1. Turn o motion detection
2. Use a larger higher class SD card
Camera input is working but no
1080P video is shown on screen
1. Screen is on auto-o mode
2. Auto power is turned on
1. Short press power button to turn
screen on
2. Change settings in menu
Camera input is not working and
no video on screen
1. Wiring connected improperly or broken
2. Mirror is broken
1. Reinstall with a professional
technician
2. Send system back for repairs
Mirror frozen on one interface
and will not function
1. System has been on for too long
2. Something is wrong with the system
1. Reboot
2. If this happens often, send back
for repairs
Remote does not work 1. Plastic insulation sheet not removed from battery
2. Battery is not installed correctly
3. Remote is too far from the rear view mirror
1. Remove the insulation sheet
2. Reinstall the battery
3. Keep the distance between
the remote and the mirror at 2-3 feet

Rear View Safety
20
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIRED WHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED, TO REAR VIEW SAFETY, INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BYTHIS WARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
IS MADEWITH REGARDTOTHIS REARVIEW SAFETY, INC. REARVIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.
WARRANTY
