Product Manual / Installation Instructions
Rear View Camera Systems
Model # RVS- 2CAM
Rear View Safe, Inc.  2015 r sTv


What’s in the Box?
• 1 Split Screen Digital Wireless Monitor with Cigarette
Lighter Adaptor
• 1 CCD Wireless Backup Camera with Power Cable
• 1 xtendable Suction Cup Mount for Monitor

3
Table of Contents
Introduction....................................................................................................4
Safety Information ...................................................................................5-7
Before Beginning Installation....................................................................8
Installation Guide..........................................................................................9
Pairing ............................................................................................................10
System Operation........................................................................................11
Operational Diagram..................................................................................12
Installation Diagram ..................................................................................13
Monitor Dimensions...................................................................................14
Monitor Specifications..............................................................................15
Camera Dimensions .................................................................................. 16
Camera Specifications...............................................................................17
Splitting.........................................................................................................18
Positioning....................................................................................................19
Troubleshooting...........................................................................................20
Warranty........................................................................................................21
Disclaimer .....................................................................................................22

REAR VIEW SAFETY
4
Introduction
Congratulations on purchasing a Rear View Backup Camera
System! With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already ex-
ists in your vehicle. The Backup Camera System should not be
used as a substitute for the standard rear view mirror or for any
other mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located for-
ward of the back of the driver’s seat or in any location that is vis-
ible, directly or indirectly, to the driver while operating the
vehicle.

5
Reverse Wi h Confidence™
Safety Information
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage
and/or injury, including loss of life. Be sure to obey all applica-
ble local traffic and motor vehicle regulations as it pertains to
this product. Improper installation will void manufacturer’s
warranty.
USAG
•The Rear View Camera System
is designed to help the driver
safely detect people and/or
objects helping to avoid
damage or injury. However,
you the driver, must use it
properly. Use of this system is
not a substitute for safe,
proper or legal driving.
•Never back up while looking
at the monitor alone. You
should always check behind
and around the vehicle when
backing up, in the same way
as you would if the vehicle
did not have the Rear View
Camera System. If you back
up while looking only at the
monitor, you may cause
damage or injury. Always
back up slowly.
•The Rear View Camera
System is not intended for
use during exstensive back-up
maneuvers or backing into
cross traffic or pedestrian
walkways.
•Please, always remember,
the area displayed by the
Rear View Camera System is
limited. It does not display
the entire panorama that is
behind you.

INSTALLA TION
•lectric shock or product
malfunction may occur if
this product is installed
incorrectly.
•Use this product within
the voltage range specified.
Failure to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to firmly affix the
product before use.
•If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may
touch a metal case, cover the
cable with a friction tape. A
short circuit or disconnected
wire may cause a fire.
•While installing the Rear
View System be careful with
the wire positioning in order
to avoid wire damage.
•The Rear View System
should only be used when
the vehicle is in reverse.
•Do not watch movies or
operate the monitor while
driving; as it may cause an
accident.
•Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
•Dropping the unit may cause
possible mechanical failure.
REAR VIEW SAFETY
6
Safety Information

7
Reverse Wi h Confidence™
Safety Information
IN NO V NT SHALL S LL R OR MANUFACTUR R B
LIABL FOR ANY DIR CT OR CONS QU NTIAL DAMAG S OF
ANY NATUR , OR LOSS S OR XP NS S R SULTING FROM
ANY D F CTIV PRODUCT OR TH US OF ANY PRODUCT.
If you have questions about this product, contact:
Customer Service:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]

REAR VIEW SAFETY
8
Before Beginning Installation
Before drilling please check that no cable or wiring is on the
other side of the wall. Please clamp all wires securely to reduce
the possibility of them being damaged while vehicle is in use.
Keep all cables away from hot or moving parts and electrical
noisy components.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed and
the system has paired, perform a system function test by tem-
porarily connecting the system. If the problem persists see trou-
bleshooting (page 20).
We recommend doing a benchmark test before installation
to insure that all components are working properly.
SYSTEM COMES PAIRED.
• But if there is no image on monitor, your system is NOT paired
and needs to be paired. (see page 10)
Before Beginning Installation

9
Reverse Wi h Confidence™
Installation Guide
Camera Connection:
• Locate the clearance lights wiring on your vehicle. You
may need to remove the interior panel in order to locate.
Connect the power cables for camera: Red wire to light's
positive; Black wire to chassis ground.
Monitor Connection:
• Firmly insert the lighter plug to cigarette lighter socket.
Do not install the monitor where it may obstruct driver’s view
or obstruct and air bag device.
.............................................................................................................................
Cleaning
• If dirt, rain or snow attaches to the camera, the monitor may
not clearly display objects.
• Do not use alcohol, benzene or thinner to clean the camera.
This will cause discoloration. To clean the camera, wipe with a
clean cloth dampened with mild cleaner diluted with water
and then wipe with a dry cloth.

REAR VIEW SAFETY
10
Pairing
Pairing:
1. Use the "CAM" button to select the channel you want
to pair to.
2. Press "M NU" to open the menu and press "M NU"
again to initiate "pairing mode". Once "pairing mode" is
active it will last for 50 seconds.
3. Press the pair button on the back of the camera within
the 50 seconds and the camera image will appear on the
monitor. The system is paired.
NOT : Please make sure the camera is receiving power
when you pair.

11
Reverse Wi h Confidence™
System Operation
System Operation:
To turn on the monitor, press “POW R ON” button.
To get to Main Menu, press “M NU”
Use the arrow keys to navigate the menu and use the
"M NU" button to confirm your selection.
To go back, press the "R V" button.
To adjust the volume, use the up and down arrows while
viewing the camera
Men Options:
Image - adjust the image properties
(brightness,contrast,saturation)
Rotate - rotate the image in all four directions
Settings - adjust the grid-lines and the frequency

REAR VIEW SAFETY
12
Operational Diagram
POWER
ON / OFF
MENU/
SELEC ION
BU ON
CAMERA
SELEC ION
DOWN
ARROW
UP
ARROW
BACK

13
Reverse Wi h Confidence™
Monitor Specification
13
TFT LCD Digital Monitor
Screen Size 7”
Dot Resolution 800Hx 3 (RGB) 480V
Display Format 16:9 / 500:1
Display Brightness 400cd/m2
Viewing Angle U:50° / D:60° / R:70°
Video Input 2 channel
Video Source 1Vp-p, 75Ω
Power Supply DC 12V(+/- 10%)
Power Consumption 5W
Operating Temperature -30°C ~ +80° C
Video System Auto NTSC/PAL
Overall Dimensions 7”Lx 5”Hx 1”D
Weight 400G
Impact Rating 5G
Dot Pitch 0.192Hx 0.1805V
Sync System Internal
Weight 520g

REAR VIEW SAFETY
14

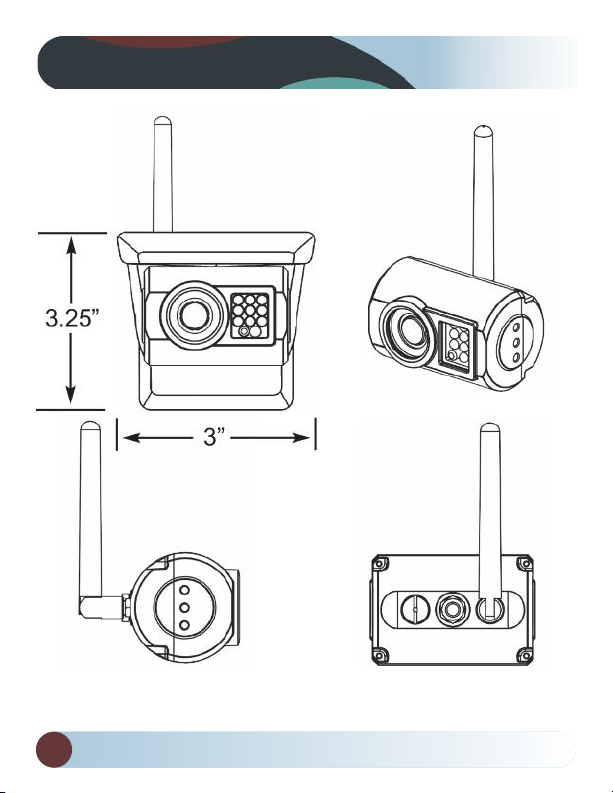

Camera Dimensions

15
Reverse Wi h Confidence™
Camera Specifications
15
Camera 1/4” Sharp® Color CCD
Picture lements 250,000 pixels
Gamma Correction r=0.45 to 1.0
Image Sensor 540 TV lines
Lens 2.1mm
View Angle 130°
Sync System Internal Synchronization
Infrared distance 50 Feet (9 Infrared)
Usable Illumination
Power Source
0 Lux (IR On) DC
12V/3A (+/- 10%)
S/N Ratio More than 48dB
lectronic Iris 1/50, 160-1/100,000sec
Video Output 1Vp.p 75ohm
IR Switch Control ACDS Automatic Control
Impact Rating
Operating Temperature
20G Vibration/100G Shock
-30°C - +80°C/RH 95% Max
Storage Temperature -30°C - +60°C/RH 95% Max
Waterproof Rating IP68

REAR VIEW SAFETY
Splitting
16
Installing sun shield: Put shade cover on
the display. Installing back cover: Put the
monitor with shade cover in the back cover
(only for embedded monitor)
Splitting back cover: Hold monitor with 2
hands and detach with fingers, as indicated
by arrows. (only for embedded monitor)
Splitting sun shield: Take the monitor with
the left hand and detach with right hand as
indicated by the white arrow. (see below)

17
Reverse Wi h Confidence™

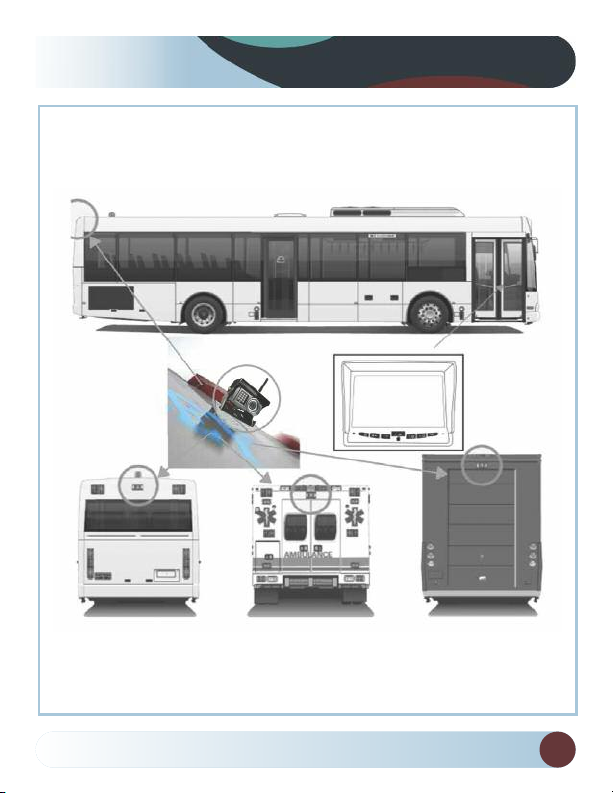

Positioning
17

Troubleshooting
REAR VIEW SAFETY
18
Monitor Displays Blue Screen & Displays No Signal
•Do a hard reset, unplug all
cables and power cables leave
out for 1 minute and then
re-connect them.
•Check to ensure that the con-
nection to the camera is tight.
No Image On Screen
•Verify camera is on correct
camera input
•Verify camera is connected
to power/ground
Audio on Camera
•Verify chosen camera has audio •Verify volume setting
Signal Issues
•The antenna booster is an
extendable antenna that can be
used in case of signal issues.
•The cable is attached just like
the standard antenna by
screwing on the connection-
The antenna itself is attached
magnetically.

19
Reverse Wi h Confidence™
Warranty
19
One Year Warranty
Rear View Safety, Inc. warrants this product against material defects
for a period of one year from date of purchase. We reserve the right
to repair or replace any such defective unit at our sole discretion.
Rear View Safety, Inc. is not responsible for a defect in the system as
a result of misuse, improper installation, damage or mishandling of
the electronic components. Rear View Safety, Inc. is not responsible
for consequential damages of any kind.
This warranty is void if: defects in materials or workmanship or damages result from
repairs or alterations which have been made or attempted by others or the unautho-
rized use of nonconforming parts; the damage is due to normal wear and tear, this
damage is due to abuse, improper maintenance, neglect or accident; or the damage is
due to use of the Rear View Safety, Inc. system after partial failure or use with im-
proper accessories.
Warranty Performance
DURING TH ABOV WARRANTY P RIOD, SHOULD YOUR R AR VI W SAF TY
PRODUCT XHIBIT A D F CT IN MAT RIAL OR WORKMANSHIP, SUCH D F CT
WILL B R PAIR D WH N TH COMPL T R AR VI W SAF TY, INC. PRODUCT
IS R TURN D, POSTAG PR PAID AND INSUR D, TO R AR VI W SAF TY, INC.
OTH R THAN TH POSTAG AND INSURANC R QUIR M NT, NO CHARG
WILL B MAD FOR R PAIRS COV R D BY THIS WARRANTY.
Warranty Disclaimers
NO WARRANTY, ORAL OR WRITT N, XPR SS D OR IMPLI D, OTH R TH
ABOV WARRANTY IS MAD WITH R GARD TO THIS R AR VI W SAF TY, INC.
R AR VI W SAF TY, INC. DISCLAIMS ANY IMPLI D WARRANTY OR M RCHANT-
ABILITY OR FITN SS FOR A PARTICULAR US OR PURPOS AND ALL OTH R
WARRANTI S IN NO V NT SHALL R AR VI W SAF TY. INC. LIABL FOR ANY
INCID NTAL, SP CIAL, CONS QU NTIAL, OR PUNITIV DAMAG S OR FOR ANY
COSTS, ATTORN Y F S, XP NS S, LOSS S OR D LAYS ALL G D TO B AS A
CONS QU NC OF ANY DAMAG TO, FAILUR OF, OR D F CT IN ANY PROD-
UCT INCLUDING, BUT NOT LIMIT D TO, ANY CLAIMS FOR LOSS OF PROFITS.

REAR VIEW SAFETY
20
Disclaimer
Rear View Safety and/or its affiliates does not guarantee or promise
that the user of our systems will not be in/part of an accident or
otherwise not collide with an object and/or person. Our systems are
not a substitute for careful and cautious driving or for the consistent
adherence to all applicable traffic laws and motor vehicle safety
regulations. The Rear View Safety products are not a substitute for
rearview mirrors or for any other motor vehicle equipment mandated
by law. Our camera systems have a limited field of vision and do not
provide a comprehensive view of the rear or side area of the vehicle.
Always make sure to look around your vehicle and use your mirrors
to confirm rearward clearance and that your vehicle can maneuver
safely. Rear View Safety and/or its affiliates shall have no responsi-
bility or liability for damage and/or injury resulting from accidents
occurring with vehicles having some of Rear View Safety products
installed, and Rear View Safety and/or its affiliates, the manufac-
turer, distributor and seller shall not be liable for any injury, loss or
damage, incidental or consequential, arising out of the use or in-
tended use of the product. In no event shall Rear View Safety and/or
its affiliates have any liability for any losses (whether direct or indi-
rect, in contract, tort or otherwise) incurred in connection with the
systems, including but not limited to damaged property, personal in-
jury and/or loss of life. Neither shall Rear View Safety and/or its af-
filiates have any responsibility for any decision, action or inaction
taken by any person in reliance on Rear View Safety systems, or for
any delays, inaccuracies and/or errors in connection with our sys-
tems functions.
