This product is a safe driving assistant device to monitor the
drowsy driving and negligence in keeping eyes forward, and
thus alert the drivers to those dangers, so as to reduce the car
accidents occurred by their drowsiness and distractedness.
Prior to Using This Product
1
Getting Started
Guidelines and Cautions Prior to Use
2
Getting Started
It is eective for long-hour or highway driving to use this product.
Please make sure to install and use in a correct and safe way according
to this User Manual.
This product may present different recognition rates depending on
surroundings, conditions in the vehicles, and driver’s habits.
Dinalog, Inc. is not responsible for any troubles or accidents caused by
improper installation, usage, and remodeling.
Do not move or operate this product while driving for safety.
Other products and services used in this User Manual are trademarks
or registered marks of their respective ones.
Be informed that it is prohibited to copy, modify, or distribute of
the embedded program on this product without written consent of
Dinalog, Inc. Any violation may be penalized in accordance with the
relevant regulations.
This User Manual is produced as of the present and there would be an
editing error or omitting.
The images used on this User Manual look dierent from the actual
product and color as per the printing conditions.
These product and User Manual may change or be modied without
any prior notice for improvements.
Make sure to read through this User Manual so as to drive safely and to
use this product as intended.

6
VUEMATE User Manual VUEMATE User Manual
7
Cautions for The Use
3
Getting Started
Cautions for The Use
3
Getting Started
for serious accidents or damages/
injuries due to violation of instructions!
Warning
for potential minor injuries and product
damages due to violation of instructions!
Caution
Do not connect this product to the vehicle power supply (battery).
It can cause a discharge of the vehicle battery.
Do not connect this product to other electronic devices like a car
navigator or a dash cam, etc.
It can cause malfunction.
Make sure to apply the double-sided adhesive tape rmly when
mounting the cradle.
Prolonged use or vibration of the vehicle can change the position of this
product. In that case, it can deteriorate the performance of this product.
Avoid parking under the direct sunlight.
If this product inside the vehicle stays long under the direct sunlight, it
can cause malfunction or failure.
Disconnect the cigarette power cable from the in-car socket when
turning o the engine.
It can cause a discharge of the vehicle battery.
Be cautious of electrostatic force (especially, in winter or a dry
condition).
It can cause malfunction or failure.
Do not put this product in any heating devices (stove or
microwave oven, etc.) to dry when it is wet.
It can cause deformation or malfunction, for which free services are not
available.
Do not use chemical detergents (benzene, thinner, or alcohol, etc.)
to clean this product.
It can cause a re, for which free services are not available.
Do not disassemble or apply physical impact.
It can cause a damage or malfunction, for which free services are not
available.
Do not install or operate this product while driving.
It can cause an accident. Stop or park your car in a safe place to install or
operate this product.

8
VUEMATE User Manual VUEMATE User Manual
9
Product Overview and Major Functions
4
Getting Started

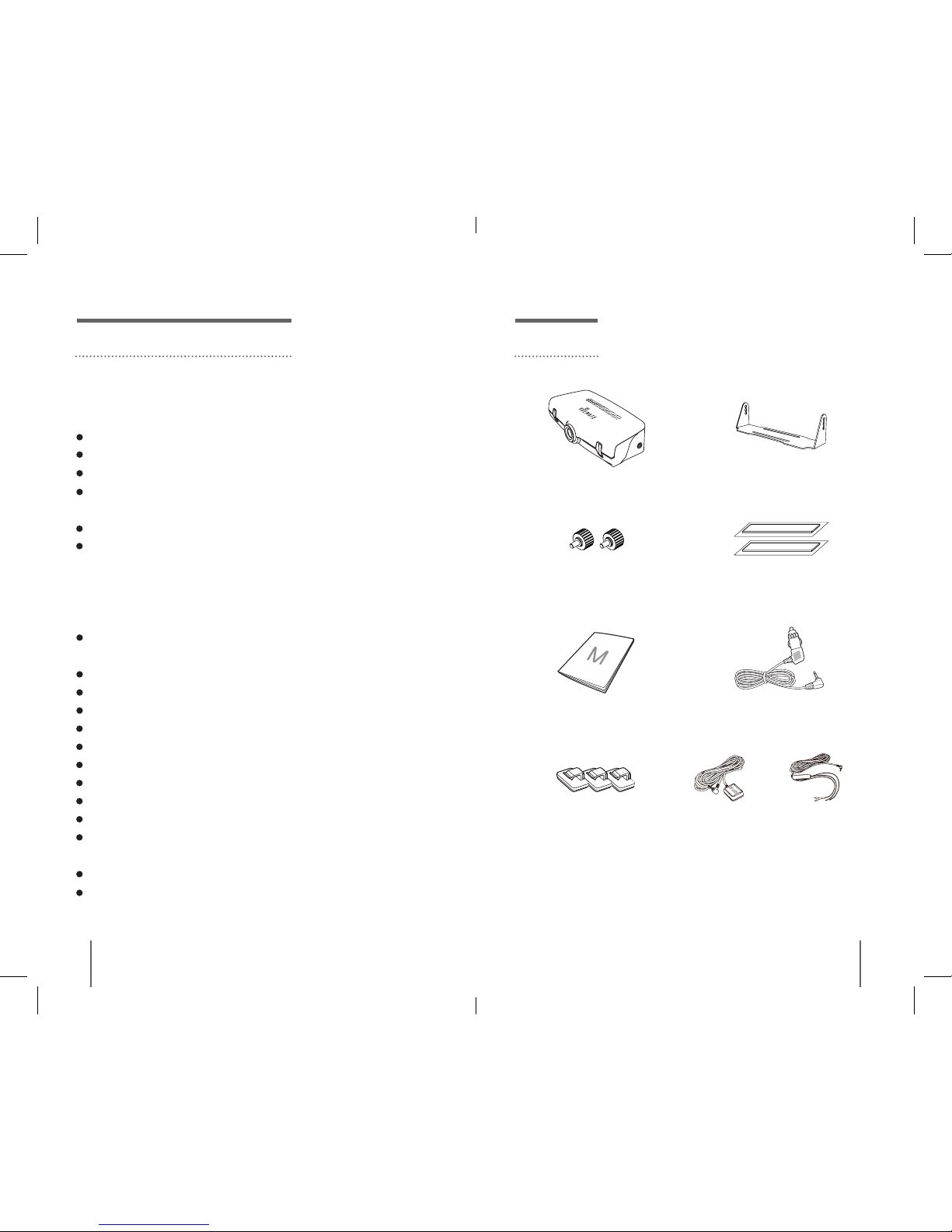

Components
5
Getting Started
l

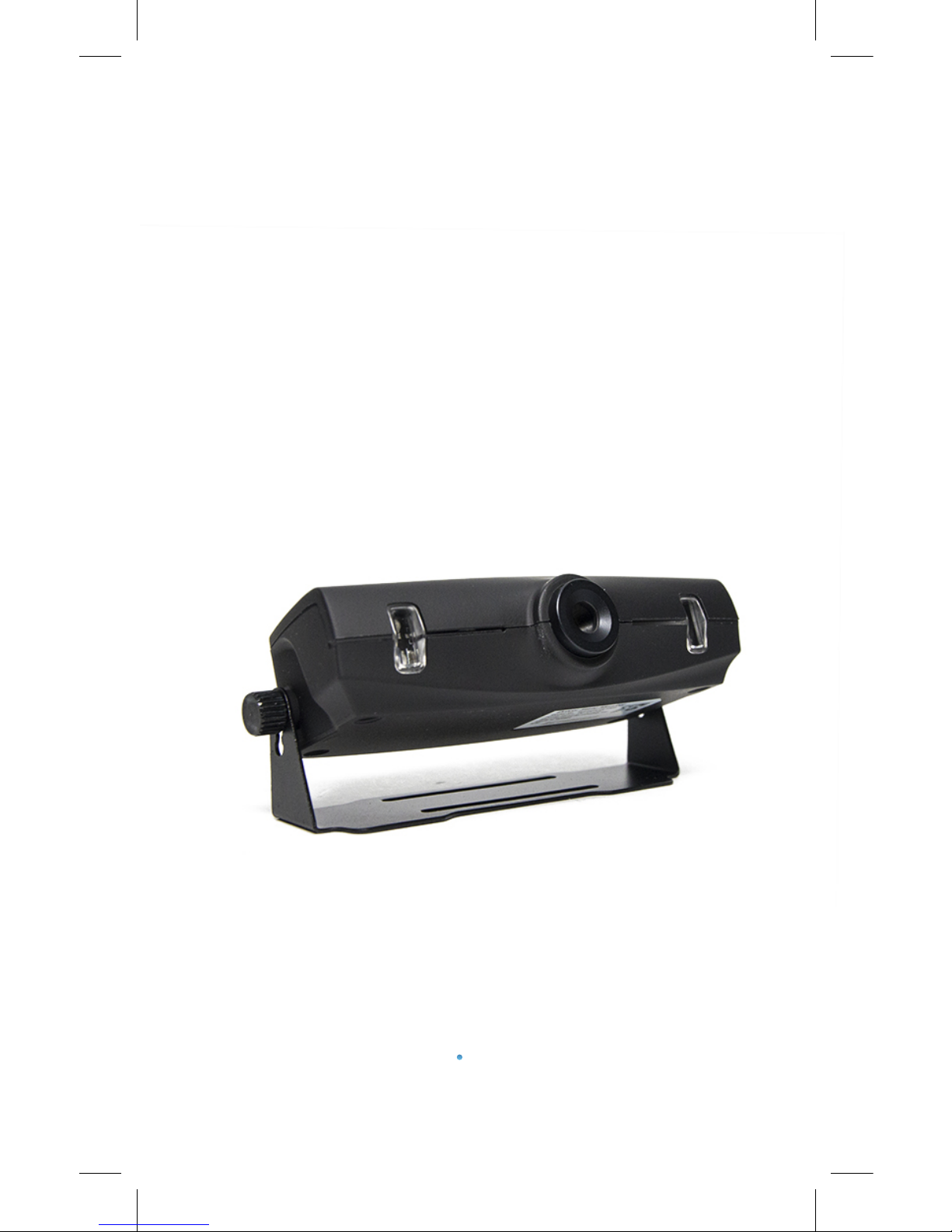

Product overview
l
Major functions
Cigarette power cable
User Manual
Cable clips
High-performance ARM CPU
CMOS image sensor
USB 2.0/UART interface
Protection circuitry for over-voltage/current, inverse voltage, and
minimizing ripple noises
Face and pupil detection and tracing algorithm
CE/FCC/KC fully approved and RoHS compliance
Detection & warning of drowsiness and negligence in keeping eyes
forward while driving
Infrared LEDs available at night and in tunnels
Removal of irregular reection by sunlight using special lters
Detection/distinction of glasses and sunglasses
3-color operation status LED (in green/blue/red)
Adoption of an alert micro-loudspeaker
Works with both 12V and 24V tting to any auto vehicles
Easy mounting using a dedicated cradle
Mute and 3-step volume control
Adjustment of 3-step sensitivity
Mute mode for the state of‘Negligence in looking ahead’ using the motion
recognition function
Support of various USB accessories
Connected with an external GSP
Fixing screws
Cradle
Double-sided adhesive tapes
for the cradle
Main body
External GPS Buried power cable
(Separately sold)
※The components of this product are subject to change without prior notice
for the improvement of their performance.

10
VUEMATE User Manual VUEMATE User Manual
11
Names and Functions of Each Part
6
Getting Started
Cautions for Installation
1
How To Use
Make sure to install this product in a place with at ground after turning
o your engine.
Make sure to check all components inside the gift box and to read
through this User Manual so as to install this product in a correct way.
Be careful not to block your driving sights when installing this product.
Install this product at a safe and light place.
Install this product at a place where your face can be well viewed by the
camera.
Make sure to remove the protection lm from the camera lens before
installation.
Keep this product away from any place where the airbags are equipped.
Fix the cigarette power cable not to be visible, which can make your car
clean and safe.
Power socket : for connection to the cigarette power cable (DC 12/24V)
Camera lens : for monitoring of the driver's driving condition in real time
Operation status LED : for display of such statuses as the driver’s
drowsiness, negligence in keeping eyes forward, and movement of the
face beyond the detectable range (in green/blue/red)
USB Port : for connection of various USB accessories (including LED
warning light/vibrator, etc.) and for update of rmware
Infrared LED : for detecting the driver's face at the dark nights and the
tunnels with the LED lights
I/O Port : for interface with an external GPS and other external devices
Function switch : for control of the volume and the sensitivity
- A short press is for control of the volume (Mute/1~4 step)
- A long press is for control of the sensitivity (High: Level 3; Middle: Level 2;
Low: Level 1)
Infared LED
Camera lens
Operation status LED
Power socket
I/O port
USB port
Function switch
※
Blocking the camera with hand at a distance of approx. 20cm for 3 seconds sets o
sounds and disables/enables the warning sound for“Negligence in looking ahead.”

12
VUEMATE User Manual VUEMATE User Manual
13
Installation
2
How To Use
l

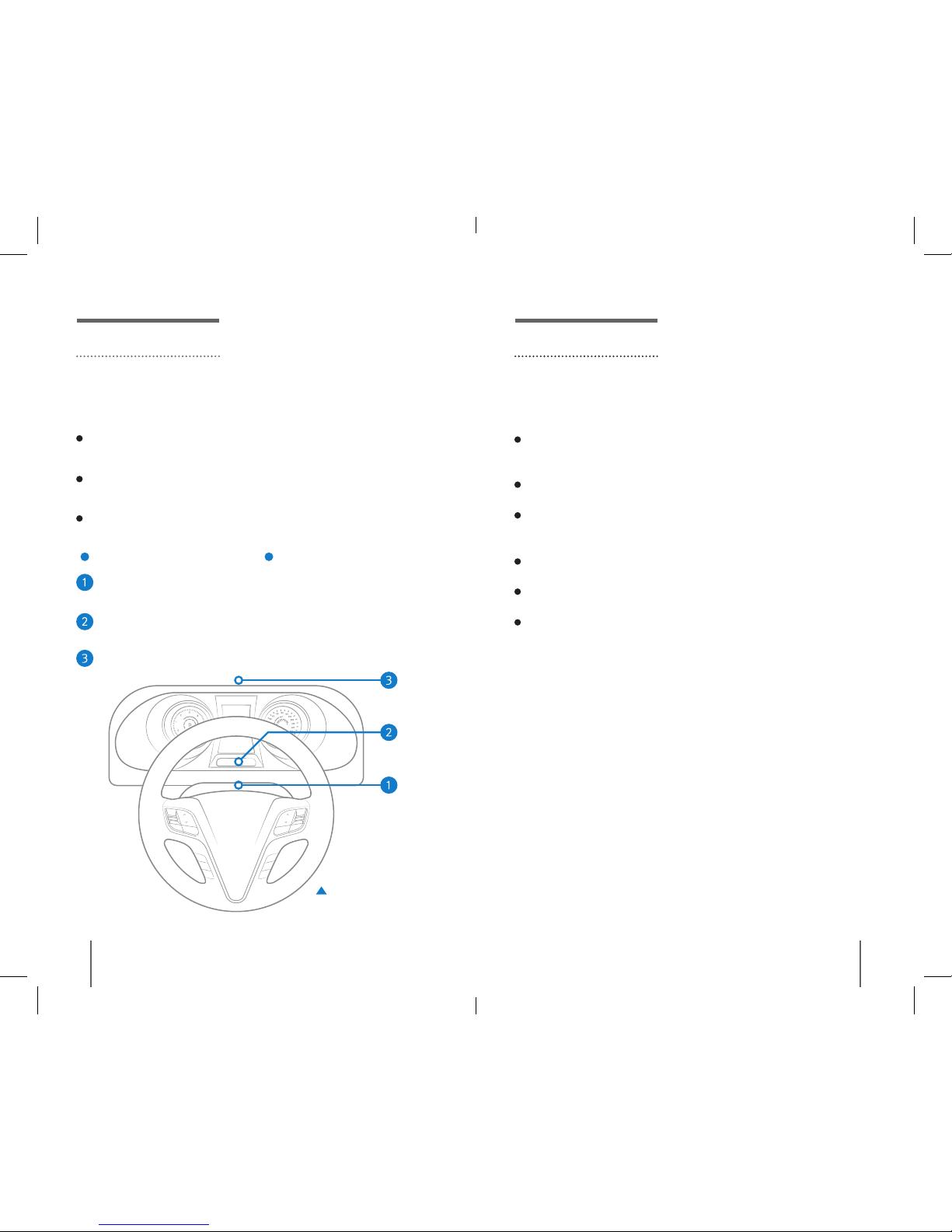

Recommended mounting positions
Installation
2
How To Use
l
How to install
l
Cautions for installation
※Improper installation may reduce the recognition rate.
※Be sure to install the product properly; reverse installation does not function
properly.
※Make sure that the product is properly installed so that it does not get in the
way while turning the wheel.
※When there is a curved area, bend the shape of the cradle so it can maintain a
maximum contact surface.
Refer to the picture shown below and select a convenient location
depending on the type of vehicle.
Install the product at a location which is a little below the level of the
driver’s eyes looking ahead.
Adjust the product on a level with the eyes of the driver.
First, assemble the cradle to the main body of the product using the xing
screws (adjustable to 3 steps depending on its mounting location).
Remove foreign materials from your selected location.
Attach double-sided tape to the bottom of the cradle and x it at an
installation location.
Adjust the position so that the camera lens can face the driver’s eyes.
Tighten the screws to the cradle when the position is adjusted.
Now, you nish installing the product.
Above the steering column
cover(Recommended)
At the front bottom of the
instrument panel
Above the dashboard
Recommended location Recommended distance
±60cm
Operation distance
45~80cm

14
VUEMATE User Manual VUEMATE User Manual
15
l

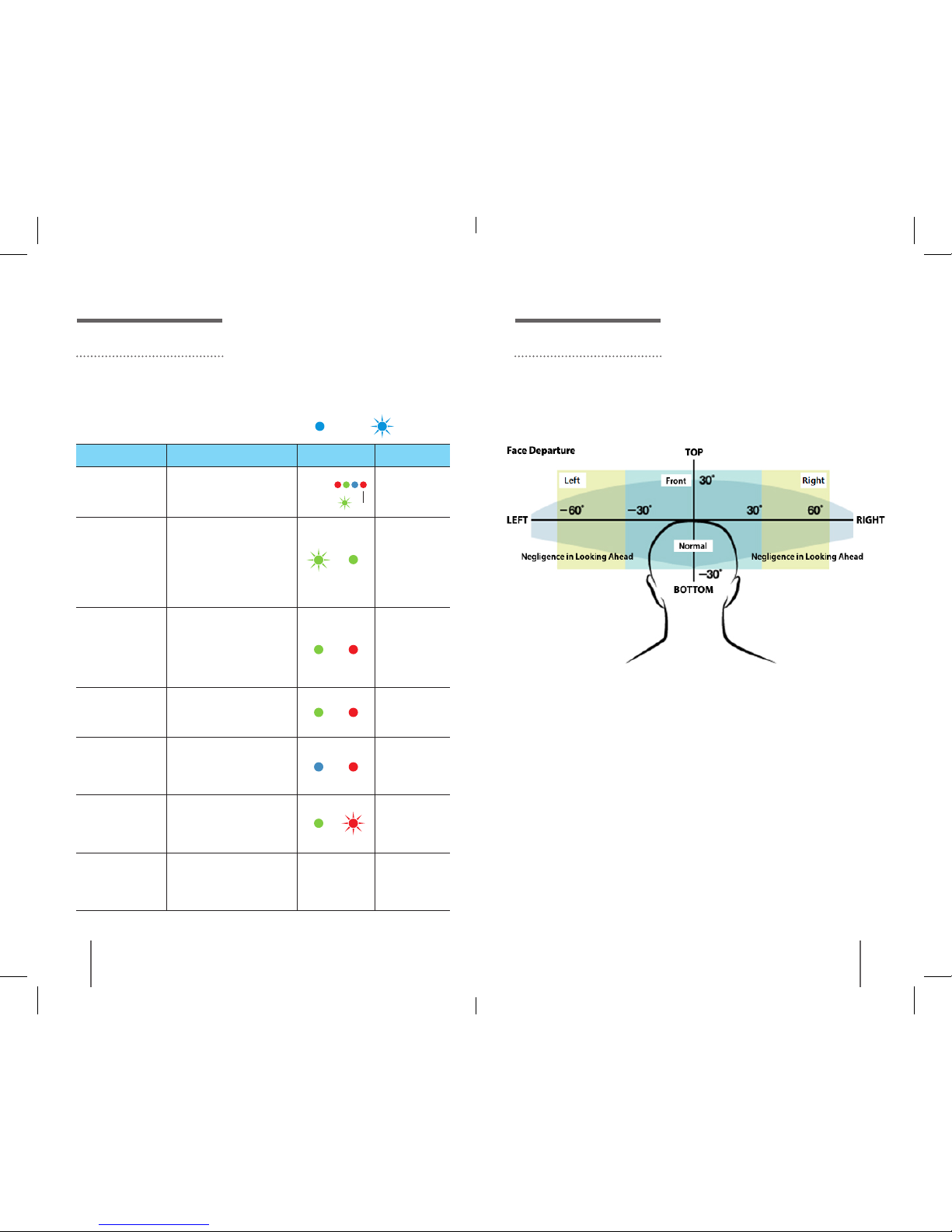

Operational sequence and summary
How to Operate
3
How To Use
→
→
→
→
→
Activity Summary Operation Status LED Warning Alarms
1. Power On/Booting
When power is turned on, the
system boots and is initialized in
about 5 seconds.
T-R-R-Ring
2. Identication of the
pupils position
When the pupils are situated in the
center of the camera, the LED light
ickers green. If the pupils maintain
their position for about 1 second,
the checking will be conrmed (the
light continues to icker when the
camera is unable to pinpoint the
eye).
Ding-Dong
3. 1st alarm for
drowsiness detection
The warning goes off when the
driver closes his eyes for a preset
sensitivity time (about 1 second)
distracted into all directions (left
and right and, up and down) of each
30 degree away from the state of
looking straight ahead.
Beeeep~
4. 2nd alarm for
drowsiness detection
The warning goes off when the
drowsiness continues for 1 second
even after the rst warning until the
driver opens his eyes.
Bee-O~ Bee-O~
Bee-O~ Bee-O~
5. Alarm for negligence
in looking ahead
The warning goes off when the
driver’s eye strays 30~60 degrees
toward either side from the state of
looking ahead for longer than about
3 seconds.
Ding~Ding~
6. Face departure
The warning goes off when the
driver’s face deviates 60 degrees
toward either side from the state of
looking ahead (or when the camera
does not detect his eyes).
7. Power OFF When the power cable is unplugged
or the ignition is turned o.
: Lit on : Flickering
→ OFF
→
※Some of specially coated sunglasses or glasses can reduce the recognition rate.
※When hair blots out the eye, the product can make mistakes or experience
reduced recognition.
※The recognition rate may be reduced before and after sunrise/sunset or aected
by sideway light or external light.
※The warning may go o when the camera checks the driver's eyes and judges
them closed. (For examples: when the driver lowers his head or looks down or
opens his eyes slightly, or when he laughs aloud making his eyes narrow.)
How to Operate
3
How To Use
l
Face detectable ranges
l
Precautions for operations
OFF

16
VUEMATE User Manual VUEMATE User Manual
17
Product Specications
1
Other Information
The warranty term of this product is within 1 year from the purchase date.
The warranty term of the accessories and the consumable parts is
separately applied.
The support will be provided upon request according to product warranty.
The purchasing date is essential for the free warranty support.
For detailed warranty support, please refer to "Indemnity Policy for
Customer Damages".
Products, being subject to replacement under the warranty policy, may be
replaced with new products or ones that have similar specications.
Dinalog, Inc. is not responsible for any repair, exchange or refund until the
faulty product is returned.
The product warranty and the serial number will not be reissue.
The product warranty will be provided only for the product manufactured
by Dinalog, Inc.
Physical dimensions : 92 X 24 X 46 mm
Net weight : 80g (including the cradle)
Color : Black
Camera : CMOS image sensor
Audio : Micro-loudspeaker (Min. 90dB)
Input voltage : DC 12/24V
Power consumption : Max 2.5W
Operation temperature : -20 ~ +70℃
※ For better performance, the exterior designs or the specications of this
product may change without any prior notice.
Product Warranty
2
Other Information

18
VUEMATE User Manual VUEMATE User Manual
19
Product Warranty
2
Other Information
Product Warranty
Product
Name Driver State Monitor
Model Name RVS-330
Approval No.
Serial No.
Warranty
Period 1 year from the purchased date
Customer
Name Contacts
Address
Purchased
Where
Name Contacts
Address
Indemnity Policy for Customer Damages
3
Other Information
For
performance/
functional
problems under
normal use
conditions
Classication by Customer Damages
Warranty
within the
Term
Warranty
out of the
Term
For serious repair required within 10 days of purchase Exchange
N/A
For serious repair required within 1 month of purchase Exchange
For serious repair required within 1 month of exchange Exchange
When not exchangeable Refund
Repair if
available
For defect Free repair Paid repair/
Paid
product
exchange
Repeated problem with the same defect
(from 4 times)
Exchange
Repeated problem with dierent parts
(from 5 times)
Repair if
unavailable
For the loss of a product while in A/S
Paid
product
exchange
When repair is unavailable due to lack
of spare parts within the component
holding period
When repair is unavailable even with
spare parts
1) Malfunction due to customer fault
> Malfunction & damage caused by user's negligence (fall, shock,
damage, unreasonable operation, etc.), careless use, intention, or
mistake.
> Malfunction & damage caused by repairs or modications by the
user or a third party.
> Malfunction & damage due to the use of unauthorized
components, consumables, or separately sold parts.
2) Other cases
> Malfunction due to natural disasters (re, ood, earthquake, etc.)
> Expired life span of a consumable part
> Malfunction due to external reasons
Paid repair Paid repair
※
This warranty is only valid in the country where you purchased this product.
※
Please keep this product warranty safely along with the User Manual.

20
VUEMATE User Manual VUEMATE User Manual
21
l
Please make a reservation in advance for visit.
l
Thank you for purchasing this product.
Troubleshooting Guides
5
Other Information
Symptoms Troubleshooting
Power is not turned on?
Check if the cigarette power cable is properly connected to the
power socket on the product or if the cable is damaged. If no
problem is found with the cable, contact the customer support
center.
The operation status
LED doesn't come on or
change colors?
Contact the customer support center unless the operation
status LED turns on after power is applied.
When the LED continues to icker green while the power is
on, that means that the camera still does not pinpoint the eye,
when you need to adjust its position. Contact the customer
support center if there is no change thereafter.
Check again if the product is correctly installed installed when
the operation status LED does not function properly. Contact
the customer support center if the same symptom occurs
repeatedly.
The speaker does not
give o warnings?
First check whether the product is correctly installed, and then
contact the customer support center.
Infrared LEDs do not
function?
After you turn on power to the camera, you can check its
state by directing your mobile phone toward the infrared LED.
Contact the customer support center if they do not function.
Inquiry for the product and after-sales services
- For any problem or inconvenience on your product, please contact the
customer service center in your country where you purchased the
product as follow.
Customer support center
Business hours
10am ~ 5pm Mon to Fri (Sat, Sun, and holidays are closed)
Application to after-sales services
Hand-carry by visit and parcel delivery service.
Please make sure to provide the serial number, the purchase place and
date of the product for services.
If you use the parcel delivery service, please make sure to have the product
packaged suciently enough to resist exposure to impacts or damages,
and provide such information as your name, contact number, address, and
detailed description of problems, etc. for quick response to your request.
Customer Support Center
4
Other Information

22
VUEMATE User Manual VUEMATE User Manual
23
-MEMO-
