Rear view safety RVS-577FW User manual

Reverse With Condence ™ 1
Safety Camera System for Forklifts
with 5" Display
RVS-577FW
Instruction Manual

Rear View Safety
2
Introduction.............................. 03
SafetyInformation.............................. 04-06
BeforeBeginningInstallation ....................... 07-08
InTheBox............................ . . . . . 09
Wiring................................10-11
MonitorIntroduction...............................12
Splicing. . . . . ................. . . . . . . . . . 13
MonitorDimensions................................14
MonitorSpecications...............................15
CameraSpecications...............................16
Troubleshooting.................................17
Warranty....................................18
Disclaimer....................................19
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Safety
Camera System!
With this manual you will be able to properly install and
operate the unit.
This system is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The system should not be used as a substitute for the
standard rear view mirror or for any other mirror that exists in your
vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
•The system is designed to help the
driver safely detect people and/or
objects helping to avoid damage
or injury. However, you the driv-
er, must use it properly. Use of this
system is not a substitute for safe,
proper or legal driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the system. If you back up
while looking only at the monitor,
you may cause damage or injury.
Always back up slowly.
•The system is not intended for use
during extensive back-up maneu-
vers or backing into cross trac or
pedestrian walkways.
•Please, always remember, the area
displayed by the system is limited.
It does not display the entire pan-
orama that is behind you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

Rear View Safety
6
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN

Rear View Safety
8
BEFORE YOU BEGIN
1. This monitor is high voltage. Only professionals should open the
monitor's case.
2. Do not watch the video while driving unless you are monitoring the
rear view camera display.
Warning!

Reverse With Condence ™ 9

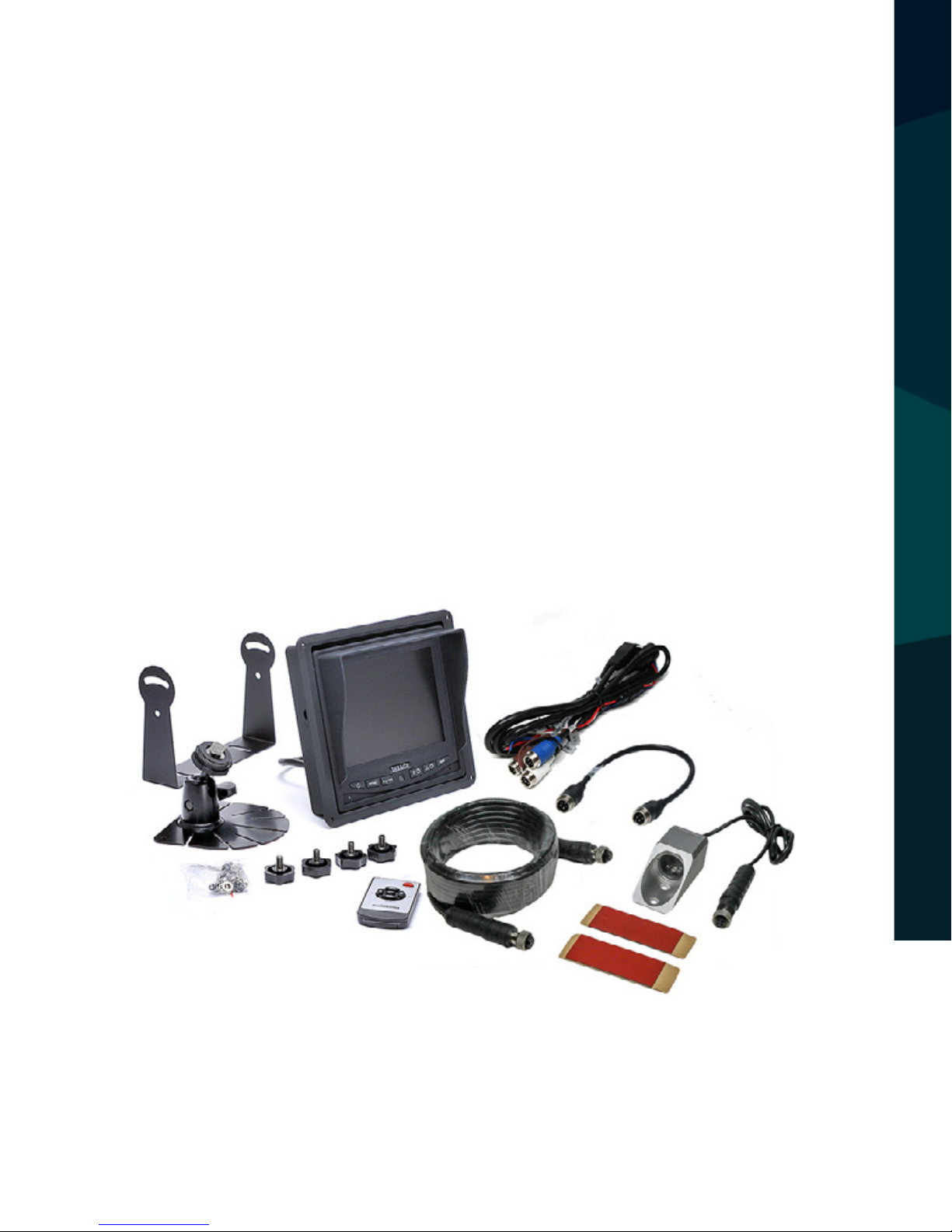

IN THE BOX
In The Box
1 x Color Waterproof Forklift Camera
1 x 5.6" TFT LCD Digital Color Monitor with Universal Mount
1 x 33' Camera Cable
1 x U-Bracket
1 x Flushmount
1 x Remote Control
1 x Power Harness
1 x 4 Pin to 5 Pin Adapter
1 x Screw Kit for Installation

Rear View Safety
10
WIRING
•To power the system connect the power (RED) 12V+ wire to igni-
tion power and the ground (BLACK) wire to chassis ground.
• These are the only wires needed to power the entire system
and all the cameras. Each camera can be seen at any time by simply
pressing the power button and using the V1/2 button to toggle.
• The three positive trigger wires (WHITE-CH1, BROWNCH2, BLUE-
CH3) each represent one channel and will turn on their channel
when the trigger wire is energized with 12V.
• "Camera 3" is the designated backup channel. To have the the
backup camera come on when you go into reverse, connect the
BLUE wire to reverse power (or any power source that comes on
only in reverse).
• The other channels can similarly be triggered (i.e. side cameras
can be triggered by the turn signals etc.)
•To automatically have camera and monitor turn ON when vehicle
activates, simply twist BLUE positive trigger 12V+ to Red Power
line 12V+ and wire to ignition power.
Power Harness

Reverse With Condence ™ 11
WIRING
Wiring
1. DC 12V-24V
2. Ground
3. Port #3 (Blue)
4. Port #2 (Brown)
5. Port #1 (White)

Rear View Safety
12
MONITOR INTRODUCTION
•To turn on the monitor, press“ON”button.
•To adjust brightness, press“MENU”1 time and use arrows
•To adjust contrast, press“MENU”2 times and use arrows
•To adjust saturation, press“MENU”3 times and use arrows
•To adjust sharpness, press“MENU”4 times and use arrows
•To adjust volume, press“MENU”5 times and use arrows
• To change language, press“MENU”6 times and use arrows
• To activate rotate image option, press“MENU”7 times and use arrows.
•To adjust distance grid, press“MENU”8 times and use arrows
•To adjust grid position, press“MENU”9 times and use arrows
•To activate day/night option, press“MENU”10 times and use arrows
• To reset your system, press“MENU”11 times and use arrows
•To view images on other cameras, press“CAMERA SELECTION”
1 time for camera one, 2 times for camera two and 3 times for camera three.
Camera selection
Menu selection
Power on/o
Down arrow
Up arrow
Rotate image
(back/exit when in
menu mode)

Reverse With Condence ™ 13

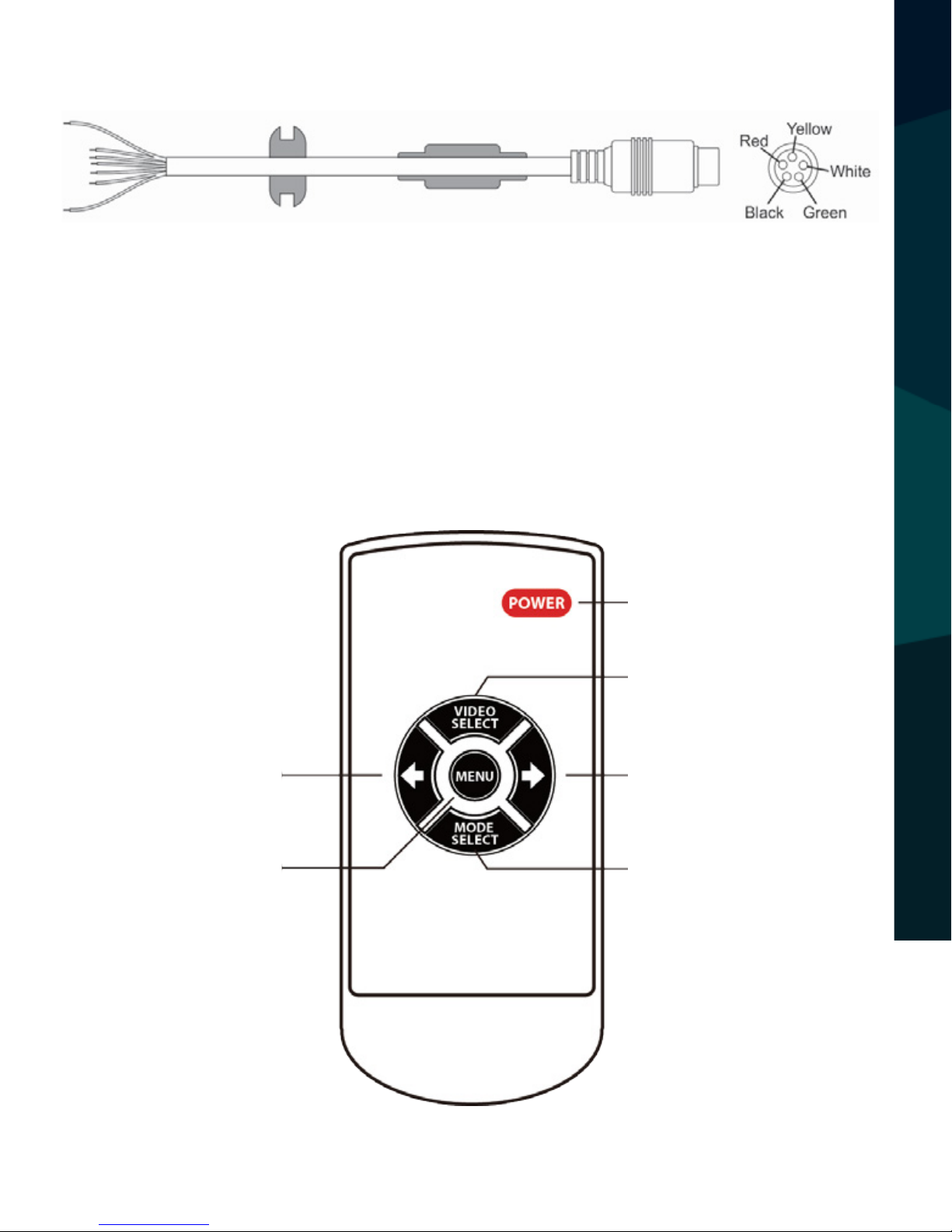

SPLICING
Splicing
1. Red - Power (+)
2. Yellow - Video
3. Green - Mirror / Normal Imaging
4. White - Audio
5. Black - Ground (-)
Down arrow
Up arrow
Rotate image
(back/exit when in
menu mode)
Remote
Power
Toggle Video
Toggle SelectionToggle Selection
Menu
Toggle
Mirror/Normal Image

Rear View Safety
14

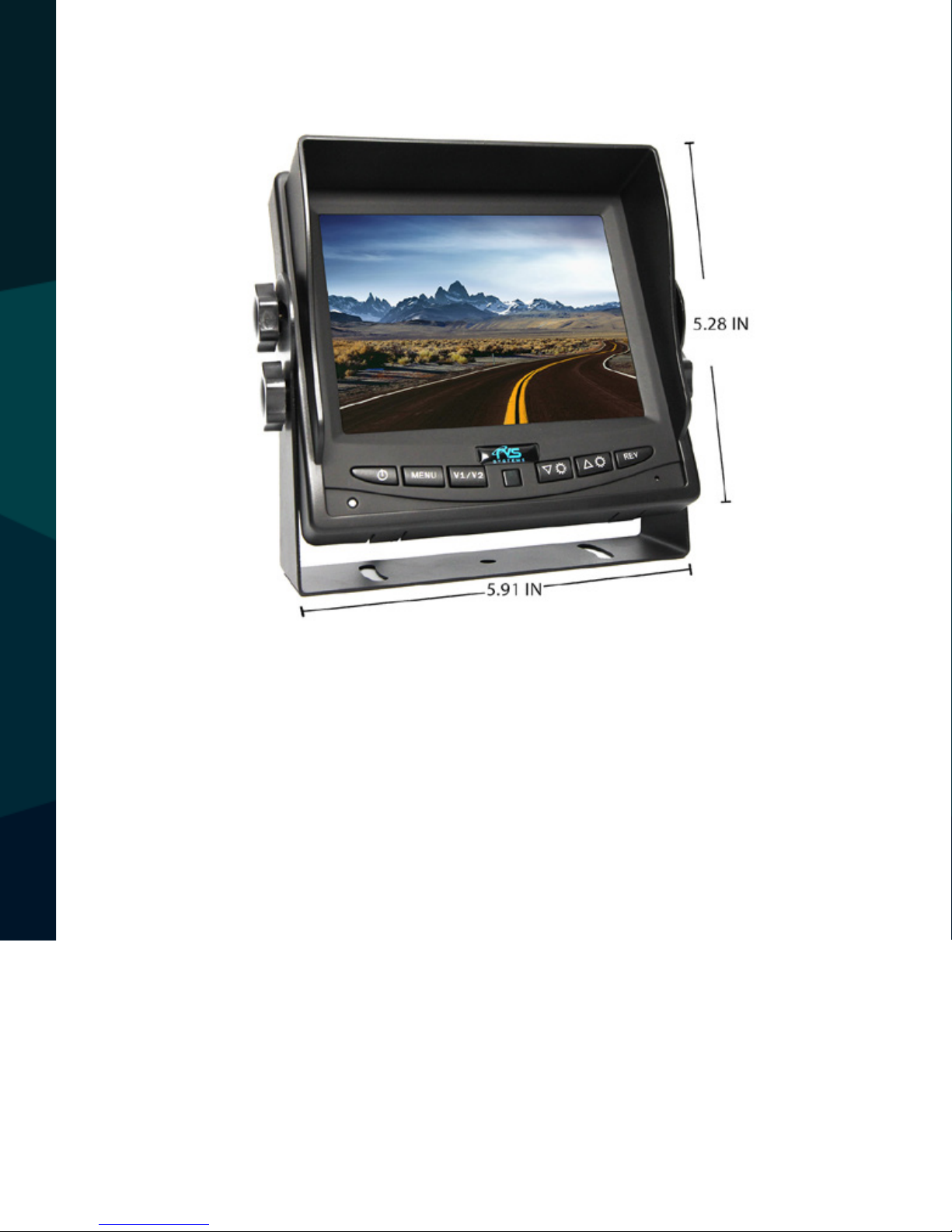

MONITOR DIMENSIONS
Monitor Dimensions
• 5" TFT LCD Digital Color Display
• Built-in speakers for audio
• Adjustabledistancegrid linesforbackingupreference
• 3 channel video inputs - Supports 3 cameras
• Innovative back-lit buttons illuminate in the dark

Reverse With Condence ™ 15
MONITOR SPECIFICATIONS
Type TFT LCD
Screen Size 5.6"
Dot Resolution 800 X 3 (RGB) X 480
Display Format/Contrast 16:9 / 500:1
Display Brightness 400cd/m2
Viewing Angle U:50° D:60° L/R:70°
Video Input 3 channel
Video Source 1Vp-p, 75
Power Supply DC 12V-24V (+/- 10%)
Power Consumption 5W
Operating Temperature -30°C ~ +80° C
Video System Auto NTSC/PAL
Overall Dimensions 5" (L) x 5" (H) x 1" (D)
Weight 400G
Vibration Rating 5G
Dot Pitch 154.08 (H) X 86.58 (V)
Sync System Internal
Monitor Specications

Rear View Safety
16
CAMERA SPECIFICATIONS
Sensor 1/4" CMOS ASX340CS
TV System PAL / NTSC
Eective Pixels 640 x 480 Pixels
Sensing Area 4.077mm x 3.136mm
Scanning System 2:1 Interlace
Sync System Internal
Resolution 420 TV Lines
Horizontal Sync Frequency 15.625 kHz / 15.734 kHz
Vertical Sync Frequency 50 Hz / 60 Hz
Video Output 1.0Vp-p, 75
Gamma Correction 0.45
AGC Auto
S/N Ratio Better than 46dB
White Balance Auto
Electronic Shutter Auto:1/60 (NTSC) / 1/50 (PAL) ~
1/100,000 Seconds
BLC Auto
Operation Frequency 2400-2483.5MHZ
Line of Sight Range 50m
Receiving Sensitivity -89dBm
Video Codec MPEG4
Frame Rate PAL: 25f/s NTSC: 30f/s
Transmission Power 20dBm
Spread Spectrum FHSS
Delay 120ms
RF Bit Rate 4Mbps
Operating Temperature -20°C ~ 70°C, RH 95% MAX
Storage Temperature -30°C ~ 80°C, RH 95% MAX
Power Supply DC 10 ~ 32V
Waterproof Rating IP69K
Viewing Angle 45°
Camera Specications

Reverse With Condence ™ 17
TROUBLESHOOTING
Troubleshooting
Monitor Displays Blue Screen & Displays No Signal
• Do a hard reset, unplug all cables and power cables leave out for 1
minute and then reconnect them
• Check to ensure that the connection to the camera is tight
• Verify camera cable is plugged into port labeled Backup Camera trig-
ger on power harness is put to power 12v+
If the problem still persists, verify that alternate ports work.
If alternate ports do not work, remove Blue Trigger wire from
12V+ and select alternate channels.
Monitor Will Not Power-Up (no backlight on power button)
• Check fuse
• Check 12v+ to monitor
• Check ground connection
No Image On Screen
• Verify camera is on correct camera input
• Verify cable is connected to monitor
• Verify camera is connected to cable
• Connect known working camera and cable to monitor
• Verify Blue trigger is receiving power

Rear View Safety
18
WARRANTY
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULDYOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIREDWHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED, TO REAR VIEW SAFETY, INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
IS MADEWITH REGARDTOTHIS REARVIEW SAFETY, INC.REARVIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REARVIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGEDTO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Reverse With Condence ™ 19
DISCLAIMER
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FORTHE CONSISTENT ADHERENCETO ALL APPLICABLETRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOURVEHICLE AND USEYOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY. REAR VIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OFTHE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
CONTRACT,TORT OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTIONTAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTIONWITH OUR SYSTEMS FUNCTIONS.

Rear View Safety
20
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
