Rear view safety RVS-OP7 User manual

User Manual
RVS-OP7
Optian 7 Driver Assist System with DVR

Driver Assist ADAS CAM
Thank you for purchasing 『ADAS CAM』.
This manual contains the functional explanation and operating method of ADAS CAM.
Please read instructions carefully before attempting to operate.
This manual may be subject to change without any prior notice
『ADAS 』or Advanced Driver Assistance System is an advanced safety assist system that can
help a driver to avoid or mitigate any accidental collisions by utilizing vision sensor.
* ADAS functions are designed to assist the driver, however, it is not a substitute for careful driving and we take no
responsibility for any damage caused by careless driving .
This manual is under the protection of copyright law and all the rights are legally protected.
Except in some legally acceptable cases based on the copyright law , it is restricted to copy ,
modify and translate this manual without any prior consent .

ADAS Functions Verified by Automakers
Intelligent Lane Departure Warning via Vehicle’s Turn Signal Connection!
Low-speed Front Collision Warning !
Easy But Professional Installation Mode !
Full HD Crystal Clear Image Quality !
Overheating Prevention System !
Driving DIT data Collection and Management
Specialized B2B Fleet Management Tool !
Main Features of ADAS CAM

Display Module RS232/U-ART Communication
Vibrator Security Lock Cover & Key
Optional Features

5. Start
6. Menu Guide
7. Data Manager
8. Maintenance
•Booting Up
•Screen Types & Explanation
•Basic Menu
•ADAS CAM
•DVR
•Installation Method
•Screen Composition
•Micro SD Card Maintenance
•Troubleshooting
10. Appendix
•Certificate
•Product Spec.
Contents
1. Safety Caution
•Warning
•Caution
2. Accessories & Functions
3. Product Installation
4. Main Functions
•Check Accessories
•Main Body & Functions
•Pin Map Guide
•Secondary(extra) Camera
•Precautions
•Basic Installation
•FCW
•LDW
•FCDA
•Installation Mode
•Camera Settings
•PD
•DVR
•DIT( Digital Image Tachometer )
•Video Playback
•Configurations
•Vehicle Type Settings
•Voice Settings
9. Optional Devices
•Display
•Vibrator
•Cover Lock
•Main Buttons
•Main Functions

! [Warning!]
If user does not comply with manual instructions , severe injuries or damages can be caused.
!Do not use modified power-supply cables , use
only genuine products supplied by the
manufacturer . Modification may cause vehicle
damage or physical injury due to explosion or
fire.
! Apply only the rated voltage otherwise it may
cause vehicle damage or physical injury due to
explosion or fire.
! Remove the cable when not using for a long
period of time otherwise it may cause battery
discharge or fire . User is responsible for the
damage in this case.
!Do not install the product in a location where it
interferes with driver's vision.
! Do not change settings while driving on the
road as it may cause traffic accident.
! Do not remove or insert the power cable with
wet hands as it may cause electric shock .
! Keep product accessories away from children
to prevent children from swallowing small
accessories otherwise it may cause severe
injury.
! Do not install in a place where there is
flammable gas or high humidity as it may cause
explosion or fire.
! Do not place the product in enclosed vehicle or
expose to heat stress for a long period of time
as it may cause fire or malfunctions.
Safety Caution

! [Caution!]
If user does not comply with manual instructions , severe injuries or damages can be caused.
! Do not connect cable wires randomly as it may
cause product or vehicle damages. Connect
vehicle wires under the guidance of professional
installing technician.
! Install the product when parked on the flat
ground. Carefully read manual instructions prior
to installation.
! Do not use force to adjust lens as it may cause
product damage.
!Do not press the LCD display with sharp
objects as it may damage the LCD surface or
touch panel.
! Use only tested and approved Micro SD Card
from the manufacturer for automotive
applications. Do not use other SD cards
manufactured for normal consumer electronics.
! Do not remove SD card when the product is
operating as it may cause product damage.
Only remove the Micro SD card when the
product is powered off completely.
! Remove and Keep Micro SD card with care
after accidents being recorded. Incident video
files may be overwritten by new video files if not
removed from the product.
!Micro SD card is a consumable product. Errors
may occur if used for long periods. It is
recommended to format data regularly for
maintenance and replace the SD card if it is
unable to restore card damages.
! Do not separate product cable while operating
as it may cause product or Micro SD card
damage .
! Video data cannot be recorded if power is OFF
or Micro SD card is broken . Check carefully
before driving on the road.

! [Caution!]
If user does not comply with manual instructions , severe injuries or damages can be caused.
!ADAS functions are designed to assist the
driver, however, it is not a substitute for careful
driving and we take no responsibility for any
damage caused by careless driving . Under
following conditions the ADAS functions may
not perform properly.
•Extreme weather
•Extremely curved roads
•Roads without painted lanes
•When the camera image is compromised due to
reflected light from an object on the dashboard .
•When installed incorrectly
•When settings are changed improperly
•When the horizon line calibration is incorrect
!The ADAS functions only work when the speed
rate received from GPS signal is above the set
operating speed threshold. If the speed data
cannot be received properly, it may cause
ADAS malfunctions.
!Tinted windscreens will affect the brightness
and clarity of recorded videos. Windscreen
metallic films may cause GPS signal loss.
!Keep the camera lens and windscreen clean to
ensure clear video and proper ADAS functions.
! Camera lens calibration can be affected by
excessive impacts such as driving over speed
bump or colliding with other objects. The
affected angle change can cause ADAS
malfunction.
!Do not disassemble or modify ADAS CAM as it
will result in data loss, damage and will void the
warranty cover.

[Check Accessories ]
Main Body
Power/ Vehicle Signal
Cable
Micro SD card (32GB) /
Adapter
•Specifications of the above accessories are subject to change according to the components supply.
•Above images are just to help user's understanding; actual components may look a little different .
Security
Cover Lock
Display Module
Optional Accessories
Vibrator
Accessories & Functions
Dual HUB
Secondary Camera
6p mount

[Main Body & Functions]
Front
Camera
(Full HD)
Internal GPS
Security
LED
Volume
Adjustment
Button
Menu
Button
Touch
LCD
Manual
Recording
Button (REC)
Camera
Angle
Adjuster
MIC
DC power port
(3.5 pi)
Micro SD card
socket
Power Supply
Connection Extra Secondary Camera
Connection

①Main Body
②
Vehicle Signal ③Display ④Comm
⑤
Vibrator
Product↔HUB
Cable
HUB↔Vehicle
Cable
Display
Module
External Device
Communication
(RS232 or
TTL)
Vibrator

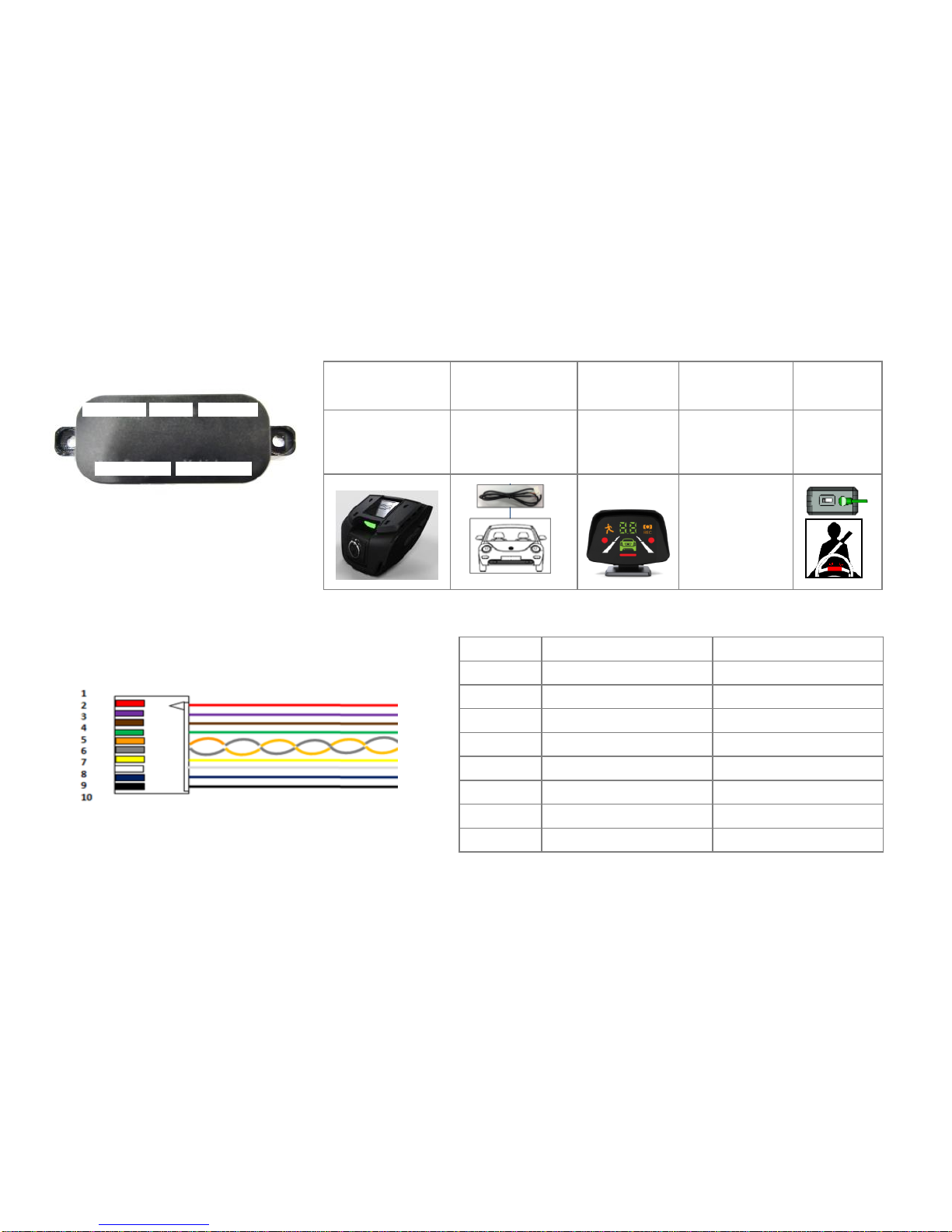

[Vehicle Wire Connection via Dual HUB]
•Display module and Vibrator can be connected via HUB
•Dual HUB to Vehicle Wire Pin Map
•to deactivate Parking (CCTV) Mode, connect twisted RED and VIOLET wires to ACC( IG ) .
•to activate Parking (CCTV) Mode, connect corresponding RED and VIOLET wires to ACC(IG) and B+
•B+, Speed and Brake wire connections are optional
Main Body Vehicle
①②
Display Vibrator
Comm
③ ④ ⑤
No. Signal Cable Color
1 ACC(IG) RED
2 B+ VIOLET
3 BRAKE BROWN
4 WIPER GREEN
7 TURN_R YELLOW
8 TURN_L WHITE
9 SPEED BLUE
10 GND BLACK

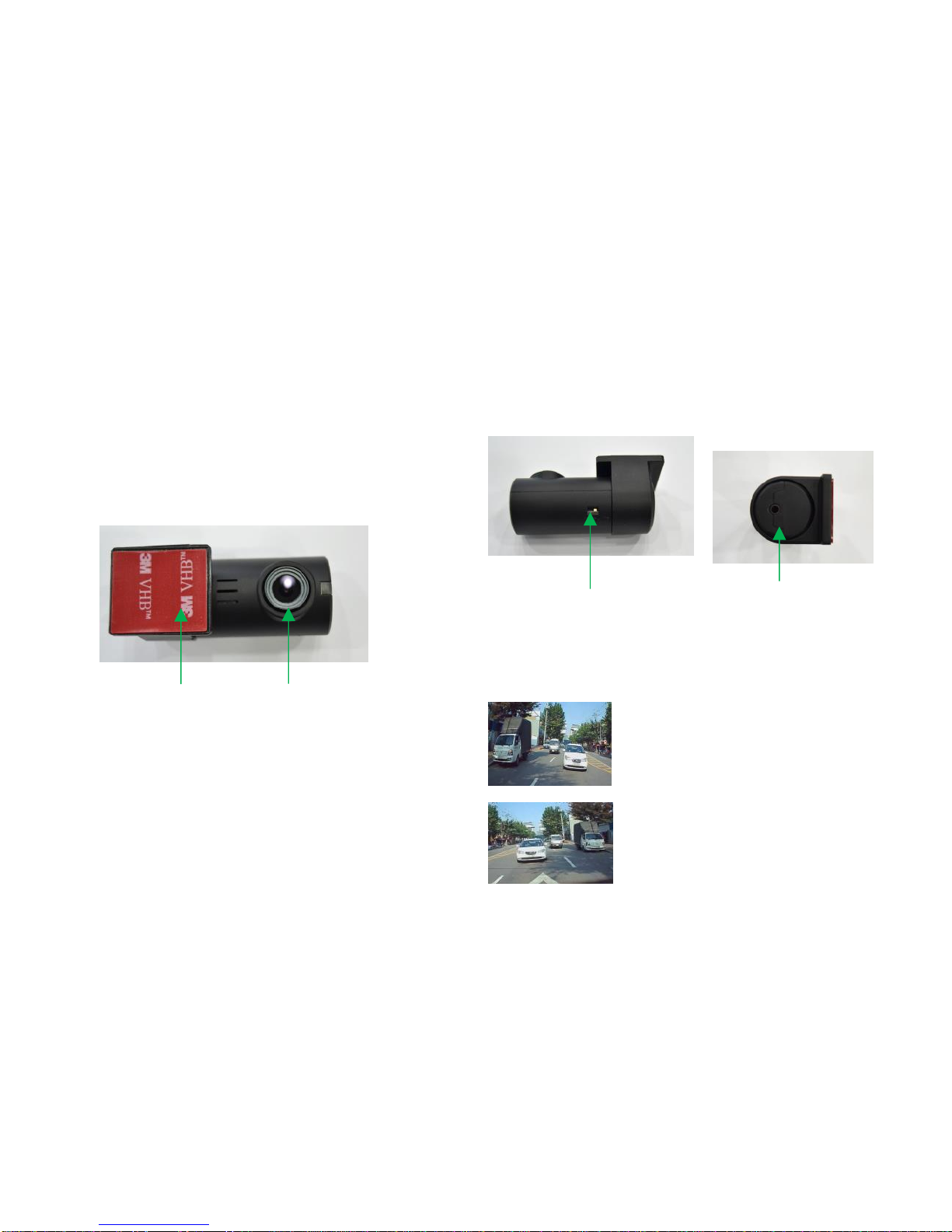

[Secondary Camera]
-A Secondary Camera can be attached to the rear / inside/ side of the car to record videos.
-A 10m power cable is provided
Integral Bracket
N/R Button DC Power Port
Indicating LED •Normal(N) :
Rear images are shown in an opposite
direction to those shown in the room mirror,
but the number plate of the car in the rear
appears normal.
•Reverse(R) : Mirror Screen
Rear images are shown in the same
direction as those shown in the room
mirror, but the number plate of rear-side
car is in an opposite direction.

Product Installation
[Precautions]
- Prior to installation, turn off vehicle ignition when parked on flat ground
- When installing in passenger vehicles, avoid installing in a place where it interferes with movement of rear
mirror .
- Install within 20cm range from the center of windscreen for stable ADAS performance
- Install near the rear mirror in Sedan or RV .
- Install near the bottom center area of windscreen in Bus or Truck .
Sedan/RV Bus/Truck
- Reflections of objects may affect the video quality and ADAS performance , avoid placing or installing
reflective objects on the dashboard.
- Metallic films or tinted windshield may affect GPS receiving , avoid installing closer to the metallic films
or tinted areas.
-When using speed wire connection instead of GPS speed reading , please change ‘GPS’ to ‘Pulse’ in
PC manager program. Afterwards, please input the vehicle pulse value.
- Notice that recorded image quality of rear camera may not be as good as expected due to rear
window tinting .
Installation
Position(Center=0cm)

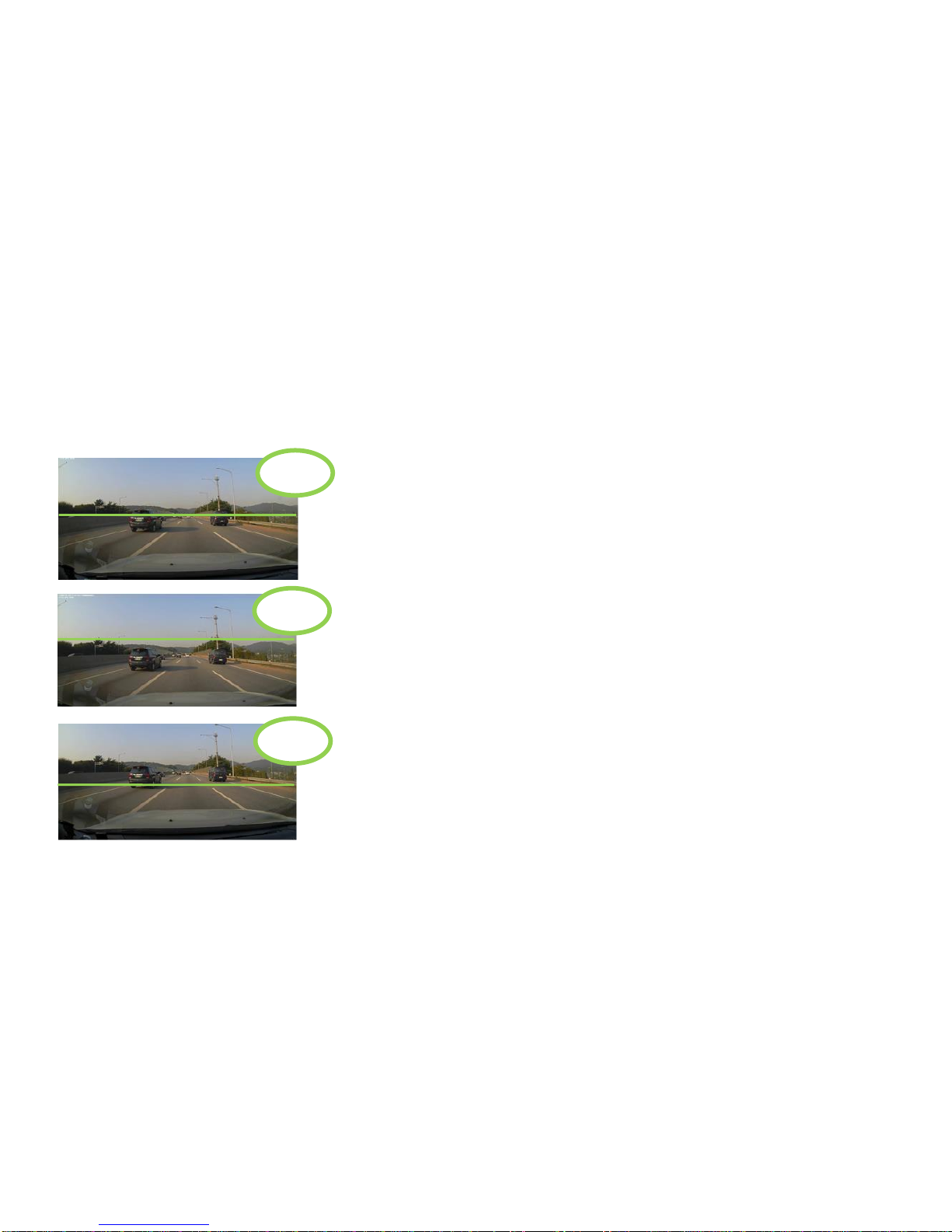

•Correct Angle Adjustment :
Horizon guide line matches with the actual horizon.
Good
•Camera angle is wrongly adjusted
: Guide line is above the horizon
Bad
•Camera angle is wrongly adjusted
: Guide line is below the horizon
Bad
-If the calibration is not done on flat ground , ADAS functions may not perform properly.
Ensure to calibrate camera on flat ground.
! After the calibration , if the view angle is different with Correct Angle Adjustment in the image above,
please rotate the camera adjuster to recalibrate correctly .

[ Basic Installation Guide ]
This instruction shows how to install the main body and basic components. Please read carefully before
installation.

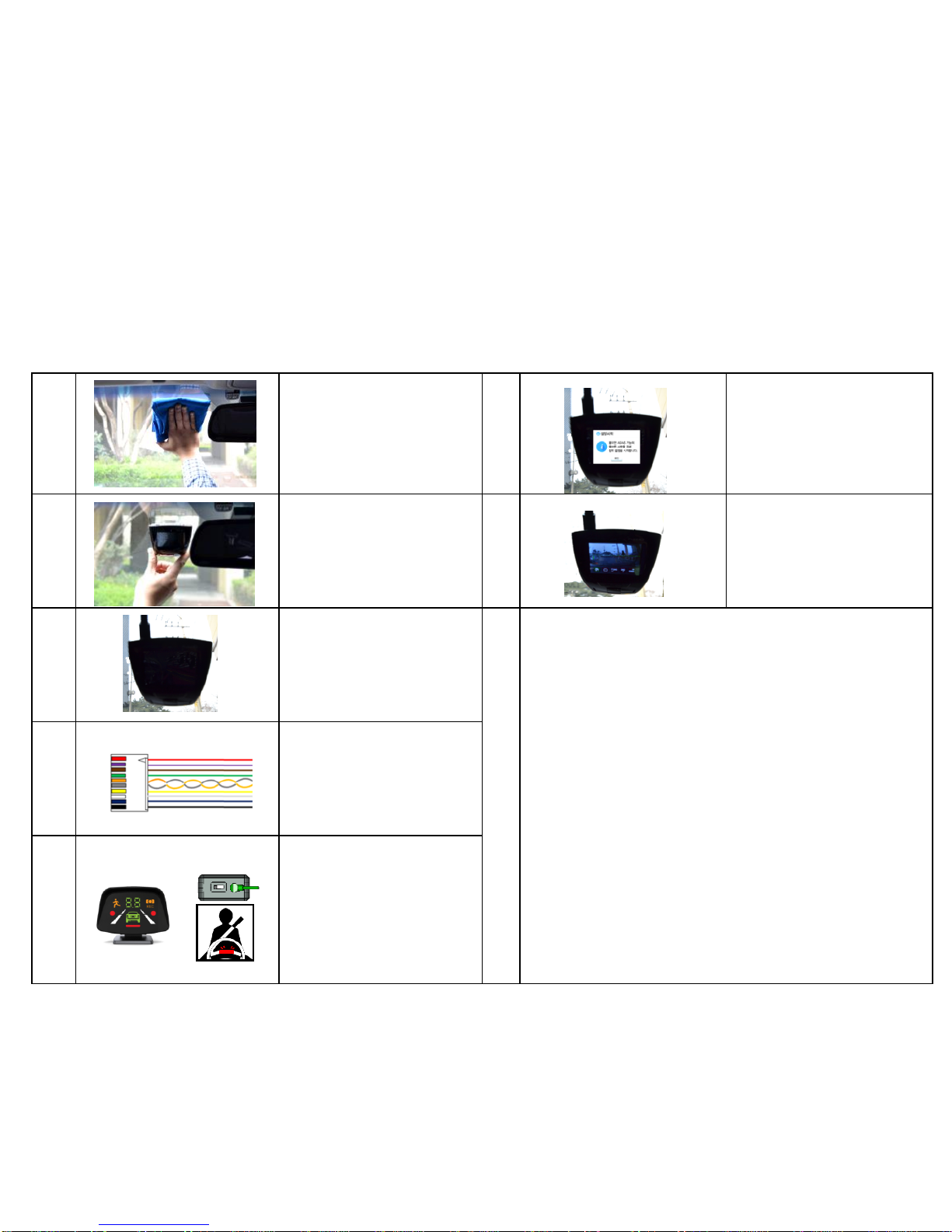

Place the bracket as shown in the image;
hang the bracket on the GPS module.
Press the bracket and slide it upwards until it
is fixed with a click sound
How to tighten the bracket

1 Clean installation
surface of windscreen
(windshield)

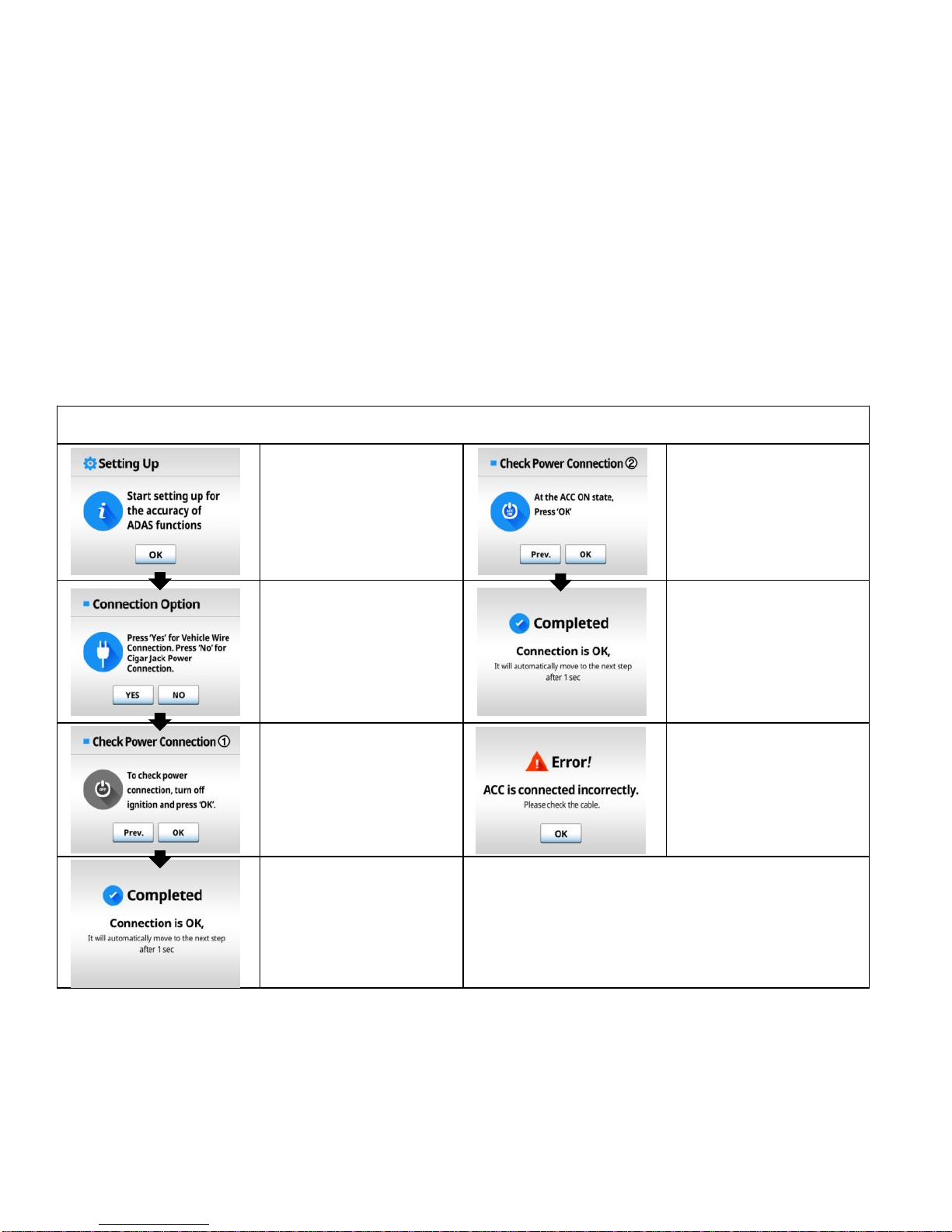

6 If powered on , follow
the installation guide to
start setup.
2 Remove tape off
bracket and install in a
suitable place
horizontally
7 If setup process finishes,
a Live-view screen will
appear .
3 After connecting to Dual
HUB , connect and
arrange the main body-
to-Dual HUB cable .
* Installation Notice2.
! Turn off vehicle power completely before
①connecting product to Dual HUB
②and connect optional devices( display & vibrator )
to Dual HUB
③at the finish , connect the vehicle cable
! If the product and optional devices are connected
when turned-
on vehicle power is applied to Dual HUB ,
it may cause internal product damages.
! It is recommended to change settings when vehicle
power is switched to IG status. If Camera Reset is
done in an unstable shaking condition , ADAS
functions may not perform properly.
4 Connect power cable to
vehicle wires
(refer to Dual HUB Pin
Map)
5 Connect optional
devices to Dual HUB,
afterwards , connect the
vehicle cable
*OPTIAN 7 must be installed in a professional installation shop
*Before attempting to install, please read instructions carefully
[ Main-body installation]

[ Secondary Camera Installation ]
1 *Ensure to connect a
secondary camera after
turning off the power of
the main body.
* When connecting the
cable of the secondary
camera, firmly push the
connection jack to the
main body until the jack
hides inside.
2
*When attaching the
secondary camera to the
rear window, place the
holder at right side.
* When attaching the
secondary camera to the
rear window, avoid
installing directly on heat
wires.
* Caution!
!Ensure to connect the secondary camera after turning off the power of the main body. The secondary camera may
not be sensed if the camera is connected with the power of the main body on.
! After mounting the camera, check through a monitoring screen if the direction of the image is in a correct way.
!* Secondary camera screen, PIP screen, and front screen can be switchable by pressing the monitoring button in
Monitoring mode

[Installation Mode]
* Install Mode is to support easy setup for proper ADAS performance .
* Install Mode appears when booting up for the first time. If Installation finishes, it will not appear again.
* If setup values are inputted differently in menu screen or manager program , the latest inputted values will apply.
* Check Power Connection
It’s the starting screen
of Install Mode .
Press OK to continue
②Check whether power
is connected properly,
Switch to ACC On
status , and press OK
Choose the desired
connection method,
Vehicle Power & wire
Connection- Press OK
Cigar Jack Connection
–Press No
The notice screen will
appear if the connection
is correct.
①Check whether power
is properly connected ,
Turn off engine
completely and press
OK
The error message will
appear if connection is
incorrect.
Start installation from
the beginning after the
product turns off
The notice screen will
appear if the connection
is correct.
* ‘Press Prev. button to return to previous screen .

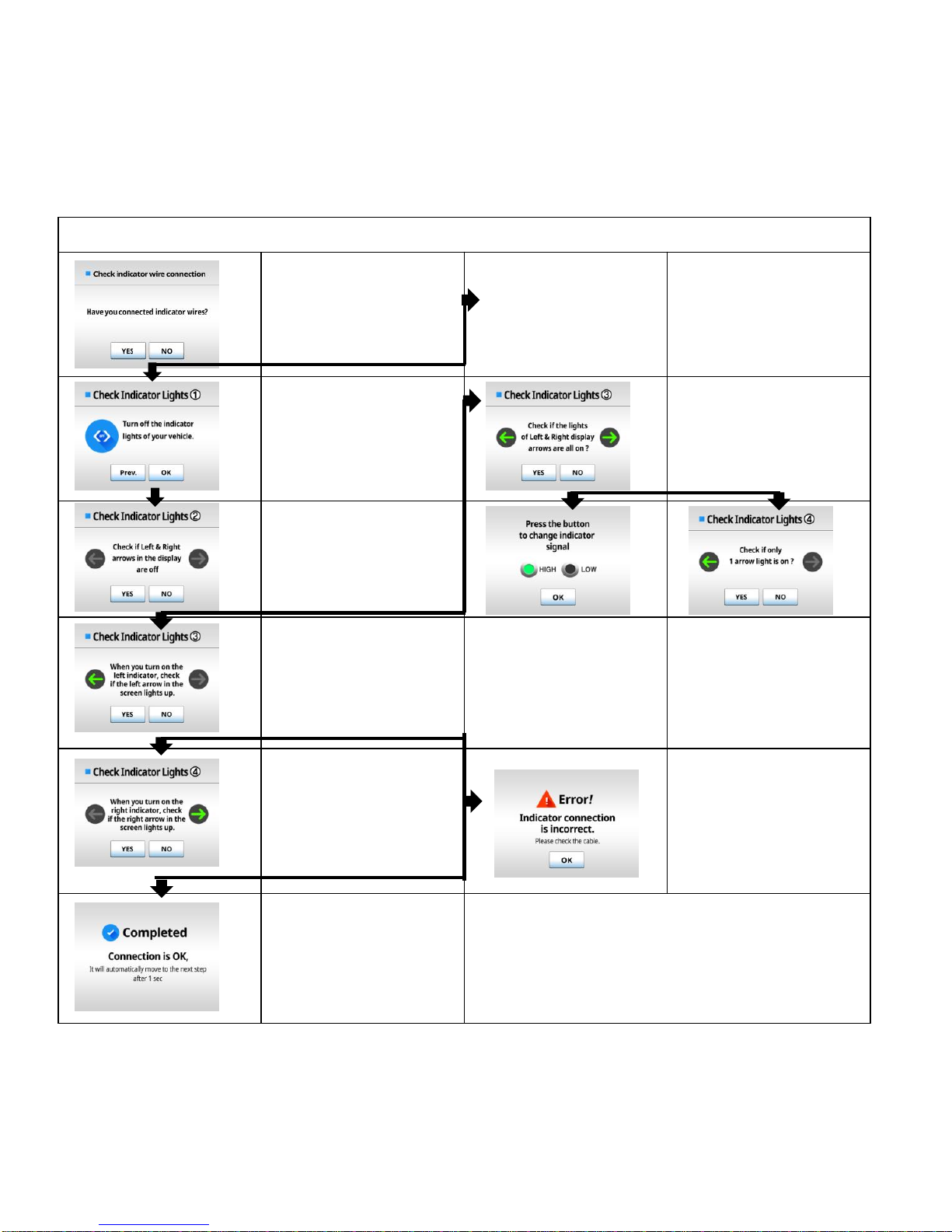

* Check Indicator Lights
Check indicator signal
connection,
To connect turn indicator
signal , press YES
<NO>
Move to the [Camera
Setup] screen,
Refer to next page
<YES>
Check turn signal wire
connection,
Turn off indicator light s and
press OK
<NO>
If both Left & Right arrows
are turned on , Press YES.
If only 1 arrow is turned
on , Press NO.
If both lights are off
–Press Yes
If one light is ON or both
lights are ON
–Press No
<YES>
Turn on Left indicator light ,
and check if the left arrow in
the display is On .
Press YES if the left arrow
light turns on
<YES>
The vehicle signal is
incompatible with product
signal.
Change the signal by
changing High/Low,
LOW→HIGH // HIGH→LOW
<NO>
* If only 1 arrow is on, check
the cable connection again .
* If both arrows are off ,
return to the turn signal
check screen②.
<YES>
Turn on Right indicator light ,
and check if the right arrow
in the display is On.
Press YES if the right arrow
light turns on
<NO>
Turn signal connection is
incorrect, check the cable
connection again.
Restart the procedure after
product turns off
<YES>
This Notice screen will
appear if the connection is
correct.

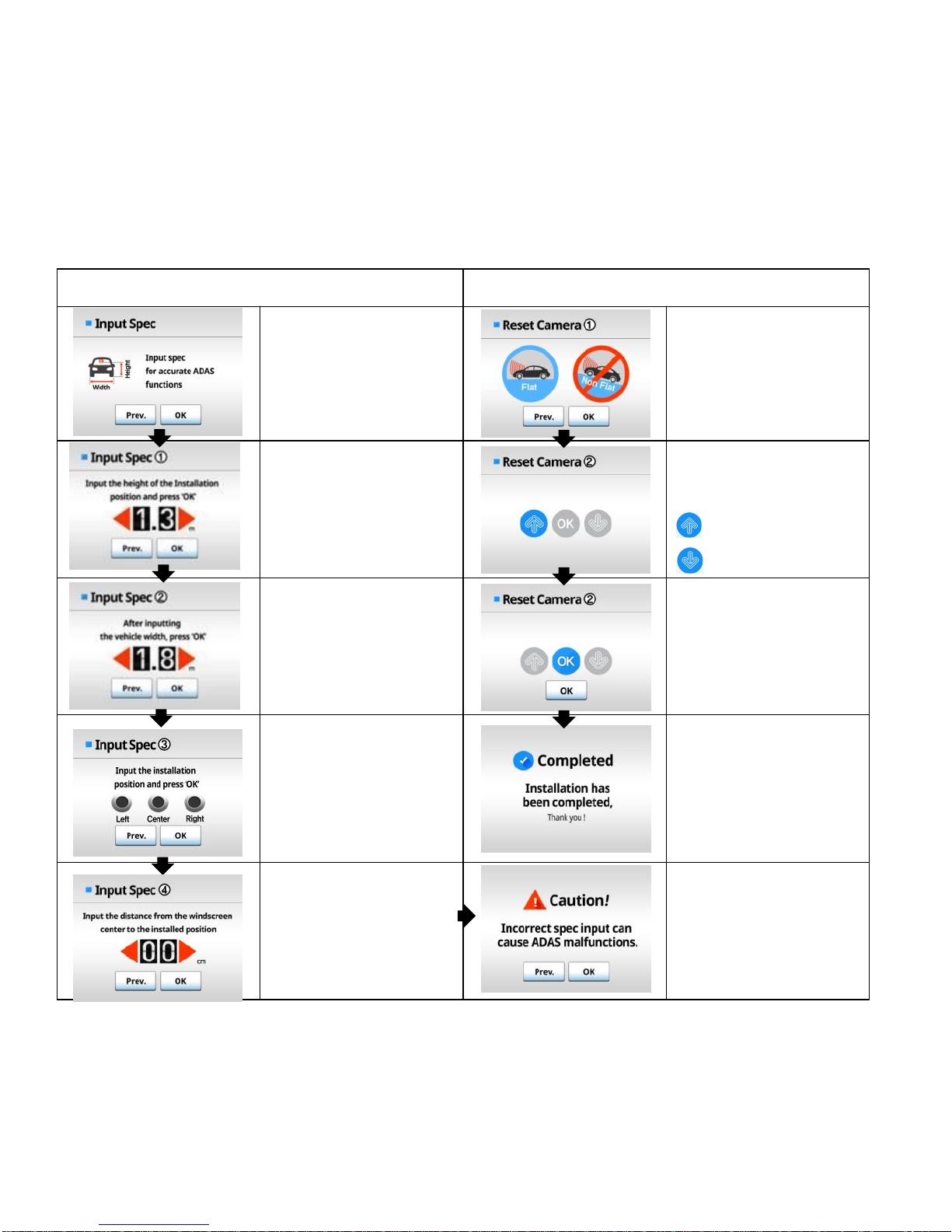

* Input Spec * Camera setting
To perform ADAS
properly, input your
vehicle specifications,
Press OK to continue
To calibrate camera
angle correctly, make
sure the vehicle is
parked on the flat
ground,
Press OK to continue
Input the installed height
from the ground by
pressing the arrow
button.
Press OK after inputting
the value
Adjust the camera lens
angle by following the
arrow guide
: turn upward .
: turn downward
Input the exterior width
of vehicle by pressing
the arrow button. Press
OK after inputting the
value
OK button will be ON
with the acoustic alarm
when calibration is done
correctly.
Press OK to continue
From the driver’s point
of view, select the
installation position,
Press OK to continue
Setup has been
completed
Input the distance from
the center of windshield
to the installed position
by pressing the arrow
button.
Press OK to continue
If spec input is not
properly done, it may
affect ADAS
performance.
If inputted correctly,
press OK to continue .
[Camera Settings]
