Redexim SPEEDSEED 1200 User manual

ATTENTION:
TO ENSURE SAFE USE OF THIS MACHINE AND TO BE ABLE TO ACHIEVE THE
BEST RESULTS, IT IS OF MAJOR IMPORTANCE TO READ THIS USER
MANUAL THOROUGHLY BEFORE USING THE SPEEDSEED.
1015 English 924.120.200
User manual and parts
manual
SPEEDSEED
Model 1200 / 1600
2100 / 2400
Serial number:
Translation of the original operating
instructions

2
FOREWORD
Congratulations with the purchase of your Speedseed. To ensure long and safe use of this
Speedseed, it is of major importance to all users to read and understand this user manual.
Operation of this machine is not safe without full knowledge of the content of the manual.
The Speedseed is not an independently operating machine. The user is responsible for using
the appropriate tractor. The user must also check the tractor/ Speedseed combination for
safety aspects, such as noise level, adequate user instructions and any risks.
The Speedseed is solely intended for use on lawns and other areas where grass could grow.
On the next page you will first find the general safety instructions. Every user must know and
apply them. After this, a registration card is included. This card should be returned for
handling any future claims.
This user manual offers many instructions numbered in sequence. This sequence should be
observed. An asterisk * indicates a safety instruction. An @ indicates a tip and/or note.
All information and technical specifications provided at the moment that this document is
published are the most recent ones. Design specifications may be changed without prior
notice.
This document is a translation of the original operating instructions.
Upon request, the original operating instructions are available in Dutch.
GUARANTEE CONDITIONS
THIS SPEEDSEED COMES WITH A GUARANTEE FOR DEFECTIVE MATERIALS.
THIS GUARANTEE IS VALID FOR A PERIOD OF 12 MONTHS FROM THE PURCHASING DATE.
SPEEDSEED GUARANTEES ARE SUBJECT TO THE “GENERAL CONDITIONS FOR SUPPLY OF
PLANT AND MACHINERY FOR EXPORT, NUMBER 188”, PUBLISHED UNDER THE AUSPICES
OF THE UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE.
REGISTRATION CARD
For your own information, please complete the table below:
Serial number of machine
Dealer name
Purchasing date
Remarks

3
! SAFETY INSTRUCTIONS !
Fig. 1
The design of the Speedseed allows for safe use.
However, this is only possible if the user fully
observes the safety instructions given in this
manual.
Read and understand (Fig. 1) the manual before
starting to use the Speedseed.
Not using the machine as described in the manual
may lead to injury and/or damage to the
Speedseed.
(1) The Speedseed is solely intended for tilling lawns or areas where grass should
grow.
Any other use is considered to be incorrect use. The manufacturer does not
accept any liability with regard to damage resulting from incorrect use; all resulting
risks are the responsibility of the user.
Correct use also includes following the manufacturer’s instructions for use,
maintenance and repair.
Before using the Speedseed, inspect the area to be treated.
Remove any loose obstacles and avoid irregularities.
(2) The Speedseed was constructed according to the latest technological knowledge
and is safe to use.
Improper use, maintenance or repair of the machine may result in injury to both
the user and others. This should be avoided!
Always use the Speedseed in combination with the appropriate tractor as
described in the technical data.
(3) All persons whom the owner assigns to operate, maintain or repair the
Overseeder must read and completely understand the operating manual and in
particular the Safety Instructions section.
The user is responsible for a safe tractor/Speedseed combination. This unit
must be tested in terms of noise, safety and ease-of-use. In addition, user’s
instructions must be prepared.
(4) Before using the Speedseed, the user is obliged to inspect it for visible damage
and defects.
Any changes of the Speedseed (including its functioning) that may affect its safety
must be corrected immediately.
For safety reasons it is in principle forbidden to make changes in or additions to
the Speedseed (with the exception of those approved by the manufacturer).
If any modifications have been made to the Speedseed, the present CE
certificate becomes null and void and the person who made the modifications
should himself make sure a new CE certificate is granted.

4
Inspect the Speedseed for loose bolts/nuts/parts before each use.
If present, inspect the hydraulic hoses regularly and replace them if they are
damaged or show signs of wear. The replacement hoses must meet the
manufacturer’s technical specifications.
Always relieve the pressure from the hydraulic installation, if present, before
carrying out any work on it.
NEVER use de Speedseed when protective covers and safety stickers are
missing.
NEVER crawl under the Speedseed.
Tilt the Overseeder if you need to have access to the bottom.
NEVER step off the tractor while the engine is still running.
When carrying out maintenance activities, adjustments or repairs make sure the
Speedseed is locked to prevent it from sinking/riding/sliding away.
When carrying out any maintenance activities, adjustments or repairs, always
switch off the tractor engine first, remove the tractor key from the ignition
and disconnect the PTO (Fig. 2).
Fig.2
When carrying out any maintenance or repair activities, make sure to use original
Speedseed parts only. This will ensure safety for the machine and its user.
Only authorised technical personnel may carry out adjustments and repairs to the
Overseeder.
Keep an overview of repairs.
(5) In addition to the instructions in this user manual, the generally applicable
regulations with respect to safety and working conditions must be observed.
For use on public roads the relevant traffic rules also apply.
Transporting persons is not permitted!
Do not use the Speedseed when it is dark, during heavy rain/storms or on slopes
with a gradient of more than 20 degrees.

5
(6) Before starting to work, all persons operating the Speedseed must be familiar with
all its functions and controls.
Connect the Speedseed to the vehicle that will pull it exactly according to the
instructions (Danger of injury!)
Before driving off, make sure you have a clear view both nearby and far away.
On both sides of the Speedseed, safety stickers (Fig. 3, 4, 5) have been applied
to the sideboards and to the back cover (Fig. 6) showing these warnings. Make
sure these safety stickers are always clearly visible and legible. Replace them if
they are damaged.
During operation, make sure there are NO persons in the danger area of the
Speedseed to prevent them from getting injured by moving parts (Fig. 3).
fig.3 fig.4
Keep a distance of at least 4 metres! (Fig. 4)
Be aware of the maximum lifting capacity of the towing vehicle.
Wear suitable clothing. Wear sturdy shoes with a steel tip, wear long trousers, do
up long hair and wear no loose clothing.
Fig.5

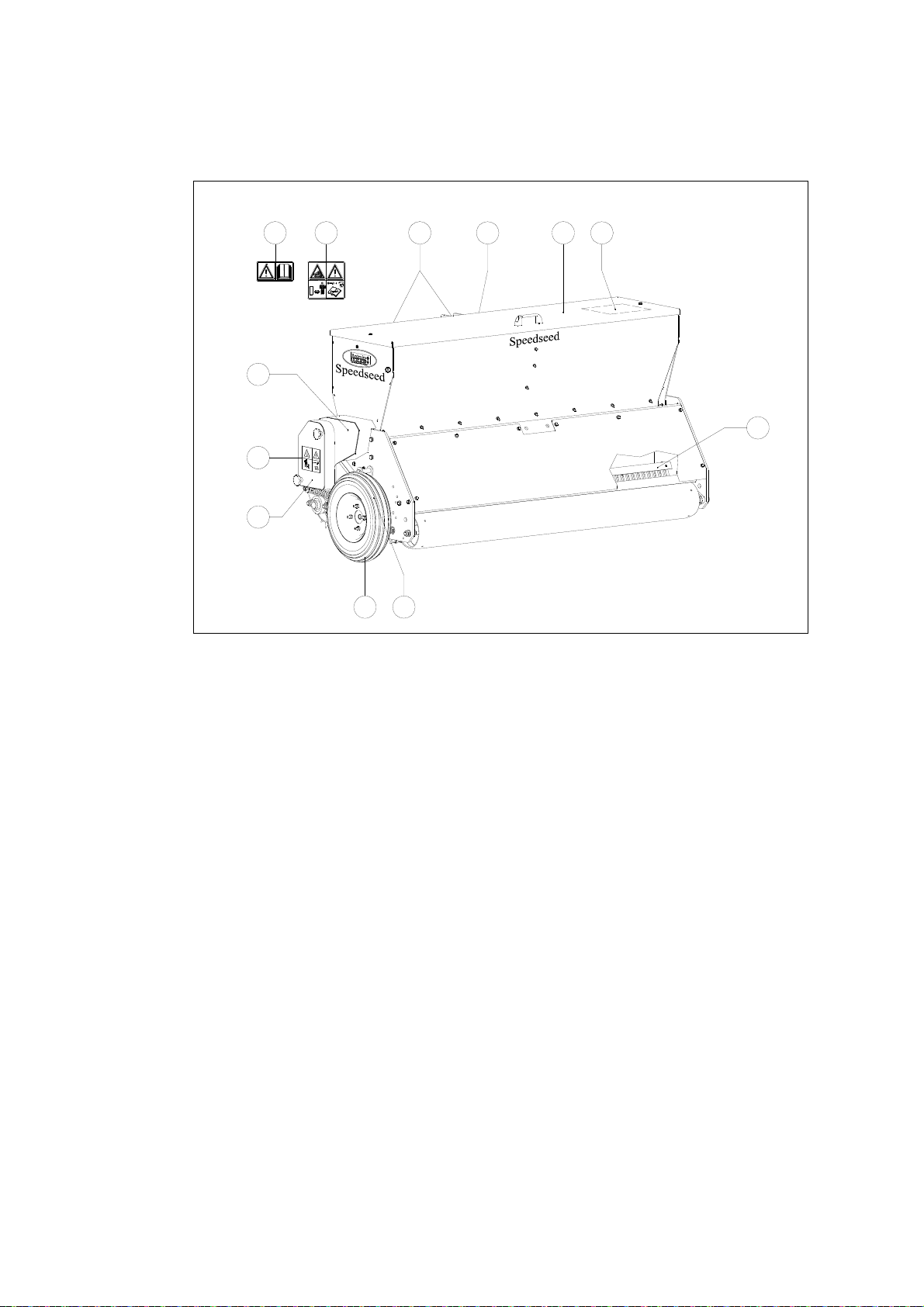

(7) Location of safety stickers (Fig. 5).

6
CONTENTS
Section Description
Page
Foreword 2
Guarantee conditions 2
Registration card 2
Safety instructions 3
1.0 Technical data 7
2.0 First installation, removing the machine from the pallet 9
3.0 General parts list 10
4.0 Adjusting the working depth 11
5.0 Setting the seed quantity. 11
6.0 Transporting the speedseed 12
7.0 Driving speed 12
8.0 General remarks on the use of the speedseed 12
9.0 Operating the speedseed 12
10.0 Start/stop procedure 12
11.0 Disconnecting the speedseed 13
12.0 Troubleshooting 14
13.0 EU certificate 14
14.0 Maintenance 15
15.0 Adjusting the seeding slit opening 16
15.1 Adjusting the seed-tray scraper 16
15.2 Spreading test 17
16.1 Option Spikes on rear roller 18
16.2 Option wheel kit 19
Parts pages

7
1.0 TECHNICAL DATA
Model 1200 1600
Working width 1.2 m (82.7”)
1.58 m (94.4”)
Working depth 5 mm – 20 mm (0.19” - 0.78”) 5 mm - 20 mm (0.19” - 0.78”)
Seeding speed
Up to 12 km/h (7.5 mph) Up to 12 km/h (7.5 mph)
Weight 350 g (772 lbs) 450kg (992 lbs)
Seeding hole spacing Square 30 mm (1.18”)
Square 30 mm (1.18”)
Number holes/ sq meter
with single spiked roller 990 990
Recommended tractor 20 HP with minimum lifting
capacity of 450 kg
(990 lbs)
30 HP with minimum lifting
capacity of 550 kg
(1212 lbs)
Seed-tray capacity 168 litres (5.9 cu. ft.) 225 litres (7.9 cu. ft.)
Maximum capacity
(theoretically at maximum speed 12
km/h (7.5 mph) and single passage)
14175 m2(152523 ft2)18900 m2(203438 ft2)
Seeding density per 100 m2
(1076.4 ft2)Fine seed: 0.2 - 2.8 kg (0.44 - 6.17 lbs)
(adjustable in 10 steps)
Coarse seed:
0.2 - 4 kg (0.44 – 8.82 lbs.)
(adjustable in 10 steps)
Fine seed:
0.2 - 2.8 kg (0.44 - 6.17 lbs)
(adjustable in 10 steps)
Coarse seed:
0.2 - 4 kg (0.44 – 8.82 lbs.)
(adjustable in 10 steps)
Shipping dimensions L x W x H
1500 x 870 x 1070 mm
75x34x42”
L x W x H
1900 x 870 x 1070 mm
75x34x42”
Three-point connection Three-point CAT 1-2 Three-point CAT 1-2
Lubricant EP 2 EP 2
Tyre pressure 1 – 2 bar (14.5 - 29 psi) 1 – 2 bar (14.5 - 29 psi)
Standard parts 5 gear sets for adjusting the
seeding density.
Manual container.
Seed tray with sight-glass.
Seeding wheel adjusting to
the area.
5 gear sets for adjusting the
seeding density.
Manual container.
Seed tray with sight-glass.
Seeding wheel adjusting to
the area.
Option Set of spikes for back roller Set of spikes for back roller

8
Model 2100 2400
Working width 2.1 m (47.2”)
2.4 m (62.2”)
Working depth 5 mm – 20 mm (0.19” - 0.78”) 5 mm - 20 mm (0.19” - 0.78”)
Seeding speed
Up to 12 km/h (7.5 mph) Up to 12 km/h (7.5 mph)
Weight 550 g (772 lbs) 700kg (992 lbs)
Seeding hole spacing Square 30 mm (1.18”)
Square 30 mm (1.18”)
Number holes/ sq meter
with single spiked roller 990 990
Recommended tractor 40 HP with minimum lifting
capacity of 1000 kg
(2200 lbs)
40 HP with minimum lifting
capacity of 1000 kg
(2200 lbs)
Seed-tray capacity 300 litres (7.9 cu. ft.) 336 litres (11.8 cu. ft.)
Maximum capacity
(theoretically at maximum speed 12
km/h (7.5 mph) and single passage)
24900 m2(268021 ft2)28350 m2(305046 ft2)
Seeding density per 100 m2
(1076.4 ft2)Fine seed: 0.2 - 2.8 kg (0.44 - 6.17 lbs)
(adjustable in 10 steps)
Coarse seed:
0.2 - 4 kg (0.44 – 8.82 lbs.)
(adjustable in 10 steps)
Fine seed:
0.2 - 2.8 kg (0.44 - 6.17 lbs)
(adjustable in 10 steps)
Coarse seed:
0.2 - 4 kg (0.44 – 8.82 lbs.)
(adjustable in 10 steps)
Shipping dimensions L x W x H
2415 x 870 x 1070 mm
134x34x42”
L x W x H
2700 x 870 x 1070 mm
150x34x42”
Three-point connection Three-point CAT 1-2 Three-point CAT 1-2
Lubricant EP 2 EP 2
Tyre pressure 1 – 2 bar (14.5 - 29 psi) -
Standard parts 5 gear sets for adjusting the
seeding density.
Manual container.
Seed tray with sight-glass.
Seeding wheel adjusting to
the area.
5 gear sets for adjusting the
seeding density.
Manual container.
Seed tray with sight-glass.
Seeding wheel adjusting to
the area.
Option Set of spikes for back roller Set of spikes for back roller

9
Fig. 6
2.0 FIRST INSTALLATION, REMOVING THE MACHINE FROM THE
PALLET
The machine is standing vertically on the pallet. To remove the pallet and lay the machine
horizontally on the ground, proceed as follows (see Fig. 6):
1. Fasten a cable to the lifting point (2).
* Make sure that the cable/crane/lift can lift at least
SS 1200 500 kg (1100 lbs)
SS 1600 600 kg (1322 lbs)
SS 2100 700 kg (1540 lbs)
SS 2400 850 kg (1870 lbs)
2. Raise the machine, including the pallet, 50 mm (2”) from the ground.
3. Remove the pallet by sliding it over the lower 3-point pins
* Do not crawl under the machine!!
4. Slowly lower the machine until it is standing on the ground.
5. Attach the machine to a tractor.
* Use the correct tractor. See the specifications.
6. Set the tractor’s stabiliser to 100 mm lateral movement.
7. Drive to the area that is to be tilled.
8. While driving carefully lower the machine into the ground.
9. Switch off the tractor and lock the tractor/Speedseed combination to prevent it
from driving/sliding away.
10. Turn the top rod to adjust the machine angle to 90 degrees.

10
3.0 GENERAL PARTS LIST
Figure 7 shows some important parts:
2
4
6
9
10
3
21 811
7
5
Fig.7
1. Safety sticker RA, read user manual before use/toolbox.
2. Safety sticker 911.280.402, keep a distance of at least 4 metres from the
machine. Stop the engine before carrying out repairs or adjustments.
* Make sure all stickers are clearly visible on the machine and are understood.
3. The serial number is at the front on the three-point plate of the machine.
4. Three-point fastening pins.
5. Free adjustable brush.
6. Access hatch to the transmission for setting the seeding density.
7. Seeding wheel adjusting to the area.
8. Seed tray.
Here also the various change gears for configuring the required seeding density
are found.
9. Cover providing access to the secondary drive chain and tensioner.
10. Adjustment screw of chain tensioner primary drive chain.
11. Sticker indicating the various gear settings and the associated seeding densities.

11
4.0 ADJUSTING THE WORKING DEPTH
The working depth can be adjusted by turning the top rod.
When the top rod is turned and, consequently, shortened the machine will incline forwards,
setting the seeding depth lower.
This works when the ground to be tilled is soft enough. When the ground is not soft enough
try to make this softer by using irrigation or the verti-drain®.
5.0 SETTING THE SEED-QUANTITY
The seed quantity can be set on the Speedseed
by using
various change gears.
These provide various combinations for a
broad range of settings (see Tab 1).
The gears have been marked with a number
given in Tab. 1; by changing the gears
as indicated, the required
quantity setting is obtained.
The different combinations of gears have been installed in
the seed tray.
Fig. 8
Gear option Bentgrass Kentucky Bluegrass Ryegrass
Bottom Top Kg/100m2Lbs/1000ft2Kg/100m2Lbs/1000ft2Kg/100m2Lbs/1000ft2
25 95 0.20 0.40 0.20 0.40 0.30 0.60
40 80 0.40 0.80 0.35 0.70 0.55 1.10
45 75 0.45 0.80 0.40 0.80 0.65 1.30
52 68 0.60 1.20 0.50 1.00 0.85 1.75
58 62 0.70 1.40 0.60 1.20 1.00 2.00
62 58 0.80 1.60 0.75 1.50 1.20 2.45
68 52 1.00 2.00 0.90 1.80 1.40 2.80
75 45 1.30 2.60 1.10 2.20 1.90 3.85
80 40 1.50 3.00 1.40 2.80 2.20 4.45
95 25 2.80 5.70 2.60 5.30 4.15 8.40
Tab. 1
These quantities are determined with a slit distance of 0.3 mm between the seeding roller
and the pressure plate (see section 15.0 for setting).
In practice the quantities described in Tab. 1 may deviate to some extent due to other
measuring/working conditions.
@ In order to determine exactly the right seeding quantity for the seed used, it is
recommended to carry out a spreading test (see section 15.2).

12
6.0 TRANSPORTING THE SPEEDSEED
The user is responsible for the transport of the Speedseed behind the tractor when travelling
on public roads. Check the national traffic rules. In view of the weight of the Speedseed, a
maximum speed of 20 km/h (12.4 mph) should be observed while driving in open fields with
the machine raised. Higher speeds may endanger the driver and/or other people and even
damage the machine.
* When the machine is in the raised position, at least 20% of the weight of the
tractor should be supported by the front axle.
7.0 DRIVING SPEED
The driving speed is limited to 12 km/h (7.5 mph).
Higher speeds are not recommended in view of excessive wear and damage that may occur
to the machine due to, for example, rocks in the ground.
8.0 GENERAL REMARKS ON THE USE OF THE SPEEDSEED.
Some general remarks/tips on the use of the Speedseed.
@ A field can be tilled 2 or 3 times in different directions in order to obtain a higher
seeding density.
@ Do not make sharp turns.
@ When hitting a hard object in the soil, the spike-elements may be
burred/damaged. Try to file burrs away or replace the spike-element.
@ NEVER drive backwards while the running wheel is on the ground.
9.0 OPERATING THE SPEEDSEED
Before using the Speedseed in the field, check the following:
1. Are there any loose objects in the field? Remove these first.
2. Are there any slopes? The maximum slope this machine can work on is 20
degrees.
Always work downhill.
3. Does the ground contain hard objects? If so, use the Speedseed at a low speed
and adjust the working depth.
4. Is there any danger of flying objects, such as golf balls, which may distract the
attention of the driver? If so, do NOT use the Speedseed.
5. Is there any danger of sinking or sliding away? If so, postpone the work.
6. If the soil is frozen or very wet, the work should be postponed until the conditions
are more favourable.
10.0 STARTING/STOPPING PROCEDURE
Before starting the seeding, check the machine for the following points:
* While checking the machine/tractor combination must be fully locked to prevent it from
driving/sliding/sinking away. The tractor engine must be switched off.
 Check the seeding elements for damage and repair if necessary.
 Check the seed spreading by rotating the running wheel 1 time
(counterclockwise).

13
 Check if the drive is running smoothly.
 Check the tyre pressure.
START SEEDING.
The starting procedure is VERY important. If this procedure is not followed exactly as
described below, serious damage may occur to the machine. The procedure is as follows:
1. Put the seed in the seed tray.
2. Set the required seed quantity using the change wheels (see section 5.0).
3. Drive to the place where you want to start.
4. Start with a driving speed of about 3 km/h (1.9 mph).
5. While driving lower the machine carefully and in a controlled way until the spike
elements are cutting the ground.
6. If necessary, stop the spike elementsin the ground to adjust the working depth
(see section 4.0).
* While adjusting, the machine/tractor combination must be fully locked to prevent it from
driving/sliding/sinking away. The tractor engine must be switched off.
7. Increase the speed until the correct driving speed has been reached.
STOP SEEDING
1. Decrease the driving speed to about 3 km/h (1.9 mph).
2. While driving, raise the machine out of the ground.
3. Go to the following place and start again as described.
@ It is absolutely imperative that the above procedures are followed
@ While driving, lower the machine CAREFULLY AND IN A CONTROLLED WAY during
the tilling.
@ NEVER drive backwards when the running wheel is on the ground.
11.0 DISCONNECTING THE SPEEDSEED
The machine can be disconnected from the tractor as follows:
1. Slowly lower the machine until it stands on the ground.
2. Lock the roller to prevent it from rolling away.
3. Loosen the top rod and remove it.
4. Remove the lower arms from the tractor of the speedseed.
* Place the machine on a stable and level surface and make sure that the
machine is stable and cannot slide.
* Switch off the tractor engine when people are walking around the machine and
lock the tractor/machine combination to prevent it from moving!
@ When you store the machine lower the machine carreful to prefent the spikes
against damage.

14
12.0 TROUBLESHOOTING
Problem Possible cause Solution
Seed is spoilt from the seed
tray. Seeding slit too large.
Distance between the scraper
and the seeding roller is too
large.
The adjustment plate of the
seeding slit on the side is
leaking.
Readjust the seeding slit.
Set the scraper closer to the
seeding roller.
Tape up/glue.
The machine does not reach
the required depth.
Tractor tensioning is too low.
Ground is too hard.
Top rod is incorrectly
adjusted.
Too much dead leaves and
roots in the top layer of the
field.
Not enough weight.
Put drawing arms into a higher
hole.
Aerate/irrigate.
Correctly adjust the top rod.
Remove the dead leaves and
roots.
Add weight.
Drive wheel is slipping Ground is too wet.
Tyre pressure is too low.
Dose-measuring roller is dirty.
Chain drive is rigid.
Postpone the tilling.
Inflate.
Clean the dose-measuring roller.
Lubricate.
13.0 EU CERTIFICATE
We, Redexim BV, Utrechtseweg 127, 3702 AC Zeist, The Netherlands, declare entirely on
our own responsibility that the product
SPEEDSEED MODEL 1200 / 1600 / 2100 / 2400, WITH MACHINE NUMBER AS
INDICATED ON THE MACHINE AND IN THIS MANUAL,
to which this declaration relates is according to the stipulation of the 2006/42/EC directive for
machines.
Zeist, 01/10/09
A.C. Bos
Manager Operations & Logistics
Redexim Holland

15
14.0 MAINTENANCE
Time schedule Check point/lubricating
point Method
Before each use Check for loose bolts/nuts.
Presence and legibility of safety
stickers (Fig. 5).
Tighten the loose bolts/nuts
with the correct torque.
Replace if damaged or
missing.
After first 20 operating hours
(new or repaired) Grease the roller bearings.
Check for loose bolts/nuts.
Grease the drive chains.
Use EP 2 lubricating
grease.
Tighten the loose bolts/nuts
with the correct torque.
Use a chain spray.
After every 100 operating
hours. Grease the roller bearings Check for loose bolts/nuts.
Grease the drive chains.
Check the tension of the drive
chains.
Check the seeding roller for
dirt/damage.
Check the seeding slit opening.
Check the seed quantity.
Check the spike elements for
damage.
Use EP 2 lubricating
grease.
Tighten the loose bolts/nuts
with the correct torque.
Use a chain spray.
Tension the tensioners of
the drive chains.
Clean the seeding roller or
replace it if necessary.
Adjust the seeding slit if
necessary.
Carry out a spreading test.
Repair or replace if
necessary.

16
15.0 ADJUSTING THE SEEDING SLIT OPENING
Fig. 9
If the seed production does not correspond with the table, the seeding slit may need
adjustment.
This is done as follows: (see fig. 9)
1. Loosen all lock nuts 3.
2. Adjust bolt 4 such that a feeler gauge of 0.3 mm (0.012”) can be slit just between the
roller 1 and the adjustment plate.
3. Check all bolts 4 and calibrate the slit opening between roller 1 and adjustment plate
2 along the entire width of the machine to 0.3 mm (0.012”).
4. Turn roller 1 half a turn and measure the slit opening.
If necessary adjust it to 0.3 mm (0.012”) by turning bolt 4 in or out.
5. Tighten the lock nuts 3.
@ The split opening should be equal along the entire width of the roller.
@ The slit opening must have the same size as the smallest seed part. This opening is
default set to 0.3 mm.
15.1 ADJUSTING THE SEED-TRAY SCRAPER
When the seeding tray is spoiling seed, the scraper setting may be incorrect.
To adjust this, proceed as follows (see fig. 9):
1. Loosen bolts and nuts 6.
2. Move scraper 5 up or down until the correct setting has been obtained.
3. Re-tighten the bolts and nuts 6.
@ The distance between roller 1 and scraper 5 is default set to 0.8 mm and should be
equally set along the entire width of the roller.

17
15.2 SPREADING TEST
If the seeding device needs recalibration for a certain seed type or if it must be
checked for proper operation in accordance with the seed table (see section 5.0 Tab
1) a spreading test is to be carried out.
This is done as follows: (see fig. 10).
2
1
Fig. 10
1. Place the machine safely on the support legs on a level surface.
* Lock the machine to prevent it from moving.
2. First of all check the seeding slit opening for correct setting (see section
15.0).
3. Put the seed that is to be calibrated into the seed tray (1) and spread it
equally over the tray.
4. Place a collecting back under the machine to collect the seed.
5. Turn the wheel (2) 13 full rotations counterclockwise.
6. Weigh the seed that is collected and multiply this by 5.09 (SS1200).
Weigh the seed that is collected and multiply this by 4.08 (SS1600).
Weigh the seed that is collected and multiply this by 2.91 (SS1600).
Weigh the seed that is collected and multiply this by 2.55 (SS1600).
The result is the weight of the seed that is seeded per (kg) 100m2 / (lbs)
1000 ft2.
Compare the results with Tab. 1 (section 5.0) and do another spreading
test if necessary.
7. If the results of the spreading test do not reasonably match the calibration
values, check the seeding slit opening and adjust this if necessary (see
section 15.0).

18
16.1 OPTION SPIKES ON REAR ROLLER
It is possible to mount spikes on the second roller. Article number for this is:
224.120.000 for the speedseed 1200
224.160.002 for the speedseed 1600.
224.210.000 for the speedseed 2100.
224.240.000 for the speedseed 2400.
For mounting the spikes, follow the next rulles.
*Take care that when you assemble the spikes the cable and crane
can lift at least 600 kg. Crawl never under the machine, and take care
of the sharp points on the spikes.
1. Be sure the machine is blocked against moving away.
2. Lif the machine at the back side from the ground
3. Demount the rear cover plate # 2
4. Demount the rear roller # 1
5. Demount the scraper # 3 store this one till you start working without the spikes
on the second roller again.
6. Demount the brush # 4 and the blockbolts # 5. To remove the brush only
demount bolt # 6. Do not remove bolt # 7.
7. Assemble inside the rear roller # 1 on one side the four bolt M8 x 16 # 8 with
the self lock nuts # 9
8. Assemble the spikes on the roller # 10
9. Assemble the other side also the four bolts M8 x 16 # 9 with the self lock nuts.
10.Assemble the roller # 1 in the holes # 11
11.Assemble the brush # 4 with the blockbolts # 5 in the holles # 12
12.Assemble the rear cover # 2
13.Lower the machine to the ground.
2
1
3
5
5
6
7
11
12
4
10
89
8

19
16.2 OPTION WHEEL KIT
Article number for this is 224.160.000, and is only arranged for the speedseed 1600.
This kit will be separately delivered and can be mounted to a standard 3-point linkage
machine. Generally speaking, a machine with wheel kit will reduce the minimum
horsepower required by 10 HP It also can be taken off quickly, so the machine can
be used either way.
Back ViewFront View
