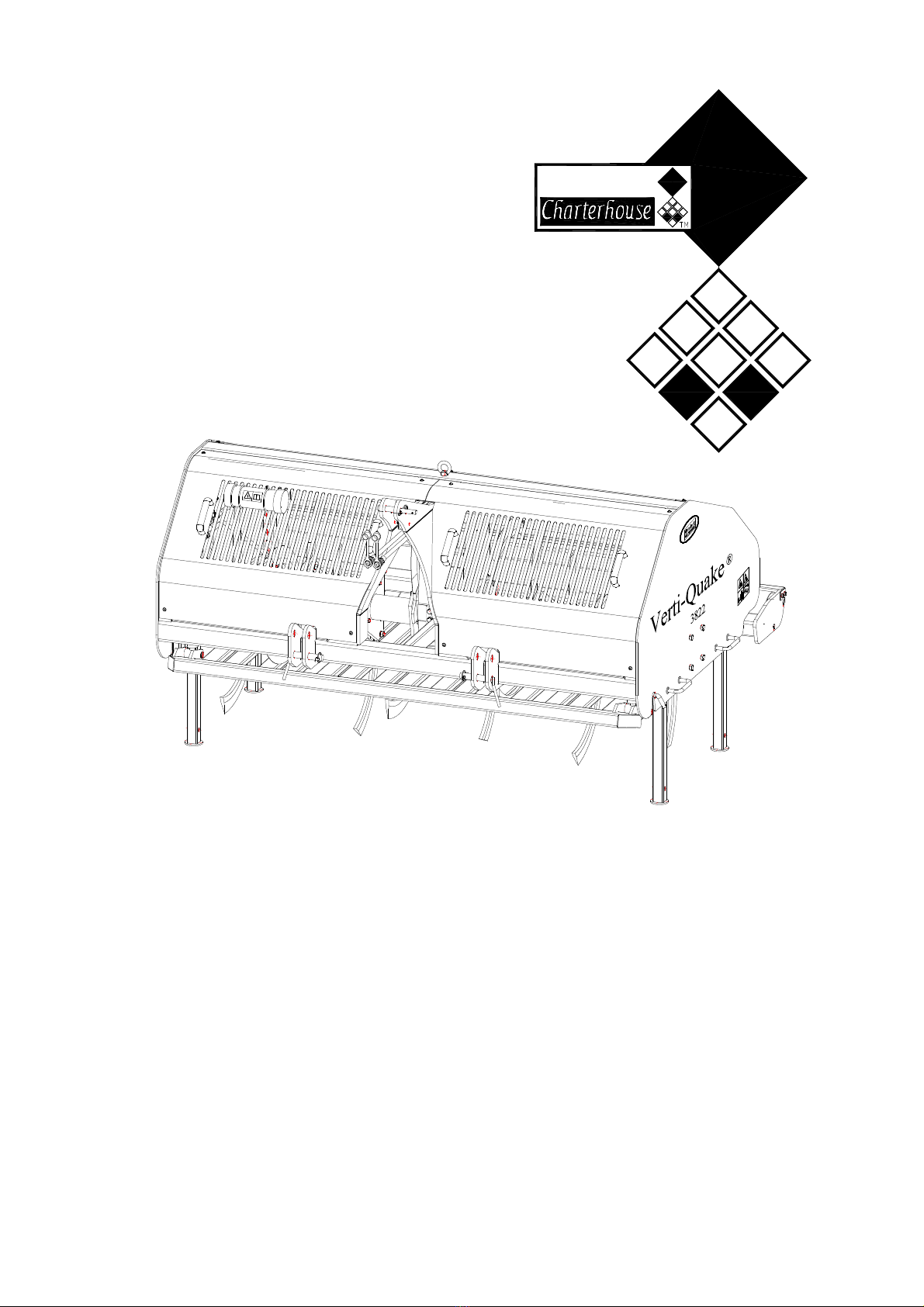

Redexim Verti-Quake 3822 User manual

User manual and
parts book
Verti-Quake®
Model: 3822
Serial number:
ATTENTION:
FOR SAFE USE OF THE MACHINE AND FOR BEST RESULTS, IT IS OF
UTMOST IMPORTANCE THAT YOU READ THIS USER MANUAL
CAREFULLY BEFORE USING THE VERTI-QUAKE
®
.
0720 English 915.120.203
Redexim


INTERNATIONAL TRADING
KWEKERIJWEG 8
3709 JA ZEIST HOLLAND




[e-mail]
WWW.REDEXIM.COM

2
FOREWORD
Congratulations on your Verti-Quake
®
purchase! For safe and long-lasting operation of this Verti-
Quake
®
, it is necessary to read and to understand this user manual. It is impossible to work safely
with this machine without complete knowledge of its content.
The Verti-Quake
®
is not a machine that works independently. It is the user’s responsibility to use the
correct tractor. The user must also check the tractor/Verti-Quake
®
combination on (safety) aspects
such as noise level, user instructions and risk analysis.
The Verti-Quake
®
is solely intended for use on fields of grass or areas where grass could grow.
The following pages deal initially with the general safety instructions. Every user should know these
safety instructions and apply them. At the end of this page, a registration card is inserted. This
registration card should be returned to enable us to deal with potential future claims.
This user manual lists many instructions that are numbered in sequence. You should follow this
sequence. A is an indication of a safety instruction. A means a tip and/or note.
WARRANTY CONDITIONS
WITH DELIVERY THIS VERTI-QUAKE® IS GUARANTEED AGAINST MATERIAL DEFECTS.
THIS WARRANTY IS VALID FOR A PERIOD OF 12 MONTHS FROM THE PURCHASE DATE.
VERTI-QUAKE® ARE SUBJECT TO THE ‘GENERAL CONDITIONS FOR SUPPLY OF PLANT
AND MACHINERY FOR EXPORT, NUMBER 188’ THAT ARE PUBLISHED UNDER THE
AUSPICES OF THE UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE.
REGISTRATION CARD
For your own information, fill in the table below:
Serial number machine
Dealer name
Date of purchase
Remarks

3
! SAFETY INSTRUCTIONS !
Figure 1
The Verti-Quake
®
is designed for safe use.
This can only be achieved if you completely
follow the safety instructions described in this
manual.
Read and understand (Figure 1) the manual
before you start using the Verti-Quake
®
.
If the machine is not used as described in this
manual, this can result in injuries and/or
damage to the Verti-Quake
®
.
(1) The Verti-Quake
®
is solely intended to treat fields of grass or areas where grass
could grow.
Any other use is considered improper. The manufacturer will not accept any
liability for damage resulting from this. All risks occurring with this are entirely at
the expense of the user.
Judicious use of this machine is also considered following the use / maintenance
/ repair instructions prescribed by the manufacturer.
Inspect the area to be treated before using the Verti-Quake
®
. Remove loose
obstacles and avoid irregularities.
(2) The Verti-Quake
®
is manufactured according to the latest technical
understanding and is safe to use.
When careless people use, maintain or repair the machine, danger of injuries to
the user and to third parties can be the result. This must be avoided!
Always use the Verti-Quake
®
in combination with the correct tractor as
described in the technical data.
(3) All persons assigned to operate, maintain and repair the Verti-Quake
®
by the
owner must read and understand the operation manual completely – and
particularly the chapter of Safety Instructions.
The user is responsible for a safe Tractor/Verti-Quake
®
combination. This
entire combination must be tested on noise, safety, risk and user friendliness.
User instructions should also be drafted.
(4) The user is obliged to check the Verti-Quake
®
for visible damage and defects
before using the Verti-Quake
®
.
Modifications to the Verti-Quake
®
(including its operations) that have a negative
impact on safety must be rectified immediately.
For safety reasons it is in principle not permitted to make changes or
adjustments to the Verti-Quake
®
(except those approved by the manufacturer).
If modifications to the Verti-Quake
®
have been made, then the current CE
marking is cancelled. The person that has made these modifications has to
apply for a new CE marking himself.

4
Check the Verti-Quake
®
for loose bolts, nuts and components before every
operation.
If present, check the hydraulic pipelines regularly and replace these when the
hydraulic pipelines are damaged or appear old. The replacing pipelines should
comply with the technical requirements of the manufacturer.
If present, you should always make the hydraulic installation pressure-free
before working on this installation.
NEVER use the Verti-Quake
®
in the absence of protective guards and safety
stickers.
NEVER crawl under the Verti-Quake
®
.
If necessary, tilt the Verti-Quake
®
.
NEVER step off the tractor while the motor is running.
In case of maintenance, adjusting and repairs, it is necessary to block the Verti-
Quake
®
in order to prevent sinking away, driving off and/or sliding off.
Always switch off the tractor motor, take the tractor’s key out off the
ignition and disconnect the PTO in case of maintenance, adjusting and
repairs. (Figure 2)
Figure 2
With regards for the safety of the machine and the user, use only original Verti-
Quake
®
parts for maintenance and repairs.
Only authorised technical personnel may carry out adjustments and repairs to
the Verti-Quake
®
.
Keep a record of the repair activities.
(5) The general applicable health & safety (Dutch acronym: ARBO) regulations
must also be followed in addition to the instructions in this user manual.
Relevant traffic regulations also apply in case of using public roads.
Transporting persons is not permitted!
Do not use the Verti-Quake® in the dark, in heavy rain/storm or on slopes with
an angle larger than 20 degrees.

5
(6) All persons that are going to operate the Verti-Quake® must be familiar with all
the functions and control elements of the Verti-Quake® before starting any work
activities.
Attach the Verti-Quake® to the towing vehicle according to the regulations.
(Danger of injuries!)
Check whether you have a clear field of vision – both close by and far away –
before you depart.
A safety sticker (Figure 5) with an identical meaning is attached to the sideboard
on both sides of the Verti-Quake®. This safety sticker must always be clearly
visible and legible and must be replaced in case it has become damaged.
During operation, NO persons are allowed within the danger zone of the
Verti-Quake®, because there is danger of physical injuries caused by the
rotating parts within the danger zone. (Figure 3)
Keep a distance of minimum 4 meters! (Figure 4)
Figure 3
Figure 4
Pay attention to the permitted lifting capacity of the towing vehicle.
Dress appropriately. Wear sturdy shoes with steel toecaps, long trousers and tie
up long hair. Do not wear loose clothing.

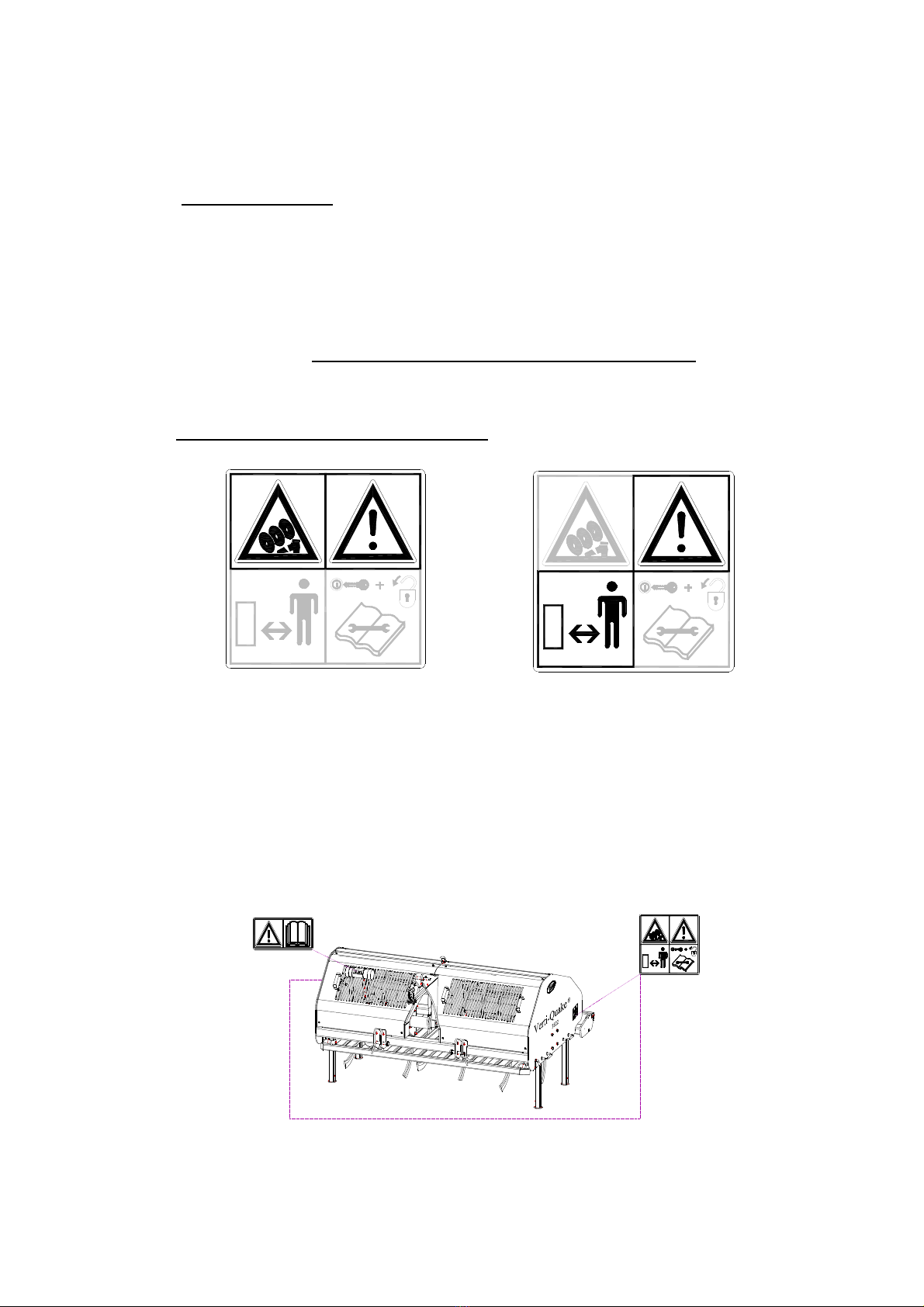

(7) Location of the safety stickers. (Figure 5)
Figure 5
Used oil/grease is harmful to the environment. Dispose of these items according to the
locally valid regulations.

6
TABLE OF CONTENTS
1.0 TECHNICAL DATA........................................................................................... 7
2.0 FIRST INSTALLATION – TAKING THE MACHINE OFF THE PALLET ............ 8
2.1 MAKING THE MACHINE READY FOR USE .................................................... 9

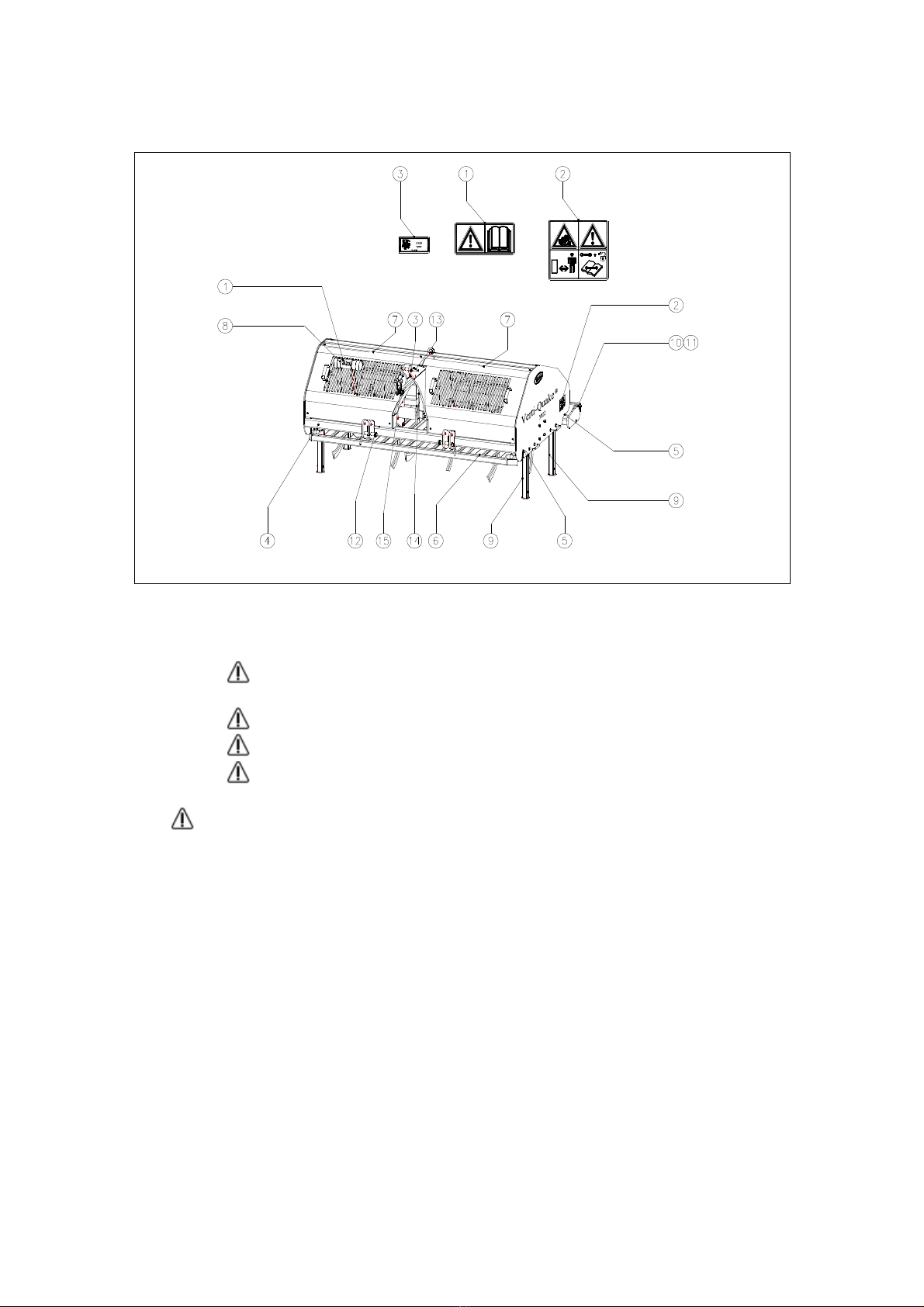

3.0 LIST OF GENERAL COMPONENTS.............................................................. 10
4.0 THE PTO........................................................................................................ 11

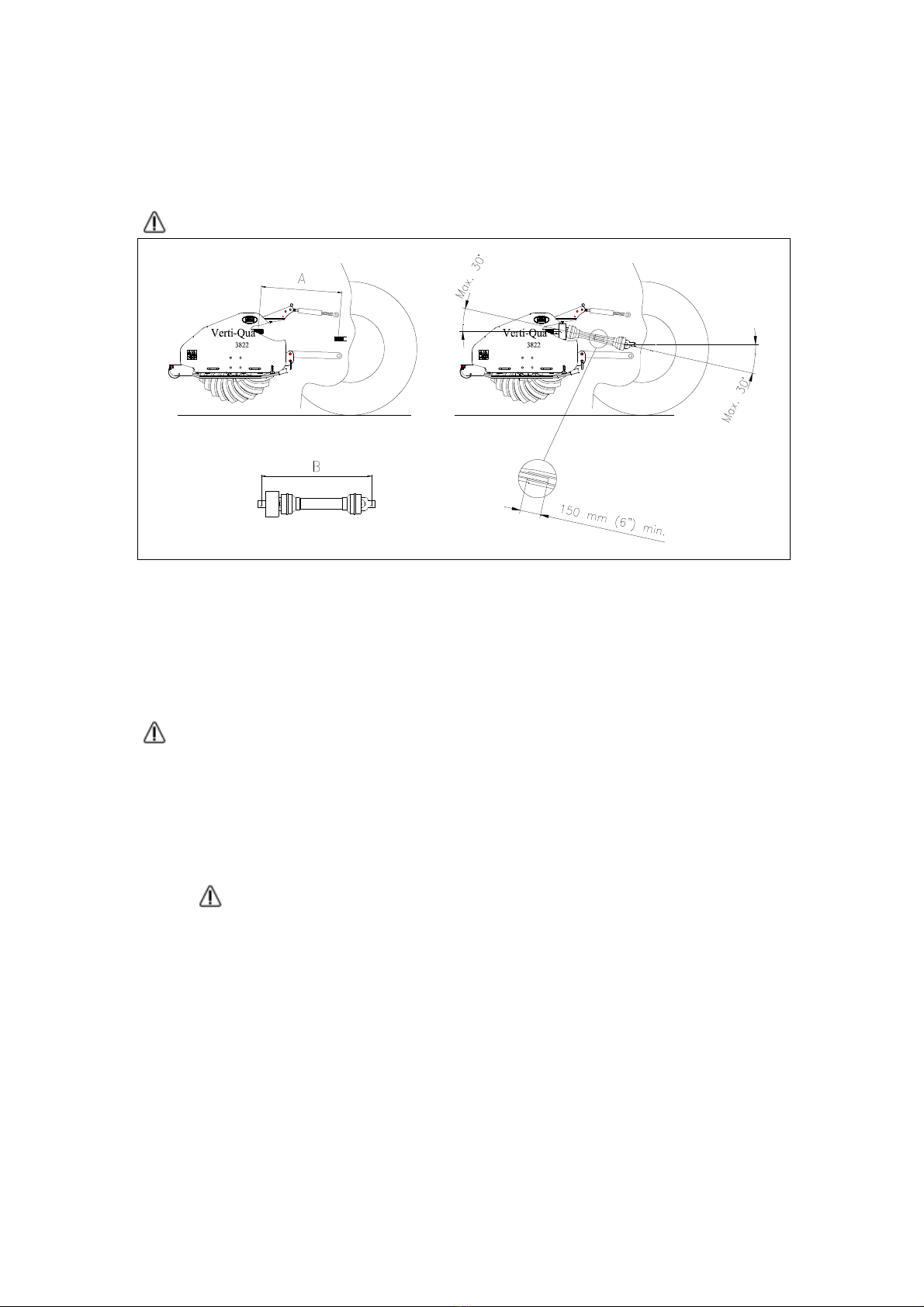

4.1 LENGTH OF THE PTO (Figure 10)................................................................. 11
4.2 USING THE PTO............................................................................................ 12
4.3 PTO INFORMATION AND MAINTENANCE ................................................... 12

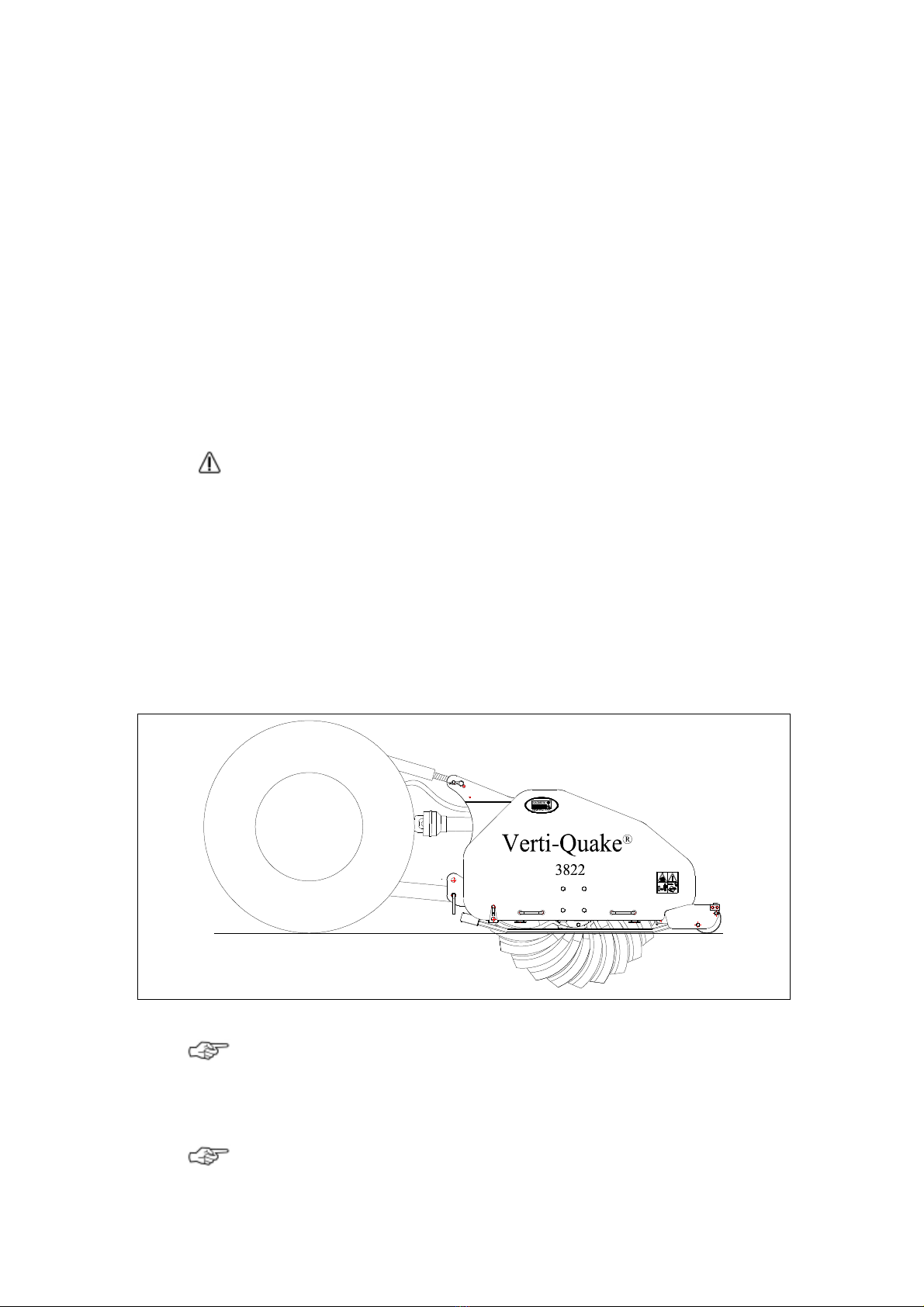

5.0 ATTACHING THE MACHINE TO THE TRACTOR (Figure 11) ....................... 13
6.0 ADJUSTING THE WORKING DEPTH (Figure 12).......................................... 14
7.0 DRIVING SPEED............................................................................................ 16
8.0 START / STOP PROCEDURE........................................................................ 16
9.0 USING THE VERTI-QUAKE
®
......................................................................... 17
10.0 TRANSPORTING THE VERTI-QUAKE
®
....................................................... 17
11.0 DETACHING THE VERTI-QUAKE
®
.............................................................. 18
12.0 TROUBLE SHOOTING (PROBLEM ANALYSIS).......................................... 19
13.0 MAINTENANCE............................................................................................ 20
13.1 CLEANING THE VERTI-QUAKE
®
................................................................. 20
13.2 REPLACING THE KNIVES........................................................................... 21
14.0 EU DECLARATION ...................................................................................... 21

7
1.0 TECHNICAL DATA
Model 3822
Working width 2.2 m (86.6”)
Working depth 380 mm (15”)
Tractor speed measured at 540 rpm on
PTO. 0.5 - 1.5 km/h 0.3 - 0.9 mph
Number of PTO revolutions: (max.) 1,000
Weight 1,250 kg
2,755 lbs
Number of knives 24
Number of knife blades 8
Distance between the knife blades 275 mm (10.8”)
Thickness of the knives 15 mm (0.59”)
Recommended tractor
Minimum lifting capacity
Hydraulic connection
70 - 90hp
1,600 kg / 3,527 lbs
Double-action external hydraulic
connection
Maximum processing capacity
3,300 m
2
/h
35,520 ft
2
/h
Transport dimensions 2.45 x 1.02 x 2.05m
96.5” x 40.2” x 80.7”
Three-point connection Cat. 2
Oil gearbox SAE 90
Grease
EP2
Standard components
- Knives 15 mm (0.59”)
- Back roller
- Integrated support jacks
- Hydraulic depth adjustment
- PTO with cam clutch

8
Position 1 Position 2 Position 3
1
2
Figure 6
2.0 FIRST INSTALLATION – TAKING THE MACHINE
OFF THE PALLET
The machine is placed vertically on the pallet. To remove the pallet and to
place the machine horizontally on the ground, you take the following
steps (Figure 6):
NEVER CRAWL UNDER THE MACHINE!
1. Remove the rear cap.
2. Attach a cable to the lifting eye of the gearbox in the machine. (Figure 6 Position 1)
Make sure that the cable/crane/lift can hoist minimum 2,000 kg (4,400 lbs).
3. Lift the machine including the pallet 50 mm (2”) off the ground.
4. Take care that the machine is standing on the edge of the pallet. (Figure 6 Position 2)
5. Lower the machine controlled and calmly until it stands completely on the
subsoil. (Figure 6 Position 3)
CAREFUL: KEEP YOUR DISTANCE; THE MACHINE CAN SLIDE!
6. Dismantle the uppermost 3-point pin 1.
7. Remove the bottom 3-point pins 2 and remove the pallet.

9
5
6
3
4
1 1
2
Figure 7
2.1 MAKING THE MACHINE READY FOR USE
1. Remove the access hatches 2 by loosening the bolts 1 and taking away the
access hatches. (Figure 7)
2. Take the supplied loose components out of the machine.
Careful: The knives are sharp!
3. Connect the machine to a tractor (please refer to Chapter 5.0).
Use the proper tractor (please refer to the specifications).
4. Lift the machine off the ground.
5. Make sure that the tractor is blocked well and cannot move on its own
accord!
6. Switch off the tractor before descending!
7. Drop the support jacks 4 of the machine and secure these with levers 3.
8. Carefully drop the machine onto the support jacks 4.
MAKE SURE THAT THE TRACTOR AND THE VERTI-QUAKE® STAND FIRMLY
ON THE SUBSOIL AND CANNOT SINK OR SLIDE AWAY BEFORE
DESCENDING FROM THE TRACTOR!
9. Loosen the bolts 5 & 6.
10. Assemble the knives: the knife-edge should point in the direction of the back
roller of the machine.
Careful: The knives are sharp!
Tighten bolts 5 & 6 very well.
11. Mount the access hatches 2 and secure these by tightening bolts 1. (Figure 7)
12. Adjust the stabilizer of the tractor to a lateral stroke of 50 mm.
13. Determine the length of the PTO according to Chapter 4.

10
3.0 LIST OF GENERAL COMPONENTS
Figure 9 shows several important components :
Figure 9
1. Safety sticker 900.280.402:
•First read and understand the user manual!
2. Safety sticker 911.280.402:
•Danger of physical injury caused by rotating parts!
•Keep a minimum distance of 4 metres from the machine!
•Stop the tractor’s motor if repair or adjustment is needed!
All the stickers should be on the machine at all times and should be
understood!
3. The maximum entering number of PTO revolutions is 1,000 rpm.
4. The serial number is located at the left-bottom outside of the machine.
5. Adjusting mechanism to adjust the working depth and the working depth
indicator
6. Skids for adjusting the working depth and integrated Turf Hold Down system.
7. Inspection hatches for inspection of and access to the rotating parts of the
machine.
8. Manual and tool case.
9. Support jacks intended to position the machine when it is not in operation
and when work activities are carried out on the machine.
10. Back roller.
11. Scraper of the back roller (can be adjusted).
12. Bottom 3-point connecting pins.
13. Top 3-point connecting pin.
14. PTO input axle.
Cam clutch of the PTO at the protective side must be attached to this axle.
15. Hydraulic connection for adjusting the working depth.

11
4.0 THE PTO
The PTO is a very important component that takes care of the drive from the tractor. It also
takes care of safe use of the machine, provided it is installed and maintained in the correct
manner. The PTO has its own CE certification.
Read the PTO manual! This manual is located on the PTO.
Figure 10
4.1 LENGTH OF THE PTO (Figure 10)
The length of the PTO is very important. If it is too long, it can damage the drive of the tractor
and/or the Verti-Quake®.
If the overlapping length of the cylinders becomes less than 150 mm (6”), it can damage the
PTO.
The length changes when the machine is lifted or when a
different tractor is used!
In order to set the PTO on the correct length, when a new one has been purchased or when
a different tractor is used, follow these steps:
1. Connect the Verti-Quake
®
to the tractor as described in Chapter 2,
section 2.1.
2. Switch off the tractor and make sure that the tractor is blocked well
and cannot move on its own accord!
3. Lower the Verti-Quake
®
on the subsoil until the knives are nearly touching the
subsoil and the skids are standing parallel with the subsoil.
4. Measure the distance between the PTO connection of the tractor and the PTO
connection of the Verti-Quake® from notch to notch.
5. Measure the distance B of the PTO in its shortest position from the locking pin
to the locking bolt.
6. Divide the PTO in two parts and remove the protection cap at both ends.
7. The ends of the cylinders and the ends of the protection caps must be made
shorter: (B-A) + 75 mm (3”).
8. Smooth off all components, use some grease and subsequently, assemble all
components.
9. Mount the PTO with the cam clutch at the Verti-Quake
®
side.
10. Attach the other end of the PTO to the tractor.
11. Check the overlap of the cylinders.

12
Never use the machine if it has a damaged PTO protection cap!
First replace the cap!
4.2 USING THE PTO
The following items must be checked for correct use of the PTO:
1. During the Verti-Quake
®
operations the angle of the pivot pins is not
permitted to be larger than 30 degrees.
2. The pivot pins must always be aligned.
3. The overlap of the cylinders must always be minimum 150 mm.
4. Never use the machine if it has a damaged PTO protection cap.
4.3 PTO INFORMATION AND MAINTENANCE
The PTO belonging to your Verti-Quake
®
machine is equipped with a cam-clutch
protection that protects the Verti-Quake
®
against overloading.
If the cam clutch becomes operative, the PTO has to be switched
off, the machine should be lifted off the ground and the start
procedure must be repeated.
Concise maintenance schedule of the PTO
Scheduled maintenance:
−Grease the grease points every 100 hours of operation or after the PTO has been
standing still for a long time.
−Check the PTO for damage to the protection caps and replace these caps if they
are not satisfactory.
−Check whether the safety stickers on the PTO are still present and intact.
Annual maintenance:
−Disconnect the PTO from the machine.
−Inspect all the components of the PTO.
−All the damaged components should be replaced.
−Lay down all the components and look at them meticulously.
If components are damaged or worn out, replace them.
−Clean all interlocking components.
−Reassemble all components.
−Grease both cylinders and reassemble both PTO parts.
−Assemble the PTO and mount it on the machine.
Please refer to the manual supplied with the PTO for further information about maintenance
and disassembly of the PTO.
If the PTO has been shortened incorrectly or another tractor is used, the
gearbox can become overloaded, potentially resulting in damage.

13
5.0 ATTACHING THE MACHINE TO THE TRACTOR
(Figure 11)
Checking procedure before starting to attach the Verti-Quake
®
:
− Check the Verti-Quake
®
for visually discernable damage and repair
this if safe operation of the machine is no longer guaranteed.
−Check whether all the nuts and bolts are tight.

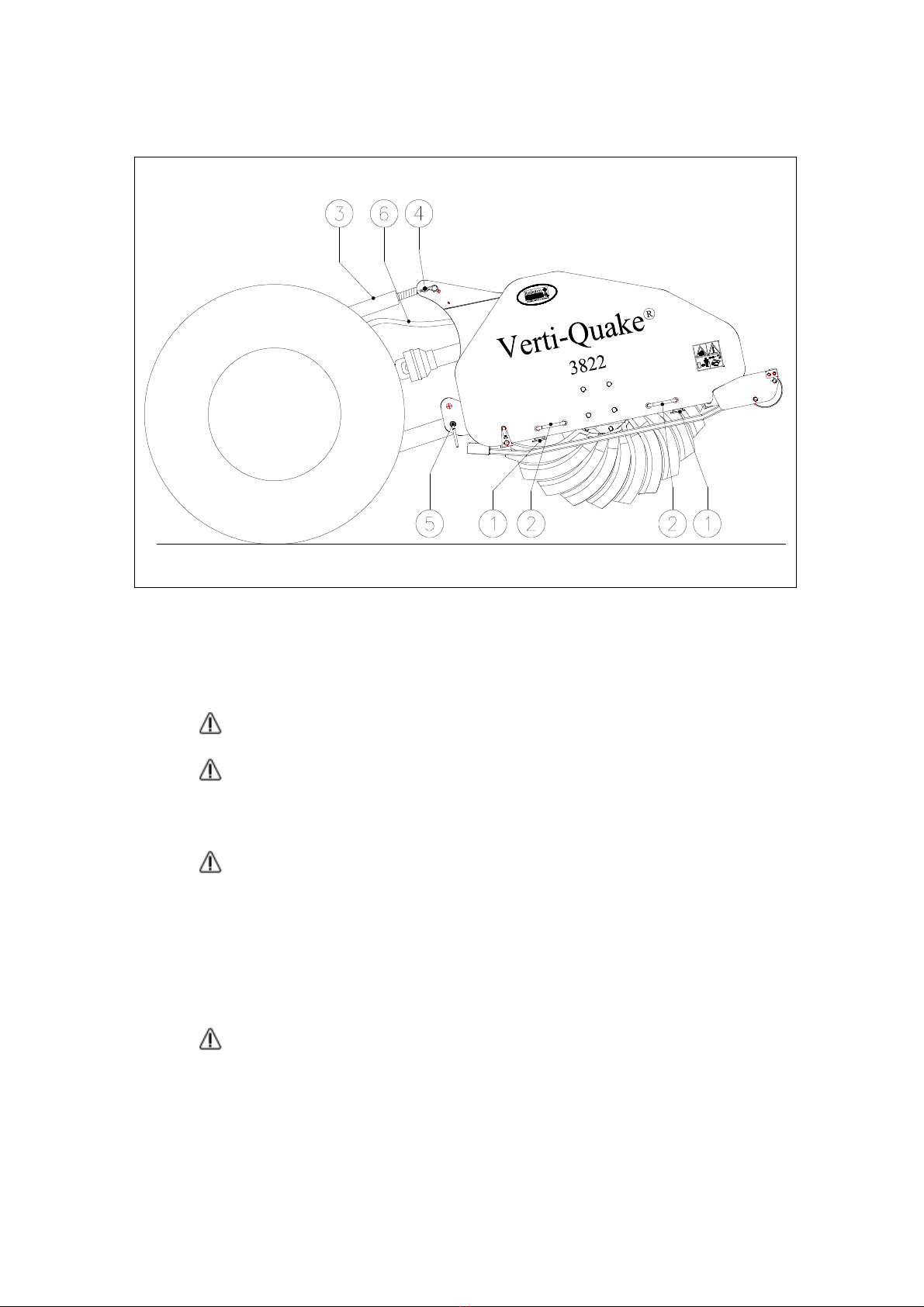

Figure 11
The Verti-Quake
®
can be attached to the tractor by means of the 3-point attachment.
The method is as follows: (figure11)
1. Remove 3-point pins 1 and 2.
2. Mount the PTO with the cam clutch to the PTO axle of the Verti-Quake
®
.
3. Drive the tractor carefully backwards so that the lower connecting arms can
be attached to the frame.
4. Make sure that the tractor is blocked well and cannot move on its
own accord!
5. Switch off the tractor before descending!
6. Connect the lower connecting arms to the 3-point connecting plates using
pins 1 and secure these with the supplied locking pins.
7. Mount the top rod of your tractor and turn it outward until it reaches the
same height as the 3-point stop connection of the Verti-Quake
®
.
8. Connect the top rod 3 to the frame with pin 2; secure pin 2 with the supplied
locking pin.
9. Mount the PTO to the PTO axle of the tractor.
10. Connect the hydraulic pipelines 6 to the outlets of the tractor.
11. Turn the top rod inward so that it becomes pressurized.
12. Start the tractor and lift the Verti-Quake
®
off the subsoil.
13. Pull out the handgrips 4 and slide the support jacks 5 upwards.

14
6.0 ADJUSTING THE WORKING DEPTH (Figure 12)
Figure 12
1. If the Verti-Quake
®
is not attached to the tractor yet, make sure that you attach
it as described in Chapter 5.
2. Lift the Verti-Quake
®
by means of the tractor.
3. Activate the hydraulic outlet of the tractor and let the skids drop.
4. Make sure that the tractor is blocked well and cannot move on its
own accord!
5. Switch off the tractor before descending!
6. Remove the securing clips 2.
7. Pull pins 1 and 3 out of the frame on both sides of the machine and adjust
these to the required position.
Follow the instructions in Table 1 for the required working depth.
8. Secure pins 1 and 3 with the securing clips 2.
9. Activate the hydraulic outlet of the tractor and let the skids move upwards until
the pins block the skids.
Now the working depth is adjusted.

15
Table1
Figure 13
Working depth adjustment (with non-worn out knives)
Depth Front Back
380 mm (15”) 5 1
365 mm (14.4”) 4 1
360 mm (14.2”) 5 2
350 mm (13.8”) 3 1
345 mm (13.6”) 4 2
340 mm (13.4”) 3 2
330 mm (13”) 2 1
320 mm (12.6”) 4 3
315 mm (12.4”) 5 4
310 mm (12.2”) 1 1
300 mm (11.8”) 4 4
290 mm (11.4”) 1 2
285 mm (11.2”) 3 4
275 mm (10.8”) 4 5
270 mm (10.6”) 1 3
265 mm (10.4”) 3 5
255 mm (10”) 4 6
250 mm (9.8”) 1 4
245 mm (9.6”) 2 5
240 mm (9.5”) 3 6
230 mm (9.1”) 1 5
225 mm (8.9”) 2 6
220 mm (8.7”) 3 7
210 mm (8.3”) 1 6
200 mm (7.9”) 2 7
185 mm (7.3”) 1 7

16
7.0 DRIVING SPEED
The effectiveness of aerating is directly related to the soil conditions, the driving speed and
the number of revolutions of the PTO.
The recommended driving speed is 0.5 – 1.5 km/h (0.3 – 0.9 mph) with a number of
revolutions of the PTO of maximum 1,000 rpm for aerating with the Verti-Quake
®
.
The driving speed and the number of revolutions of the PTO should be tuned instinctively
related to the soil conditions and the required level of aerating.
8.0 START / STOP PROCEDURE
The start procedure is VERY important. If this procedure is not executed as described below,
serious damage to the Verti-Quake
®
could be the result.
The start procedure is as follows:
1. Observe the Verti-Quake
®
well and look whether all components function properly.
If this is not the case, the problems must be solved before using the
Verti-Quake
®
!
2. Connect the Verti-Quake® to the tractor.
3. Drive to the spot where the processing should take place.
4. Let the machine drop until the knives nearly touch the subsoil.
5. Engage the tractor in the correct gear with the four-wheel drive switched on.
6. Switch on the PTO with a low number of motor revolutions.
7. Raise the number of PTO revolutions to approx. 300 rpm.
8. Set the tractor in motion and let the Verti-Quake® sink into the ground with a smooth
movement.
9. Raise the number of PTO revolutions to the maximum value of 1,000 rpm.
10. Increase the speed to maximum 1.5 km/h (0.9 mph).
Figure 14
Adjust the top rod in such a way that the rear part of the skids is parallel
to the subsoil.
This lowers the pressure of the machine on the subsoil and prevents
damage to the subsoil. (Figure 12)
Work in straight lines; curves do damage to the subsoil.

17
Stopping occurs as follows:
1. Stop the forward movement of the tractor.
2. Lower the number of PTO revolutions to approx. 300 rpm.
3. Stop the PTO as soon as the knives are out of the ground.
4. Lift the Verti-Quake
®
smoothly out of the ground.
5. Go to the next spot and start again as described in the beginning of
this chapter.
NEVER engage the clutch of the tractor when the Verti-Quake
®
is operated! The
Verti-Quake
®
can push the tractor forward with high speed!
It is absolutely necessary to work according to the aforementioned procedures.
If the machine is placed into the ground without a running PTO, serious
damage to the machine could be the result.
You should drop the Verti-Quake
®
CAREFULLY into the subsoil.
If the machine is overloaded, a protective device built-in by means of the cam
clutch safeguards it.
9.0 USING THE VERTI-QUAKE
®
Before using the Verti-Quake
®
in a location, you should check the following items:
1. Are there loose objects in the field? First remove these objects.
2. Are there slopes? The maximum slope is 20 degrees for the Verti-Quake
®
.
Always go from top to bottom.
3. Are there cables/pipelines in the ground? If so, determine the depth of the
cable/pipelines and adjust the working depth of the machine to 60% of this depth.
4. Are there hard objects in the ground? Adjust the working depth.
5. Is there danger of flying objects (e.g., golf balls) that distract the attention of the
driver? If so, the Verti-Quake
®
CANNOT be used.
6. Is there danger of sinking/sliding away? If so, postpone the Verti-Quake
®
processing.
7. If the soil is frozen or very wet, postpone the activities until conditions improve.
10.0 TRANSPORTING THE VERTI-QUAKE
®
The user is responsible for transporting the Verti-Quake
®
in back of the tractor over public
roads. Verify the national legislation regarding the regulations.
On open fields, the maximum permitted speed is 12 km/h (7.5 mph) due to the weight of the
Verti-Quake
®
.
A higher speed can be dangerous for the driver and/or the public and can even damage the
machine.
When the machine is raised off the ground, the front axle of the tractor has to
support minimum 20% of its weight.

18
11.0 DETACHING THE VERTI-QUAKE
®
Figure 15
The machine can be detached from the tractor in the following manner:
1. Drive the Verti-Quake
®
to a parking area with a firm/flat subsoil.
2. Make sure that the tractor is blocked well and cannot move on its
own accord!
3. Switch off the tractor before descending!
4. Slide the support jacks 1 downwards by pulling the handgrip 2 outward and
secure the support jacks once more with handgrip 2.
5. Carefully drop the Verti-Quake
®
to the subsoil.
6. Make sure that the Verti-Quake
®
stands stable on the subsoil
before descending from the tractor!
7. Release the top rod 3.
8. Take the locking pin out of pin 4 and pull pin 4 out of the top rod connection.
9. Detach the PTO.
10. Detach the hydraulic pipelines 6.
11. Pull the locking pins out of pins 5 and pull pins 5 out of the frame of the Verti-
Quake
®
.
12. Make sure that the Verti-Quake
®
stands stable!
13. Start the tractor and drive off.

19
12.0 TROUBLE SHOOTING (PROBLEM ANALYSIS)
Problem Possible cause Solution
Too much damage to the
subsoil to be processed
Knives are damaged.
Try to straighten the knives by hammering them straight using a
hammer and anvil.
Knives are bent. Straighten the knives.
Mount new knives.
Machine is not aligned with
the tractor. Adjust the machine so that the knives will become aligned with
the tractor.
Not driven in a straight line Try to drive straight
Soil is too wet. Postpone the work until the soil is
dry.
The aeration axle is not
turning. Cam clutch is skidding. Restart
Gearbox is damaged. Repair or replace the gearbox.
Gearbox is leaking.
Seal is leaking. Replace the seal.
Cam clutch is skidding
too often. Cam clutch is worn out.
Too many stones
Replace the cam clutch.
Adjust the working depth.
Soil is too hard. Adjust the working depth.
Driving speed is too high. Adjust the driving speed.
Number of PTO revolutions
is too low. Raise the number of PTO revolutions.
Machine wants to push
the tractor forward.
Tractor is too light.
Make the tractor heavier or select
another tractor.
Ground is not sufficiently
aerated. Driven too fast. Drive slower.
Soil is too wet. Postpone the work until the soil is
drier.
Number of PTO revolutions
is too low. Increase the number of PTO revolutions.
Knives bring up too
much soil. Knives are bent. Straighten the knives. Mount new knives .
Soil is too wet. Postpone the work until the soil is
drier.

20
13.0 MAINTENANCE
In connection with the safety of the machine and the user, only authorised technical
personnel are permitted to carry out adjustments and repairs to the Verti-Quake®.
In connection with the safety of the machine and the user, use only original Verti-
Quake® parts for maintenance and repairs.
Time schedule Check/Grease point Method
Before every use Check for loose bolts/nuts. Tighten loose bolts/nuts.
Check the oil level in the
gearbox. This should reach the
level plug.
Use SAE 90
Attach the machine to the tractor
and let the machine run
unloaded for 5 minutes.
Listen and look for strange
movements/noises
Attach the machine to the tractor
and let the machine run
unloaded for 5 minutes.
Listen and look for strange
movements/noises.
After every 8 working
hours Check for loose bolts/nuts. Tighten loose bolts/nuts.
Presence and readability of the
safety stickers (Please refer to
Figure 5).
Replace if these are
damaged.
Loose hanging parts around the
PTO Fasten these parts so that they cannot come in the
vicinity of the PTO.
Grease the PTO grease points. Use EP2 grease.
After every 50 working
hours Check the gearbox for oil leakage. Replace the seals of the gearbox.
After every 100 working
hours Check the knives. Replace or try to repair.
13.1 CLEANING THE VERTI-QUAKE
®
The following points are cleaning instruction for keeping the Verti-Quake
®
in the best
possible condition.
−Never spray with a high-pressure sprayer on any bearing sealing.
−Do not use aggressive soap or cleaning agents.
−The Verti-Quake
®
may not be operative when it is cleaned.
−Make sure that the machine stands firmly and can never sink or
slide away.
−Make sure that the safety stickers are always well readable.
