Redexim RINK SP950 User manual

User manual
RINK SP950
Translation of the original user manual
2215 English 933.095.410 EN
Kwekerijweg 8 | 3709JA | Zeist | The Netherlands |
T: [phone]
E: [e-mail]
W: www.redexim.com

2
EC –DECLARATION OF CONFORMITY
Manufacturer (or importer) Certificate of Conformity for
RINK Topdresser SP950
The undersigned
Rink Spezialmaschinen GmbH
88279 Amtzell
Germany
hereby declares that the machine specified below conforms to all relevant
complies with the provisions of the Machinery Directive (2006/42/EG).
1. Machine –Designation:
RINK Topdresser SP950
2. Manufacturer or importer:
RINK Spezialmaschinen GmbH
Alfons-Stübe-Weg 4
88279 Amtzell
3. Model:
SP950
Amtzell 12.04.2016
Alexandra Mosmann,
Benedict Klein

3
TABLE OF CONTENTS
Content Page
EC-Declaration of conformity………………………………………………..2
SAFETY REGULATIONS ..........................................................................4
SHORT DESCRIPTION..............................................................................6
TECHNICAL FEATURES...........................................................................6
FIRST STARTUP.......................................................................................7
•Starting the engine............................................................................ 7
•After the first loaded ride.................................................................. 7
OPERATION..............................................................................................8
•Before each ride ................................................................................ 8
•Loading.............................................................................................. 8
•Dressing............................................................................................. 8
•Setting of dressing density............................................................... 9
CARE and MAINTENANCE.....................................................................10
•Greasing of the dresser with multi-purpose grease ......................10
•(every 50 operating hours)...............................................................10
•CARE and MAINTENANCE...............................................................11
•Setting of the brush roller distance (if necessary).........................11
•Conveyor belt tightening (when slipping) ......................................11
•Removal of the dresser from the chassis.......................................12
•Replacing the brush roller...............................................................13
•Replacing the conveyor belt............................................................14
•Replacing the conveyor belt............................................................15
•Conveyor belt tightening after mounting........................................15
•Chain tightening...............................................................................15
•1.Chain for traction drive (5)............................................................16
•2.Chain for conveyor belt and brush drive (3)................................16
•3.Chain spraying (every 30 operating hours) .................................16
•V-belt tightening...............................................................................16
•Trouble Shooting (Problem analysis) .............................................17
Spare Parts..............................................................................................18
Technical Changes Reserved

4
SAFETY REGULATIONS
(1) The RINK Topdresser SP950 is manufactured exclusively for the application of fine
grained, loose dressing material such as sand, grit, granulate or similar materials.
Any other use is considered improper. The manufacturer is not liable for damages resulting
from improper use; the risk lies entirely with the user.
Usage in line with the regulations includes compliance with the manufacturer's instructions
for operation, maintenance and repair.
(2) The dresser is built in accordance with the latest technology and is reliable; however, the
dresser can entail danger to life or physical harm to the user or third parties if not used,
maintained or repaired by persons who are familiar with it and aware of the dangers.
(3) Any person on behalf the user's company who is responsible for the operation, the
maintenance or the repair of the dresser, must have read and understood the user manual
and particularly the chapter on Safety Regulations.
The use, maintenance or repair of the machine by unauthorized persons entails dangers to
life or physical harm to the user or third parties. This must be avoided!
Please use only the manufacturer’s original spare parts for repair.
In addition to the recommendations in this manual, the general safety and accident
prevention regulations must be observed.
Driving on public roads with this vehicle is subject to the relevant traffic provisions.
Transporting passengers in this vehicle is forbidden!
(4) The operator is obligated to check the dresser before each start up to detect any damages
and defects. Any changes to the dresser (including performance) affecting its safety must
be immediately repaired. In principal, no modifications or changes to the dresser (unless
approved by the manufacturer) are permitted at the expense of safety.
(5) The user is obligated, to check the RINK Topdresser SP950 before start up for any
visible damages and defects. Changes to the RINK Topdresser SP950 (including
operation), which may adversely affect safety, must be remedied immediately. For safety
reasons, it is absolutely prohibited to make changes or additions to the RINK Topdresser
SP950 (except changes / additions approved by the manufacturer). If modifications are
made to the RINK Topdresser SP950, the CE-label, which is currently valid for the
machine, loses its validity and can only be renewed by the person who made these
modifications.
Before moving the dresser, please make sure the immediate vicinity around it is free of
obstacles and that your view is unobstructed.

5
(6+7)
The Rink Topdresser SP950 is designed
for safe use. This is only possible if the
safety instructions described in this
manual are fully followed.
Read and understand the manual before
using the Rink Topdresser SP950.
If the machine is not used as described in
the manual, there may be a risk of injury
and/or damage to the Rink Topdresser
SP950.
•For maintenance, adjustment and repairs,
always switch off the engine and remove
the key from the ignition.
•During operation, NO persons without
proper personal protective equipment may
be present in the danger area of the Rink
Topdresser SP950, because there is a risk
of personal injury from caused by flying
particles.
•Keep at least 4 meters away!
It is prohibited to enter the loading platform when the spreading device is running. A
sticker has been placed on the side panel on both sides of the spreader to indicate this.
The instructions on the stickers must always be legible and must be replaced if damaged (see
parts list).
(8) Pay attention to appropriate clothing. Wear sturdy shoes with steel toecaps and long
trousers. Long hair must be pinned back. Do not wear loose clothing. Use appropriate
personal protective equipment in accordance with the valid occupational health and
safety regulations.
Always wear certified hearing protection when you work with this machine (see illustration).
(9) Adjustments and repair work to the axis (wheel bearing, tires) may be carried out by
authorized personnel only.
(10) In the immediate vicinity of the brush cylinder at the RINK Topdresser SP950 there is a
noise level of 74 dB (a).
Used oil endangers the environment; please dispose of it in an
environmentally friendly manner.

6
SHORT DESCRIPTION
The RINK Topdresser SP950 is manufactured exclusively for the application of fine
grained, loose dressing material such as sand, grit, granulate or similar materials. The
dressing device of the Topdresser is driven by V-belts and chains. The dressing rate is
controlled by a mechanical slide. Thus, the dressing material can be applied accurately.
Dressing density or dressing rate can be determined by the driving speed and slide
opening.
TECHNICAL FEATURES
Dimensions
SP950
Length
2.50 m
Width
1.08 m
Height
1.20 m
Loading amount
330 l
Working width
0.95 m
Weight
250 kg
Dressing width
0.95 m
Dressing amount
can be controlled via slide
Motor
Vanguard 6.5 PS
Tires
6 x wheels 13x6.50-6 4PR
Tire pressure
1.50 –1.75 bar
Noise emissions *
(A-weighted measurement in
accordance ISO 4781 and
EN 13684: 2004 + A3: 2010)
A-weighted emission sound pressure level LpAd
measured in working position re. 20 µPa: 93 dB
Uncertainty KpA:2 dB
A-weighted sound power level measured in working
position LWAd re. 1pW: 104 dB
Uncertainty KWA: 2 dB
Emission of hand-arm vibration *
(Measurement according to EN
12069 and EN 13684: 2004 + A3:
2010)
Hand-arm-Vibration ahv: 3.1 m/s2
Uncertainty K: 0.3 m/s2
*Remark: emission values for both sound and vibrations are determined under reference
conditions as described in EN 13684. In practice the emission (or better: the partial exposure)
maybe different due to specific conditions and circumstances. Emission data are primarily
intended for comparison between different machines and may be used as an indication for
partial exposure, but with limited validity.
The type label is affixed on the right front of the dresser.

7
FIRST STARTUP
Starting the engine
a) Fill the gas tank with lead-free gas.
b) Put the throttle in FAST-position.
c) Put the engine switch to ON-position and the starter lever to the left.
d) Start the engine, repeat if necessary and close the choke slightly.
e) As soon as the engine runs, push the starter lever back and adjust the
desired engine speed with the throttle.
Note: Please read also engine manufacturer's manual, which is included in this
manual. It is important that the operator be familiar with the rules contained in
this manual.
After the first loaded ride
-Tighten wheel nuts.
-Wheel-hub play, check and have adjusted if necessary.
-Check tire-pressure.
-Check tension of V-belts and chains.

8
OPERATION
Before each ride
-Check dresser for obvious damages, repair damages.
-Check tire-pressure.
-Check the track of the conveyor belt and adjust if necessary. The conveyor belt
should not rub on either side.
Loading
-Observe the desired maximal ground pressure.
-When loading, pay attention that the driving components (engine) are not overly
dirty or soiled.
Dressing
-Controls
1 Throttle
2 Brake handle (holding brake)
3 Reverse gear
4 Lever to switch on conveyor belt and brush
5 Forward gear

9
Setting of dressing density
The dressing density (mm) depends on
-Driving speed
-Engine rotation speed
-Slide opening (1)
Please set the desired dressing density on firm ground before starting work.

10
CARE and MAINTENANCE
Greasing of the dresser with multi-purpose grease
(every 50 operating hours)

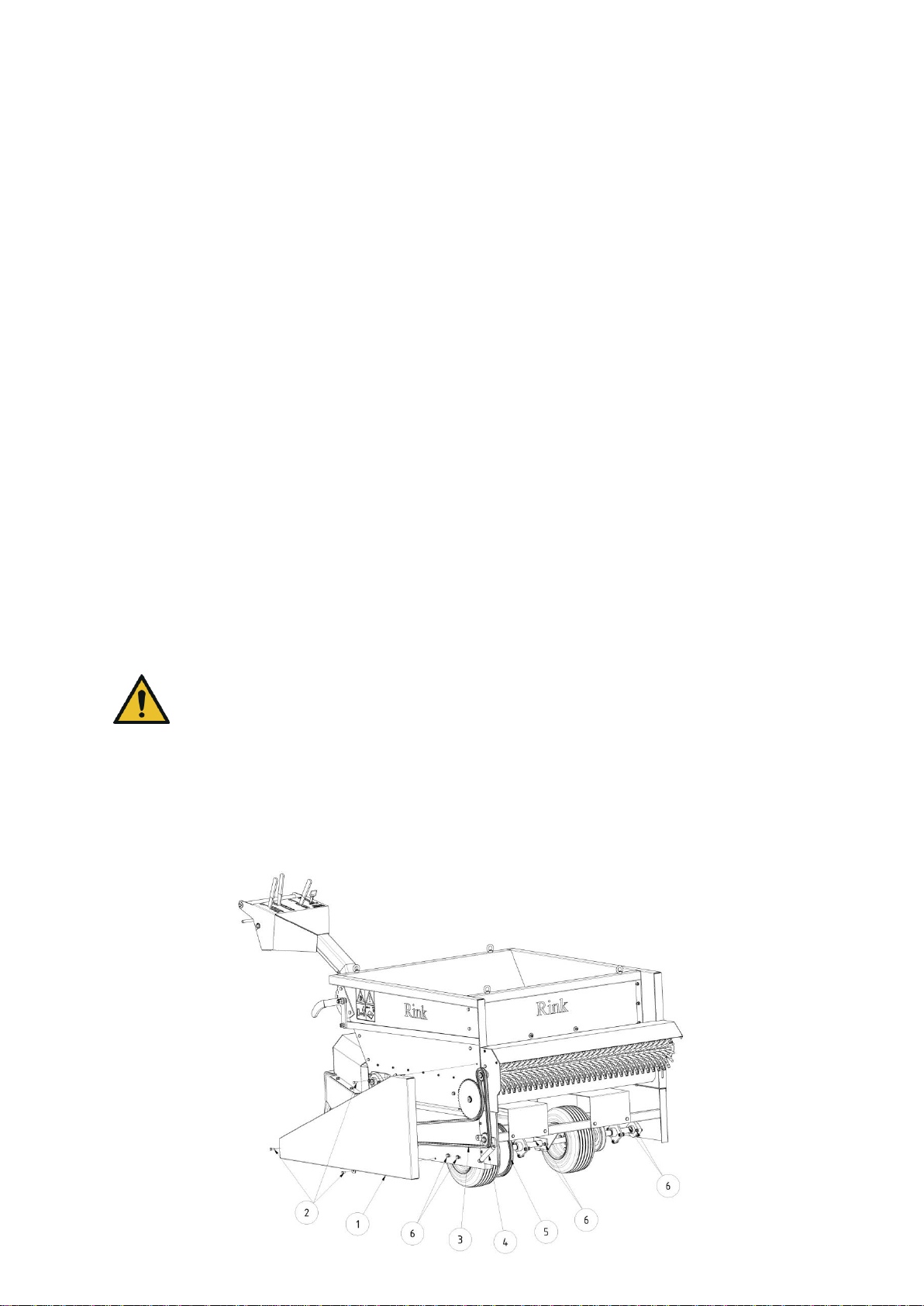

1 Bearings on both sides of the brush roller
2 Bearings on both sides of the rear drive roll
3 Bearings on both sides of the front tension roll
4 Bearing on the steering axle
5 Bearing on the drive shafts
6 Bearing at the belt tightener
For bearings 5, 6 tilt or raise the machine with the help of the ring nuts.

11
CARE and MAINTENANCE
Setting of the brush roller distance (if necessary)
-Loosen two screws (1) on both sides of the brush roller.
-Slide the brush roller down until the brush roller touches the conveyor belt
slightly.
-Tighten the screws (1).
Conveyor belt tightening (when slipping)
-Loosen the counter nut (2).
-Tighten the nut (3) evenly on both sides in a clockwise half turn and check to
see if the conveyor belt is running. Repeat if necessary.
-Tighten the counter nut (2).
Excessive tightening shortens the life of the conveyor belt.

12
Removal of the dresser from the chassis
For demounting and mounting of the conveyor belt and for possible maintenance work on the
chassis, it is necessary to remove the dresser from the chassis.

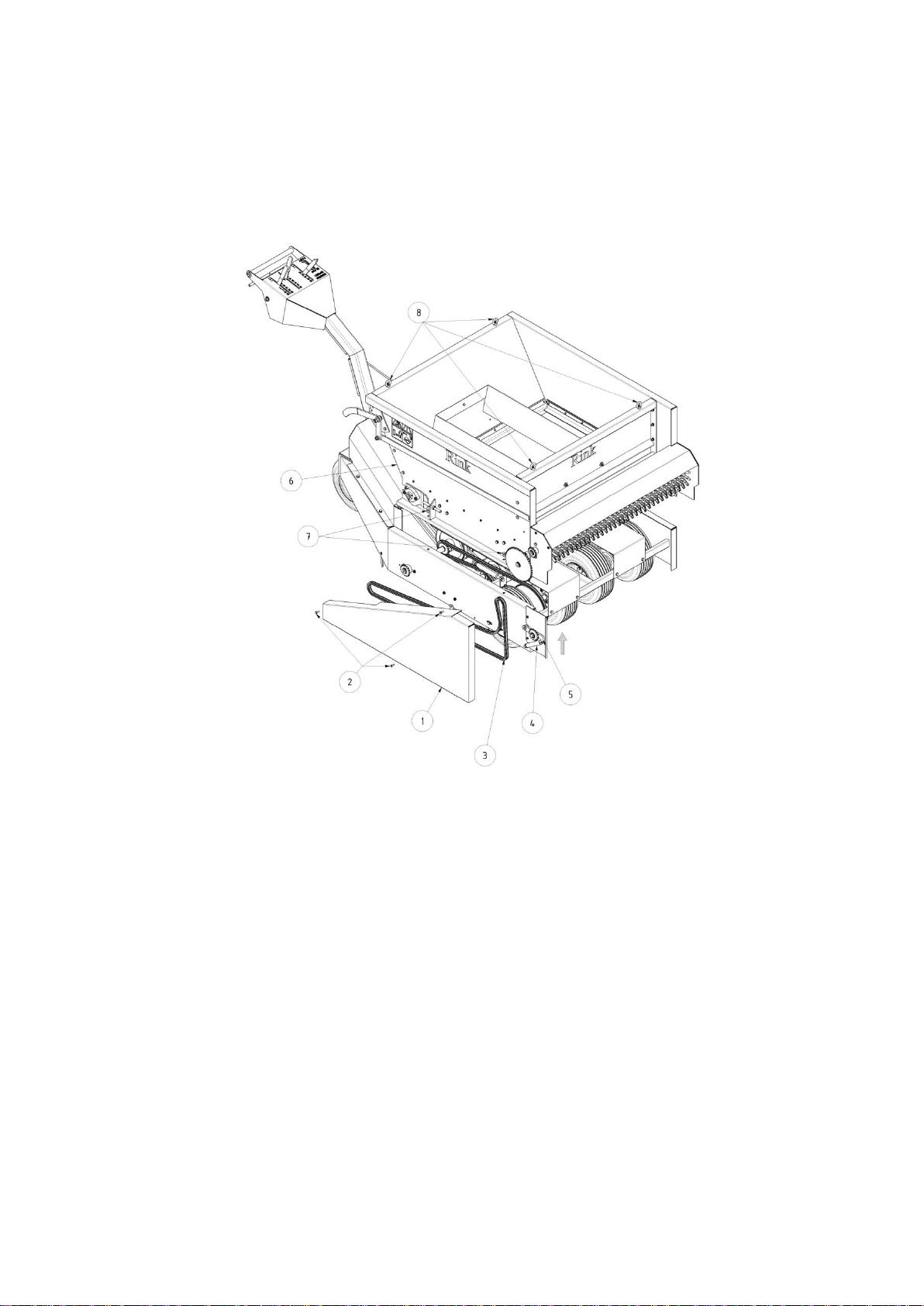

-Remove the protective cover (1) by loosening the screws (2).
-Remove the chain (3) by pushing the chain tightener (5) through the tension
spring (4) upwards in the direction of the arrow.
-Loosen the dresser (6) by removing the screws (7) on both sides.
-Affix the whole dresser (6) on the ring nuts (8) and lift it. Place the dresser on a
wooden pallet or another secure surface.

13
Replacing the brush roller
The brush roller (6) consists of 10 individual segments, which are interlinked. Both outer
segments are secured on the shaft, each with three grub screws (5). To replace the brush roller
proceed as follows:
- Loosen the grub screws (1) of the brush bearing on the right side.
- Loosen and remove the screws (2, 3) of the right brush bearing holder (4).
- Remove the right brush bearing holder (4).
- Remove the grub screws (5) on both sides of the brush roller (6).
- Detach all the brush segments to the right. Please pay attention to the
correct order and arrangement of the brush segments.
- Slide the new brush segments back onto the brush shaft. Pay attention to
the first and last segment.
- Mount the brush bearing block (4) using the screws (2, 3).
- Tighten the grub screws (1) of the brush bearing.
- Center the brush in the middle and tighten it if necessary with a bar clamp
so that the gearing interlocks fully.
- Remove the grub screws (5) from both outer segments of the new brush
roller.
- Drill into the brush shaft with a 5 mm drill approximately 4 mm deep.
- Attention: You cannot use the holes of the old brush roller.
- Tighten the grub screws (5) on both sides back into the brush roller.

14
Replacing the conveyor belt

15
Replacing the conveyor belt
- Loosen the nuts (1) and release the conveyor belt in the direction of the
arrow.
- Loosen the grub screws of the bearings (2) towards the driving direction on
the right.
- Remove the brush roller (4) by loosening the screws (3).
- Take off the right side panel (6) by removing the screws (5).
- Pull the conveyor belt (7) out to the right.
Mounting is carried out in reverse order.
Conveyor belt tightening after mounting
- Tighten the conveyor belt on both sides and evenly with the nuts (1), until
the axle center-to-center distance of the front shaft to the rear shaft is 491
mm.
- Allow the conveyor belt to run for approximately 30 minutes until it is
centered.
- When operating the machine after a conveyor belt replacement, a slippage
of the conveyor belt can occur. If necessary, tighten the band again. Pay
attention to uniform tightening on both sides (see conveyor belt tightening,
page 10).
The conveyor belt must not touch the sides. When readjusting the conveyor
belt, tighten on the side on which the band touches.
Excessive tightening shortens the life of the conveyor belt.
Chain tightening

16
1. Chain for traction drive (5)
- Remove the protective cover (1) by loosening the screws (2).
- Loosen the screws (6) and tighten the axle shaft to the rear. Pay attention
to uniform tightening on the left, middle and right bearing. Tighten the
screws (6).
- Attach the protective cover (1) with the screws (2).
2. Chain for conveyor belt and brush drive (3)
- The chain is automatically tightened with the tension spring (4). Please
check the pull of the spring regularly and replace it if necessary.
3. Chain spraying (every 30 operating hours)
- Spray the chain of the conveyor belt and the brush drive (3) and the chain
of the traction drive (5) with silicon or teflon spray.

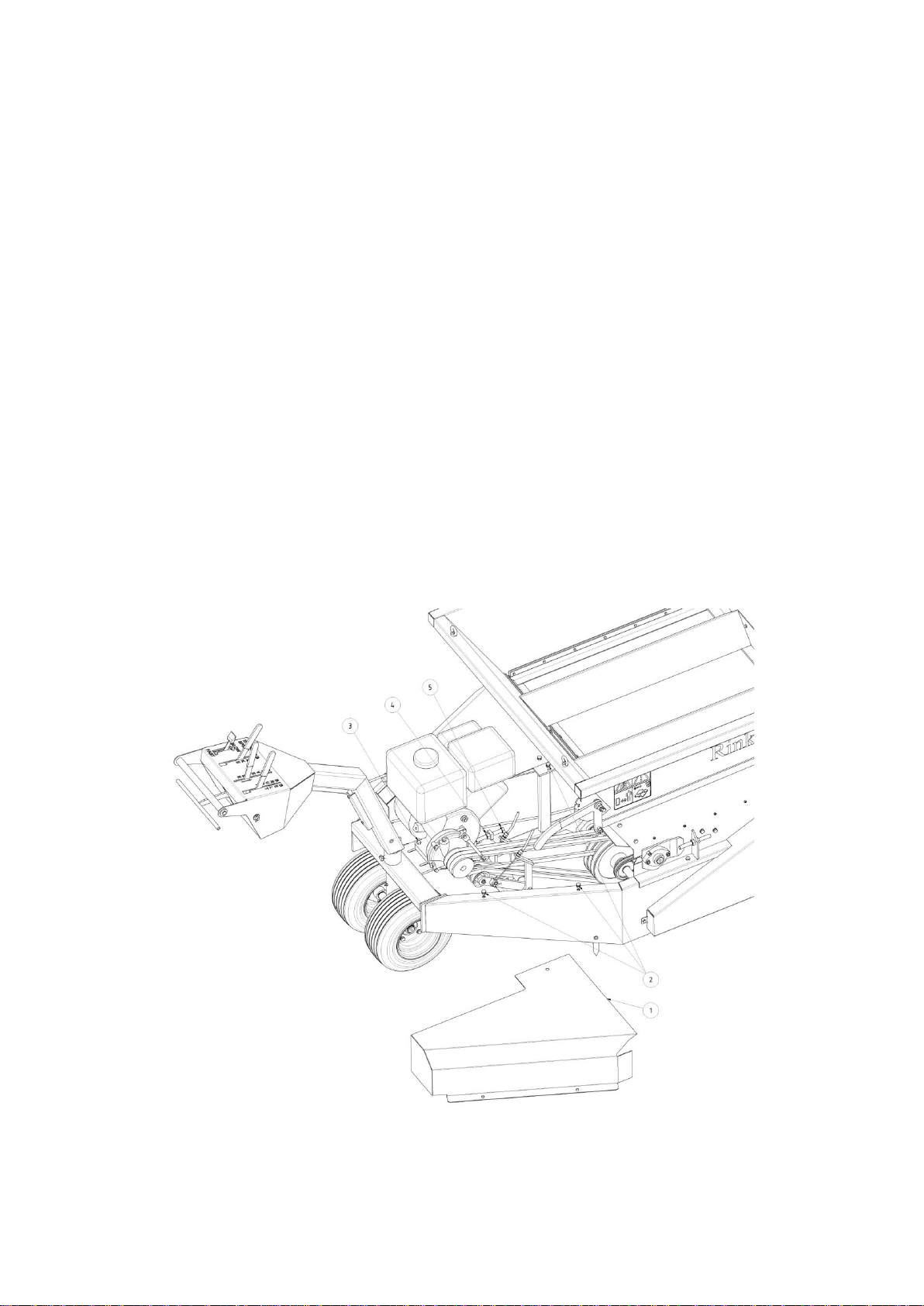

V-belt tightening
- Remove the protective cover (1) by loosening the screws (2).
- Loosen the 4 fastening screws (3) of the engine and the counter nut (4).
- Tighten the V-belt by moving the engine with the adjustment screw (5).
- Tighten the 4 fastening screws (3) and the counter nut (4).
- Attach the protective cover (1) with the screws (2).

17
Attention: Excessive tightening causes a permanent idling of the conveyor
belt, the brush and the traction drive. Should this be the case, please free up
tightening.
Trouble Shooting (Problem analysis)
Problem
Cause
Solution
Slide does not open
Fastening elements too tight
Slider is jammed
Loosen fastening elements
Check slide opening
There is no material
coming out of the
machine
Slide is closed
Drive is not switched on
Conveyor belt is slipping
Check and open slide (see page 8)
Check control lever (see page 7)
Tighten conveyor belt
(see page 10)
Engine is not running
No gas in the tank
Refill gas
Observe instructions of the engine
manufacturer
Band and brush rotate
in empty state (idling
mixture)
V-belt too tight
Release V-belt tightening
(see page 16)
Conveyor belt is
slipping
Conveyor belt not tight enough
Machine is overloaded
Tighten conveyor belt
(see page 10)
Do not overload the machine
Conveyor belt and
brush roller do not
rotate
V-belt tightening too weak
Increase V-belt tightening
(see page 16)
