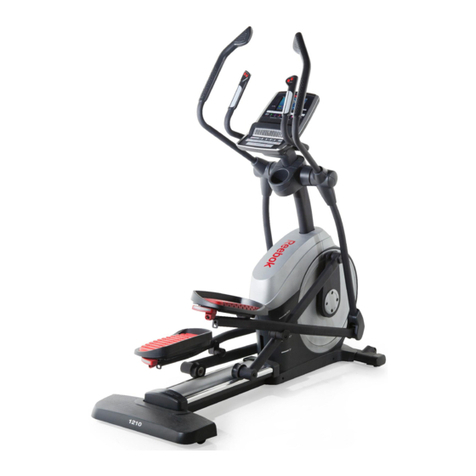

Reebok 1210 Elliptical User manual

Reebok

Reebok 1210 Elliptical User manual

Reebok Rl 1500 Elliptical User manual

Reebok

Reebok Rl 1500 Elliptical User manual

Reebok 910 Elliptical User manual

Reebok

Reebok 910 Elliptical User manual

Reebok One GX40 User manual

Reebok

Reebok One GX40 User manual

Reebok 1000 ZX RBEL9906.3 User manual

Reebok

Reebok 1000 ZX RBEL9906.3 User manual

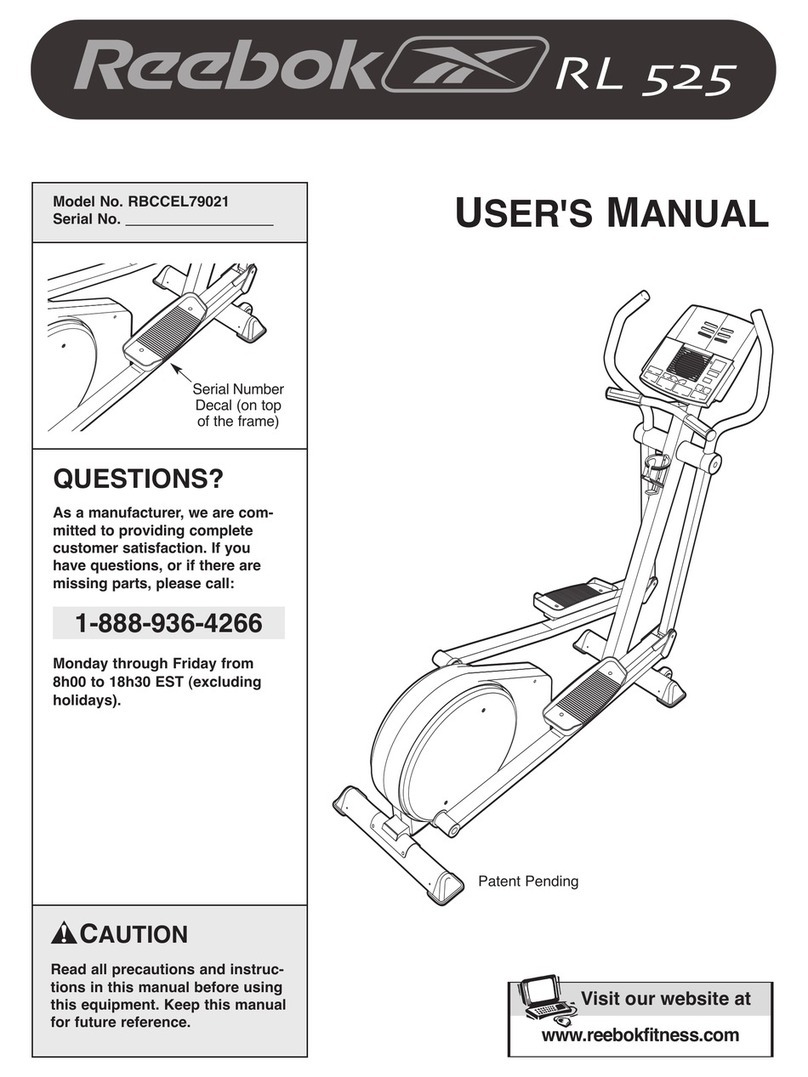

Reebok Rl525 Elliptical User manual

Reebok

Reebok Rl525 Elliptical User manual

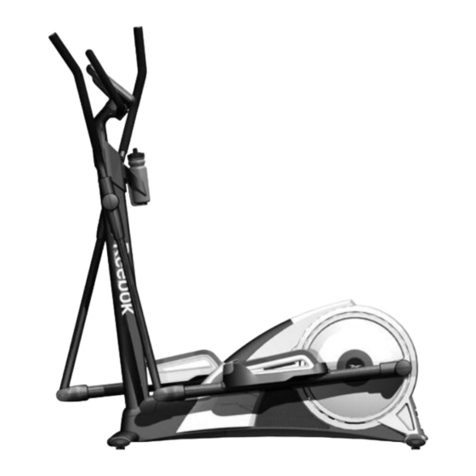

Reebok C5.1e User manual

Reebok

Reebok C5.1e User manual

Reebok T7.90 Elliptical User manual

Reebok

Reebok T7.90 Elliptical User manual

Reebok RL 1500 RBEL4255.0 User manual

Reebok

Reebok RL 1500 RBEL4255.0 User manual

Reebok 710 Elliptical User manual

Reebok

Reebok 710 Elliptical User manual

Reebok RL 725 User manual

Reebok

Reebok RL 725 User manual

Reebok Rl 10.0 Elliptical User manual

Reebok

Reebok Rl 10.0 Elliptical User manual

Reebok 1410 Elliptical User manual

Reebok

Reebok 1410 Elliptical User manual

Reebok 1000 X Elliptical User manual

Reebok

Reebok 1000 X Elliptical User manual

Reebok One GX50 User manual

Reebok

Reebok One GX50 User manual

Reebok ZJET 430 User manual

Reebok

Reebok ZJET 430 User manual

Reebok Crosstrainer C 5.8e User manual

Reebok

Reebok Crosstrainer C 5.8e User manual

Reebok RL545 User manual

Reebok

Reebok RL545 User manual

Reebok RL 900 RBE09950 User manual

Reebok

Reebok RL 900 RBE09950 User manual

Reebok R 5.10 Elliptical User manual

Reebok

Reebok R 5.10 Elliptical User manual

Reebok ASTRORIDE A6.0FD User manual

Reebok

Reebok ASTRORIDE A6.0FD User manual

Reebok DMT C 7.5e User manual

Reebok

Reebok DMT C 7.5e User manual

Reebok RL 1500 RBEL4255.1 User manual

Reebok

Reebok RL 1500 RBEL4255.1 User manual

Popular Elliptical Trainer manuals by other brands

NordicTrack AudioStrider 990 PRO NTEL09811.2 user manual

NordicTrack

NordicTrack AudioStrider 990 PRO NTEL09811.2 user manual

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness Air elliptical pro 1307 owner's manual

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness XPLLP owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness PRO3700C Operation manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra FS5.8e owner's manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard E-40 user manual

Bodyguard

Bodyguard E-40 user manual

Vision Fitness X6600iNetTV Assembly guide

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

NordicTrack E 7.2 Elliptical null

NordicTrack

NordicTrack E 7.2 Elliptical null

NordicTrack E4.1 Elliptical null

NordicTrack

NordicTrack E4.1 Elliptical null

NordicTrack E4.1 Elliptical null

NordicTrack

NordicTrack E4.1 Elliptical null

Pro-Form 690 Hr Elliptical null

Pro-Form

Pro-Form 690 Hr Elliptical null

Pro-Form 800 Hr Heart Rate Control Elliptical null

Pro-Form

Pro-Form 800 Hr Heart Rate Control Elliptical null

Bonn Germany Concept 2.2 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor Resolute RSL 620 Assembly guide

Precor

Precor Resolute RSL 620 Assembly guide

NordicTrack E 9.2 Elliptical HASZNALATI UTASITAS

NordicTrack

NordicTrack E 9.2 Elliptical HASZNALATI UTASITAS

Sears FREE SPIRIT C249 30737 0 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True FS-64 Assembly manual

True

True FS-64 Assembly manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

Serial Number
Decal
Model No. RCTL67708.0
Serial No.
Write the serial number in the space
above for reference.
CAUT ON
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
QUEST ONS?
If you have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER SER-
V CE DEPARTMENT D RECTLY.
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri., 7:30 until 16:30 ET
(excluding holidays)
OR E-MA L US:
customerservice@iconcanada.ca
www.reebokfitness.com
USER'S MANUAL
TABLE OF CONTENTS
WARNINGDECALPLACEMENT..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................5
ASSEMBLY...............................................................................6
OPERATIONANDAD USTMENT ............................................................12
HOWTOFOLDANDMOVETHETREADMILL ..................................................21
TROUBLESHOOTING .....................................................................22
EXERCISEGUIDELINES ...................................................................25
PARTLIST ..............................................................................26
EXPLODEDDRAWING ....................................................................28
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
This drawing shows the locations of the warning
decals. f a decal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the loca-
tion shown. Note: The decals may not be shown
at actual size.
WARN NG DECAL PLACEMENT
2
REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is
manufactured and distributed under license from Reebok International. iPod®is a trademark of Apple Computer,
Inc., registered in the U.S. and other countries. iPod®is not included.
3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over age 35 or persons with
pre-existing health problems.
2. t is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by per-
sons weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
11. When connecting the power cord (see page
12), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable
of carrying 15 or more amps. No other appli-
ance should be on the same circuit. Do not
use an extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor call
the telephone number on the front cover of
this manual.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. f the control sys-
tem is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOT NG on page 22 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARN NG: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. CON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
MPORTANT PRECAUT ONS
4
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADM LL on page 21.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the frame is held securely in the
storage position.
23. Never insert any object into any opening on
the treadmill.
24. nspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. f you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE NSTRUCT ONS
5
Thank you for selecting the new REEBOK®R 6.90
treadmill. The R 6.90 treadmill offers a selection of fea-
tures designed to make your workouts at home more
enjoyable and effective. And when youʼre not exercis-
ing, the unique treadmill can be folded up, requiring
less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEG N
Handrail
Upright
Pulse Sensor
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail
Power Cord
Idler Roller
Adjustment Bolts
Console
Accessory Tray
6
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-
cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , rubber mallet , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: f a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included.
3/8" Nut (7)–3
#8 x 1" Tek Screw (1)–4
Base Foot
Spacer (83)–2
3/8" Star
Washer (8)–4
5/16" Star
Washer (9)–6
5/16" x 1" Bolt (3)–6
3/8" x 4" Bolt (4)–4
1/4" x 3/4" Bolt (5)–4
3/8" x 2" Bolt (6)–3
Bolt Spacer (82)–4
3/8" x 1 3/4" Patch Bolt (2)–1
7
2. Attach a Wheel (85) to the Base (84) with a
3/8" x 2" Bolt (6) and a 3/8" Nut (7). Do not
overtighten the Nut; the Wheel must turn
freely.
84
6
7
2
85
1.Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (52) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Cut the shipping tie securing the Wire Harness
(87) to the Base (84). Locate the plastic tie in
the indicated hole in the Base, and use the tie to
pull the Wire Harness out of the hole.
Attach two Base Feet (86) to the Base (84) in the
locations shown with two #8 x 1" Tek Screws (1)
and two Base Foot Spacers (83).
Then, attach the other two Base Feet (86) with
two #8 x 1" Tek Screws (1).
1
84
1
52
86
86
1
1
1
86
83
86
87
Hole
83
A
B
8
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (52) so the treadmill is more stable; do
not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Attach a Wheel (85) to the Base (84) with a
3/8" x 2" Bolt (6) and a 3/8" Nut (7). Do not
overtighten the Nut; the Wheel must turn
freely.
5
6
52
7
84
85
4. Hold a Bolt Spacer (82) inside the lower end of
the Right Upright (77). Insert a 3/8" x 4" Bolt (4)
with a 3/8" Star Washer (8) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (82), 3/8" x 4" Bolt
(4), and 3/8" Star Washer (8).
Hold the Right Upright (77) against the Right
Upright Spacer (88). Be careful not to pinch
the Wire Harness (87). Tighten the 3/8" x 4"
Bolts (4) until the heads of the Bolts touch the
Right Upright; do not fully tighten the Bolts
yet.
Press a Base Cap (80) into the Base (84).
88
77
87
8
80
82
82
4
4
84
3. Identify the Right Upright (77) and the Right
Upright Spacer (88), which are marked with
“Right” stickers. Insert the Wire Harness (87)
through the Right Upright Spacer as shown.
Then, set the Right Upright Spacer on the Base
(84).
Have a second person hold the Right Upright
(77) near the Base (84). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Wire Harness (87). Then,
pull the other end of the wire tie until the Wire
Harness is routed completely through the Right
Upright.
84
Wire Tie
87
77
88
87
3
Wire
Tie
77
87
AB
9
7. With the help of a second person, hold the
handrail assembly near the Right Upright (77)
and the Left Upright (78). Connect the Wire
Harness (87) to the console wire. See the inset
drawing. The connectors should slide to-
gether easily and snap into place. If they do
not, turn one connector and try again. F THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER S TURNED ON.
Remove the wire tie from the Wire Harness (87).
Set the handrail assembly on the Uprights (77,
78). Be careful not to pinch the wires.
77
78
Console
Wire
Wire Tie
7
87
Console
Wire
Handrail
Assembly
87
6. Hold a Bolt Spacer (82) inside the lower end of
the Left Upright (78). Insert a 3/8" x 4" Bolt (4)
with a 3/8" Star Washer (8) into the Left Upright
and the Bolt Spacer. Repeat this step with a
second Bolt Spacer (82), 3/8" x 4" Bolt (4),
and 3/8" Star Washer (8).
Hold the Left Upright Spacer (81) and the Left
Upright (78) against the Base (84). Tighten the
3/8" x 4" Bolts (4) until the heads of the Bolts
touch the Left Upright; do not fully tighten the
Bolts yet.
Press a Base Cap (80) into the Base (84).
With the help of a second person, tip the tread-
mill so that the Base (84) is flat on the floor.
81
78
4
84
82
82
80
8
6
10. Insert the wires from the console assembly into
the handrail assembly.
Attach the console assembly to the handrail as-
sembly with four 1/4" x 3/4" Bolts (5). Be careful
not to pinch the wires.
Console
Assembly
5
5
Wires
Handrail
Assembly
10
10
8. Attach the handrail assembly to the Uprights
(77, 78) with six 5/16" x 1" Bolts (3) and six
5/16" Star Washers (9) as shown.
See assembly steps 4 and 6. Firmly tighten
the 3/8" x 4" Bolts (4).
39
78
Handrail
Assembly
8
9. With the help of a second person, hold the con-
sole assembly near the handrail assembly.
Connect the two wires from the console assem-
bly to the two wires from the handrail assembly.
See the inset drawing in step 7. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. F THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE
POWER S TURNED ON.
Handrail
Assembly
Console
Assembly
9
77
3
3
3
9
9
9
Wires
Wires
