Reebok RL545 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-877-994-4999
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. RBEL59041
Serial No.
Serial Number
Decal (on top
of the frame)
Visit our website at
www.reebokhomefitness.com
new products, prizes,
fitness tips, and much more!
Patent Pending
USER'S MANUAL

2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ELLIPTICAL EXERCISER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
TABLE OF CONTENTS
REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is
manufactured and distributed under license from Reebok International.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
in-home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
4. Place the elliptical exerciser on a level sur-
face, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothing when
using the elliptical exerciser. Always wear
athletic shoes for foot protection.
9. Always hold the handlebar when mounting
or dismounting the elliptical exerciser.
Always hold the handlebar or the upper body
arms when using the elliptical exerciser.
10. Keep your back straight when using the ellip-
tical exerciser; do not arch your back.
11. If you feel pain or dizziness while exercis-
ing, stop immediately and cool down.
12. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
13. When you stop exercising, allow the pedals
to slowly come to a stop. The elliptical exer-
ciser does not have a free wheel; the pedals
will continue to move until the flywheel
stops.
14. The decal shown on page 4 has been placed
on the elliptical exerciser in the indicated
location. If the decal is missing or illegible,
call our Customer Service Department toll-
free at 1-877-994-4999, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time,
and order a free replacement decal. Apply
the replacement decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4
BEFORE YOU BEGIN
Congratulations for selecting the new REEBOK®RL
545 elliptical exerciser. The RL 545 elliptical exerciser
is an incredibly smooth exerciser that moves your feet
in a natural elliptical path, minimizing the impact on
your knees and ankles. And the unique RL 545 fea-
tures adjustable resistance and a state-of-the-art con-
sole to help you get the most from your exercise.
Welcome to a whole new world of natural, elliptical-
motion exercise from REEBOK.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please call our
Customer Service Department toll-free at 1-877-994-
4999, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays). To help us assist
you, please mention the product model number and
serial number when calling. The model number is
RBEL59041. The serial number can be found on a
decal attached to the elliptical exerciser (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
*No water bottle is included
Upper Body Arm
Handlebar with Pulse Sensor
BACK
RIGHT SIDE
Wheel
Pedal
Bookrack
Fan Console
Upright
Pedal Cushion
Leveling Foot
Pedal Leg

5
Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
In addition to the included tools, assembly requires an adjustable wrench and a rubber
mallet .

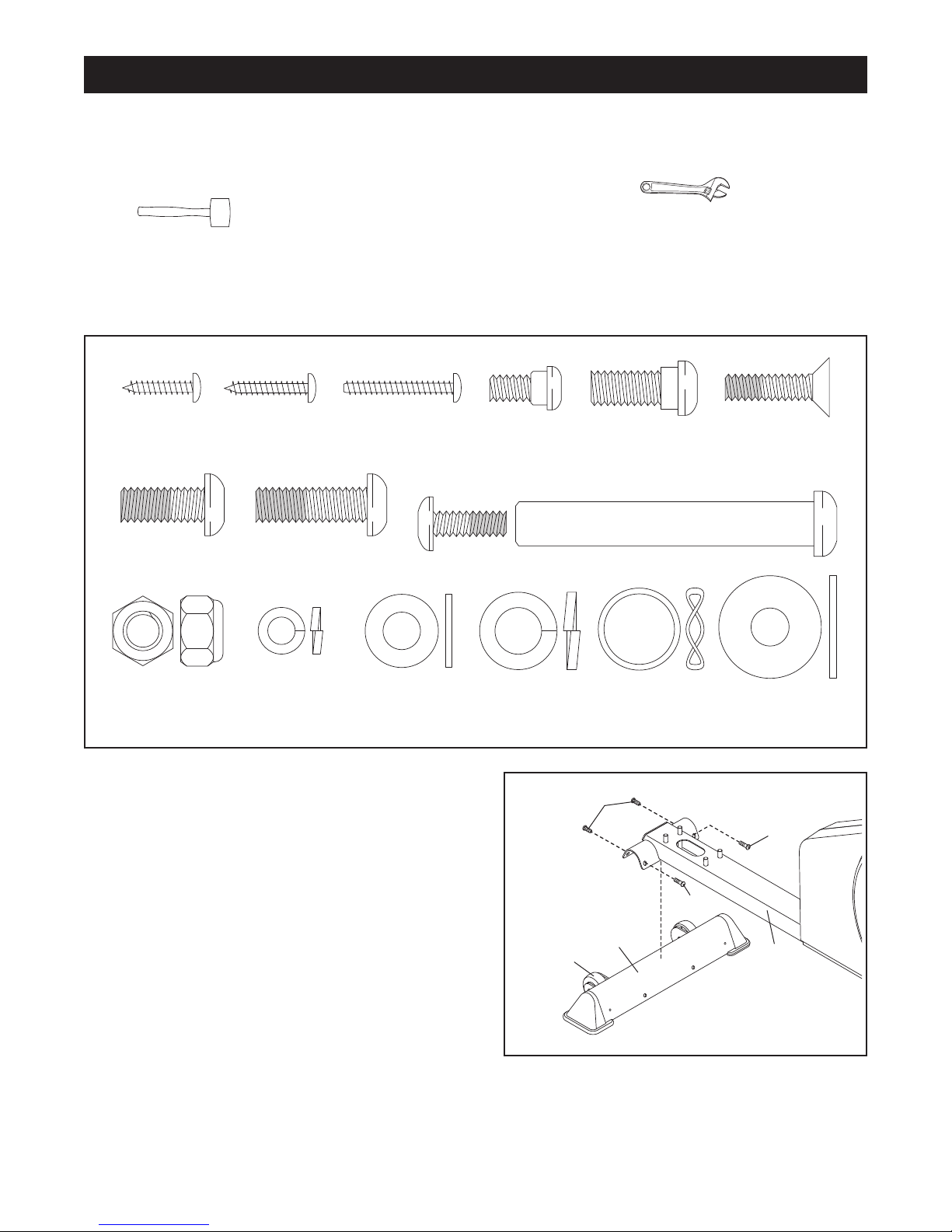

See the drawings below to identify the small parts needed for assembly. The number in parenthesis below
each drawing is the key number of the part, from the PART LIST on page 25; the number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
ASSEMBLY
M4 x 16mm
Screw (82)–6 M4 x 22mm
Screw (92)–2 M4 x 25mm
Screw (69)–2
M8 x 25mm Patch
Screw (73)–10
M8 x 19mm Patch
Screw (81)–4
M6 x 20mm Patch
Screw (75)–4
M6 Split
Washer (72)–2 Small M8
Washer (71)–2
Large M8
Washer (70)–2
M10 Nylon
Locknut (85)–4
Bolt Set (67)–2
M10 Split
Washer (87)–4 Wave Washer
(91)–2
M6 x 13mm
Shoulder
Screw (93)–2
M8 x 19mm
Shoulder
Screw (86)–2
1. Identify the Front Stabilizer (63), which has Wheels
(27) attached to one side. Attach the Front Stabilizer
to the front of the Frame (1) with four M8 x 25mm
Patch Screws (73).
1
27
63
73
73
73
1

6
2. Attach the Rear Stabilizer (24) to the rear of the
Frame (1) with four M8 x 25mm Patch Screws (73).
3. Remove the four M10 Nylon Locknuts (85) and the
four M10 Split Washers (87) from the welded bolts
near the front of the Frame (1).
While a second person holds the Upright (2), con-
nect the Upper Wire Harness (15) to the Lower Wire
Harness (39).
Align the holes in the bracket on the lower end of the
Upright (2) with the welded bolts on the Frame (1).
Lower the Upright, feeding the Upper Wire
Harness (15) and the Lower Wire Harness (39) up
into the Upright, until the welded bolts are fully
inserted into the bracket. Be careful to avoid
pinching and damaging the Wire Harnesses.
Place the four M10 Split Washers (87) onto the weld-
ed bolts on the Frame (1). Then, tighten the four M10
Nylon Locknuts (85) onto the welded bolts.
4. Feed the Upper Wire Harness (15) up through the
indicated hole in the Console Bracket (3). Attach the
Console Bracket to the Upright (2) with four M8 x
19mm Patch Screws (81). Be careful to avoid
pinching and damaging the Upper Wire Harness.
Attach the Water Bottle Holder (13) to the Upright (2)
with two M4 x 22mm Screws (92). Note: The water
bottle holder is designed to be used with your own
water bottle.
2
15
Bracket
Be careful to
avoid pinching
and damaging the
Wire Harnesses
(15, 39) during
this step.
39
Welded
Bolts
1
15
2
Hole
3
81
92
13
87
85
1
24
73
73
2
3
4

7
5. While another person holds the Handlebar (4) near
the Upright (2), feed the Pulse Sensor Wire (14) into
the Upright and out of the indicated hole in the
Console Bracket (3). Attach the Handlebar to the
Upright with two M6 x 13mm Shoulder Screws (93)
and two M6 Split Washers (72). Be careful to
avoid pinching and damaging the Pulse Sensor
Wire.
6. The Console (8) requires four “D” batteries (not
included); alkaline batteries are recommended.
Press the indicated tab on the battery cover and
remove the cover. Press four batteries into the bat-
tery clips; make sure that the batteries are orient-
ed as shown by the markings inside of the bat-
tery clips. Then, reattach the battery cover.
7. Insert the Bookrack (7) into the slots in the Console
(8). Attach the Bookrack to the Console with two M4
x 25mm Screws (69). Be careful to avoid pinching
and damaging the wires in the Console. 7
69
8
5
7
8. While another person holds the Console (8) near
the Console Bracket (3), connect the Pulse Sensor
Wire (14) and the Upper Wire Harness (15) to the
corresponding wires on the Console.
Insert all excess wiring down into the Upright
(2). Attach the Console (8) to the Console Bracket
(3) with four M4 x 16mm Screws (82). Be careful to
avoid pinching and damaging the Pulse Sensor
Wire (14) and the Upper Wire Harness (15).
3
2
Console
Wires
8
82
82
8
Hole
4
2
3
14
93
72
14
15
8
Battery
Cover
Batteries
6

8
10. Apply a small amount of grease to the axle on the
left Crank Arm (40).
Identify the Left Pedal Leg (28), which is marked
with a decal. Slide the Left Pedal Leg onto the axle
on the left Crank Arm (40). Slide a Wave Washer
(91) and a Large M8 Washer (70) onto an M8 x
25mm Patch Screw (73), and tighten the Patch
Screw into the axle. Make sure that the Wave
Washer is on the end of the axle before tightening
the Patch Screw.
Snap a Pedal Cushion (74) around the Left Pedal Leg
(28) onto a Cushion Bracket (46). Make sure that the
arrow on the Pedal Cushion is pointing to one of the
numbers on the Left Pedal Leg and that the number
shows through the window in the Cushion Bracket.
Assemble the Right Pedal Leg (not shown) in the
same way.
11. Identify the Left Pedal Arm (33), which is marked
with a decal. Attach the Left Pedal (35) to the Left
Pedal Arm with two M6 x 20mm Patch Screws (75)
as shown.
Attach the Right Pedal (not shown) to the Right
Pedal Arm (not shown) in the same way.
28
40
Grease
70
73
74
91
46
Window
10
9. Insert the Pivot Axle (21) into the Upright (2), and
center the Pivot Axle. Apply a generous amount of
the included grease to both ends of the Pivot Axle
and to the flat side of an Upright Bushing (20).
Identify the Left Upper Body Arm (5), which is
marked with a decal. Insert the Upright Bushing (20)
into an Upright Spacer (19). Turn the Upright
Spacer so that the semicircular cutout is at the top,
and slide the Upright Spacer onto the post on the
Left Upper Body Arm.
Slide the Left Upper Body Arm (5) onto the Pivot
Axle (21). Attach a Pivot Spacer (17) to the Left
Upper Body Arm with an M4 x 16mm Screw (82).
Turn a Pivot Endcap (16) so that the rectangular
cutout is at the bottom. Using a rubber mallet, tap
the Pivot Endcap into the Pivot Spacer.
Slide a Small M8 Washer (71) onto an M8 x 19mm
Shoulder Screw (86), and finger tighten the Shoulder
Screw into the Pivot Axle (21).
Attach the Right Upper Body Arm (6) in the
same manner. Tighten both M8 x 25mm Patch
Screws (73).
19
17
16
82
86
71 6
Grease
Post
521
20
2
9
11
75
35
33

9

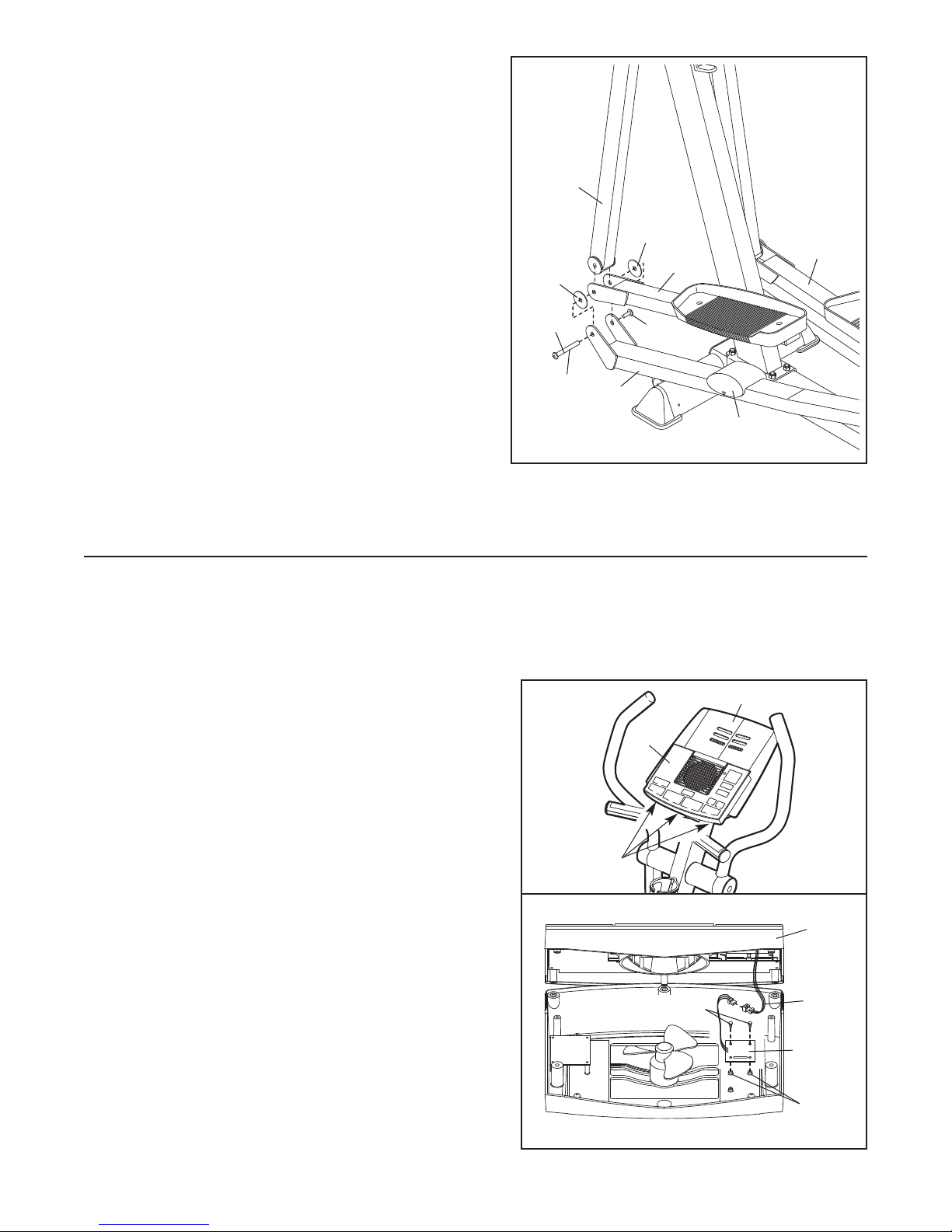

HOW TO INSTALL THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
The elliptical exerciser is now fully assembled. If you purchase the optional chest pulse sensor (see
page 21), follow the steps below to install the receiver included with the chest pulse sensor.
1. See assembly step 7 on page 7, and remove the two
M4 x 25mm Screws (not shown) and the Bookrack (7).
Next, look under the Console (8) and locate the three
indicated screws (not shown). Remove the three
screws. Do not remove the screws attaching the
Console to the Console Bracket (not shown).
2. Carefully lift the top of the Console (8) as shown. Using
the two small screws included with the chest pulse sen-
sor, attach the receiver to the indicated plastic posts on
the Console. Make sure that the receiver is turned
exactly as shown. Connect the wire on the receiver to
the indicated wire on the Console.
See step 1 above. Lower the top of the Console (8).
Make sure that no wires are pinched. Reattach the
top of the Console with the three screws removed in
step 1. See assembly step 7 on page 7, and reattach
the Bookrack (7) with the two M4 x 25mm Screws (not
shown). Note: The remaining wires included with the
chest pulse sensor may be discarded.
Posts
Wire
7
8
8
1
Receiver
2
Screws
13. Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: Some
hardware may be left over after assembly is completed.
12. Set the Left Pedal Arm (33) on the left Pedal Cushion
(74), and hold the end of the Left Pedal Arm inside of
the bracket on the Left Pedal Leg (28).
Hold a Plastic Pedal Arm Spacer (65) between the
Left Pedal Leg (28) and the Left Pedal Arm (33).
Insert the long part of a Bolt Set (67) through the Left
Pedal Leg, the Plastic Pedal Arm Spacer, and the
Left Pedal Arm.
Apply a film of the included grease to the long part of
the Bolt Set (67). Lift the Left Pedal Leg (28), and
hold the lower end of the Left Upper Body Arm (5)
inside of the bracket on the Left Pedal Arm (33).
Insert the long part of the Bolt Set through the Left
Upper Body Arm. Hold another Plastic Pedal Arm
Spacer (65) between the Left Pedal Arm and the Left
Pedal Leg, and insert the long part of the Bolt Set
through these parts. Tighten the short part of the Bolt
Set into the long part.
Attach the Right Pedal Arm (32) in the same way.
65
65
33 32
28
67 67
74
5
Grease
12
Screws

10

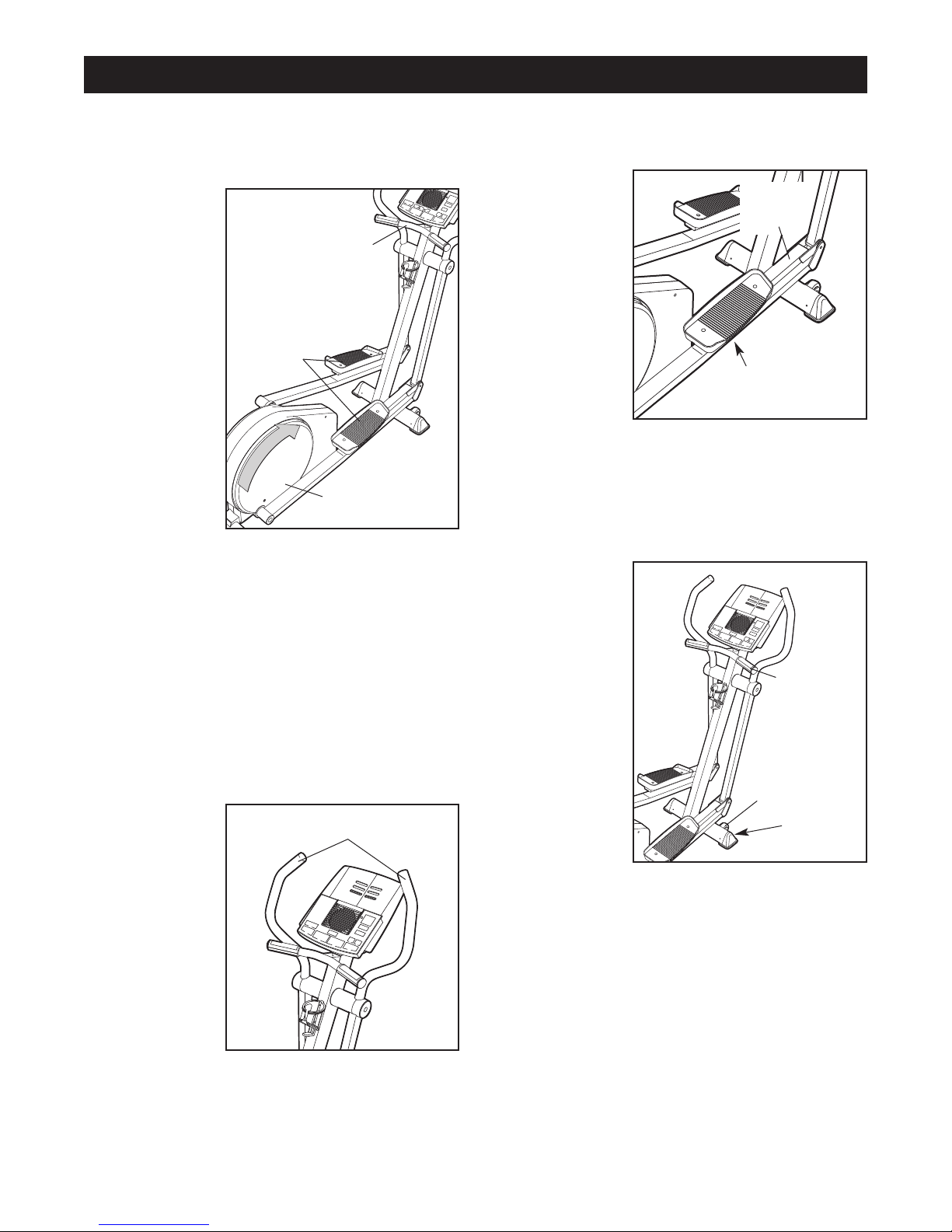

ELLIPTICAL EXERCISER OPERATION
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the
elliptical exer-
ciser, hold the
handlebar and
step onto the
pedal that is in
the lowest posi-
tion. Then, step
onto the other
pedal. Push the
pedals until
they begin to
move with a
continuous
motion. Note:
The pedal
disks can turn
in either direc-
tion. It is rec-
ommended
that you move the pedal disks in the direction
shown by the arrow; however, for variety, you can
turn the pedal disks in the opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
HOW TO USE THE UPPER BODY ARMS
To add upper-
body exercise
to your work-
outs, push and
pull the upper
body arms as
you exercise.
To exercise
only your lower
body, hold the
handlebar as
you exercise.
HOW TO ADJUST THE PEDAL CUSHIONS
The feel of the
pedals is affect-
ed by the posi-
tions of the
pedal cushions.
The farther back
the pedal cush-
ions are placed,
the firmer the
pedals will feel.
To move the
pedal cushions,
lift the pedal
arms and slide
the pedal cush-
ions to the desired positions. Make sure that both
pedal cushions are in the same position.
HOW TO MOVE AND LEVEL THE ELLIPTICAL
EXERCISER
Stand in front of
the elliptical
exerciser, hold
the handlebar
firmly, and tip
the elliptical
exerciser until it
can be moved
on the front
wheels.
Carefully move
the elliptical
exerciser to the
desired location
and then lower
it. Due to the
weight of the
elliptical exer-
ciser, use extreme caution when moving it.
After the elliptical exerciser has been moved, make
sure that the ends of both stabilizers are touching the
floor. If the elliptical exerciser rocks slightly during use,
turn one or both of the leveling feet under the front sta-
bilizer until the rocking motion is eliminated.
Pedals
Pedal Disk
Handlebar
Upper Body Arms
Pedal Cushion
(under the pedal)
Leveling
Foot
Wheel
Handlebar
Pedal
Arm

11

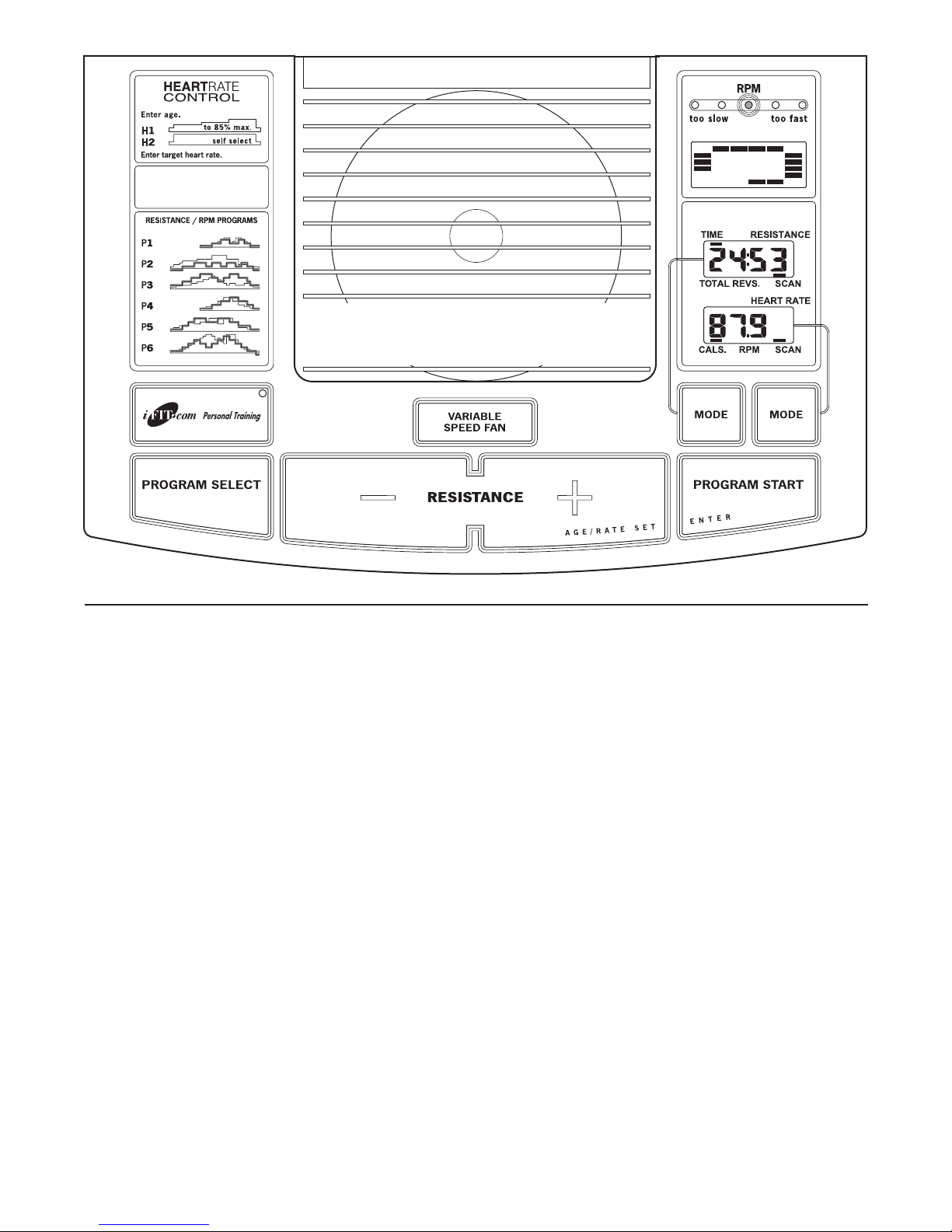

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor. Note: See page 21 for information
about an optional chest pulse sensor.
The console also offers six preset programs. Each pro-
gram automatically changes the resistance of the ped-
als and prompts you to increase or decrease your pace
as it guides you through an effective workout.
In addition, the console features two heart rate pro-
grams that automatically change the resistance of the
pedals and prompt you to vary your pace to keep your
heart rate near a target heart rate as you exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com interactive technology is like hav-
ing a personal trainer in your home. Using the included
audio cable, you can connect the elliptical exerciser to
your home stereo, portable stereo, computer, or VCR
and play special iFIT.com CD and video programs
(iFIT.com CDs and videocassettes are available sepa-
rately). iFIT.com CD and video programs automatically
control the resistance of the pedals and prompt you to
vary your pace as a personal trainer coaches you
through every step of your workout. High-energy music
provides added motivation. To purchase iFIT.com CDs
and videocassettes, call toll-free 1-877-994-4999.
With the elliptical exerciser connected to your comput-
er, you can also go to our Web site at www.iFIT.com
and access programs directly from the internet.
Explore www.iFIT.com for more information.
To use the manual mode of the console, see page
12. To use a preset program, see page 14. To use a
heart rate program, see page 15. To use an
iFIT.com CD or videocassette, see page 20. To use
a program directly from our Web site, see page 21.
Note: If there is a sheet of clear plastic on
the face of the console, remove the plastic.

12
HOW TO USE THE MANUAL MODE
Begin pedaling to activate the console.
To activate the console, begin pedaling or push
any button on the console. After a few seconds,
the console displays will light. A tone will then
sound and the console will be ready for use.
Select the manual mode.
When the power is
turned on, the
manual mode will
be selected. If you
have selected a
program or the
iFIT.com mode,
select the manual mode by pressing the Program
Select button repeatedly until a track appears in
the matrix.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal,
change the resis-
tance of the ped-
als by pressing the
Resistance but-
tons. There are
ten resistance lev-
els. Note: After the buttons are pressed, it will
take a moment for the pedals to reach the select-
ed resistance level.
Monitor your progress with the matrix and the
two displays.
The matrix—
When the manual
mode or the
iFIT.com mode is
selected, the
matrix will show a
track representing
1/4 mile. As you exercise, the indicators around
the track will light, one at a time, until the entire
track is lit. The track will then darken and a new
lap will begin.
The upper
display—The
upper display will
show the elapsed
time and the total
number of revolu-
tions you have ped-
aled. The display will change from one number to
the next every few seconds, as shown by the indi-
cators in the display. Note: When a program is
selected, the display will show the time remaining
in the program instead of the elapsed time. Each
time the resistance of the pedals changes, the
display will show the resistance level.
If desired, you can
select a single
mode for continu-
ous display. Press
the left Mode button
repeatedly until the
desired mode indi-
cator is lit; make sure that the Scan indicator is
not lit.
The lower
display—The lower
display will show
the approximate
number of calories
you have burned
and your pedaling
pace, in revolutions per minute (RPM). The dis-
play will change from one number to the next
every few seconds, as shown by the indicators in
the display. The display will also show your heart
rate when you use the handgrip pulse sensor or
the optional chest pulse sensor.
If desired, you can select a single mode for con-
tinuous display. Press the right Mode button
repeatedly until the desired mode indicator is lit;
make sure that the Scan indicator is not lit.
4
3
2
1

13
Measure your heart rate if desired.
You can measure your heart rate using either
the handgrip pulse sensor or the optional
chest pulse sensor. Note: If you hold the
handgrip pulse sensor and wear the chest
pulse sensor at the same time, the console
will not display your heart rate accurately.
If there are
thin sheets of
plastic on the
metal con-
tacts on the
handgrip
pulse sensor,
peel off the
plastic. To
measure your
heart rate, hold the contacts; your palms must be
resting on the contacts closest to you, and your
fingers must be touching the opposite contacts.
Avoid moving your hands.
When your pulse
is detected, the
heart-shaped indi-
cator in the lower
display will flash
each time your
heart beats, and
your heart rate will be shown. For the most accu-
rate heart rate reading, hold the contacts for at
least 15 seconds.
Note: If you continue to hold the pulse sensor, the
lower display will show your heart rate for up to
30 seconds. The display will then show your heart
rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance,
periodically clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemicals.
Turn on the fan if desired.
To turn on the fan at low speed, press the
Variable Speed Fan button. To turn on the fan at
high speed, press the button a second time. To
turn off the fan, press the button a third time.
Note: If the fan is turned on but the pedals are not
moved for thirty seconds, the fan will automatical-
ly turn off.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds, a
tone will sound, the console will pause, and the
upper display will begin to flash.
If the pedals are not moved for about five min-
utes, the console will turn off and the displays will
be reset.
7
6
5
Contacts

14
HOW TO USE PRESET PROGRAMS
Begin pedaling to activate the console.
See step 1 on page 12.
Select one of the six preset programs.
When the power is
turned on, the
manual mode will
be selected. To
select a preset
program, press the
Program Select
button repeatedly until “P1,” “P2,” “P3,” “P4,”
“P5,” or “P6” appears in the lower display.
When a preset program is selected, the matrix
will show the first six resistance settings of the
program.
Press the Program Start button or begin
pedaling to start the program.
Each program is divided into several time seg-
ments of different lengths. One resistance setting
is programmed for each segment. (The same
resistance setting may be programmed for two or
more consecutive segments.)
The resistance
setting for the first
segment will be
shown in the flash-
ing Current
Segment column
of the matrix. The
resistance settings
for the next five
segments will be shown in the columns to the
right.
When only three seconds remain in the first seg-
ment of the program,a series of tones will sound;
all resistance settings will then move one column
to the left. The resistance setting for the second
segment will then be shown in the flashing
Current Segment column and the resistance of
the pedals will automatically change to the resis-
tance setting for the second segment.
The program will continue until the resistance set-
ting for the last segment is shown in the Current
Segment column of the matrix and no time
remains in the program.
Note: During the program, you can override the
resistance setting for the current segment by
pressing the Resistance buttons. However, when
the next segment begins, the resistance will auto-
matically change if a different resistance setting is
programmed for the next segment. If you stop
pedaling for several seconds, a tone will sound
and the program will pause. To restart the pro-
gram, simply resume pedaling.

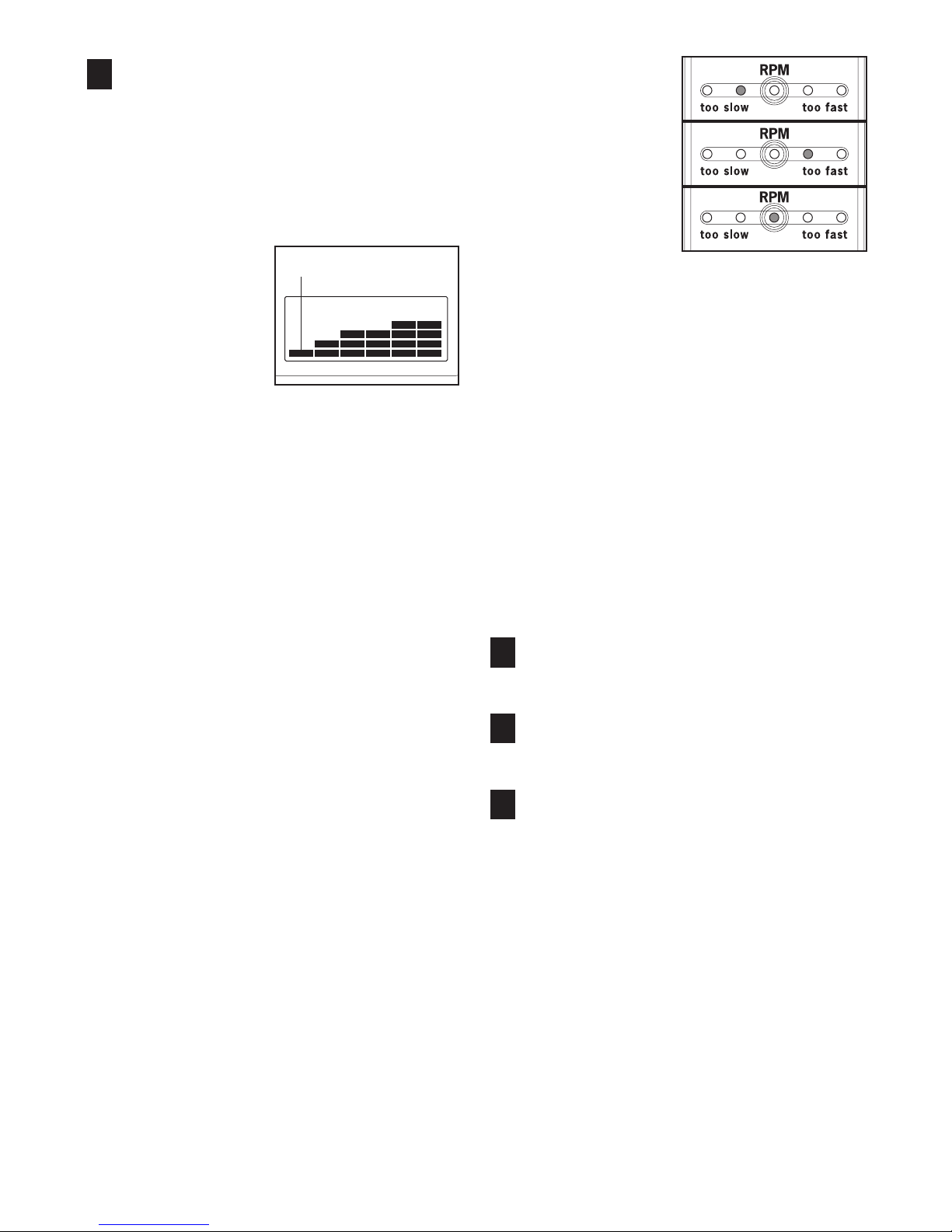

Use the pace (RPM) guide.
During preset pro-
grams, the pace
guide will prompt
you to increase or
decrease your ped-
aling pace. When
one of the indica-
tors on the left side
of the pace guide
lights, increase
your pace; when
one of the indica-
tors on the right side lights, decrease your pace.
When the center indicator lights, maintain your
current pace. Important: The pace settings of
the program are intended only to provide a
goal. Make sure to pedal at a pace that is
comfortable for you.
Monitor your progress with the two displays.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 13.
8
7
6
5
4
3
2
1
Current Segment

15
HOW TO USE HEART RATE PROGRAMS
Heart rate program 1 is designed to keep your heart
rate between 60% and 85% of your estimated maxi-
mum heart rate while you exercise. Note: Your maxi-
mum heart rate is estimated by subtracting your age
from 220. For example, if you are 30 years old, your
estimated maximum heart rate is 190 (220 – 30 =
190).
Heart rate program 2 will keep your heart rate near a
target heart rate that you select.
Follow the steps below to use a heart rate program.
Begin pedaling to activate the console.
See step 1 on page 12.
Select one of the heart rate programs.
To select a heart
rate program,
press the Program
Select button
repeatedly until
“H1” or “H2”
appears in the
lower display.
If you selected
heart rate program
1, the matrix will
show the first eight
target heart rate
settings of the pro-
gram.
If you selected
heart rate program
2, a heart symbol
will appear in the
matrix.
If you selected heart rate program 1, go to
step 3. If you selected heart rate program 2,
go to step 4.
Enter your age.
When heart rate
program 1 is
selected, you must
enter your age. If
you have already
entered your age,
press the Enter
(Program Start)
button and go to
step 5. If you have
not entered your
age, press the + or
– button repeatedly to enter your age, and then
press the Enter button. Note: Once you have
entered your age, it will be saved in memory.
Enter a target heart rate.
When heart rate
program 2 is
selected, you must
enter a target heart
rate. (See the heart
rate chart on page
23 for heart rate
guidelines.) To
enter a target heart
rate, press the + or
– button repeated-
ly, and then press
the Enter button.
Hold the handgrip pulse sensor or wear the
optional chest pulse sensor.
To use a heart rate program, you must hold the
handgrip pulse sensor or wear the optional chest
pulse sensor. If you use the handgrip pulse sen-
sor, it is not necessary to hold the handgrips con-
tinuously during the program. However, you
should hold the handgrips frequently for the pro-
gram to operate properly. Each time you hold
the handgrips, keep your hands on the metal
contacts for at least 30 seconds. Note: When
you are not holding the handgrips, the letters
“PLS” will appear in the lower display instead of
your heart rate.
5
4
3
2
1

16
Begin pedaling.
Each heart rate program is divided into 30 one-
minute segments. One target heart rate is pro-
grammed for each segment. Note: The same tar-
get heart rate may be programmed for two or
more consecutive segments. If heart rate pro-
gram 2 is selected, the same target heart rate is
programmed for all segments.
If heart rate pro-
gram 1 is select-
ed, the target
heart rate setting
for the first seg-
ment will be
shown in the
flashing Current
Segment column
of the matrix. The target heart rate settings for the
next seven segments will be shown in the
columns to the right. When only three seconds
remain in the first segment of the program, both
the Current Segment column and the column to
the right will flash, a series of tones will sound,
and the time will flash in the right display. When
the first segment ends, all target heart rate set-
tings will move one column to the left. The target
heart rate setting for the second segment will
then be shown in the flashing Current Segment
column.
If heart rate program 2 is selected, the same
target heart rate is programmed for all segments;
therefore, the target heart rate settings will not be
shown in the matrix. When only three seconds
remain in the first segment of the program, a
series of tones will sound and the time will flash
in the right display.
As you pedal, the console will regularly compare
your heart rate to the target heart rate. If your
heart rate is too far below or above the target
heart rate, the resistance of the pedals will auto-
matically increase or decrease to being your heart
rate closer to the target heart rate.
The pace guide
will help you to
maintain a con-
stant pace during
the program. When
one of the indica-
tors on the left side
of the pace guide
lights, increase
your pace; when
one of the indica-
tors on the right
side lights, decrease your pace. When the center
indicator lights, maintain your current pace.
Important: The pace settings of the program
are intended only to provide a goal. Make
sure to pedal at a pace that is comfortable for
you.
The program will continue until no time remains
in the right display.
Note: During the program, you can manually
change the resistance setting, if desired, by
pressing the Resistance buttons. However, when
the console compares your heart rate to the tar-
get heart rate, the resistance may automatically
change. If you stop pedaling for several seconds,
a tone will sound and the program will pause. To
restart the program, simply resume pedaling.
Monitor your progress with the two displays.
See step 4 on page 12.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the con-
sole will automatically turn off.
See step 7 on page 13.
9
8
7
6
Current Segment

17
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
17 and 18 for connecting instructions. To use iFIT.com
videocassettes, the elliptical exerciser must be con-
nected to your VCR. See page 19 for connecting
instructions. To use iFIT.com programs directly from
our Web site, the elliptical exerciser must be connect-
ed to your home computer. See page 18 for connect-
ing instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable
into the adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo. Do
not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable
Head-
phones
A
PHONES
PHONES
Audio
Cable
1/8”
Y-adapter
Headphones
B
AUDIO OUT
RIGHT
LEFT
PHONES
Audio
Cable
C
1/8”
Y-adapter
Headphones
Audio Cable
Adapter
A, B

18
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable Adapter
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
LINE OUT
Audio
Cable
A
PHONES
Audio
Cable
B
1/8”
Y-adapter
Headphones/Speakers

19
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 18.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the AUDIO OUT jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable
Adapter
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter

20
To use iFIT.com CDs or videocassettes, the elliptical
exerciser must be connected to your portable CD play-
er, portable stereo, home stereo, computer with CD
player, or VCR. See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on pages 17 to 19.
To purchase iFIT.com CDs and videocassettes, call
toll-free 1-877-994-4999.
Follow the steps below to use an iFIT.com CD or
video program.
Begin pedaling to activate the console.
See step 1 on page 12.
Select the iFIT.com mode.
When the console is
turned on, the man-
ual mode will be
selected. To select
the iFIT.com mode,
press the iFIT.com
button. The indicator
on the button will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
Amoment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a preset program (see steps 3 and 4 on page
14). However, an electronic “chirping” sound will
alert you when the resistance of the pedals and/or
the target pace is about to change.
Note: If the resistance of the pedals and/or the
target pace does not change when a “chirp” is
heard:
• Make sure that the indicator above the
iFIT.com button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Monitor your progress with the two displays.
See step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 13.
Turn on the fan if desired.
See step 6 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 13.
8
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
