Reebok RL 645 RBEL79740 User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. RBEL79740
Serial No. _
Serial Number Decal
(underneath frame)
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-877-994-4999
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
Patent Pending
Visit our website at
www.reebokhomefitness.com
new products, prizes,
fitness tips, and much more!

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ELLIPTICAL EXERCISER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
TABLE OF CONTENTS
REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is
manufactured and distributed under license from Reebok International.

3
1. Read all instructions in this manual before
using the elliptical exerciser.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
in-home use only. Do not use the elliptical
exerciser in a commercial, rental, or institu-
tional setting.
4. Place the elliptical exerciser on a level sur-
face, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothes when
using the elliptical exerciser. Always wear
athletic shoes for foot protection.
9. Keep your back straight when using the ellip-
tical exerciser; do not arch your back.
10. Always hold the handlebars or the upper
body arms when mounting, dismounting, or
using the elliptical exerciser.
11. If you feel pain or dizziness at any time
while exercising, stop immediately and cool
down.
12. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
13. When you stop exercising, allow the pedals
to slowly come to a stop. The elliptical exer-
ciser does not have a free wheel; the pedals
will continue to move until the flywheel
stops.
14. Always unplug the power cord immediately
after use and before cleaning the elliptical
exerciser.
15. The decals shown on page 4 have been
placed on the elliptical exerciser. If a decal
is missing or illegible, please call our
Customer Service Department toll-free at
1-877-994-4999 and order a free replacement
decal. Apply the decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob-
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.

4
Congratulations for selecting the new REEBOK®RL
645 elliptical exerciser. The RL 645 is an incredibly
smooth exerciser that moves your feet in a natural
elliptical path, minimizing the impact on your knees
and ankles. And the unique RL 645 features
adjustable resistance and incline to help you get the
most from your exercise. Welcome to a whole new
world of natural, elliptical-motion exercise from
REEBOK.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please call our
Customer Service Department toll-free at 1-877-994-
4999, Monday through Friday, 6 a.m. until 6 p.m.
Mountain Time (excluding holidays). To help us assist
you, please note the product model number and serial
number before calling. The model number is
RBEL79740. The serial number can be found on a
decal attached to the elliptical exerciser (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Pulse Sensor
Upper Body Arm
BACK
RIGHT SIDE
Power Receptacle
Wheel
Pedal
Fan
Console
Ramp
Book Rack
Upright
Pedal Leg
Leveling Foot
LEFT SIDE
BEFORE YOU BEGIN

5

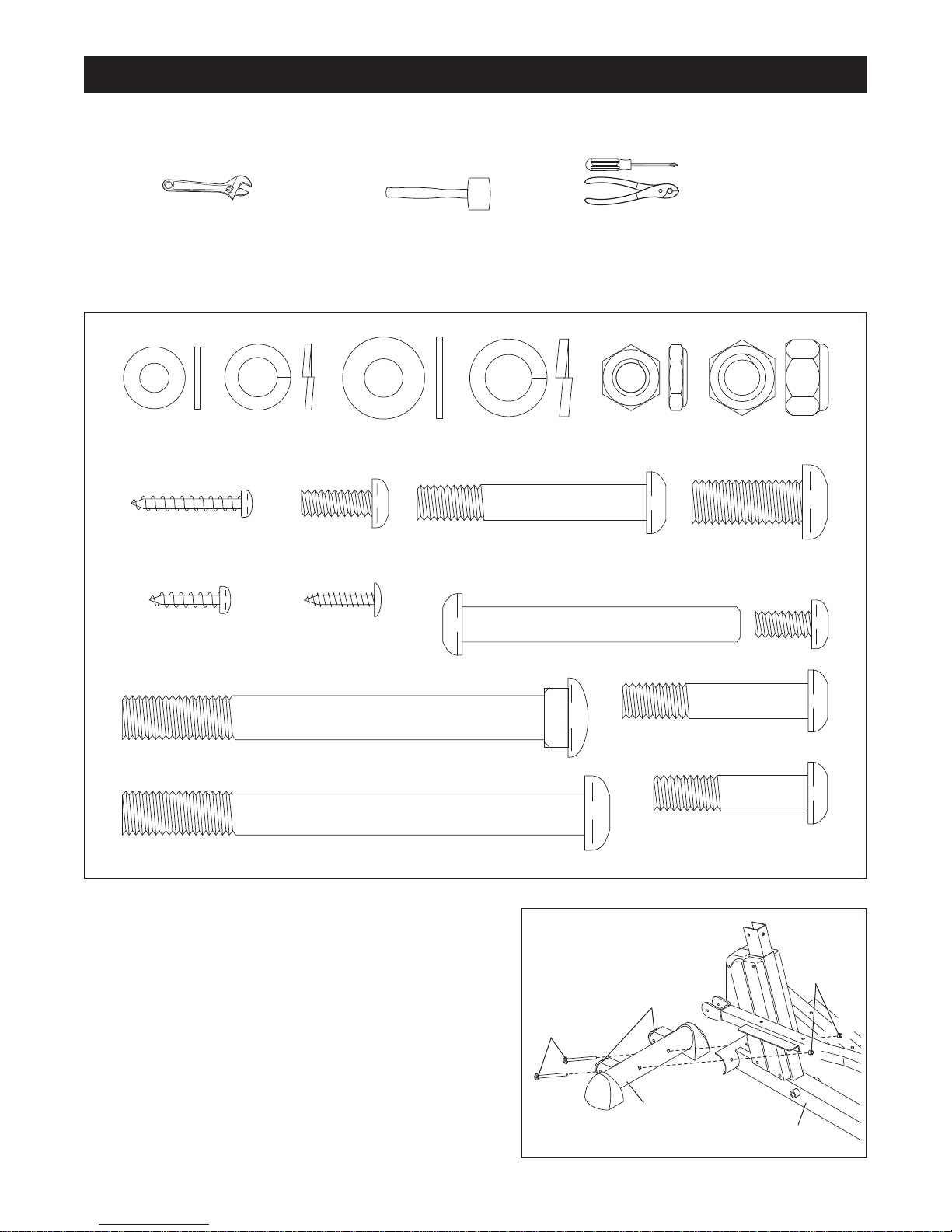

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , two adjustable
wrenches , a rubber mallet , and pliers .
As you assemble the elliptical exerciser, use the drawings below to identify the small parts used for assembly.
The number in parenthesis below each drawing is the key number of the part, from the PART LIST on pages 24
and 25. The number following the key number is the quantity used for assembly. Note: Some small parts may
have been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.
M10 x 92mm Carriage Bolt (124)–2
M6 Washer
(102)–2
M10 x 25mm Button
Screw (123)–3
M8 Washer
(132)–4
M8 x 35mm Button
Bolt (117)–2
M8 x 42mm Button
Bolt (116)–4
M4 x 16mm
Screw (99)–4
M8 Jam Nut
(91)–6
M10 Split
Washer (118)–3
M10 x 105mm Button Screw (89)–2
M4 x 16mm Round
Head Screw (125)–1
M6 x 16mm Button
Screw (103)–4
Bolt Set (101)–2
M10 Nylon
Locknut (90)–2
M8 x 52mm Button
Bolt (100)–4
M8 Split
Washer (122)–4
M4 x 25mm Round
Head Screw (115)–2

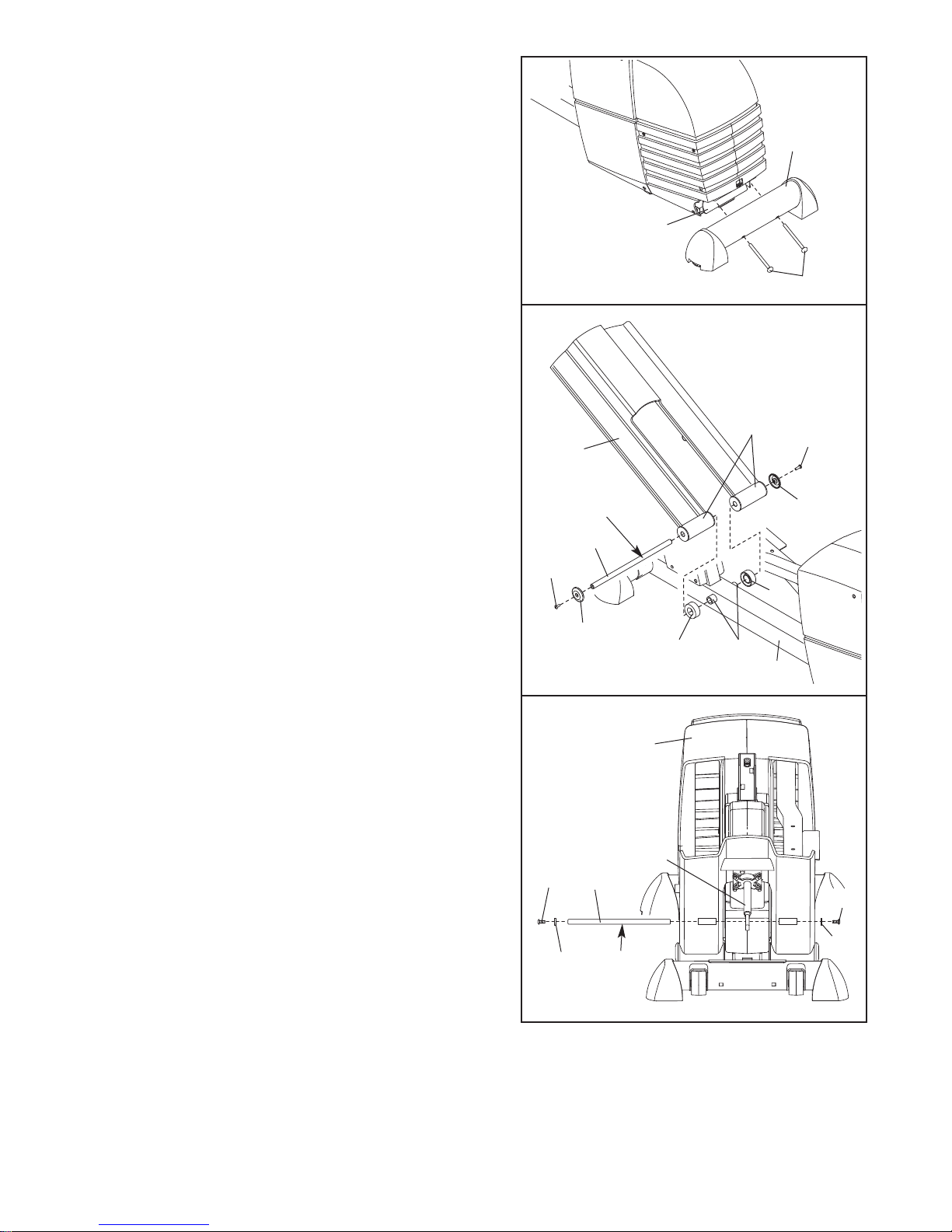

1. Identify the Front Stabilizer (29), which has Wheels (44)
attached to the front. While another person lifts the
front of the Frame (1), attach the Front Stabilizer to the
Frame with two M10 x 92mm Carriage Bolts (124) and
two M10 Nylon Locknuts (90).
1
29
44
1
124
90
ASSEMBLY

6
33
39
1
Grease
103
41
41
103
40
40 Tubes
3. Identify the Ramp Axle (39), which is the longest axle.
Next, identify the Ramp Axle Covers (41), which are
smaller than the Wheel Covers (not shown). Slide a
Ramp Axle Cover onto an M6 x 16mm Button Screw
(103) as shown. Tighten the Button Screw into one
end of the Ramp Axle. Apply a small amount of the
included grease to the Ramp Axle.
Have a second person hold the two Ramp Bushings
(40) against the indicated tubes on the Frame (1).
Align the tubes on the Ramp (33) with the Ramp
Bushings; make sure that the Ramp is turned as
shown. Insert the open end of the Ramp Axle (39) into
the Ramp, the Ramp Bushings, and the Frame. If nec-
essary, tap the Ramp Axle with a rubber mallet to
insert it.
Slide the other Ramp Axle Cover (41) onto an M6 x
16mm Button Screw (103) as shown. Tighten the
Button Screw into the open end of the Ramp Axle (39).
Tubes
4
4. Slide an M6 Washer (102) onto an M6 x 16mm Button
Screw (103). Tighten the Button Screw into one end of
the Lift Axle (38). Apply a small amount of grease to
the Lift Axle.
Raise the Ramp (33). Insert the Lift Axle (38) into the
welded tube under one side of the Ramp, through the
motor screw, and then into the welded tube under the
other side of the Ramp. As you insert the Incline
Axle through the motor screw, make sure that the
motor screw does not turn.
Slide an M6 Washer (102) onto an M6 x 16mm Button
Screw (103). Tighten the Button Screw into the open
end of the Lift Axle (38).
38
Grease
Motor
Screw
102
103
33
102
103
3
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (30) to the Frame with two
M10 x 105mm Button Screws (89).
30
1
89
2

7
100
122 132
48
6. Identify the Left Pedal (48), which is marked with an
“L.” Attach the Left Pedal to the Left Pedal Leg (46)
with two M8 x 52mm Button Bolts (100), two M8 Split
Washers (122), and two M8 Washers (132).
Attach the Right Pedal (not shown) to the Right
Pedal Leg (not shown) in the same way.
5. Hold a Ramp Wheel (50) inside of the bracket on one
of the Chrome Tubes (45). Hold the Chrome Tube and
the Ramp Wheel inside of the bracket on the Left
Pedal Leg (46). Slide a Wheel Cover (51) onto the
long part of a Bolt Set (101), and insert the Bolt Set
into the Left Pedal Leg, the Chrome Tube, and the
Ramp Wheel.
Slide a Wheel Cover (51) onto the short part of the
Bolt Set (101). Then, tighten the short part of the Bolt
Set into the long part.
Attach the other Chrome Tube (not shown) and the
other Ramp Wheel (not shown) to the right side of
the elliptical exerciser in the same way.
6
7
118
2
18
123
531
7. Have another person hold the Upright (2) in the posi-
tion shown. Make sure that the Upright is turned so
that the three holes are aligned with the holes in
the Frame (1).
Connect the Upper Wire Harness (18) to the Lower
Wire Harness (53). Carefully pull the upper end of
the Upper Wire Harness to remove the slack from
the Wire Harnesses. Slide the Upright (2) onto the
Frame (1). Be careful to avoid pinching the Wire
Harnesses. Attach the Upright to the Frame with three
M10 x 25mm Button Screws (123) and three M10 Split
Washers (118).
50
45
101
101
51
46
5
51
46
132
122
123
118
118

8
45
Lubricate

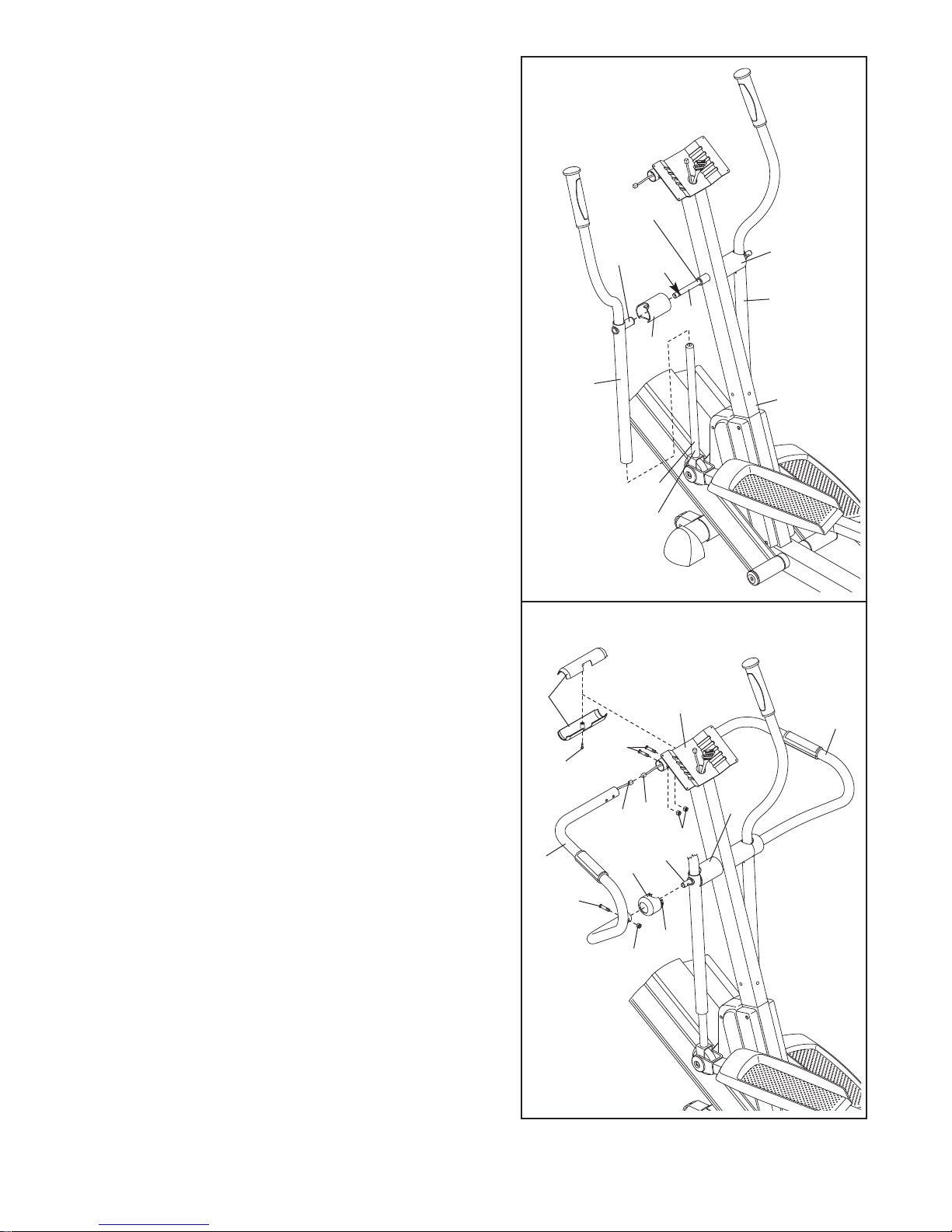

8. Apply a small amount of the included Teflon®lubricant
to a paper towel. Rub a thin film of the lubricant onto
each Chrome Tube (45).
Identify the Left Upper Body Arm (9), which is marked
with an “L.” Slide the Left Upper Body Arm onto the left
Chrome Tube (45). Slide the Right Upper Body Arm
(10) onto the right Chrome Tube (not shown). Make
sure that the Upper Body Arms are on the correct
sides. Next, slide an Upper Body Cover (15) onto the
post on each Upper Body Arm.
Apply grease to the Pivot Axle (16). Insert the Pivot
Axle into the Upright (2), the right Upper Body Cover
(15), and the Right Upper Body Arm (10). Next, push
the Pivot Axle into the Upright until the left end of the
Pivot Axle is flush with the left side of the Upright.
Then, raise the Left Upper Body Arm (9), and insert
the Pivot Axle into the left Upper Body Cover and the
Left Upper Body Arm. Center the Pivot Axle and rotate
it so the indicated hole is in the position shown.
8
Hole
Grease
Post
9
10
15
15
16
2
9
Tab
116
8
15
7
11 17
12
117
91
16 91
2
9. Have another person hold the Left Handlebar (7) near
the Upright (2) as shown. Connect the left Pulse
Sensor Wire (11) to the Pulse Extension Wire (17).
Slide a Handlebar Cap (12) onto the lower end of the
Left Handlebar.
Slide the upper end of the Left Handlebar (7) into the
tube on the front of the Upright (2), while sliding the
lower end of the Left Handlebar onto the Pivot Axle
(16). Attach the upper end of the Left Handlebar with
two M8 x 42mm Button Bolts (116) and two M8 Jam
Nuts (91); be careful not to damage the Wires (11,
17) as you insert the Button Bolts. Make sure that
the Jam Nuts are resting in the hexagonal holes in
the tube on the front of the Upright. Attach the lower
end of the Left Handlebar with an M8 x 35mm Button
Bolt (117) and an M8 Jam Nut (91). Press the tabs on
the Handlebar Cap (12) into the left Upper Body Cover
(15).
Attach the Right Handlebar (8) to the Upright (2) in the
same way.
Hold the halves of the Upper Handlebar Cover (5)
around the tube on the front of the Upright (2). Attach
the Upper Handlebar Cover with an M4 x 16mm Round
Head Screw (125); be careful not to damage the
Wires (11, 17).
5
125

9
12.Plug the Power Cord (83) into the Power Receptacle
(82) at the rear of the elliptical exerciser.
83
82
11.Have another person hold the Console (3) near the
Upright (2).
Connect the Upper Wire Harness (18) to the wire har-
ness on the Console (3). Connect the Pulse Extension
Wire (17) to the pulse wire on the Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (3) to the Upright with four M4
x 16mm Screws (99). Be careful to avoid pinching
the wires.
Do not pinch
the wires
during this step.
3
2
99
99
18
17
11
13.Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.
10.Attach the Book Rack (4) to the Console (3) with two
M4 x 25mm Round Head Screws (115). 10 4
115
3
12

10
HOW TO PLUG IN THE POWER CORD
This product
must be
grounded.
If it should
malfunction
or break
down,
grounding
provides a
path of least
resistance for
electric
current to reduce the risk of electric shock. This prod-
uct is equipped with a cord having an equipment-
grounding conductor and a grounding plug. Plug the
power cord into an appropriate outlet that is prop-
erly installed and grounded in accordance with all
local codes and ordinances. This product is for
use on a nominal 120-volt circuit. Important: The
elliptical exerciser is not compatible with GFCI-
equipped outlets.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown at
the right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a quali-
fied electrician to determine if the outlet box cover
is grounded before using an adapter.
EXERCISING ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. The elliptical exerciser
does not have a free wheel; the pedals will contin-
ue to move until the flywheel stops. When the ped-
als are stationary, step off the highest pedal first.
Then, step off the lowest pedal.
DANGER:Improper connection of
the equipment-grounding conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product is
properly grounded. Do not modify the plug
provided with the product—if it will not fit the
outlet, have a proper outlet installed by a qual-
ified electrician.
Grounded Outlet Box
Grounding Plug
Grounded Outlet
Grounding Pin
Grounded Outlet Box
Adapter
LugMetal Screw
Pedals
Handlebar
ELLIPTICAL EXERCISER OPERATION

11

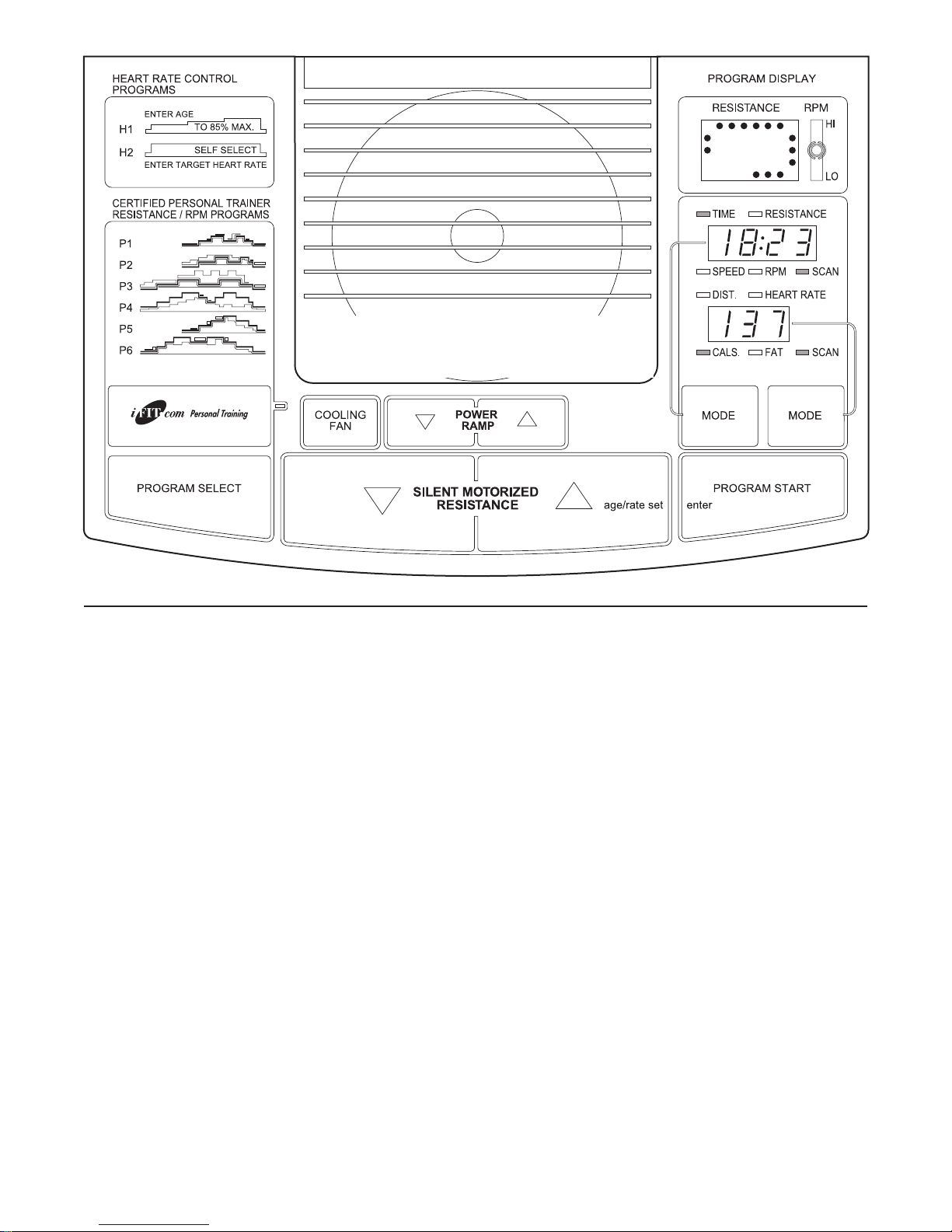

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor.
The console also offers six preset programs. Each pro-
gram automatically changes the resistance of the ped-
als and prompts you to increase or decrease your pace
as it guides you through an effective workout.
In addition, the console features two heart rate pro-
grams that automatically change the resistance of the
pedals and prompt you to vary your pace to keep your
heart rate near a target heart rate as you exercise.

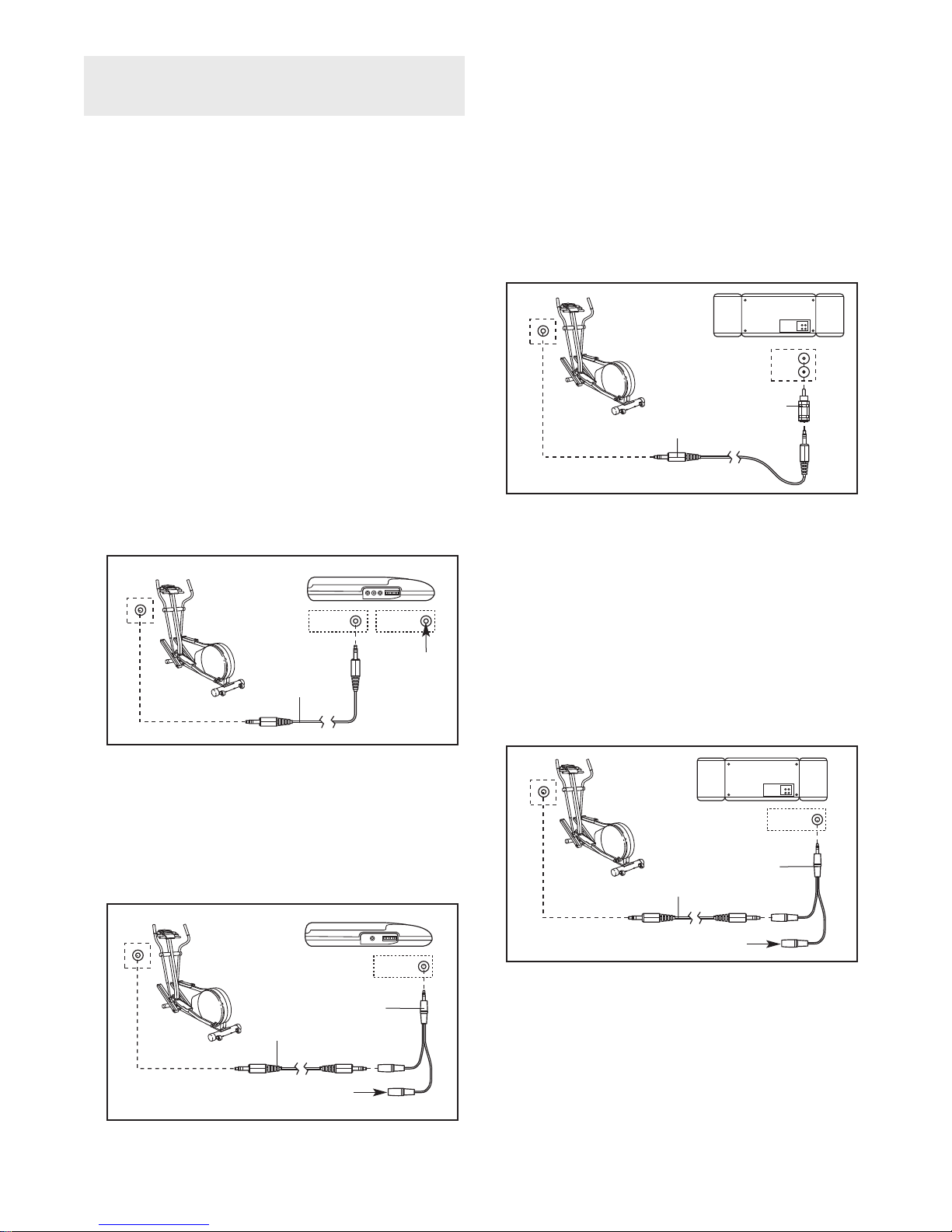

The console also features iFIT.com interactive technol-
ogy. Having iFIT.com interactive technology is like hav-
ing a personal trainer in your home. Using the included
audio cable, you can connect the elliptical exerciser to
your home stereo, portable stereo, computer, or VCR
and play special iFIT.com CD and video programs
(iFIT.com CDs and videocassettes are available sepa-
rately). iFIT.com CD and video programs automatically
control the resistance of the pedals and prompt you to
vary your pace as a personal trainer coaches you
through every step of your workout. High-energy music
provides added motivation. To purchase iFIT.com CDs
and videocassettes, call toll-free 1-877-994-4999.
With the elliptical exerciser connected to your comput-
er, you can also go to our Web site at www.iFIT.com
and access programs directly from the internet.
Explore www.iFIT.com for more information.
To use the manual mode of the console, see page
12. To use a preset program, see page 14. To use a
heart rate program, see page 15. To use an
iFIT.com CD or videocassette, see page 20. To use
a program directly from our Web site, see page 21.
Note: If there is a sheet of clear plastic on
the face of the console, remove the plastic.

12
HOW TO USE THE MANUAL MODE
Begin pedaling to activate the console.
To activate the console, begin pedaling or push
any button on the console. After a few seconds,
the console displays will light. A tone will then
sound and the console will be ready for use.
Select the manual mode.
When the power is
turned on, the
manual mode will
be selected. If you
have selected a
program or the
iFIT.com mode,
select the manual mode by pressing the Program
Select button repeatedly until a track appears in
the matrix and the iFIT.com indicator is not lit.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal,
change the resis-
tance of the ped-
als by pressing the
Resistance but-
tons. There are
ten resistance lev-
els. Note: After the buttons are pressed, it will
take a moment for the pedals to reach the select-
ed resistance level.
Adjust the angle of the ramp as desired.
As you pedal, change the angle of the ramp by
pressing the Power Ramp buttons. Note: After
the Power Ramp buttons are pressed, it will take
a moment for the ramp to reach the selected
angle.
Monitor your progress with the matrix and the
two displays.
The matrix—
When the manual
mode or the
iFIT.com mode is
selected, the
matrix will show a
track representing 1/4 mile. As you exercise, the
indicators around the track will light in succession
until the entire track is lit. The track will then dark-
en and the indicators will again begin to light in
succession.
The upper
display—The
upper display will
show the elapsed
time, the resistance
level of the pedals,
your pedaling

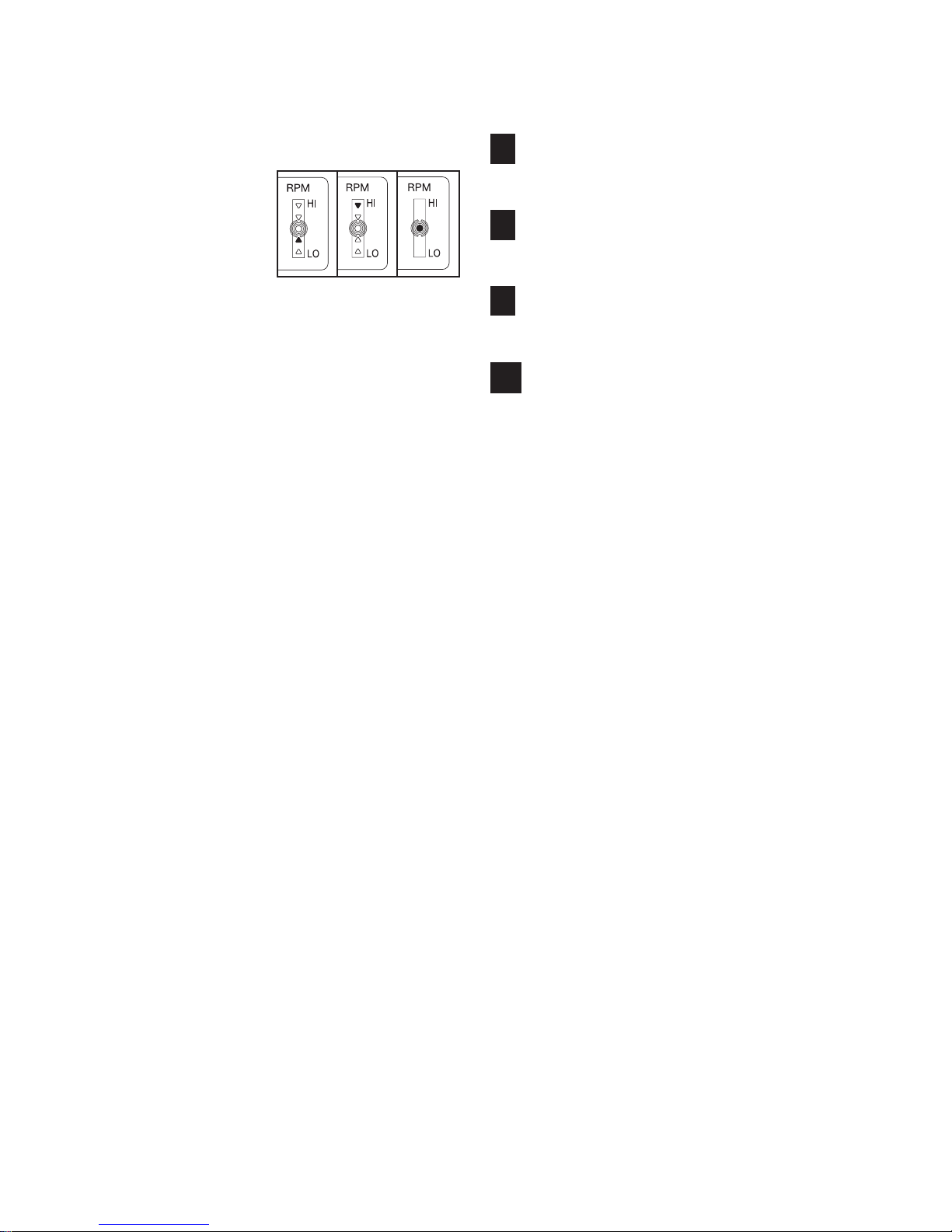

speed, and your pedaling pace, in revolutions per
minute (RPM). The display will change from one
number to the next every few seconds, as shown
by the indicators in the display. Note: When a pro-
gram is selected, the display will show the time
remaining in the program instead of the elapsed
time. Each time the resistance of the pedals
changes, the display will show the resistance
level.
If desired, you can
select a single
mode for continu-
ous display. Press
the left Mode button
repeatedly until the
desired mode indi-
cator is lit; make sure that the Scan indicator is
not lit.
The lower
display—The lower
display will show
the distance you
have pedaled and
the approximate
number of calories
and fat calories you have burned (see FATBURN-
ING on page 23). The display will change from
one number to the next every few seconds, as
shown by the indicators in the display. The display
will also show your heart rate when you use the
handgrip pulse sensor.
If desired, you can select a single mode for con-
tinuous display. Press the right Mode button
repeatedly until the desired mode indicator is lit;
make sure that the Scan indicator is not lit.
5
4
3
2
1

13
Measure your heart rate if desired.
If there are
thin sheets of
plastic on the
metal con-
tacts on the
handgrip
pulse sensor,
peel off the
plastic. To
measure your
heart rate, hold the contacts; your palms must be
resting on the contacts closest to you, and your
fingers must be touching the opposite contacts.
Avoid moving your hands.
When your pulse
is detected, your
heart rate will be
shown. For the
most accurate
heart rate reading,
hold the contacts
for at least 15 seconds.
Note: If you continue to hold the pulse sensor, the
lower display will show your heart rate for up to
30 seconds. The display will then show your heart
rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance,
periodically clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals.
Turn on the fan if desired.
To turn on the fan at low speed, press the Cooling
Fan button. To turn on the fan at high speed,
press the button a second time. To turn off the
fan, press the button a third time. Note: If the fan
is turned on but the pedals are not moved for thir-
ty seconds, the fan will automatically turn off.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds, a
tone will sound, the console will pause, and the
upper display will begin to flash.
If the pedals are not moved for about five min-
utes, the console will turn off and the displays will
be reset.
8
7
6
Contacts

14
HOW TO USE PRESET PROGRAMS
Begin pedaling to activate the console.
See step 1 on page 12.
Select one of the six preset programs.
To select a preset
program, press the
Program Select
button repeatedly
until “P 1,” “P 2,”
“P 3,” “P 4,” “P 5,”
or “P 6” appears in
the lower display.
When a preset program is selected, the matrix
will show the first six resistance settings of the
program.
Press the Program Start button or begin
pedaling to start the program.
Each program is divided into several time seg-
ments of different lengths. One resistance setting
is programmed for each segment. (The same
resistance setting may be programmed for two or
more consecutive segments.)
The resistance
setting for the first
segment will be
shown in the
flashing Current
Segment column
of the matrix. The
resistance settings
for the next five
segments will be shown in the columns to the
right.
When only three seconds remain in the first seg-
ment of the program, a series of tones will sound;
all resistance settings will then move one column
to the left. The resistance setting for the second
segment will then be shown in the flashing
Current Segment column and the resistance of
the pedals will automatically change to the resis-
tance setting for the second segment.
The program will continue until the resistance set-
ting for the last segment is shown in the Current
Segment column of the matrix and no time
remains in the program.
Note: During the program, you can override the
resistance setting for the current segment by
pressing the Resistance buttons. However, when
the next segment begins, the resistance will auto-
matically change if a different resistance setting is
programmed for the next segment. If you stop
pedaling for several seconds, a tone will sound
and the program will pause. To restart the pro-
gram, simply resume pedaling.
Use the pace (RPM) guide.
During preset pro-
grams, the pace
guide will prompt
you to increase or
decrease your ped-
aling pace. When
one of the arrows
below the center indicator lights, increase your
pace; when one of the arrows above the center
indicator lights, decrease your pace. When the
center indicator lights, maintain your current
pace. Important: The pace settings of the pro-
gram are intended only to provide a goal.
Make sure to pedal at a pace that is comfort-
able for you.
Adjust the angle of the ramp as desired.
See step 4 on page 12.
Monitor your progress with the two displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 8 on page 13.
9
8
7
6
5
4
3
2
1
Current Segment

15
HOW TO USE HEART RATE PROGRAMS
Heart rate program 1 is designed to keep your heart
rate between 60% and 85% of your estimated maxi-
mum heart rate while you exercise. Note: Your maxi-
mum heart rate is estimated by subtracting your age
from 220. For example, if you are 30 years old, your
estimated maximum heart rate is 190 (220 – 30 =
190).
Heart rate program 2 will keep your heart rate near a
target heart rate that you select.
Follow the steps below to use a heart rate program.
Begin pedaling to activate the console.
See step 1 on page 12.
Select one of the heart rate programs.
To select a heart
rate program,
press the Program
Select button
repeatedly until
“Hr1” or “Hr2”
appears in the
lower display.
During heart rate
programs, the
matrix will show a
graphic that repre-
sents your heart
rate. Each time a
heartbeat is detect-
ed, an additional peak will appear.
Enter your age.
After a heart rate
program is select-
ed, the word
“AGE” and the cur-
rent age setting
will flash in the
lower display. You
must enter your age to use a heart rate program.
If you have already entered your age, press the
Enter (Program Start) button and go to step 4. If
you have not entered your age, press the
Age/Rate Set (Resistance) buttons repeatedly to
enter your age, and then press the Enter button.
Once you have entered your age, it will be saved
in memory.
Enter a target heart rate.
If you selected heart rate program 1, you do
not need to enter a target heart rate. Go to
step 5.
If you selected
heart rate pro-
gram 2, the letters
“PLS” and a target
heart rate will flash
in the lower dis-
play. Press the +
or – button repeatedly to change the target heart
rate, if desired. Then. press the Enter button.
Note: See the heart rate chart on page 23 for
heart rate guidelines.
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrips continu-
ously during the program; however, you should
hold the handgrips frequently for the program to
operate properly. Each time you hold the hand-
grips, keep your hands on the metal contacts
for at least 30 seconds. Note: When you are
not holding the handgrips, the letters “PLS” will
appear in the lower display instead of your heart
rate.
Begin pedaling to start the program.
Each heart rate program consists of 20 one-
minute segments. One target heart rate is pro-
grammed for each segment. Note: The same tar-
get heart rate may be programmed for two or
more consecutive segments. If heart rate pro-
gram 2 is selected, the same target heart rate is
programmed for all segments.
At the end of each segment, a series of tones will
sound. As you pedal, the console will regularly
compare your heart rate to the target heart rate. If
your heart rate is too far below or above the target
heart rate, the resistance of the pedals will auto-
matically increase or decrease to bring your heart
rate closer to the target heart rate.
6
5
4
3
2
1

16
Note: If the resistance is too high or too low, you
can adjust the resistance by pressing the
Resistance buttons. However, when the console
compares your heart rate to the target heart rate,
the resistance may automatically change.
The pace guide
will help you to
maintain a con-
stant pace during
the program.
When one of the
arrows below the
center indicator lights, increase your pace; when
one of the arrows above the center indicator
lights, decrease your pace. When the center indi-
cator lights, maintain your current pace.
Important: The pace guide is intended only to
provide a goal. Make sure to pedal at a pace
that is comfortable for you.
The program will continue in this way until the
upper display shows that no time remains in the
program.
Note: If you stop pedaling for several seconds, a
tone will sound and the program will pause. To
restart the program, simply resume pedaling.
Adjust the angle of the ramp as desired.
See step 4 on page 12.
Monitor your progress with the two displays.
See step 5 on page 12.
Turn on the fan if desired.
See step 7 on page 13.
When the program is finished, the console
will automatically turn off.
See step 8 on page 13.
10
9
8
7

17
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
17 and 18 for connecting instructions. To use iFIT.com
videocassettes, the elliptical exerciser must be con-
nected to your VCR. See page 19 for connecting
instructions. To use iFIT.com programs directly from
our Web site, the elliptical exerciser must be connect-
ed to your home computer. See page 18 for connect-
ing instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable
into the adapter. Plug the adapter into an AUDIO
OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo. Do
not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable Head-
phones
A
PHONES
PHONES
Audio
Cable
1/8”
Y-adapter
Headphones
B
AUDIO OUT
RIGHT
LEFT
PHONES
Audio
Cable
C
1/8”
Y-adapter
Headphones
Audio Cable Adapter
A, B

18
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio
Cable Adapter
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
LINE OUT
Audio
Cable
A
PHONES
Audio
Cable
B
1/8”
Y-adapter
Headphones/Speakers

19
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 18.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into the
AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the
cable into the adapter. Plug the adapter into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the AUDIO OUT jack on your VCR and plug the
wire into the unused side of the Y-adapter. Plug the
Y-adapter into the AUDIO OUT jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable
Adapter
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter

20
To use iFIT.com CDs or videocassettes, the elliptical
exerciser must be connected to your portable CD play-
er, portable stereo, home stereo, computer with CD
player, or VCR. See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on pages 17 to 19.
To purchase iFIT.com CDs and videocassettes, call
toll-free 1-877-994-4999.
Follow the steps below to use an iFIT.com CD or
video program.
Begin pedaling to activate the console.
See step 1 on page 12.
Select the iFIT.com mode.
To select the
iFIT.com mode,
press the iFIT.com
button. The indicator
beside the button
will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a preset program (see steps 3 and 4 on page
14). However, an electronic “chirping” sound will
alert you when the resistance of the pedals and/or
the target pace is about to change.
Note: If the resistance of the pedals and/or the
target pace does not change when a “chirp” is
heard:
• Make sure that the indicator beside the
iFIT.com button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Adjust the angle of the ramp as desired.
See step 4 on page 12.
Monitor your progress with the two displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, the console
will automatically turn off.
See step 8 on page 13.
9
8
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
