Regency Fireplace Products Regency Gi29LU Quick start guide

Regency®Gi29LU
Gas Insert
Owners &
Installation Manual
www.regency-re.com
- Do not store or use gasoline or other ammable vapours and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re department.
- Installation and service must be performed by a qualied installer, service agency or the gas supplier.
Warning
Fire or explosion Hazard
failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
MODELS: Gi29LU-NG Natural Gas Gi29LU-LP Propane
920-391f FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4 06.09.23
Installer: Please complete the details on the back cover and
leave this manual with the homeowner.
Homeowner: Please keep these instructions for future
reference.
Tested by:
Certied to/Certié pour : ANSI Z21.88-2019

2 | Gi29 Direct Vent Gas Insert
TO THE NEW OWNER
Congratulations! You are the owner of a state-of-the-art gas insert by Regency.
The Regency gas insert series of handcrafted appliances is designed to provide you with all the warmth and charm of a
replace at the ick of a switch. The Gi29LU is approved by Intertek for safety and eciency. As it also bears Regency’s
mark, it promises economy, comfort, and security for many trouble-free years to come.
Please take a moment to acquaint yourself with the instructions in this manual, as well as the many features of your
Regency replace.
This product can be installed in an aftermarket,
permanently located manufactured home (USA only),
or mobile home where not prohibited by local codes.
This appliance is for use with the type of gas
indicated on the rating plate only. This appliance
is not convertible for use with other gases unless a
certied kit is used.
920-408
4.34.7
Instruction Plate
For a glass-fronted gas appliance where the temperature of the glass
viewing area outside surface exceeds the limits specified in Clause 5.14.4, the following
graphic danger and statements shall be shown on a Class IIIA-2 Permanent Label.
4.34.6
Instruction Plate
Each appliance shall bear a Class IIIB marking with letters on a contrasting background, located
adjacent to the controlling device or in an equally conspicuous position where the instruction can be easily read.
April 22/14: Created draft
Double sided
Material: Synthetic Paper
Size 5.965" W x 5.71" H
Color: As shown in artwork
DANGER
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from the hot viewing glass
is provided with this appliance and must be installed for the protection
of children and other at risk individuals.
!DANGER
!
920-408
CAUTION:
HOT WHILE IN OPERATION. DO NOT TOUCH.
SEVERE BURNS MAY RESULT. KEEP CHILDREN, CLOTHING, FURNITURE,
GASOLINE, AND ANY OTHER LIQUIDS WITH FLAMMABLE VAPOURS AWAY.
KEEP BURNER AND CONTROL COMPARTMENT CLEAN.
SEE INSTALLATION AND OPERATING INSTRUCTIONS ACCOMPANYING
APPLIANCE.
Front Back
LA SURFACE VITRÉE CHAUDE
PEUT CAUSER DES BRÛLURES.
NE TOUCHEZ PAS À LA
SURFACE VITRÉE NON REFROIDIE.
NE LAISSEZ JAMAIS UN
ENFANT TOUCHER LA SURFACE
VITRÉE.
DANGER
!
L’écran pare-étincelles fourni avec ce foyer réduit le risque de brûlure en cas de
contact accidentel avec la vitre chaude et doit être installé pour la protection des
enfants et des personnes à risque.
920-408-fr
ATTENTION
S'assurer que le brûleur et le compartiment des commandes sont propres.
Voir les instructions d’installation et d’utilisation qui accompagnent
l'appareil.
Risque de brûlures graves.
Ne pas toucher l’appareil lorsqu’il fonctionne.
Ne pas laisser les enfants s’approcher de l’appareil. Garder les
vêtements, les meubles et tout gaz ou liquide inflammable (carburant)
à distance de l'appareil.

Gi29 Direct Vent Gas Insert | 3
table of contents
Unit Dimensions ............................................................................ 4
Faceplate Dimensions .................................................................... 5
Copy of Safety Label...................................................................... 6
Know Your Appliance ..................................................................... 9
Important Message ................................................................... 10
Important Information................................................................. 10
Before You Start.......................................................................... 10
For Your Safety ........................................................................... 10
Specications.............................................................................. 10
Copy of Lighting Plate Instructions ............................................... 11
Gas Installation Checklist ............................................................... 7
Gas Pressure Testing ................................................................... 12
Installation Into a Solid Fuel Burning Fireplace or Factory Built
Fireplace................................................................................... 12
Factory-Built (Metal) Wood-Burning Fireplace Requirements ........... 12
General Safety Information .......................................................... 12
Installation Checklist.................................................................... 13
Materials Required....................................................................... 13
Minimum Fireplace Dimensions..................................................... 13
Electrical Receptacle in a Masonry Fireplace .................................. 13
Minimum Fireplace Opening Sizes with Varying Faceplate/Backing
Plate Options ............................................................................ 14
Minimum Clearances to Combustibles ........................................... 15
Mantel Clearances Without Mantel Deector & Mantel Clearances with
2-1/2" Mantel Deector ............................................................... 16
Using Steel Studs & Concrete Board Over Masonry Brick Fireplace .. 17
Leveling Legs Adjustment ............................................................ 18
Gas Connection........................................................................... 19
Vertical Venting ........................................................................... 19
Alternate Approved Vertical Termination Caps/Adaptor ................... 20
Restrictor Adjustment .................................................................. 21
Vertical Venting/Restrictor Settings for NG and LP.......................... 22
Horizontal Co-Linear Vent Kit (Masonry Fireplaces Only)................. 23
Flue Collar Installation/Removal ................................................... 24
Air Shutter Adjustment ................................................................ 25
NG System Data.......................................................................... 26
LP System Data........................................................................... 26
High Elevation............................................................................. 26
Gas Line Installation .................................................................... 26
Pilot Adjustment.......................................................................... 26
Gas Pipe Pressure Testing ............................................................ 26
820 Valve Description .................................................................. 26
Gas Shut O Procedure ............................................................... 27
Conversion from Natural Gas to Propane ...................................... 28
Derating Kit ................................................................................ 30
Panel Installation ........................................................................ 31
Birch & Oak Log Set Installation (Part #311-931 & 311-934).......... 34
Driftwood Log Set Installation (Part #311-930/P) .......................... 42
Screen Removal .......................................................................... 49
Glass Door Removal .................................................................... 50
Faceplate/Finishing Trim Installation ............................................. 51
Backing Plate Installation............................................................. 52
Mantel Deector Installation......................................................... 54
Premium Faceplate Surround Installation ...................................... 55
Traditional Faceplate Surround Install (Part #311-927, 311-928)..... 56
Hearth Trim Installation - Trimming to Height................................ 57
Hearth Trim Installation - Mounting Hearth Trim ............................ 58
Optional Wall Thermostat ............................................................ 59
Thermostat Wire Table................................................................. 59
Supplied Remote Control ............................................................. 59
Final Check ................................................................................. 59
Wiring Diagram ........................................................................... 60
Operating Instructions ................................................................ 61
Lighting Procedure ...................................................................... 61
Shutdown Procedure ................................................................... 61
First Fire..................................................................................... 61
Automatic Convection Fan Operation ............................................ 61
On/O Switch ............................................................................. 61
On/O/Pilot Extension Knob - Hi/Low Extension Knob
Fan Control Knob ........................................................................ 61
Proame I Remote Control Operating Instructions ......................... 62
Proame I Remote Receiver Battery Replacement.......................... 65
Operating Procedure for Remote Control....................................... 66
Normal Operating Sounds of Gas Appliances ................................. 67
Maintenance Instructions ............................................................. 67
Door Glass ................................................................................. 68
Glass Replacement ...................................................................... 68
General Vent Maintenance ........................................................... 68
Log Replacement ........................................................................ 68
Glass Gasket ............................................................................... 68
Sparker Battery Change............................................................... 68
Fan Replacement......................................................................... 69
Valve Replacement ...................................................................... 70
Gas Maintenance - Recommended Annual Routine......................... 72
Parts - Main Assembly ................................................................. 73
Faceplates/Accessories ................................................................ 75
Warranty ...............................................................................76
Dimensions
Installation
Owner’s Information
Installer’s Information
Operation
Maintenance
Parts

4 | Gi29 Direct Vent Gas Insert
dimensions
Unit Dimensions
O
P
E
H
D
S T
R
Q
A
G
B
F
C
M
L
N
J
I
K
Leer Descripon Dimensions
(inches)
Dimensions
(mm)
AWidth 29-3/4" 756 mm
BOuterbox Width 28-5/16" 719 mm
COuterbox Height 20-1/4" 514 mm
DOuterbox Depth 17-7/8" 454 mm
EOuterbox Rear Width 20" 508 mm
F Front to Top Taper 8-3/8" 213 mm
G Front to Side Taper 3-13/16" 97 mm
H Rear to Side Taper 14-1/16" 357 mm
I Gas Inlet Height 1-1/4" 32 mm
J Gas Inlet Rear Depth 5-1/2" 140 mm
Leer Descripon Dimensions
(inches)
Dimensions
(mm)
K Gas Inlet Front Depth 12-7/16" 316 mm
LElectrical Access Height 1-1/8" 29 mm
MElectrical Access Rear Depth 7-1/2" 191 mm
NElectrical Access Front Depth 10-3/8" 264 mm
OGlass Viewing Area Width 24-1/8" 613 mm
PGlass Viewing Area Height 15" 381 mm
QFront to Intake 15-1/16" 383 mm
RFront to Exhaust 14" 356 mm
SIntake Diameter 3" 76 mm
TExhaust Diameter 3" 76 mm

Gi29 Direct Vent Gas Insert | 5
dimensions
A
B
C
D
Faceplate
Dimensions
Width
(A)
Height
(B)
Depth
(C)
Boom Height
(D)
Regular Faceplate 40-3/16" (1021 mm) 26" (660 mm) 1-1/4" (32 mm) -
Regular Faceplate w/ Pre-
mium Surround
40-13/16" (1021 mm) 26-3/8" (670 mm) 1-11/16" (43
mm)
-
Flush Faceplate 40-3/16" (1021 mm) 26" (660 mm) 1/8" (3 mm) -
Flush Faceplate w/Traditional
Surround
45-3/4" (1162 mm) 28-3/4" (730 mm) 2-1/4" (57 mm)
4-Sided Flush Faceplate 40-3/16" (1021 mm) 29-1/4" (743 mm) 1/8" (3 mm) 4-3/16" (106 mm)
Finishing Trim 31-7/8" (810 mm) 21-7/8" (556 mm) 1/16" (2 mm) -
4-Sided Finishing Trim 31-7/8" (810 mm) 23-1/8" (587 mm) 1/16" (2 mm) 1-1/8" (29 mm)
Oversized Backing Plate 47-1/2" (1207 mm) 31-1/2" (800 mm) 1/8" (3 mm) -
3-Sided Custom Backing Plate 33-7/8" - 56-7/8"
(860 mm - 1445 mm)
22-7/8" - 44-7/8"
(581 mm - 1118 mm)
1/8" (3 mm) -
4-Sided Custom Backing Plate 33-7/8" - 69"
(860 mm - 1753 mm)
25-1/8" - 45"
(638 mm - 1143 mm)
1/8" (3 mm) 2-1/8" minimum (54 mm min.)
B
A
C

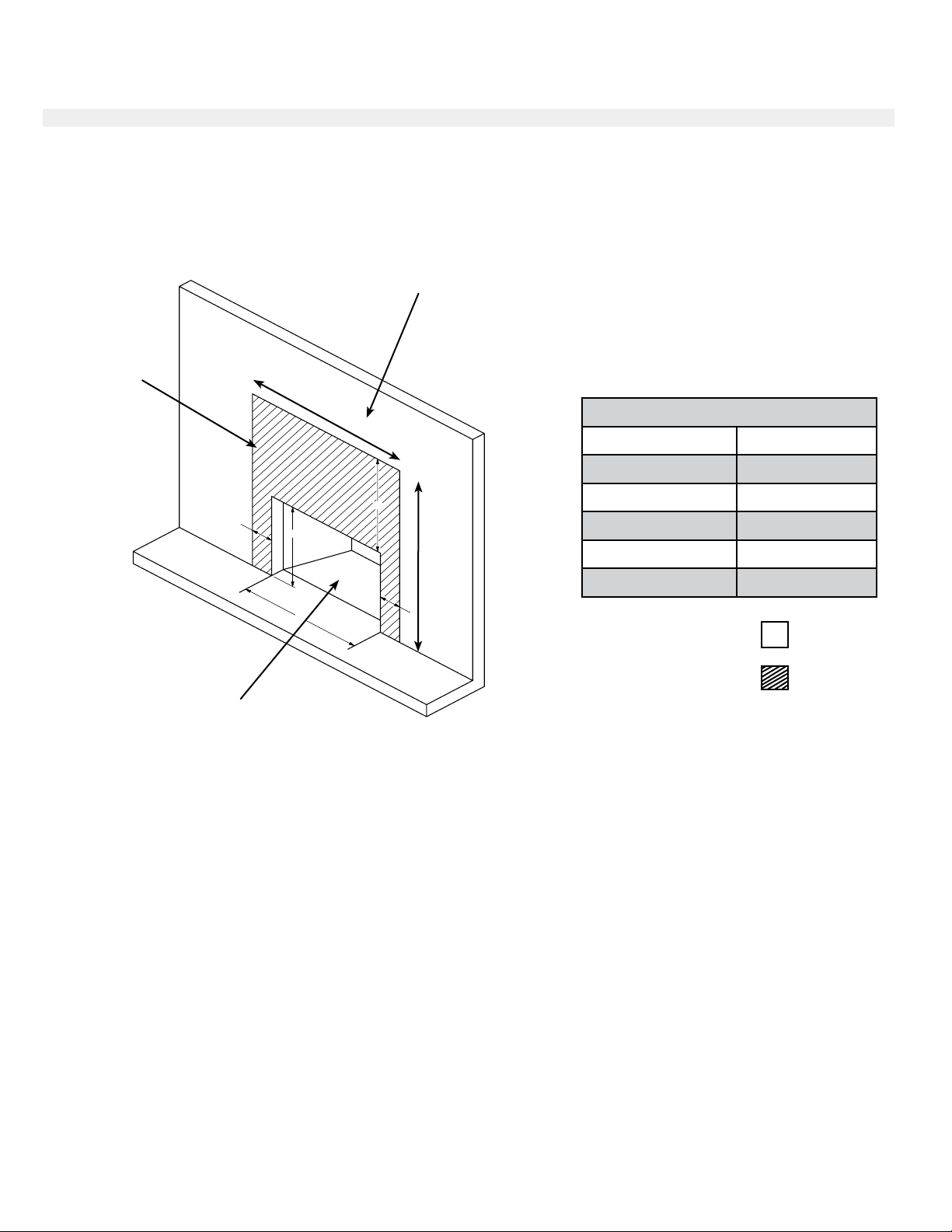

Faceplate Dimensions
Three-Sided Faceplate
Four-Sided Faceplate

6 | Gi29 Direct Vent Gas Insert
owner's information
A copy of the label that accompanies each Gi29LU gas insert is below.
For the State of Massachusetts, installation and repair must be
done by a plumber or gas tter licensed in the Commonwealth
of Massachusetts.
For the State of Massachusetts, exible connectors shall not
exceed 36 inches in length.
For the State of Massachusetts, the appliance’s individual manual
shuto must be a t-handle type valve.
The State of Massachusetts requires the installation of a carbon
monoxide alarm in accordance with NFPA 720 and a CO alarm
with battery backup in the same room where the gas appliance
is installed.

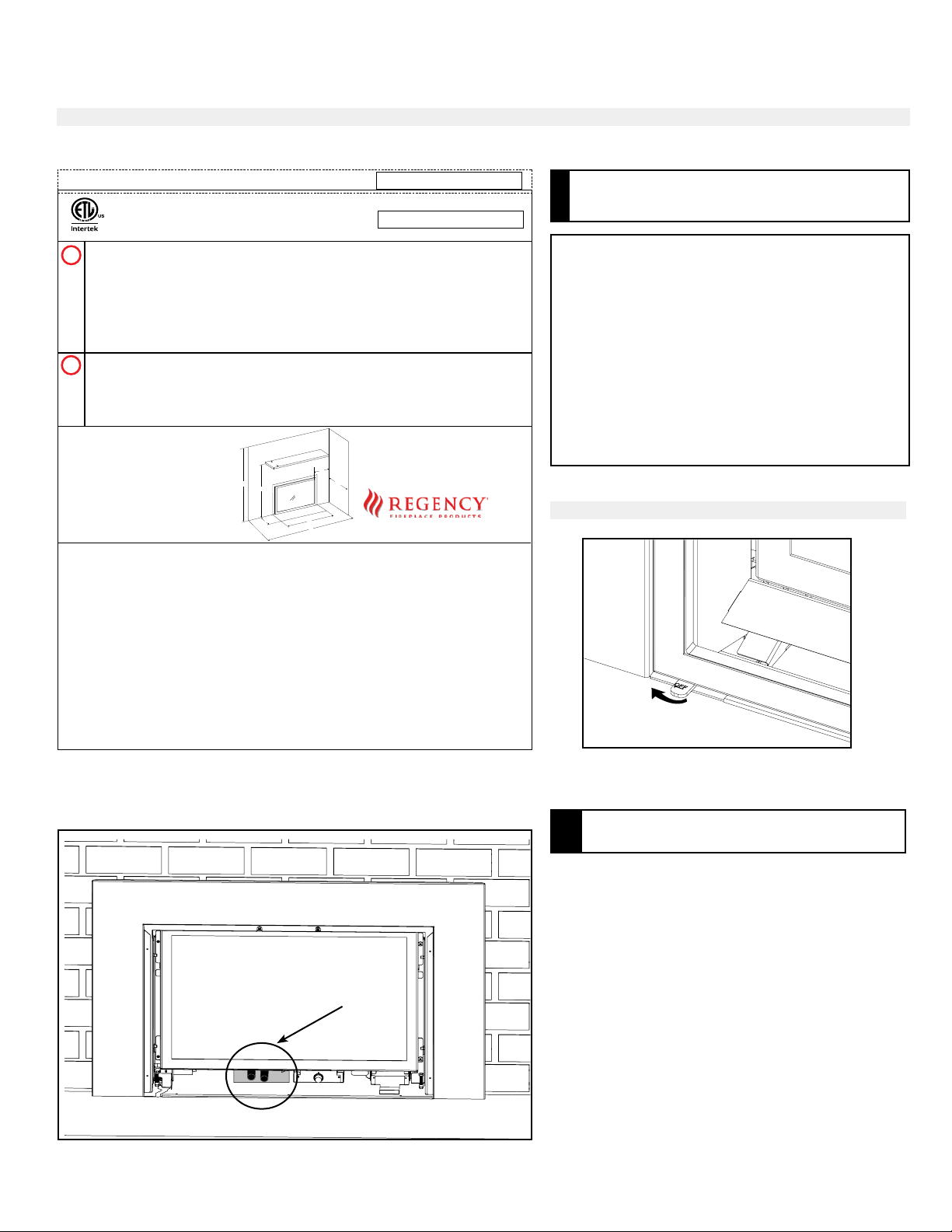

Copy of Safety Label
To nd the safety label, remove faceplate from the front of your unit (see manual);
the safety label is located below the glass (see picture).
DO NOT REMOVE THE LABEL FROM THE UNIT.
NATURAL GAS FIREPLACE INSERT: MODEL Gi29LU-NG
Factory Equipped For Altitude 0-4500ft. (0-1370m)
Min. Supply Pressure 5" WC (1.25 kPa)
Low Setting Man. Pressure 1.1" WC (0.27 kPa)
Max. Manifold pressure 3.8" WC (0.95 kPa)
Factory Equipped for Altitude 0-2,000ft (0-610m)
Orifice #38 DMS
Minimum input 17,000 Btu/h (4.98 kW)
Maximum input 31,500 Btu/h (9.22 kW)
Field Convertible for Altitude 2,000 - 4,500ft (610m-1370m) - Use Conversion Kit #311-980
Orifice #39 DMS
Minimum Input 16,500 Btu/h (4.83 kW)
Maximum Input 30,500 Btu/h (8.93 kW)
PROPANE GAS FIREPLACE INSERT: MODEL Gi29LU-LP
Factory Equipped For Altitude 0-4500ft. (0-1370m)
Min. Supply Pressure 11" WC (2.74 kPa)
Low Setting Man. Pressure 2.9" WC (0.72 kPa)
Max. Manifold Pressure 10.5" WC (2.61 kPa)
Orifice #52 DMS
Minimum Input 17,000 Btu/h (4.98 kW)
Maximum Input 31,500 Btu/h (9.22 kW)
Model: Gi29LU-NG
920-428b
Part #: 920-428b
Colour: Black on grey except what is highlighted is printed red
Size: (File at 100%) 6.495"W x 8.66" H
Material: 2 ml silver matt polyester (DPM SMS)
Sept 30/2021: Created draft
Feb. 16/22: Added “Category 1” and changed barrier and fan part numbers.
DO NOT REMOVE THIS LABEL
Serial No.
565
Duplicate Serial Number
Listed: VENTED GAS FIREPLACE HEATER
Certified to:
ANSI Z21.88-2019
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.
Model Gi29LU-LP

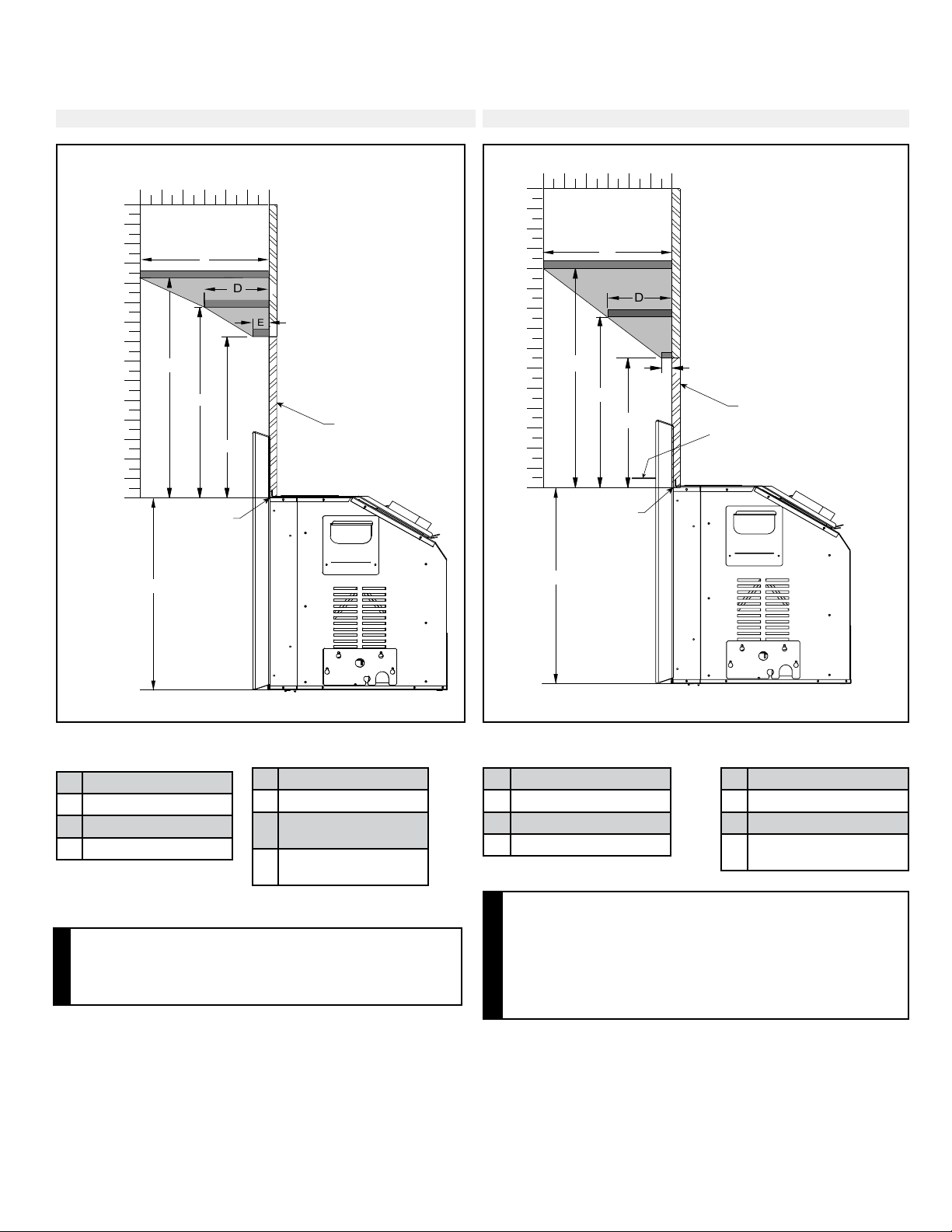

Mantel Clearances
FPI Fireplace Products International, Ltd
Delta BC, CANADA MADE IN CANADA /FABRIQUÉ AU CANADA
Minimum Clearances to Combustibles
from Insert
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1.
This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases unless a certified kit is used.
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured
(mobile) home where not prohibited by local codes. See owner's manual for details
WARNING. This fireplace has been converted for use with a gas fireplace insert only and cannot be used for burning wood or solid fuels unless all original
parts have been replaced, and the fireplace re-approved by the authority having jurisdiction.
This vented gas fireplace heater is not for use with air filters.
For use with glass doors certified with the appliance only.
For use only with barrier (Part # 311-417/P). Follow installation instructions.
C # 4001172
Electrical supply 115VAC, Less than 1A, 60Hz, Fan Part # 911-071/P CATEGORY 1
A
C
B
E
K
D
L
G
Refer to Intertek's Directory of Building Products for detailed information.
565
Side wall A 8” (203 mm)
Ceiling B 63.75” (1873 mm)
Mantel C 41.5” (1055 mm)
Min. Alcove Width K 54” (1372 mm)
Max. Alcove Depth L 36” (914 mm)
Min. Hearth Depth D 12” (305 mm)
Min. Hearth Width E 36” (914 mm)
Max. Mantle Depth G 12” (305 mm)
Gi29LU Serial Label
NOTE
Regency units are constantly improving. Check the safety
label on the unit and if it is dierent from the copy provided
here, the label on the unit is correct.
Safety label location
With the pilot on, turn the switch to the right to turn the burner
on. Moving the switch to the left will turn the burner o.
On/O Switch
NOTE
This ON/OFF switch will be located on the lower left-hand
side of the appliance as shown above.

Gi29 Direct Vent Gas Insert | 7
dimensions
05/18/21
1
REGENCY GAS INSTALLATION CHECKLIST
Customer: Date Installed:
Install Address: Location of Fireplace:
Serial No: Installer:
Model No:
Site Requirements YES NO
If applicable, are the insulation, vapour barrier, and drywall present if installed on an outside wall or chase?
Does the area have a solid continuous base to support the unit?
Will the area accommodate the size of the applliance and all clearances?
Are the gas and electrical roughed into the area where the unit is being installed?
In City & Grandview series cool wall applications, is the chase enclosure sealed to prevent heat from escaping? All hot air
from the unit must exit via the mandatory ventilation openings.
In City & Grandview applications, Is the chase enclosure vented with the mandatory heat ventilation openings? See manual
for details.
If applicable, is the masonry/factory built freplace in its original condition with no modifications?
If applicable, have the hearth requirements been met?
Unit Setup YES NO
If applicable, are the standoffs and top nailing flange extensions installed and at the correct depth to accommodate finishing
material? See manual for details.
If applicable, is the fireplace level and secured, meeting framing clearances? See manual for details.
If applicable, is the unit converted to top or rear vent per manual instructions, and the insulation discarded?
Venting YES NO
Are the venting components approved for the unit installed?
Does the venting configuration comply with venting diagrams?
Is venting installed and secured, and are clearances for the vent pipe and termination cap maintained?
If applicable, was a 1/4" rise maintained for every foot of horizontal run?
Was the termination installed and sealed?
Is the direct vent termination at the highest point in the vent assembly?
If applicable, are both chimney liners continuous from flue collars to termination?
Electrical and Wiring YES NO
Is the appliance connected to the household's 110/120v per local codes? Check local codes for receptacle placement.
Were the connections in the fireplace tested with a circuit tester?
Is the appliance properly grounded?
If applicable, is the supplied electrical/gang box affixed to the wall to facilitate the mounting of the receiver/battery box ?
Gas YES NO
Does the supply pressure meet the requirements shown on the rating plate?
Was a conversion performed?
Was a leak check performed and manifold pressures verified?
Is the shut-off valve installed and easily accessible to the customer?
This general checklist does not contain all pertinent installation details or specifics and does not supersede the guidelines in this manual. Your
Regency dealer/installer should use it in conjunction with manual instructions. Please follow all local codes and jurisdictions in authority.
Gas Installation Checklist

8 | Gi29 Direct Vent Gas Insert
installation
05/18/21
2
REGENCY GAS INSTALLATION CHECKLIST
Finishing YES NO
If applicable, is only noncombustible material installed in the noncombustible areas?
Do clearances meet installation and manual requirements?
Do the mantels and/or projections comply with the installation manual?
If applicable, was the solid fuel fireplace warning plate installed?
Appliance Media Setup YES NO
Do commands from the remote or wall switch light the pilot and main burner?
Are the burner media/log set, glass door, and screen installed per instructions in the manual?
Was the air shutter on the proper setting after running the unit for 20 minutes?
If applicable, were the surround and trims installed according to the manual?
Was the operation of the fan, lights (if installed), and flame modulation checked?
Customer Tutorial and Presentation YES NO
Is the customer confident operating the new gas appliance and aware of all the features on the remote?
Confirm that the rating and lighting plates are attached to the appliance. Do not remove.
Was the customer informed of the location of the rating and lighting plates?
Was accessing unit controls in a power outage explained to the customer?
Are the model and serial numbers and the date of installation of the unit written in the manual and on the checklist?
Were the warranty and unit registration reviewed with the customer?
Comments:

Gi29 Direct Vent Gas Insert | 9
owner's information
D
BEFG
C
J
HI
A
Know Your Appliance
LETTER DESCRIPTION MORE INFO ON PAGE
ASCREEN 49
B ON/OFF SWITCH 60
CGLASS DOOR 50
DSPARKER BATTERY LOCATION 67
EGAS SHUT-OFF VALVE 27
F PILOT/ON/OFF CONTROL KNOB 60
GFLAME ADJUSTMENT KNOB 60
HFAN ADJUSTMENT KNOB 60
IAIR SHUTTER ADJUSTMENT ARM 25
JREMOTE BATTERY LOCATION 64

10 | Gi29 Direct Vent Gas Insert
owner's information
Important Message
SAVE THESE INSTRUCTIONS
The Gi29LU gas insert must be installed in
accordance with the instructions in this manual; read
them carefully before installing the unit. Consult
the authority having jurisdiction to determine the
need for permits prior to starting the installation.
It is the responsibility of the installer to ensure
this replace is installed in compliance with the
manufacturer’s instructions and all applicable codes.
Important Information
Model Gi29LU standing pilot (approved for use in
the USA only) is a millivolt system tted with a
pilot that stays lit 24/7, 365 days of the year. As
long as the pilot is lit, it will remain on until it is
turned o. This system is not approved for sale in
Canada due to requirements associated with the
seven-day timer.
Before You Start
We are required by the Canadian Safety Standards
and ANSI Standards to make you aware of the
following.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED SERVICE
PERSON. THE APPLIANCE SHOULD
BE INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY A PROFESSIONAL
SERVICE PERSON. MORE FREQUENT
CLEANING MAY BE REQUIRED DUE
TO LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS, AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE
ARE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
A BARRIER DESIGNED TO REDUCE
THE RISK OF BURNS FROM THE HOT
VIEWING GLASS IS PROVIDED WITH
THIS APPLIANCE AND SHALL BE
INSTALLED FOR THE PROTECTION
OF CHILDREN AND OTHER AT-RISK
INDIVIDUALS
IF THE BARRIER BECOMES DAMAGED,
IT MUST BE REPLACED WITH THE
MANUFACTURER’S BARRIER FOR
THIS APPLIANCE.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
AN APPLIANCE MUST BE REPLACED
PRIOR TO OPERATING THE
APPLIANCE.
For Your Safety
This appliance requires air for proper combustion.
Always provide adequate combustion and ventilation
air. Follow instructions and information in CSA
B149.1 (in Canada) or the National Fuel Gas Code
ANSI Z223.1 (in the USA), regarding requirements
for combustion and ventilation air.
Specications
At pressures over 1/2 psig, the pipe to the unit
must be disconnected.
Gas Max. Input Capacity:
Natural Gas 31,500 Btu/h (0-2000 ft../0-610 m)
30,500 Btu/h
(2,000-4,000 ft./610-1,370 m)
Propane 31,500 Btu/h
Min. Input
Natural Gas 17,000 Btu/h (0-2,000 ft../0-610 m)
16,500 Btu/h
(2,000-4,000 ft./610-1,370 m)
Propane 17,000 Btu/h
Fuels: Approved for use with natural gas and
propane. Approved at-is for use at 0' to 4,500'
(0-1,370 m).
Electrical: 120 V A.C. system.
Circulation Fan: Variable speed, 140 CFM.
Log Set: Ceramic bre, 10 per set
Glass Crystals: 2-1/2 pounds of crushed glass
Vent System: 3" (76 mm) co-linear aluminum ex
(intake & exhaust). The unit’s thermal eciency
rating is determined under continuous operating
conditions, independent of any installed system.

Gi29 Direct Vent Gas Insert | 11
owner's information
Copy of Lighting Plate Instructions
920-181a
Part #: 920-181a
Colours: Black on Grey, except for parts indicated as being Red.
Punch out .25" hole top right corner where indicated.
Size: 100%
w- 6.52"
h- 11.13"
Nov 04/19: Created decal
Oct 14/21: Standing Pilot Non-7 Day
DO NOT REMOVE THIS INSTRUCTION PLATE
NE PAS ENLEVER CETTE ÉTIQUETTE D’INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE / POUR COUPER LE GAZ AU NIVEAU DE L'APPAREIL
CAUTION: Hot while in operation. Do not touch. Severe burns may result. Due to high surface temperatures keep
children, clothing and furniture, gasoline and other liquids having ammable vapors away. Keep burner and control
compartment clean. See installation and operating instructions accompanying appliance.
ATTENTION : Surfaces chaudes lorsque l’appareil est en marche. Ne pas toucher. Risque de brûlures graves. En raison
des températures élevées, les enfants, les vêtements et le mobilier, le carburant et tout autre liquide aux vapeurs
inammables doivent être tenus éloignés de l’appareil. Nettoyer régulièrement le brûleur et le compartiment des
commandes. Voir les consignes d’installation et d’utilisation fournies avec l’appareil.
LIGHTING INSTRUCTIONS / CONSIGNES D’ALLUMAGE
FOR YOUR SAFETY READ BEFORE LIGHTING
POUR VOTRE SÉCURITÉ – À LIRE AVANT LA MISE EN MARCHE
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage,
personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional
information consult a qualified installer, service agency or gas supplier.
AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice risquede déclencher un
incendie ou une explosion entraînant des dommages, des blessures ou la mort.
Une installation, d'ajustement, de modication, de service ou d'entretien peut provoquer des blessures ou des dommag-
es matériels. Reportez-vous au manuel du propriétaire fourni avec cet appareil. Pour obtenir de l'aide ou des informa-
tions supplémentaires consulter un installateur qualié, une agence de service ou fournisseur de gaz.
A) This appliance has a pilot that must be lighted by hand. When lighting the pilot, follow these instructions exactly.
B) BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the oor
because some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance.
- Do not touch any electric switch, do not use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the re department.
C) Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, do not try to repair it; call a
qualied service technician. Force or attempted repair may result in a re or explosion.
D) Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance and replace
any part of the control system and any gas control which has been underwater.
A) Cet appareil est muni d’une veilleuse qui doit être allumée manuellement. Respectez les instructions ci-dessous à la lettre.
B) AVANT LA MISE EN MARCHE, reniez tout autour de l’appareil pour déceler une odeur de gaz. Reniez au niveau du plancher, car certains gaz
sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
• Ne tentez pas d’allumer l’appareil
• Ne touchez à aucun interrupteur; n'utilisez pas de téléphones se trouvant dans le bâtiment.
• Sortez du bâtiment immediatement
• Appelez immédiatement votre fournisseur de gaz depuis un téléphone extérieur. Suivez les instructions du fournisseur.
• Si vous ne pouvez pas rejoindre le fournisseur, appelez le service incendie.
C) Ne poussez ni ne tournez la manette d'admission du gaz qu'à la main. Ne jamais employer d'outil à cette n. Si la manette reste coincée, ne tentez
pas de la réparer; appelez un technicien qualié. Quiconque tente de forcer la manette ou de la réparer peut provoquer une explosion ou un
incendie.
D) N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partiellement. Faites inspecter l’appareil par un technicien qualié et remplacez tout
élément du système de contrôle ou de commande qui a été plongé dans l’eau.
1) STOP ! Lire les instructions de sécurité sur la portion supérieure de cette étiquette.
1) STOP! Read the safety information above on this label.
2) Push in gas control knob slightly and turn clockwise to “OFF”. Knob cannot be turned from "PILOT" to "OFF" unless knob is pushed in
slightly. Do not force.
3) Wait ve (5) minutes to clear out any gas. If you then smell gas STOP! Follow step "B" in the Safety Information above on this label. If you don't
smell gas, go to the next step.
4) Push in gas control knob slightly and turn counterclockwise to "PILOT" position.
5) Push in control knob all the way and hold in until the pilot lights. Continue to hold the control knob in for about 20 seconds after the pilot lights.
Release the knob.
6) Push in gas control knob slightly and turn counterclockwise to "ON" position.
7) Turn on the ame switch.
2) Enfoncer légèrement le bouton de commande de gaz et tournez dans le sens horaire en position OFF. Le bouton ne peut pas être tourné
du PILOT à OFF à moins que le bouton soit enfoncé légèrement. Ne forcez pas.
3) Attendre cinq (5) minutes pour laisser échapper tout le gaz. Si vous sentez une odeur de gaz, ARRÊTEZ! Passez à l'étape "B" des instructions de
sécurité sur la portion supérieure de cette étiquette. S'il n'y a pas d'odeur de gaz, passez à l'étape suivante.
4) Enfoncer légèrement le bouton de commande de gaz et tournez dans le sens antihoraire en position PILOT.
5) Pousser le bouton de commande de gaz à fond et le maintenir enfoncé jusqu'à ce que la veilleuse s'allume. Maintenir le bouton de commande de
gaz enfoncé pendant environ 20 secondes après l'allumage de la veilleuse. Relâcher le bouton de commande de gaz.
6) Enfoncer légèrement le bouton de commande de gaz et tourner dans le sens antihoraire en position 'ON'.
7) Actionner l’interrupteur de amme.
1) Turn o󰀨 the ame switch.
2) Push in the gas control knob slightly and turn clockwise
to “OFF”. Do not force.
3) Turn o󰀨 all electric power to the appliance if service is to be
performed.
You may shut o󰀨 the pilot during prolonged non use periods to
conserve fuel.
1) Fermer l’interrupteur de amme.
2) Enfoncer légèrement le bouton de commande de gaz et tournez
dans le sens horaire en position OFF. Ne pas forcer.
3) Avant d’e󰀨ectuer des opérations d’entretien, couper l’alimentation
électrique de l’appareil.
Pour économiser le carburant, vous pouvez éteindre la veilleuse
lorsque l’appareil reste longtemps inutilisé.

12 | Gi29 Direct Vent Gas Insert
installer's information
General Safety Information
1. The appliance installation must conform with
local codes, or in the absence of local codes,
with CSA B149.1 (in Canada) or the National
Fuel Gas Code ANSI Z223.1 in the USA. This
appliance should be installed by a qualied gas
tter technician only.
2. Installation and repair should be done by a
qualied service person.
3. The appliance should be inspected before use
and at least annually by a professional service
person. More frequent cleaning may be required
due to lint from carpeting, bedding material,
animal hair, etc. It is imperative that you keep
control compartments, burners, and circulating
air passageways of the appliance clean.
4. See general construction and assembly
instructions. Install this appliance in a vented,
non-combustible replace only.
5. This appliance is listed for bedroom installations
when used with a listed Millivolt thermostat.
Some areas may have further requirements;
check local codes before installation.
6. Always vent this insert to the outside of the
building envelope - never vent to another room
or inside a building. Make sure that the vent
is properly sized and of adequate height to
provide the proper draft.
7. Inspect the venting system annually for
blockages and any signs of deterioration.
8. Any glass removed for servicing must be
replaced prior to operating the appliance.
9. To prevent injury, do not allow anyone unfamiliar
with its operation to use the replace.
10. This appliance cannot be operated without brick
or enamel panels.
11. Due to high temperatures, the appliance should
be located out of high trac areas and away
from furniture and draperies. Children and
adults should be alerted to the hazards of high
surface temperatures, especially the replace
glass and gold trims, and should stay away to
avoid burns or clothing ignition. Young children
should be carefully supervised while in the
same room as the appliance. Clothing or other
ammable material should not be placed on or
near the appliance.
Gas Pressure Testing
During gas testing at pressures equal-to-or-less-
than 1/2 psig. (3.45 kPa), the appliance’s manual
shut o valve must be closed to isolate it from the
gas supply piping system.
Installation Into a Solid Fuel
Burning Fireplace or Factory
Built Fireplace
The Gi29LU gas insert was tested and approved
for venting into any masonry or approved solid
fuel burning factory-built replace that the insert
ts into. Refer to “Minimum Fireplace Dimensions”
section for minimum replace clearances.
If the factory built replace* height is too low for
your Insert, you may remove the smoke bae plate,
damper, refractory (rebricks), glass doors, screen
rails, screen mesh and log grates from the factory
built replace. Save these items for reinstallation
if the insert is removed. The replace ue damper
can be fully blocked open or removed for installation
of the gas replace insert.
Smoke shelves, shields, and baes may be removed
if attached by mechanical fasteners. Parts removed
must not weaken the structural integrity of the
factory-built replace.
The replace and chimney must be clean, in good
working order, and constructed of non-combustible
materials.
The surround panels should not seal ventilation
openings on the replace.
Chimney cleanouts should t properly.
Installers must mechanically attach the supplied
label to the inside of the rebox of the replace into
which the gas replace insert is installed.
Factory-Built (Metal)
Wood-Burning Fireplace
Requirements
If the factory-built replace has no gas access
hole(s), one that is 1-1/2" (37-1/2 mm) or less
may be drilled through the lower sides or bottom
of the rebox. This access hole must be plugged
with non-combustible insulation after the gas
supply line is installed.
WARNING
Failure to position the parts in
accordance with the diagrams
in this manual or failure to use
only parts specically approved
with this appliance may result
in property damage or personal
injury.
NOTE
Any alterations made to the listed solid fuel
burning factory built replace may void the
listing of the replace.
Cutting any sheet metal part of the replace in
which the gas insert is to be installed is prohibited.
*Check with a local inspector before installation.
WARNING
This replace has been converted
for use with a gas replace insert
only. It cannot be used for burning
wood or solid fuels unless all
original parts are replaced and
the replace re-approved by the
authority having jurisdiction.”
CAUTION
Firebox oor removal is not covered
under the appliance safety standard
(ANSI Z21.88) used in the safety
certification of this appliance.
The Intertek safety certication
does not apply to this method
of installation. Before installing
the appliance using this method,
contact the Authority Having
Jurisdiction to determine if this
installation is acceptable in your
area. The sheet metal base of the
replace must be left in place and a
minimum 1/2” cement board sheet
placed under the entire length and
width of the appliance.
NOTE
• Any parts that are removed must be
removed in a way that would allow them to
be reinstalled if the insert is ever removed
(removal of rivets or screws is acceptable).
To reference parts—see illustration below.
Must be removed:
1-Damper
2- Grate (with log set)
May be removed (if applicable):
3- Smoke shelf
4- Internal baes
5- Screen
6 & 7 - Masonry lining or refractory
8- Metal or glass doors
You must permanently mark the replace to indi-
cate that it was altered and is no longer suitable
for burning solid fuel (wood) unless the removed
parts are reinstalled. Cutting any sheet metal parts
is prohibited.
May be removed (in certain cases):
9 -Metal oor of the rebox
10 - The insulation and any structured rigid frame
members must not be removed or altered (side and
top of the door frame, side and top of the face of the
replace, metal sides, etc.).

Gi29 Direct Vent Gas Insert | 13
installer's information
Materials Required
No electrical power supply is required for the gas
control to operate. However, a AA battery is required
for the DC sparker. A 120-Volt AC power cord is
hooked up to the fan. Plug the three-wire cord
into a suitable receptacle. Do not cut the ground
terminal o under any circumstances. The appliance
must be electrically grounded in accordance with
local codes, the current version of CSA C22.1 (in
Canada), or in the absence of local codes, with
the National Electrical Code ANSI/NFPA 70-1987.
Installation Checklist
Before installing the vent system, ensure that the
damper plate is open and secure to prevent it from
falling and crushing the liner.
The Regency gas insert is installed as listed.
1. Check all clearances to combustibles. Refer to
sections “Minimum Fireplace Dimensions” and
“Minimum Clearances to Combustibles”.
2. Make the gas connection. Refer to section “Gas
Connection”.
3. Install the two liners (3" intake and 3" exhaust)
to the sliding connector plate. Refer to section
“Flue Collar Installation/Removal”.
4. Slide the unit halfway into the replace.
5. Pull the vent connector plate through the tapered
brackets and fasten it to the front plate. Refer
to section “Flue Collar Installation/Removal.”
6. Slide the unit fully into the replace. Level if
necessary.
7. Test gas pressure. Refer to section “Gas Pipe
Pressure Testing”. Check aeration system. Refer
to section “Air Shutter Adjustment”.
8. Install standard and optional features. Refer to
the following sections:
a. Panel Installation
b. Log Set Installation
c. Faceplate Installation
d. Minimum Clearances to Combustibles
e. Minimum Fireplace Opening
Sizes with Varying Faceplate/Backing Plate
Options
f. Conversion from Natural Gas to Propane
9. Final check: Before leaving this unit with the
customer, the installer must ensure that the
appliance is ring correctly. This includes:
a) Clocking the appliance to ensure the correct
ring rate.
b) Adjusting the primary air, if required, to
ensure that the ame does not carbon. See
“Gas Insert Aeration System” section.
c) Ensuring that the appliance is venting
correctly.
Minimum Fireplace Dimensions
The minimum replace clearances & dimensions for the Regency gas insert are shown in the following
diagram:
A
B
C
F
G
E
D
The electrical receptacle can be placed on the left or right side of the unit within the masonry enclosure,
respecting the following conditions:
1. Distance from the receptacle face to the gas insert: minimum 3” (76 mm)
2. Place the receptacle as far back as possible, so that it is near the back of the gas insert when installed.
3. Height from the top of the receptacle to the oor of the masonry replace: maximum 3.5” (89 mm)
4. The receptacle box and receptacle cover must be made of metal.
5. Where the 120-volt fan assembly power cord exits toward the receptacle, it must not come into
contact with the back or sides of the gas insert. It can only touch the faceplate.
When installed, this appliance must be grounded in accordance with local codes, or in their absence, the
National Electrical Code ANSI/NFPA 70, or the Canadian Electrical code CSA C22.1.
Electrical Receptacle in a Masonry Fireplace
NOTE
Also, see minimum replace opening sizes with varying faceplate, nishing trim, and backing
plate options on the next page.
A
B
C
F
G
E
D
IMPORTANT
Check with your local inspector before starting this installation, as some
jurisdictions may not allow placement of this receptacle within a masonry
chimney.
A
Height
B
Max. Lintel Bar
Depth
C
Depth
D
Damper Opening
E
Front Depth to
Taper
F
Width
(rear)
G
Width
(front)
20-1/4"
(514
mm)
11-3/8"
(289 mm)
16-3/4"
(425 mm)
8" x 4" min.
(203 mm x 102 mm)
2-5/8"
(67 mm)
20"
(508 mm)
29"
(737 mm)

14 | Gi29 Direct Vent Gas Insert
installation
A
B
C
D
E
Faceplate
Dimensions
Minimum Install
Width
(A)
Minimum Install
Height
(B)
Minimum Install
Depth
(C)
Minimum Rear
Width
(D)
Taper Depth
(E)
Regular Faceplate 28-7/16" (722 mm) 20-1/4" (514 mm) 16-11/16" (424 mm) 20" (508 mm) 2-13-16" (71 mm)
Regular Faceplate w/ Backing Plate 30-7/8" (784 mm) 21-7/16" (545 mm) 16-3/4" (425 mm) 20" (508 mm) 2-11/16" (68 mm)
Regular Faceplate w/ Premium Surround 28-7/16" (722 mm) 20-1/4" (514 mm) 16-5/8" (422 mm) 20" (508 mm) 2-5/8" (67 mm)
Regular Faceplate w/ Premium Surround
and Backing Plate
30-7/8" (784 mm) 21-7/16" (545 mm) 16-1/2" (419 mm) 20"(508 mm) 2-1/2" (64 mm)
Flush Faceplate 30" (762 mm) 21-1/16" (535 mm) 17-15/16" (456 mm) 20" (508 mm) 3-7/8" (98 mm)
Flush Faceplate w/ Backing Plate 30-7/8" (784 mm) 21-7/16" (545 mm) 17-13/16" (452 mm) 20" (508 mm) 3-3/4" (95 mm)
Flush Faceplate w/ Traditional Surround 28-7/16" (722 mm) 20-1/4" (514 mm) 15-15/16" (405 mm) 20" (508 mm) 1-7/8" (48 mm)
Flush Faceplate w/ Traditional Surround
and Backing Plate
30-7/8" (784 mm) 21-7/16" (545 mm) 15-13/16" (402 mm) 20" (508 mm) 1-3/4" (45 mm)
4-Sided Flush Faceplate 30" (762 mm) 21-5/16" (541 mm) 17-15/16" (456 mm) 20" (508 mm) 3-7/8" (98 mm)
Finishing Trim 30" (762 mm) 21-1/16" (535 mm) 18" (457 mm) 20" (508 mm) 3-15/16" (100 mm)
Finishing Trim w/ Backing Plate 30-7/8" (784 mm) 21-7/16" (545 mm) 17-7/8" (454 mm) 20" (508 mm) 3-7/8" (98 mm)
4-Sided Finishing Trim 30" (762 mm) 21-5/16" (541 mm) 18" (457 mm) 20" (508 mm) 3-15/16" (100 mm)
Minimum Fireplace Opening Sizes with Varying Faceplate/Backing Plate Options

Gi29 Direct Vent Gas Insert | 15
installation
Diagram 1
Minimum Clearances to Combustibles
Clearance Dimension Measured From:
A: Sidewall 8" / 203 mm ***From inside edge of faceplate / doors
B: Ceiling 63-3/4" / 1873 mm From base of unit
D: Min. Hearth Depth 12" / 305 mm Not required if unit raised 3" (76 mm) o the
oor.
E: Min. Hearth Length 36"/ 914 mm Not required if unit raised 3" (76 mm) o the
oor.
K: Min. Alcove Width 54" / 1372 mm
L: Max. Alcove Depth 36" / 914 mm From the front of the unit.
M: Mantel Deector 2-1/2"/ 89 mm*
A
B
E
K
D
L
J***
NOTES
• A 36” (914 mm) wide x 12” (305 mm) deep, non-combustible hearth
is required in front of the appliance unless the unit is raised 3” (76 mm) o the oor.
• *An optional 2-1/2" (64 mm) mantel deector reduces the mantel height to 13" (330 mm) from
the top of the unit @ 1" (25 mm) depth.
• (J): ***Measured from the inside edge of the faceplate/doors - reference only: 27-1/4'' (692 mm)
The clearances listed below are minimum distances unless otherwise stated.
A major cause of res is failure to maintain required clearances (airspace) to combustible materials. It is of the greatest importance that this decorative gas
appliance is installed only in accordance with these instructions.

16 | Gi29 Direct Vent Gas Insert
installation
D
B
0"
2"
4"
6"
8"
10"
12"
14"
16"
18"
20"
22"
24"
0" 2" 4" 8" 6" 12" 10"
26"
28"
30"
A
C
E
F
H
G
Top of
fireplace
opening
A12" (305 mm)
B 22-1/2" (572 mm)
C 19-1/2" (495 mm)
D 6" (152 mm)
Mantel Clearances Without Mantel Deector
Diagram 2
E 1-1/2 " (38 mm)
F 16-1/2" (419 mm)
G Non Combustible
Materials
H 19-3/4" (451 mm)
to base of unit
WARNING
Although this appliance passes safety certication,
the hearth in front of the replace becomes very hot
when the replace heats. Do not use the hearth as
a seat or shelf.
Diagram 3
Mantel Clearances with 2-1/2" Mantel Deector
NOTES
• A 2-1/2" (64 mm) mantel deector reduces mantel height to 13" (330
mm) from the bottom of the unit at 1" (25 mm) depth.
• A non-combustible mantel may be installed at a lower height if the
framing is made of metal studs covered with a non-combustible board.
The non-combustible mantel, when installed at a lower overall height,
may not be lower than 6" (152 mm) from the top of the replace opening.
• All material used must be non-combustible.
A12" (305 mm)
B 22" (559 mm)
C 17-1/2" (445 mm)
D 6" (152 mm)
E 1" (25 mm)
F 13" (330 mm)
G Non Combustible
H 19-3/4" (451 mm)
to base of unit
0"
2"
4"
6"
8"
10"
12"
14"
16"
18"
20"
22"
24"
0" 2" 4" 6" 8" 10" 12"
26"
28"
30"
D
B
A
C
E
F
H
G
Top of
fireplace
opening
Deflector

Gi29 Direct Vent Gas Insert | 17
installation
Using Steel Studs and Concrete Board Over Masonry Brick Fireplace
B
A
A
C
D
NONCOMBUSTIBLE FACING OVER
COMBUSTIBLE FRAMING
DIMENSIONS
HORIZONTAL CLEARANCE - A 5"
VERTICAL CLEARANCE - B 23"
OPENING WIDTH - C 30 1/4" MIN
OPENING HEIGHT - D 21 1/2" MIN
NONCOMBUSTIBLE FACING OVER
NONCOMBUSTIBLE FRAMING
DIMENSIONS
A - Horizontal clearance 8" (203 mm)
B - Vertical clearance 23" (584 mm)
C - Opening Width 30-1/4" min. (768 mm)
D - Opening Height 21-1/2" min. (546 mm)
E - Minimum Total Width 46-1/4'' (1175 mm)
F - Minimum Total Height 41-3/4'' (1060 mm)
Combustible Facing Over
Combustible Framing
Non-Combustible Facing Over
Non-Combustible Framing
The masonry front brick facing can be removed and replaced with non-combustible materials such as steel studs and concrete board/dura rock/micor
board as per diagram 1, only if safe to do so. Steel stud may also be placed in front of the masonry brick if left in place. This is the preferred method
depending on the condition of the masonry brick replace.
The opening between the front of the masonry rebox and non-combustible materials such as steel studs must be sealed so heat cannot run between the
face of the masonry replace and the refacing materials. Only nishing materials such as tile, stone, brick, or similar materials that are non-combustible
may be used. Use materials that are uniform so that when the unit is positioned, there are no visible gaps on the sides or top of the surround.
Diagram 1
Existing Masonry Fireplace
Combustible material permitted
Non-combustible
material only
E
F

18 | Gi29 Direct Vent Gas Insert
installation
Leveling Legs Adjustment
1. The leveling bolts can be installed with bolts from above or below
(preferred method) to level the appliance. If choosing to go above,
follow steps below. If choosing to go from below, see step 5. From
the back of the unit, remove the six screws, then lift the fan mount
plate out.
2. Screw the 2 2-1/2'' (64 mm) bolts supplied inside manual package to
the 2 nutserts located at the rear corners of appliance. Using a 7/16”
wrench or socket, tighten or loosen the bolts as needed. The rear
bolts can be adjusted up to 2-1/8”.
3. Reinstall the fan mount plate.
4. The front leveling bolts can be accessed from the front of the insert, on
the bottom left and right sides. Once it is in position, adjust the bolts to
ensure the appliance is level and won’t rock.
5. From below: The bolts can be ipped around and installed from the bot-
tom of the insert for extended length. Once it is in position, adjust the
bolts to ensure the appliance is level and won’t rock.
NOTE
• The leveling of the appliance must be done prior to hooking up
gas line and vent system.

Gi29 Direct Vent Gas Insert | 19
installation

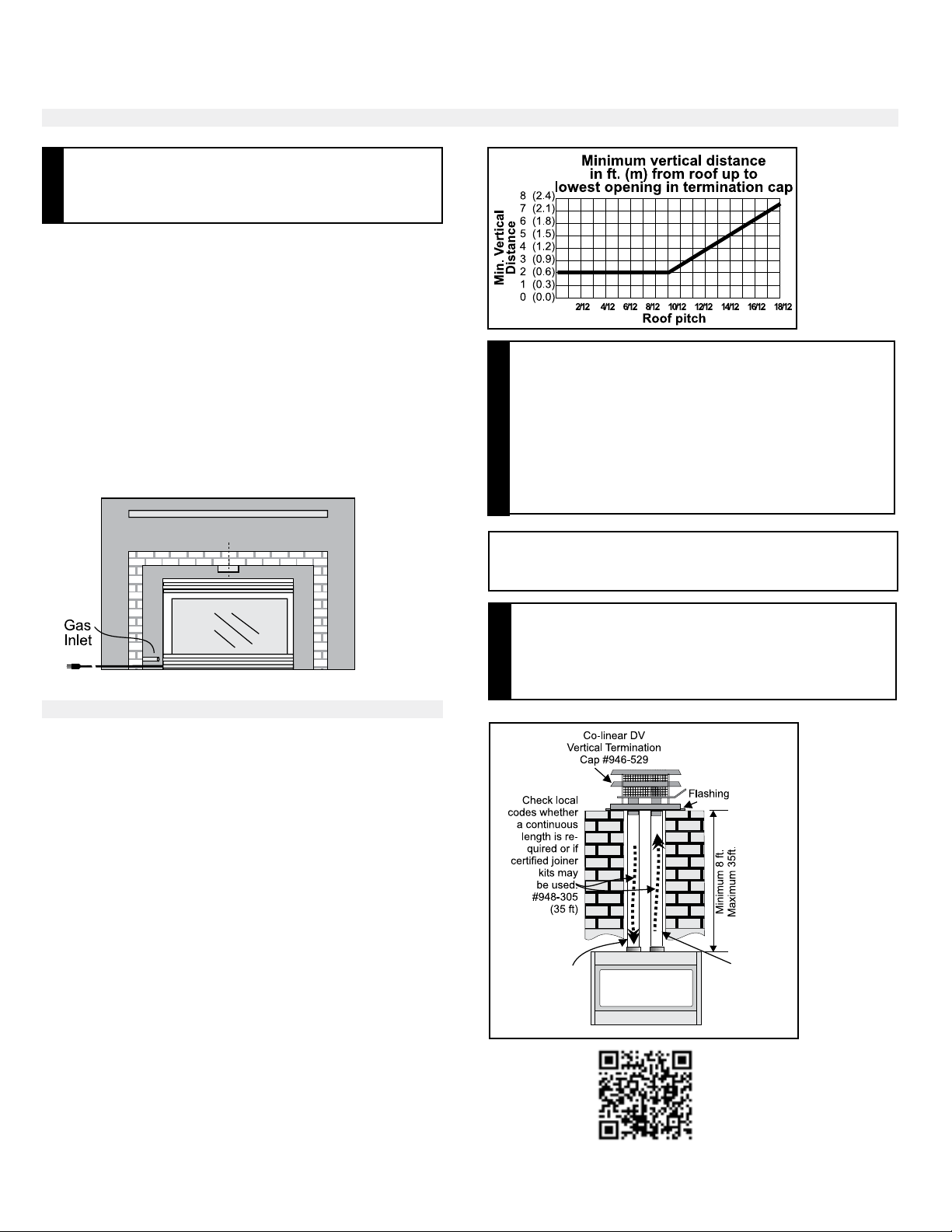

Vertical Venting
THE APPLIANCE MUST NOT BE CONNECTED TO A
CHIMNEY FLUE SERVING A SEPARATE SOLID FUEL
BURNING APPLIANCE.
This appliance is designed to attach to two 3" (76 mm) co-linear aluminum
ex running the full length of the chimney. The ue length must be a
minimum of 8' (2.44 m) and a maximum of 35' (10.7 m) long. See the
chart below for minimum distances from the roof. Periodically check that
the vent is unrestricted.
Masonry chimneys may take various contours which the exible liner will
accommodate. However, keep the exible liner as straight as possible
(avoid unnecessary bending).
Attach both the exhaust and intake ue liners to both the termination cap
& ue collar at the appliance with a minimum of three self-tapping screws.
Use Mil-Pac sealant to seal the pipes.
The air intake pipe must be attached to the inlet air collar of the termination
cap.
1. If the appliance is installed into an existing chimney system, thoroughly
clean the masonry or factory-built replace.
2. The appliance has an opening on the left side of the control compartment.
A 3/8” NPT gas supply pipe must be brought near the opening.
3. Locate the centre point where the vent will pass through the chimney,
above the appliance. Move the appliance to the installation location.
Ensure that the insert is level.
4. Do not cut any sheet metal parts of the replace into which the gas
insert will be installed.
5. If the factory-built replace has no gas access hole(s), drill one of 1-1/2"
(37-1/2 mm) or less through the lower sides or bottom of the rebox.
The access hole must be plugged with non-combustible insulation after
the gas supply line is installed.
Gas & Electrical Connections
Gas Connection
NOTES
When attaching the two 3 inch (51-76 mm) liners to the termination
cap and prior to sliding them down the chimney, it is good practice
to mark the liners “exhaust” & “air intake”. This prevents mixing up
the liners at the ue collar connection of the appliance. If facing the
appliance from the front, the air intake is located on the left and the
exhaust ue on the right.
Part # Description
948-305 3" Flex - 35 ft.
946-529 Co-linear DV Vertical Termination Cap
Air
Intake Exhaust
Flue
This appliance was tested and certied as a complete
system with the noted termination caps and ex liner.
Only the listed termination caps/ex liner noted below
can be used. Use of termination caps or ex liners not
listed in this manual will void the warranty and cer-
tication of this appliance. It is also important not to
enclose the termination cap inside a masonry chimney
rain cap, or similar. The termination must be exposed
on all four sides and above to exhaust and draw air
into the rebox.
IMPORTANT
Only people licensed to work with gas piping may
make the gas connections to this appliance.
WARNING

20 | Gi29 Direct Vent Gas Insert
installation
Alternate Approved Vertical Termination Caps/Adaptor
Alternate Approved Caps
46DVA-VC Vertical Termination Cap
OR
46DVA-VCH High Wind Cap
AND
46DVA-GK 3" Co-linear Adaptor with ashing
In areas with consistently high winds, we recommend using the Simpson Dura-Vent System (46DVA-GK adaptor and 46DVA-VCH high-wind cap).
The air intake pipe must be attached to the inlet air collar of the termination cap.
