Regency Fireplace Products MONTROSE Quick start guide

Model: L850B-1
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Manual
March-01-2021
920-372
WARNING:
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to this manual. For assistance or
additional information consult an authorised installer, service agency or
the distributor.
It is highly recommended for protection of infants and infirm to place a
secure safety guard in front of this appliance when in operation.
MONTROSE WOOD FIREPLACE
FPI - FIREPLACE PRODUCTS AUSTRALIA PTY LTD.
1-3 CONQUEST WAY HALLAM VICTORIA 3803

2Montrose Woodfire
Thank you for purchasing a
REGENCY FIREPLACE PRODUCT
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this manual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this wood fire is not properly installed, a house fire may result. For your safety,
follow the installation instructions, contact local building, fire officials, or authority having jurisdiction
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.
CAUTION: BURN UNTREATED WOOD ONLY. OTHER MATERIALS SUCH AS WOOD PRESER-
VATIVES, METAL FOILS, COAL, PLASTIC, GARBAGE, SULPHUR OR OIL WILL DAMAGE THE
FIRE AND ATMOSPHERE.
"This wood heater is designed to burn natural wood only. Higher efficiencies and lower emissions
generally result when burning air dried seasoned hardwoods, as compared to green or freshly
cut hardwoods."
ONLY CLEAN APPLIANCE WITH A DAMP CLOTH
(NEVER WHEN UNIT IS HOT)
DO NOT USE ANY ABRASIVE CLEANERS
DO NOT BURN (WILL VOID WARRANTY):
• Treated wood • Tea Tree • Oil Based woods • Coal • Garbage
• Cardboard • Solvents • Colored Paper • Trash

Montrose Woodfire 3
table of
contents
Compliance Plate ..................................................................4
Unit Dimensions ....................................................................5
INSTALLATION
Before Installing Your Fireplace .............................................6
Safety Guidelines and Warnings ...........................................7
Wood Fireplace Specifications ..............................................8
Wood Fireplace Specifics-Minimum Clearances ...................9
Optional Base Frame ...........................................................10
Flue and Flue Requirements ...............................................11
Installation Instructions ........................................................15
Optional Fan Kit Installation
Listing and Code Approvals..........................................18
General Information ......................................................18
Minimum Framing Clearances ......................................18
Fan Kit Installation ........................................................19
Fan Duct Extension Kit .................................................20
Wiring Diagram .............................................................20
Optional Outside Air Kit Installation .....................................21
Brick Installation ..................................................................22
APPLIANCE MAINTENANCE
Creosote ..............................................................................23
Ash Removal .......................................................................23
Glass Installation .................................................................23
Glass Maintenance ..............................................................23
Door Latch Adjustment ........................................................23
Trouble Shooting ..................................................................24
OPERATING INSTRUCTIONS
Additional Warnings ......................................................25
Air Slide Control ...........................................................25
Fuel Requirements .......................................................25
Lighting the Appliance ..................................................26
PARTS LIST
Main Assembly ....................................................................27
WARRANTY
Installation of Appliance Checklist.......................................29
Warranty ..............................................................................30

4Montrose Woodfire
compliance plate
This is a copy of the data badge that accompanies
each L850B Fireplace. We have included a copy of
the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the data badge on the unit
and if there is a difference, the data badge on
the unit is the correct one.
COPY OF DATA BADGE
PLEASE MAKE NOTE OF THE UNIT SERIAL NUMBER AND ENTER IN THE SPACE PROVIDED
Part #: 920-373
Colour: Black on Grey
Size: 100%
Jan. 01/11: Created Draft
Model: MONTROSE L850B-1
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC 2021 2022 2023 2024 2025
TESTED BY:
HRL TECHNOLOGY PTY LTD.
TRAMWAY ROAD MORWELL VICTORIA 3840 (2014)
MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD: 11kW
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD: 62%
Date of Manufacture:
Serial
Number
920-373
557
WHEN TESTED IN ACCORDANCE WITH AS/NZS 4012:2014 & AS/NZS 4013:2014
PARTICULATE EMISSION FACTOR: 1.2 g/kg
CATALYTIC COMBUSTOR: NO
TEST REPORT NUMBER: HCMG/14/023A
MAKE: REGENCY
TYPE: FIREPLACE INSERT
MANUFACTURER/DISTRIBUTOR: FIREPLACE PRODUCTS AUSTRALIA PTY. LTD.
1 CONQUEST WAY, HALLAM VIC 3803

Montrose Woodfire 5
dimensions
UNIT DIMENSIONS
1. Reduced Clearance Box Dimensions
2. Standard Firebox Front Dimensions
FPI(China) LTD.
Canature
開能
上海开能壁炉产品有限公司
1066
930
790
310 444 614
550
487
449
412
153
275
986
1011
批准
审核
设计
日期
日期
日期王 从 坦
标记 更改描述 签名 日期
2021/2/1
材料:
规格:
F1560401-1
第1页/共1页
数量:1
比例:1:20
仅用于实验室图纸
0～30mm ±0.2mm；
＞30～100mm ±0.5mm；
＞100～500mm ±1.0mm；
＞500～1000mm±2.0mm；
＞1000mm ±5.0mm；
ALL HOLES ±0.2mm。
未注公差:ISO2768mK
图框:A4 未注光洁度Rz63
锐角倒钝，去除毛刺，
未注尺寸参考3D造型
投影标记:
必检尺寸:
D:\壁炉内部共享\1-壁炉产品\01-FPA\P10-L850B燃木壁炉（F1560401）\01-模型图纸\
共用项目 数量
表面处理:
Montrose(L850B)嵌入式燃
木壁炉(出口）P10-加高型
P10 L850B
FPI(China) LTD.
Canature
開能
上海开能壁炉产品有限公司
1066
930
790
310 444 614
550
487
449
412
153
275
986
1011
批准
审核
设计
日期
日期
日期王 从 坦
标记 更改描述 签名 日期
2021/2/1
材料:
规格:
F1560401-1
第1页/共1页
数量:1
比例:1:20
仅用于实验室图纸
0～30mm ±0.2mm；
＞30～100mm ±0.5mm；
＞100～500mm ±1.0mm；
＞500～1000mm±2.0mm；
＞1000mm ±5.0mm；
ALL HOLES ±0.2mm。
未注公差:ISO2768mK
图框:A4 未注光洁度Rz63
锐角倒钝，去除毛刺，
未注尺寸参考3D造型
投影标记:
必检尺寸:
D:\壁炉内部共享\1-壁炉产品\01-FPA\P10-L850B燃木壁炉（F1560401）\01-模型图纸\
共用项目 数量
表面处理:
Montrose(L850B)嵌入式燃
木壁炉(出口）P10-加高型
P10 L850B
FPI(China) LTD.
Canature
開能
上海开能壁炉产品有限公司
1066
930
790
310 444 614
550
487
449
412
153
275
986
1011
批准
审核
设计
日期
日期
日期王 从 坦
标记 更改描述 签名 日期
2021/2/1
材料:
规格:
F1560401-1
第1页/共1页
数量:1
比例:1:20
仅用于实验室图纸
0～30mm ±0.2mm；
＞30～100mm ±0.5mm；
＞100～500mm ±1.0mm；
＞500～1000mm±2.0mm；
＞1000mm ±5.0mm；
ALL HOLES ±0.2mm。
未注公差:ISO2768mK
图框:A4 未注光洁度Rz63
锐角倒钝，去除毛刺，
未注尺寸参考3D造型
投影标记:
必检尺寸:
D:\壁炉内部共享\1-壁炉产品\01-FPA\P10-L850B燃木壁炉（F1560401）\01-模型图纸\
共用项目 数量
表面处理:
Montrose(L850B)嵌入式燃
木壁炉(出口）P10-加高型
P10 L850B
FPI(China) LTD.
Canature
開能
上海开能壁炉产品有限公司
1097
1069
999
571
901
448
203
173
批准
审核
设计
日期
日期
日期王 从 坦
标记 更改描述 签名 日期
2021/2/1
材料:
规格:
F1560200A
第1页/共1页
数量:1
比例:1:10
仅用于实验室图纸
0～30mm ±0.2mm；
＞30～100mm ±0.5mm；
＞100～500mm ±1.0mm；
＞500～1000mm±2.0mm；
＞1000mm ±5.0mm；
ALL HOLES ±0.2mm。
未注公差:ISO2768mK
图框:A4 未注光洁度Rz63
锐角倒钝，去除毛刺，
未注尺寸参考3D造型
投影标记:
必检尺寸:
D:\壁炉内部共享\1-壁炉产品\01-FPA\P10-L850B燃木壁炉（F1560401）\01-模型图纸\
共用项目 数量
表面处理:
ZC外壳装配组件-加高型
P10 L850B Montrose
FPI(China) LTD.
Canature
開能
上海开能壁炉产品有限公司
1097
1069
999
571
901
448
203
173
批准
审核
设计
日期
日期
日期王 从 坦
标记 更改描述 签名 日期
2021/2/1
材料:
规格:
F1560200A
第1页/共1页
数量:1
比例:1:10
仅用于实验室图纸
0～30mm ±0.2mm；
＞30～100mm ±0.5mm；
＞100～500mm ±1.0mm；
＞500～1000mm±2.0mm；
＞1000mm ±5.0mm；
ALL HOLES ±0.2mm。
未注公差:ISO2768mK
图框:A4 未注光洁度Rz63
锐角倒钝，去除毛刺，
未注尺寸参考3D造型
投影标记:
必检尺寸:
D:\壁炉内部共享\1-壁炉产品\01-FPA\P10-L850B燃木壁炉（F1560401）\01-模型图纸\
共用项目 数量
表面处理:
ZC外壳装配组件-加高型
P10 L850B Montrose
FPI(China) LTD.
Canature
開能
上海开能壁炉产品有限公司
1097
1069
999
571
901
448
203
173
批准
审核
设计
日期
日期
日期王 从 坦
标记 更改描述 签名 日期
2021/2/1
材料:
规格:
F1560200A
第1页/共1页
数量:1
比例:1:10
仅用于实验室图纸
0～30mm ±0.2mm；
＞30～100mm ±0.5mm；
＞100～500mm ±1.0mm；
＞500～1000mm±2.0mm；
＞1000mm ±5.0mm；
ALL HOLES ±0.2mm。
未注公差:ISO2768mK
图框:A4 未注光洁度Rz63
锐角倒钝，去除毛刺，
未注尺寸参考3D造型
投影标记:
必检尺寸:
D:\壁炉内部共享\1-壁炉产品\01-FPA\P10-L850B燃木壁炉（F1560401）\01-模型图纸\
共用项目 数量
表面处理:
ZC外壳装配组件-加高型
P10 L850B Montrose

6Montrose Woodfire
installation
BEFORE INSTALLING YOUR FIREPLACE
1) Please read this entire manual before you install and use your new wood fireplace. Failure to follow instructions may result in property damage,
bodily injury or even death. Install and use only in accordance with manufacturer’s installation and operating instructions.
2) Check your local building codes - Building Inspection Department. You may require a permit before installing your fireplace. Be aware that local codes and
regulations may override some items in the manual.
3) Notify your home insurance company that you plan to install a fireplace insert or freestanding heater.
4) THE FIREPLACE CAN GET VERY HOT. DO NOT INSTALL, PLACE OR POSITION TV’S, PAINTINGS, PICTURES, CANDLES, FURNITURE, DRAPES
OR ANY OTHER COMBUSTIBLE ITEMS ON THE WALL OR NEAR THE FIREPLACE.
5) ENSURE THERE ARE NO EXHAUST FANS WITHIN THE VICINITY OF THE FIREPLACE AS THIS CAN CAUSE THE FIREPLACE TO EMIT FUMES
BACK INTO THE ROOM.
6) ENSURE THERE IS ADEQUATE AIR SUPPLY WITHIN THE ROOM/AREA THE FIREPLACE IS BEING INSTALLED IN TO ENSURE PROPER OPERA-
TION OF THE FIREPLACE. INSTALL OPTIONAL OUTSIDE AIR KIT IF IN DOUBT.
7) EVALUATE THE LOCATION OF YOUR FIREPLACE AND OPTIONAL COMPONENTS. IT IS VERY IMPORTANT TO DETERMINE HOW THE FIREPLACE
IS GOING TO BE FINISHED. THE FEATURES YOU WOULD LIKE TO INCORPORATE SUCH AS THE OUTSIDE AIR KIT AND EXTERNAL FAN KITS
NEED TO BE EVALUATED PRIOR TO INSTALLATION.
8) DETERMINE WHAT THICKNESS OF YOUR DESIRED NON-COMBUSTIBLE FINISHING MATERIALS WILL BE INCLUDING THE HEAT RESISTANT
NON-COMBUSTIBLE BOARD. THIS PRE-DETERMINED THICKNESS WILL DICTATE THE POSITION OF THE SUPPORT FLANGES, FRAMING AND
OVERALL FINAL LOOK OF YOUR FIREPLACE.
9) Your fireplace is heavy and requires two or more people to move it safely. The fireplace can be badly damaged by mishandling and or injury can occur.
10) Do not connect the fireplace to a flue system servicing another appliance or an air distribution duct.
WARNING: CARELESS INSTALLATION IS THE MAJOR CAUSE OF SAFETY HAZARD. CHECK ALL LOCAL BUILDING AND SAFETY CODES BEFORE
INSTALLATION OF UNIT.
THE APPLIANCE, WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL CODES.
Regency Fireplaces are constructed with the highest quality materials and assembled under strict quality control procedures that ensure years of trouble free
and reliable performance.
It is important that you read this manual thoroughly and fully understand the safe installation and operating procedures. The more you understand the way
your Regency Fireplace operates, the more enjoyment you will experience from knowing that your unit is operating at peak performance.

Montrose Woodfire 7
installation
1) Never use petrol, petrol type lantern fuels, kerosene, charcoal lighter
fuel, or similar liquids to start or ‘freshen up’ a fire in your heater. Keep
all such liquids well away from the heater while it is in use.
2) Keep the door closed during operation and maintain all seals in
good condition.
3) Do not burn any quantities of paper, garbage, and never burn flam-
mable fluids such as petrol, naptha or engine oil in your heater.
4) If you have smoke detectors, prevent smoke spillage as this may
set off a false alarm.
5) Do not overfire heater. If the flue connector, flue baffle or the heater
top begin to glow, you are overfiring. Stop adding fuel and close the
draft control. Overfiring can cause extensive damage to your heater
including warpage and premature steel corrosion. Overfiring will void
your warranty.
6) Do not permit creosote or soot build-up in the flue system. Check
and clean flue at regular intervals. Failure to do so can result in a seri-
ous flue fire.
7) Your Regency heater can be very hot. You may be seriously burned
if you touch the heater while it is operating, keep children, clothing and
furniture away. Warn children of the burn hazard. For safety reasons
a guard around the fire is recommended.
8) The heater consumes air while operating, provide adequate ventila-
tion with an air duct or open a window while the heater is in use or use
optional outside air kit.
9) Do not use grates or andirons or other methods for supporting fuel.
Burn directly on the base or bricks where supplied.
10) Open the draft control fully for 10 to 15 seconds prior to slowly
opening the door when refuelling the fire.
11) Do not connect your unit to any air distribution duct.
12) Your wood fire should burn dry, standard firewood only. The use of
cut timber, plywood, “mill ends”, etc. is not allowed as this fuel can easily
overheat your wood fire. Evidence of excessive overheating will void
your warranty. As well, a large portion of sawmill waste is chemically
treated timber, which is illegal to burn in many areas. Salt drift wood
and chemically treated fire logs also must not be burned in your wood
fire.
13) DO NOT OPERATE WITH BROKEN GLASS.
WARNING: THE APPLIANCE AND FLUE-SYSTEM SHALL BE
INSTALLED IN ACCORDANCE WITH AS/NZS 2918 AND THE
APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING
CODE OR CODES.
WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS
STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF AS/
NZS 4013 WHERE REQUIRED BY THE REGULATORY AUTHORITY.
I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A COMPLIANCE
PLATE WITH THE MARKING 'TESTED TO AS/NZS 4013'.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN
APPROVED IN WRITING BY THE TESTING AUTHORITY IS CON-
SIDERED TO BE IN BREACH OF THE APPROVAL GRANTED FOR
COMPLIANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR FLUE-SYSTEM COM-
PONENTS FROM DIFFERENT SOURCES OR MODIFYING THE
DIMENSIONAL SPECIFICATION OF COMPONENTS MAY RESULT
IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CON-
SIDERED, THE MANUFACTURER SHOULD BE CONSULTED IN
THE FIRST INSTANCE.
CAUTION: CRACKED AND BROKEN COMPONENTS, e.g. GLASS
PANELS OR CERAMIC TILES MAY RENDER THE INSTALLATION
UNSAFE.
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS
NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY
IS CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS
TO START OR REKINDLE THE FIRE.
WARNING DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS
IN THE VICINITY OF THIS APPLIANCE WHEN IT IS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLA-
TION CLEARANCES.
WARNING: DO NOT USE AS AN OPEN FIRE OR OPERATE WITH
THE DOOR OPEN.
WARNING: OPEN AIR CONTROL (AND DAMPER WHEN FITTED)
BEFORE OPENING FIRE DOOR.
CAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED WITH
A CRACKED GLASS.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND
OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE IN-
STRUCTIONS
SAFETY GUIDELINES AND WARNINGS/CAUTIONS
CAUTION: THE USE OF SOME TYPES PRESERVATIVE-TREATED
WOOD AS A FUEL CAN BE HAZARDOUS

8Montrose Woodfire
installation
UNIT DIMENSIONS
Dimensions
The outside dimensions of the Montrose L850 including the Reduced
Clearance Box is as follows:
• Width 1097mm
•
• Depth = 448mm
•
• Height = 801mm
Height of optional Base Framing Kit = 300mm
Note: Base is non-combustible and needs assembly
COMBUSTIBLE CAVITY REQUIREMENTS
Cavity Depth = Minimum 548mm - 720mm
Note: Cavity depth is determined by the position of support strips and
thickness of non-combustible wall finish. Rear clearance must be a
minimum of 100mm to combustibles.
CAVITY WIDTH = 1497MM TO COMBUSTIBLES.
Height of reduced clearance box off the ground should be a minimum of
300mm and supported by a non-combustible stand able to support 265kg.
CAVITY HEIGHT: Timber framing in the ceiling cavity must be a minimum
of 1200mm above the reduced clearance box.
Flue
• Minimum 4.5 Meters of triple
skin flue required with approved
cowling. Regency approved flue
kit to be used.
Optional Ducting
• One or two optional fan forced
ducting kits are available, using
150mm ducting to a max run of
9 meters
Clearance Dimensions

Montrose Woodfire 9
installation

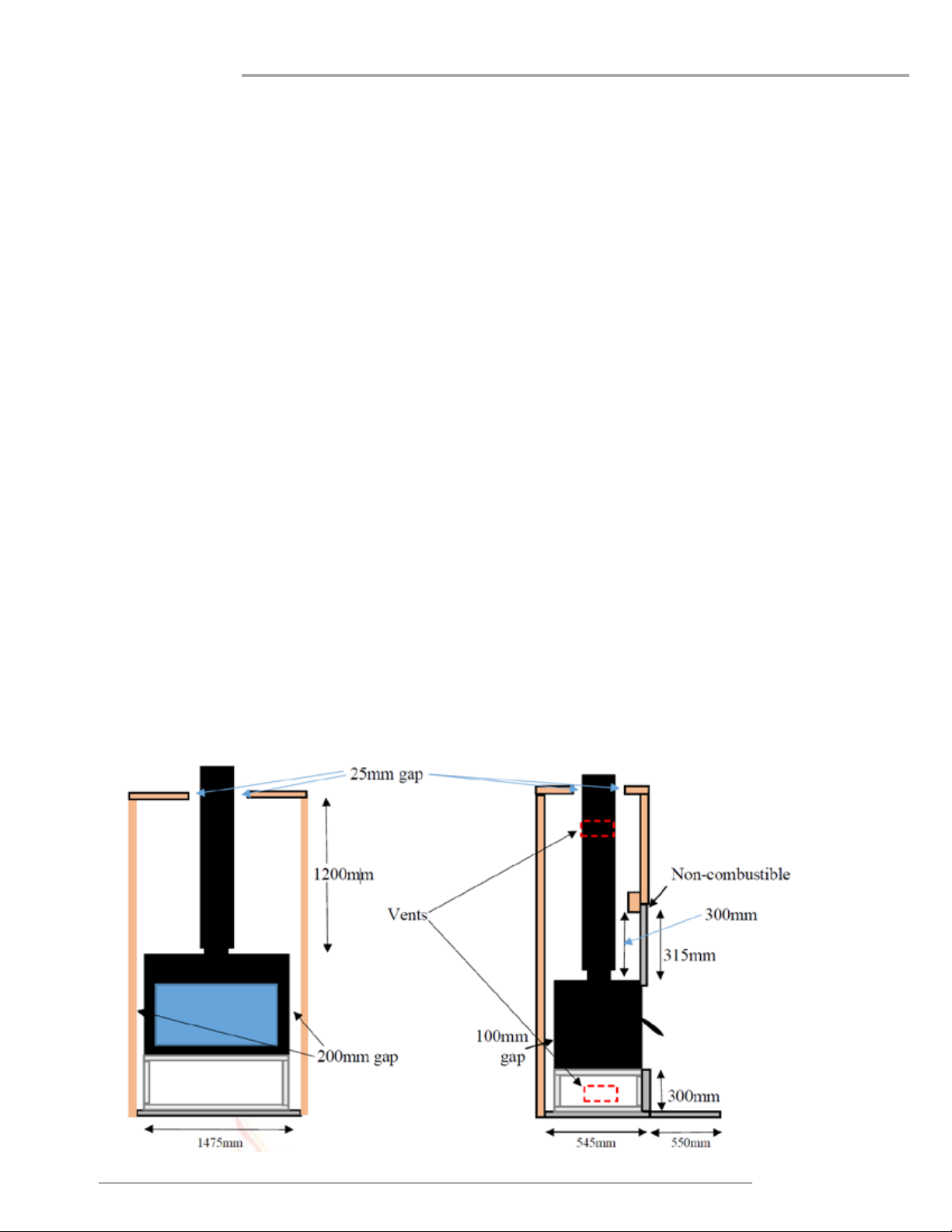

WOOD FIREPLACE SPECIFICS AND MINIMUM CLEARANCES TO COMBUSTIBLES
Enclosure Ventilation
Unit cavity to have a minimum of two 20,000mm2 air vents must be
installed, one 300mm from the top of the enclosure and one 50mm
from the bottom of the enclosure to stop excessive heat built up
in the enclosure.
Wall Materials
Non-combustible material with a minimum thickness of 9mm must
be used on the front wall of the reduced enclosure. Non combustible
board and non combustible cladding to finish up to the standoff
brackets. Must maintain 20mm gap around entire face of the unit.
Please note: Non-combustible materials need to be fit for purpose
as wall temperatures can exceed 250o.
Hearth / Floor Protection Requirements
Hearth needs to be 6mm thick, 1475mm wide and 1,100mm deep to allow for 550mm leading
edge. We do recommend that your non-combustible hearth extends 900mm in front of the
unit. This allows the floor to be protected when the door is fully open in case of ember drop.
The appliance must be installed on a non-combustible stand 300mm above the hearth.
Cavity
Timber framing in the ceiling cavity must be a minimum of 1200mm above the zero box.
200 mm TO TIMBER STUD SIDEWALL
ONLY
1200mm
100mm
MUST USE NON-COMBUSTIBLE MA-
TERIALS 315MM ABOVE THE UNITS
OUTER SHELL(REDUCED CLEAR-
ANCE BOX), 200MM FROM THE
SIDES OF THE OUTER SHELL AND
ALL BELOW THE HEATER.
MAX. ALCOVE
Vent
Vent
50mm
(height of vent)
300mm min
(Height of
vent)
1497mm
550mm
548mm
6mm THICK CEMENT FIBRE
FREE SHEET AS HEARTH
(1475mm x 1100mm)
Hearth extends under unit base
1475mm
Clearance to combustibles
Note: Venting in the ceiling of the enclosure around
the outer triple flue skin must be a minimum of
25mm clearance evenly spaced around the outer
casing.
CLEARANCE TO COMBUSTIBLES
Timber Stud
Min. 200mm
to Timber
Stud
Min. 200mm
to Timber
Stud
Min. 300mm to
Timber Stud
Vent
Vent

10 Montrose Woodfire
installation
OPTIONAL BASE FRAME
CONSTRUCTING YOUR OWN BASE FRAME
WHEN BUILDING YOUR OWN BASE FRAME OR PEDESTAL BASE PLEASE
ENSURE THE FOLLOWING CONDITIONS ARE MET:
1. MINIMUM HEIGHT OF THE BASE FRAME IS 300MM FROM THE FLOOR PROTECTOR / HEARTH TO THE UNDERSIDE OF THE REDUCED CLEAR-
ANCE BOX. IF BASE FRAME DOES NOT SIT ON THE SAME LEVEL OF THE FINISHED FLOOR, THEN THE FRAME NEEDS TO BE MADE TALLER
TO ENSURE THE 300MM CLEARANCE IS MET. (SEE PAGE 10).
2. ENSURE THE BASE IS HOLLOW REGARDLESS OF USING OPTIONAL OUTSIDE AIR KIT OR NOT.
3. ENSURE THE BASE IS CONSTRUCTED OF NON-COMBUSTIBLE MATERIALS
4. ENSURE THE BASE CAN WITHSTAND THE WEIGHT OF AT LEAST 265KG PLUS.
5. ENSURE THE FLOOR BENEATH THE BASE CAN WITHSTAND AT LEAST 265KG PLUS.

Montrose Woodfire 11
installation

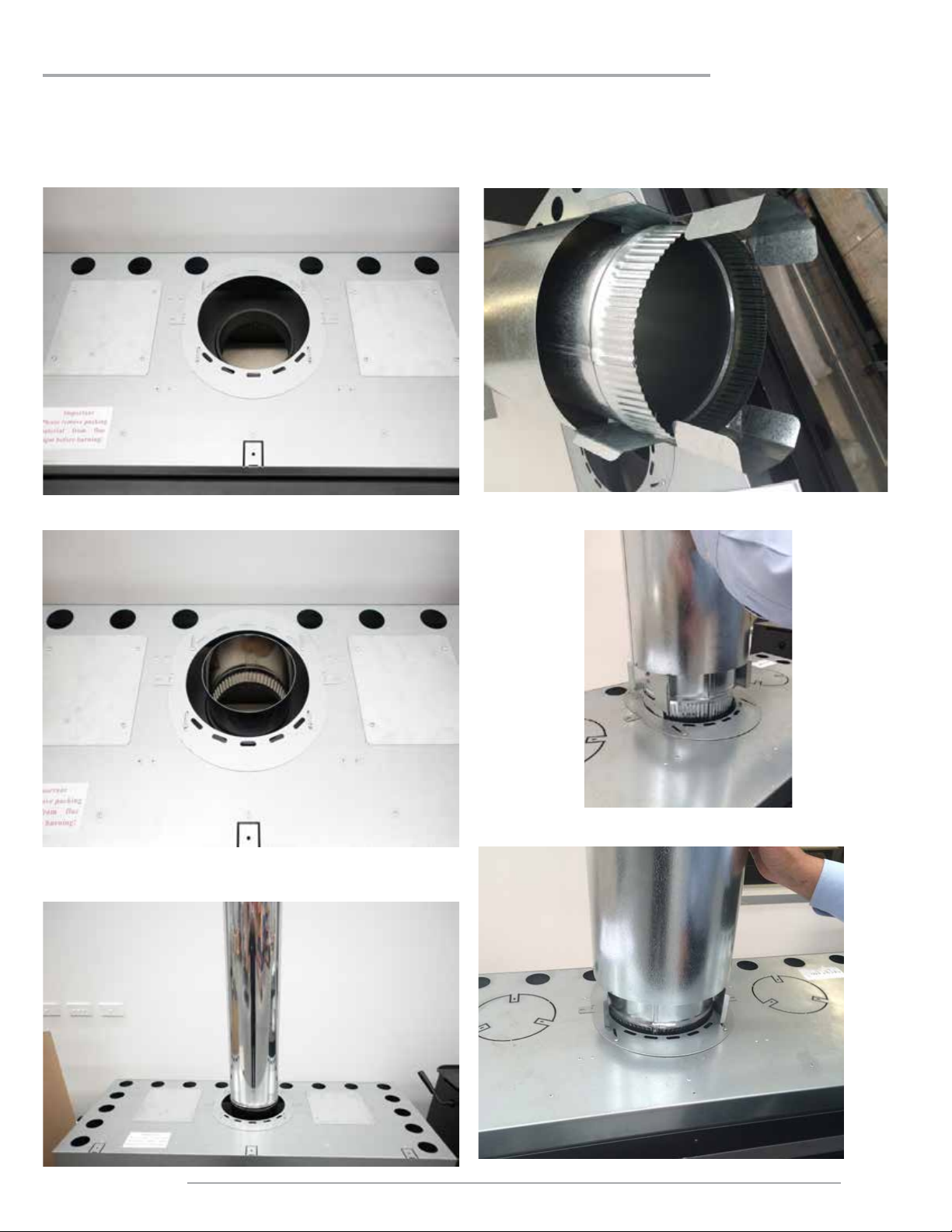

1. 6" starter flue fitted. Note the crimped end is down (into unit).
FLUE AND CHIMNEY REQUIREMENTS
PLEASE READ AND REFER TO INSTALLATION INSTRUCTIONS UNIT PREPARATION ON PAGE 16
2. 6" Flue fitted. Note: crimped end is down. Must connect active pipe using
stainless steel rivets or self drilling screws. 2 for each join.
3. 8” and 10” galvanised skin fitted Air cooled bracket positions 8” inside shell
and 10” outside shell – note crimped end up on outer is down.
4. 8” & 10” galvanized flue skin fitted with aircooling bracket.
Top of Unit prior to installation of the flue. The packaging material has been
removed.
5. Air cooled bracket and pipe fitted to unit. The outer casing of the flue (10”)
must be raised 75mm above the zero clearance box.

12 Montrose Woodfire
installation
6. Top of 8” and 10” galvanized flue skins.
Note: Ventilation at top of outer flue where it meets cowl – must be vented
to allow heat escape.
Note: 8” skin will be shorter than 10” at top – this is fine as allows 8” to vent
into outer and cowl.
At this stage of the installation the unit is installed with the flue system and
any optional kits. The next step is to install and set the support flanges in the
correct position to accommodate the front wall framing and finishing.

Montrose Woodfire 13
installation
FLUE REQUIREMENTS
THE FLUE PIPE SHALL EXTEND NOT LESS THAN 4.6 M ABOVE THE TOP OF THE FLOOR PROTECTOR / HEARTH.
NOTE: INSTALLATION MUST BE CARRIED OUT BY A LICENSED INSTALLER IN ACCORDANCE WITH AS/NZS 2918:2018
6000
3000 Min.
3000 Min
6000
3000 Min
3000 Min
3000 Min 3000 Min
3000 Min
3000 Min
Increase as necessary
until nothing within 6000
of flue top

14 Montrose Woodfire
installation
FLUE REQUIREMENTS

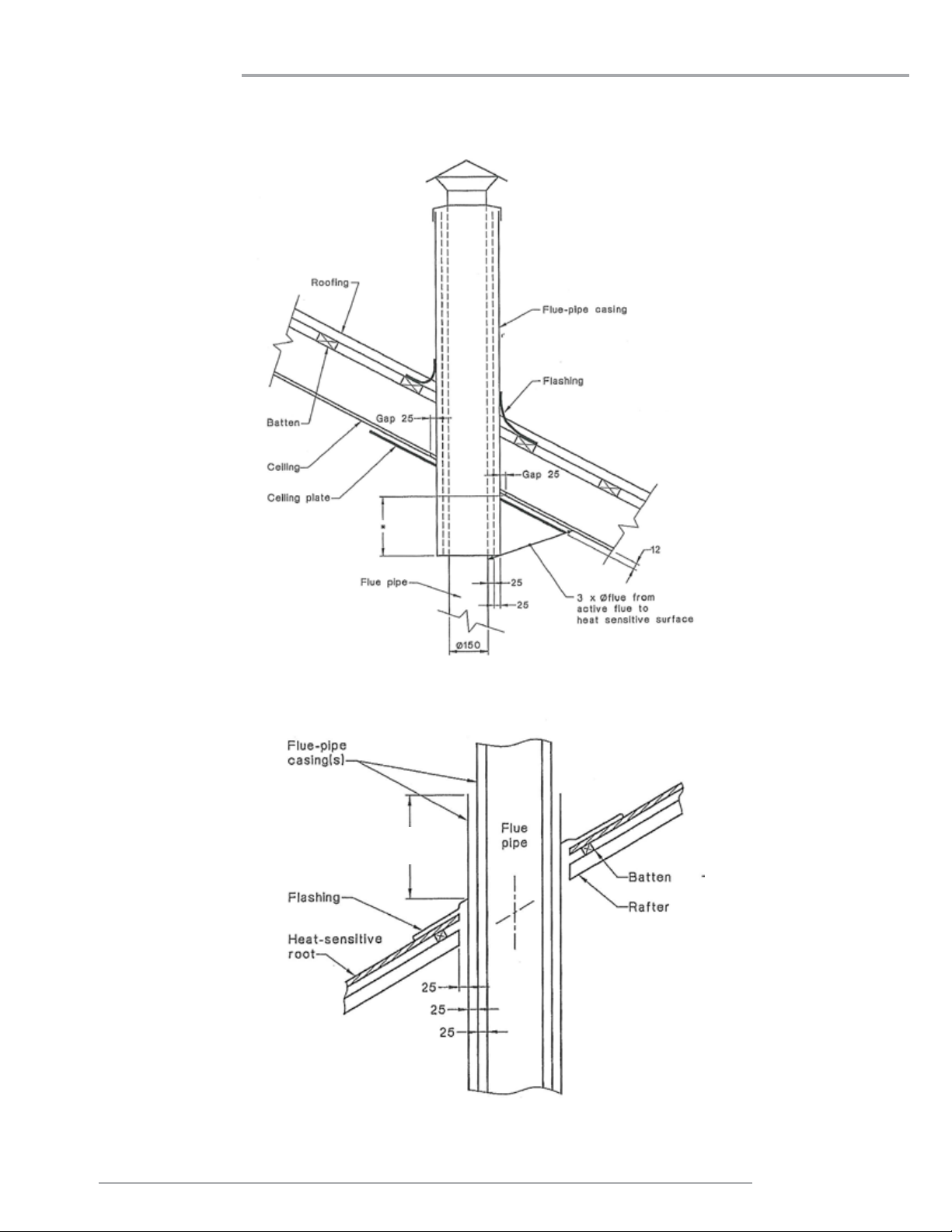

Typical Example of a Sloped Ceiling Penetration
Example of Roof Penetration
See clause 4.8 -
AS/NZ 2918:2018

Montrose Woodfire 15
installation
INSTALLATION INSTRUCTIONS
UNIT PREPARATION/FRAMING/30MM-50MM FINISHING TRIM
BEFORE INSTALLING ENSURE THE FOLLOWING:
READ THE ENTIRE MANUAL
EVALUATE THE LOCATION OF YOUR FIREPLACE AND LOCA-
TION OF OPTIONAL COMPONENTS SUCH AS THE OPTIONAL
FAN KITS AND OUTSIDE AIR KIT.
DETERMINE WHAT THE THICKNESS OF YOUR DESIRED NON-
COMBUSTIBLE FINISHING MATERIALS INCLUDING THE RE-
QUIRED NON-COMBUSTIBLE BOARD. THIS PREDETERMINED
THICKNESS WILL DICTATE THE CAVITY DEPTH, POSITION OF
THE SUPPORT FLANGES,FRAMING AND OVERALL FINAL LOOK
OF YOUR FIREPLACE.
The unit comes standard with support flanges and clean edge frame installed.
Clean edge frame comes with 20mm standoff brackets.
MAXIMUM THICKNESS OF NON-COMBUSTIBLE FINISHING MATERIAL:
32MM
1. Determine the location of the fireplace, flueing location and locations of
the options such as the fan kit and outside air.
1.a. Install Non-combustible Hearth as per Hearth requirement listed on
page 9.
1.b. Construct your base frame. Please see BASE FRAME instructions
on page 10. The base frame is required TO RAISE THE UNIT in order to
meet the 300mm clearance to the finished floor.
2. Position your base frame in the predetermined location of fireplace. Level
then mark the position of the base frame. Remove the frame and set aside.
3. Frame out back wall if required and side walls only of the fireplace cavity.
DO NOT FRAME FRONT WALL. The back and side walls of the cavity
can be constructed using timber. Please refer to page 8 and 9 for clear-
ances and cavity depth.
4. Reinstall the base frame and secure to the floor.
5. If using optional outside air kit please refer to page 21. The optional air
kit adapter must be installed prior to the unit being positioned on to the
base frame.
6. Install the fireplace on the base frame. Secure unit to the base frame.
Base Frame
7. Install Approved Flue as per pages on Optional Base Frame and Flue &
Chimney Requirements (pages 10-11), complete the installation of your
optional kits such as fan and/or outside air kit, as per pages on Optional
Fan Kit Installation (pages 18-19).

16 Montrose Woodfire
installation
INSTALLATION INSTRUCTIONS
UNIT PREPARATION/FRAMING/30MM-50MM FINISHING TRIM

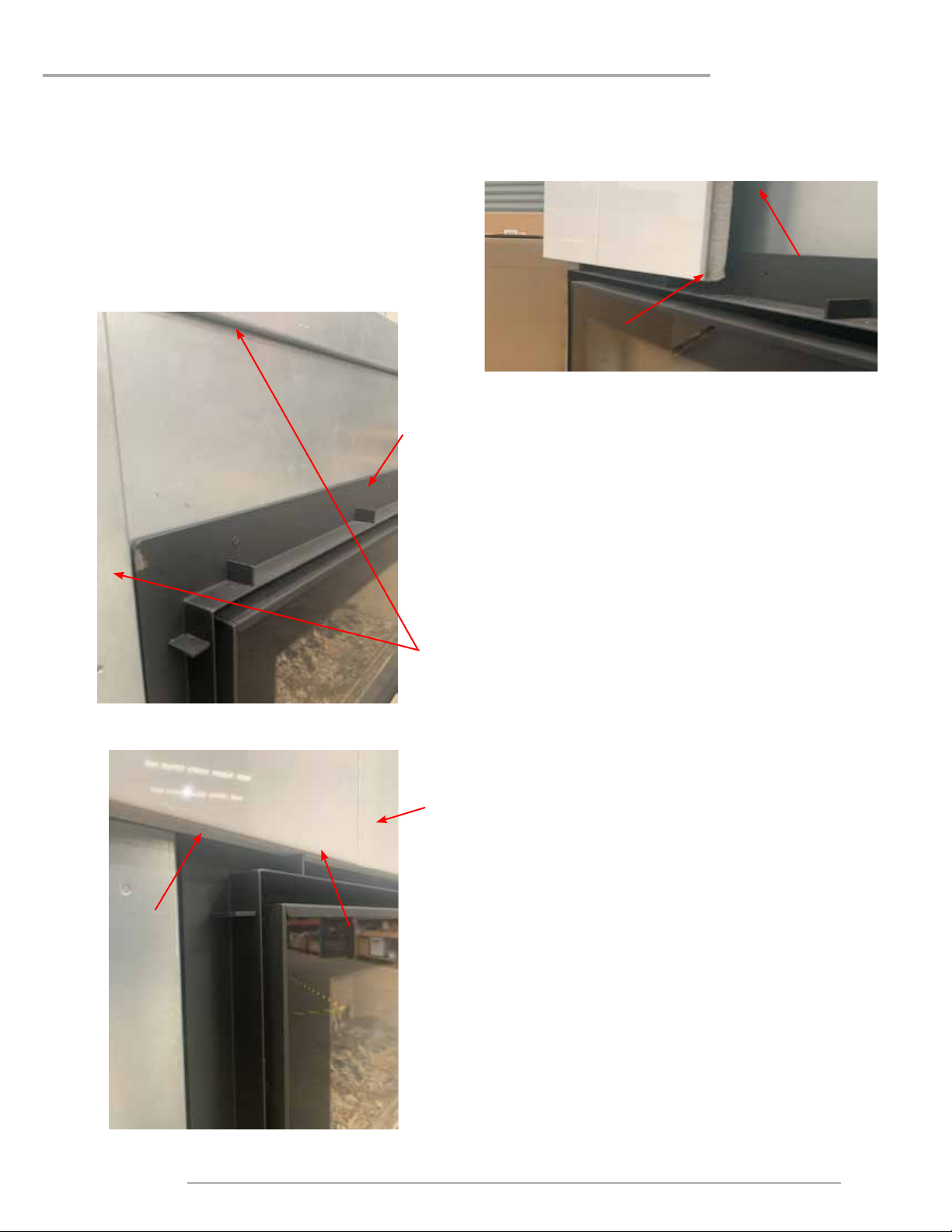

8. Install the support strips. The unit comes with four support strips. The
left and right sides are the same, and top and bottom are unique. Install
the top and side support strips with the slotted side on the unit. The
left and right should NOT be touching the floor. Secure with the screws
provided. Install the bottom small support flange and secure to the left
and right vertical ones. DO NOT TIGHTEN SCREWS on the top, left
and right support flanges.
Support strip installed with slotted side on unit. The slot allows the move-
ment of the support strip to be adjusted depending upon thickness of
finish material.
Smaller Bottom Support
Flange
Support flange-
secure to verti-
cal frame
Bottom support flange
- secure to left and right
vertical support flanges
Support
flange -
secure to
vertical
frame
Top support flange
- secure to side verti-
cal frame

Montrose Woodfire 17
installation
9. Position the support flanges to the pre-determined thickness of the finish
material. The non-combustible finish materials and non-combustible board
are to sit up to the clean edge trim with standoff brackets. Using the scrap
pieces as a gauge position them so they are flush with the front edge
of the clean edge frame. Then slide the top support flange so it is tight
against the back of the non-combustible board/finish material and tighten
the screws. Do the same to the left and right sides.
THE SUPPORT FLANGES ARE NOW SETTOTHETHICKNESS OFTHE
FINISH MATERIAL.
INSTALLATION INSTRUCTIONS
UNIT PREPARATION/FRAMING/30MM-50MM FINISHING TRIM
Finish Material
Non combustible
board and non
combustible finish
material to 20mm
standoff brackets.
Support flanges
pulled forward to
butt up against
backside of finish
material
Support flanges pulled for-
ward against the backside
of finish material to provide
backing and support
Wall materials to finish to front of frame
with 20mm standoff brackets
10. Install the top front wall timber frame as per minimum clearances to com-
bustibles (page 9). Secure the top support flange to the vertical studs (left
& right sides), along with the left & right support flanges.
11. Install the non-combustible board. Ensure there are no seams on the top
and sides as these areas get extremely hot. Having no seams on the top
and side will prevent cracking. Use only high heat non-combustible board.
12. Install the final layer of non-combustible finishing material such as tile,
slate. Etc. ENSURE ALL ADHESIVES/ GLUES/ ETC ARE HIGH HEAT
RESISTANT. ALLOW BONDING AGENTS TO CURE PROPERLY BEFORE
FIRING UNIT.
13. Install the 30/50mm finishing trim by removing the deflector above the door.
Open the firebox door and remove the screws holding the deflector in place.
Remove the deflector and locate the finishing trim into position and reinstall
screws to hold both the trim and deflector in place. Install the remaining
screws to base of the finishing trim.
Frame Comes
with Unit
Support flanges
pulled forward to
material thickness

18 Montrose Woodfire
installation
OPTIONAL FAN KIT INSTALLATION
L850
01.19.21
1
919-478a
LISTINGS AND CODE
APPROVALS
This Fan Kit has been approved for use with
Montrose L850B and Montrose -NZ L850B-1.
Check with your local building code agency
before you begin your installation to ensure
compliance with local codes, including the
need for "permits" and follow-up inspections. If
any problems are encountered regarding code
approvals, or if you wish clarification on any of
the instructions contained here, contact your
local dealer.
OPTIONAL FAN KIT INSTALLATION
GENERAL
INFORMATION
The Fan Kit increases the effectiveness of
your fireplace by dispersing warm air from the
fireplace to remote locations in the same room
or other rooms in your home.
Up to two kits may be installed on the fireplace.
Important Installation Notes
1) The appliance installation must conform with
local codes and installation codes.
2) The appliance when installed, must be elec-
trically grounded in accordance with local
codes.
3) This kit is tested and safe when installed
in accordance with this installation manual.
Please read all instructions before starting
installation and follow all instructions carefully
during installation.
4) Installation of this kit must be performed by
a qualified service technician.
5) The Fan Kit must be installed only as specified.
Any modifications of the kit or components
will void the warranty and may cause a fire
hazard.
6) Plan the location of the fireplace and the warm
air duct runs, see diagram 1 as a guide for
possible duct runs and locations.
Diagram 1: Guide for possible air duct runs
and locations. Keep duct length and number of
bends to a minimum. Maximum duct length is
9.0m.
The Fan Kit 946-591 does not contain any flue-
ing a separate Flex Kit is required 946-596. This
Flex Kit contains one length of 4.5 metres of flex
flueing. If 9.0 metres of flex ducting is required
you will need to purchase an additional Flex Kit.
MINIMUM FRAMING
CLEARANCES
* Wall studs must be 407mm on centre for
mounting fan housing.
* Fan Housing: Maintain a (6mm) clearance
from fan housing to combustible material.
*
Wall Registers must be 102mm above floor
and / or 102mm below ceiling.
1) Determine the location of the air register/fan
housing assembly. Cut a 121mm x 406mm
hole between framing members (wall studs or
floor joists). Maintain a 6mm clearance from fan
housing to combustible material. See Framing
Clearances section.
Minimum Fan Duct
Clearances
The fan duct requires a minimum of
25mm clearance to combustibles.
Minimum
102mm from
floor
Minimum 102mm
from ceiling
NOTE: Airflow through the duct system is affected
by the duct length and number of bends. Keep
the length and bends to a minimum to maximize
performance.
Item No. Description No Description
1 240V Fan
Assembly
7 Aluminum Flex 4.5m
Long x 150 mm Round
Diameter
2 Duct Flange-
Fan
8 Duct Mounting Plate
3 Adapter Round
to Oval
9 Duct Flange-Stove
4 Angle Bracket 10 Sidewall Grille
5 Junction Box 11 Cable Clamp
6 Wall Adapter
Plate

Montrose Woodfire 19
installation
OPTIONAL FAN KIT INSTALLATION
L850B ST
2
919-751b 02.27.20
OPTIONAL FAN KIT INSTALLATION
NOTE: Installation of Fan Kit should be done prior
to installation of the wall.
2) Mount and secure the fan housing assembly to
framing members, the front of the fan housing will
protrude 12.7mm out of the wall so it may be finished
with drywall, etc. See Diagram 2
3. Install the air duct run. Secure the duct to the
duct collar on the unit and the fan housing with 3
screws per end.
Diagram 2: Side View - Secure fan housing
to minimum 45mm framing.
Diagram 1:
Front View
Round Air Duct: Attach the 152.4mm round air
duct (supplied) to the fireplace collar and run the
duct to the fan housing. Attach the round-to-oval
adapter to the fan housing and the air duct to
the adapter
45mm
Round to Oval
Adapter
Fan Housing
Secure with 3 Screws and
Aluminum Duct Tape at Unit
Air Duct
4. Install the On/O󰀨 switch in a convenient
location. This switch controls the fan operation.
NOTE: Variable speed or Rotary 3 speed switch
(not supplied) can be tted.
5. Wire up the the fan, wall switch and power
supply per local codes. See wiring diagram as
reference.
*Electrician to supply wiring
6. Screw fan junction box to the fan housing.
7. Screw the Register Adapter Frame and the
Air Register to the Fan Housing See Diagram 4.
8. Remove the knockout on the top of the unit.
Diagram 4
12.7mm
45 x 90 mm
9. On the top of the unit, bend the 3 tabs so that they
are pointed upwards. Insert the Duct collar. Secure
the collar to the 3 tabs with screws.
10. The fan duct is now ready to be attached to the
unit. Slide the ducting over the collar and secure
with screws.
11. Final step is to double check the fan ducting
connections at both the unit and fan. Next en-
sure there is a minimum of 25mm clearance to
combustibles. Strap and secure the fan duct.
Double check the operation of the fan and all
electrical work is completed.
Duct collar secured
with screws
Remove the knock out

20 Montrose Woodfire
installation

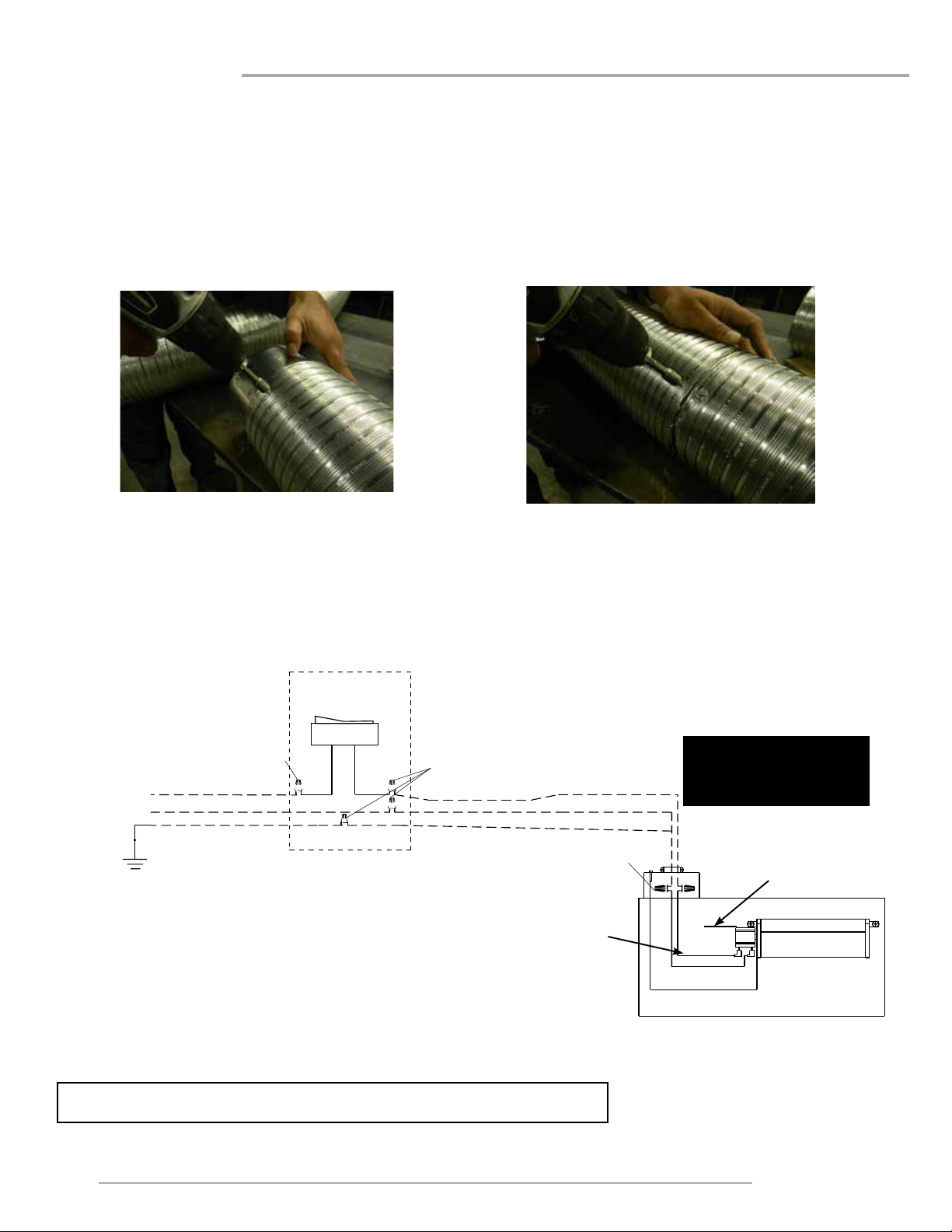

OPTIONAL FAN KIT INSTALLATION
FAN DUCT EXTENSION KIT
L850
03.14.17
3
919-478
OPTIONAL FAN KIT INSTALLATION
FAN DUCT EXTENSION KIT
In order to use the fan extension duct kit, you must have
fan kit. This kit allows you to extend the fan duct to 9m.
1. Attach the connecting collar to the duct that came with the duct kit.
Use the screws provided.
2. Attach the 4.5m duct within this kit to the connecting collar on the opposite
end with the screws provided. Extend the ex to the desired length.
WIRING DIAGRAM
Wire Nut
Wire Nut Wire Nut
ON/OFF
Wire Nuts = Active
Wire
Wire
Brown (Hot)
Blue (Neutral)
Copper (Earth)
Earth
NOTE: The wires (in dotted lines)
and the wire nuts are not supplied.
Brown
Black
Black
= Active
Blue
White
White = Neutral
Green = Earth
Earth
Heat Wave
Fan Assembly
Fan
240 Volts
50 Hz
Switch
C1
Red: Low Speed
Black: High Speed
Caution: Ensure that the wires do not touch any hot surfaces
and are away from sharp edges.
Alternate Switches: May use the following. Check with local authorities and electrician.
CLIPSAL 203 2E45 OUD - Dimmer
CLIPSAL 2031 VF3CSF - 3 Speed
CAUTION: Label all wires prior to dis-
connection when servicing controls.
Wiring errors can cause improper and
dangerous operation
Installation of wiring and switching must be carried out by a qualified electrician
