Regent Lighting Solutions Strata User manual

ŸBe sure the electricity to the
system you are working on is
isolated.
ŸIf the main supply power (live) is
on, it will cause damage to the
luminaire.
Requirements:
1. Select the required position
for the luminaire.
The Strata system have many
configurations.
1
2
www.regentlight.co.za
www.regentlight.co.za
INSTALLATION INSTRUCTIONS
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
1
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Strata
WARNING
Electronic Control Device
Electronic Control Device
WARNING
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : [phone]
www.regentlight.co.za
RE GENT LIGH TI NG A DIV IS ION
OF WAHL INDUS TRIES.
Save These Instructions for Future Reference
Save These Instructions for Future Reference
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Strata
DO NOT CONNECT THE FITTING LIVE
May 2021
Regent Lighting reserves the right to change specifications modify designs and discontinue items
without incurring obligation and whilst every effort is made to ensure that descriptions, specifications
and other information in this catalogue are correct, no warranty is given in respect thereof and the
company shall not be liable for any error therein.
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
WARNING: TO AVOID FIRE, SHOCK OR DEATH
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH
SANS 60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Electrical products can cause death, injury, or damage to property.
Installation of this product must be carried out by a qualified electrician,
in compliance with SANS 10142 or corresponding regulations of the
country of installation. On completion of installation, the Certificate of
Compliance must be updated.

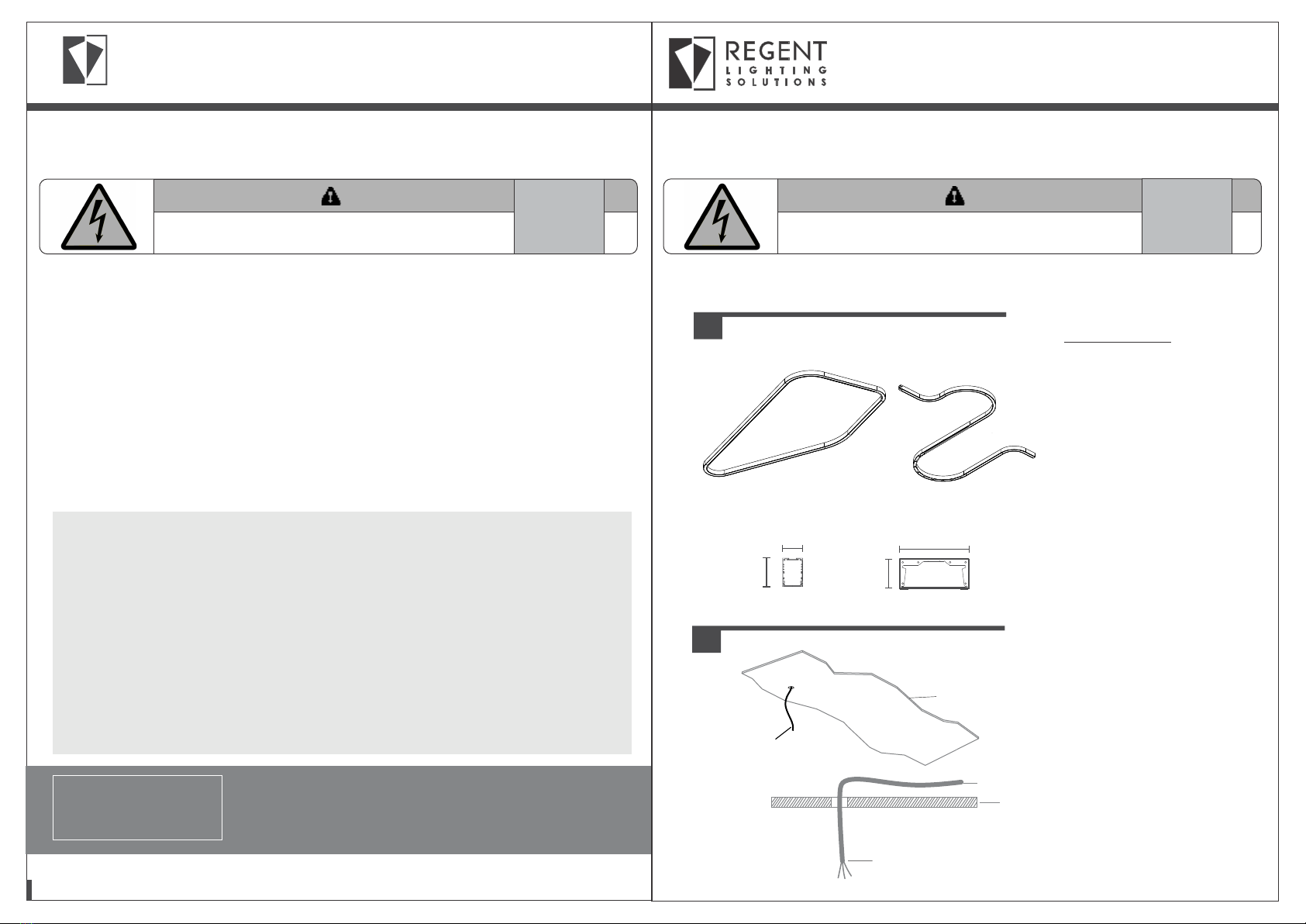

Strata System
Made to customer
conguration.
For non user replaceable light source: The light source contained in this luminaire
shall only be replacedby the manufacturer or his/her service
agent or a similar qualied person
170
70
50
70
Strata 50 x 70mm Strata 170 x 70mm
1
2
Ensure the main p o w er su p ply
through the mounting Surface at the
required mounting position.
Ensure the main power supply cable is
stripped(Live, neutral and earth) to
connect to supplied connectors.
Ceiling
Power Supply
Power Supply
Ceiling
Stripped end

www.regentlight.co.za
www.regentlight.co.za
8
This product should be installed by a competent person i.e. Qualified electrician.
This product requires a constant stable electrical supply 220V - 240V VAC 50Hz - alternating current.
The product must be regularly maintained, including the replacement of lamps/LED timeously.
This product could be HAZARDOUS if not used correctly, it could cause electric shock, serious bodily harm or death.
This product is not a toy, please keep away from children.
This product may contain small parts that can be swallowed.
Use only the correct light bulbs/LED as stipulated on the carton for the product.
Any modifications of this product after supply will result in the guarantee being void.
Spare parts may become unavailable over time.Items can vary slightly from the picture on the carton
Coastal humidity can affect the longevity of the light fitting over time.
Be sure to follow the steps in the order given.
Read instructions carefully.
Important Safety Instructions
Ensure mounting holes align with
Strata straight extrusions.
Mark holes according to the
straights and placement of
twister bracket.
3A - 1. Mark and drill mounting
holes on the required surface.
Power Supply
Ceiling
Surface mounting
bracket.
3A- I
SURFACE MOUNTING
Ensure clips spring out to secure in
place
3A - 2. Mark & drill the mounting
holes on the required surface.
Mount the surface bracket using
2 buttery clips.
Ceiling
II
Buttery screws
Surface mounting
bracket.
Ceiling
Power Supply
Connect the 3 way connector
and secure the connector in the
ceiling.
Ensure the main power supply
cable is stripped (Live, neutral and
earth), before connecting.
3A - 3. Connect the power supply
to the supplied connector.
3 way Connector
III
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Earth Loop
Green/Yellow
Switch
Wire Red
Neutral loop
Black or Blue
Mains to
Luminaire
(L) Brown
(E) Green/Yellow
(N) Blue
E n s u r e t h a t t h e r e a r e n o
exposed conductors, loose
strands or trapped insulation
Ensure the tting is secured in
place.
3A - 4. Open the Twister bracket
and insert the extrusion. Once in
place close the twister bracket.
Open
Close
Ceiling
Power Supply
IV

www.regentlight.co.za
This product should be installed by a competent person i.e. Qualified electrician.
This product requires a constant stable electrical supply 220V - 240V VAC 50Hz - alternating current.
The product must be regularly maintained, including the replacement of lamps/LED timeously.
This product could be HAZARDOUS if not used correctly, it could cause electric shock, serious bodily harm or death.
This product is not a toy, please keep away from children.
This product may contain small parts that can be swallowed.
Use only the correct light bulbs/LED as stipulated on the carton for the product.
Any modifications of this product after supply will result in the guarantee being void.
Spare parts may become unavailable over time.Items can vary slightly from the picture on the carton
Coastal humidity can affect the longevity of the light fitting over time.
Be sure to follow the steps in the order given.
Read instructions carefully.
Important Safety Instructions
www.regentlight.co.za
3B - 1. Mar k & dri l l th e
m o u n t in g h o l e s o n t h e
required surface and mount
the ceiling cup to surface.
Ensure the power cable is fed
t h r o u g h c e i l i n g a n d
corresponding with cabtyre
from the strata.
3B - 2. Insert cable into the
cable clutch which is already
mounted on the Linear Mini
Extrusion.
Pull the cable through the
cable clutch until the satised
height is reached.
Ceiling
Screw
Cable
Clutch
Power Supply
Ceiling
Ceiling
3B- I
SUSPENDED MOUNTING
II
Connect the power supply to the
supplied 3 way connector
Ensure the main power supply cable
is stripped (Live, neutral and earth),
before connecting.
3B - 3. The suspension cable with
Ø75mm Ceiling cup should be
near power supply.
Cabtyre
3B - 4. Close the ceiling cup by
pushing the cup until it reaches the
ceiling. Fasten the ceiling cup ion
place by using supplied grub
screws.
Ensure that there are no
e x po s ed c o nd u ct or s,
loose strands or trapped
insulation
Ceiling
Screw
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Earth Loop
Green/Yellow
Switch
Wire Red
Neutral loop
Black or Blue
Mains to
Luminaire
(L) Brown
(E) Green/Yellow
(N) Blue
Power Supply
Cabtyre
Ceiling
Screw
Power Supply
3 way Connector
III
IV
Ø75mm
Ceiling Cup
Suspension
cable

www.regentlight.co.za
www.regentlight.co.za
This product should be installed by a competent person i.e. Qualified electrician.
This product requires a constant stable electrical supply 220V - 240V VAC 50Hz - alternating current.
The product must be regularly maintained, including the replacement of lamps/LED timeously.
This product could be HAZARDOUS if not used correctly, it could cause electric shock, serious bodily harm or death.
This product is not a toy, please keep away from children.
This product may contain small parts that can be swallowed.
Use only the correct light bulbs/LED as stipulated on the carton for the product.
Any modifications of this product after supply will result in the guarantee being void.
Spare parts may become unavailable over time.Items can vary slightly from the picture on the carton
Coastal humidity can affect the longevity of the light fitting over time.
Be sure to follow the steps in the order given.
Read instructions carefully.
Important Safety Instructions
4
4. Switch on power supply
Surface Suspended
