Regent Lighting Solutions Penza User manual

1
www.regentlight.co.za
INSTALLATION INSTRUCTIONS
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
1
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Electrical products can cause death, injury, or damage to
property. Installation of this product must be carried out by a
qualified electrician, in compliance with SANS 10142 or
corresponding regulations of the country of installation. On
completion of installation, the Certificate of Compliance must
be updated.

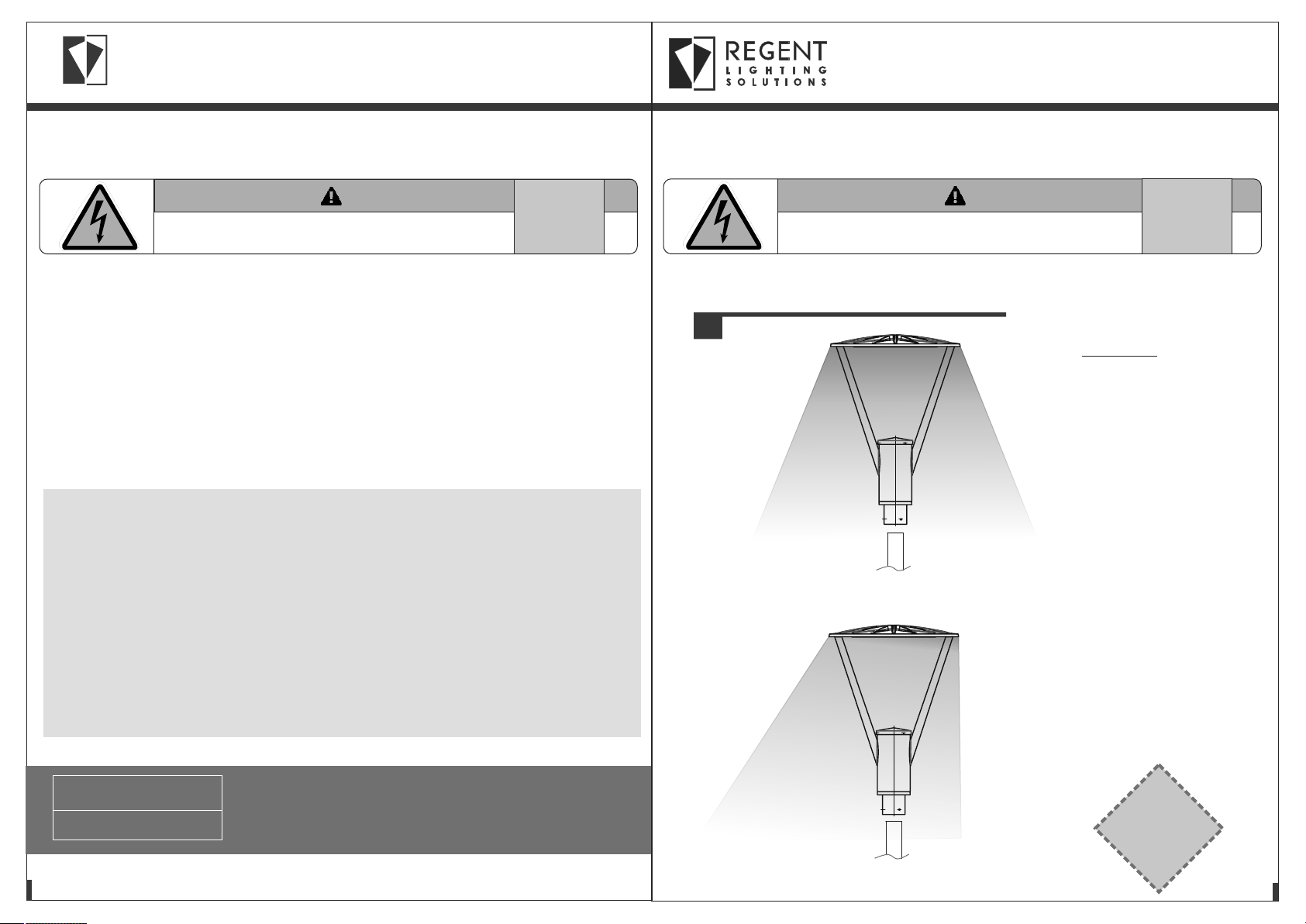

Penza
Electronic Control Device
WARNING
Electronic Control Device
WARNING
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : [phone]
www.regentlight.co.za
RE GENT L I GHT ING A D IVIS ION OF WAH L
IN DUST RIES.
December 2017
Save These Instructions for Future Reference
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Penza
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Requirements:
Be sure the electricity
to the system you are
working on is isolated.
If the main supply
power (live) is on, it will
cause damage to the
luminaire.
1. Ensure the pole is
installed correctly and that
the pole has the correct
diameter of ø76mm.
DO NOT CONNECT THE FITTING LIVE
Asymmetrical 72W LED RLS014
Symmetrical 72W LED RLS858

www.regentlight.co.za
www.regentlight.co.za
3
7
8
4
This product should be installed by a competent person i.e. Qualified electrician.
This product requires a constant stable electrical supply 220V - 240V VAC 50Hz - alternating current.
The product must be regularly maintained, including the replacement of lamps/LED timeously.
This product could be HAZARDOUS if not used correctly, it could cause electric shock, serious bodily harm or death.
This product is not a toy, please keep away from children.
This product may contain small parts that can be swallowed.
Use only the correct light bulbs/LED as stipulated on the carton for the product.
Any modifications of this product after supply will result in the guarantee being void.
Spare parts may become unavailable over time.Items can vary slightly from the picture on the carton
Coastal humidity can affect the longevity of the light fitting over time.
Be sure to follow the steps in the order given.
Read instructions carefully.
Important Safety Instructions
7. Switch on the power
supply.
5
2
Mains to
Luminaire
Earth Loop
Green/Yellow
Switch
Wire Red
Neutral loop
Black or Blue
(L) Brown
(E) Green/Yellow
(N) Blue
Connect the cables
fed through the cable
gland at the bottom of
the spigot to the IP
rated connector block.
SWITCHED ACTIVE –
(Red or Brown) to
terminal marked L
NEUTRAL – (Black or
Blue) to terminal
marked N
EARTH –
(Green/Yellow) to
terminal marked.
Cable
gland
Pole
Pole
Connection
point
Gear compartment
Align the spigot of the post
top on the pole, align and
tighten the three M8 stainless
steel grub screws (supplied),
using an allen key.
Ensure that there are no
exposed conductors, loose
strands or trapped/pinched
insulation between the pole
and the spigot.
Align and tighten with an
allen key
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
A. Plug in the IP rated
electrical plug and
neatly place into the
one arm of the post
top.
B. Fasten the lid to the
arms via the two M5
stainless steel allen
head screws using an
allen key.
2
A
B
