ResMed AirFit F10 User manual

User Guide
English

Fitting / 配戴步骤 / 配戴步驟
11 21 3
4 5 6
7 8

Removal / 取下面罩/ 取下面罩
11 21
Disassembly / 拆卸/ 拆卸
4 5
1 2 3

Reassembly / 重新组装/ 重新組裝
1 2 3
4 5

English
1
ENGLISH
AirFit™F10
Full Face Mask
Thank you for choosing the AirFit F10. This document provides the user
instructions for the AirFit F10 and AirFit F10 for Her masks referred to
collectively as AirFit F10 throughout this manual. AirFit F10 has blue
headgear while AirFit F10 for Her has pink headgear.
Using this guide
Please read the entire guide before use. When following instructions,
refer to the images at the front and back of the guide.
Intended Use
The AirFit F10 is a noninvasive accessory used for channeling airflow
(with or without supplemental oxygen) to a patient from a positive airway
pressure (PAP) device such as a continuous positive airway pressure
(CPAP) or bilevel system.
The AirFit F10 is:
•to be used by patients (weighing >30 kg) for whom positive airway
pressure therapy has been prescribed
•intended for single-patient reuse in the home environment and
multipatient reuse in the hospital/institutional environment.
GENERAL WARNINGS
•The mask must be used under qualified supervision for users who
are unable to remove the mask by themselves. The mask may not
be suitable for those predisposed to aspiration.
•The elbow and valve assembly have specific safety functions. The
mask should not be worn if the valve is damaged as it will not be
able to perform its safety function. The elbow should be replaced
if the valve is damaged, distorted or torn.
•The vent holes must be kept clear.
•The mask should only be used with CPAP or bilevel devices
recommended by a physician or respiratory therapist.
•The mask should not be used unless the device is turned on. Once
the mask is fitted, ensure the device is blowing air. Explanation:

2
CPAP and bilevel devices are intended to be used with special
masks (or connectors) which have vent holes to allow continuous
flow of air out of the mask. When the device is turned on and
functioning properly, new air from the device flushes the exhaled
air out through the mask holes. When the device is turned off, the
mask valve opens to atmosphere allowing fresh air to be
breathed. However, a higher level of exhaled air may be
rebreathed when the device is off. This applies to most full face
masks for use with CPAP and bilevel devices.
•Follow all precautions when using supplemental oxygen.
•Oxygen flow must be turned off when the CPAP or bilevel device
is not operating, so that unused oxygen does not accumulate
within the device enclosure and create a risk of fire.
•Oxygen supports combustion. Oxygen must not be used while
smoking or in the presence of an open flame. Only use oxygen in
well ventilated rooms.
•At a fixed rate of supplemental oxygen flow, the inhaled oxygen
concentration varies, depending on the pressure settings, patient
breathing pattern, mask, point of application and leak rate. This
warning applies to most types of CPAP or bilevel devices.
•The technical specifications of the mask are provided for your
clinician to check that they are compatible with the CPAP or
bilevel device. If used outside specification or if used with
incompatible devices, the seal and comfort of the mask may not
be effective, optimum therapy may not be achieved, and leak, or
variation in the rate of leak, may affect the CPAP or bilevel device
function.
•Discontinue using this mask if you have ANY adverse reaction to
the use of the mask, and consult your physician or sleep therapist.
•Using a mask may cause tooth, gum or jaw soreness or aggravate
an existing dental condition. If symptoms occur, consult your
physician or dentist.
•As with all masks, some rebreathing may occur at low CPAP
pressures.
•Refer to your CPAP or bilevel device manual for details on
settings and operational information.
•Remove all packaging before using the mask.

English
3
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have
mask setting options, refer to the Technical specifications section in this
user guide for mask selection options.
For a full list of compatible devices for this mask, see the Mask/Device
Compatibility List on www.resmed.com on the Products page under
Service & Support. If you do not have internet access, please contact
your ResMed representative.
Use a standard conical connector if pressure readings and/or
supplemental oxygen are required.
Fitting
The fitting illustrations in this guide show the sequence for obtaining the
best fit and comfort when using your mask.
Fitting steps
1. Remove the elbow from the mask by pressing the side buttons and
pulling the elbow away.
2. With both lower headgear straps released, hold the mask against your
face and pull the headgear over your head. Ensure that the label on
the back of the headgear faces outwards when the headgear is put
on.
3. Undo the fastening tabs on the upper headgear straps. Pull the straps
evenly until the mask is stable and positioned as shown in the
illustrations. Reattach the fastening tabs.
4. Bring the lower straps below your ears and loop the headgear into the
lower hooks on the frame.
5. Undo the fastening tabs on the lower headgear straps. Pull the straps
evenly until the mask sits firmly on the chin and reattach the fastening
tabs.
6. Connect the air tubing from your device to the elbow. Attach the
elbow to the mask by pressing the side buttons and pushing the
elbow into the mask. Turn on your device so that it is blowing air.
7. Undo the fastening tabs on the upper headgear straps. Readjust the
straps evenly only enough that a seal is achieved and reattach the
fastening tabs. Overtightening may cause leaks.
8. Your mask and headgear should be positioned as shown.

4

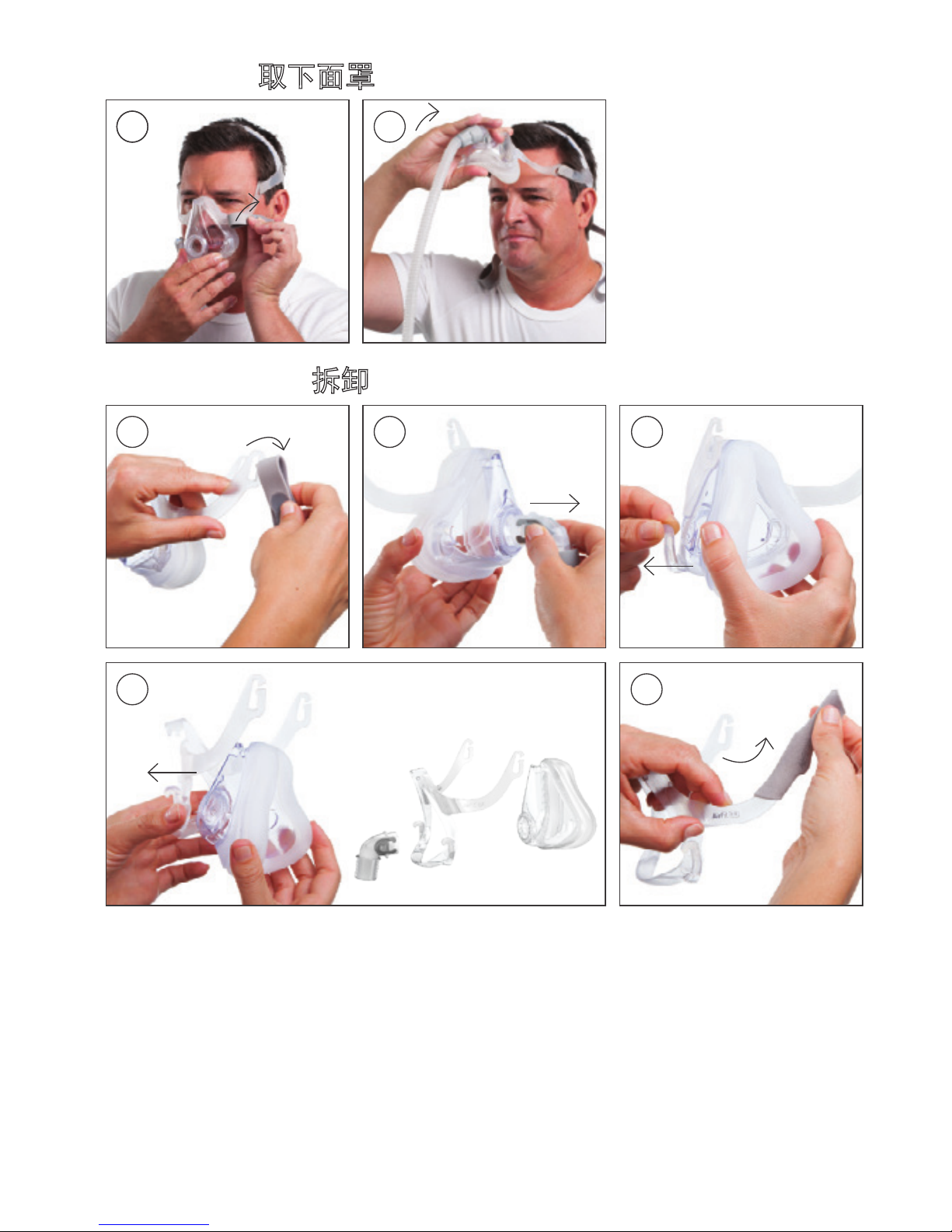

Removing your mask
Refer to the removal illustrations section in this guide.
Removal steps
1. Disconnect one or both of the lower headgear straps from the hook.
9. Pull the mask away from your face and back over your head.
Disassembly
Refer to the disassembly illustrations in this guide.
Disassembly steps
1. Unhook the upper headgear straps from the frame. There is no need
to undo the fastening tabs.
10. Remove the elbow from the mask by pressing the side buttons and
pulling the elbow away. Remove the elbow from the air tubing.
11. While holding the bottom of the hook, pull the corner of the frame
slightly away from the side of the mask.
12. Remove the frame from the rest of the mask.
13. If the soft sleeves are fitted, remove them by pulling them off of the
frame.
Reassembly
Refer to the reassembly illustrations in this guide.
Reassembly steps
1. Press the top of the frame onto the rest of the mask, ensuring it
clicks into place.
14. Press the bottom corners of the frame onto the rest of the mask,
ensuring they click into place.
15. To fit the optional soft sleeves, pull them over the upper arms of the
frame.
16. Attach the top headgear straps to the frame by looping through each
of the upper headgear hooks. Ensure that the ResMed logo on the
headgear is facing outward and right side up.
17. Attach the elbow to the air tubing. Attach the elbow and air tubing to
the mask by pressing the side buttons and pushing the elbow into the
mask. Pull on the elbow to check that it sits securely in the mask.

English
5
Cleaning your mask in your home
Your mask and headgear should only be handwashed by gently rubbing in
warm (approximately 30°C) water using mild soap. All components should
be rinsed well with drinking quality water and allowed to air dry out of
direct sunlight.
WARNING
Always follow cleaning instructions and use mild soap. Some
cleaning products may damage the mask, its parts and their function,
or leave harmful residual vapours that could be inhaled if not rinsed
thoroughly.
CAUTION
If any visible deterioration of a system component is apparent
(cracking, discoloration, tears etc.), the component should be
discarded and replaced.
Daily/After each use:
•Disassemble the mask components according to the disassembly
instructions.
•Handwash the separated mask components (excluding headgear and
soft sleeves).
•To optimise the mask seal, facial oils should be removed from the
cushion after use.
•Use a soft bristle brush to clean the vent.
•Inspect each component and, if required, repeat washing until visually
clean.
•Rinse all components well with drinking quality water and allow to air
dry out of direct sunlight.
•When all components are dry, reassemble according to the
reassembly instructions.
Weekly:
•Handwash the headgear and soft sleeves.

6
Reprocessing the mask between patients
This mask should be reprocessed when used between patients. Cleaning,
disinfection and sterilisation instructions are available from the ResMed
website, www.resmed.com/masks/sterilization. If you do not have
internet access, please contact your ResMed representative.
Troubleshooting
Problem/possible cause
Solution
Mask is uncomfortable
Headgear straps are too tight. The cushion membrane is designed to inflate
against your face to provide a comfortable seal
with low headgear tension. Adjust straps evenly.
Ensure that the headgear straps are not too tight
and that the cushion is not crushed or creased.
Mask could be the wrong size. Talk to your clinician to have your face size
checked against fitting template. Note that sizing
across different masks is not always the same.
Mask is too noisy
Elbow incorrectly installed. Remove the elbow from your mask, then
reassemble according to the instructions.
Vent is blocked or partially blocked. Clean with a soft bristle brush until the vent is
clear.
Mask leaks around the face.
Cushion membrane is creased or
folded.
Refit your mask according to the instructions.
Ensure that you position the cushion correctly on
your face before pulling headgear over your
head. Do not slide the mask down your face
during fitting as this may lead to folding or
curling of the cushion.
Mask could be the wrong size. Talk to your clinician to have your face size
checked against fitting template. Note that sizing
across different masks is not always the same.
Frame incorrectly fitted. Remove the rest of the mask from the frame,
then reassemble according to the instructions.

English
7
Technical specifications

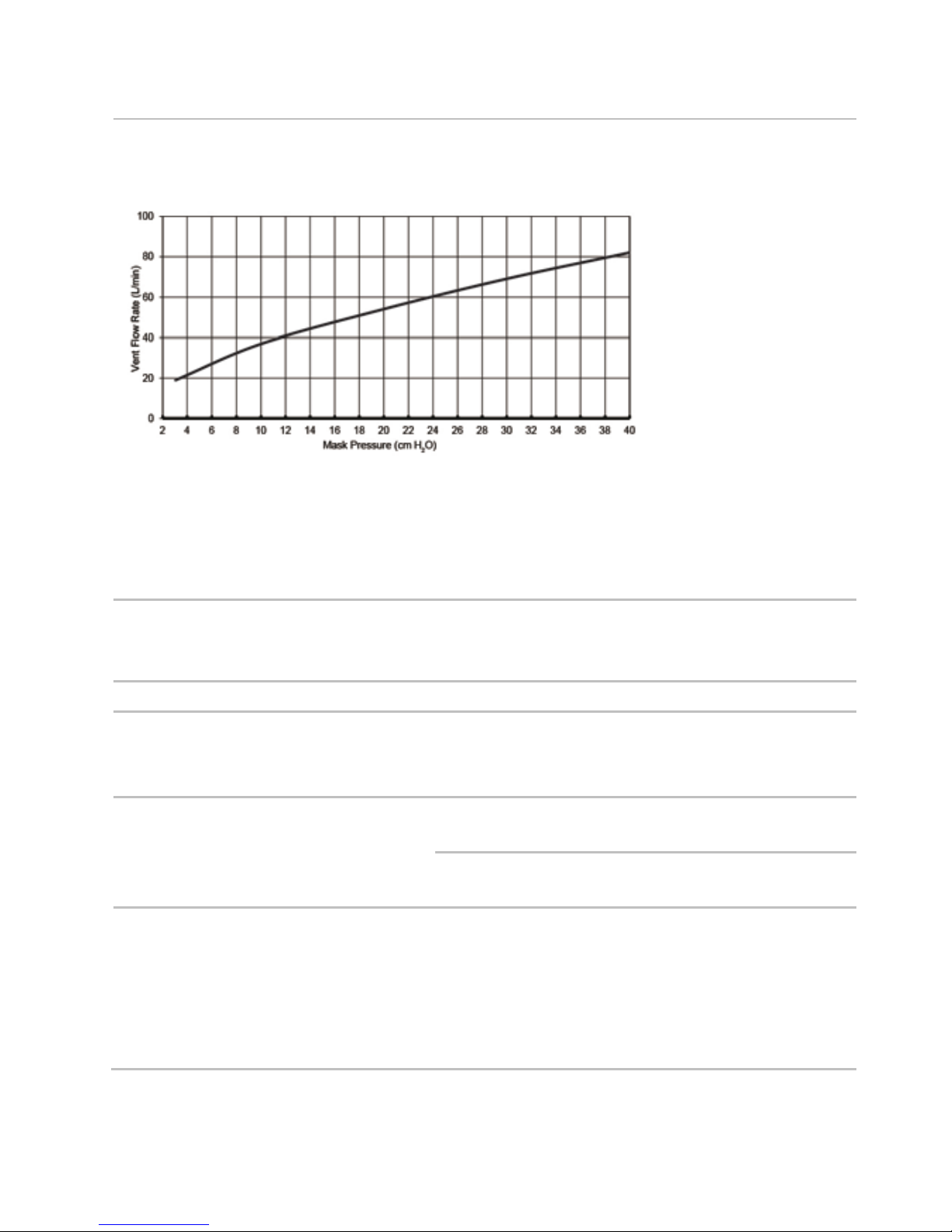

Pressure-flow curve
The mask contains passive venting to protect against
rebreathing. As a result of manufacturing variations, the vent
flow rate may vary.
Pressure
(cm H2O)
Flow
(L/min)
3
19
4
22
8
32
10
37
12
41
16
48
20
54
24
60
28
66
30
69
32
72
36
77
40
82
Dead space information
Physical dead space is the empty volume of the
mask to the end of the swivel. Using the large
cushions it is <222 mL.
Therapy pressure
3 to 40 cm H2O
Resistance with Anti Asphyxia
Valve (AAV) closed to atmosphere
Drop in pressure measured (nominal)
at 50 L/min: 0.2 cm H2O
at 100 L/min: 0.9 cm H2O
Inspiratory and expiratory
resistance with Anti Asphyxia
Valve (AAV) open to atmosphere
Inspiration at
50 L/min
0.6 cm H
2
O
Expiration at
50 L/min
1.0 cm H
2
O
Environmental conditions
Operating temperature: +5°C to +40°C
Operating humidity: 15% to 95% non-condensing
Storage and transport temperature:
-20°C to +60°C
Storage and transport humidity:
up to 95% non-condensing

8
Sound
DECLARED DUAL-NUMBER NOISE EMISSION
VALUES in accordance with ISO 4871. The
A-weighted sound power level of the mask is
28 dBA, with uncertainty of 3 dBA. The
A-weighted sound pressure level of the mask at a
distance of 1 m is 20 dBA, with uncertainty of 3
dBA.
Anti Asphyxia Valve (AAV)
open-to-atmosphere
pressure
≤1.6 cm H2O
Anti Asphyxia Valve (AAV)
closed-to-atmosphere
pressure
≤1.8 cm H
2
O
Gross dimensions
Extra Small:
117 mm (H) x 142 mm (W) x 144 mm (D)
Small:
119 mm (H) x 142 mm (W) x 144 mm (D)
Medium:
137 mm (H) x 146 mm (W) x 142 mm (D)
Large:
140 mm (H) x 146 mm (W) x 142 mm (D)
Mask fully assembled with elbow assembly (no
headgear)
Mask setting options
For S9: Select 'FULL FACE'
For other devices: Select 'MIR FULL' (if
available), otherwise select 'FULL FACE' as the
mask option.
Notes:
•The mask system does not contain PVC, DEHP or phthalates.
•This product is not made with natural rubber latex.
•The manufacturer reserves the right to change these specifications
without notice.
Storage
Ensure that the mask is thoroughly clean and dry before storing it for any
length of time. Store the mask in a dry place out of direct sunlight.

English
9
Disposal
This mask does not contain any hazardous substances and may be
disposed of with your normal household refuse.
Symbols
Catalog number Batch code
Humidity limitation Temperature limitation
Fragile, handle with care
Not made with natural rubber
latex
Manufacturer European Authorized
Representative
Keep away from rain This way up
Indicates a Warning or Caution and alerts you to a possible injury or explains
special measures for the safe and effective use of the device
Caution, consult accompanying documents.
Consumer Warranty
ResMed acknowledges all consumer rights granted under the EU
Directive 1999/44/EC and the respective national laws within the EU for
products sold within the European Union.

Mask components / 面罩组件/ 面罩組件
AirFit F10 AirFit F10
for Her
A Elbow / 弯头/ 彎頭 — —
1 Valve / 阀门 / 閥門
2 Side buttons / 侧边按钮/ 側邊按鈕
B Frame / 框架/ 框架 63137 (XS/S)
63138 (M/L)
63137 (XS/S)
63138 (M/L)
3 Lower headgear hooks / 下半部头带扣
钩/ 下半部頭帶扣鉤
4 Upper headgear hooks / 上半部束带/
上半部束帶
C Cushion / 软垫/ 軟墊 62737 (S)
62738 (M)
62739 (L)
62736 (XS)
62737 (S)
62738 (M)
5 Vent / 通气孔 / 通氣孔
D Headgear / 头带/ 頭帶 63165 (S)
63164 (Std)
63166 (L)
63167
6 Lower headgear straps/ 下半部头带扣
钩/ 下半部頭帶扣鉤
7 Upper headgear straps / 上半部束带/
上半部束帶

AirFit F10 AirFit F10
for Her
A+B+C
Frame system / 框架系统/ 框架系統 63161 (S)
63162 (M)
63163 (L)
63160 (XS)
63161 (S)
63162 (M)
8 Soft sleeves / 软套/ 軟套
A+B+C+D
Complete system / 完整系统/ 完整
系統
APAC
63117 (S)
63118 (M)
63119 (L)
ANZ
63125 (S)
63126 (M)
63127 (L)
APAC
63151 (XS)
63152 (S)
63153 (M)
ANZ
63157 (XS)
63158 (S)
63159 (M)
XS Extra Small / 超小型 / 超小型
S Small / 小型/ 小型
M Medium / 中型/ 中型
L Large / 大型 / 大型
Std Standard / 标准 / 標準

Global leaders in sleep and respiratory medicine
www.resmed.com
AirFit
Full Face Mask
F10
A B C D
1 2 3 4 5 6 7
8
AirFit F10 for Her
628062
Manufacturer: ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia.
See www.resmed.com for other ResMed locations worldwide.
For patent information, see www.resmed.com/ip. AirFit is a trademark of ResMed Ltd.
© 2017 ResMed Ltd. 628062/2 2017-07
