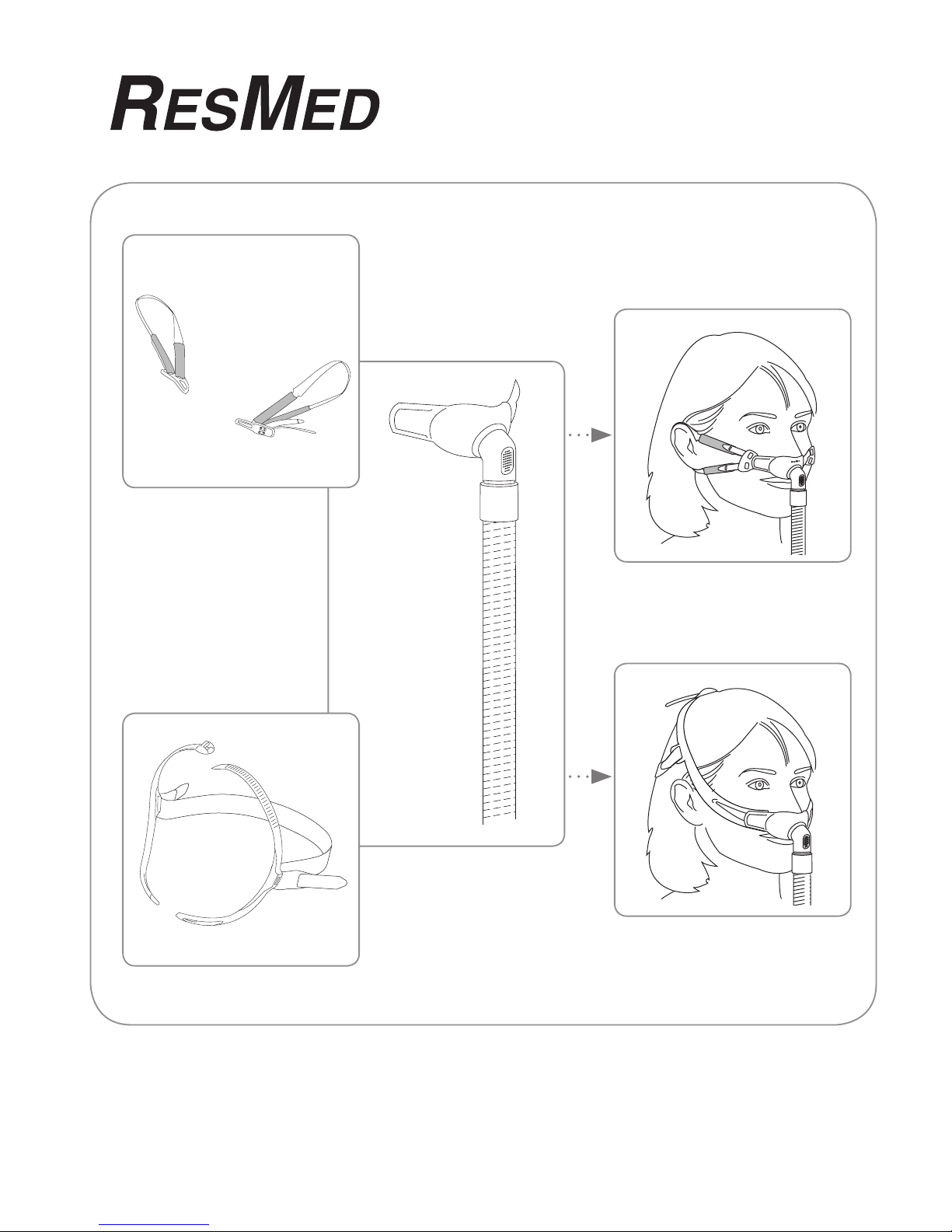

ResMed Swift FX Bella User manual

Swift™FX Bella
+ Swift™FX for Her HEADGEAR
nasal pillows system
User Guide
English

i
ResMed
ResMed
SwiftTM FX Bella
SwiftTM FX for Her

ii
Swift FX Bella
A
ResMed
B
C
D
1
3
2
4
7
9
8
5
E
6
10
11

iii
Swift FX Bella
Mask components/ Maskenkomponenten/
Composants du masque/ Componenti della
maschera/ Maskeronderdelen
Item/ Artikel/
Désignation/
Parte/
Onderdeel
Description/ Beschreibung/
Description/ Descrizione/
Beschrijving
Part number/
Teilenummer/
Code produit/
Numero parte/
Onderdeelnummer
1 Strap/ Band/ Sangle/ Cinghia/
Band
—
2 Soft sleeve/ Komforthüllen/
Gaine souple/ Guaina morbida/
Zachte hoes
—
3 Buckle/ Clip/ Boucle/ Fibbia/
Gesp
—
4 Nasal pillows/ Nasenpolster/
Coussins narinaires/ Cuscinetti
nasali/ Neuskussentjes
—
5 Cushion/ Maskenkissen/ Bulle/
Cuscinetto/ Kussentje
—
6 Pillows/ Polster/ Coussins/
Cuscinetti/ Kussentjes
—
7Short tube/ Verbindungsschlauch/
Tuyau court/ Tubo corto/
Korte slang
—
8 Swivel/ Drehadapter/
Pièce pivotante/ Giunto rotante/
Draaibare kop
—
9 Vent/ Luftauslassöffnung/
Orifice de ventilation/ Foro per
l’esalazione/ Ventilatieopening
—
10 Elbow/ Kniestück/ Coude/
Gomito/ Bocht
—
11 Swivel ring/ Drehadapterring/
Anneau pivotant/ Anello rotante/
Ring draaibare kop
—

iv
Swift FX Bella
Item/ Artikel/
Désignation/
Parte/
Onderdeel
Description/ Beschreibung/
Description/ Descrizione/
Beschrijving
Part number/
Teilenummer/
Code produit/
Numero parte/
Onderdeelnummer
A Swift FX Bella complete system/
Swift FX Bella Komplettsystem/
Masque Swift FX Bella complet/
Cuscinetti nasali Swift FX Bella
con tutti i componenti/ Volledig
SwiftFX Bella-systeem
61561 EUR 1*
61564 ANZ**
B Pillows system (Frame
system)/ Nasenpolstermaske
(Maskenhaltersystem)/
Masque narinaire (support
complet)/ Cuscinetti nasali
(Telaio)/ Kussentjessysteem
(framesysteem)
61510 (XS)
61511 (S)
61512 (M)
61513 (L)
C Short tube assembly (Frame
assembly)/ Verbindungsschlauch
(Maskenhalter)/ Ensemble tuyau
court (ensemble support)/
Gruppo circuito corto (Complesso
del telaio)/ Korte slang-assemblage
(frame-assemblage)
61528 (1)
61527 (10)
D Swift FX Bella headgear assembly/
Swift FX Bella Kopfband/
Ensemble harnais Swift FX Bella/
Gruppo del copricapo Swift FX
Bella/ Assemblage Swift FX Bella-
hoofdbandenstel
61581 (1 x P)/
61581 (1 x P)/
61581 (1 x R)/
61581 (1 x R)/
61581 (1 x R)
E Pillows/ Polster/ Coussins/
Cuscinetti/ Kussentjes
61520 (XS)
61521 (S)
61522 (M)

v
Swift FX Bella
Item/ Artikel/
Désignation/
Parte/
Onderdeel
Description/ Beschreibung/
Description/ Descrizione/
Beschrijving
Part number/
Teilenummer/
Code produit/
Numero parte/
Onderdeelnummer
Also available/ Außerdem erhältlich:/ Également disponible/
Altri prodotti/Tevens verkrijgbaar
Pillows/ Polster/ Coussins/
Cuscinetti/ Kussentjes
61523 (L)
Swift FX Bella + Swift FX for Her
headgear (Combination pack)/
Swift FX Bella + Swift FX for
Her Kopfband (Kombipackung)/
Harnais Swift FX Bella + Swift FX
for Her (kit combiné)/ Copricapi
Swift FX Bella + Swift FX for Her
(Combinazione)/ Swift FX Bella- +
Swift FX for Her-hoofdbandenstel
(combinatieverpakking)
61580
XS Extra Small, S Small, M Medium, L Large/ XS Extra Small, S Small, M Medium, L Large/
XS : très petit, S : petit, M : médium, L : grand/ XS Extra Small, S Small, M Medium, L Large/
XS Extra Small, S Small, M Medium, L Large
P Pink/ P Pink/ P : rose/ R Rosa/ R Roze
*EUR 1: France, Germany, UK only / Nur Frankreich, Deutschland, Großbritannien /
Allemagne, France et Royaume-Uni uniquement / disponibile solo in Francia, Germania e
Regno Unito / Alleen Frankrijk, Duitsland en Verenigd Koninkrijk
**ANZ: Australia, New Zealand only / Nur Australien, Neuseeland / Australie et Nouvelle-
Zélande uniquement / disponibile solo in Australia e Nuova Zelanda / Alleen Australië en
Nieuw-Zeeland

vi
Swift FX Bella

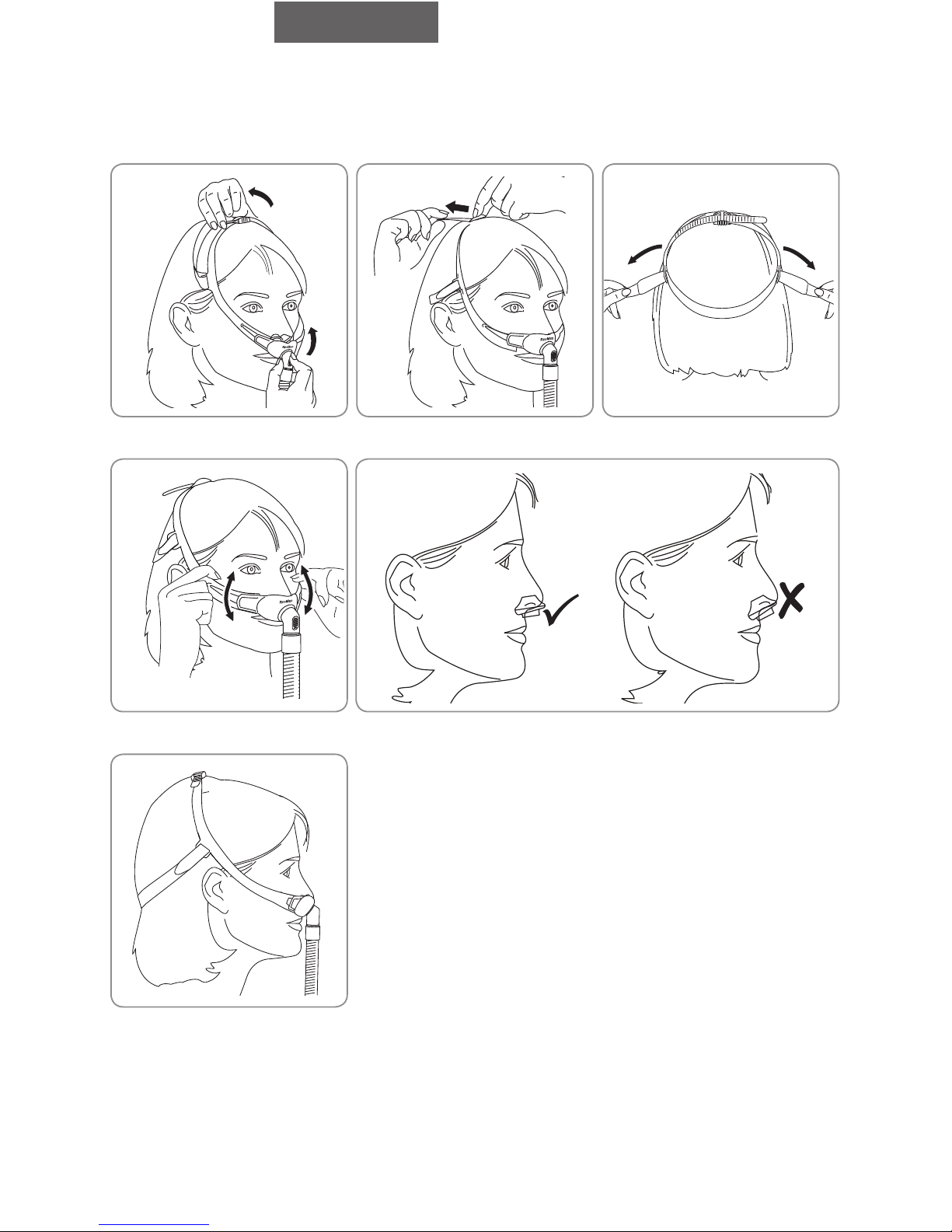

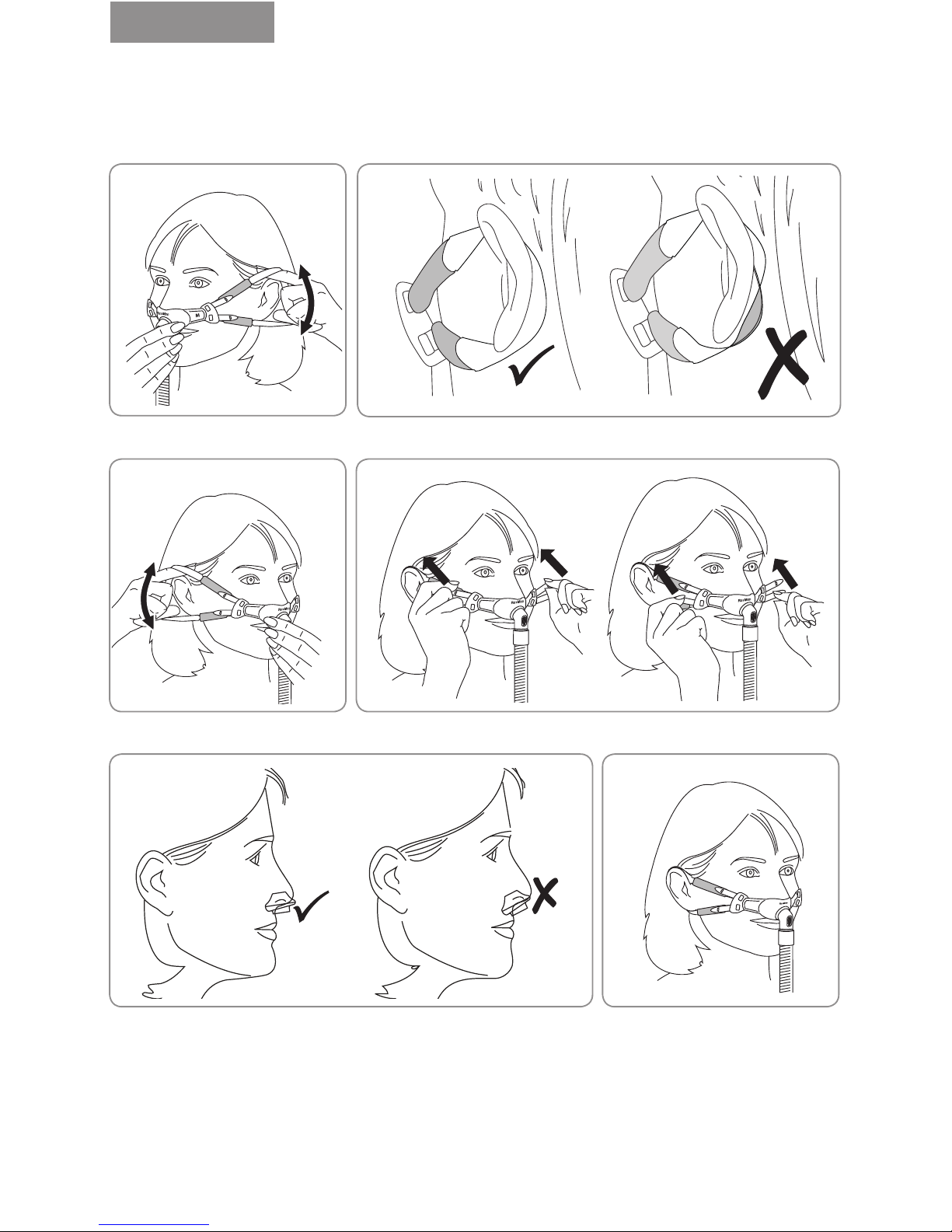

Fitting/ Anlegen/ Mise en place/ Applicazione/
Opzetten
1 2
34
56

vii
Swift FX Bella

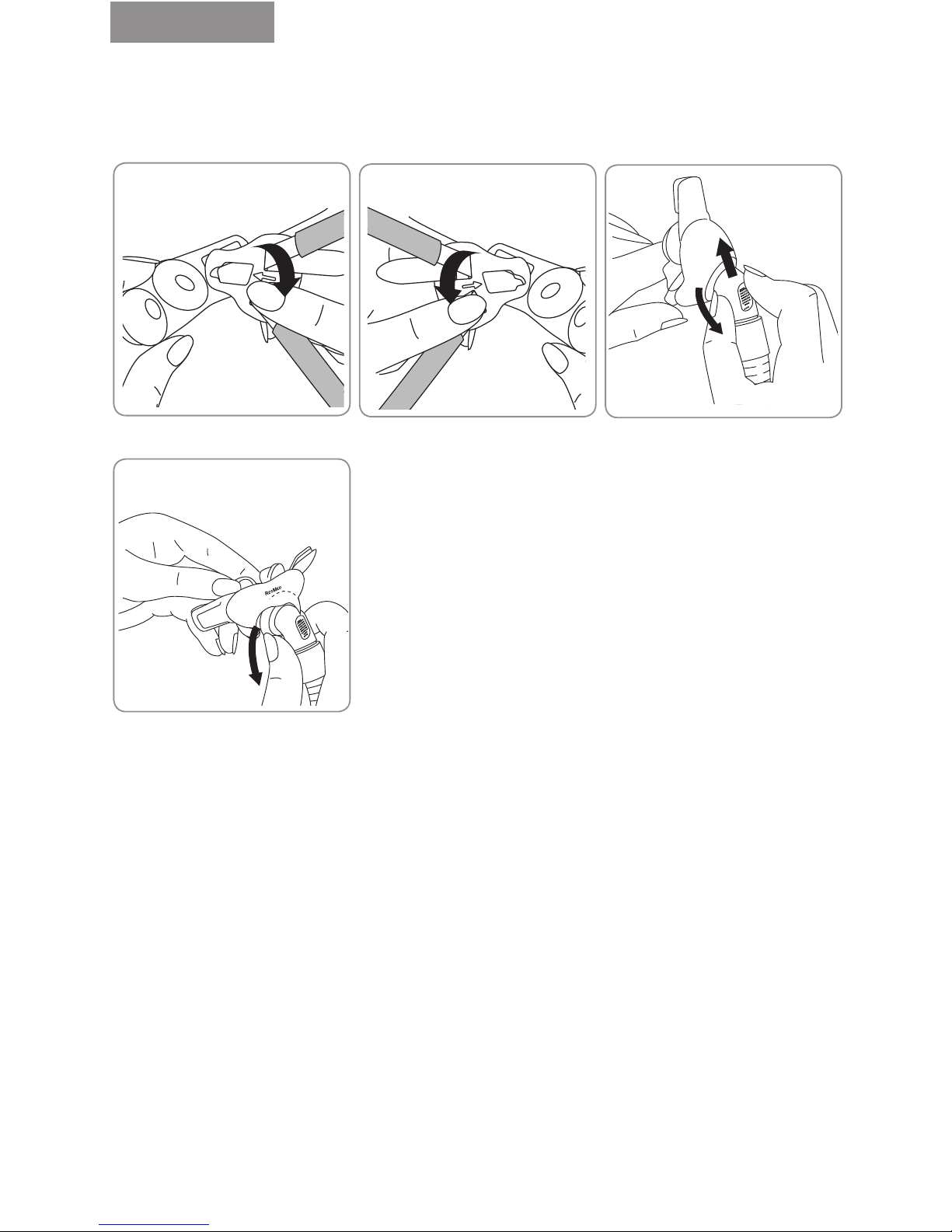

Disassembly/ Auseinanderbau/ Démontage/
Smontaggio/ Demontage
1 2 3
4

viii
Swift FX Bella

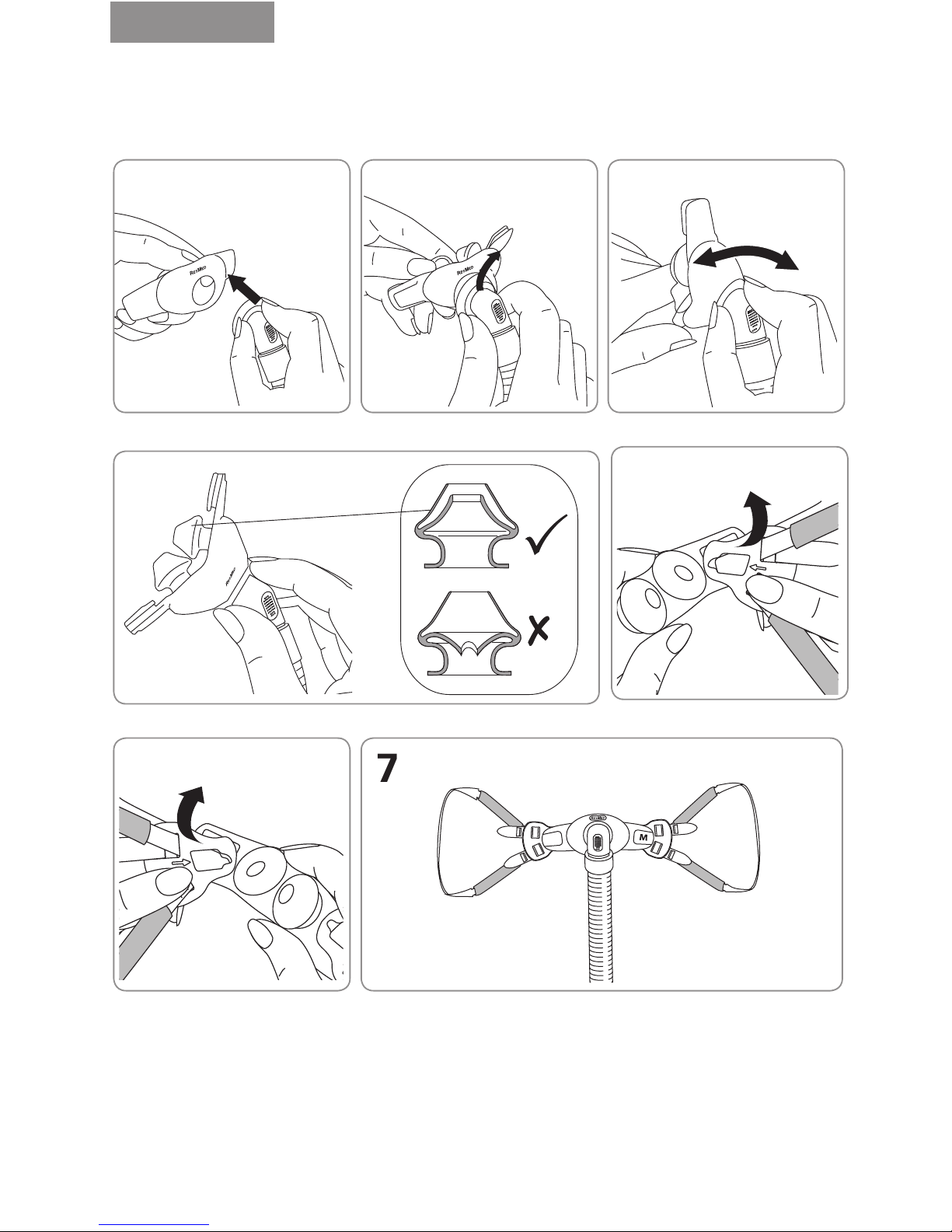

Reassembly/ Zusammenbau/ Remontage/
Riassemblaggio/ Opnieuw monteren
23 1
5
4
6
7

ix
Swift FX Bella
Reassembly of straps (if required)/
Wiederanbringen der Bänder (falls erforderlich)/
Remontage des sangles (le cas échéant)/
Riassemblaggio delle cinghie (se richiesto)/
Opnieuw monteren van banden (indien nodig)
A B
1
A B
2
3

x
Swift FX for Her
A
ResMed
B
C
D
E
8
4
6
2
3
1
13
12
11
9
10
7
5

xi
Swift FX for Her
Mask components/ Maskenkomponenten/
Composants du masque/ Componenti della
maschera/ Maskeronderdelen
Item/ Artikel/
Désignation/
Parte/
Onderdeel
Description/ Beschreibung/
Description/ Descrizione/
Beschrijving
Part number/
Teilenummer/
Code produit/
Numero parte/
Onderdeelnummer
1 Headgear right/ Kopfband rechts/
Harnais droit/ Parte destra
copricapo/ Rechterkant hoofdband
—
2 Top buckle/ Oberer Clip/ Boucle
supérieure/ Fibbia superiore/
Bovenste hoofdbandgesp
—
3 Back strap (1 x P)/ Hinteres
Band (1 x P)/ Sangle arrière
(1 x P)/ Cinghia posteriore (1 x R)/
Achterste band (1 x R)
—
4 Headgear left/ Kopfband links/
Harnais gauche/ Parte sinistra
copricapo/ Linkerkant hoofdband
—
5 Nasal pillows/ Nasenpolster/
Coussins narinaires/ Cuscinetti
nasali/ Neuskussentjes
—
6 Cushion/ Maskenkissen/ Bulle/
Cuscinetto/ Kussentje
—
7 Pillows/ Polster/ Coussins/
Cuscinetti/ Kussentjes
—
8 Soft wraps/ Weiche Hüllen/
Housses souples/ Involucri
imbottiti/ Zachte beschermers
61544 (2 x P)/ 61544
(2 x P)/ 61544
(2 x P)/ 61544
(2 x R)/ 61544 (2 x R)
9Short tube/ Verbindungsschlauch/
Tuyau court/ Tubo corto/
Korte slang
—
10 Swivel/ Drehadapter/ Pièce
pivotante/ Giunto rotante/
Draaibare kop
—

xii
Swift FX for Her
Item/ Artikel/
Désignation/
Parte/
Onderdeel
Description/ Beschreibung/
Description/ Descrizione/
Beschrijving
Part number/
Teilenummer/
Code produit/
Numero parte/
Onderdeelnummer
11 Vent/ Luftauslassöffnung/
Orifice de ventilation/ Foro per
l’esalazione/ Ventilatieopening
—
12 Elbow/ Kniestück/ Coude/
Gomito/ Bocht
—
13 Swivel ring/ Drehadapterring/
Anneau pivotant/ Anello rotante/
Ring draaibare kop
—
A Swift FX for Her complete system/
Swift FX for Her Komplettsystem/
Masque Swift FX for Her complet/
Cuscinetti nasali Swift FX for Her
con tutti i componenti/ Volledig
Swift FX for Her-systeem
61545 EUR 1
61546 EUR 2
61547 EUR 3
B Pillows system (Frame
system)/ Nasenpolstermaske
(Maskenhaltersystem)/
Masque narinaire (support
complet)/ Cuscinetti nasali
(Telaio)/ Kussentjessysteem
(framesysteem)
61510 (XS)
61511 (S)
61512 (M)
61513 (L)
C Short tube assembly (Frame
assembly)/ Verbindungsschlauch
(Maskenhalter)/ Ensemble tuyau
court (ensemble support)/
Gruppo circuito corto (Complesso
del telaio)/ Korte slang-assemblage
(frame-assemblage)
61528 (1)
61527 (10)
D Swift FX for Her headgear
assembly/ Swift FX for Her
Kopfband/ Ensemble harnais Swift
FX for Her/ Gruppo del copricapo
Swift FX for Her/ Assemblage
Swift FX for Her-hoofdbandenstel
61543

xiii
Swift FX for Her
Item/ Artikel/
Désignation/
Parte/
Onderdeel
Description/ Beschreibung/
Description/ Descrizione/
Beschrijving
Part number/
Teilenummer/
Code produit/
Numero parte/
Onderdeelnummer
E Pillows/ Polster/ Coussins/
Cuscinetti/ Kussentjes
61520 (XS)
61521 (S)
61522 (M)
Also available/ Außerdem erhältlich:/ Également disponible/
Altri prodotti/Tevens verkrijgbaar
Pillows/ Polster/ Coussins/
Cuscinetti/ Kussentjes
61523 (L)
XS Extra Small, S Small, M Medium, L Large/ XS Extra Small, S Small, M Medium, L Large/
XS : très petit, S : petit, M : médium, L : grand/ XS Extra Small, S Small, M Medium, L Large/
XS Extra Small, S Small, M Medium, L Large
P Pink/ P Pink/ P : rose/ R Rosa/ R Roze

xiv
Swift FX for Her
Fitting/ Anlegen/ Mise en place/ Applicazione/
Opzetten
1 2 3
4 5
6

xv
Swift FX for Her
Disassembly/ Auseinanderbau/ Démontage/
Smontaggio/ Demontage
123
4
1 2 3

xvi
Reassembly/ Zusammenbau/ Remontage/
Riassemblaggio/ Opnieuw monteren
5
4
76 8
9

1
English
Swift FX for HerSwift FX Bella
English
Swift™FX Bella
+ Swift FX for Her HEADGEAR
NASAL PILLOWS SYSTEM
Thank you for choosing the Swift FX Bella + Swift FX for Her Headgear.
The Swift FX Bella + Swift FX for Her Headgear is the first of ResMed’s
Nasal Pillows Systems that offers a choice of two different types of
headgear. This user guide provides you with instructions for setting up
and using both headgear with your nasal pillows system.
Intended use
The Swift FX Bella and Swift FX for Her channels airflow noninvasively
to a patient from a positive airway pressure (PAP) device such as a
continuous positive airway pressure (CPAP) or bilevel system.
The Swift FX Bella and Swift FX for Her are:
•to be used by adult patients (30 kg) for whom positive airway
pressure has been prescribed
•intended for single-patient re-use in the home environment and
multipatient re-use in the hospital/institutional environment.
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have
mask setting options, refer to the Technical specifications section in
this user guide for mask selection options.
For a full list of compatible devices for these masks, see the Mask/
Device Compatibility List on www.resmed.com on the Products page
under Service & Support. If you do not have internet access, please
contact your ResMed representative.

2
Swift FX for HerSwift FX Bella
Notes:
•These masks are not compatible for use with ResMed
AutoSetCS™ 2 and VPAP™ Adapt SV devices.
•SmartStop may not operate effectively when using these masks
with some CPAP or bilevel devices that have this feature.
•If you experience nasal dryness or irritation, use of a humidifier
isrecommended.
GENERAL WARNINGS
•The vent holes must be kept clear.
•The mask should only be used with CPAP or bilevel devices
recommended by a physician or respiratory therapist.
•The mask should not be used unless the device is turned on.
Once the mask is fitted, ensure the device is blowing air.
Explanation: CPAP and bilevel devices are intended to be used
with special masks (or connectors) which have vent holes
to allow continuous flow of air out of the mask. When the
device is turned on and functioning properly, new air from
the device flushes the exhaled air out through the mask vent
holes. However, when the device is not operating, insufficient
fresh air will be provided through the mask, and the exhaled
air may be rebreathed. Rebreathing of exhaled air for longer
than several minutes can, in some circumstances, lead to
suffocation.This applies to most models of CPAP or bilevel
devices.
•Follow all precautions when using supplemental oxygen.
•Oxygen flow must be turned off when the CPAP or bilevel
device is not operating, so that unused oxygen does not
accumulate within the CPAP or bilevel device enclosure and
create a risk of fire.
•Oxygen supports combustion. Oxygen must not be used while
smoking or in the presence of an open flame. Only use oxygen
in well ventilated rooms.

3
English
Swift FX for HerSwift FX Bella
•At a fixed rate of supplemental oxygen flow, the inhaled
oxygen concentration varies, depending on the pressure
settings, patient breathing pattern, mask, point of application
and leak rate.This warning applies to most types of CPAP
devices.
•The technical specifications of the mask are provided for your
clinician to check that they are compatible with the CPAP or
bilevel device. If used outside specification or if used with
incompatible devices, the seal and comfort of the mask may
not be effective, optimum therapy may not be achieved, and
leak, or variation in the rate of leak, may affect the CPAP or
bilevel device function.
•Discontinue using the mask if you have ANY adverse reaction
to the use of the mask, and consult your physician or sleep
therapist.
•Using a mask may cause tooth, gum or jaw soreness or
aggravate an existing dental condition. If symptoms occur,
consult your physician or dentist.
•As with all masks, some rebreathing may occur at low CPAP
pressures.
•Refer to your CPAP or bilevel device manual for details on
settings and operational information.
•Remove all packaging before using the mask.
