ReSound ENZO QUATTRO Series User manual

Technical Manual
RS LONDON Platform ReSound A/S
Global Technical Operations
http://gto.gnresound.com
Lautrupbjerg 7
DK-2750 Ballerup
Denmark

Doc 0223520 revN
Page 2 of 39
Notsubjectto issue control when printed
Table of Contents
Form-Factor-Matrix & Product Information.............................................................................................. 3-8
Colour overview............................................................................................................................................9-10
Part list- LO85 models ....................................................................................................................................11
Part list- LO90 models ....................................................................................................................................12
Part list- CROS..................................................................................................................................................13
Part list- accessories (pediatrics all form factors).....................................................................................14
Part list-programmed service modules......................................................................................................15
Part list-test & prog equipment 70/80........................................................................................................16
Part list-test & prog equipment 90..............................................................................................................17
Part list-separate HSG parts...................................................................................................................18-24
Part list-thin tubes & domes.........................................................................................................................25
Disassemble-90 models.................................................................................................................................26
Disassemble.................................................................................................................................................27-29
Replace parts ..............................................................................................................................................30-32
Test equipment-70/80 models.....................................................................................................................33
Testing-70/80 models..............................................................................................................................34-36
Test equipment-90 models...........................................................................................................................37
Testing-90 models..........................................................................................................................................38
Wireless test......................................................................................................................................................39

Doc 0223520 revN
Page 3 of 39
Notsubjectto issue control when printed
Please also see doc 0226100TECH MAN UNITE PLUSfor information aboutwireless accessories
HI available in these colours: HSG parts - colour overview:
Light Blonde (LBL) All HSG parts are LBL
Medium Blonde (MBL) All HSG parts are MBL
Dark Brown (DBR) All HSG parts are DBR
Beige (BGE) All HSG parts are BGE
Black (BLK) All HSG parts are BLK
Anthracite 2 (ANT2) All HSG parts are ANT2
Silver (SIL) SIL HSG TOP,BOT & BAT DR.BLK PB & TGL/LID
Pearl White (PRL WHT) PRLWHT HSG TOP,BOT & BAT DR.WHT PB & TGL/LID
Sterling Grey(SGR) All HSG parts are GRY
Black Gloss (BLK GLS) BLK GLS HSG TOP,BOT & BAT DR.BLK PB & TGL/LID
Form-Factor-Matrix & Prod Info - ENZO QUATTRO (LO90 Coyote 5.0)
Platform (C5.0) Family Model Data Sheet
Doc No
LONDON (LO90)
CK (Cloud Key)
SUPER POWER BTE
Battsize 675 zinc air
no LED-manual child lock
ENZOQUATTRO
EQ998-DWT
401238000
EQ798-DWT
EQ598-DWT
Child
bat lock
DWT: Dual mic,Wireless,Telecoil

Doc 0223520 revN
Page 4 of 39
Notsubjectto issue control when printed
Please also see doc 0226100TECH MAN UNITE PLUSfor information aboutwireless accessories
HI available in these colours: HSG parts - colour overview:
Light Blonde (LBL) All HSG parts are LBL
Medium Blonde (MBL) All HSG parts are MBL
Dark Brown (DBR) All HSG parts are DBR
Beige (BGE) All HSG parts are BGE
Black (BLK) All HSG parts are BLK
Anthracite 2 (ANT2) All HSG parts are ANT2
Silver (SIL) SIL HSG TOP,BOT & BAT DR.BLK PB & TGL/LID
Pearl White (PRL WHT) PRLWHT HSG TOP,BOT & BAT DR.WHT PB & TGL/LID
Sterling Grey(SGR) All HSG parts are GRY
Black Gloss (BLK GLS) BLK GLS HSG TOP,BOT & BAT DR.BLK PB & TGL/LID
Form-Factor-Matrix & Prod Info - ENZO, ENZO2 & ENZO 3D (LO90 Coyote 4.5)
Platform (C4.5) Family Model Data Sheet
Doc No
LONDON (LO90)
CK (Cloud Key)
SUPER POWER BTE
Battsize 675 zinc air
no LED-manual child lock
ENZO3D 9 (MFI) ET998-DW
400740000
ENZO3D 7 (MFI) ET798-DW
ENZO3D 5 (MFI) ET598-DW
LONDON (LO90)
SUPER POWER BTE
Battsize 675 zinc air
no LED-manual child lock
ENZO29 (MFI) EN998-DW
400504000
ENZO27 (MFI) EN798-DW
ENZO25 (MFI) EN598-DW
ENZO 9 (MFI) EO998-DW
400303000
ENZO 7 (MFI) EO798-DW
ENZO 5 (NO-MFI) EO598-DW
Child
bat lock

Doc 0223520 revN
Page 5 of 39
Notsubjectto issue control when printed

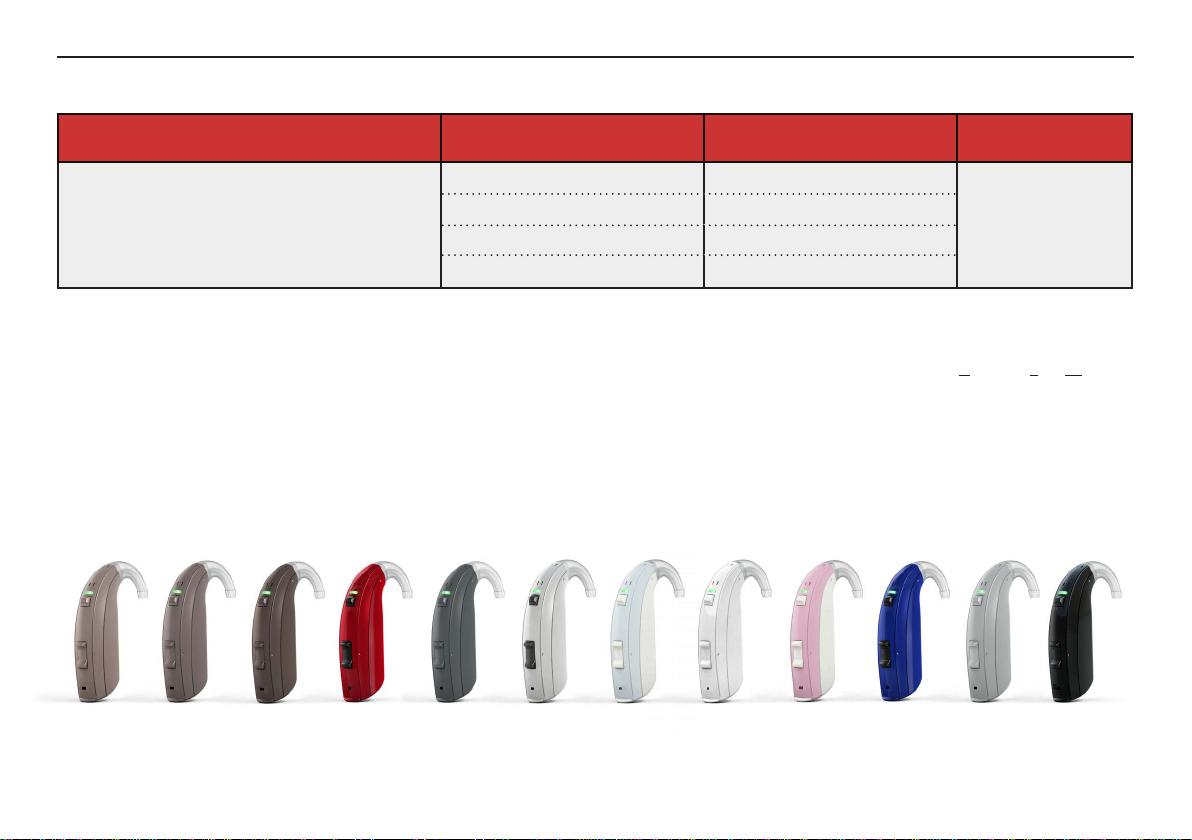

Form-Factor-Matrix & Prod Info - UP SMART & M (LO90 Coyote 4.5)
Platform (C4.5) Family Model Data Sheet
Doc No
LONDON (LO90)
SUPER POWER BTE
Battsize 675 zinc air
(PEDIATRIC)
with LED and“automatic”child lock
UP SMART 9 (MFI) UPS998-DLW
400312000
UP SMART 7 (MFI) UPS798-DLW
UP SMART 5 (NO-MFI) UPS598-DLW
UP SMART 5 M (MFI) UPS598M-DLW
MFI = MADE FOR IPHONE
DLW (Dual mic,LED, Wireless)
LBL MBL DBR MON
RED ANT2 SIL WHT/
LHT BLU PRL WHT WHT/ PINK OCN BLU SGR BLK GLS
HI available in these colours: HSG parts - colour overview:
Light Blonde (LBL) All HSG parts LBL
Medium Blonde (MBL) All HSG parts MBL
Dark Brown (DBR) All HSG parts DBR
Monza Red (MON RED) MON RED HSG TOP,BOT & BAT DR.BLK PB &TGL/LID
Anthracite 2 (ANT2) All HSG parts ANT2
Silver (SIL) SIL HSG TOP, BOT & BAT DR.BLK PB,TGL/LID
White Light Blue (WHT/LHT BLU) WHT HSG BOT,BAT DR, PB & TGL/LID.LHT BLU TOP HSG
Pearl White (PRL WHT) PRL WHT HSG TOP,BOT & BAT DR.WHT PB & TGL/LID
White Pink (WHT/PINK) WHT HSG BOT,BAT DR, PB & TGL/LID.PINK TOP HSG
Ocean Blue (OCN BLU) OCN BLU HSGTOP,BOT& BAT DR.BLK PB & TGL/LID
Sterling Grey(SGR) ALLparts GRY
Black Gloss (BLK GLS) BLK GLS HSG TOP,BOT & BAT DR.BLK PB & TGL/LID
Please also see doc 0226100TECH MAN UNITE PLUSfor information aboutwireless accessories

Doc 0223520 revN
Page 6 of 39
Notsubjectto issue control when printed
Form-Factor-Matrix & Prod Info - LiNX (LO85 Coyote 4.5)
Note:
For the LNx77 models,the hook/tone tube must always be with filter. For the LNx88 models,the hook/tone tube must always be without filter. Only
LNx77 models can be configured to open versionwith thin tube/adapt.See alsothe Data Sheetfor moretech data.
None of the models has LED
Platform (C4.5) Family Model Data Sheet
Doc No
LONDON (LO85)
POWER BTE
wireless
batt size 13 zinc air
LiNX 9 (MFi) LN988-DW
400304000
LiNX 7 (MFi) LN788-DW
LiNX 5 (NO MFi) LN588-DW
LONDON (LO85)
POWER BTE
wireless Tinnitus
batt size 13 zinc air
LiNX 9 TS (MFi) LNT988-DW 400308000
LiNX 7 TS (MFi) LNT788-DW
LONDON (LO85)
STD BTE
wireless
batt size 13 zinc air
LiNX 9 (MFi) LN977-DW
400304000
LiNX 7 (MFi) LN777-DW
LiNX 5 (non MFi) LN577-DW
LONDON (LO85)
STD BTE
wireless Tinnitus
batt size 13 zinc air
LiNX 9 TS (MFi) LNT977-DW 400307000
LiNX 7 TS (MFi) LNT777-DW
Please also see doc 0226100TECH MAN UNITE PLUSfor information aboutwireless accessories

Doc 0223520 revN
Page 7 of 39
Notsubjectto issue control when printed

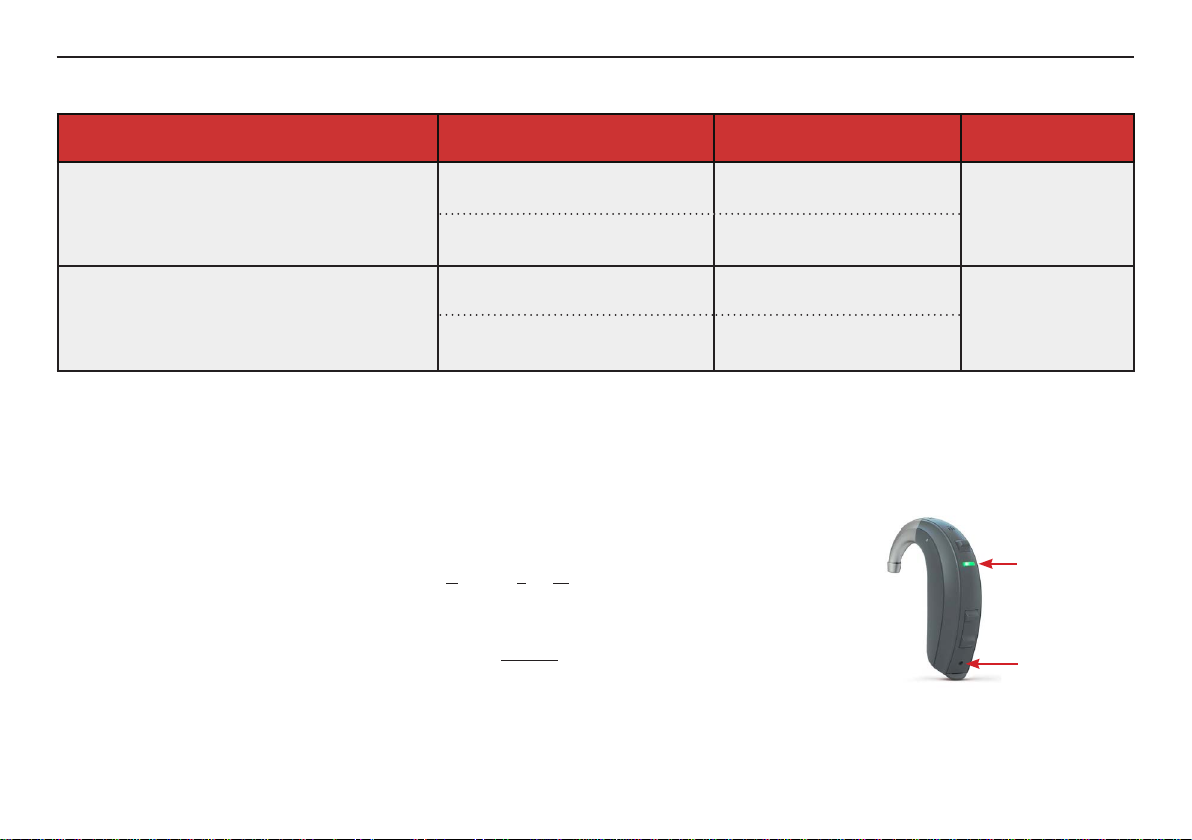

LED
CHILD LOCK
MFI = MADE FOR IPHONE DLW Models (Dual mic,LED, Wireless)
• For UPSx77 models,the hook/tone tube must always be with filter
• For UPSx88 models,the hook/tone tube mustalways be withoutfilter
• For the High Gain configuration of the UPSx88 models,the metal hook/tonetube must be chosen (w/o filter)
• Only UPSx77 models can be configuredto open versionwith thin tube/adapt
Ifan“ADULT”versionwithoutthe automaticchildlockandthevisibleLED lightisrequestedfortheHI,areplacementpack/kitcontainingnewbattdoor
w manual open/lockand top HSG withoutthe hole for the LED can be ordered-please see page“Replacement Packs UP SMART70/80”forfurther info
Form-Factor-Matrix & Prod Info - UP SMART / M (LO85 Coyote 4.5)
Platform (C4.5) Family Model Data Sheet
Doc No
LONDON (LO85)
POWER BTE
Battsize 13 zinc air
(PEDIATRIC)
with LED and“automatic”child lock
UP SMART 9 (MFI) UPS988-DLW
400311000
UP SMART 7 (MFI) UPS788-DLW
UP SMART 5 (NO MFI) UPS588-DLW
UP SMART 5 M (MFI) UPS588M-DLW
LONDON (LO85)
STD BTE
Battsize 13 zinc air
(PEDIATRIC)
with LED and“automatic”child lock
UP SMART 9 (MFI) UPS977-DLW
400310000
UP SMART 7 (MFI) UPS777-DLW
UP SMART 5 (NO MFI) UPS577-DLW
UP SMART 5 M (MFI) UPS577M-DLW
Please also see doc 0226100TECH MAN UNITE PLUSfor information aboutwireless accessories

Doc 0223520 revN
Page 8 of 39
Notsubjectto issue control when printed
Form-Factor-Matrix & Product Information - UP (LO85 Coyote 4.5)
Configurations:
UPx88-DLW UPx77-DLW
UPx88-DLW HP UPx77-DLW OPEN
Platform (C4.5) Family Model Data Sheet
Doc No
LONDON (LO85)
POWER BTE
Battsize 13 zinc air
(PEDIATRIC)
with LED and“automatic”child lock
UP 9 UP988-DLW 400217000
UP 7 UP788-DLW
LONDON (LO85)
STD BTE
Battsize 13 zinc air
(PEDIATRIC)
with LED and“automatic”child lock
UP 9 UP977-DLW
400216000
UP 7 UP777-DLW
MFI = MADE FOR IPHONE DLW Models (Dual mic,LED, Wireless)
• For UPSx77 models,the hook/tone tube must always be with filter
• For UPSx88 models,the hook/tone tube mustalways be withoutfilter
• For the High Gain configuration of the UPSx88 models,the metal hook/tonetube must be chosen (w/o filter)
• Only UPSx77 models can be configuredto open versionwith thin tube/adapt
Please also see doc 0226100TECH MAN UNITE PLUSfor information aboutwireless accessories
LED
CHILD LOCK

Doc 0223520 revN
Page 9 of 39
Notsubjectto issue control when printed

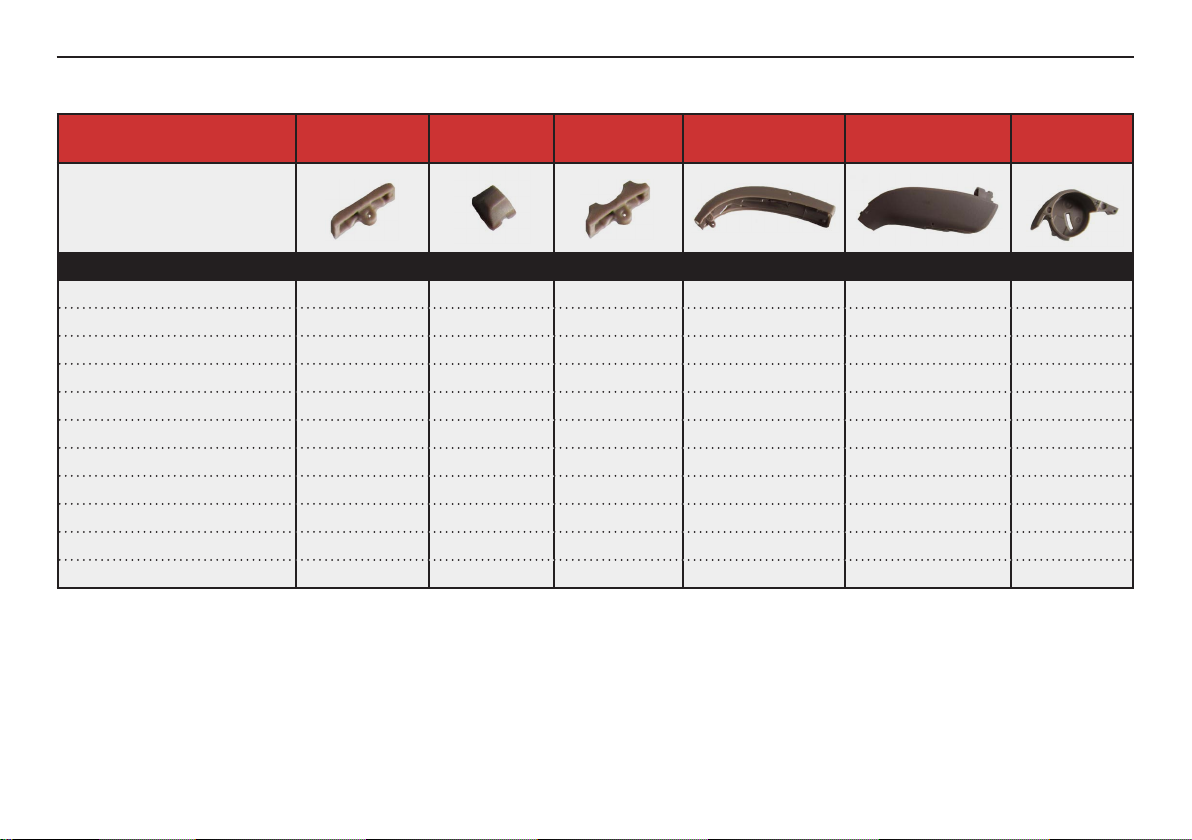

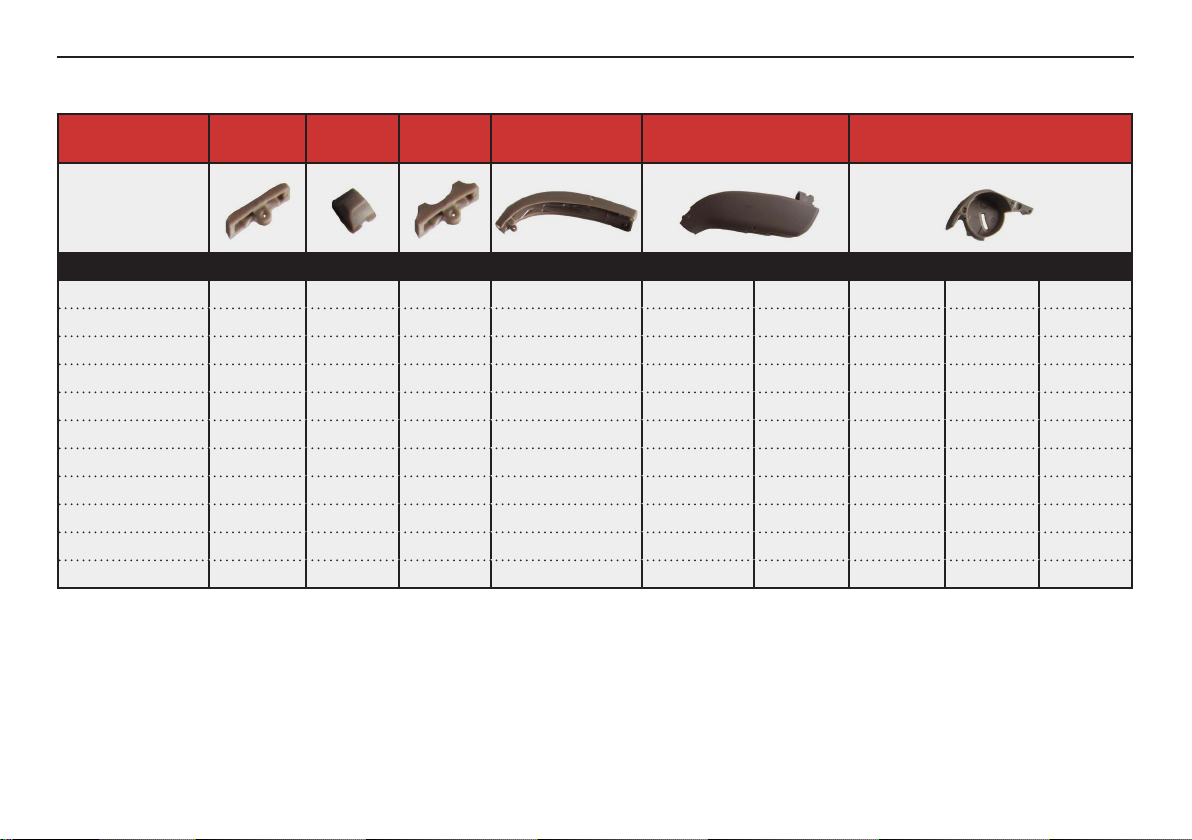

Colour Overview HSG Parts - LiNX models (LO85)
HI COLOUR
HOUSING (HSG) PART - COLOUR
TGL LID PB TGL TOP HSG BOT HSG BAT DOOR
LIGHT BLONDE (LBL) LBL LBL LBL LBL LBL LBL
MEDIUM BLONDE (MBL) MBL MBL MBL MBL MBL MBL
DARK BROWN (DBR) DBR DBR DBR DBR DBR DBR
BEIGE (BGE) BGE BGE BGE BGE BGE BGE
MONZA RED (MON RED) BLK PNT BLK PNT BLK MON RED MON RED MON RED
BLACK (BLK) BLK BLK BLK BLK BLK BLK
ANTHRACITE2 (ANT2) ANT2 ANT2 ANT2 ANT2 ANT2 ANT2
METAL (MET) BLK PNT BLK PNT BLK MET MET MET
PEARLWHITE (PRL WHT) WHT PNTWHT PNT WHT PRLWHT PRLWHT PRL WHT
OCEAN BLUE (OCN BLU) BLK PNT BLK PNT BLK OCN BLU OCN BLU OCN BLU
STERLING GREY (SGR) GRY GRY GRY GRY GRY GRY
BLACK GLOSS (BLK GLS) BLK PNT BLK PNT BLK BLK GLS BLK GLS BLK GLS
PNT = FOR PAINTED (to be used with other painted HSG parts)
LBL
MBL
DBR
MON RED
ANT2
MET
OCN BLU
SGR
BGE
BLK
BLK GLS
PRLWHT

Doc 0223520 revN
Page 10 of 39
Notsubjectto issue control when printed
Colour Overview HSG Parts - UP & UP SMART / M Models (LO85)
PNT = FOR PAINTED (to be usedwith painted HSG parts)
LBL MBL DBR MON
RED
ANT2WHT
LHT BLU PRL WHT OCN BLU
WHT
/PINK BLK GLS
* UP SMART models only
METSGR
HI COLOUR
HOUSING (HSG) PART - COLOUR
TGL LID PB TGL TOP HSG BOT HSG BAT DOOR
LIGHT BLONDE (LBL) LBL LBL LBL LBL LBL LBL
MEDIUM BLONDE (MBL) MBL MBL MBL MBL MBL MBL
DARK BROWN (DBR) DBR DBR DBR DBR DBR DBR
MONZA RED (MON RED) BLK PNT BLK PNT BLK MON RED MON RED MON RED
ANTHRACITE 2 (ANT2) ANT2 ANT2 ANT2 ANT2 ANT2 ANT2
METAL (MET) * BLK PNT BLK PNT BLK MET MET MET
WHITE/LIGHT BLUE (WHT/LHT BLU) LHT BLU WHT WHT LHT BLU WHT WHT
PEARLWHITE (PRL WHT) WHT PNTWHT PNT WHT PRLWHT PRL WHT PRLWHT
WHITE/PINK (WHT/PINK) PINK WHT WHT PINK WHT WHT
OCEAN BLUE (OCN BLU) BLK PNT BLK PNT BLK OCN BLU OCN BLU OCN BLU
STERLING GREY(SGR) * GRY GRY GRY GRY GRY GRY
BLACK GLOSS (BLK GLS) BLK PNT BLK PNT BLK BLK GLS BLK GLS BLK GLS

Doc 0223520 revN
Page 11 of 39
Notsubjectto issue control when printed

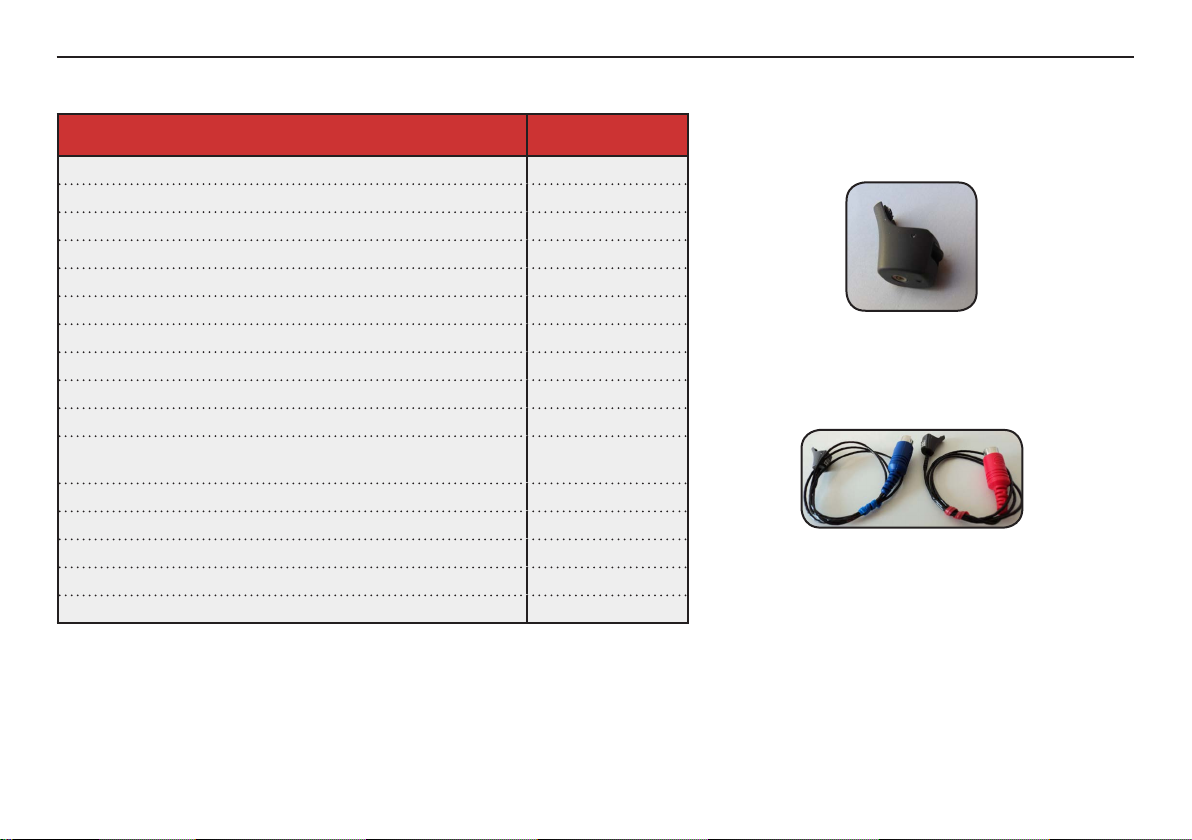

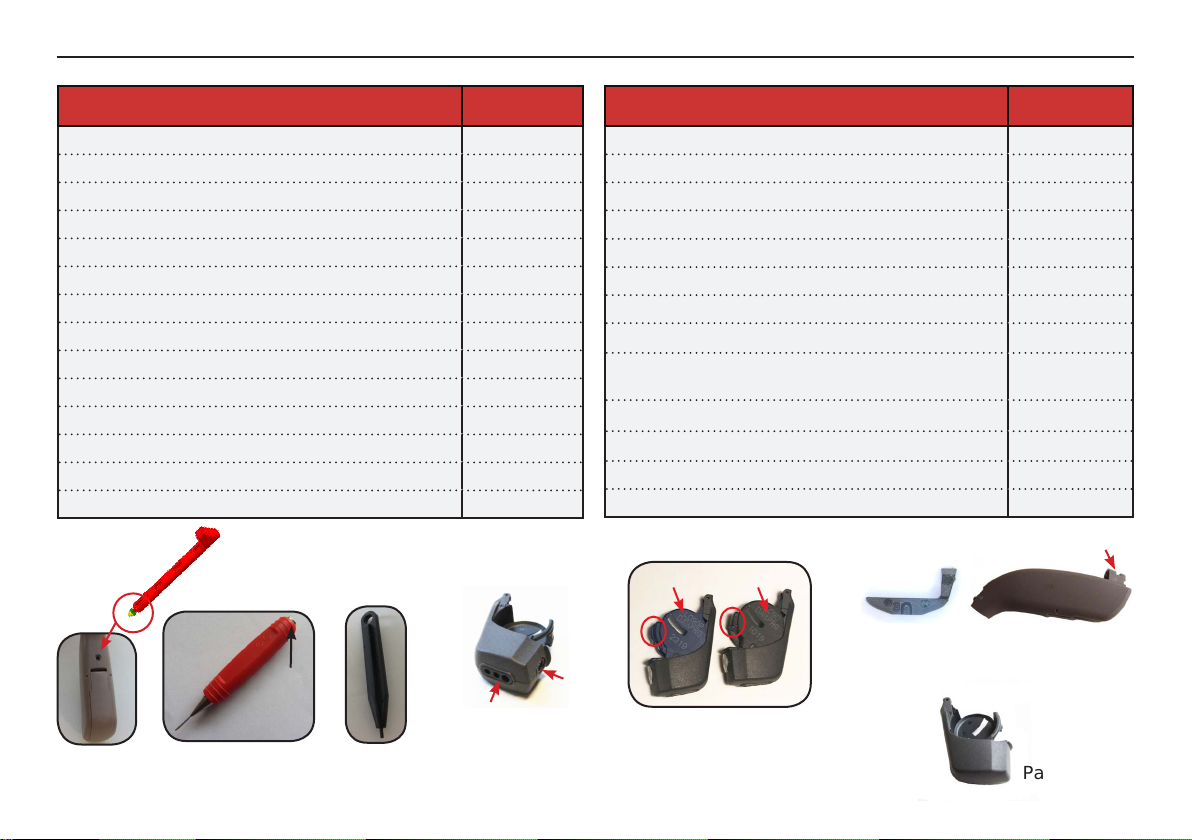

Part List - LO85 Models
Description Part No
PIN REMOVALTOOL,PACKED 15502500
CHILDLOCK, RED (colour marker) 15966400
CHILDLOCK, BLUE (colour marker) 15966401
KIT,HOOKS,CHILDLOCK,77,OPEN (LINX STD BTE) 18670700
KIT,HOOKS,CLR MKR,88 (LINX POWER) 18611200
KIT,HOOKS,CLR MKR,PED,LO85 (STD BTE UP/UPS) 18435800
KIT,HOOKS,CLR MKR,PED,LO85 (POWER BTE UP/UPS) 18291200
RETENTION BAT,RS,LO85,RED (UP/UPS) 17529401
RETENTION BAT,RS,LO85,BLUE (UP/UPS) 17529402
CHILDLOCK RELEASE TOOL,LO85 (UP/UPS) 18106800
BRUSH,BLK 17435000
AUTOPHONE MAGNETS (3 pcs) 17294600
DAI ADAPTOR 2 19901700
INTEGRD FM ADAPT HA,RS,NANO (EU) 18157600
INTEGRD FM ADAPT HA,RS,NANO (US/CA) 18157601
Description Part No
TONE TUBE,BABY (tone tube/hook without filter) * 17006200
TONE TUBE,CHILD (tone tube/hook without filter) * 17006000
TONE TUBE,ADULT (tone tube/hook without filter) * 17508500
THIN TUBE ADAPT W/FILTER (STD BTE only) 17452100
FILTER,HOOK,4 PCS * 15322100
ADULT HOOK W/FILTER * 17562600
BABY HOOK W/FILTER * 17497200
CHILD HOOK W/FILTER * 17497100
TONETUBE,ASM,LO 85,ADULT (metal hook) * 18068700
TONETUBE,ASM,LO 85,BABY(metal hook) * 18068800
PIN,Ø0.60 X 6.05 (BOT HSG) 16059700
PIN Ø0,60 X 4,50 (BAT DR) 17010500
LED COVER,MLD,LO85,NANO (transp) (UP/UPS) 18717000
PB CAP,SINGLE (soft silicone) 17007700
TOGGLE CAP,DOUBLE (soft silicone) 17007900
Brush,black-17435000
Pin removal
tool
15502500
Magnet
Cleaning
loop
Childlock
release tool
18106800
* ForSTD BTE,the hook/tone tube mustalways be with filter. For Power models the hook must always be withoutthe filterinserted.For High Gain configuration
* ofthe Power models,the metal hook mustbe chosen and always be withoutfilter- aswalso indicated onthe Form-Factor-Matrixpage
Integrd FM adapt
18157601 US/CA
18157600 EU
Reten.bat
(colour mrk)
DAI adapt 2
(for3 pin euro plug)
19901700
15966400 RED
15966401 BLUE

Doc 0223520 revN
Page 12 of 39
Notsubjectto issue control when printed
Part List - LO90 Models
Description Part No
FM02,NB (US/CA) 19079900
FM02,HA (EU) 18645600
FM02,HA,PED,ANT (pediatric) 19396400
FM02,HA,PED,WHT (pediatric) 19396411
FM02,NB,PED,ANT (pediatric) 19396500
FM02,NB,PED,WHT (pediatric) 19396511
DAI-PRGM,LO90,PKG (DAI/prog adapt 90) 19299400
DAI & PRG,LO90,PED,PKG (pediatric) 19396700
KIT,PROG,SUPER POWER,LO90
(pins,mandrel pin tool,DAI/prog adapt 90) 19215000
KIT,PROG,SUPER POWER,LO90,PED (pediatric) 19396800
CHILDLOCK RELEASE TOOL 18106800
AUTOPHONE MAGNETS (3 pcs) 17294600
MANDREL,PIN TOOL (red pin removal tool) 18965200
Description Part No
PIN,0.60X6.80 (for BAT DR & TGL) 16949100
PIN,0.60X5,65 (top/bot HSG hook end) 16059300
KIT,PINS,LO90 BAT & VC/TGL,5PCS 19216100
TOGGLE CAP,SGL (soft silicone) 17525600
PB CAP,SGL (soft silicone) 18339300
KIT,COLOUR MARKERS,LO90 (ENZO) 19191200
KIT,ADULT HOOK,CLR MKR,LO90 (UP SMART) 19079600
CHILD LOCK,LO90,PTD (ENZO only/NON PED) 19094700
TONE TUBE,ADULT,LO90,GLUE,ASM 19283600
TONE TUBE, BABY,LO90,GLUE,ASM 19284100
LED COV,MLD,NANO (transp) for UP SMART only 18717000
COLOUR MARKER,LO90,RED 18538200
COLOUR MARKER,LO90,BLUE 18538201
BRUSH,BLK 17435000
MANDREL
PIN TOOL
Colour mrk
location
Childlockto attach BOT HSG forNON
PED models
Magnet
DAI & Prg adapt(CS44 prg socket & Euro 3 pin socket)
Pick correct adapt (PED or NON PED). PED vers is
printed “LO90P” - NON PED is printed “LO90” (also
small di concerning the moulding due to the child
lock in BOT HSG for NON PED models-red circle area)
FM02 adapt
FM02 NON PED is mrk“FM02”.
FM02 PED is mrk“FM02P”
LO90P LO90
Childlock
release tool
18106800
p/n 18965200

Doc 0223520 revN
Page 13 of 39
Notsubjectto issue control when printed
Part List - CROS
Description Part No
CROS,SUREFIT,EUROPLUG,SMALL* 20040500
CROS,SUREFIT,EUROPLUG,MEDIUM * 20040600
CROS,SUREFIT,EUROPLUG,LARGE * 20040700
CROS,SUREFIT,AUDIO SHOE,SMALL * (fits LO85 models only) 20040900
CROS,SUREFIT,AUDIO SHOE,MEDIM * (fits LO85 models only) 20041000
CROS,SUREFIT,AUDIO SHOE,LARGE * (fits LO85 models only) 20041100

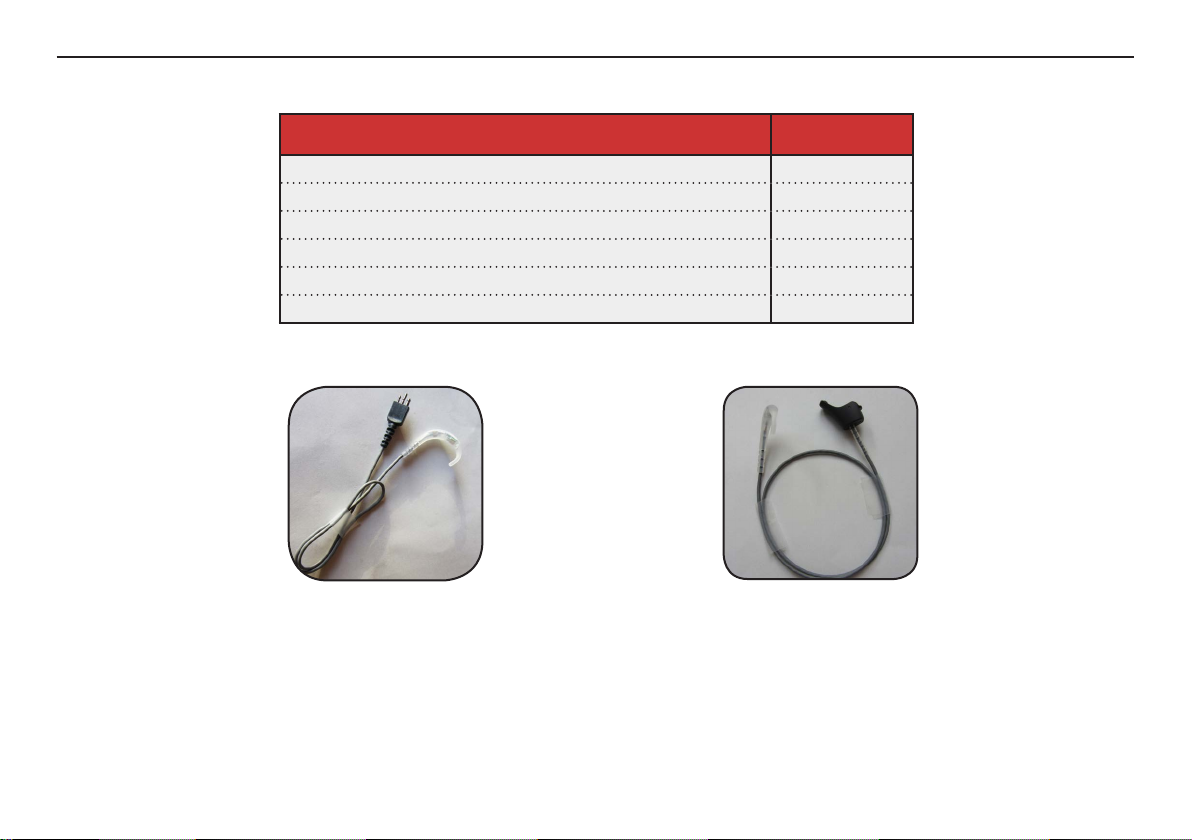

CROS,SF
AUD SHOE
(shoe is fixed to the cable)
To be used for LO85 models
CROS,SF
EURO PLUG
to be plugged in to a suitable DAI shoe.
Canbe usedforbothLO85&LO90models
* Lengths: S = 25 cm,M = 28 cm,L= 31 cm (excl CROS hook)
Please also see: Doc 400604000 UG,CROS/BICROS,SUREFIT (User Guide) & 400650000 DS,CROS/BICROS,SUREFIT,GB (Data Sheet)

Doc 0223520 revN
Page 14 of 39
Notsubjectto issue control when printed

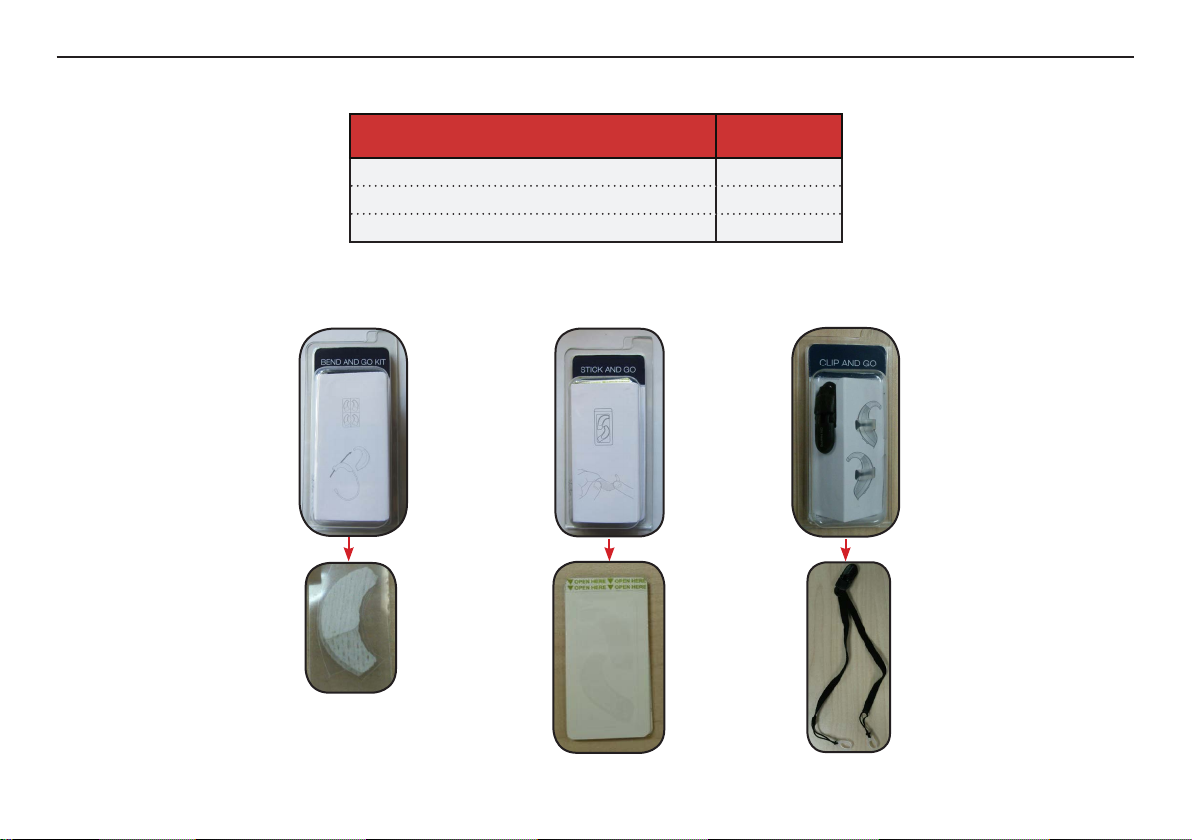

Part List - Accessories Pediatrics (fit all form factors)
Blister packs with guides Part No
BEND AND GO KIT 19229700
CLIPAND GO 19057000
STICKAND GO 19212500
Clip & Go (pediatrics)
1 x Clip & Go
KIT Bend & Go (pediatrics)
10 sets of tape Bend & Go Stick& Go (pediatrics) 15 sets of stickers

Doc 0223520 revN
Page 15 of 39
Notsubjectto issue control when printed

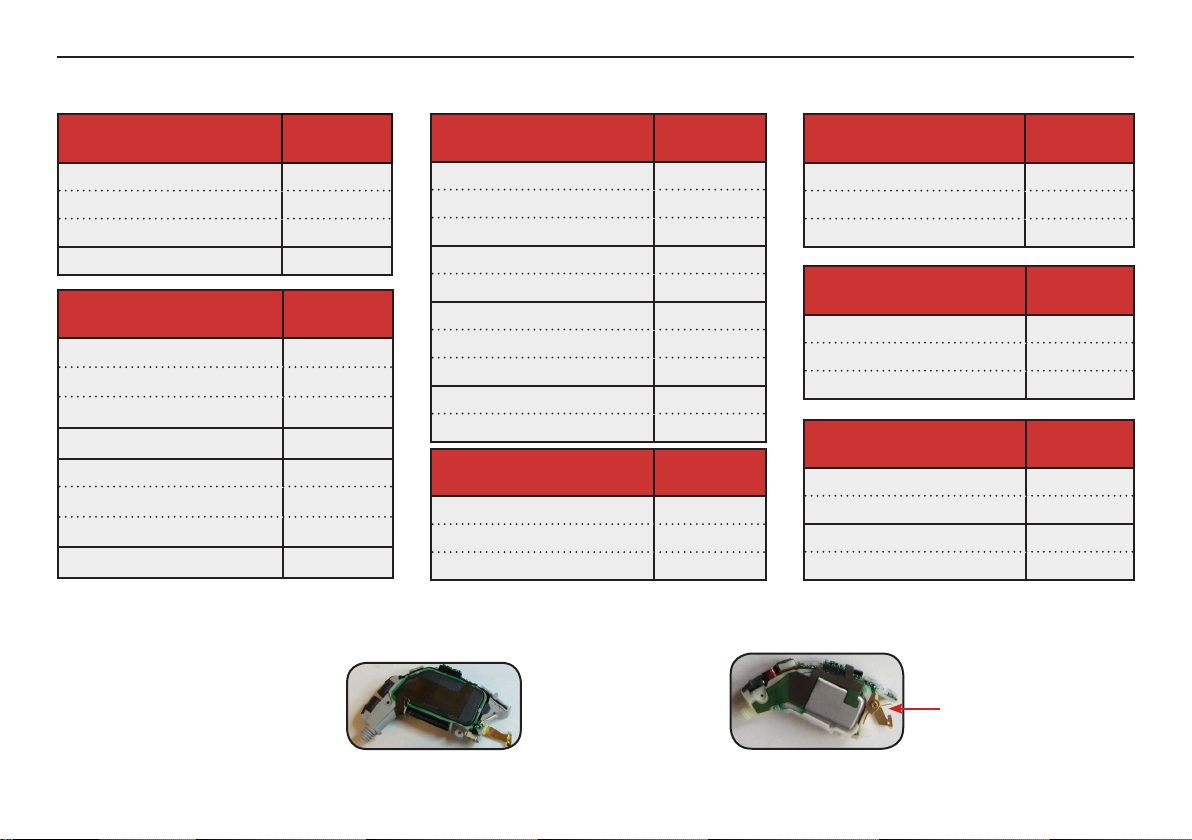

Serv Module/ASM FRAME
LO85
Serv Mod/ASM Frame prog
UP (LO85) Part No
UP777-DLW 18716600
UP977-DLW 18716700
UP788-DLW 18716800
UP988-DLW 18716900
Part List - Programmed Service Module/ASM FRAME
Serv Module/ASM FRAME
LO90
Serv Mod/ASM Frame prog
UPS & UPS M (LO85) Part No
UPS988-DLW 19226100
UPS788-DLW 19226200
UPS588-DLW 19226300
UPS588M-DLW 19966200
UPS977-DLW 19226400
UPS777-DLW 19226500
UPS577-DLW 19226600
UPS577M-DLW 19966300
Serv Mod/ASM Frame prog
UPS & UPS M (LO90) Part No
UPS998-DLW 19227800
UPS798-DLW 19227900
UPS598-DLW 19228000
UPS598M-DLW 19966100
S/n label is placed
next to batt springs
Note:
The serv module (LO90) is delivered with a newunique s/n.
Replacingthe serv module therefore means change of s/n
The service modules are non serviceable at local site.Instead
the defective ones must be returned to Global Repair Site
Serv Mod/ASM Frame prog
ENZO (LO90) Part No
EO998-DW 19228700
EO798-DW 19228800
EO598-DW 19228900
Serv Mod/ASM Frame prog
ENZO2(LO90) Part No
EN998-DW 19876600
EN798-DW 19876700
EN598-DW 19876800
Serv Mod/ASM Frame prog
LiNX (LO85) Part No
LN988-DW 19231900
LN788-DW 19232000
LN588-DW 19232100
LNT988-DW (TS) 19232200
LNT788-DW (TS) 19232300
LN977-DW 19232500
LN777-DW 19232600
LN577-DW 19232700
LNT977-DW (TS) 19232800
LNT777-DW (TS) 19232900
Serv Mod/ASM Frame prog
ENZO 3D (LO90) Part No
ET998-DW 20562500
ET798-DW 20562600
ET598-DW 20562700

Doc 0223520 revN
Page 16 of 39
Notsubjectto issue control when printed
Part List - Test & Prog Equipment (LO85 models)
Test Equipment Part No
PROG.CABLE EXTENSION,MILANO 17517800
SERVICEJIG/FIXTURE 16695100
COUPLMIC,TSYS,TM-12,MEASURED 18220700
TEST FRAME 16902800
BATTERY PILL, 13+ 17449400
PROG CABLE R (CS44) 9022 907 69019
PROG CABLE L(CS44) 9022 907 69029
PROGRAMMINGADAPT (generic)-incl clips red/blue 18041400
CLIP,PROGRAMMING ADAPTOR,RED 17736900
CLIP,PROGRAMMING ADAPTOR,BLUE 17736901
PROG ADAPTOR 2
(notto be used for DSA6000 HItest-onlyfor fittting purpose) 19902500
NOAHLINKWL CPD-1 (forWL test) 20310800
PROGADAPTOR CABLE,L,500 * 18331000
PROGADAPTOR CABLE,R,500 * 18331100
PROGADAPTOR CABLE,L,2500 * 18331200
PROGADAPTOR CABLE,R,2500 * 18331300
**Prog adaptwith fixed cable-onlyto be used during fitting
Pics oftestequip are shown on the last pages
Prog adaptw/FXD cable 70/80
can be used during fitting using fitting SW
PRG ADAPTOR 2 (CS44)
p/n 19902500
can be used during fitting usingfitting SW
(notto be used for DSA test)

Doc 0223520 revN
Page 17 of 39
Notsubjectto issue control when printed

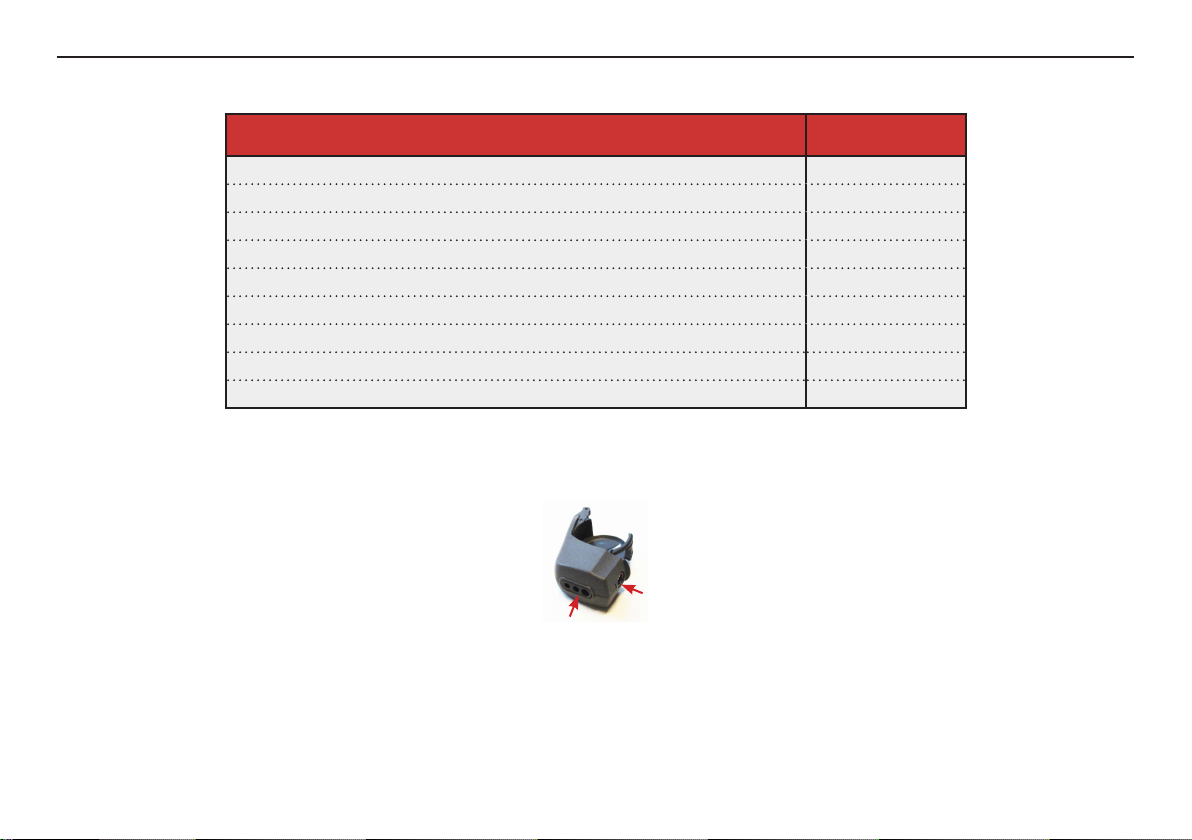

Part List - Test & Prog Equipment (LO90 models)
Test Equipment Part No
PROG.CABLE EXTENSION,MILANO 17517800
TESTJIG,DELHI90 18985500
COUPLMIC,TSYS,TM-12,MEASURED 18220700
BATTERY PILL, 675+ 17449500
PROG CABLE R (CS44) 9022 907 69019
PROG CABLE L(CS44) 9022 907 69029
DAI-PRGM,LO90,PKG (NON-PED) 19299400
DAI & PRG,LO90,PED,PKG (PED) 19396700
NOAHLINKWL CPD-1 (forWL test) 20310800
Pics oftestequip are shown on the last pages
DAI & Prg adapt
(CS44 prg socket & Euro 3 pin socket)
Pickthecorrectadaptdependingonmodel(PEDorNON
PED)-see page“Part List-LO90 Models”for more info

Doc 0223520 revN
Page 18 of 39
Notsubjectto issue control when printed
COLOUR TGL LID * PB TOGGLE HSG TOP HSG BOT BAT DOOR
LBL 19228201 19227701 19228101 19228401 20540501 21330401
MBL 19228202 19227702 19228102 19228402 20540502 21330402
DBR 19228204 19227704 19228104 19228404 20540522 21330404
BGE 19228205 19227705 19228105 19228405 20540505 21330405
BLK 19228208 19227708 19228108 19228408 20540508 21330408
ANT2 19228209 19227709 19228109 19228409 20540509 21330409
SIL N/A N/A N/A 19228410 20540510 21330410
WHT 19228211 19227711 19228111 N/A N/A N/A
PRLWHT N/A N/A N/A 19228414 20540514 21330414
GRY 19228220 19227720 19228120 19228420 20540524 21330420
BLK GLS N/A N/A N/A 19228425 20540525 21330425
Note: All parts are nano coated
Part List - HSG Parts - ENZO QUATTRO (LO90 models)
* Can be mounted
* instead of TGL
Please see“Colour Overview”on the matrix page for information about colours for each housing part

Doc 0223520 revN
Page 19 of 39
Notsubjectto issue control when printed
COLOUR TGL LID * PB TOGGLE HSG TOP HSG BOT BAT DOOR
EO/EN98-DW ET98-DW EO98-DW EN98-DW ET98-DW
LBL 19228201 19227701 19228101 19228401 19228601 20540501 19228501 19948201 20540401
MBL 19228202 19227702 19228102 19228402 19228602 20540502 19228502 19948202 20540402
DBR 19228204 19227704 19228104 19228404 19228604 20540504 19228504 19948204 20540404
BGE 19228205 19227705 19228105 19228405 19228605 20540505 19228505 19948205 20540405
BLK 19228208 19227708 19228108 19228408 19228608 20540508 19228508 19948208 20540408
ANT2 19228209 19227709 19228109 19228409 19228609 20540509 19228509 19948209 20540409
SIL N/A N/A N/A 19228410 19228610 20540510 19228510 19948210 20540410
WHT 19228211 19227711 19228111 N/A N/A N/A N/A N/A N/A
PRLWHT N/A N/A N/A 19228414 19228614 20540514 19228514 19948214 20540414
GRY 19228220 19227720 19228120 19228420 19228620 20540520 19228520 19948220 20540420
BLK GLS N/A N/A N/A 19228425 19228625 20540525 19228525 19948225 20540425
Note: All parts are nano coated
Part List - HSG Parts - ENZO, ENZO2 & ENZO 3D (LO90 models)
* Can be mounted
* instead of TGL
Please see“Colour Overview”on the matrix page for information about colours for each housing part

Doc 0223520 revN
Page 20 of 39
Notsubjectto issue control when printed
Note: All parts are nano coated
Part List - HSG Parts - UP SMART & UP SMART M (LO90 models)
* Can be mounted
instead ofTGL
Please see“Colour Overview”on the matrix page for information about colours for each housing part
COLOUR TGL LID * PB TOGGLE HSG TOP HSG BOT BAT DOOR
LBL 19228201 19227701 19228101 19443801 19444001 19443701
MBL 19228202 19227702 19228102 19443802 19444002 19443702
DBR 19228204 19227704 19228104 19443804 19444004 19443704
MON RED N/A N/A N/A 19443906 19444006 19443706
LHT BLU N/A N/A N/A 19443807 N/A N/A
BLK 19228208 19227708 19228108 N/A N/A N/A
ANT2 19228209 19227709 19228109 19443809 19444009 19443709
SIL N/A N/A N/A 19443910 19444010 19443710
WHT 19228211 19227711 19228111 N/A 19444011 19443711
PRLWHT N/A N/A N/A 19443914 19444014 19443714
PINK N/A N/A N/A 19443816 N/A N/A
OCN BLU N/A N/A N/A 19443918 19444018 19443718
GRY 19228220 19227720 19228120 19443820 19444020 19443720
BLK GLS N/A N/A N/A 19443925 19444025 19443725
