Ricoh MD-A1b Service manual

Technical Bulletin PAGE: 1/5
Reissued:2-Jul-13
Model: MD-A1b(P3000) Date: 06-Mar-12 No.: RE0A0001g
RTB Reissue
The items in bold italics were corrected or added.
This RTB has been issued to announce the firmware release information for the MD-A1b
Version Effective Date File size Note
3.0.1 August 10th, 2013
Around 22:00
(JST/GMT+9) See below*** -Forced update*
-See below***
2.3.1
April 17th, 2013
Around 12:00
(JST/GMT+9)
After Server maintenance
93MB -Optional
update**
2.2.1
Jan 23rd, 2013
Around 12:00
(JST/GMT+9)
After Server maintenance
69MB(2.2.1) -Optional
update**
2.1.1
Dec 9th, 2012
Around 02:00 (Dec 8th, around
26:00)
(JST/GMT+9)
After Server maintenance
74MB (2.1.1) -Optional
update**
2.0.2
2.0.3
Sep 23rd, 2012
Around 00:00 (Sep 22nd,
Around 24:00)
(JST/GMT+9)
After Server maintenance
7MB(2.0.2)
111MB(2.0.3)
-Forced update*
-2 times version
up at one time
1.3.1 June 24th, 2012
Around 18:00(JST)
After Server maintenance Approx. 34MB Forced update*
1.2.2 March 7th, 2012
Around 11:00 (JST) 0.4MB
1.2.1 January 30th, 2012
around 20:00 (JST) 40MB -
1.1.2 1st Mass production - -
Note: The time required to complete the download is approximately 20 minutes in the case of a
500kbps connection. The exact amount of time will depend mainly on the customer’s network
environment (bandwidth, configuration, etc.).
Subject: Firmware Release Note: MD-A1b Prepared by: S. Ishizu
From: 2nd Tech Service Sect., MFP/Printer Tech Service Dept.
Classification: Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety Other (Firmware) Tier 2

Technical Bulletin PAGE: 2/5
Reissued:2-Jul-13
Model: MD-A1b(P3000) Date: 06-Mar-12 No.: RE0A0001g
*: Forced Update
A Forced Update means that any device that connects to the server after the “Effective
Date” shown above must update to the latest “Forced Update” version before holding
a videoconference. All older firmware versions become obsolete, and cannot be used
to hold videoconferences.
**: Optional Update
An Optional Update means that it is not required to install the version shown. Devices
that connect to the server after the “Effective Date” will have the option to update to
the latest version before holding a video conference.
Devices that use different firmware versions can hold teleconferences with each other,
as long as they have already updated to the most recent Forced Update version. (e.g.,
v2.1.1 is compatible with v2.0.3, but not with v1.3.1).
***: Special update method for Ver. 3.0.1
Users who already using Ver2.1.1, Ver2.2.1, and Ver2.3.1 can update directly
to Ver3.0.1.
Users who are using versions older than this must update to Ver2.0.4 first
(the usual method), and then update to Ver3.0.1
User’s
version
before
updating to
Ver3.0.1
Total file size of
Ver.3.0.1 IMPORTANT:
2.3.1 53MB
2.2.1 70MB
2.1.1 71MB
Update directly to Ver. 3.0.1
2.0.2
2.0.3 72MB Update to V2.0.4, and then from this version,
update directly to Ver3.0.1.
1.3.1 Total 79MB
(7MB + 72MB)
Update one version at a time until V2.0.4 (i.e. 3
updates), and then from this version, update
directly to Ver3.0.1.
1.2.2 Total 113MB
(41MB + 72MB)
Update one version at a time until V2.0.4 (i.e. 4
updates), and then from this version, update
directly to Ver3.0.1.
1.2.1 Total 113.4MB
(41.4MB + 72MB)
Update one version at a time until V2.0.4 (i.e. 5
updates), and then from this version, update
directly to Ver3.0.1.
1.1.2 Total 153.4MB
(81.4MB + 72MB) Update one version at a time until V2.0.4 (i.e. 6
updates), and then from this version, update
directly to Ver3.0.1.

Technical Bulletin PAGE: 3/5
Reissued:2-Jul-13
Model: MD-A1b(P3000) Date: 06-Mar-12 No.: RE0A0001g
Version Modified Points or Symptom Corrected
3.0.1
Additional functions:
- Display Contact names during a meeting
You can choose whether to display the contact names during a meeting
When you use this feature, your Contact names are displayed in the
screens of all meeting participants.
- Limited bandwidth
To accommodate the needs of your network environment, you can
reduce the network bandwidth used during a meeting. From this
version, the maximum level of bandwidth for DOWN (receive) is less
than 300 kbps.
- PC Document Share
The following features can be enabled and disabled while the screen is
being shared:
Full Screen: Displays the entire screen.
Active Window: Displays only the window selected.
- Increased capacity of Contacts list
The Contacts list can now hold up to 200 entries.
2.3.1
Additional functions:
- Contact List sorting
The Contact List can be sorted by "Status" or "Name".
- Port Setting (Communication with port of TCP443)
If the UDP port cannot be used for communication due to problems with the
network environment you are using, you can use the TCP port (443)
instead.
*: This feature does not work when connecting to a proxy server.
- Software keyboard
The keyboard can be moved along the horizontal axis (L/R) with respect
t
the screen.
- Improved log upload
The size of the following log files was increased five-fold.
- network_status.log
- videoClient.log
Symptom corrected:
- Volume level is displayed in linear form while being adjusted.
2.2.1
Additional functions:
- Bandwidth Settings
This feature was added to the Menu list as “Video Meeting Detailed
Config”, and allows you to limit the network bandwidth used during a
meeting. To accommodate the needs of your network environment,
you can reduce the network bandwidth used during a meeting. When
limiting the network bandwidth, the maximum level of bandwidth for
UP (send) is less than 300 kbps.

Technical Bulletin PAGE: 4/5
Reissued:2-Jul-13
Model: MD-A1b(P3000) Date: 06-Mar-12 No.: RE0A0001g
2.1.1
Additional functions:
- Video Connection Check
This feature was added to the Menu list as “Connection Check”, and
allows the user to do a connection check without having to use any
other device. Only the video connection is checked; audio is not
checked.
- Multi-point private meeting (PIN code)
Multiple contacts can participate in a private meeting, and users can
connect to the meeting by selecting the contact from the Contact List.
Note:
- This change is a functional upgrade of the feature introduced in
v2.0.3 for connecting to private meetings.
- The meeting code must be shared along all planned participants in
advance.
- If a meeting participant is still using v2.0.3, the private meeting can
only be held peer-to-peer.
- Speaker volume level indicator
The volume level is displayed as the user adjusts the volume, and the
mute icon is displayed while the microphone is on mute.
Note: This feature does not work when an external
microphone/speaker unit is used.
- Immediate detection/activation of external microphone
An external microphone can be connected and activated immediately
while a videoconference is in progress.
Note: Previously, the user had to connect the microphone before starting a
conference, or stop the conference in progress.
Symptom corrected:
- Cannot configure network settings for SSID search.
2.0.2
2.0.3 Additional functions: - New user interface.
- Supports Private Meetings, which allows two users to hold a one-on-one
conference.
- Supports the Checking the News feature, which allows users to receive the
latest notifications on firmware updates and maintenance, and other
important information.
Other:
- Improved network configuration.
Five profiles can be saved for each network (wired and wireless).
User can switch wired and wireless network without reboot.
- Changed to the QWERTY keyboard.
Note: For more details on this change, refer the user manuals.

Technical Bulletin PAGE: 5/5
Reissued:2-Jul-13
Model: MD-A1b(P3000) Date: 06-Mar-12 No.: RE0A0001g
1.3.1 Symptom corrected:
Several minor bugs were fixed.
Additional functions:
Supports connection to newly established Data Center (North America).
1.2.2 Symptom Corrected:
- A DNS time-out occurs (improvement)
- The volume is lowered when the external microphone speaker is used
-Cursor indicator disappear when initial set-up
Note: See RTB#RE0A0002
Additional functions:
- A feature was added that automatically resumes a failed firmware update
from the point at which it failed (not from the beginning).
Note: See RTB# RE0A0003.
1.2.1 Additional function
- Bandwidth indicator function
- Device embedded network diagnosis function
- Log upload function
Support
- PC screen share driver supports 64 bit OS
1.1.2 Initial release
NOTE
*: Ver.2.0.4 is specially developed to enable one time update from Ver.2.0.4 to
Ver.3.0.1.

Technical Bulletin PAGE: 1/2
Model: MD-A1b Date: 06-Mar-12 No.: RE0A0002
Subject: Cursor Indicator Disappear when initial set-up Prepared by: Shingo Ishizu
From: 2nd Tech Service Sect., MFP/P Tech Service Dept.
Classification: Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2
Note: The following symptom was reported in the Japan domestic market.

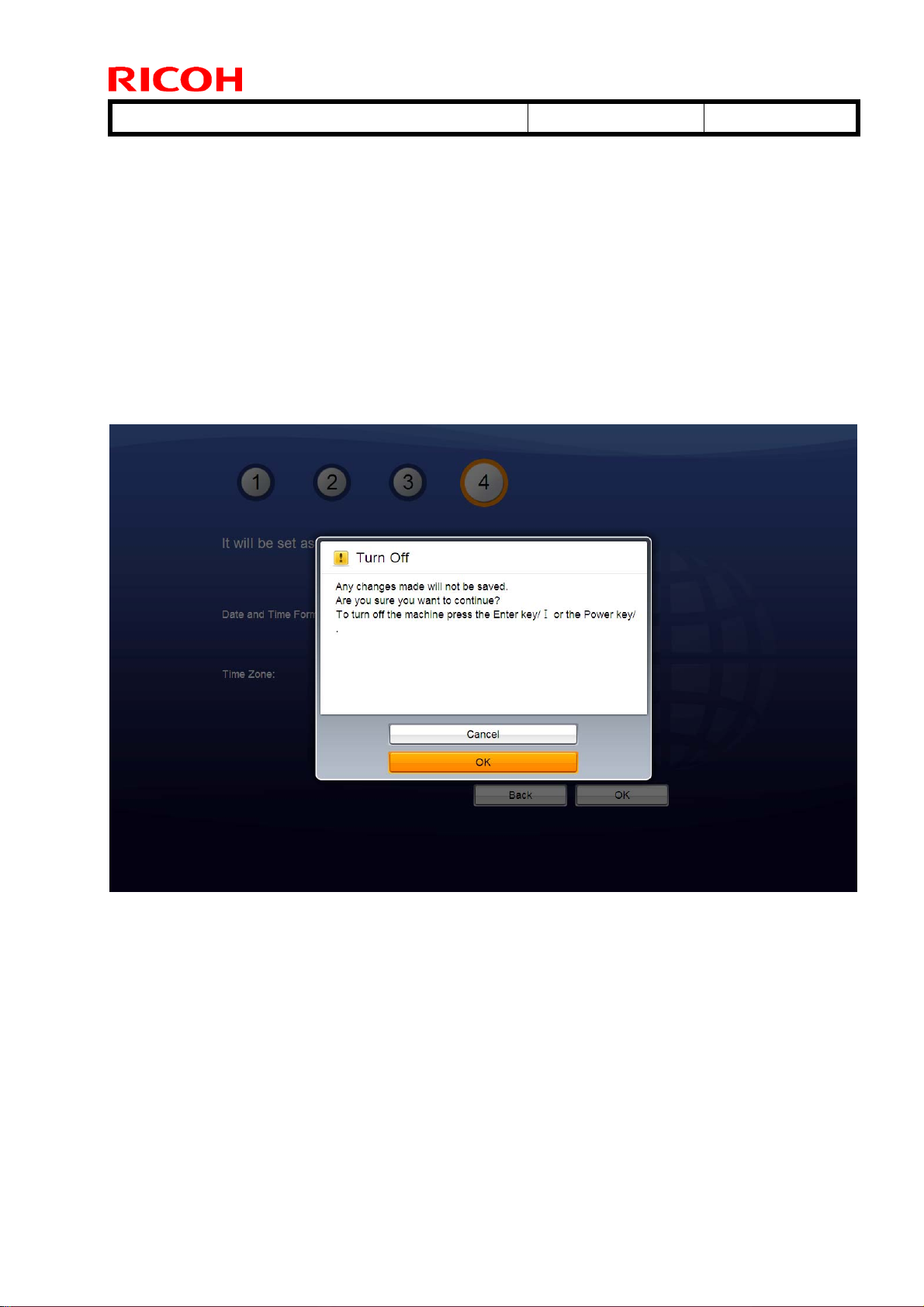

SYMPTOM

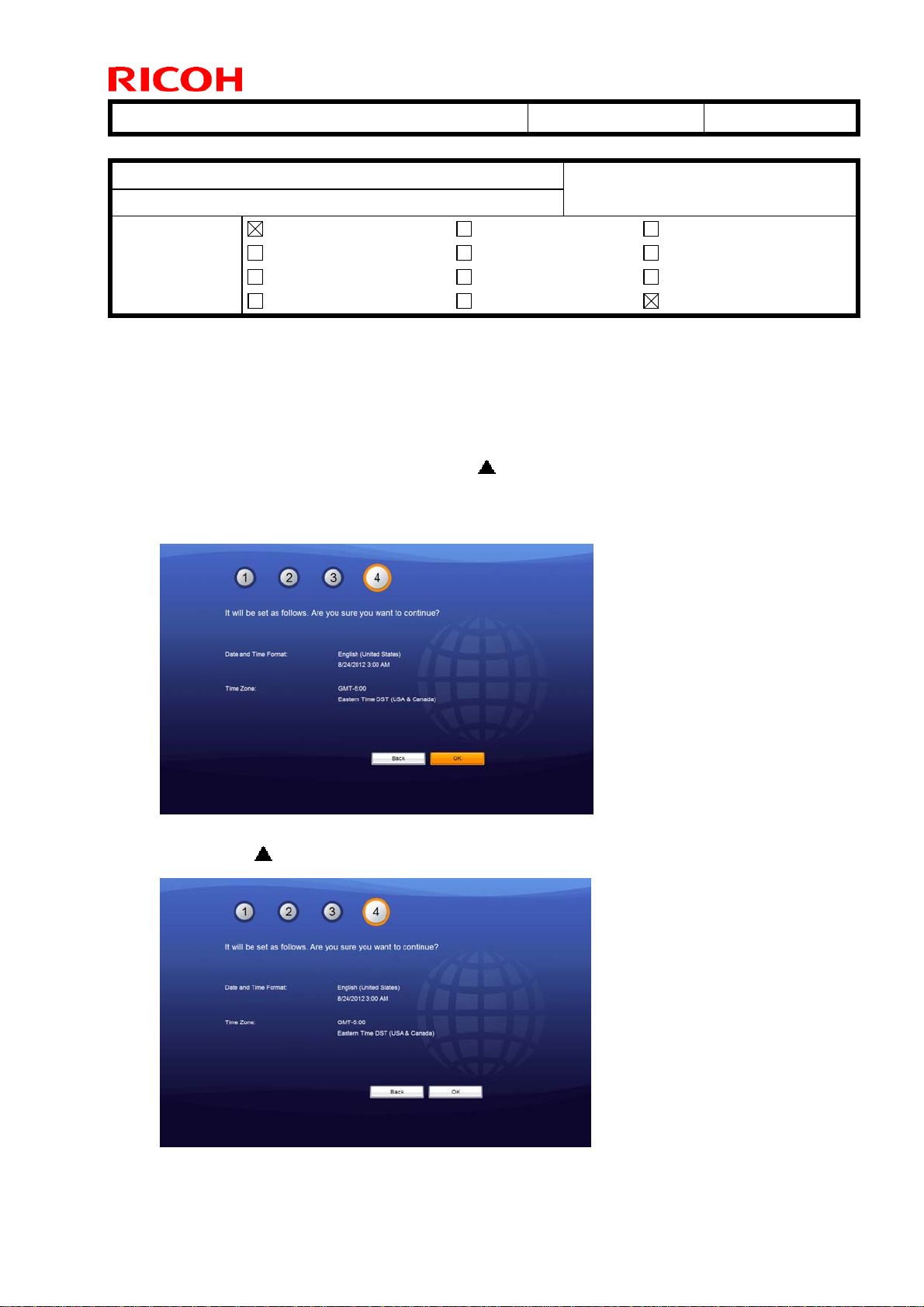

The cursor disappears when the “up” arrow ( ) is pressed during the initial set-up.
Normal:
After the ( ) key is pressed:

Technical Bulletin PAGE: 2/2
Model: MD-A1b Date: 06-Mar-12 No.: RE0A0002
CAUSE
Software bug
SOLUTION
Temporary:
Turn the machine OFF/ON, and then do the initial set-up again.
Permanent:
The firmware will be modified and then released in March 2012.

T echnical B ulletin PAGE: 1/1
Reissued:12-Jun-12
Model: MD-A1b Date: 06-Mar-12 No.: RE0A0003a
RTB Reissue
The items in bold italics were corrected or added.
Subject: Firmware Update Failure Prepared by: Shingo Ishizu
From: 2nd Tech Service Sect., MFP/P Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2
Note: This RTB was issued as troubleshooting information about a symptom reported on
the domestic model in Japan.
SYMPTOM
Firmware update failure
CAUSE
The bandwidth of the customer’s network is narrow and unstable.
SOLUTION
Update the firmware in another network environment, where the bandwidth is broader and
more stable.
For example, bring the customer’s MD-A1b to your office, perform the update there, and
then return the MD-A1b to the customer.
Note: The firmware will be modified to avoid this symptom, and is planned for a March
2012 release.

T echnical B ulletin PAGE: 1/2
Model: MD-A1b(P3000) Date: 31-May-12 No.: RE0A0004
Subject: How to determine the cause when repairing Prepared by: S. Ishizu
From: 2nd Tech Service Sect., MFP/P Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety Other ( ) Tier 2
This is how to determine the cause when repairing.
No.1
Symptom Action
Microphone does not work
Cause
1. Microphone is defective
2. Audio board is defective
3. Main board is defective
1. It is possible that the customer has inadvertently
activated the microphone mute feature. Try
performing a conference at the repair depot and
check whether the microphone is actually picking
up sound.
2. If the symptom is duplicated, it is possible that the
microphone mute LED is broken. Confirm whether
this LED lights when the main power is turned ON
(since all LEDs should light at this time).
3. If the microphone mute LED does light, check to
see it the microphone hole is covered by the
rubber lining that is normally attached around it.
4. If the microphone hole is not covered, replace the
microphone.
5. If the symptom still occurs after replacing the
microphone, replace the audio board.
6. If the symptom still occurs, the machine cannot be
repaired.
No.2
Symptom Action
Video is not displayed
Cause
Camera assembly is
defective
1. Replace the camera assembly, connect the
device to the network, and then turn the device
main power ON.
2. In the Contacts screen, check whether video can
be displayed.
3. If the symptom still occurs, the machine cannot be
repaired.
No.3
Symptom Action
No sound
Cause
1. Audio board is defective
2. Speaker is defective
1. Replace the audio board.
2. If the symptom still occurs, replace the speaker.

T echnical B ulletin PAGE: 2/2
Model: MD-A1b(P3000) Date: 31-May-12 No.: RE0A0004
No.4
S
ymptom Action
T
he PC Screen Share drive
i
s not displayed
C
ause
M
ain board is defective
1. Boot up the device and check whether the PC
Screen Share drive is displayed in the Contacts
screen.
2. If the symptom still occurs, the machine cannot be
repaired.
No.5
Symptom Action
“An error occurred during
warm-up” is displayed
Cause
1.Audio board is defective
2.Wireless LAN PCB,
antenna harness, and/or a
antenna is defective
3.Main board is defective
1. Replace the audio board, connect the device to
the network, and then turn the device main power
ON.
2. If the symptom still occurs, replace the Wireless
LAN PCB, antenna harness, and antenna.
3. If the symptom still occurs, the machine cannot be
repaired.
No.6
Symptom Action
One of the buttons does not
work
Cause
Audio board is defective
1. Check the buttons and replace any that are
damaged.
2. If the symptom still occurs, replace the audio
board.
3. If the symptom still occurs, the machine cannot be
repaired.

Technical Bulletin PAGE: 1/1
Model: MD-A1b(P3000)
Date: 20-May-15
No.: RE0A0005
Subject: Parts Catalog Correction
Prepared by: Y. Hayashi
From: VC Products Support Sec., Solution Support Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2
Change/Reason: These parts were missing from the Parts Catalog.
Model
Old part
number
New part
number
Description
Q’ty
Int
Page
Index
Note
MD-A1b
RD010019
(NA):AC CODE:1.2M
1
6
MD-A1b
RD010020
(EU):AC CODE:1.2M
1
6
