Introduction
This manual contains detailed instructions on the operation and maintenance of this machine. To get
maximum versatility from this machine all operators should carefully read and follow the instructions in
this manual. Please keep this manual in a handy place near the machine.
Please read the Safety Information before using this machine. It contains important information related
to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.
Power Source:
220 – 240 V, 50/60 Hz, 1.5 A or more
Please be sure to connect the power cord to a power source as above. For details about power source,
see ⇒P.194
“Power connection” .
Notes:
Some illustrations might be slightly different from your machine.
Certain options might not be available in some countries. For details, please contact your local dealer.
Two kinds of size notation are employed in this manual. With this machine refer to the Metric version.
For good print quality, Ricoh recommends that you use genuine Ricoh master and ink.
Ricoh shall not be responsible for any damage or expense that might result from the use of parts other
than genuine Ricoh parts in your Ricoh office product.

Declaration of Conformity
“The Product complies with the requirements of the EMC Directive 89/336/EEC and the Low Voltage
Directive 73/23/EEC.”
In accordance with ISO Standard 7001, this machine uses the following symbols for the main switch:
a
aa
ameans POWER ON.
b
bb
bmeans POWER OFF.
Copyright © 1998 Ricoh Co., Ltd.

i
Safety Information
When using your machine, the following safety precautions should be always
followed.
Safety During Operation
In this manual, the following important symbols are used:
Examples Of Indications
R
WARNING:
Ignoring this warning could cause serious injury or even death.
R
CAUTION:
Ignoring this caution could cause injury or damage to property.
Symbols Rmean a situation that requires you take care.
Do NOT carry out the operation represented by this symbol m.
This example means “Do not take apart”.
Symbols mean you MUST perform this operation.
This example means “You must remove the wall plug”.

ii
•
Only connect the machine to the power source described on
the inside front cover of this manual.
•
Avoid multi-wiring.
•
Do not damage, break or make any modifications to the pow-
er cord. Do not place heavy objects on it, pull it hard or bend
it more than necessary. These actions could cause an elec-
tric shock or fire.
•
Do not plug or unplug the power cord with your hands wet.
Otherwise, an electric shock might occur.
•
Make sure the wall outlet is near the machine and freely ac-
cessible so that in event of an emergency it can be un-
plugged easily.
•
Do not remove any covers or screws other than those spec-
ified in this manual. Some parts of the machine are at a high
voltage and could give you an electric shock. When the ma-
chine needs to be checked, adjusted, or repaired, contact
your service representative.
•
Do not take apart or attempt any modifications to this ma-
chine. There is a risk of fire, electric shock, explosion or loss
of sight.
•
If the machine looks damaged or breaks down, smoke is
coming out, there is a strange smell or anything looks unu-
sual, immediately turn off the main switch then unplug the
power cord from the wall. Do not continue using the ma-
chine in this condition. Contact your service representative.
•
If metal, liquid or foreign matter falls into the machine, turn
off the main switch and unplug the main power cord. Con-
tact your service representative. Do not keep using the ma-
chine with a fault or defect.
•
Do not put any metal objects or containers holding water
(e.g. vases, flowerpots, glasses) on the machine. If the con-
tents fall inside the machine, a fire or electric shock could
occur.
R
WARNING:

iii
•
Keep the machine away from humidity and dust. A fire or an elec-
tric shock might occur.
• Do not place the machine on an unstable or tilted surface. If it top-
ples over, it could cause injury.
• After you move the machine, fix it with the caster fixture. Other-
wise, the machine might move or come down to cause a personal
injury.
• When you move the machine, unplug the power cord from the
wall outlet to avoid fire or electric shock.
• When the machine will not be used for a long time, unplug the
power cord.
• When you pull out the plug from the socket, grip the plug to avoid
damaging the cord and causing fire or electric shock.
• If you use the machine in a confined space, make sure there is a
continuous air turnover.
• Do not reuse stapled paper. Do not use aluminum foil, carbon-
containing paper or other conductive paper. Otherwise, a fire
might occur.
• This machine has been tested for safety using this supplier's
parts and consumables. We recommend you only use these
specified supplies.
• This equipment is only to be installed by a qualified service per-
sonnel.
• Deliver to collection point for waste products. Do not be disposed
of via domestic refuse collection.
• If ink comes into contact with your eyes, rinse immediately in run-
ning water. In the case of any abnormal symptoms, consult a
doctor.
R
CAUTION:

iv
• Keep the ink or ink container out of reach of children.
• If ink is ingested, force vomiting by drinking a strong saline solu-
tion and consult a doctor immediately.
• Be careful not to cut yourself on any sharp edges when you reach
inside the machine to remove misfed sheets of paper or masters.
• While printing, do not touch the belt at the end of the paper deliv-
ery tray or the job separator. You might be injured.
When your machine is equipped with the PC controller option:
• Do not place this equipment on an unstable or tilted surface. If
you do, it could fall.
• Do not place heavy objects on top of this equipment. They might
cause the equipment to become unstable and topple over.
When your machine is equipped with the PC controller option:
• If by any chance this equipment falls over or a breakage occurs
(e.g., the cover), turn off the main switch of this equipment, un-
plug the power cable and contact your service representative. If
you continue to use the equipment in this state it could result in
fire or electric shock.

v
How To Read This Manual
Symbols
In this manual, the following symbols are used:
R
WARNING:
This symbol indicates a potentially hazardous situation that might result in
death or serious injury when you misuse the machine without following the in-
structions under this symbol. Be sure to read the instructions, all of which are de-
scribed in the Safety Information section.
R
CAUTION:
This symbol indicates a potentially hazardous situation that might result in mi-
nor or moderate injury or property damage that does not involve personal injury
when you misuse the machine without following the instructions under this
symbol. Be sure to read the instructions, all of which are described in the Safety
Information section.
* The statements above are notes for your safety.
Important
If this instruction is not followed, paper might be misfed, originals might be
damaged, or data might be lost. Be sure to read this.
Preparation
This symbol indicates the prior knowledge or preparations required before op-
erating.
Note
This symbol indicates precautions for operation, or actions to take after misop-
eration.
Limitation
This symbol indicates numerical limits, functions that cannot be used together,
or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
[ ]
Keys that appear on the machine's panel display.
{ }
Keys built into the machine's operation panel.

vi
Making Prints
Before making prints using this ma-
chine, you have to make a master by
pressing the {
Start
}key. When you
press the {
Start
}key, the machine
scans the original image and makes a
master. This procedure describes
how to make basic prints.
ASet your originals.
When you set original on the
exposure glass (contact glass)
ASet one original face down.
When you set originals in the
optional document feeder
ASet the originals face up.
BPress the {
{{
{
Start
}
}}
}key.
CPress the {
{{
{
Proof
}
}}
}key.
Check the print image.
Reference
When you want to change the
image position, see ⇒P.25 “Ad-
justing Print Image Position”.
When you want to increase the
image density, press the {W}
key. See ⇒P.26 “Adjusting Print
Image Density”.
When you want to decrease the
image density, press the {V}
TPEH270E
TPEH281E
TPES050E
TPES060E
TPES560E

vii
key. See ⇒P.26 “Adjusting Print
Image Density”.
DEnter the desired number of
prints with the Number keys.
EPress the {
{{
{
Print
}
}}
}key.
When the print job has finished,
press the {
Clear Modes
}key. Previ-
ously entered job settings will be
cleared.
12345
TPES100E
TPES040E
TPES070E

viii
What You Can Do With This Machine
❖
❖❖
❖

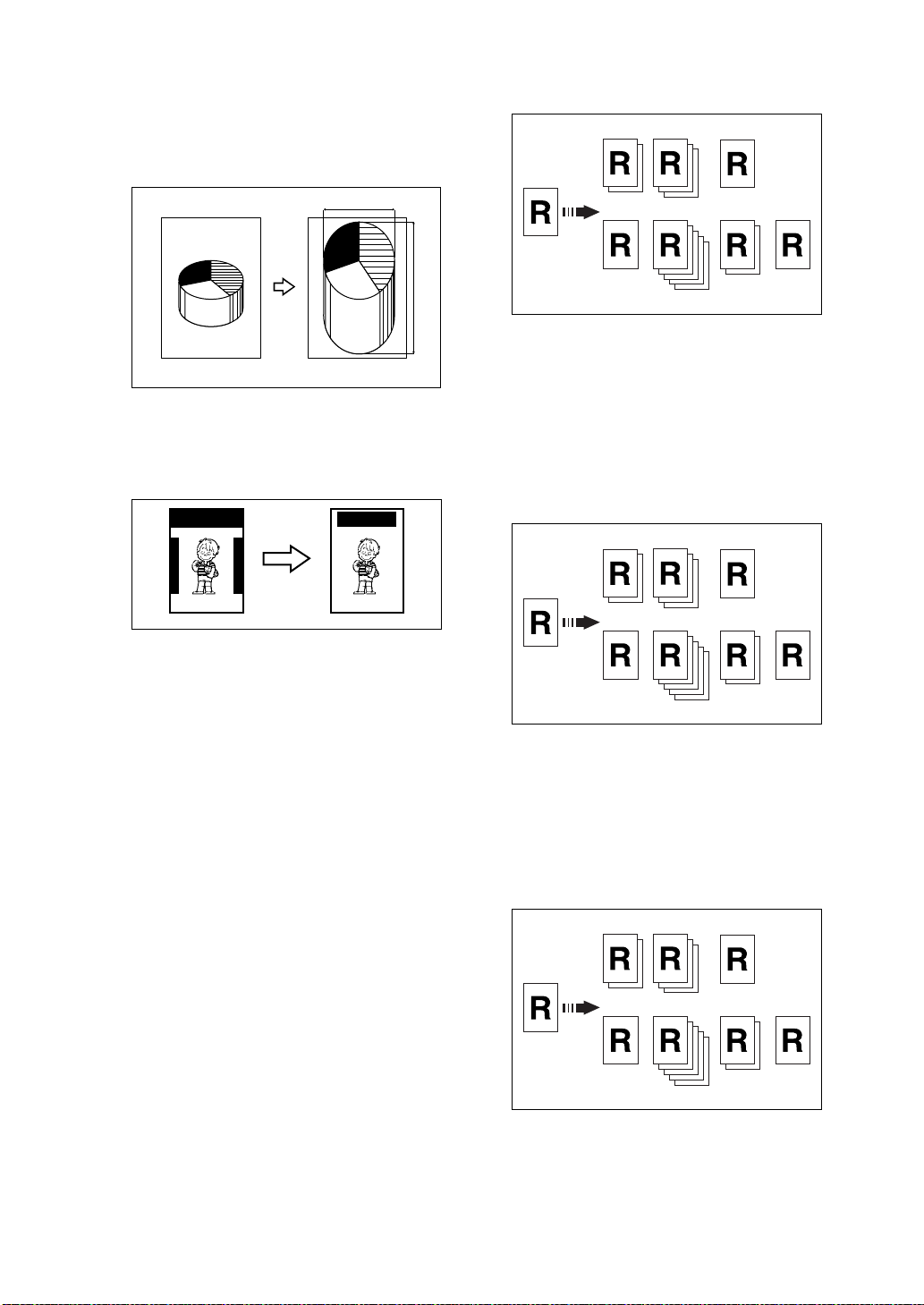

Standard Printing
See ⇒P.20 “Standard Printing”.
❖
❖❖
❖
Adjusting Print Image Position
See ⇒P.25 “Adjusting Print Image
Position”.
*: Paper feed direction
❖
❖❖
❖
Adjusting Print Image Density
See ⇒P.26 “Adjusting Print Image
Density”.
❖
❖❖
❖
Halftone Printing
See ⇒P.27 “Tint Mode—Halftone
Printing”.
❖
❖❖
❖
Changing The Printing Speed
See ⇒P.28 “Changing The Printing
Speed”.
❖
❖❖
❖
Reducing And Enlarging Using Preset
Ratios
See ⇒P.30 “Preset Reduce/En-
large—Reducing And Enlarging Us-
ing Preset Ratios”.
❖
❖❖
❖
Having The Machine Choose The Re-
production Ratios
See ⇒P.32 “Auto Magnification Se-
lection—Having The Machine Choose
The Reproduction Ratios”.
❖
❖❖
❖
Reducing And Enlarging In 1 % Steps
See ⇒P.35 “Zoom—Reducing And
Enlarging In 1 % Steps”.
GRPOSI0E
GRTINT0E
GRRATI0E
GRAUTO0E
GRZOOM0E

ix
❖
❖❖
❖
Stretching And Squeezing The Image
In 1 % Steps
See ⇒P.37 “Directional Magnifica-
tion—Stretching And Squeezing The
Image In 1 % Steps”.
❖
❖❖
❖
Erasing Edge Margins
See ⇒P.40 “Edge Erase—Erasing
Edge Margins”.
❖
❖❖
❖
Printing On Various Kinds Of Paper
See ⇒P.42 “Printing On Various
Kinds Of Paper”.
❖
❖❖
❖
Selecting A Mode To Match Your Orig-
inal
See ⇒P.45 “Selecting A Mode To
Match Your Original”.
❖
❖❖
❖
Saving Ink
See ⇒P.48 “Economy Mode—Sav-
ing Ink”.
❖
❖❖
❖
Making Master And Prints At One
Stroke
See
⇒P.49 “Auto Cycle—Making
Master And Prints At One Stroke”.
❖
❖❖
❖
Making Variable Numbers Of Prints
From The Same Original Using All
Stored Data
See ⇒P.51 “All Class Mode—Mak-
ing Variable Numbers Of Prints From
The Same Original Using All Stored
Data”.
❖
❖❖
❖
Making Variable Numbers Of Prints
From The Same Original Using Stored
Data
See ⇒P.53 “Auto Class Mode—
Making Variable Numbers Of Prints
From The Same Original Using
Stored Data”.
❖
❖❖
❖
Making Variable Numbers Of Prints
From The Same Original
See ⇒P.56 “Manual Class Mode
With One Original—Making Varia-
ble Numbers Of Prints From The
Same Original”.
GRDIRE0E
GRERAS0E
AB AB
GRCLAS2E
GRCLAS2E
GRCLAS2E

x
❖
❖❖
❖
Making Variable Numbers Of Prints
From Different Originals
See ⇒P.58 “Manual Class Mode
With 2 Or More Originals—Making
Variable Numbers Of Prints From
Different Originals”.
❖
❖❖
❖
Making Fixed Numbers Of Prints
From The Same Original
See ⇒P.61 “Class Mode—Making
Fixed Numbers Of Prints From The
same Original”.
❖
❖❖
❖
Combining Originals Into One Print
See ⇒P.63 “Combine Originals—
Combining Originals Into One
Print”.
❖
❖❖
❖
Having Images Repeated On One
Print
See
⇒P.68 “Auto Combine Mode—
Having Images Repeated On One
Print”.
❖
❖❖
❖
Skip Feed Printing
See ⇒P.70 “Skip Feed Printing”.
❖
❖❖
❖
Storing Your Print Settings In Memory
See ⇒P.72 “Program—Storing Your
Print Settings In Memory”.
❖
❖❖
❖
Printing Secret Documents
See ⇒P.75 “Security Mode—Print-
ing Secret Documents”.
❖
❖❖
❖
Regaining The Image Density When
The Ink On The Drum Dries
See ⇒P.76 “Quality Start Mode—
Regaining The Image Density When
The Ink On The Drum Dries”.
❖
❖❖
❖
Separating Printing Sets On The Pa-
per Delivery Tray
See ⇒P.77 “Job Separation—Sepa-
rating Printing Sets On The Paper
Delivery Tray”.
❖
❖❖
❖
Saving Master
See ⇒P.79 “Saving Master”.
D
C
B
GRCLAS1E
AAB
C D
GRCLAS0E
RRR R
RRR
GRCOMB2E
22
2
11
1
11
22
GRACOM0E
111
1
11 11
GRJOBS0E

xi
❖
❖❖
❖
On Line Printing
See ⇒P.80 “On Line Printing”.
❖
❖❖
❖
Making Color Prints
See ⇒P.87 “Making Color Prints”.
❖
❖❖
❖
Printing In Two Colors
See ⇒P.88 “Printing In Two
Colors”.
❖
❖❖
❖
Rotating The Original Images
See ⇒P.91 “Image Rotation—Rotat-
ing Original Images”.
❖
❖❖
❖
Make-up Printing
See ⇒P.105 “Make-up Printing”.
❖
❖❖
❖
Merging Images
See ⇒P.113 “Image Overlay—
Merging Images”.
❖
❖❖
❖
Having The Date Stamped On Your
Prints
See
⇒P.115 “Stamping Date—Hav-
ing The Date Stamped On Your
Prints”.
❖
❖❖
❖
Having Page Numbers Stamped On
Your Prints
See ⇒P.117 “Page Stamping—Hav-
ing Page Numbers Stamped On Your
Prints”.
❖
❖❖
❖
Printing Preset Messages On Your
Prints
See
⇒P.120 “Stamping Function—
Printing Preset Messages On Your
Prints”.
GRCOLO0E
RPR
P
GROVER0E
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
ABCDE ABCDE ABCDE ABCDEABCDE
GROVER1E
RR
R
GRDATE0E
'98.7.25
GRPAGE0E
–1–
15
GRSTAM0E
RR
Priority
Preliminary
Confidential

xii
❖
❖❖
❖
Printing Your Own Messages On Your
Prints
See ⇒P.122 “User Stamping—
Printing Your Own Messages On
Your Prints”.
❖
❖❖
❖
Combining Originals Into One Print
With The Memory Board
See ⇒P.124 “Memory Combine—
Combining Originals Into One Print
With The Memory Board”.
GRUSTA0E
R
GRMCOM0E
43
12
23
1
4
GRREPE0E

xiii
TABLE OF CONTENTS
Machine Exterior........................................................................................ 1
Machine Interior......................................................................................... 2
Options....................................................................................................... 4
Operation Panel......................................................................................... 6
Keys.............................................................................................................. 6
Indicators....................................................................................................... 8
Panel Display............................................................................................. 9
Display Panel Layout .................................................................................. 10
1.OPERATION
Printing Paper.......................................................................................... 11
Originals................................................................................................... 13
Preparation For Printing......................................................................... 15
Loading Paper............................................................................................. 15
Setting Up The Paper Delivery Tray ........................................................... 16
User Codes............................................................................................... 19
Standard Printing .................................................................................... 20
Loading Paper On The Paper Feed Tray............................................... 22
Replenishing Paper..................................................................................... 22
Changing The Paper Size........................................................................... 23
Closing The Paper Feed And Paper Delivery Trays............................. 24
Adjusting Print Image Position.............................................................. 25
Adjusting Print Image Density ............................................................... 26
Before Making A Master.............................................................................. 26
After Making A Master................................................................................. 26
Tint Mode—Halftone Printing................................................................. 27
Changing The Printing Speed................................................................ 28
Stopping The Machine During A Multi-print Run ................................. 29
When You Want To Stop The Machine During A Multi-print Run And Print
A Different Original..................................................................................... 29
When You Want To Change The Number Of Prints Entered Or Check The
Completed Prints........................................................................................ 29
Preset Reduce/Enlarge—Reducing And Enlarging Using Preset Ratios......... 30
Auto Magnification Selection—Having The Machine Choose The
Reproduction Ratios.............................................................................. 32
Zoom—Reducing And Enlarging In 1 % Steps..................................... 35
Directional Magnification—Stretching And Squeezing The Image In 1 % Steps .... 37
Entering The Reproduction Ratios.............................................................. 37

xiv
Entering The Dimensions Of The Original And Print Paper........................ 38
Edge Erase—Erasing Edge Margins...................................................... 40
Printing On Various Kinds Of Paper...................................................... 42
Printing On Thick Paper.............................................................................. 42
Printing On Thin Paper................................................................................ 42
Printing On Envelopes ................................................................................ 43
Printing On Special Kinds Of Paper............................................................ 43
Selecting A Mode To Match Your Original............................................ 45
Photo Mode Printing.................................................................................... 45
Letter/Photo Mode Printing ......................................................................... 46
Pencil Mode Printing................................................................................... 47
Economy Mode—Saving Ink .................................................................. 48
Auto Cycle—Making Master And Prints At One Stroke....................... 49
All Class Mode—Making Variable Numbers Of Prints From The
Same Original Using All Stored Data.................................................... 51
Auto Class Mode— Making Variable Numbers Of Prints From The
Same Original Using Stored Data......................................................... 53
Manual Class Mode With One Original—Making Variable Numbers Of
Prints From The Same Original............................................................. 56
Manual Class Mode With 2 Or More Originals—Making Variable
Numbers Of Prints From Different Originals ....................................... 58
Class Mode—Making Fixed Numbers Of Prints From The same Original....... 61
Combine Originals—Combining Originals Into One Print................... 63
Auto Combine Mode—Having Images Repeated On One Print.......... 68
Skip Feed Printing................................................................................... 70
Program—Storing Your Print Settings In Memory............................... 72
Storing Your Settings.................................................................................. 72
Recalling A Program................................................................................... 73
Protecting A Program.................................................................................. 73
Removing Program Protection.................................................................... 74
Security Mode—Printing Secret Documents........................................ 75
Quality Start Mode— Regaining The Image Density When The Ink
On The Drum Dries................................................................................. 76
Using Quality Start Manually....................................................................... 76
Job Separation—Separating Printing Sets On The Paper Delivery Tray.. 77
Saving Master.......................................................................................... 79
On Line Printing....................................................................................... 80
2.OPTIONAL FUNCTIONS
Printing Using The Optional Document Feeder.................................... 81
Originals...................................................................................................... 81

xv
Setting Originals In The Document Feeder................................................. 82
Combine Originals Printing With The Document Feeder............................ 83
Manual Class Mode With 2 Or More Originals Using The Document Feeder.... 84
Color Printing Using The Optional Color Drum.................................... 87
Making Color Prints..................................................................................... 87
Changing The Color Drum Unit................................................................... 87
Printing In Two Colors................................................................................. 88
Changing The Drum Size........................................................................ 90
Printing Area (at 23°C/73°F, 65 % RH)....................................................... 90
Master Cut Length....................................................................................... 90
Image Rotation—Rotating Original Images .......................................... 91
Make-up Printing Features ..................................................................... 93
Main Features............................................................................................. 93
Make-up Modes For Designated Areas ...................................................... 93
Make-up Modes For Outside Designated Areas......................................... 94
Background Patterns................................................................................... 96
Making A Command Sheet For Make-Up Printing................................ 98
Command sheet.......................................................................................... 98
How To Make A Command......................................................................... 99
Command Sheets And Finished Prints ..................................................... 104
Make-up Printing ................................................................................... 105
Make-up Printing With The Optional Document Feeder.................... 107
Make-up Samples.................................................................................. 110
Image Overlay—Merging Images......................................................... 113
Stamping Date—Having The Date Stamped On Your Prints............. 115
Page Stamping—Having Page Numbers Stamped On Your Prints.. 117
Stamping Function—Printing Preset Messages On Your Prints...... 120
User Stamping—Printing Your Own Messages On Your Prints ....... 122
Memory Combine—Combining Originals Into One Print With The
Memory Board ...................................................................................... 124
Combine 4, 8, or 16 Originals – 4, 8, or 16 One-sided Originals →
1 One-sided Print Of 4, 8, or 16 Images .................................................. 125
Repeat—Repeating An Image Over The Entire Print ............................... 129
3.USER TOOLS
Accessing The User Tools.................................................................... 133
User Tools Menu.................................................................................... 135
1. System.................................................................................................. 135
2. Set Operation Modes............................................................................ 136
3. Initial Setting.......................................................................................... 137
4. Mode Setting......................................................................................... 139
5. Stamp.................................................................................................... 144

xvi
6. Set User Code (s) ................................................................................. 146
User Tool Menus In Detail..................................................................... 148
1-8 Time Setting........................................................................................ 148
3-4 Reproduction Ratio............................................................................. 148
3-5 Class Enter No.................................................................................... 149
3-9 Margin Erase Area.............................................................................. 150
4-11 No. of Skip Feed ............................................................................... 151
4-14 No. of Q. start.................................................................................... 152
4-19 Type of Paper ................................................................................... 154
5-4 Stamp Position.................................................................................... 154
5-7 Position (User).................................................................................... 156
5-8 Regist. (User)...................................................................................... 158
5-11 Position (Date).................................................................................. 158
5-14 Position (Page) ................................................................................. 160
5-15 Make/Chg. Pattern............................................................................ 161
6-1 Check Counter.................................................................................... 162
6-2 Reset Counters................................................................................... 163
6-4 Chg. User Code.................................................................................. 163
6-5 Del. User Code ................................................................................... 164
4.What To Do If Something Goes Wrong
If Your Machine Does Not Operate As You Want............................... 165
If You Cannot Make Prints As You Want............................................. 167
Combine Originals Mode........................................................................... 167
xClearing Misfeeds............................................................................. 168
”x+ A” Paper Misfeed In The Paper Feed Section................................. 168
”x+ A + B” Paper Misfeed In The Paper Feed Section........................... 169
”x+ B” Paper Or Master Wrapped Around The Drum............................. 170
”x+ C” Paper Misfeed In The Paper Exit Section................................... 172
”x+ D” Master Misfeed In The Master Feed Section.............................. 173
”x+ D + B” Master Misfeed In The Master Feed Section........................ 173
”x+ B + E” Master Misfeed in The Master Eject Section ........................ 174
”x+ E” Master Misfeed In The Master Eject Section............................... 175
”x+ P” Original Misfeed Occurs When Using The Optional Document Feeder.... 175
When The Open Cover/Unit Indicator (M) Lights............................... 177
When The Add Ink Indicator (j) Lights.............................................. 178
When The Master End Indicator (C) Lights........................................ 180
When The Master Eject Indicator (k) Lights...................................... 182
When Other Indicators Are Lit.............................................................. 183
When The Prints Are Not Delivered In A Neat Stack.......................... 184
Poor Printing.......................................................................................... 185
Dirty Background....................................................................................... 185
Black Line/Stain ........................................................................................ 188
Skipped Prints........................................................................................... 188
