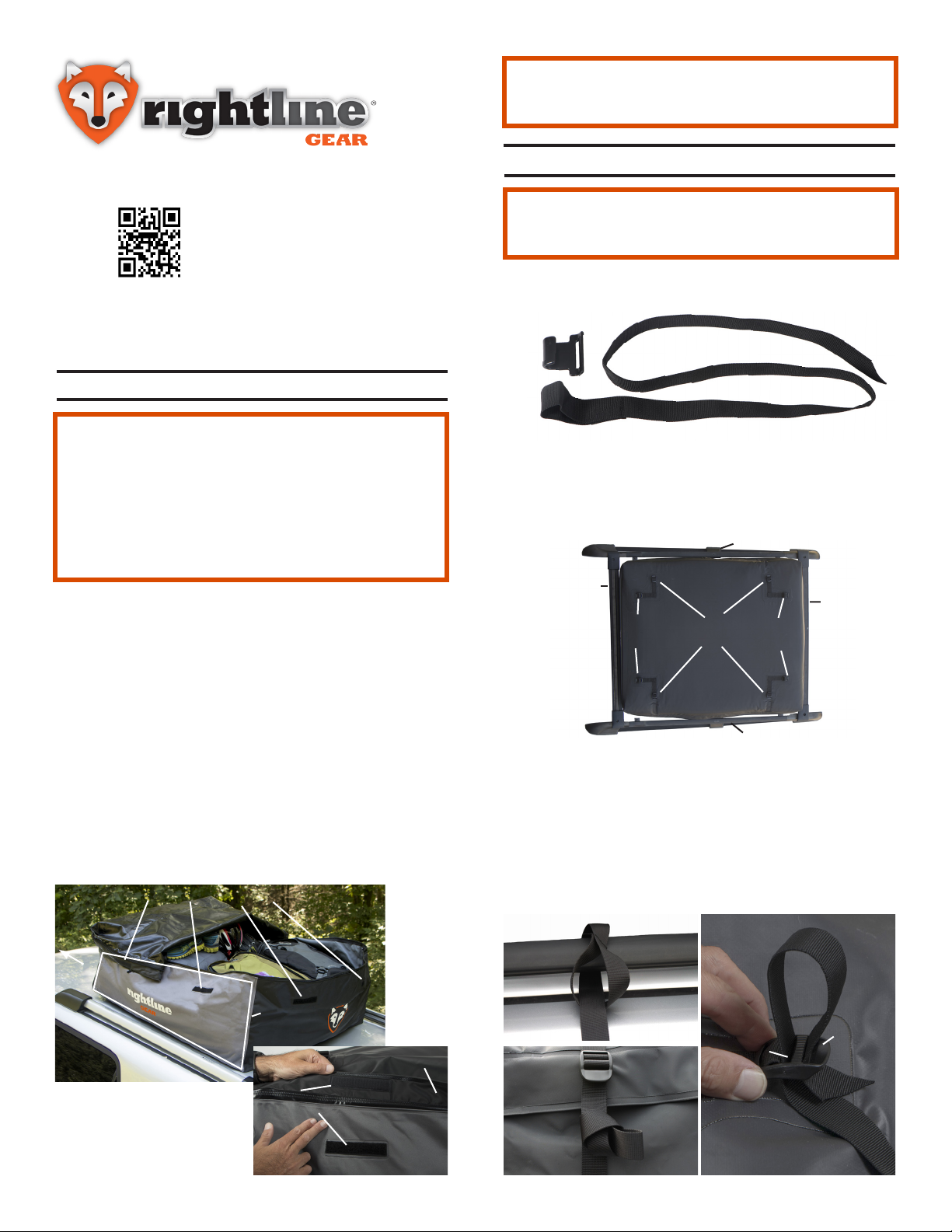

Rightline Gear 100S10 User manual

2-Unzip the carrier and place it on top of the vehicle with
its non-zippered end facing front.
3-Load your gear within the aerodynamic shape of the
carrier; shorter in the front and taller in the rear (Fig 1).
Place sharp edged items in the middle and softer items
around them.
WARNING: DAMAGE MAY OCCUR TO THE CARRIER
IF EXCESS MATERIAL FLAPS IN THE WIND.
TO ELIMINATE EXCESS MATERIAL, PACK THE CARRI-
ER FULL. IF UNABLE TO PACK FULL, FILL THE FRONT
CORNERS OF THE CARRIER AND PULL THE EXCESS
MATERIAL DOWN OVER THE SIDES. HOLD THE EX-
CESS MATERIAL SECURELY IN PLACE WITH THE CAR-
RIER’S STRAPS.
4-Close the zipper as you ll the carrier from the front to
the rear.
1-Remove the Car Clips from the (4) attachment straps (Fig
3); the Car Clips will not be used.
3-Attach each strap by wrapping it around the rack,
threading its end through its loop, and pulling tight (Fig 5).
4-Thread the straps up through slot A and down through
slot B of the buckles (Fig 6) and tighten the straps evenly.
Pack The Carrier
Attach The Carrier - WITH A Roof Rack
The correct attachment of this product is critical and
beyond the control of Rightline Gear. The safe use
and long life of this product depends entirely on
your good judgment and following these directions.
Fig 1
Fig 2
2-Decide if you will be attaching the straps to the roof
rack side rails or cross bars. If side rails, the straps will
connect to the side buckles (Fig 4). If cross bars, the straps
will connect to the front and rear buckles (Fig 4).
Sport Car Top Carriers 100S30, 100S20,
100S10, 100S50
1-Clean the vehicle’s roof of all dirt and debris.
WARNING: FOR THE CARRIER TO REMAIN 100%
WATERPROOF, ALL HOOK-&-LOOP CLOSURES
MUST BE SECURED.
NOTE: REQUIRES SPACE UNDER THE ROOF RACK
SIDE RAILS OR CROSS BARS FOR THE CARRIER’S
ATTACHMENT STRAPS TO PASS THROUGH.
Fig 6
5-Tie off the strap ends so they don’t ap in the wind (Fig
7). Make sure to re-tighten the straps after a few miles
and check them regularly throughout the trip.
Fig 7
Hook-&-Loop Closures
Hook-&
-Loop
Closures
Protective Flap
Aerodynamic
Shape
Front
Fig 3
Fig 4
Fig 5
Side
Buckles Rear
Buckles
Front
Buckles
Front
Side Rail
Side Rail
Cross
Bar
Cross
Bar
A
B
www.rightlinegear.com/setup.html
Set Up
Video:
5-Fold the protective ap down to secure the hook-&-loop
closures (Fig 1 and Fig 2). Make sure the hook-&-loop clo-
sures on the zipper ap completely overlap those on the
carrier. If it is difcult to secure the closures, the carrier is
over packed.

1-Start with the Car Clips on the (4) attachment straps
(Fig 8).
1-Run a strap’s loop through the backside of a Car Clip
(Fig 17).
3-Hold the straps with the Car Clips facing towards the
vehicle (Fig 10). Thread the straps up through slot A and
down through slot B of the buckles (Fig 11).
5-Tighten the straps evenly (Fig 13 and Fig 14) and shut
the vehicle’s doors over the clips/straps (Fig 15).
Re-Connect The Car Clips To The Attachment Straps
Fig 15
2-Thread the strap’s end through its loop (Fig 18).
3-Pull the strap’s end to tighten the strap around the Car
Clip (Fig 19).
Fig 14
Attach The Carrier - WITHOUT A Roof Rack
NOTE: IF A STRAP MAKES NOISE WHILE DRIVING,
LOOSEN THE STRAP, RE-POSITION IT SLIGHTLY,
AND RE-TIGHTEN IT.
2-Line up the side buckles with the doors of the vehicle
(Fig 9). If a 4-door vehicle, (1) strap will attach to the
door frame weather molding in each of the (4) doors. If
a 2-door vehicle, (2) straps will attach to the door frame
weather molding in each of the (2) doors.
1 Year Manufacturer’s Limited Warranty
www.rightlinegear.com/product-warranty.html
4-Repeat steps 1-3 for the other (3) straps.
Fig 10
4-Open the vehicle’s doors and hook the Car Clips under
the door frame weather molding (Fig 12).
Fig 13
Fig 12
6-Tie off the strap ends so they don’t ap in the wind (Fig
16). Make sure to re-tighten the straps after a few miles
and check them regularly throughout the trip.
Fig 19
Fig 18
Fig 16
Fig 8
Fig 9
Side Buckles
Loop
NOTE: IF A STRAP MAKES NOISE WHILE DRIVING,
LOOSEN THE STRAP, RE-POSITION IT SLIGHTLY,
AND RE-TIGHTEN IT.
Strap End
Fig 17
Car Clip
Loop
Fig 11
A
B
Front
