Riken Keiki EC-600 User manual

PT2E-2138
Indoor Carbon Monoxide Monitor
EC-600
Operating Manual

2
Contents
1. Outline of the Product..................................................................................................................................... 3
Preface............................................................................................................................................................ 3
Purpose of use................................................................................................................................................ 3
Definition of DANGER, WARNING, CAUTION and NOTE ............................................................................ 4
Method of confirmation for CE marking type .................................................................................................. 4
2. Important Notices on Safety........................................................................................................................... 5
2-1. Danger cases........................................................................................................................................... 5

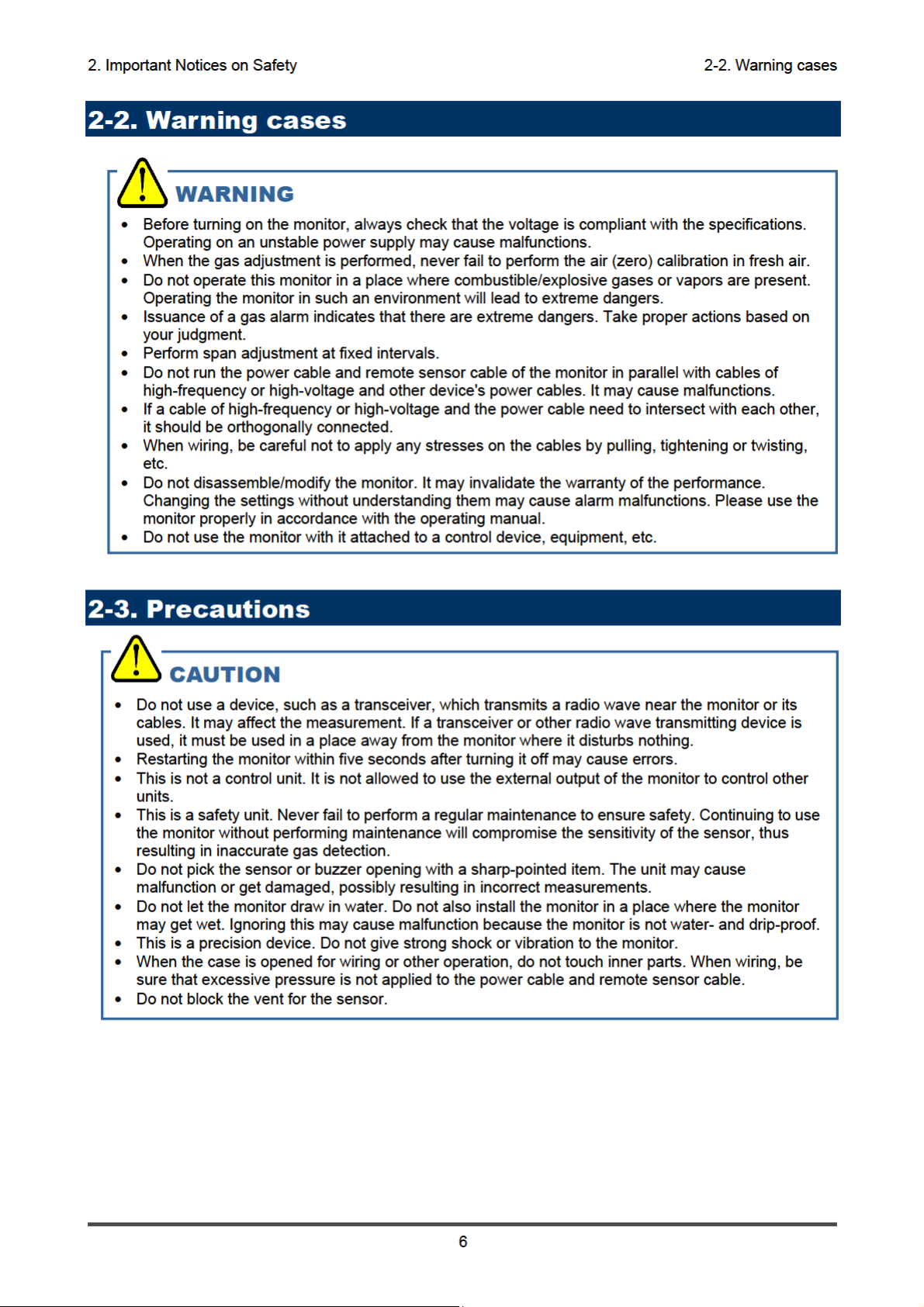

2-2. Warning cases ......................................................................................................................................... 6
2-3. Precautions.............................................................................................................................................. 6
3. Product Components...................................................................................................................................... 7
3-1. Main unit and standard accessories........................................................................................................ 7
3-2. Names and functions for each part ......................................................................................................... 9
4. How to Install ................................................................................................................................................12

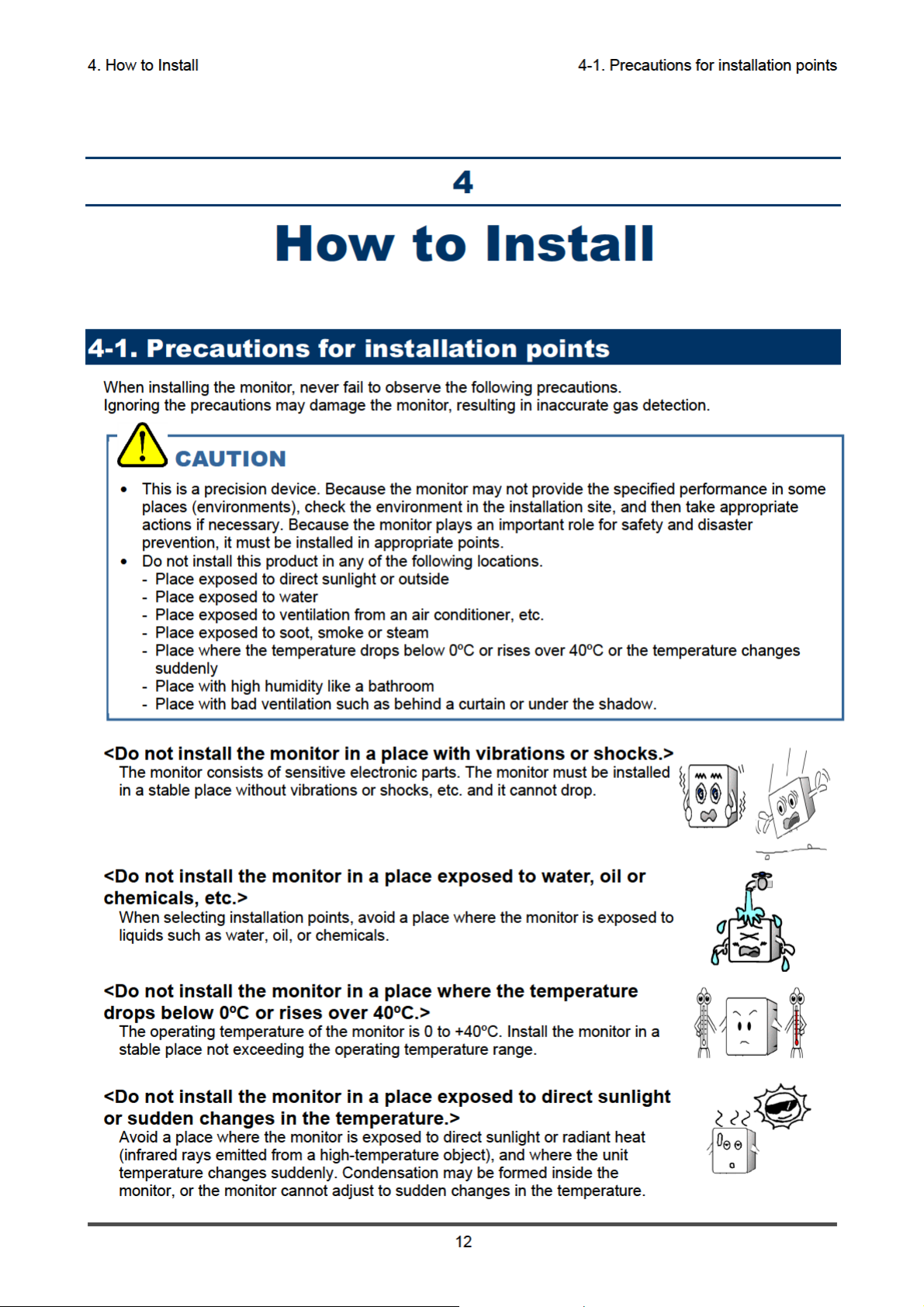

4-1. Precautions for installation points .........................................................................................................12

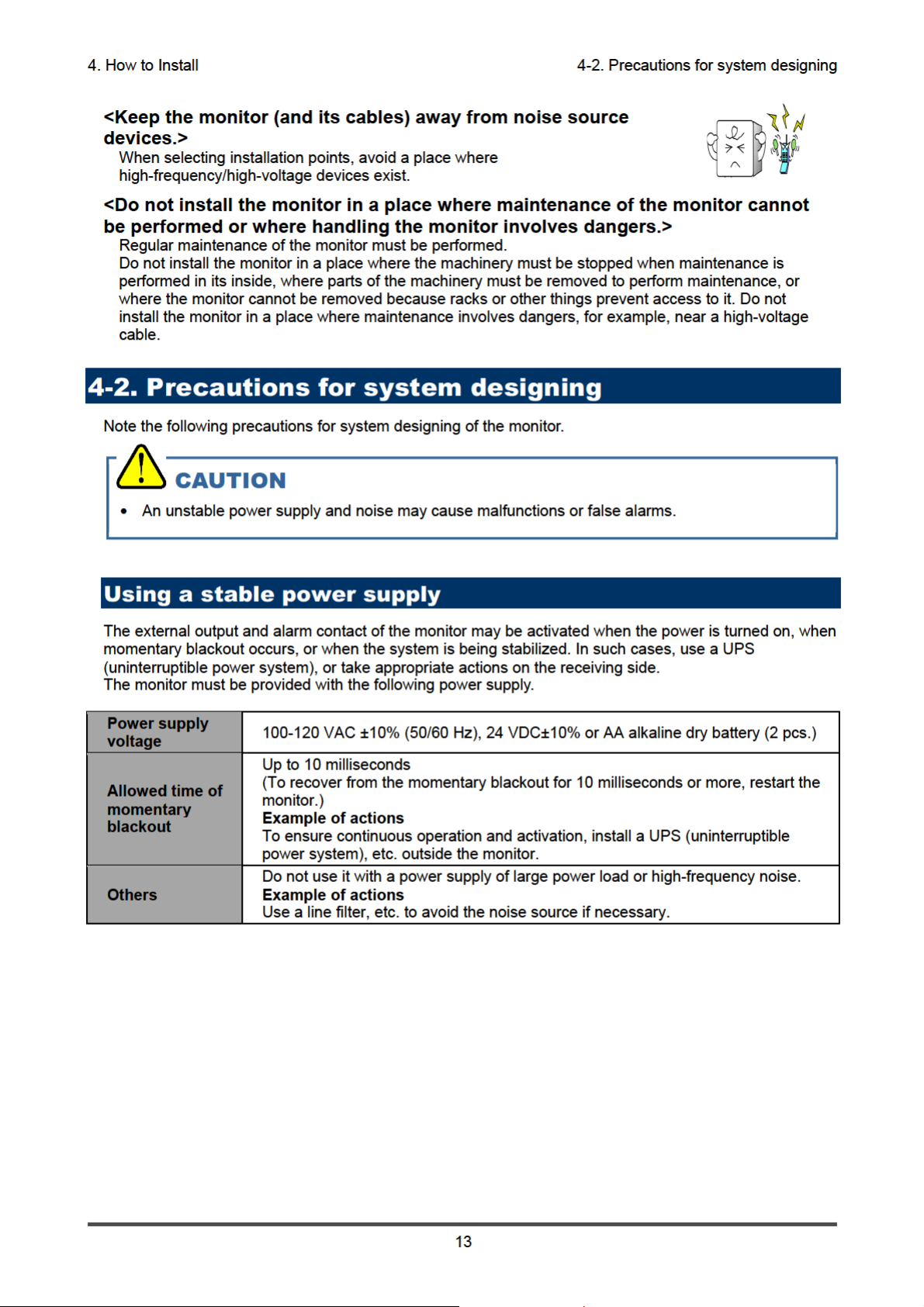

4-2. Precautions for system designing .........................................................................................................13

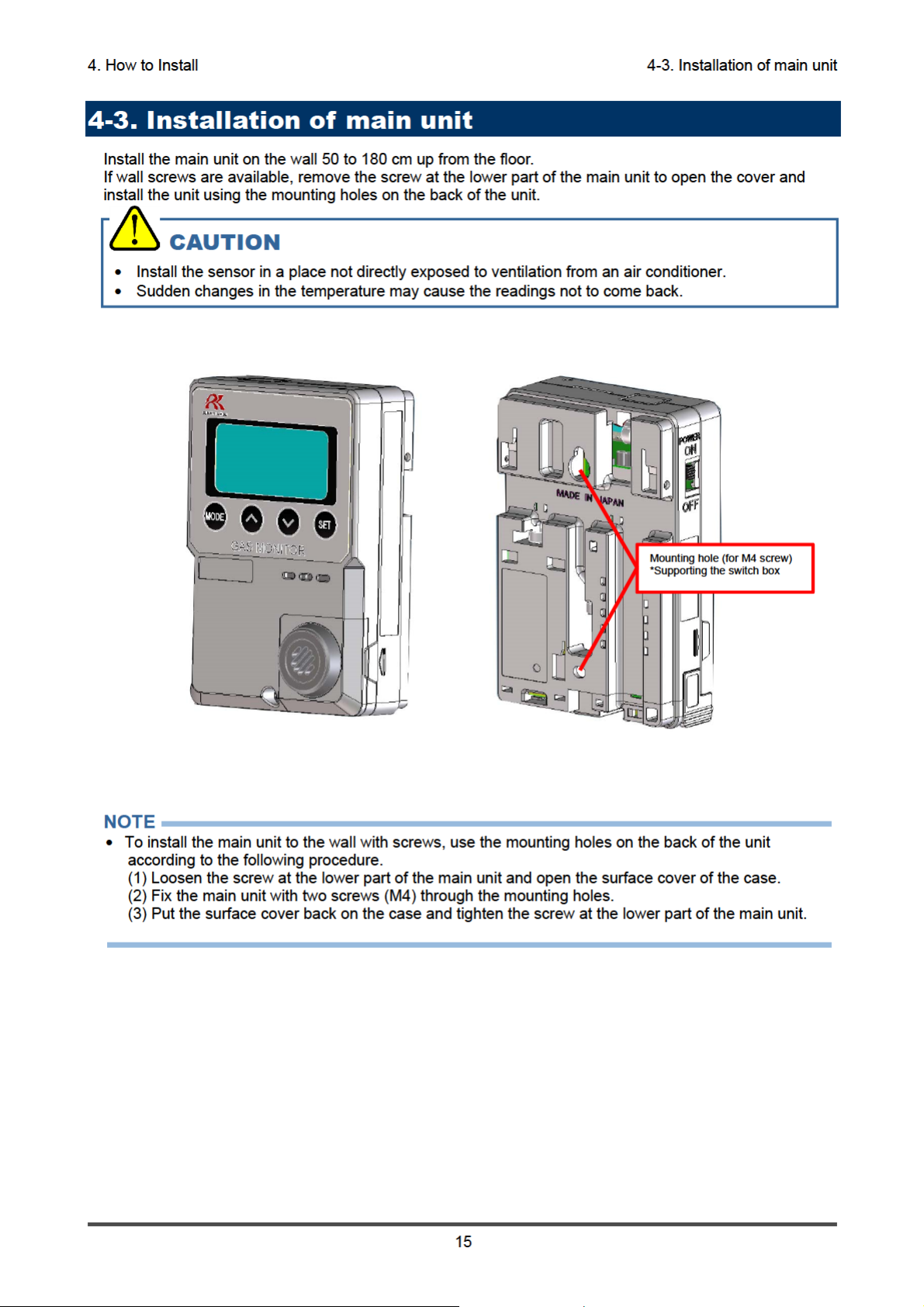

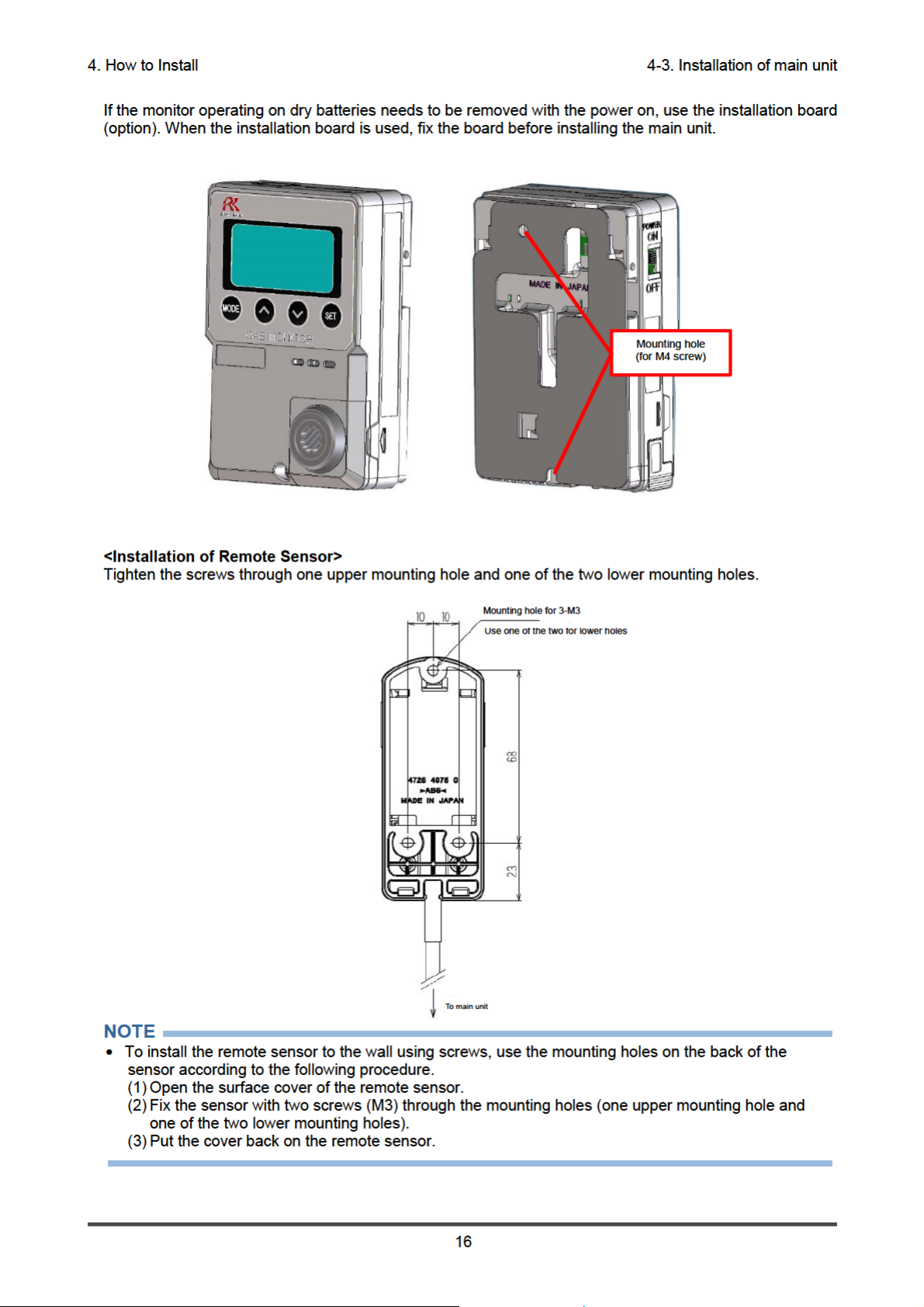

4-3. Installation of main unit..........................................................................................................................15
4-4. Precautions for wiring ............................................................................................................................18
5. How to Use ................................................................................................................................................... 21
5-1. Before using the monitor .......................................................................................................................21
5-2. Preparation for start-up ......................................................................................................................... 21
5-3. Basic operating procedures................................................................................................................... 22
5-4. Power-on ...............................................................................................................................................23
5-5. Modes ....................................................................................................................................................24
5-6. User mode .............................................................................................................................................25
5-7. Power-off ...............................................................................................................................................28
6. Alarm Activation and Functions ....................................................................................................................29
6-1. Gas alarm activation.............................................................................................................................. 29
6-2. Fault alarm activation ............................................................................................................................30
6-3. Suppression function .............................................................................................................................30
7. Maintenance .................................................................................................................................................31
7-1. Maintenance intervals and items...........................................................................................................31
7-2. Maintenance (regular maintenance) mode ........................................................................................... 32
8. Storage and Disposal ...................................................................................................................................47
8-1. Procedures to store the monitor or leave it for a long time...................................................................47
8-2. Procedures to relocate the monitor or use it again ...............................................................................47
8-3. Disposal of products ..............................................................................................................................47
9. Troubleshooting ............................................................................................................................................48
10. Product Specifications................................................................................................................................50
10-1. List of specifications ............................................................................................................................50
10-2. List of accessories ...............................................................................................................................51
11. Appendix .....................................................................................................................................................52
11-1. Detection principle of electrochemical type.........................................................................................52
11-2. Definition of terms................................................................................................................................ 53

1. Outline of the Product Preface
3
1
Outline of the Product
Preface
Thank you for choosing our indoor carbon monoxide monitor EC-600 (hereinafter referred to as the
monitor). Please check that the model number of the product you purchased is included in the
specifications on this manual.
This manual describes how to use the monitor properly and its specifications. Not only the first-time users
but also the users who have already used the monitor must read and understand the operating manual and
use this product as described in this manual.
Note that the contents of this manual are subject to change without notice for product improvement. It is
also prohibited to copy or reproduce this manual, in whole or in part, without permission.
Regardless of warranty period, we shall not make any indemnification for accidents and damage caused by
using the monitor.
Make sure to read the warranty policy specified on the warranty.
Purpose of use
This carbon monoxide monitor measures carbon monoxide in the air and issues an alarm using the buzzer
and LCD backlight when carbon monoxide concentration rises over preset concentration (alarm setpoint).
While displaying measured carbon monoxide concentration on the LCD, the monitor converts it to an
analog signal of 4 - 20 mA or 0 - 1 V to output (only 0 - 1 V for the dry battery type) and outputs a two-step
gas alarm contact at a gas alarm state.
The monitor is a safety unit, not an analyzer which performs quantitative/qualitative analysis/measurement
for gas. Check the specifications before use and conduct measurement properly in accordance with
purposes.

3. Product Components 3-1. Main unit and standard accessories
7
3
Product Components
3-1. Main unit and standard accessories
After opening the carton box, check the monitor and accessories.
If there is anything missing, contact RIKEN KEIKI.
Main unit

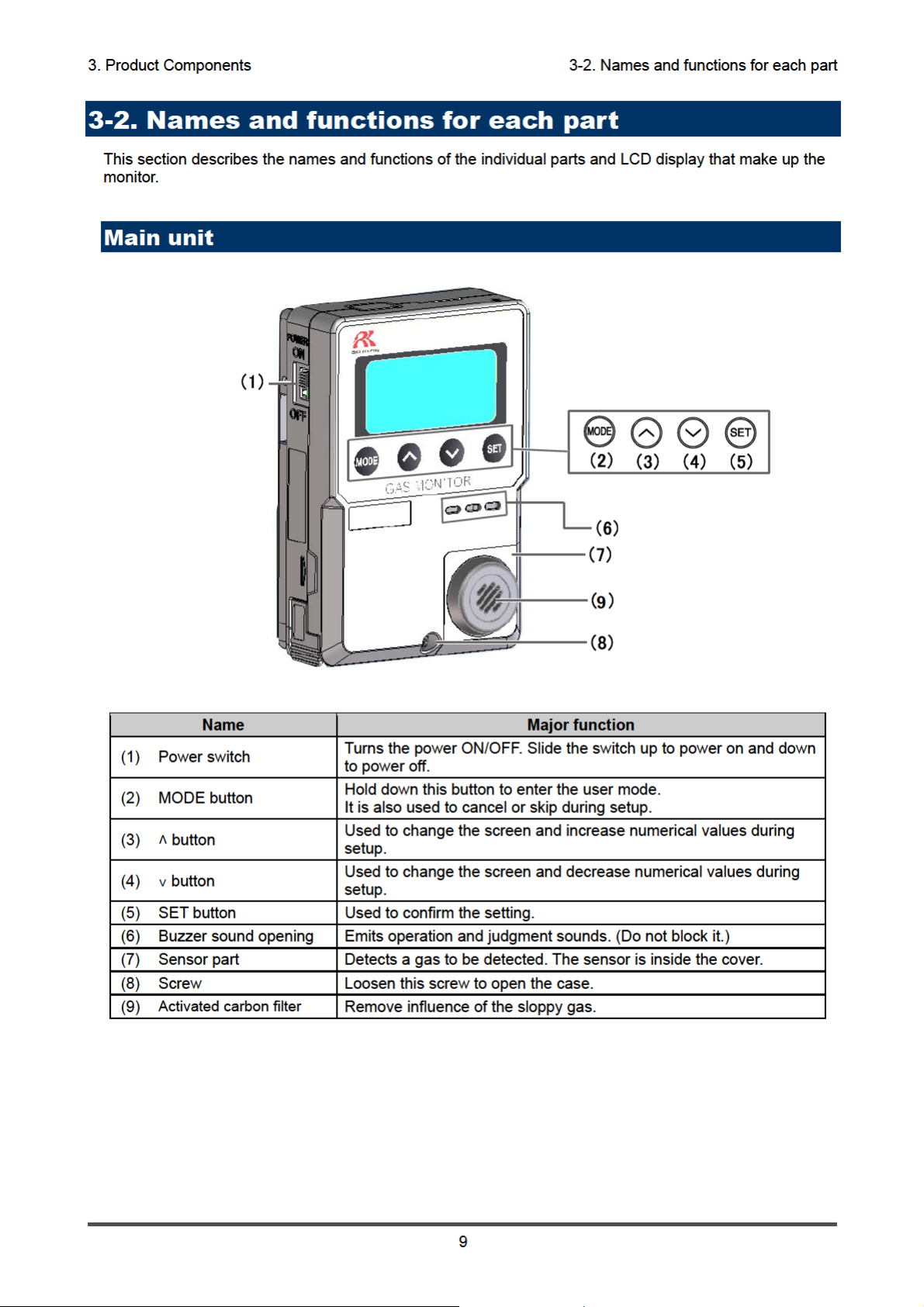

For names and functions of individual parts of the monitor and LCD display, see "3-2. Names and functions
for each part" (P.9).

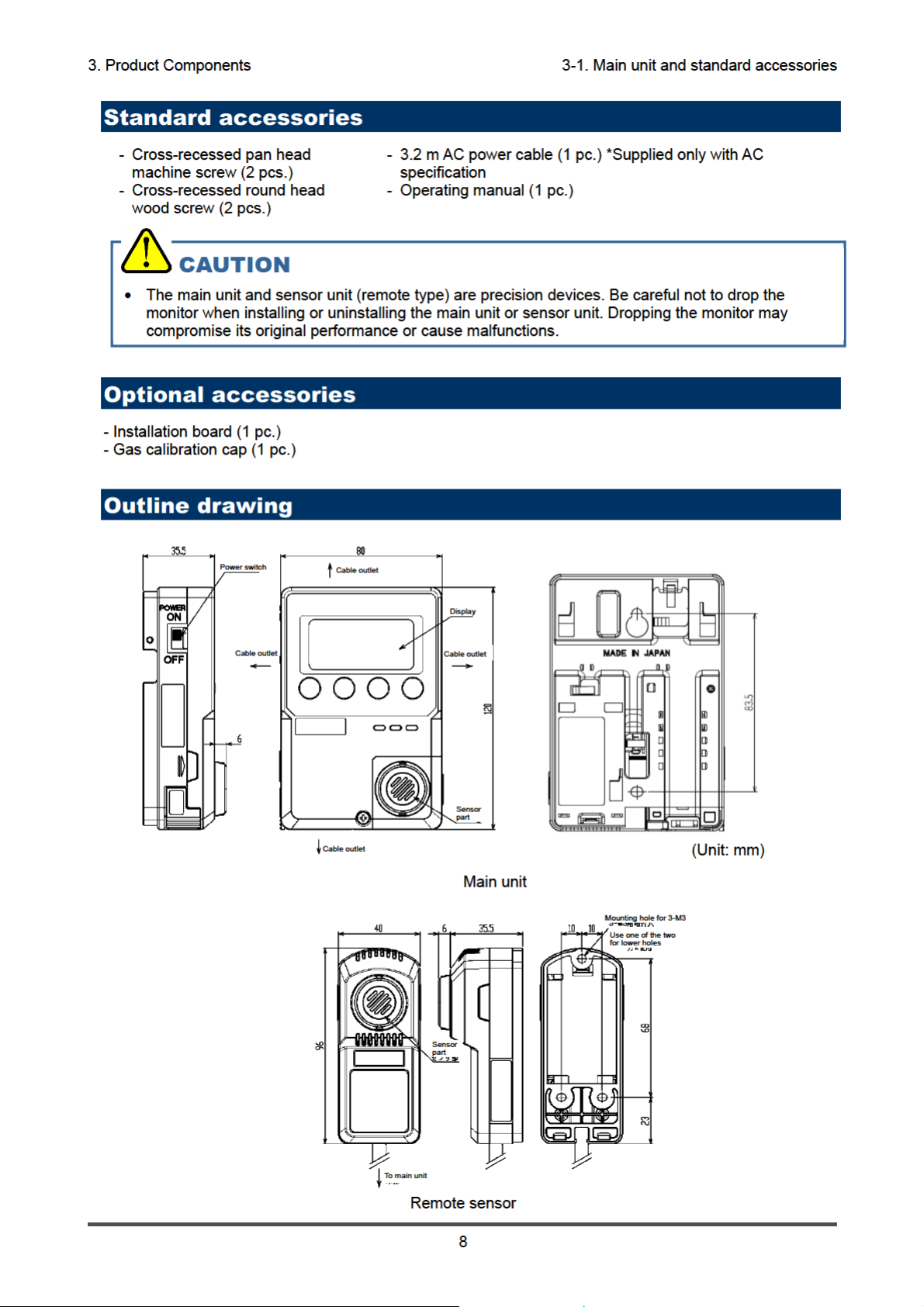

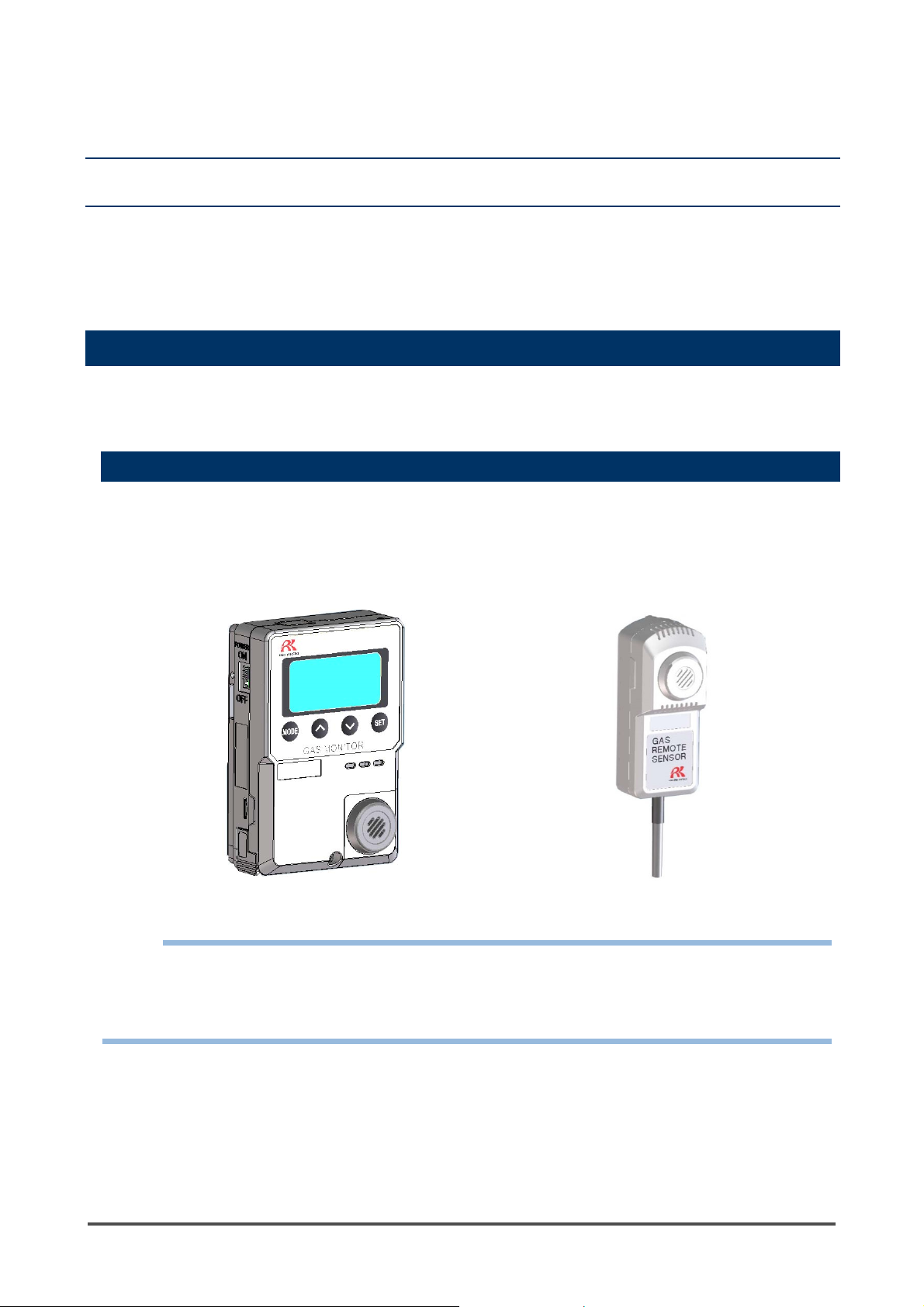

EC-600 main unit Sensor unit (remote type)
NOTE
Which type to use - sensor integrated type or sensor unit supplied type (remote type) - can be ordered
at the time of purchase.
The sensor integrated type does not include the sensor unit (remote type).
The cable length for the remote type can be selected from 3, 5, 10 and 20 m.
