ring 5AT3T5 User manual

Quick Start
1. Open the Ring app and
select Set Up Device.
Then fol low t e
in-app instructions.
2. Scan this code.
This 1dent1~1es your
Ring device to make
setup fast and easy.
15559
For additional help , v1s1t
ring.com/ help

User Guide
Doorbell Wired

2 3
Included hardware. Find your doorbell chime.
Your Doorbell Wired is
designed to replace an
existing doorbell button,
and gets its power from the
doorbell system.
Ring your existing doorbell
and listen for the chime. If it
rings, we know your existing
doorbell system is working.
Follow the sound to find your
chime and make a mental
note of the location. We’ll
return to your chime soon.
Don’t have an existing
doorbell? You can power
your Doorbell Wired
directly using our Plug-in
Adapter. Visit ring.com/
accessories to learn more.

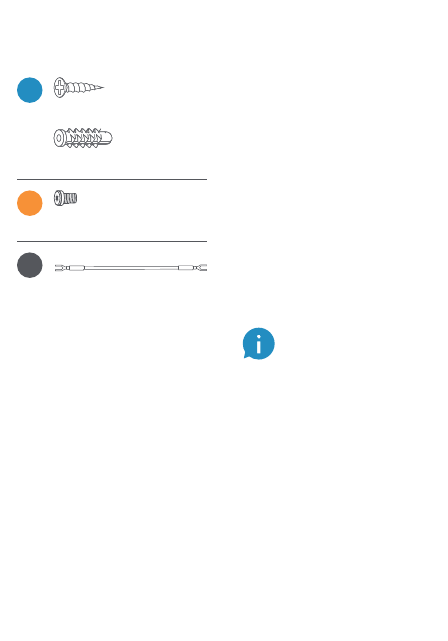

Bag Hardware
A
(2) 1" Mounting Screws
(2) Wall Anchors
B
(2) 3/16" Security Screws
C
1x Jumper Cable

4 5
Grab the included
Jumper Cable.
The Jumper Cable bypasses
and disables your existing
doorbell chime, and must be
installed before you install
your Ring Doorbell.
Your Doorbell Wired is
compatible with doorbell
systems supplying 10–24
volts AC, at 50 or 60Hz, 40VA
max. The AC connector is
the class 2 energy source.

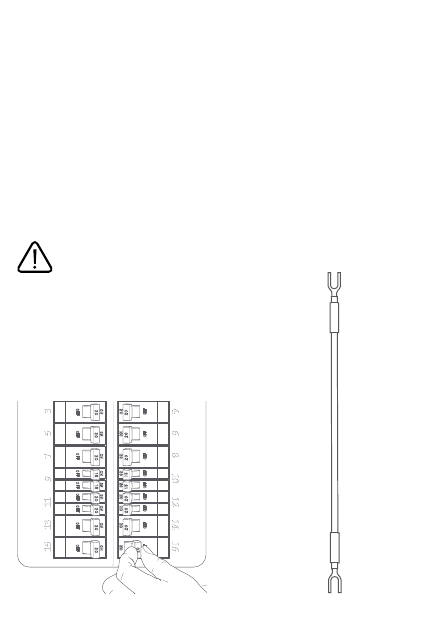

Turn o power
at the breaker.
This is essential to
keeping you and your
new Ring Doorbell safe.
If you’re not sure which
breaker controls your
doorbell chime, turn o the
master breaker for your home,
or contact an electrician.
CAUTION!
You’ll be working with electrical
wires during the install process.
If you are uncomfortable or
inexperienced with doing so,
consult with a licensed electrician.

6 7
Remove the cover from your
doorbell chime.
After you’ve located your
doorbell chime and turned o
power at the breaker, remove
the cover from your chime
and set it aside for now.
Loosen the “Front” and
“Trans” terminal screws.
Make sure to keep the existing
doorbell wires in place.

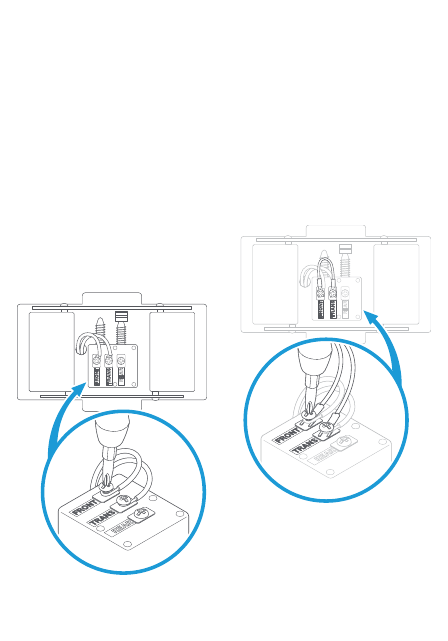

Connect the Jumper Cable.
Connect one end of the
Jumper Cable to the “Front”
terminal, and the other to the
“Trans” terminal. It doesn’t
matter which wire you
connect to which terminal.
Then re-tighten the
terminal screws.

8 9
Uninstall your existing
doorbell button.
Remove your doorbell from
the wall.
Disconnect the wires. Make
sure they don’t fall back inside
your wall so you can access
them later.
Remove the faceplate.
Grasp the bottom of the
faceplate and pull to remove.
Mark the screw holes.
Using your Ring Doorbell as
a template, mark the location
of the two mounting holes on
your wall.

10 11

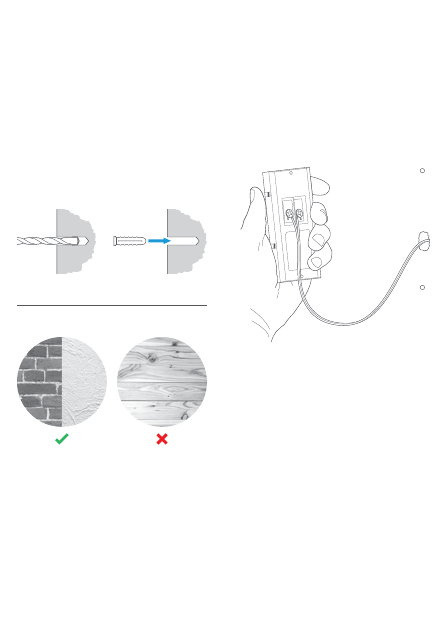

Install the anchors.
(optional)
On stucco, brick, or concrete,
use a ¼" masonry bit to drill
holes in your wall, then insert
the included wall anchors.
(If you’re installing on wood or
siding, you can skip this step.)
Connect the doorbell wires.
Loop one doorbell wire
around each of the screw
terminals on the rear of your
Ring Doorbell then tighten
the terminals to secure.

12 13
Screw in your
Ring Doorbell.
Mount your Ring Doorbell
with the two included
mounting screws.
Be sure to feed any excess
wiring back into the wall first.
Restore power
at the breaker.
It may take a moment for your
Ring Doorbell to power on.
You’ll know it’s ready once it
lights up and speaks to you.
3/16"
Security
screw
1"
Mounting
screw

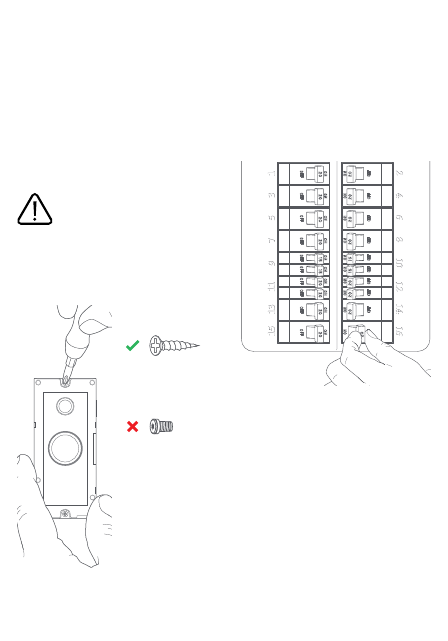

DO NOT USE any screw other than
the included mounting screws
when securing your Ring Doorbell.

14 15
Secure your Ring Doorbell.
Re-attach the faceplate, then
use the included screwdriver
to drive the small security
screw into the bottom of
your Ring Doorbell.
Download the Ring App.
The Ring App walks you
through setting up and
managing your Ring Doorbell.
Search for “Ring” in one of the
app stores below, or visit
ring.com/app
Set up your Ring Doorbell.
In the Ring app, select Set
Up a Device and follow the
in-app instructions. 3/16"
Security
screw
1"
Mounting
screw
CAUTION!
If you use the wrong screws to
secure the Video Doorbell, you
could damage the battery during
installation, create a fire hazard,
and be seriously injured.

For information on our warranty, theft
protection, and Ring Protect Plans, see
ring.com/legal
© 2020 Ring LLC or its aliates.
Ring and all related marks are trademarks
of Ring LLC or its aliates.
For additional help, visit
ring.com/help
Or give us a call:
US 1 800 656 1918
Canada 1 855 300 7289
Worldwide [phone]
For a list of all our customer
support numbers, visit
ring.com/callus

Important
Product
Information
•
ring
&

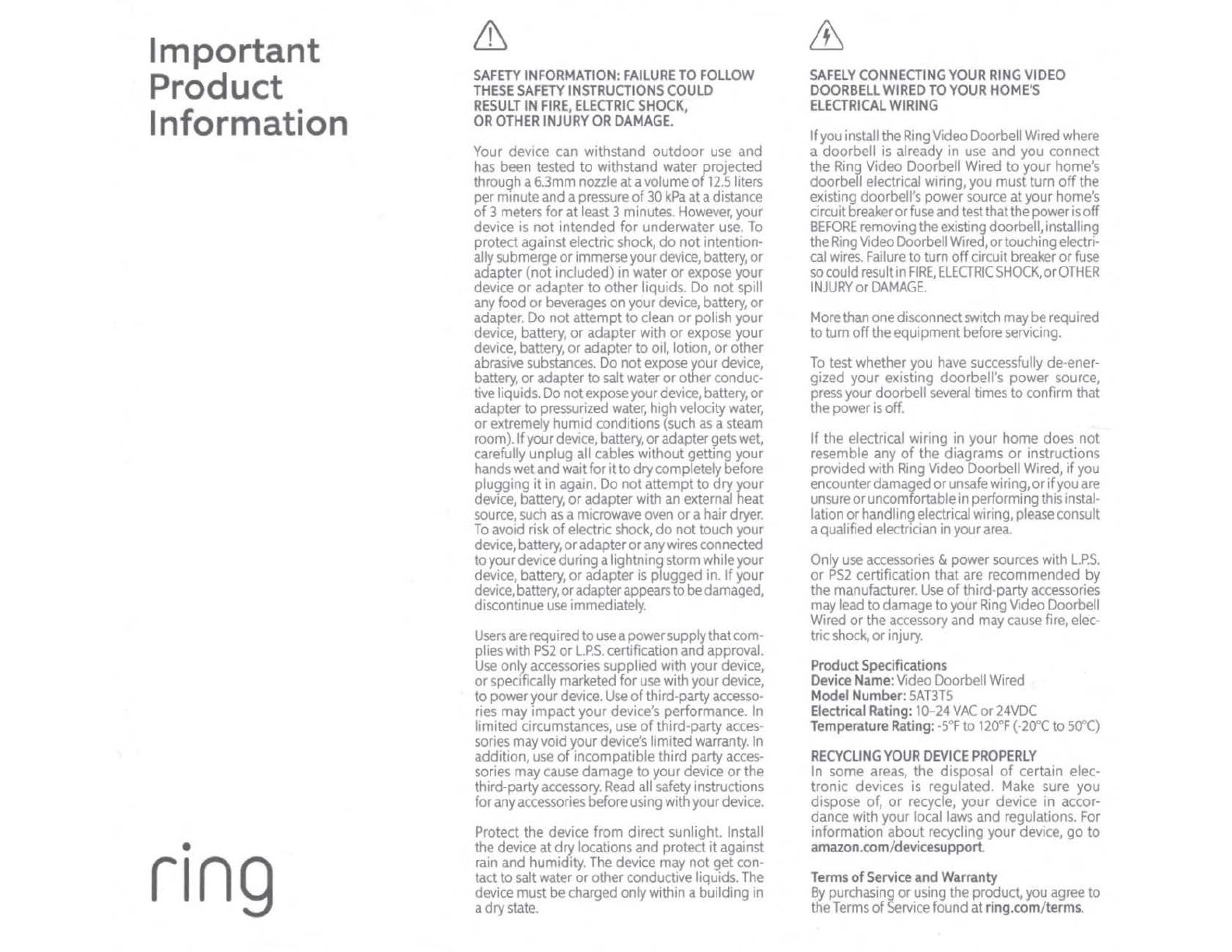

SAFETY INFORMATION : FAILURE TO FOLLOW
THESE SAFETY INSTRUCTIONS CO ULD
RESULT IN FIRE , ELECTRIC SHOCK ,
OR OTHER INJURY OR DAMAGE .
Your device can withstand outdoor use and
has been tested to withstand water proJected
througha 6.3mm nozzle ata volume of 12.5 liters
per minute and a pressure of 30 kPa ata distance
of 3 meters forat least 3minutes. However, your
device is not intended for underwater use. To
protectagainst electric shock, do not intention-
ally submerge or immerse your device, battery, or
adapter(not included) in water or expose your
device or adapter to other liquids. Do not spill
any food or beverages on your device, battery, or
adapter. Do notattemptto clean orpolish your
device, battery, oradapter with or expose your
device, battery, or adaptertooil, lotion,or other
abrasive substances. Do not expose your device,
battery, oradapter to salt water orotherconduc-
tive liquids. Do not expose your device, battery, or
adapterto pressurized water, highvelocity water,
or extremely humid conditions (such as a steam
room). Ifyour device, battery, oradapter gets wet,
carefully unplug all cables without getting your
hands wet and waitfor it to drycompletely before
plugging it in again. Do notattempt todryyour
device, battery, oradapter with an external heat
source, such as a microwave oven ora hair dryer.
To avoid risk of electric shock, do not touch your
device, battery, oradapteror any wires connected
toyour device duringalightning storm while your
device, battery, or adapter is plugged in. Ifyour
device, battery, or adapter appears to be damaged,
discontinue use immediately.
Users are required to use a power supply that com-
plies with PS2 or L.P.S. certification and approval.
Use only accessories supplied with your device,
orspecifically marketed for use with your device,
topoweryour device. Use of third-party accesso-
ries may impact your device's performance. In
limited circumstances, use of third-party acces -
sories may void your device's limited warranty. In
addition, use of incompatible third party acces-
sories may cause damage to your device or the
third-party accessory. Read all safety instructions
for any accessories before using withyour device.
Protect the device from direct sunlight. Install
the device at dry locations and protect it against
rain and humidity. The device may notgetcon-
tact to salt water orother conductive liquids. The
device must be charged onlywit hin abuilding in
adry state.
&
SAFELY CONNECTING YOUR RING VIDEO
DOORBELL WIRED TO YOUR HOME 'S
ELECTRICAL WIRING
If you install the Ring Video Doorbell Wired where
a doorbell Is already in use and you connect
the Ring Video Doorbell Wired to your home's
doorbell electrical wiring, you must turn off the
existing doorbell's power source atyour home's
circuit breaker or fuse and test that the power is off
BEFORE removing the existing doorbell,installing
the Ring Video Doorbell Wired, or touching electri-
cal wires. Failure toturn offcircuit breaker or fuse
so could result in FIRE, ELECTRIC SHOCK, or OTHER
INJURY or DAMAGE.
More than onedisconnect switch may be required
to turnoff the equipment before servicing.
To test whether you have successfully de- ener-
gized your existing doorbell's power source,
press your doorbell several times toconfirm that
the power is off.
If the electrical wiring in your home does not
resemble any of the diagrams or instructions
provided with Ring Video Doorbell Wired, 1f you
encounter damaged or unsafe wiring,or if you are
unsure oruncomfortable in performing this instal
lationorhandling electrical wiring, please consult
aqualified electrician in your area
Only use accessories & power sources with L.P.S.
or PS2 certification that are recommended by
the manufacturer. Use of third-party accessories
may lead to damage toyour Ring Video Doorbell
Wired orthe accessory and may cause fire, elec -
tric shock, or injury.
Product Specifications
Device Name: Video Doorbell Wired
Model Number : 5AT3T5
Electrical Rating :1024 VAC or 24VDC
Temperature Rating : -5°F to 120°F ( 20"C to SO"C)
RECYCLING YOUR DEVICE PROPERLY
In some areas, the disposal of certain elec-
tronic devices is regulated. Make sure you
dispose of, or recycle, your device in accor-
dance with your local laws and regulations. For
information about recycling your device, go to
amazon .c om / devicesupport.
Terms of Service and Warranty
By purchasing or using the product, you agree to
the Terms of Service found at ring.com / terms .

For information on our warranty, theft protection,
and Ring Protect Plans, see ring.com/legal

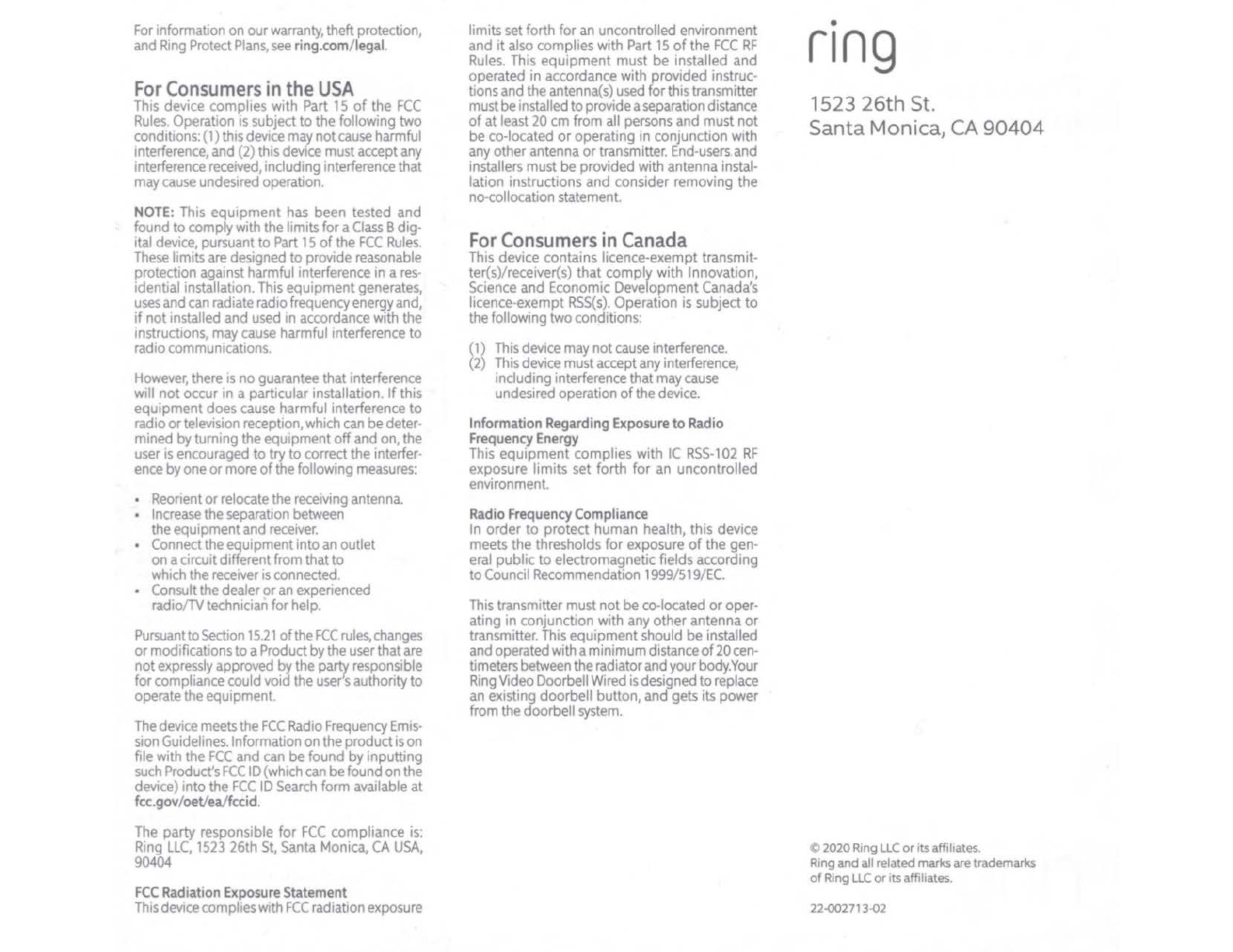

For Consumers in the USA
This device complies with Part 15 of the FCC
Rules .Operation is subjecttothe following two
conditions: (1) this device may not cause harmful
interference, and (2)this device must accept any
interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and
found tocomply with the limits fo ra Class Bdig-
ital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection againstharmful interference in a res ·
idential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if notinstalled and used in accordance with the
instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference
will notoccur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be deter-
mined by turning the equipmentoff and on, the
user is encouraged to tryto correct the interfer-
ence byoneor more of the following measures:
, Reorien tor relocate the receiving antenna
, Increase the separation between
the equipment and receiver.
, Connect the equipmentinto an outlet
on acircuitdifferentfrom thatto
which the receiver is connected.
, Consul t the dealeror an experienced
radio/TV technician forhelp.
Pursuant to Section 15.21 of the FCC rules, changes
ormodifications to a Product by the user that are
not expressly approved by the pa~ responsible
for compliance could void the usersauthorityto
operate the equipment
The device meets the FCC Radio Frequency Emis-
sion Guidelines. Information on the product Is on
file with the FCC and can befound by inputting
such Product's FCC ID (which can be found on the
device) into the FCC ID Search form available at
fc c. gov / oe t/ e a/ fccid .
The party responsible for FCC compliance is:
Ring LLC, 1523 26th St, Santa Monica, CA USA,
90404
FCC Rad i ation Exposure Statement
This device complies with FCC radiation exposu re
limits set forth for an uncontrolled environment
and it also complies with Part 15 of the FCC RF
Ru l es. This equipment must be installed and
operated in accordance with provided instruc-
tions and the antenna(s) used forthis transmitter
must beinstalledto provide a separation distance
of at least 20 cm from all persons and must not
be co-located oroperating in conjunction with
any other antenna or transmitter. End-users and
installers must be provided with antenna instal-
lation instructions and consider removing the
no-collocation statement.
For Consumers in Canada
This device contains licence-exempt t ransm i t-
ter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada's
licence-exempt RSS(s). Operation is subject to
the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference,
including interferencethat may cause
undesired operation of the device.
Inform a tion Regarding Exposure to Radio
Frequency Energy
This equipment complies with IC RSS-102 RF
exposure limits set forth for an uncontrolled
environment.
Radio Frequency Compliance
In order to protect human health, this device
meets the thresholds for exposure of the gen·
eral public toelectromagnetic fields according
to Council Recommendation 1999/519/EC.
This transmitter must notbe co-located oroper·
ating in conjunction with any other antenna or
transmitter. This equipment should be installed
and operated withaminimum distance of 20 cen-
timeters between t he radiator and your body.Your
Ring Video Doorbell W ired is designed to replace
an existing doorbell button, and gets its power
from the doorbell system.
•
ring
1523 26th St.
SantaMonica, CA 90404
Q 2020 Ring LLC or itsaffiliates.
Ring and all rela t ed marks are trademarks
of Ring LLC or its affiliates.
22-002713-02
