Rinnai LUMINA800BL Installation and operating instructions

1

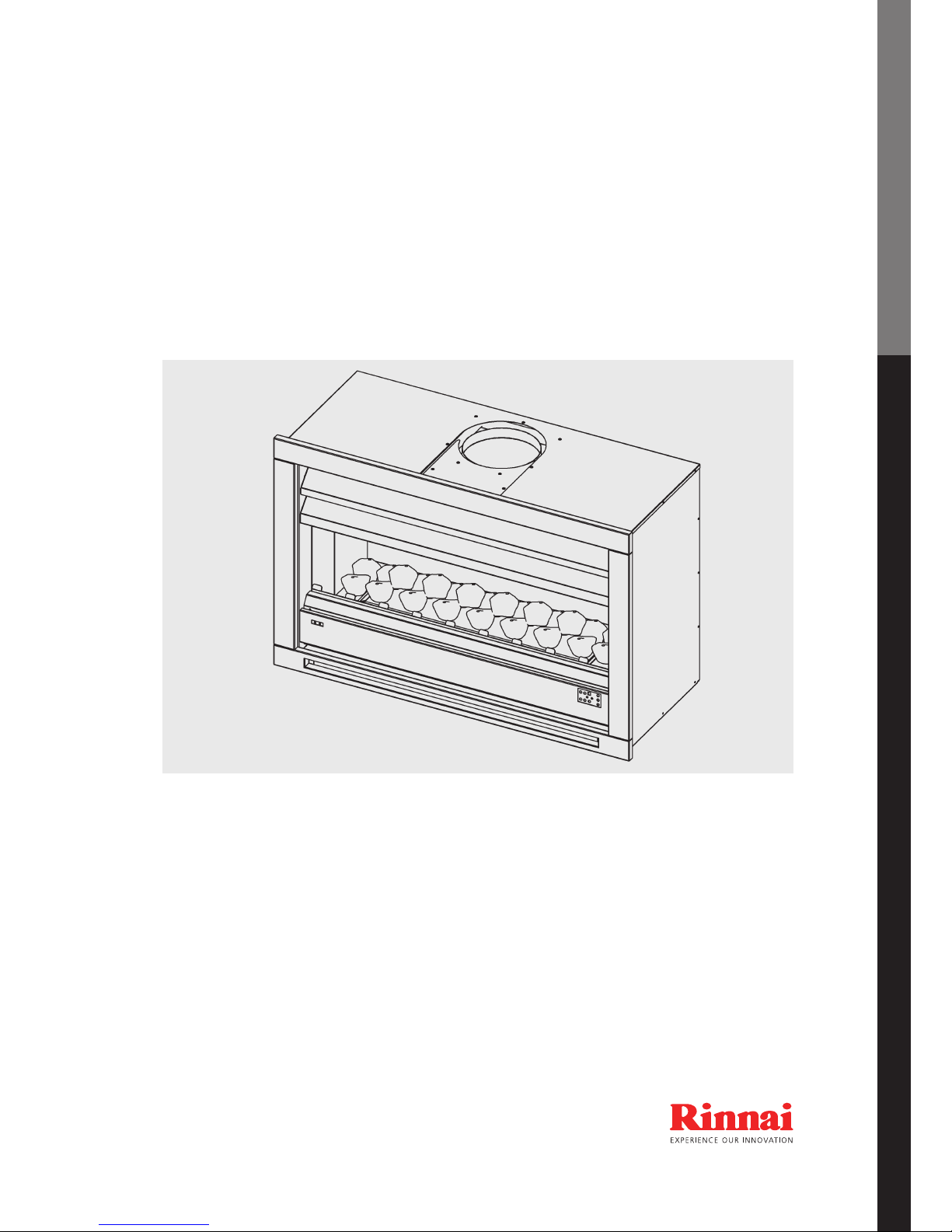

Rinnai New Zealand LUMINA
Open Fire Operation Manual and Installation Guide
INSTALLER: PLEASE LEAVE THIS MANUAL WITH THE CUSTOMER
AFTER INSTALLATION
OWNER: PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
Lumina
RINNAI
This appliance shall be installed in accordance with:
• Manufacturer’sInstallationInstructions
• LocalGasFittingRegulations
• MunicipalBuildingCodes
• A.G.A.InstallationCodeAG601/AS5601/NZS:5261GasInstallations
• AnyotherlocalrelevantstatutoryRegulation
ThisproductisonlytobeinstalledwithanapprovedRinnaiuesystem.
Itisprimarilyadecorativeappliancenotcertiedasaspaceheater.
InstallationandServicemustbeperformedbyanauthorisedperson.

2
Rinnai New Zealand LUMINA
LIMITED WARRANTY
RinnaiLuminaDecorativeOpenFire
Please keep these instructions in a safe place for future reference.
RECORD AND ATTACH YOUR PROOF OF PURCHASE BELOW:
Your Retailer:____________________________________________________________
Name:__________________________________________________________________
Address:______________________________________________________________
________________________________________________________________________
Telephone:( _______ ) __________________________________________________
Date of Purchase: ______ / ______ / _________
TERMS AND CONDITIONS
1.Duringthe24monthperiodfromdateof
purchaseandsubjecttoclauses2and3
below,RinnaiNewZealandLimited(“Rinnai”)
will, at its own discretion, either replace or
repairanydefectiveproductatnochargeto
thecustomer.
2.Thiswarrantycoversmanufacturingdefects
only.Thiswarrantywillnotapplyif(for
example)theproducthasbeenimproperly
installedorisotherwiseinstalledcontraryto
manufacturer’srecommendations,hasbeen
damagedduringorafterinstallation,hasnot
beenoperatedinaccordancewithoperating
instructions, or has been subjected to
damageorabusebeyondthatexpectedfrom
conditionsofnormaluse.
3.Warrantyclaimsmaybeinvalidifnot
accompaniedbydetailsoftheinstallingor
supervisinggastter’sregistrationnumberand
thegasttingcerticationnumber.
4.Thiswarrantycommencesfromthedateof
purchase.Proofofpurchaseisrequiredatthe
timeofanywarrantyclaim.
5.Servicingoftheproductistobecarriedoutby
aRinnaiauthorisedservicecentre.
AllRinnaiappliancesmeetorexceedthesafety
standardsrequiredbyNewZealandgasand
electricalregulations.Thecompanyisconstantly
improvingitsproductsandassuchspecications
aresubjecttochangeorvariationwithoutnotice.
Rinnaibringsyoupeaceofmind
witha2yearminimumwarranty.

3
Rinnai New Zealand LUMINA
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR
LOSS OF LIFE. FOR ASSISTANCE OR  ADDITIONAL INFORMATION CONSULT
ANAUTHORISEDTECHNICIANORRINNAION0800RINNAI(0800746624).
INSTALLATION AND SERVICE MUST BE PERFORMED BY AN AUTHORISED 
PERSON.
ThisOperatingManualappliestothefollowingRinnaiInbuiltOpenFires:
LUMINA800BL/LUMINA1000BL  LuminaBlackLPG
LUMINA800BN/LUMINA1000BN  LuminaBlackNaturalGas
LUMINA800SSL/LUMINA1000SSL  LuminaStainlessSteelLPG
LUMINA800SSN/LUMINA1000SSN  LuminaStainlessSteelNaturalGas
TableofContents
LimitedWarranty.........................................................................................................................................................2
CustomerInformation-SafetyPoints..................................................................................................................4
CustomerInformation-Operation.......................................................................................................................5
CustomerInformation-ImportantPoints..........................................................................................................6
CustomerInformation-Specications................................................................................................................7
CustomerInformation-Troubleshooting..........................................................................................................8
InstallerInformation-Dimensions.......................................................................................................................9
InstallerInformation-Location..............................................................................................................................10
InstallerInformation-FramingDimensions......................................................................................................11
InstallerInformation-CombustibleSurfaceClearanceandBendFlueInstallation...........................11

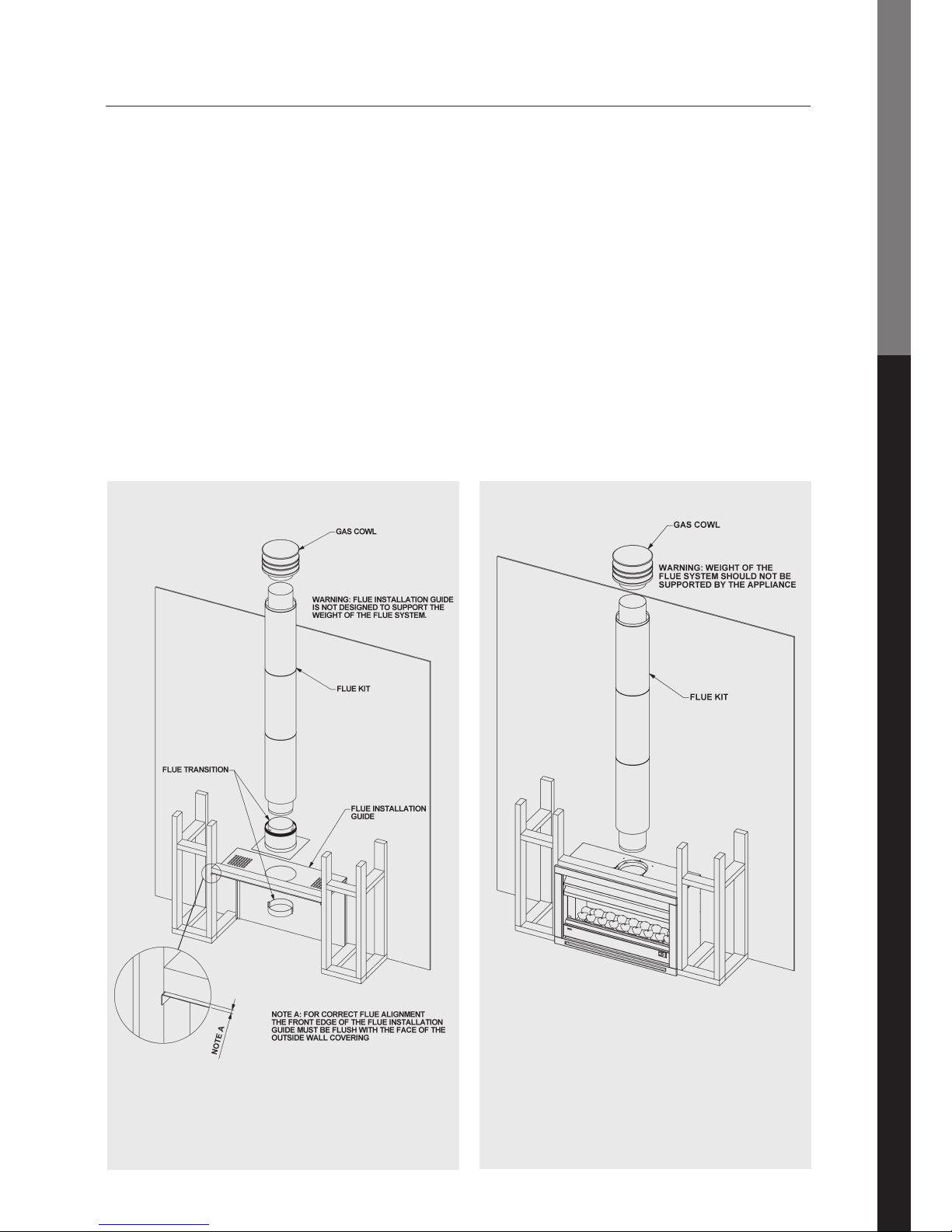

InstallerInformation-FlueInstallation...............................................................................................................12
InstallerInformation-InstallationProcedure...................................................................................................13
InstallerInformation-InstallationProcedureCont’d.....................................................................................14
InstallerInformation-GasConnection...............................................................................................................14
InstallerInformation-ElectricalConnection....................................................................................................15
InstallerInformation-Coals/RiverStones..........................................................................................................15
InstallerInformation-TestandCommission.....................................................................................................16
InstallerInformation-TestandCommissionCont’d......................................................................................17
InstallerInformation-TechnicalSpecications................................................................................................17
InstallerInformation-Wiringdiagram................................................................................................................18
Installation/CommissioningChecklist.................................................................................................................19
Installer Details.............................................................................................................................................................19
Customer Contacts.....................................................................................................................................................20
OperatingManual

4
Rinnai New Zealand LUMINA
DONOTPLACEARTICLESONORAGAINSTTHISAPPLIANCE.DONOTUSEORSTOREFLAMMABLEMATERIALSNEARTHIS
APPLIANCE.DONOTSPRAYAEROSOLSINTHEVICINITYOFTHISAPPLIANCEWHILSTITISINOPERATION.
Donotrestrictthewarmairdischargebyplacing
articlesinfront
ofthe
appliance.
Thisappliancemustnotbeusedforanypurpose
otherthandecorativeheating.
Donotsprayaerosolswhilsttheapplianceisoperating.
Mostaerosolscontainbutanegas,whichcanbeare
hazardifusednear
the appliance
when it is
inuse.
Youngchildrenshouldbesupervisedatalltimes.
Handorbody
contact with the
louvres,riverstones
or coals must
beavoided.
Donotallowyoungchildrenortheinrmtosleep
directlyinfrontof
theappliance.
Donotallowanyoneto
sitonorleanagainstthe
appliance.
Donotallowanyonetopostarticlesthroughthe
louvresorinto
the combustion
chamber.
Donotallowcurtainsorotherammableor
combustible
materials to
come into
contact with
appliance.
Donotunplugtheappliancewhileitisinoperation.
(Unplugingtheappliancewillswitchitoandwillreset
theappliancetoitsdefaultsettings;lowcombustionand
fano.)
Adedicated230~240V10Amppowerpointmustbe
usedwiththisappliance.Donotusepowerboardsor
doubleadaptorstooperatethisappliance.
Someooringswillreacttoheat.Thereforetoprevent
discolourationofoorcoveringsfromheat,itis
recommended that a
matbeplacedinfront
oftheappliance
when it is in
operation.
When the appliance is
operatedfortherst
timeorafterlong
periodsofnon-useaslightodourmaybeemitted.
Thisisnormal,howeverifodourspersistswitchothe
applianceandcontactRinnai.
CustomerInformation-SafetyPoints

5
Rinnai New Zealand LUMINA
IMPORTANT NOTE:
Failuretofollowtheseinstructions
couldcauseamalfunctionofthe
appliance, which could result in death,
seriousbodilyinjury,and/orproperty
damage.Failuretofollowthese
instructionsmayalsovoidyourre
insuranceand/orwarranty.
TheControlPanelislocatedontheright
handsideoftheFrontPanel.
• Power
PressandReleasethePwrButton.Thiswill
starttheelectronicsparkandthePwrLED
(Top)willbeilluminatedpermanently.
ThePilotwilligniterst,followedbythe
CeramatBurner.Pressingandreleasing
thePowerButtonagainwillswitchothe
appliance.
Next time the appliance is turned ON, the
controlsystemwillresumetheprevious
FlameandFansettingsunlesstheappliance
wasswitchedoduetopowerfailure.
IncaseofpowerfailuretheControlSystem
willreturntotheDefaultsettingwhichis
LowFlameandFanOFF.
Undergasfailureconditions,theappliance
willgointoLockOutconditionafter
sparkingfor1minute(approx).UnderLock
Out condition the Power LED will remain
illuminated.Tostarttheapplianceagain
pressandreleasethePowerButtontwice
afterthegassupplyresumes.
Note:Theappliancewillnotwork
withoutelectricalpower.
• Flame
PressandholdFlame+Buttontoincrease
theBurnerFlame.Pressandhold-Button
todecreasetheBurnerFlame.Pressingand
Holdingthe+or-FlameButtonforupto
15sec(Approx)willincreaseordecreasethe
BurnerFlametoMaxorMin.
• Fan Operation
ThisDecorativeFirehasatwospeedFan
anditsoperationisindependentofthe
Burnersetting.
PressandReleasetheFan+or-Buttonto
increaseordecreasetheFanSpeed.The
bottom LED will be illuminated at Fan Low
speedandthemiddleLEDatFanHigh
speed.
PressingandReleasingofthe-Buttonwhen
thefanisatlowspeedwillturnthefanOFF.
• Remote Control
TheRemoteControlhasallthefeaturesof
theControlReceiverbutalsoanadditional
TimerFunction.
BypressingTimerButtononcethePwrLED
willstartashingandafter30minutesthe
appliancewillshutoautomatically.
PressingtheTimerButtonagainwithin30
minutesofshutotimewillresetthetimer
andthePwrLEDwillstopashing.
CustomerInformation-Operation

6
Rinnai New Zealand LUMINA
Unpacktheapplianceandcheckfordamage.DO NOT INSTALL A DAMAGED APPLIANCE.
Iftheapplianceisdamaged,contactyoursupplierforadvice.Beforeinstallingtheappliance,
checkthelabelforthecorrectgastype(Seegastypelabelontopofdataplateandon
InjectorBlockbracket).Refertolocalgasauthorityforconrmationofthegastypeifyouare
indoubt.
Included in the carton:
OpenFireBox,DecorativeFascia,OperationManualandInstallationGuide,RemoteControl,
4xAAABatteries,FlexitubeandReducingFlare,2xSideReectors,Granules,Ornamental
CoalsorRiverStones,and2xM4X12blackscrews.
IMPORTANT
Beforeusingthisproduct,pleasereadthismanualcarefullytoensurecorrectuse.
Theusershallbeadvisedthatappliancesincorporatingalivefueleect,anddesignedto
operatewithluminousames,mayexhibitslightcarbondeposits.
1. Theappliancemustbeinstalledin
accordancewiththelocalgasandelectrical
authorityregulations.
2. Forinformationongasconsumption,see
CustomerInformationSpecications.
3. Ensurethattheareainwhichtheappliance
isinstalledhasadequatexedventilation.
Thisxedventilationmustbeprovidedas
perAG601/AS5601Clause5.4to5.4.5/
NZ5261.
4. DONOTconnecttoanLPG/PropaneGas
cylinderindoors.
5. Thisappliancemustnotbeinstalledwhere
curtains or other combustible materials
couldcomeintocontactwithit.Insome
casescurtainsmayneedrestraining.
6. Appliancemustnotbelocatedbelowa
powersocket-outlet.
7. Localgasandelectricalauthoritieswillbe
abletoadviseonlocalregulations.
8. Thisappliancedischargesalargevolumeof
warmairatlowleveltoprovideevenheat
distribution.Iftheairintheroomcontains
cookingvapourorcigarettesmoke,andthe
applianceisusedonacarpet,thesurface
ofthecarpetmaybecomediscoloured.
Inaddition,somenyloncarpetscontain
dyeswhichmaybeaectedbythewarm
airow.Somesoftvinylsurfacesarealso
subject to distortion, or discolouration
bywarmair.Topreventdiscolourationof
carpets etc, a mat should be placed in
frontoftheapplianceextendingabout
75cminfrontofit.
9. Theapplianceisnotintendedforuseby
youngchildrenorinrmpersonsunless
theyareadequatelysupervisedbya
responsiblepersontoensurethatthey
canusetheappliancesafely.
10. Youngchildrenshouldbesupervised
toensuretheydonotplaywiththe
appliance.
11. Ifthesupplycordisdamagedorrequires
replacing,itmustbereplacedbythe
manufacturerorthemanufacturer’s
agentorsimilarlyqualiedpersonin
ordertoavoidahazard.
12. Donotallowarticlestobeposted
throughthelouvresoropenings.
13. Donotsprayaerosolsnearthisappliance
whilstitisinuse.Mostaerosolscontain
butanegaswhichcanbearehazard
ifusednearthisappliancewheninuse.
Useofaerosols,paint,polishes,etc
whilstthisapplianceisinusemaycause
unpleasantsmells.
14. Donotoperate/installthisappliance
inplaceswherepaintingistaking
place, or in places such as hair
dressingsalons,wheretheremaybe
alotofuanddust,andwhere
aerosolsareused.
CustomerInformation-ImportantPoints

7
Rinnai New Zealand LUMINA
15. Donotunplugtheappliancewhileitisstill
inoperation.
16. Donotturnotheapplianceby
unpluggingitatthewall.
17. Donotplacearticlesonoragainstthis
appliance.
18. Donotplaceclothesracksetc.directlyin
frontoftheappliance.
19. Donotstoreammablematerialsnearthe
appliance.Combustiblematerialsmust
not be allowed where the appliance could
ignitethem.
20. Theappliancemayemitsmokewhen
rststartedwhichmaytakeupto2
hourstodisappear.Thisispartofthe
normalburninginprocesstherefore
ensureadequateventilationduringthis
period.
21. Thisapplianceisnotttedwitha
guard.Forprotectionofyoungchildren,
precautionsmustbetakentoreduce
theriskofreorinjuryfromburns.
IMPORTANT NOTE:
Beforeinstallationcommences,checkthedataplateandlabellingontheapplianceto
ensurethatitisthecorrecttypetosuityourgas.
Iftheappliancerequiresconversiontosuityourgas,thismust be carriedout onlybyan
AuthorisedTechnicianwhohastheAppropriateGasPressureMeasuringEquipment.
Model:  LUMINA800BN/LUMINA800SSN  (NG)
  LUMINA800BL/LUMINA800SSL  (LPG)
  LUMINA1000BN/LUMINA1000SSN(NG)
  LUMINA1000BL/LUMINA1000SSL (LPG)
Description:  Inbuiltradiant/convectordecorativeopengasrewith 
  fanforcedconvectionandnaturaldraftuesystem
Input: Product LPG Natural Gas
 Lumina800 30MJ/hr 30MJ/hr
 Lumina1000 38MJ/hr 40MJ/hr
GasControl:  SITModulatingGasValveControl
Burners:  IntermittentPilotBurner,&CeramatMainBurner
WarmAirDischarge:  Topfrontlouvres
Flue:  Naturaldraftroundue(Ø200InnerØ250Outer)
Ignition:  Electronicspark
PowerSupply:  230~240v.50Hz
DataPlateLocation:  Bottompanel,frontlefthandside
Weight:  Lumina800 65kgs(packaged)
  Lumina1000 70kgs(packaged)
CustomerInformation-Specications
CustomerInformation-ImportantPoints

8
Rinnai New Zealand LUMINA
•SAFETY DEVICE:
The applianceisfittedwith anOverheat SafetySwitch.Underoverheatingconditions
thisswitchwillshutoff the appliance.Ifthe applianceshutsoff repeatedlyitmeans it
requiresservicing.
•NOTE:
Ifyouhaveanyotherfaultsorproblems,pleaserefertoyourinstallerorcall Rinnaion
0800Rinnai.
•IMPORTANT:
Donotremoveanypanelsorattempttocarryoutanyserviceworkotherthanthat 
mentionedinthetroubleshootingchart.
Theusershallbeadvisedthatappliancesincorporatingalivefueleffect,and designed
tooperatewithluminousames,mayexhibitslightcarbondeposits.
•SERVICE:
Rinnaihasaserviceandsparepartsnetworkwithpersonnelwhoarefullytrainedand 
equippedtogivethebestserviceonyourRinnaiappliance.
Ifyourapplianceneedsservice,pleaseringthecontact numberslocatedonthe backof
thisinstructionbooklet.
Rinnairecommendsthatthisapplianceshould be servicedannuallybyaqualifiedservice
technician,includinginspectionoftheuesystem.
SYMPTOM CAUSE SOLUTION
Burnerwillnotlight
No power present
Nogaspresent
Power Cut
Airingassupplypipe
Ignitionfailure
Ensurepowercordispluggedinand
turnedon.
Ensuregassupplyisturnedon.
Re-ignitewhenpowerhasbeenrestored.
Purgeair(Installer).
Repeatlightingprocedure.
Smellofgas Leakinggas TurnogasatmeterorLPG/Propanecylin-
derandcallinstaller.
Fannotworking Faniso
Whenapplianceisoperatingpress
Fan+ButtontoswitchfromotoLow
speed.PressFan+Buttonagaintoswitch
fromLowtoHighspeed.
Small soot deposit Normal Operation Noactionrequired.
Severesootdepositson
Coals/RiverStones
Inadequateuesystem
Incorrectgaspressure
Coals/RiverStonesnot
installedproperly
Call Rinnai on 0800Rinnai or an authorised
RinnaiServiceCentre.
CustomerInformation-Troubleshooting

9
Rinnai New Zealand LUMINA
InstallerInformation-Dimensions
THISBOOKCONTAINSIMPORTANTINFORMATION.PLEASEKEEPITINA
SAFEPLACEFORFUTUREREFERENCE.
THE MANUFACTURER RESERVES THE RIGHT TO CHANGE OR MODIFY
SPECIFICATIONSWITHOUTNOTICE.
BLACK STAINLESS STEEL
BLACK STAINLESS STEEL
THIS INSTRUCTION MANUAL APPLIES TO: RINNAI INBUILT GAS FIRES - LUMINA
1000B, LUMINA 1000SS, LUMINA 8000B AND LUMINA 800SS

10
Rinnai New Zealand LUMINA
Thefollowingpagescontaininformation
relatingtoInstallationandService.Installation
andServicemustbecarriedoutbyan
authorisedpersononly.
Whenpositioningtheappliance,themain
pointsgoverningthelocationare:
1. Flueconnectionandterminaltocomply
withAG601/AS5601/NZ5261
2. Warmairdistribution
3. Ensurethattheareainwhichtheappliance
isinstalledhasadequatexedventilation.
Thisxedventilationmustbeprovidedas
perAG601/AS5601Clause5.4to5.4.5/
NZ5261.
4. Theappliancemustnotbeinstalledwhere
curtains or other combustible materials
couldcomeintocontactwithit.Insome
cases,curtainsmayneedrestraining.
 Seebelowforminimumclearancesrequired.
5. Agasappliancemustnotbeconnectedto
achimneyueservingaseparatesolid-fuel
burningappliance.
•Mantles
Amantleisallowableprovidingthatit
conformstotheminimumclearanceof
300mabovethereandamaximumwidth
of50mm.
Foradditionaloverhanganadditional
100mmclearance(vertically)isrequiredfor
every50mmofaddeddepth.
Seediagrambelow.
300mm
300mm
300mm
1000mm
1/2X + 50
(150)
50 Maximum
at 300 above
X (200)
300mm Min
InstallerInformation-Location

11
Rinnai New Zealand LUMINA
NOTE: HEIGHT DOES NOT INCLUDE ANY HEARTH OR FLOOR COVERING UNDER THE UNIT
•MINIMUM CLEARANCE FROM INNER FLUE TO
 COMBUSTIBLEMATERIALMUSTBEGREATERTHAN50mm.
•MINIMUMFLUELENGTHMUSTBE3.6m
 VERTICAL.
• MAXIMUMFLUELENGTHRINNAIRECOMMEND
IS 8.0m.
•MINIMUM OF 1.2m OF VERTICAL FLUE IS REQUIRED
 BEFOREANYBENDSOROFFSETS.
InstallerInformation-FramingDimensions
InstallerInformation-CombustibleSurface
ClearanceandBendFlueInstallation

12
Rinnai New Zealand LUMINA
AFlueInstallationGuideandFlueTransitionareavailabletoassistwithueinginstallation.
TheFlueInstallationGuideactsasatemplateforaligningtheuewiththeappliancepriorto
installingtheappliance.Itthereforeenablesyoutoinstalltheuewithouttheapplianceand
isidealforwhenthewallliningistobecompletedbeforetheapplianceisinstalled.
Itisalsorecommenedforanyinstallationwithbendsorosets.
(Itisnotnecessaryforinstallationswheretheapplianceistobeinstalledpriortothewall
liningbeingcompleted.)
TheFlueTransitionisasleevethatsecurestheFluetotheFlueInstallationGuide.
(DetailedinstallationinstructionsaccompanytheFlueInstallationGuideandFlueTransition)
Note:TheFlueInstallationGuideisnotdesignedtosupporttheweightoftheFlue
System.NeithershouldtheweightoftheFlueSystembesupportedbytheAppliance
INSTALLATION WITH
FLUE INSTALLATION GUIDE
InstallerInformation-FlueInstallation
INSTALLATION WITHOUT
FLUE INSTALLATION GUIDE

13
Rinnai New Zealand LUMINA
•Rungassupply
Forpipesizing,refertoyourlocalgas
installationcodes.Coppersupplyshouldbe
runleavinga1/2”BSPTsocketconnectionat
thepositionshownonpage14.
•Purgesupplyofairanddebris
Allforeignmaterialssuchaslingsmustbe
purgedfromthegassupply,astheymaycause
thegascontrolvalvetomalfunction.
•Preparation
RefertotheLocationandFlueingsections
tomakesurethedecorativereplacecavity
issuitableforinstallationbeforecontinuing.
Placetheapplianceonaatsurface.
RemovethefourscrewsholdingtheFront
PanelAssemblyinplace(1).
DisconnecttheCat5CablefromControl
ReceiverttedontherearRHsideofFront
PanelAssembly(2).
RemovethetwoscrewsholdingtheFlue
CoverAssembly(3).RemovingtheFlue
CoverAssemblygivesinstalleraccessto
reachthelowerendoftheInnerFlueand
thereforeensurethattheFlueisproperly
insertedintotheSpigot.
RemovetheSteelFlexitubeandReducing
Flarefromthecarton.Makesurethatthe
SteelFlexitube,ReducingFlare,andGas
SupplyPipearecleanandfreeofdamage
andttogetherreadyforttingtothe
appliance.
•Installation
Slidetheappliancecarefullyintothecavity,
whilefeedingtheStainlessSteelFlexitube
throughthesupplyaccessopeningatthe
lefthandrear.Takecarenottodamage
theStainlessSteelFlexitubeoranyofthe
components inside the appliance while
slidingtheapplianceintothecavity.
InstallerInformation-InstallationProcedure
1.FrontPanelAssembly
2.ControlReceiver
3.FlueCoverAssembly
4.Reectors(Note:Installermust
 peelprotectivecoveringfrom 
 panelsbeforeinstalling)
5. DecorativeGrate(Note:The 
 DecorativeGrateissuppliedwith
 theLuminaBlackmodelsonly)

14
Rinnai New Zealand LUMINA
Therearetwolevellingscrewsinthebaseof
theapplianceheldinplacewithlocknuts.
Iftheappliancedoesnotsitatwheninplace,
itmaybenecessarytoadjustthese.
Forueinstallation,pleasefollowtheue
installationinstructionsonPage11&12.
Oncetheapplianceissittingat,attachitto
thewallusingfourholes(twoperside)inthe
frontanges.
• Fit appliance into place
Whentheapplianceisinplaceandproperly
secured, attach the Stainless Steel Flexitube
totheGasControlInletAdaptor.
NOTE:Oncompletionofworkagas
leaktestmustbecarriedout.
Useasoapysolutiononallgas
connections.Leakswillbevisiblewhen
thesoapysolutionformsbubbles.When
nished,wipesoapysolutionwitharagto
removeresidue.
InstallerInformation-InstallationProcedure
InstallerInformation-GasConnection

15
Rinnai New Zealand LUMINA
This appliance has a power cord with a three
pinplugsupplied.Thepowercordpasses
throughtheInsulatingBushinthelowerright
handsideofrearpanelandmustbeplugged
intoa230~240V,10Aearthedpowerpoint.
Thepowerpointmustnotbeabovetheunit.
Warning:Theelectricisolationswitch
mustbeaccessibleaftertheappliance
hasbeeninstalled.
Refertoanelectricianforlocalcodes.
RemoveCoals/RiverStones&granulesfrom
theaccessorybox.
StackCoals/RiverStonesevenlyintworows
of(ApproxGap15mm)ontopofCeramat
BurnerasshowninDiagramA.
Placeallthegranulesinthespace
betweentheCoals/RiverStonesevenly
ontopofCeramatBurner.Toavoidthe
GranuleDustgoingintotheCeramat,
don’tpourthegranules.
Takecarenottodropthegranulesonthebase
panel,whichcontainselectroniccomponents.
Stacktheremaining6Coals/RiverStones
ontopofthebottomlayerofCoals/River
StonesasshowninDiagramB.
WhileplacingtheCoals/RiverStonesextra
caremustbetakennottodamagethe
Ceramat(Blackbresontopoftheburner).
Pleasedonotoperatetheapplianceifyou
observeanydamagetotheCeramatduring
installationorafteruse.
Usingtheappliancewithdamaged
Ceramatcouldbedangerous.
Theburnermayneedtobereplaced.
InstallerInformation-ElectricalConnection
InstallerInformation-Coals/RiverStones
DON’TFORGETGRANULES
PLACE GRANULES ON TOP OF CERAMAT IN THE
SPACEBETWEENCOALS/RIVERSTONESEVENLY.

16
Rinnai New Zealand LUMINA
TESTING PROCEDURE
Turngassupplyonandplugtheunitintothe
powersupply.(Caution240V.)
TOCHECKBURNERPRESSURE
• RefertoDataPlate;theTechnical
Specicationsectioninthismanual.
• ConnecttheCAT5CabletotheControl
Receiverintherearrighthandsideofthe
FrontPanelAssembly.Don’ttFrontPanel
Assemblytotheapplianceyet.
•Loosen the Outlet Test Point screw and
attachmanometertothetestpoint.The
OutletTestPointisontherighthandsideof
GasControl(ShownBelow).
• Lightappliance,adjusttoHighame
settingandcheckpressure.
• Ifadjustmentsarenecessary,removethe
CapC.Pressureadjustmentscrewandnut
areonthefrontsideofGasControl(Shown
Below)andshouldbesettothepressures
onthedata-plate.
HighPressureSetting: Set the Proportional
OperatingValve(POV)tothemaximum
condition.Usea10mmspannertoscrewin
Nut A to increase the outlet pressure and screw
itouttodecreasethepressure.
LowPressureSetting:Turnothepower
tothePOV(bydisconnectingthePOVTest
Connectioninmainharness)and,keepthe
NutAstationary.Useascrewdriver6X1
bladetoscrewintheScrewBtoincrease
thepressureandscrewitouttodecreaseit.
Carefullyreplacethemodulatorplasticcap.
WARNING: To ensure the correct
operationofthePOVitisnecessary
that the plastic Cap C is returned to its
originallocation.
• Aftercheckingthepressure,turnthe
unito,removemanometerandtighten
thetestpointscrew.
•Reconnect POV Test Connection in the
mainharness.
• Turntheapplianceonandoafew
timestocheckignition.
• Whenyouaresatisedthatthe
applianceisworkingcorrectly,t
FlueCoverAssembly,andFrontPanel
AssemblybacktotheEngine.Fit2
ReectorstothesidesoftheBurner
Support-refertoitem4intheexploded
viewonpage13.NOTE:Ensureyoupeel
theplasticprotectivecoatingfromthe
twoSideReectors.
• Allburneraerationsarefactorypreset
andcannotbeadjusted.
• Ifyouareunabletogettheunit
tooperatecorrectly,referto
TroubleshootingonPage8before
contactingyourlocalservicecontactas
listedonPage20.
• Itmaytakeapproximately2hoursof
operationforthecoals/riverstonesto
achievetheirfullamepatternandglow.
• Duringtheinitialburninginperiod,some
smokeandsmellmaybeexperienced,
theapplianceshouldberunonthehigh
positioninawellventilatedroomuntil
thesedissipate.
InstallerInformation-TestandCommission
GasControl&IgnitionPackAssembly

17
Rinnai New Zealand LUMINA
Itistheresponsibilityoftheinstallertocheck
thatundernormaloperatingconditionsof
theappliance,alluegasesareexhaustedto
the outside atmosphere and that there is no
spillageofcombustiongasesintotheroom.
PleaserefertoAS5601/AG601,Clause
5.13.3.3/NZ5261.
Installationandcommissioningchecklist
Completetheinstallationchecklistandthe
installerdetailsonpage19andmakesurethat
thisInstructionBookisleftwiththecustomer.
Instructthecustomeronuseoftheunit
Explain to the customer about the use and
careoftheunit.Makesurethecustomer
understands the instructions and the
operationoftheappliance.
ThisDecorativerehasnoguard.Please
followtheSafetyInstructionsonPage4
topreventtheriskofinjuryfromburns
andnopartofthisapplianceshouldbe
permanentlyremoved.
Youngchildrenandtheinrm
shouldbesupervisedatalltimes.
Model:  LUMINA800BN/LUMINA800SSN(NG)
  LUMINA800BL/LUMINA800SSL(LPG)
  LUMINA1000BN/LUMINA1000SSN(NG)
  LUMINA1000BL/LUMINA1000SSL(LPG)
Description:  InbuiltRadiant/Convector,Decorativegasre   
  withforcedconvectionandnaturaldraftuesystem.
Gas Input Rate Model Combustion Natural Gas LPG
 LUMINA800 High 30MJ/hr  30MJ/hr
 LUMINA800 Low 18MJ/hr  18MJ/hr
 LUMINA1000 High 40MJ/hr  38MJ/hr
 LUMINA1000 Low 24MJ/hr  24MJ/hr
BurnerPressure  RefertoDataPlateontheBottomPanel
Data Plate:  Onbasepaneltotherighthandsideofgascontrol.
Gas Control:  SITmodulatinggasvalve.
Gas Connection:   1/2”BSPTmaleunion.
Flue Terminal:  Ø200mm(Inner)&Ø250mm(Outer)roundtopdischarge.
PowerSupply:  230~240V50Hzunitissuppliedwith3pin,10Ampplugand 
  supplylead,replaceonlywithRinnaiNZP/N6765B.
Fan:  Tangential2speed,powerrating60Watts.
CombustionSystem:  Ceramatburner.
Coals/RiverStones:  Ceramic.
IgnitionSystem:  ContinuoussparkintermittentPilotignitionsystem.
Operation:  Softtouchbuttonsandremotecontroltolightpilotandburners.
SafetyDevice:  Overheatthermalcutoutswitch&Tipoverswitch.
Combustion method:  Naturallyaspiratedburner.
InstallationType:  Inbuiltonly.
FlueRequirement:  Aminimumueheightof3.6misrequiredanditmaybe
  necessarytoextendbeyondthis,toamaximumof8.0m.
  Aminimumof1.2mofverticalueisrequiredbeforeanybends
  orosets.Amaxiumoftwo450bendsmaybeused.
InstallerInformation-TestandCommission
InstallerInformation-TechnicalSpecications

18
Rinnai New Zealand LUMINA
HI
LO
–
++
–
12
11
10
9
8
7
6
MODULATION COIL
(GAS VALVE)
Flame Rod
Sparker
5
4
2
3
1
PN 11780 ISSUE: A
CONTROL PANEL RECEIVER
CONTROL UNIT
IGNITION PACK 579 DBCSIT
FAN MOTOR
2
1
ACTIVE
NEUTRAL
AC 230V -240V
50 Hz
HI
LO
2
3
4
1
FUSE 3A 250V
GREEN/YELLOW
GREEN/YELLOW
YELLOW
GREY
GREY
BLACK
BLUE
RED
BLUE
WHITE
BROWN
BLUE
GREEN/YELLOW
CABLE CAT 5
NEUTRAL
ACTIVE
LOW
HIGH
IGN
RESET
MOD
NEUTRAL
RED
BLUE
WHITE
BROWN
BLUE
BLACK
1
2
POV TEST
CONNECTION
BLACK
13
14
SPARKER EARTH
OH SWITCH
YELLOW
1
2
BROWN
InstallerInformation-WiringDiagram
Ifthesupplycordisdamagedorrequiresreplacing,itmustbereplacedbythe
manufacturerorthemanufacturer’sagentorsimilarlyqualiedpersoninordertoavoida
hazard.ThesupplycordmustonlybereplacedwithagenuineRinnaisparepart.

19
Rinnai New Zealand LUMINA
1 Wasareplaceinspectioncarriedout?
 (i.e.clearances,combustiblesetc.)
2. WasaRinnaiapproveduesysteminstalled?
3. Hasspeciedgaspressuresbeencheckedandset?
4 AreCoals/RiverStoneslocatedcorrectly?
5. Havethegranulesbeenplacedevenlyontopoftheburner,
 freeofdustandpowder?
6. Hastheappliancebeentestredforcorrectoperation?
7. Istheend-userfullyawareofoperatingprocedure?
NO YES
Companyname:__________________________________________________________________
Installersname:___________________________________________________________________
Address:_________________________________________________________________________
________________________________________________________________________________
Phone:________________________________Mobile:___________________________________
Permitnumberforinstallation:______________________________________________________
Signed:_______________________________Date:_____________________________________
Installation/CommissioningChecklist
Installer Details

20
Rinnai New Zealand LUMINA
Formoreinformationaboutbuyingandlivingwith
rinnaigasappliancescall0800RINNAI(0800746624)
RinnaiNewZealandLimited
105PavilionDrive,AirportOaks,Mangere
POBox53177,AirportRetailCentre,Manukau2150
Email:[email protected].nz
www.rinnai.co.nz
AllRinnaiappliancesmeetorexceedthesafety
standardsrequiredbyNewZealandgasandelectrical
regulations.
Rinnaiisconstantlyimprovingitsproductsandas
suchspecicationsaresubjecttochangeorvariation
withoutnotice.
PART NUMBER 10737
Issue C
Customer Contacts
Lumina
RINNAI
